Product Update Date: 2018-09-17

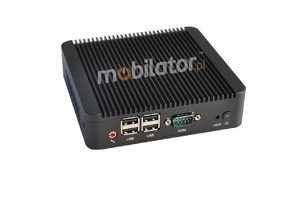

10x Industrial Fanless MiniPC mBOX Nuc Q100N-02 v.2

Name: 10x Industrial Fanless MiniPC mBOX Nuc Q100N-02 v.2
Brand: Mobilator
Price: 10768.81 PLN
Availability: InStock

Update Date: 2018.09.17

Guarantee 1 year (opt. 2)

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

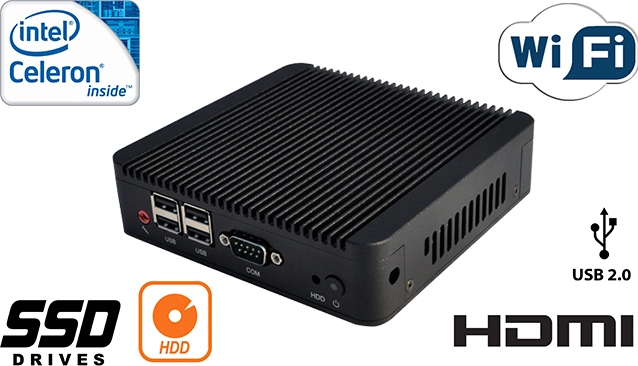

Industrial Fanless MiniPC mBOX Nuc Q100N

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

MBOX Nuc Q100N is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

Housing dimension are 135 (W) x128 (L) x45 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 0.82 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 16GB/32GB/64GB/128GB SSD. Support together: mSata SSD and 2.5 inch SSD/HDD - SATAIII.

Industrial Fanless MiniPC mBOX Nuc Q100N

go top…

menu…

Communication & Connectors

Integrated card - Intel RTL8111E LAN and WiFi module allow connection to the network. The computer is equipped with: one LAN port, one COM(RS232) port, one VGA output, five USB 2.0 ports, one HDMI output one way audio, one microphone input.

Industrial Fanless MiniPC mBOX Nuc Q100N

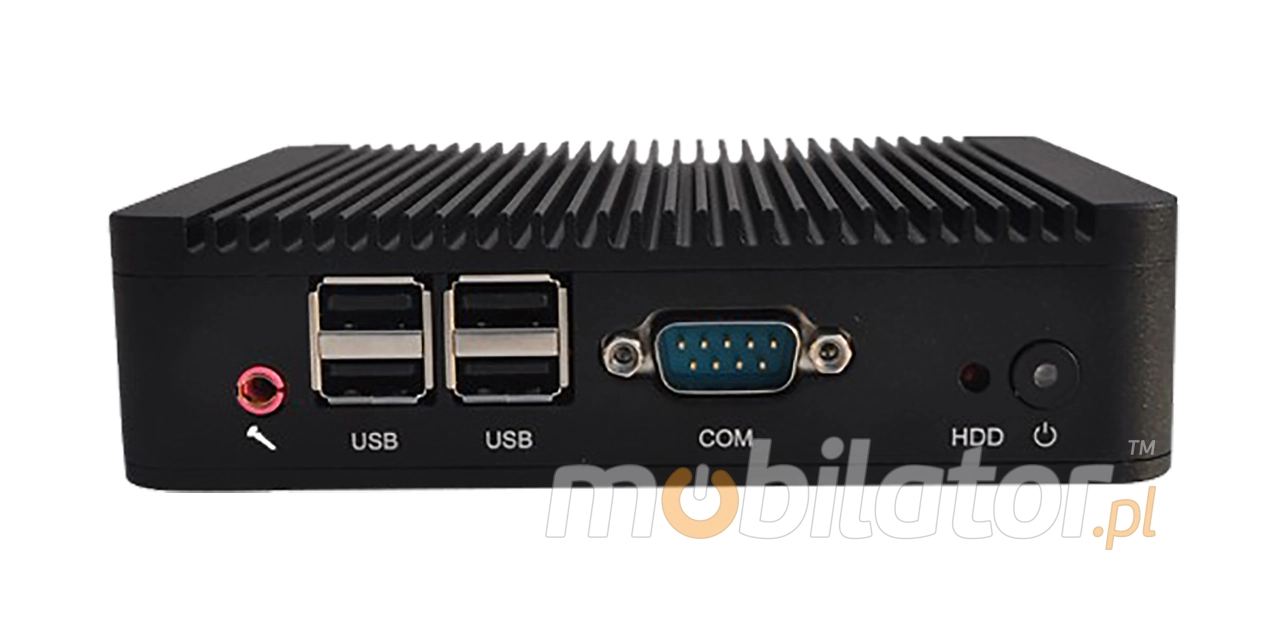

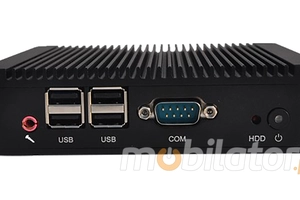

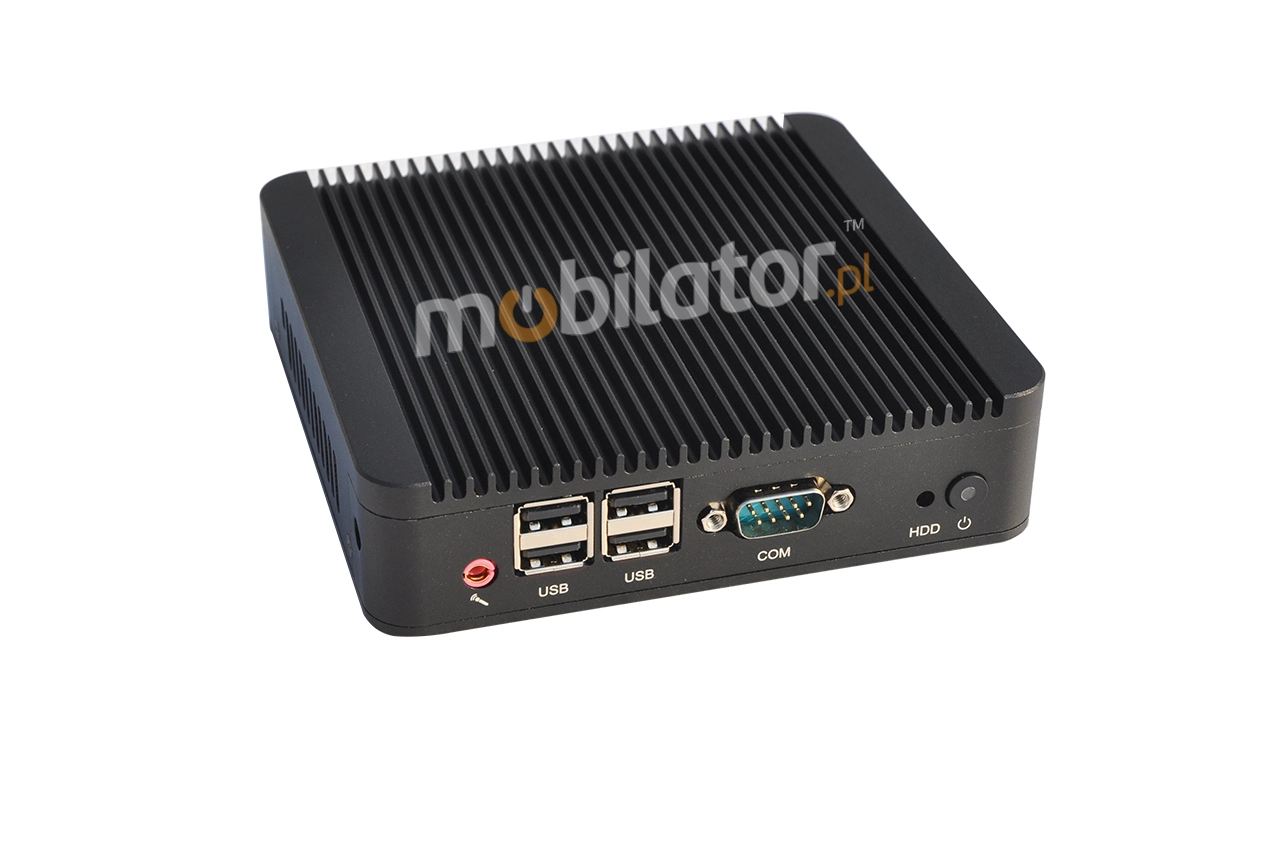

1. 1x Mic		3. 1x COM (RS232)
2. 4x USB 2.0		4. Power ON/OFF

Industrial Fanless MiniPC mBOX Nuc Q100N

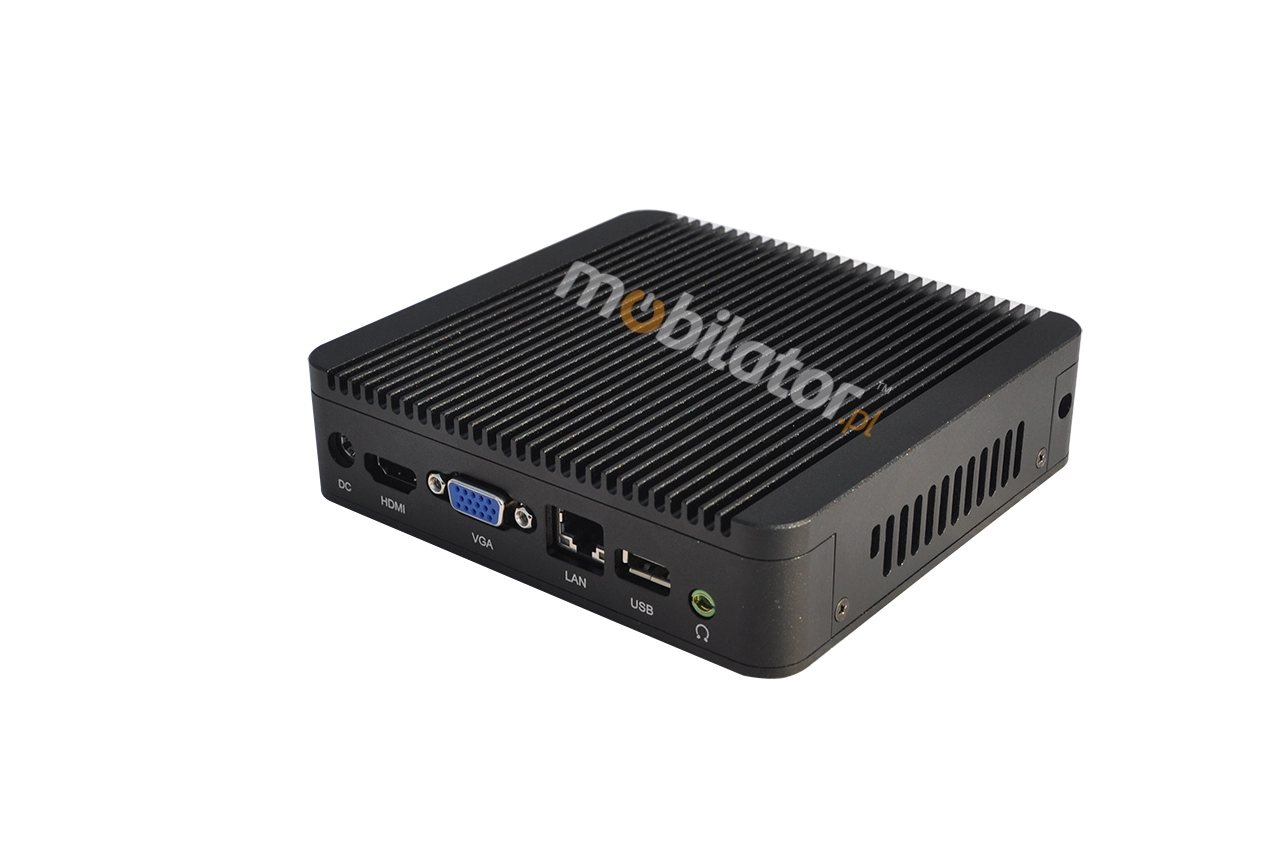

1. DC-IN 12V		4. 1x RJ-45
2. 1x HDMI		5. 1x USB 2.0
3. 1x VGA		6. 1x Audio

Cooling

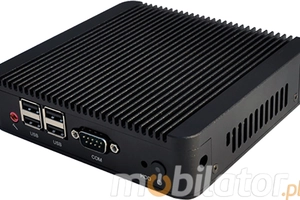

The industrial fanless MiniPC MBOX Nuc Q100N uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… menu…

Application

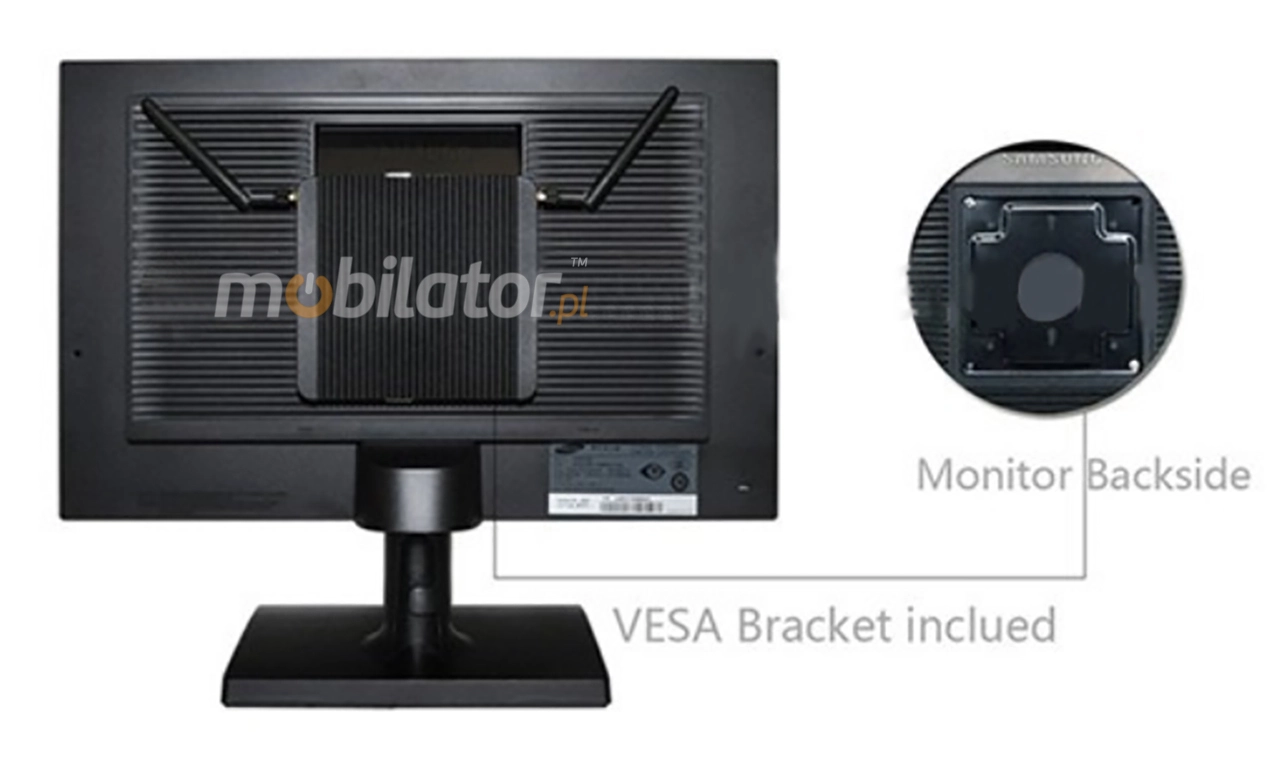

Industrial MiniPC Series MBOX Nuc Q100N are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Industrial Fanless MiniPC mBOX Nuc Q100N of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Fanless MiniPC mBOX Nuc Q100N

Areas of use of industrial MiniPC

Digital Engine

Industrial Fanless MiniPC mBOX Nuc Q100N

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Industrial fanless MiniPC MBOX Nuc Q100N by to five USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless MBOX Nuc Q100N can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Fanless MiniPC mBOX Nuc Q100N

go top…

menu…

Specifications

Dimension	H: 45 mm L: 128 mm W: 135 mm
Weight	0,82kg
Processor	Intel Celeron 1007U (2x1,5GHz)
Chipset	Intel NM70
RAM Memory	2GB DDR3
Graphic Card	Intel HD Graphics
Sound Card	Realtek ALC662
WLAN	Intel RTL8111E Lan
Connectors	1x COM(RS232) 1x wyjście 12V DC_JACK 5x USB 2.0 1x RJ-45 1x wyjście Audio 1x HDMI 1x Mic 1x VGA

Others
Colour Black, Aluminum
Chipset
Intel NM70
CPU Support
-----
Installed CPU
Intel Celeron 1007U (2x1.5GHz)
Memory Support
2GB DDR3 (can up to 4GB)
Installed Memory
2GB DDR3
Graphic Card
Intel HD Graphics
Storage (HDD) Support
-----
Installed Storage (HDD)
32GB SSD (opc. SSD + 2,5" SSD/HDD)
CD/DVD Drive
-----
LAN
Intel RTL8111E Lan
Wireless LAN card
Yes
Bluetooth
No
3G
No
TV Tuner
-----
Watch Dog Timer
0~255 sec
Front Panel (ports)
Power ON/OFF,
 4x USB 2.0,
 1x COM(RS232),
 1x Mic
Rear Panel (ports)
1x Audio,
1x RJ-45,
 1x HDMI,
1x VGA,
 1x USB 2.0
Power
12V
Supported OS
Microsoft Windows: 7/8/8.1, Linux
Installed OS
-----
Dimensions
135 x 128 x45  mm
Weight
0.82 kg
Expansion
-----
Fanless
Yes
Humidity
0 ~ 95%
Temp
0 - 50 ℃
IP Norm
-----
Storage temperature
-15 - 70 ℃
Responsible Entity / Distributor
