Industrial Fanless |
Description
Housing dimension are 135 (W) x128 (L) x45 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 0.82 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

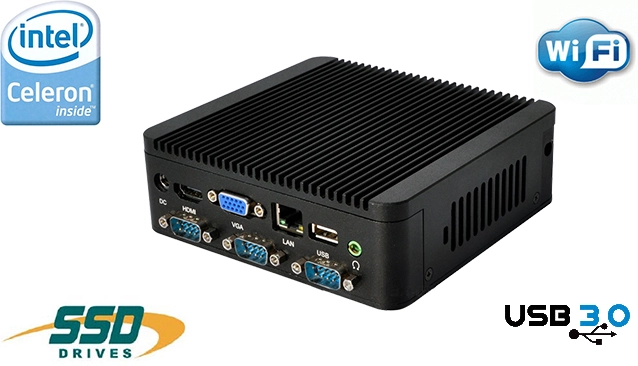

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 16GB/32GB/64GB/128GB SSD and 500GB HDD. Support together: mSata SSD and 2.5 inch SSD/HDD - SATAIII.
|
|
|
Communication & Connectors |
|

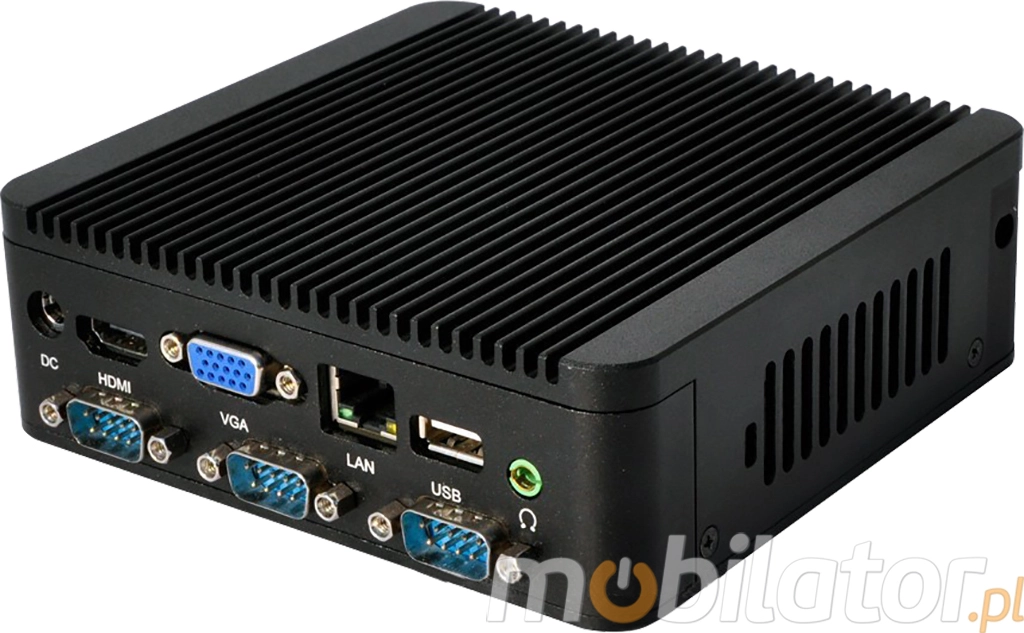

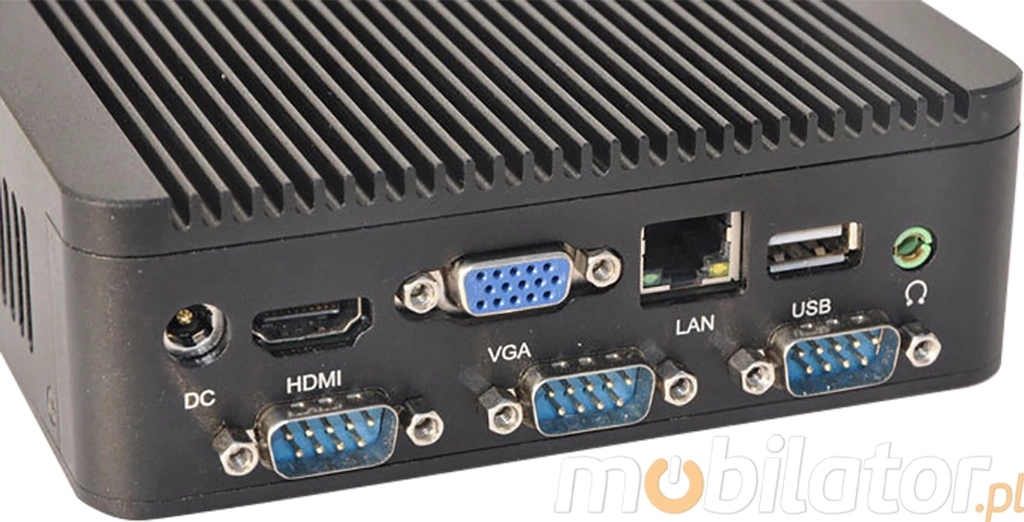

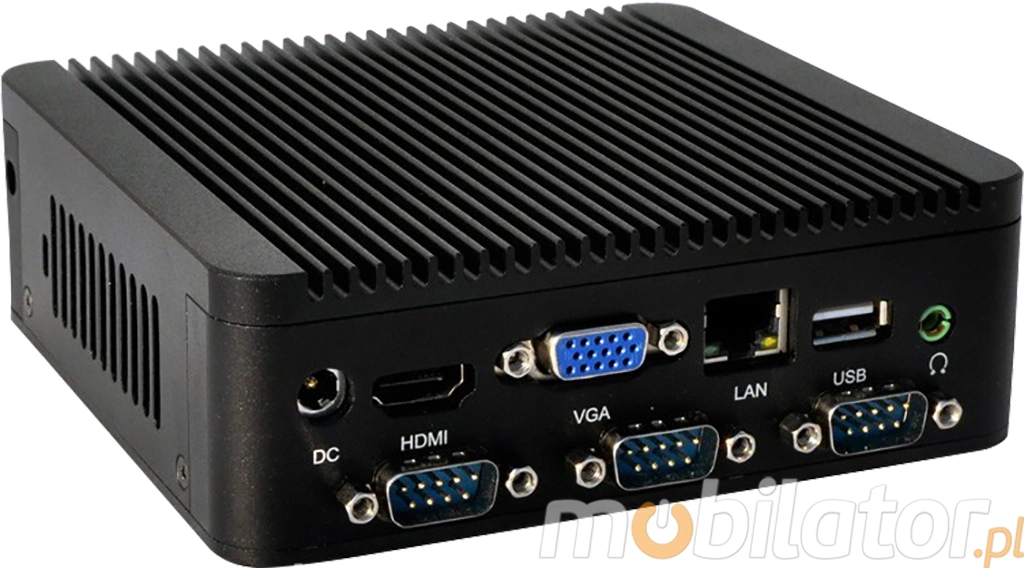

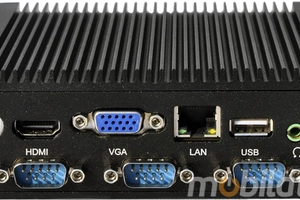

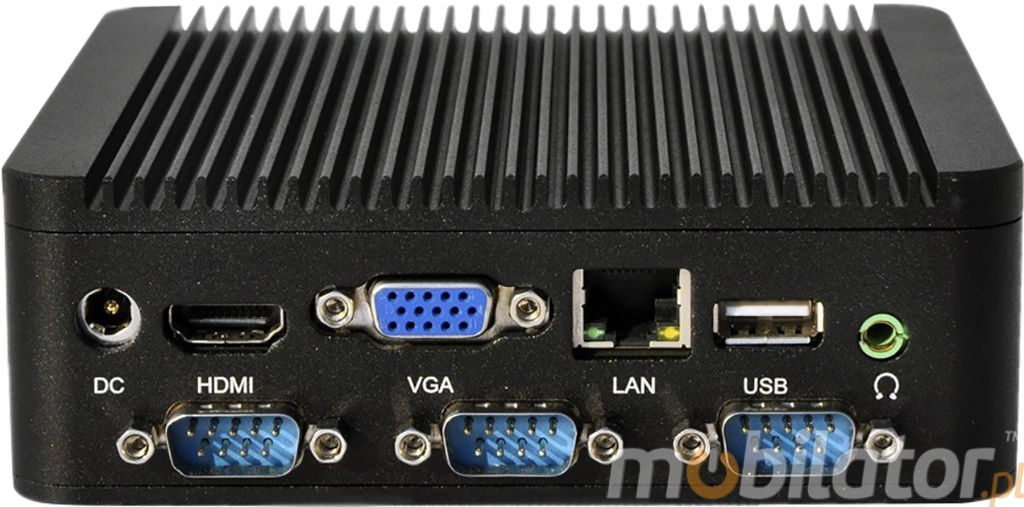

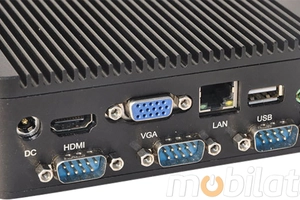

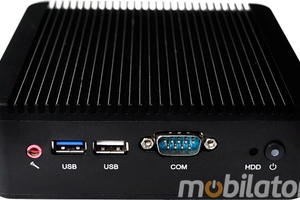

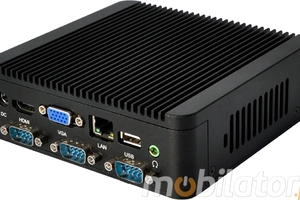

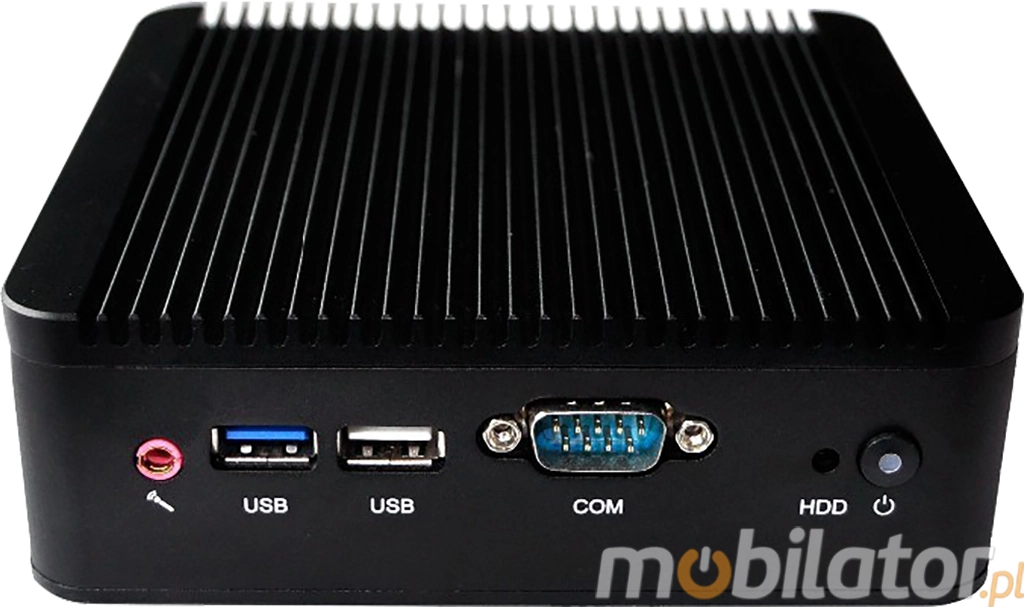

Integrated card - Intel RTL8111E LAN and WiFi module allow connection to the network. The computer is equipped with: one LAN port, four COM(RS232) ports, one VGA output, two USB 2.0 ports, one USB 3.0 ports, one HDMI output one way audio, one microphone input.
|
Cooling
The industrial fanless MiniPC MBOX Nuc Q180C uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.
|
|
;)
;)
;)
;)
;)
