Product Update Date: 2024-10-08

3 YEARS WARRANTY Industrial Computer Fanless MiniPC HyBOX 04PMF-i5-3317u v.2

Name: 3 YEARS WARRANTY Industrial Computer Fanless MiniPC HyBOX 04PMF-i5-3317u v.2
Brand: Mobilator
Price: 503.48 PLN
Availability: InStock

+25

Update Date: 2024.10.08

Guarantee 3 years

Net

409.34 €

Gross

503.48 €

Buy now!

Negotiate the price

								Ask about the product

 Product card

								Recommend to a friend

								Store

								Compare

Product availability 14 - 20 workdays

Przemysłowy Komputer Fanless MiniPC RS232 USB 3.0 COM LAN RJ-45 HDMI VGA Mini Komputer

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless

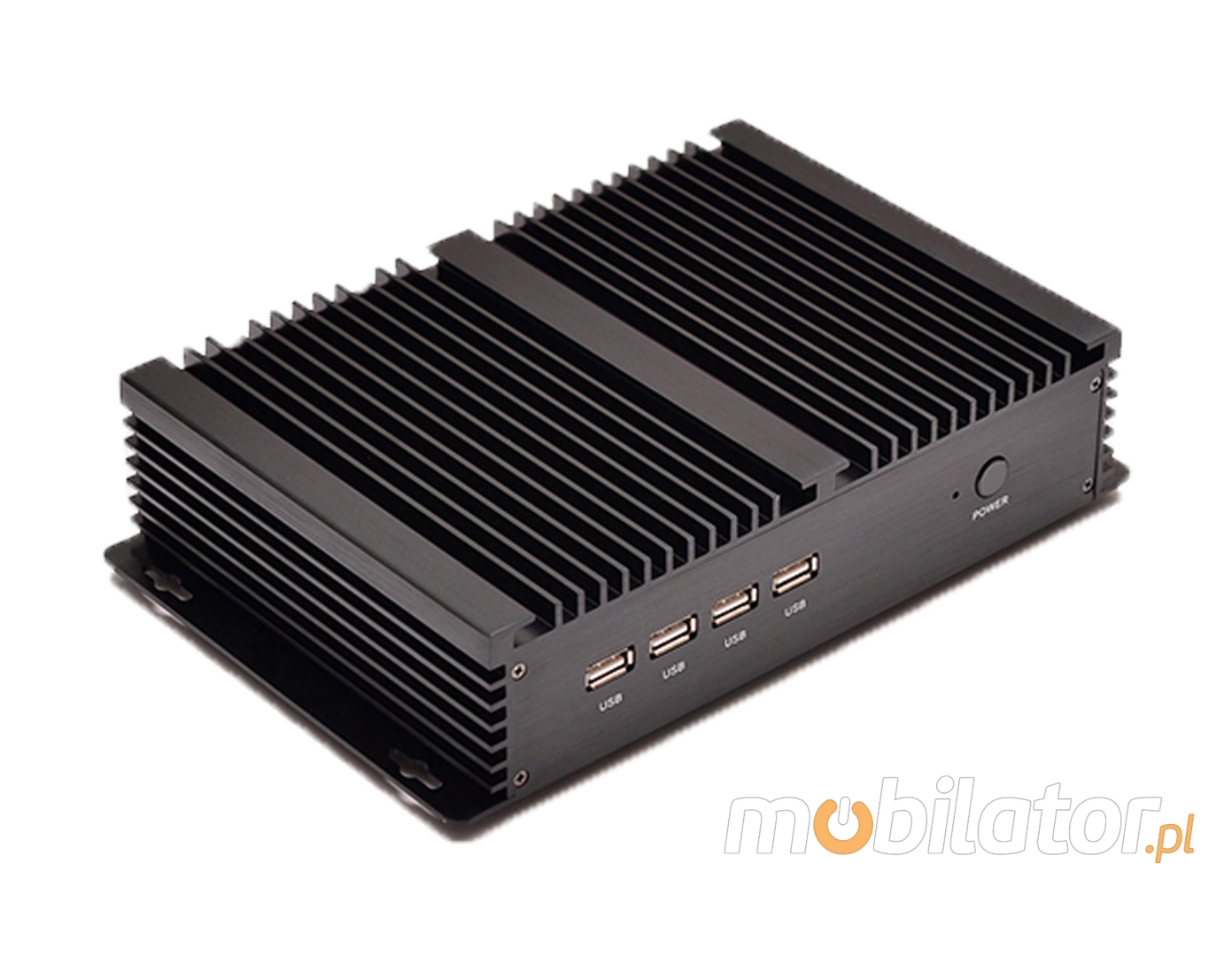

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

MiniPC Nuc HyBOX 04PMF-i5-3317u is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

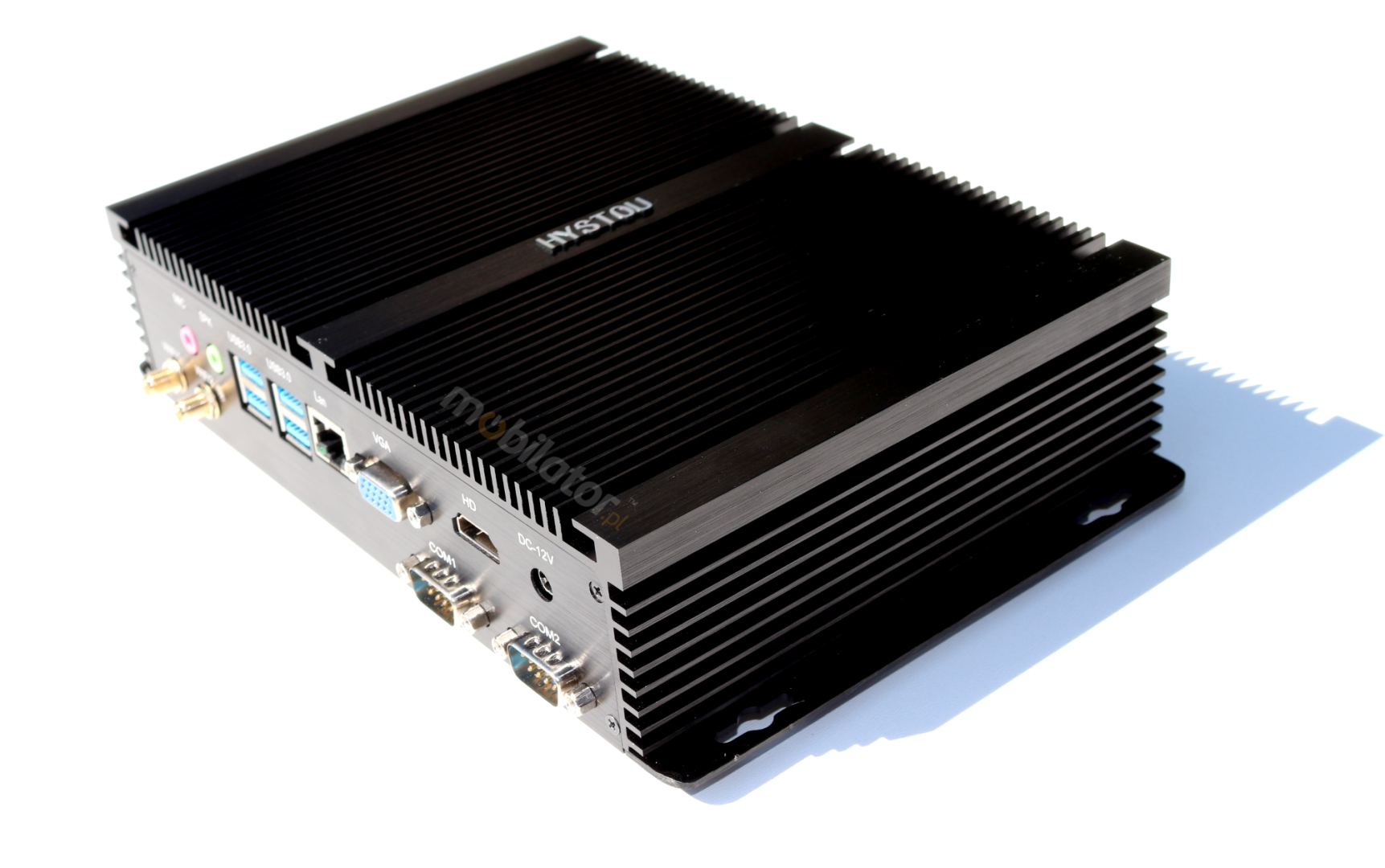

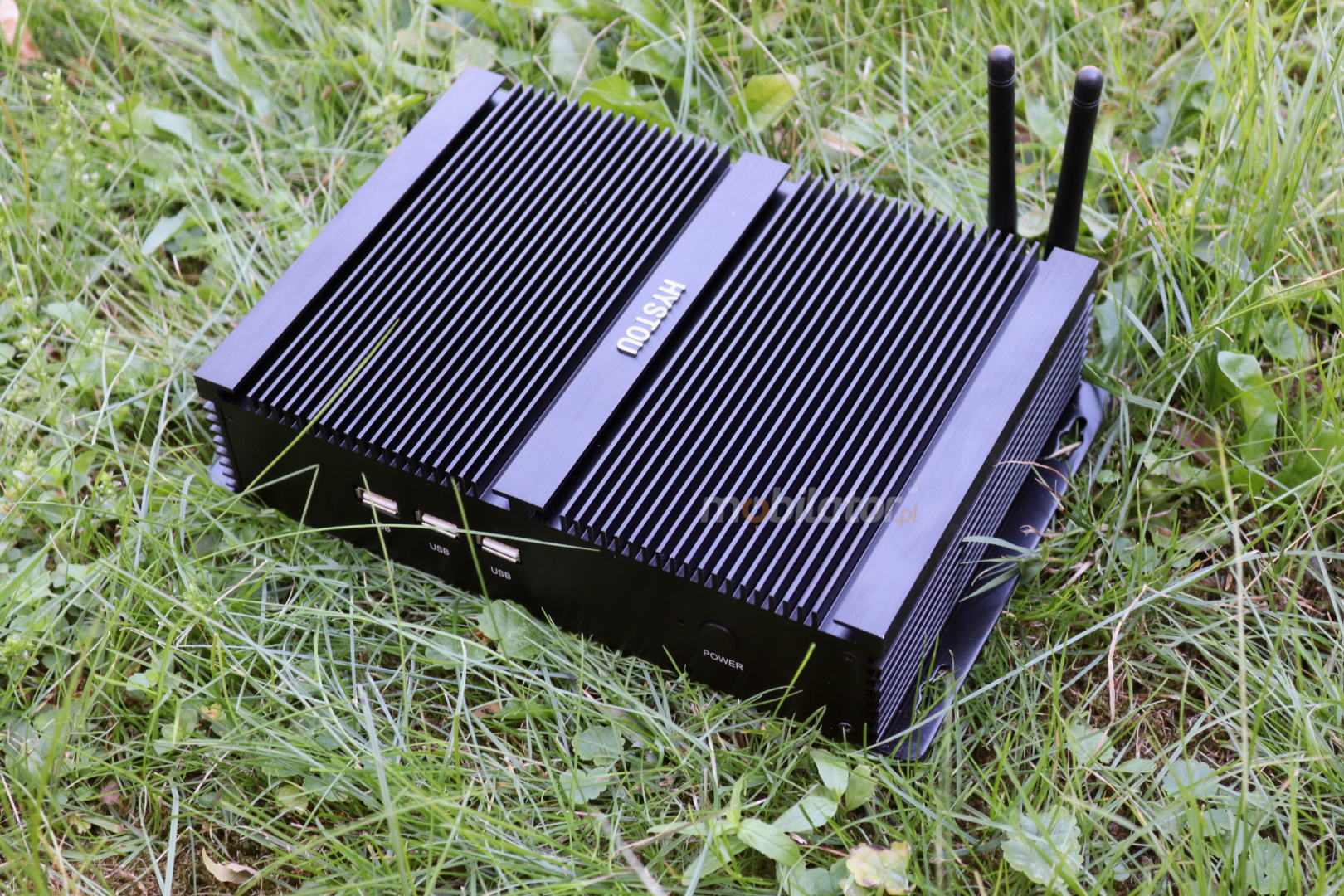

Housing dimensions are 234 (W) x150 (L) x50 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 4GB/8GB DDR3L memory. Integrated Intel HD Graphics 4000 video and audio Intel Display Audio allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 64GB/128GB/256GB SSD and 500GB/1TB/2TB HDD.

The 3-year limited warranty does not apply to RAM and hard disk drive, which is provided with a separate one-year limited warranty!

Przemysłowy Komputer Fanless MiniPC RS232 USB 3.0 COM LAN RJ-45 HDMI VGA Mini Komputer

go top…

menu…

Communication & Connectors

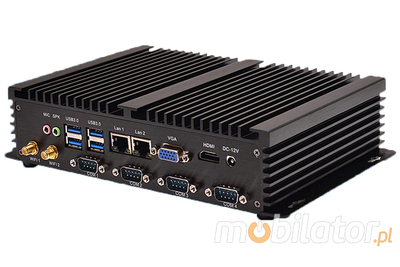

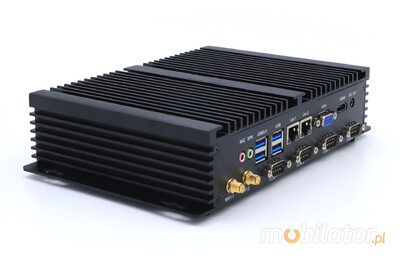

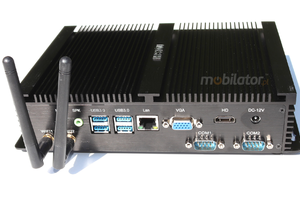

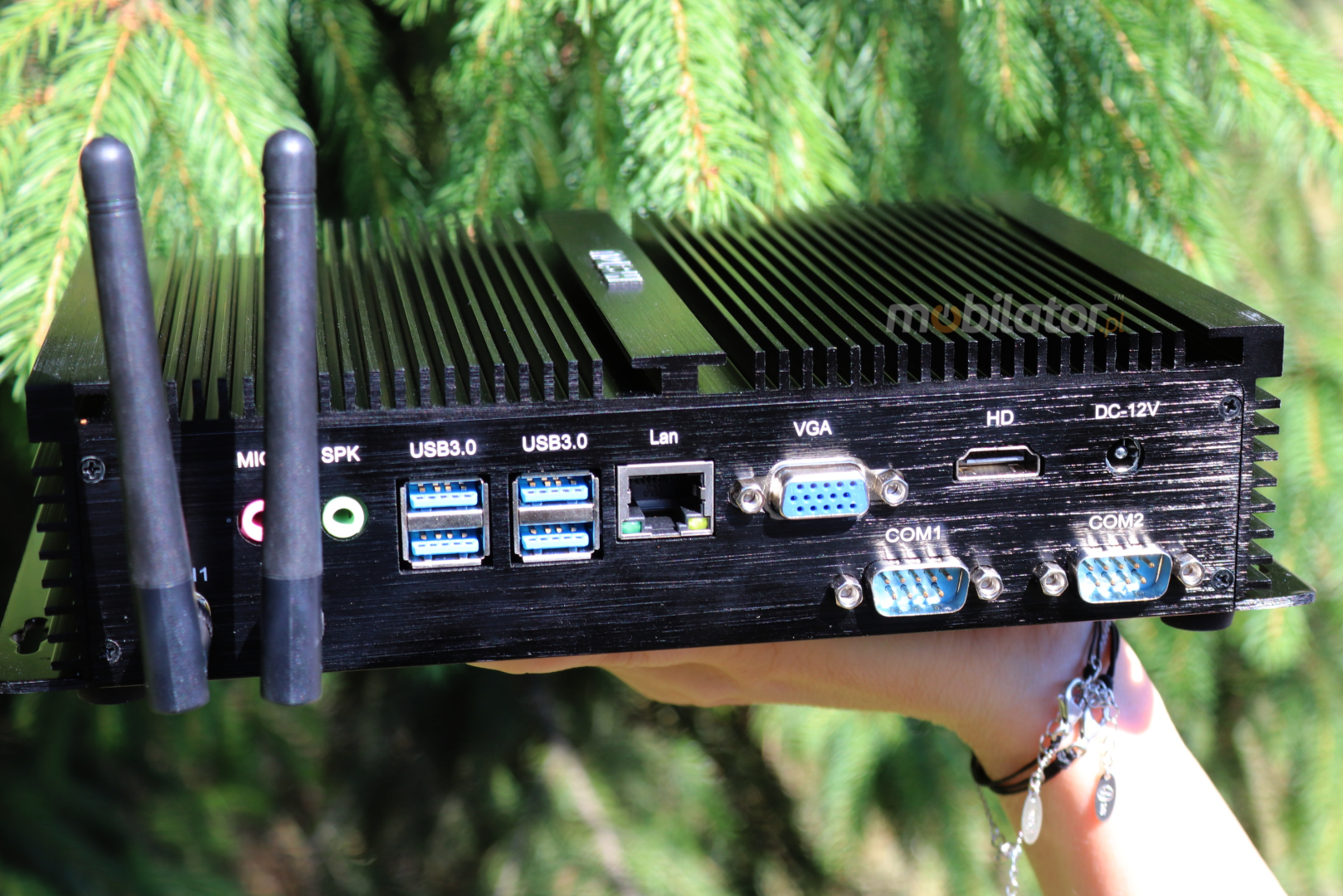

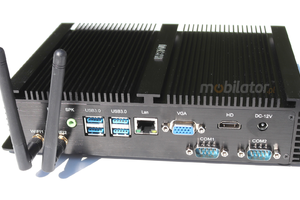

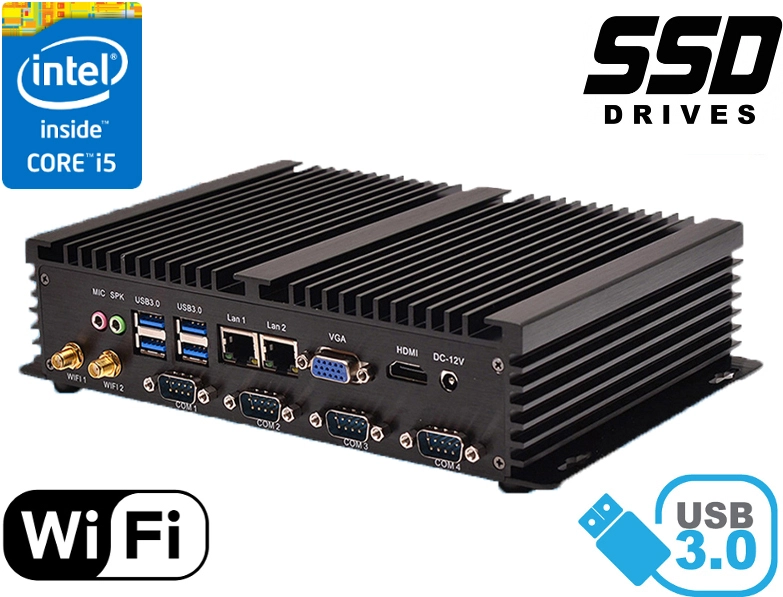

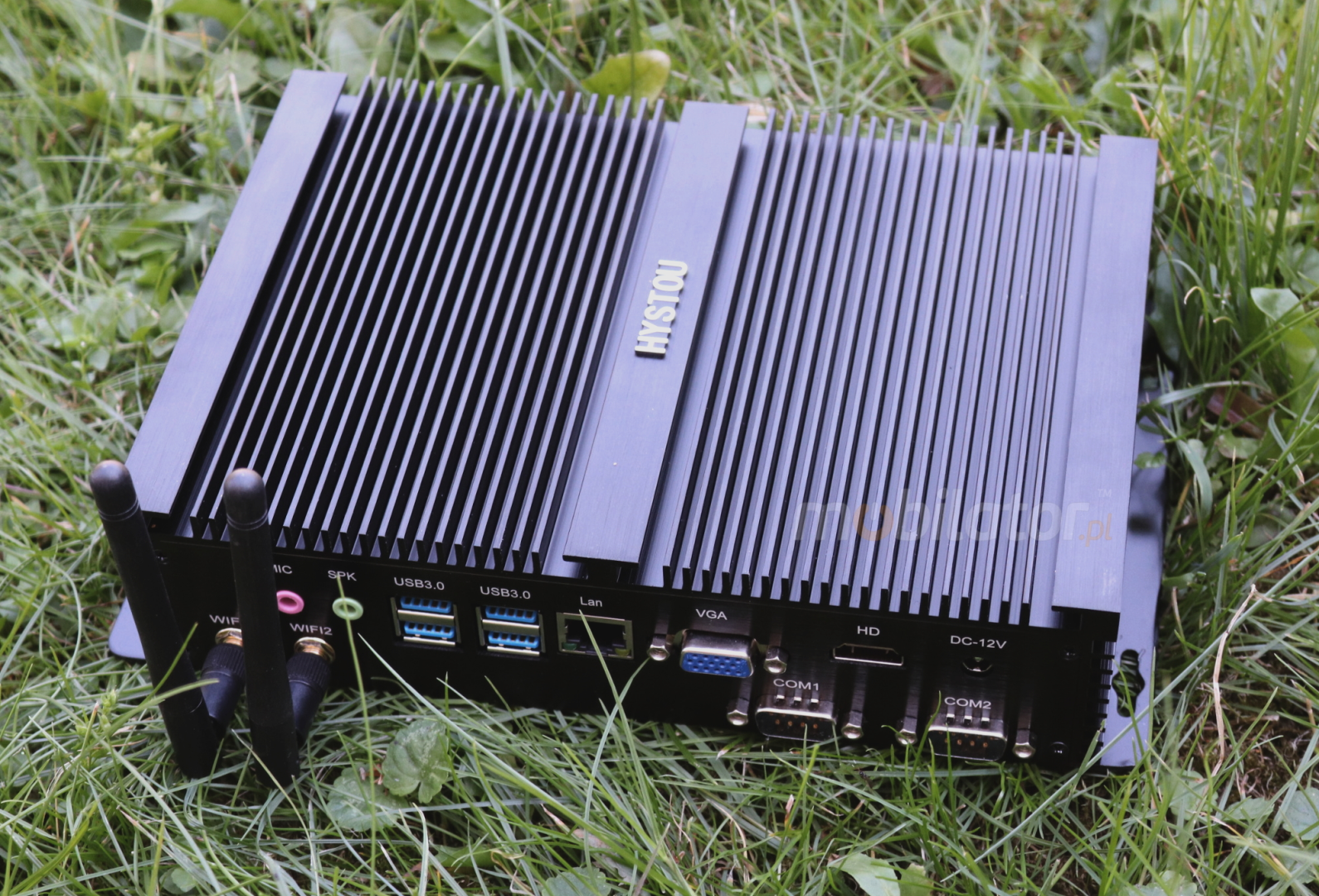

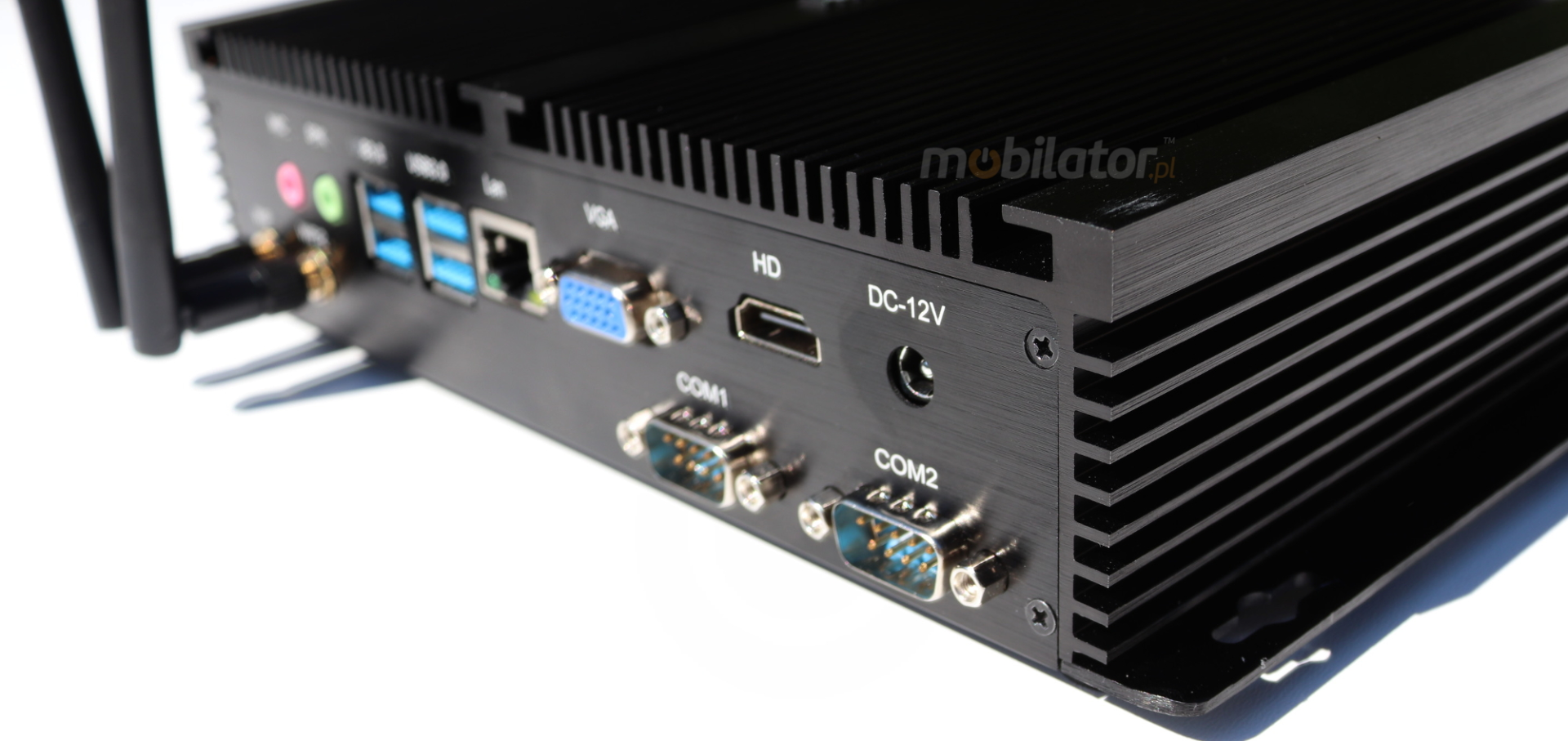

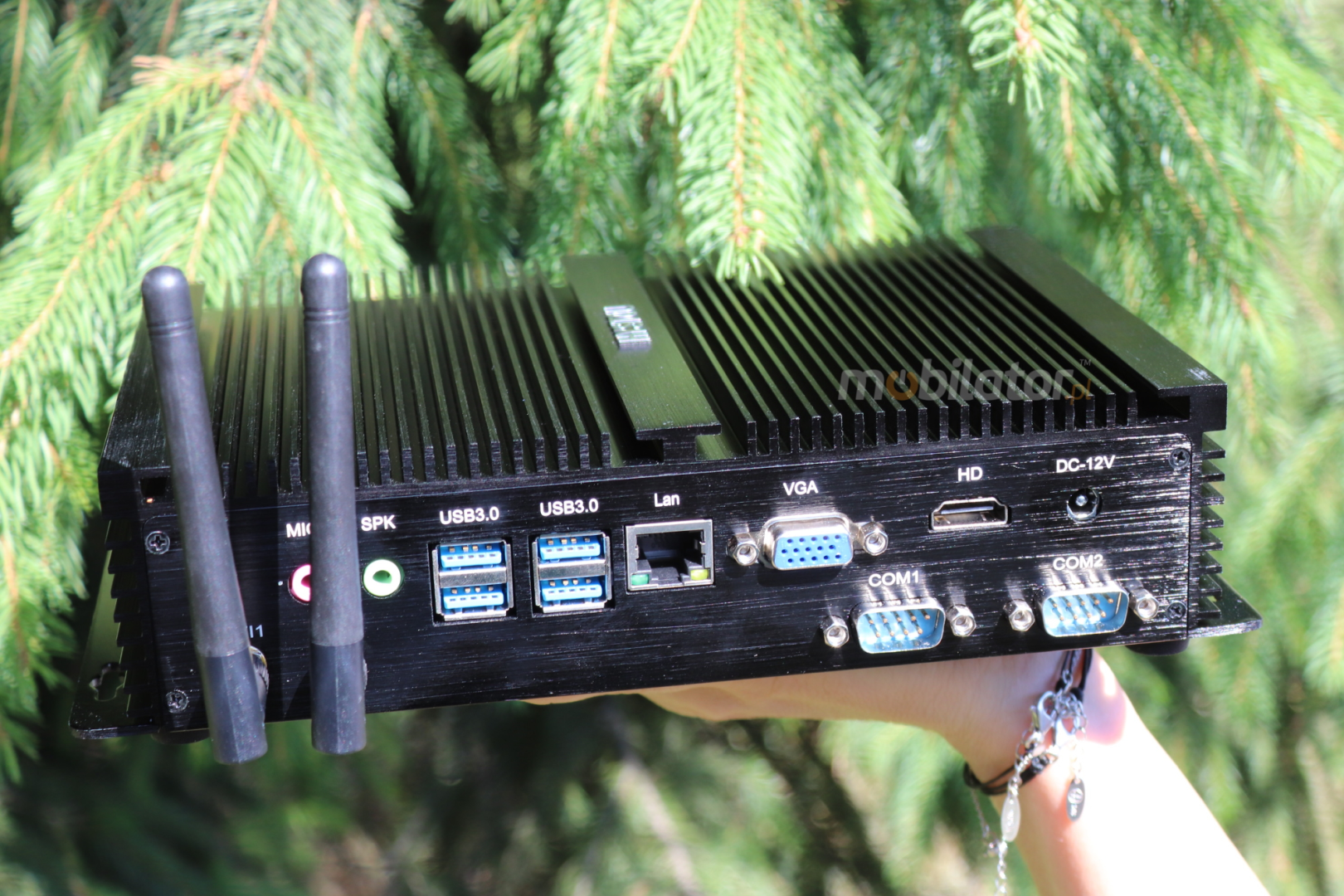

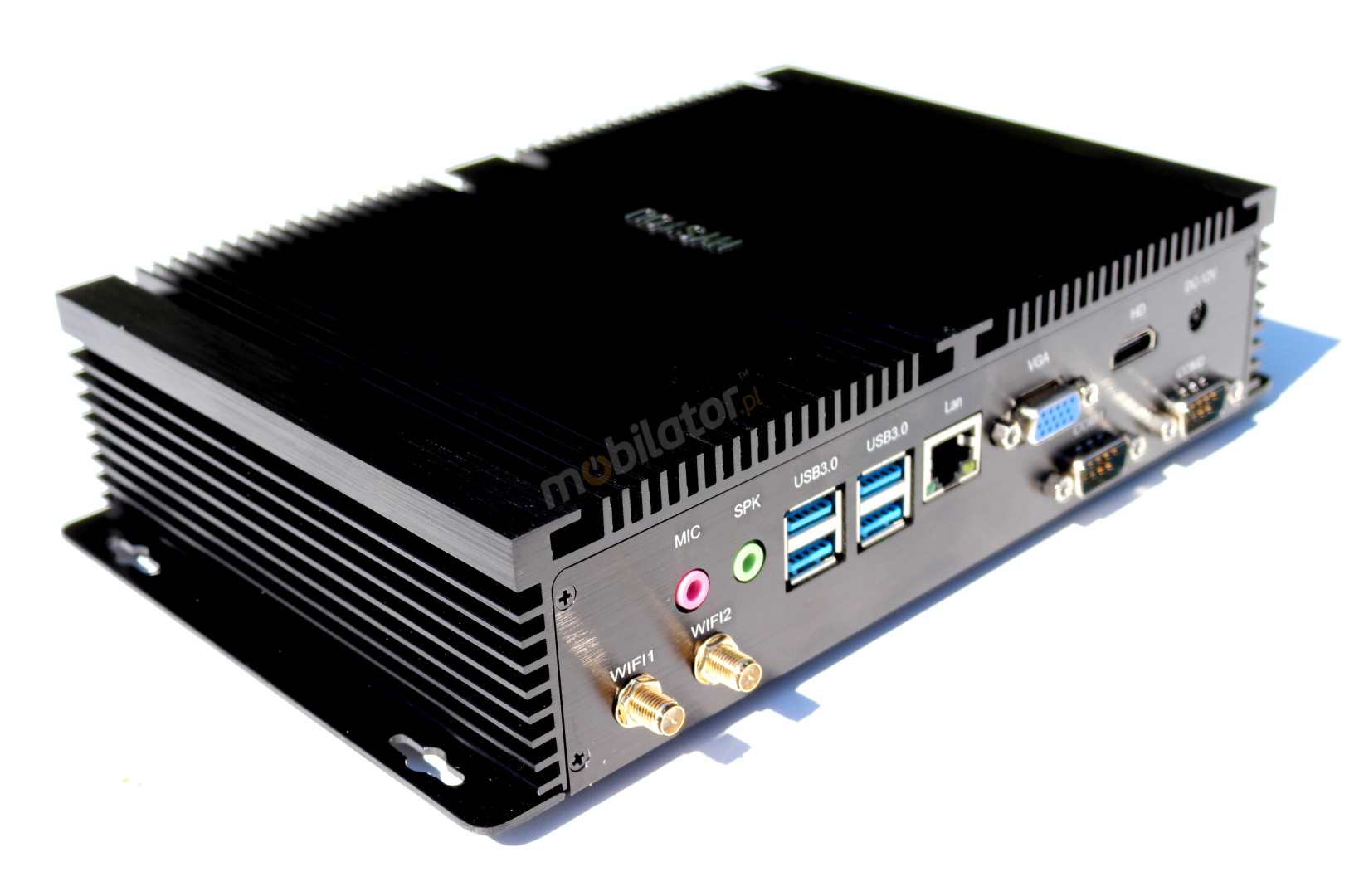

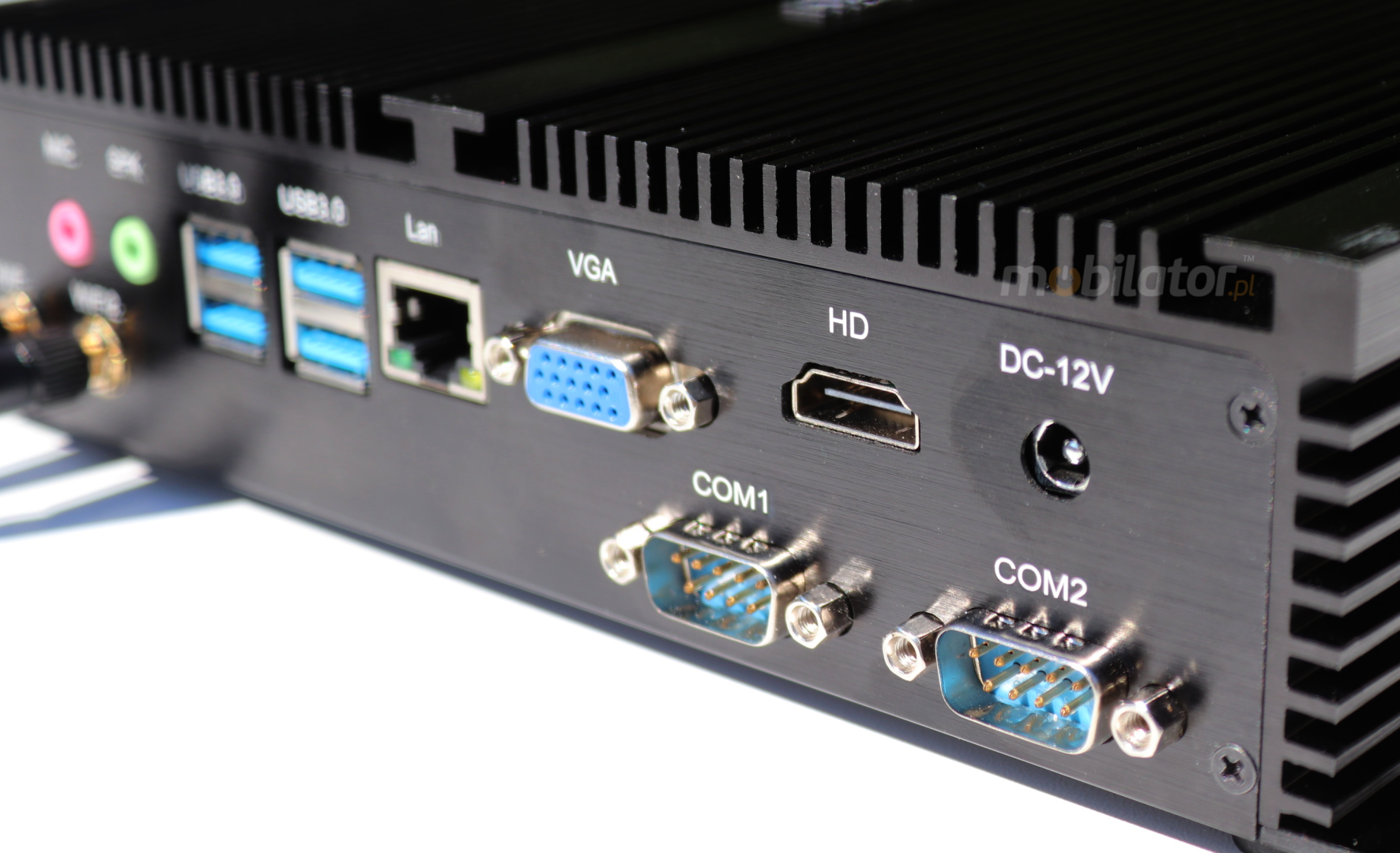

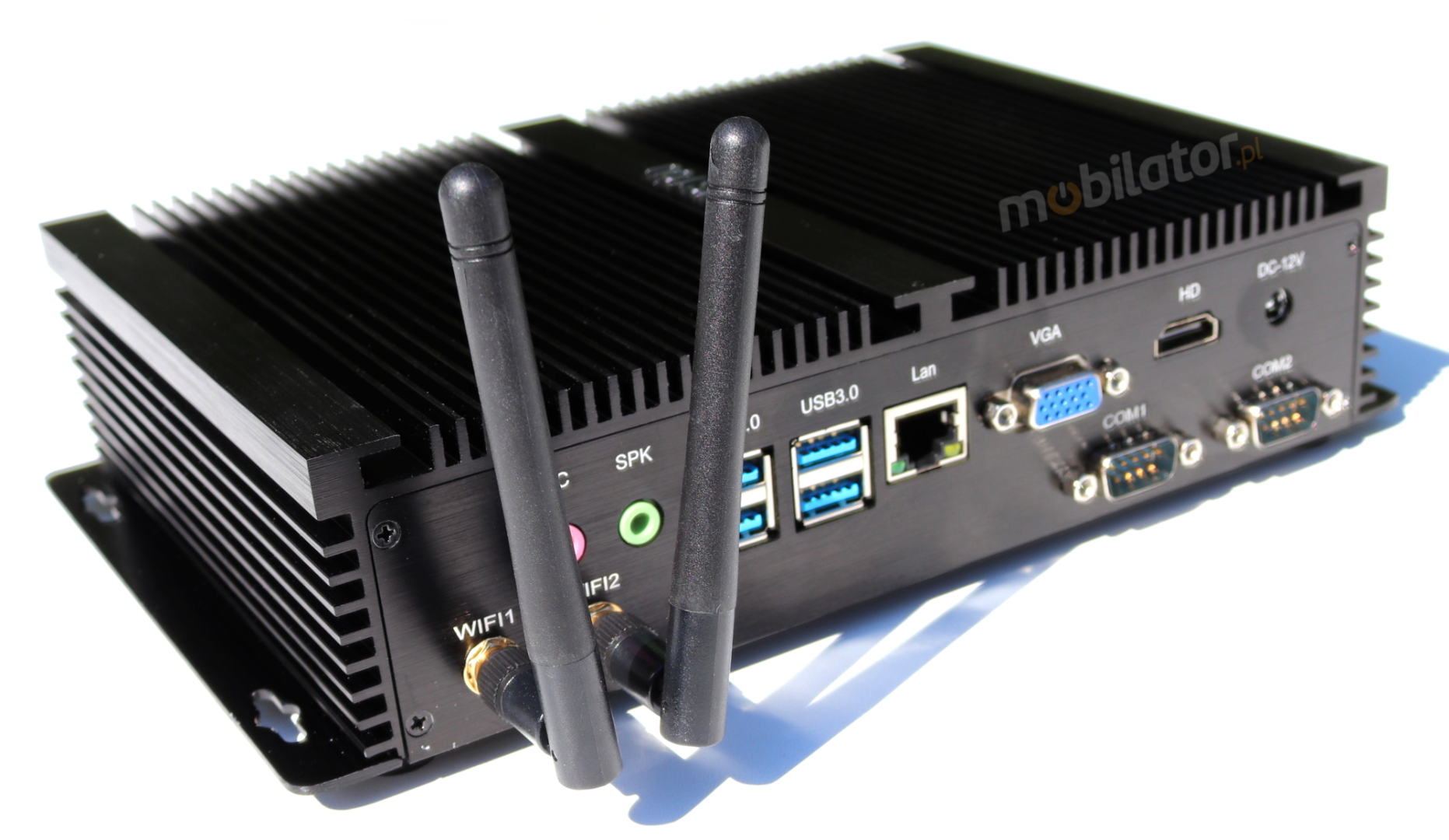

Integrated card - Intel 82574L Gigabit NIC and the Wi-Fi module allow connection to the network. The computer is equipped with: two LAN ports, one VGA port, one HDMI port, four USB 3.0 ports, four USB 2.0 ports, four COM(RS232) ports, one Mic and one Speaker port and a built-in connector on the motherboard: SATA port and mSATA port.

Przemysłowy Komputer Fanless MiniPC RS232 USB 3.0 COM LAN RJ-45 HDMI VGA Mini Komputer

Cooling

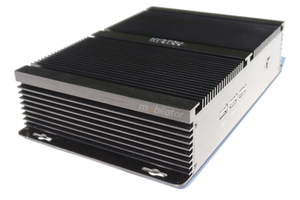

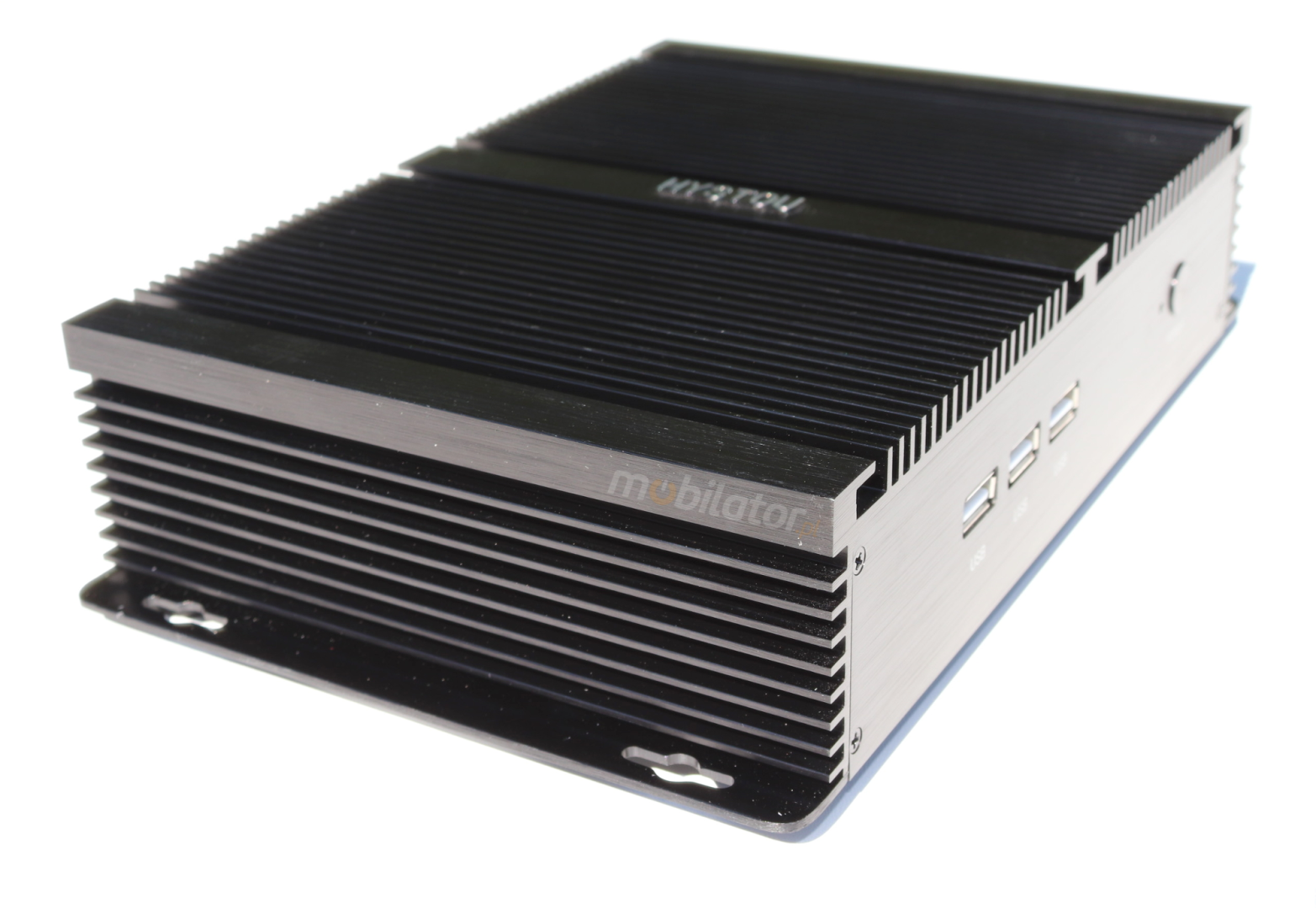

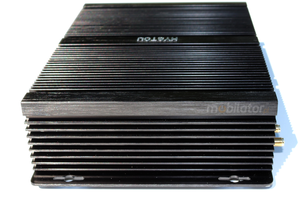

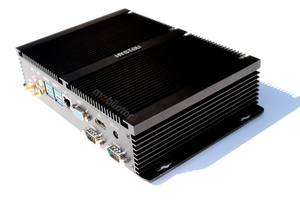

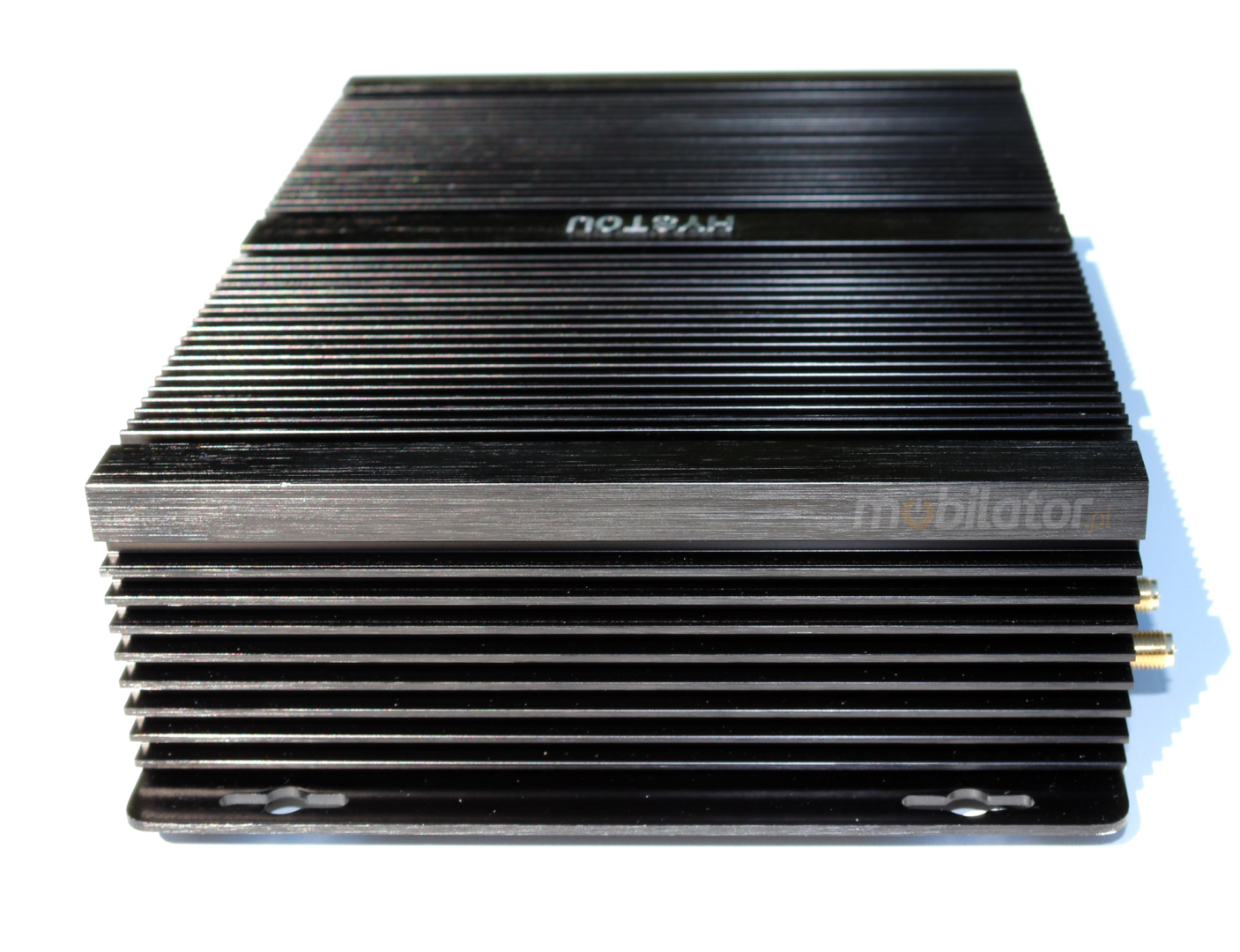

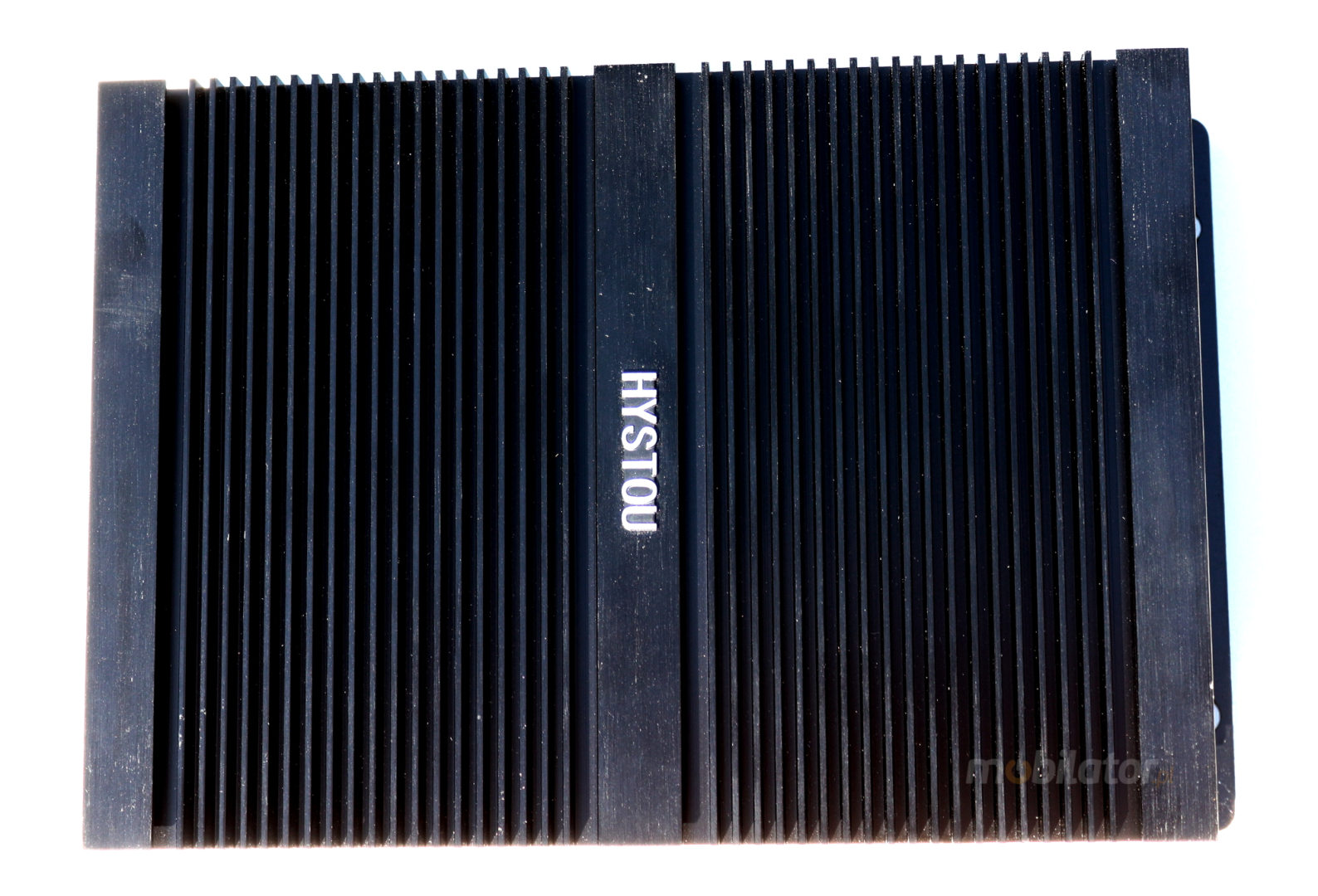

The industrial fanless MiniPC HyBOX 04PMF-i5-3317u uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go top… menu…

Application

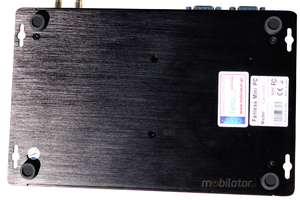

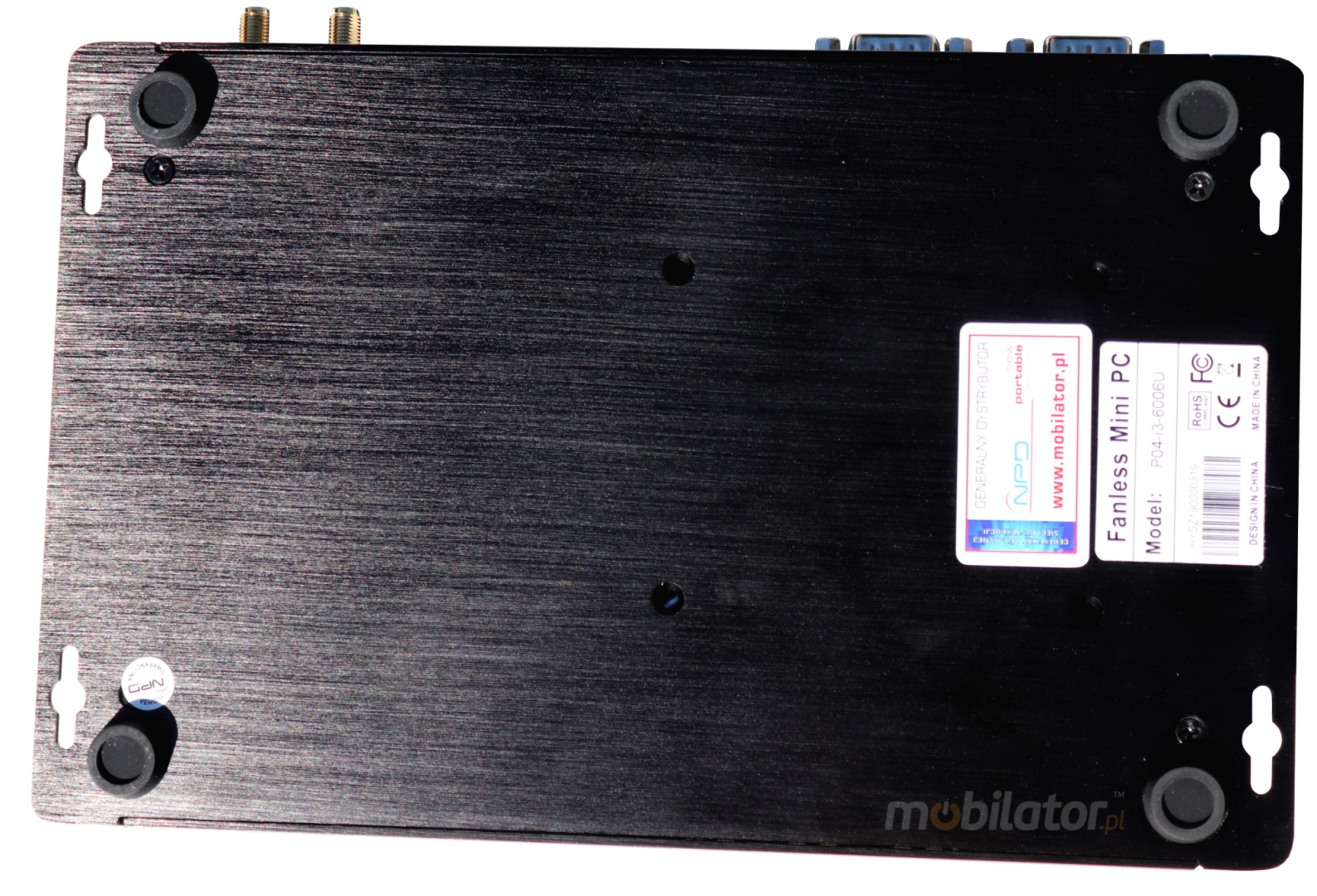

Industrial MiniPC HyBOX 04PMF-i5-3317u are based on high-performance quad-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of HyBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Przemysłowy Komputer Fanless MiniPC RS232 USB 3.0 COM LAN RJ-45 HDMI VGA Mini Komputer of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Computer Fanless MiniPC RS232 USB 3.0 COM LAN RJ-45 HDMI VGA Mini computer

Areas of use of industrial MiniPC

Digital Engine

Przemysłowy Komputer Fanless MiniPC RS232 USB 3.0 COM LAN RJ-45 HDMI VGA Mini Komputer

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Industrial Computer Fanless MiniPC RS232 USB 3.0 COM LAN RJ-45 HDMI VGA Mini computer

Magazine

Industrial fanless MiniPC HyBOX 04PMF-i5-3317u by USB and COM ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC HyBOX 04PMF-i5-3317u can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Computer Fanless MiniPC RS232 USB 3.0 COM LAN RJ-45 HDMI VGA Mini computer

go top…

menu…

go top… menu…

Specifications

Dimension	H: 50 mm L: 150 mm W: 234 mm
Processor	Intel Core i5 3317U(2x1.7GHz)
Chipset	Intel express chipset
RAM Memory	4GB DDR3L
Graphic Card	Intel HD Graphics
Sound Card	Intel Display Audio
WLAN	Intel 82574L Gigabit NIC
Connectors	1x 12V DC Jack 4x USB 3.0 4x USB 2.0 2x RJ-45 LAN 1x VGA 1x HDMI 1x Audio 1x COM 1x Mic 1x Speaker Wi-Fi

Supported OS
Microsoft Windows: XP/7/8/8.1/10 Linux
Installed OS
-----
Chipset
Intel QS77 Express
CPU Support
-----
Installed CPU
Intel Core i5 3317U (2x1.7GHz)
Graphic Card
Intel HD Graphics
Memory Support
DDR3L (max. 8GB) 1600MHz SO-DIMM
Installed Memory
4GB DDR3L (1 year warranty)
Storage (HDD) Support
-----
Installed Storage (HDD)
128GB SSD (1 year warranty)
IP Norm
-----
Temp
X ～100℃
Storage temperature
X ～100℃
Humidity
10 ~ 85%
Others
Color Black
LAN
2x Intel 82574L Gigabit NIC
Wireless LAN card
Yes
3G
-----
Bluetooth
-----

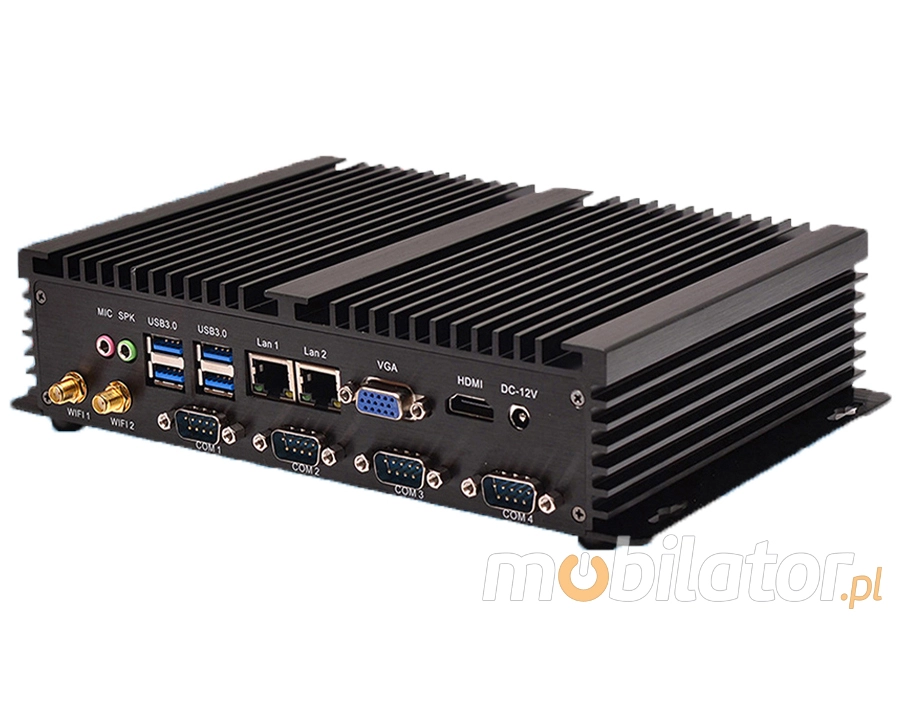

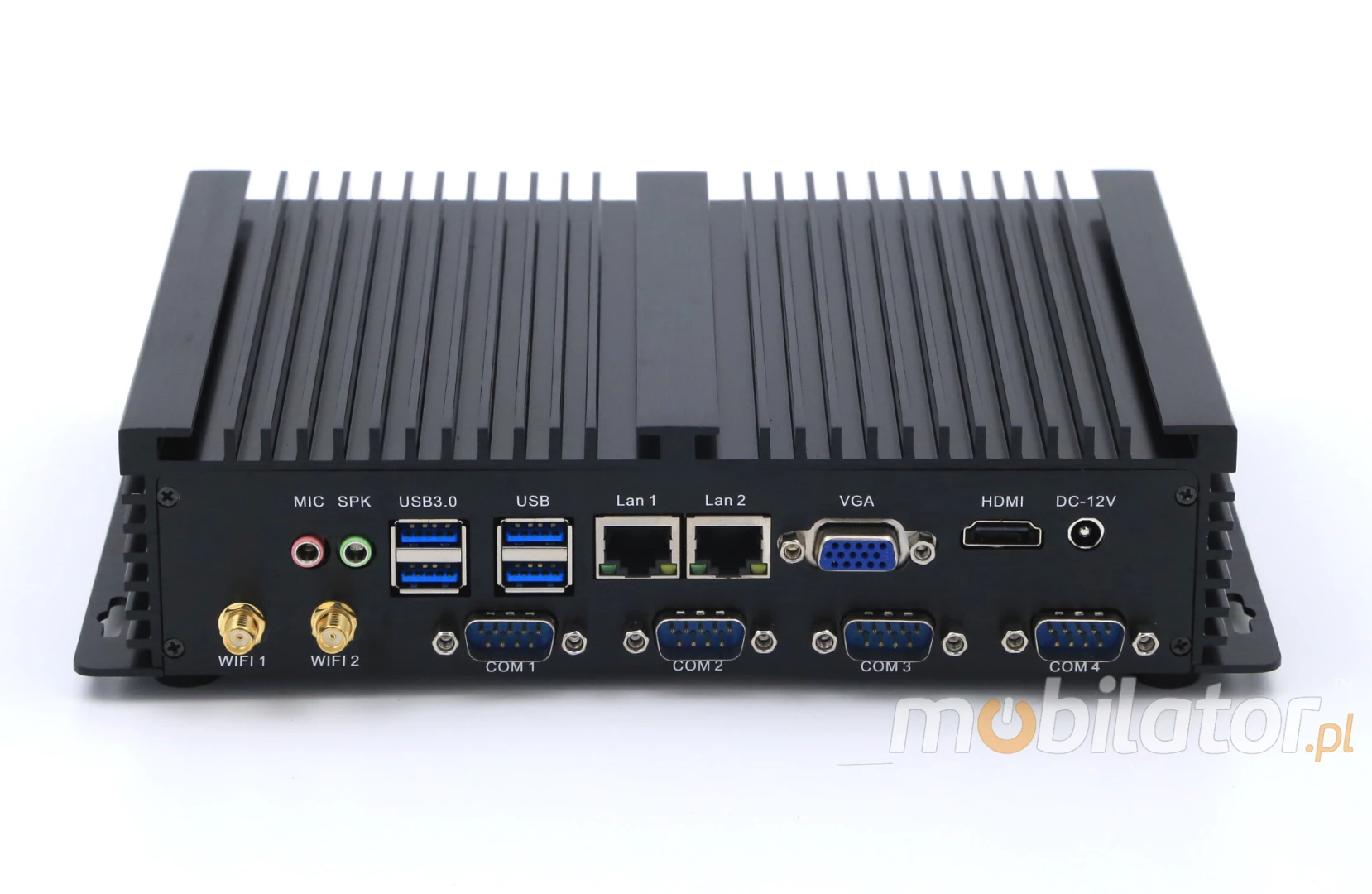

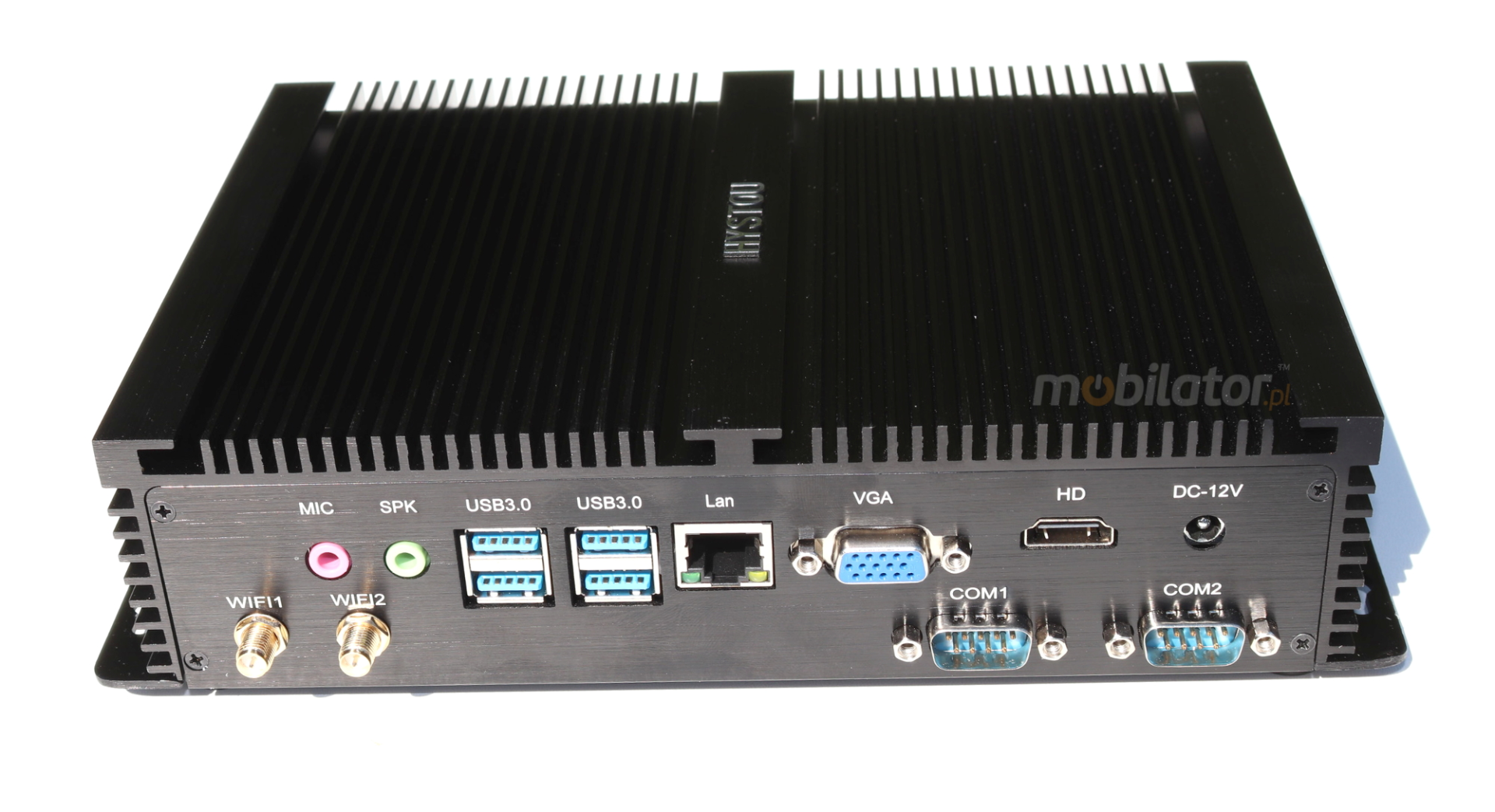

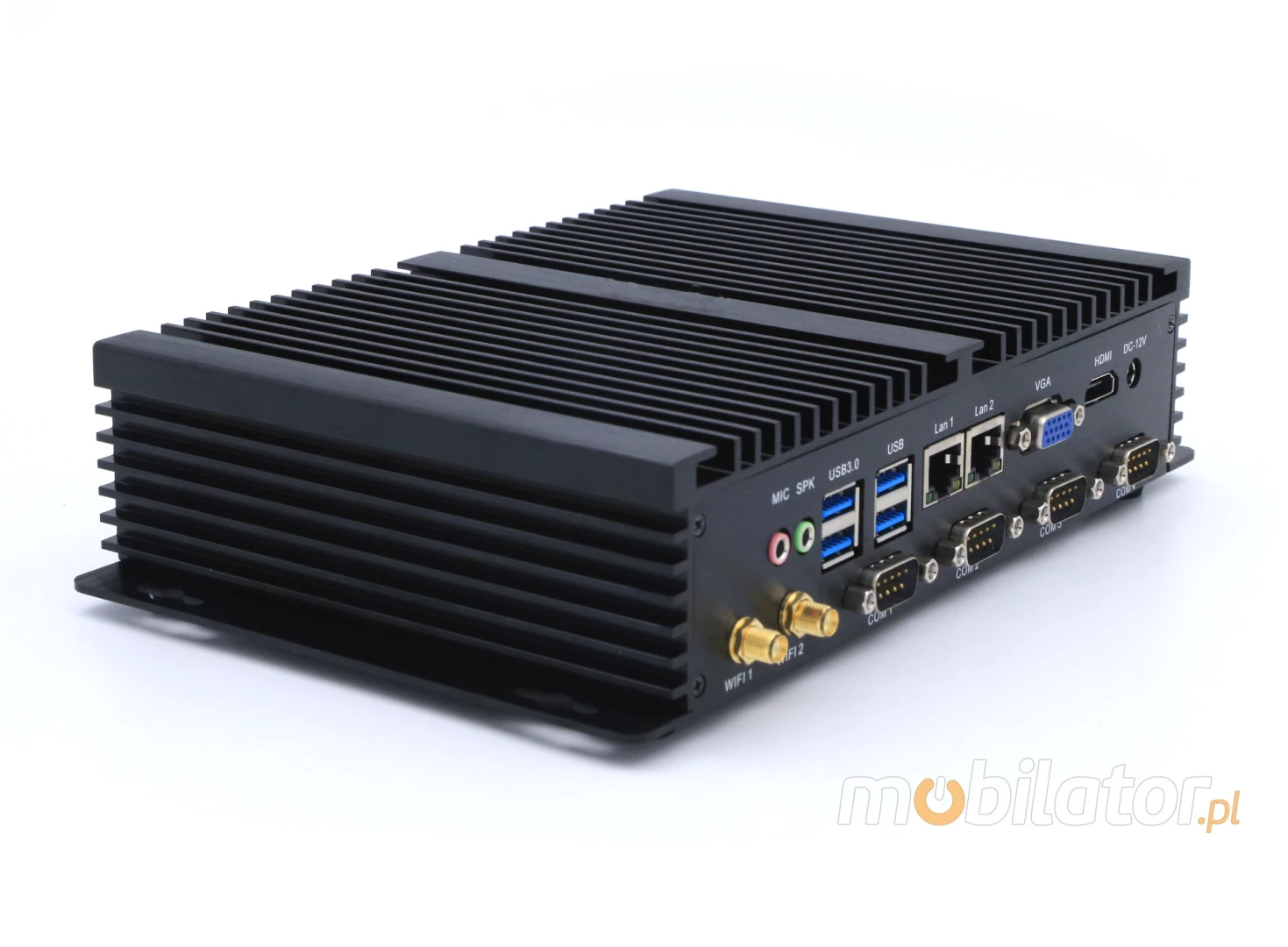

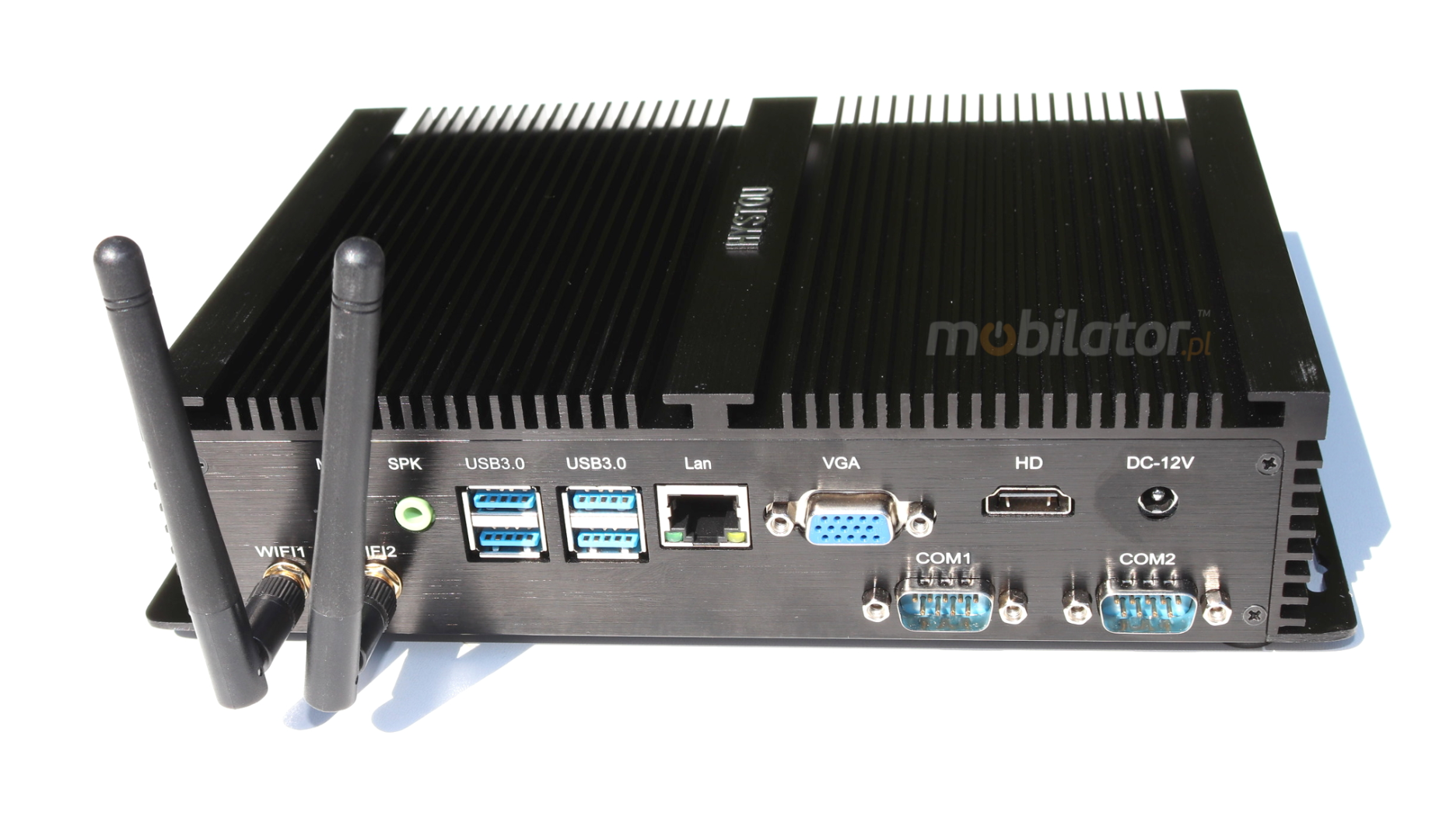

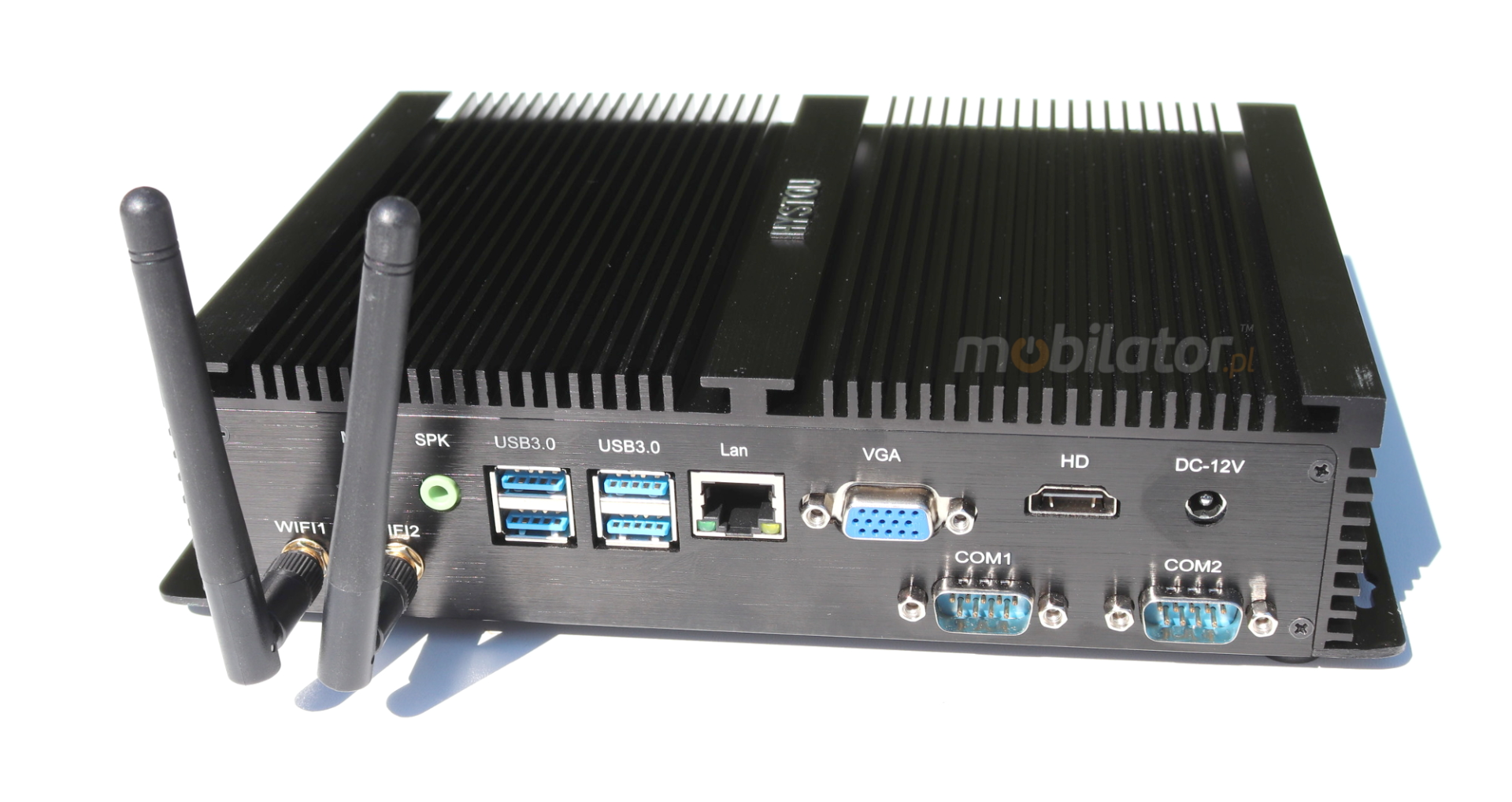

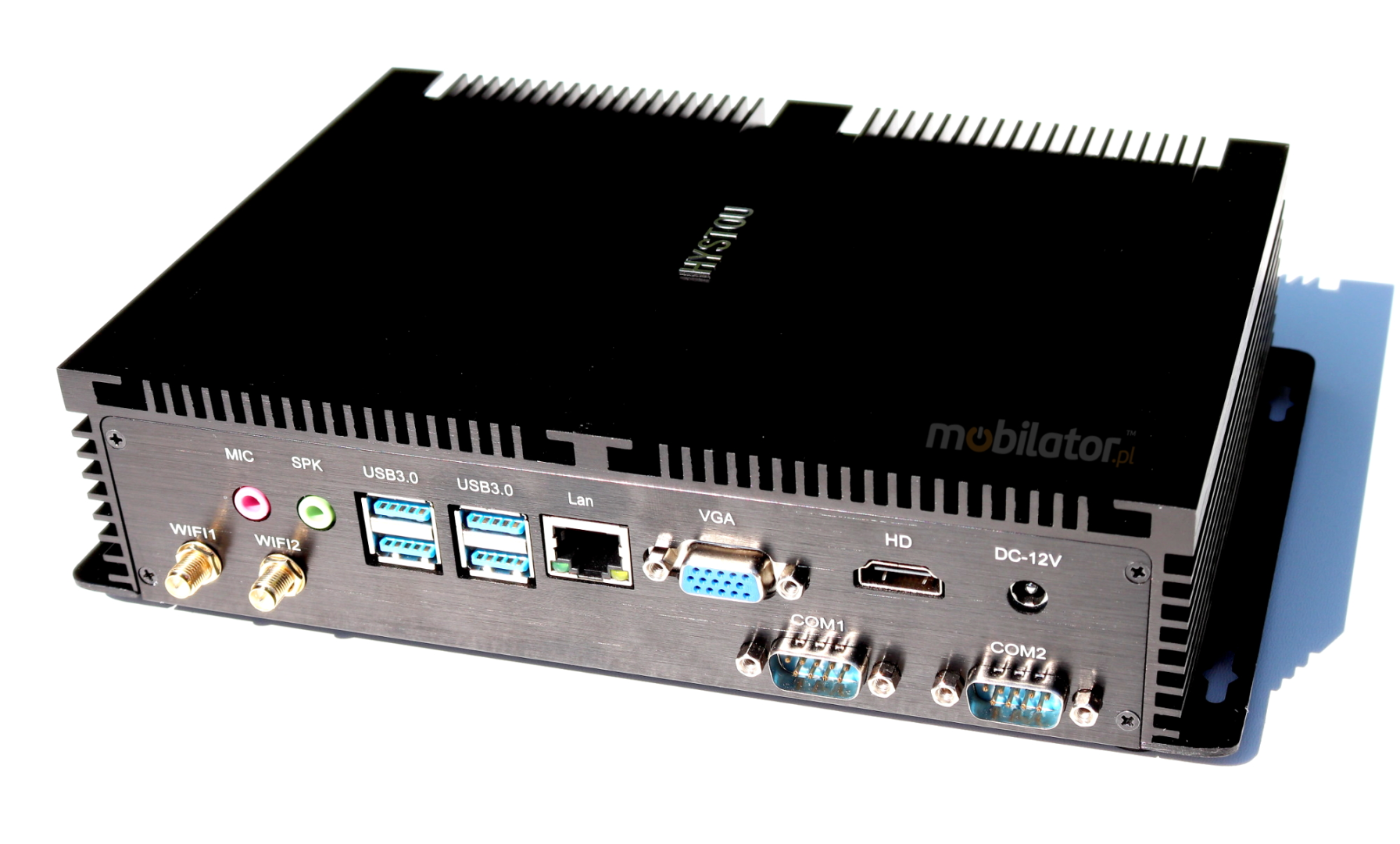

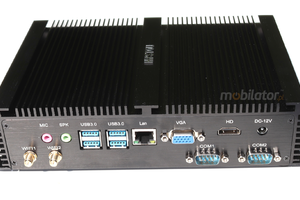

Rear Panel (ports)
DC-IN 12V
2x RJ-45 LAN
1x HDMI
1x VGA
2x Audio
4x COM(RS232)
4x USB 3.0

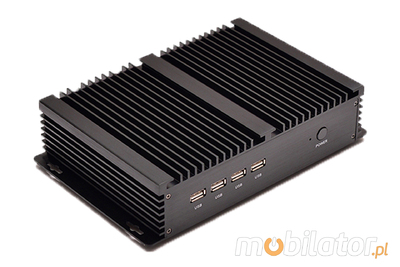

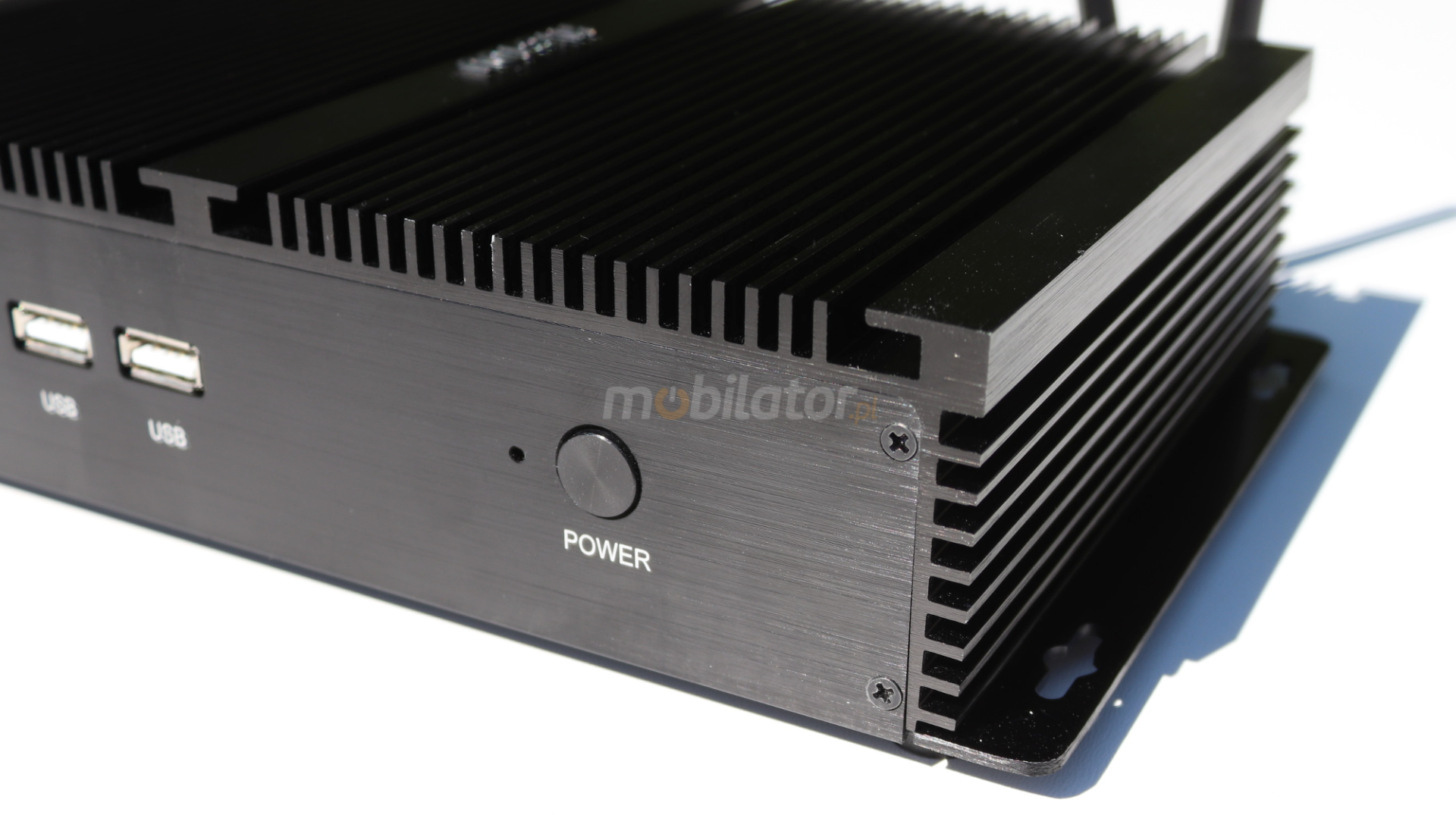

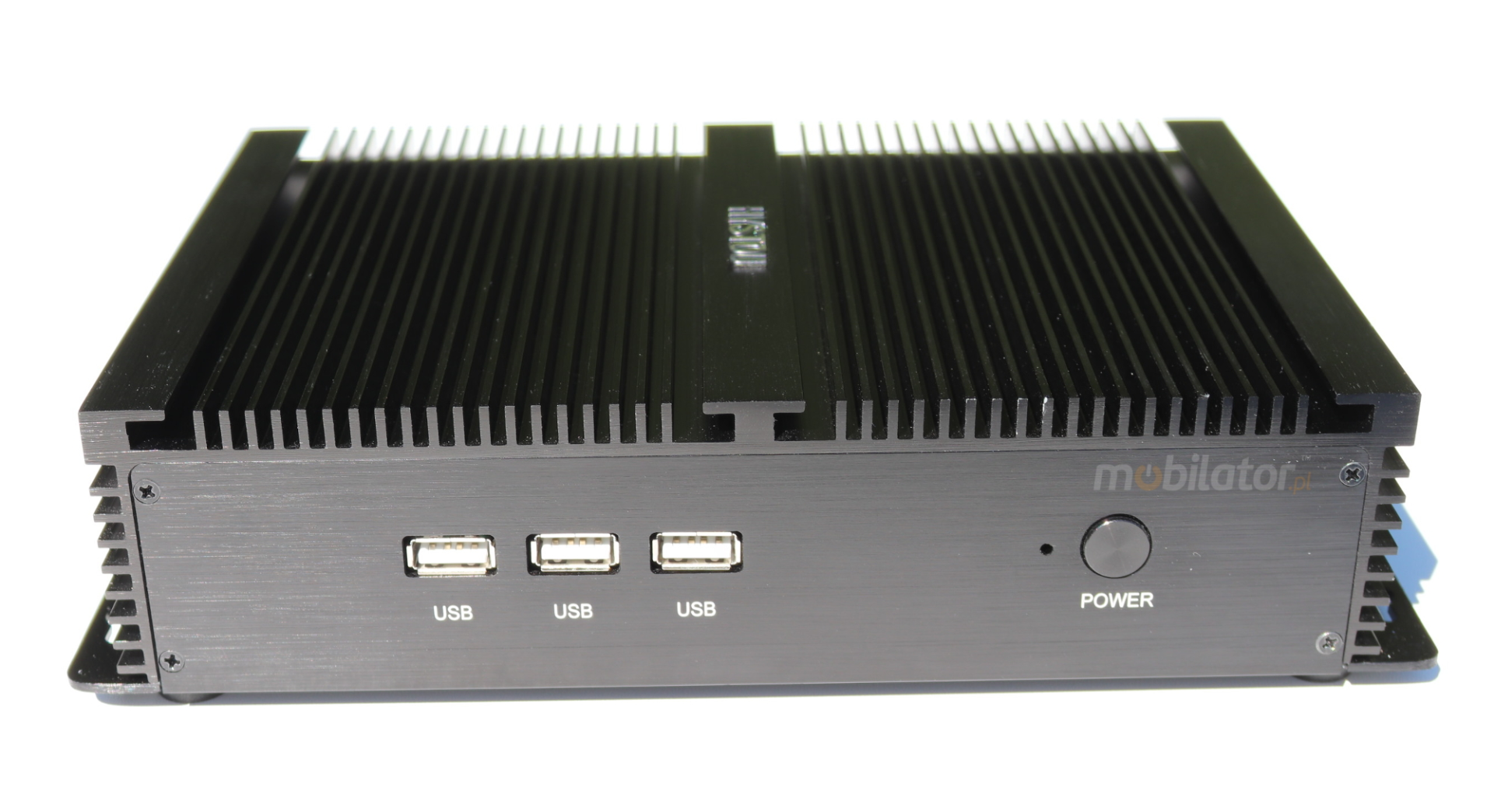

Front Panel (ports)
4x USB2.0
Power ON/OFF
Expansion
HDMI Cable
HDMI to DVI Cable
HDMI to VGA Cable
Power
12V
Watch Dog Timer
-----
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
234 x 150 x 50 mm
Fanless
Yes
Weight
1.35kg
Responsible Entity / Distributor
New Portable Devices

Wytrzymały komputer do automatyki przemysłowej

Komputer przemysłowy do sterowania maszynami

Energooszczędny komputer odporny na ciężkie warunki

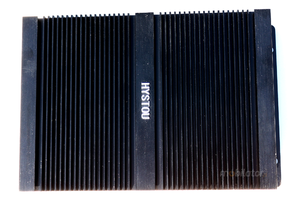

Bezwentylatorowy komputer do pracy ciągłej
