Product Update Date: 2024-10-07

3 YEARS WARRANTY Industrial Computer Fanless MiniPC HyBOX 07PMF-J1900-2C v.2

Name: 3 YEARS WARRANTY Industrial Computer Fanless MiniPC HyBOX 07PMF-J1900-2C v.2
Brand: Mobilator
Price: 1397.59 PLN
Availability: InStock

Update Date: 2024.10.07

Guarantee 3 years

Net

1136.25 zł

Gross

1397.59 zł

Buy now!

Negotiate the price

								Ask about the product

 Product card

								Recommend to a friend

								Store

								Compare

Product availability 14 - 20 workdays

Industrial Computer Fanless MiniPC RS232 USB 3.0 COM LAN RJ-45 HDMI VGA Mini computer

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

MiniPC Nuc HyBOX 07PMF-J1900-2C is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

Housing dimensions are 134 (W) x126 (L) x38 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 2GB/4GB/8GB DDR3L memory. Integrated Intel HD Graphics 400 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 16GB/32GB/64GB/128GB/256GB SSD and 500GB/1TB HDD.

The 3-year limited warranty does not apply to RAM and hard disk drive, which is provided with a separate one-year limited warranty!

Industrial Computer Fanless MiniPC RS232 USB 3.0 COM LAN RJ-45 HDMI VGA Mini computer

go top…

menu…

Communication & Connectors

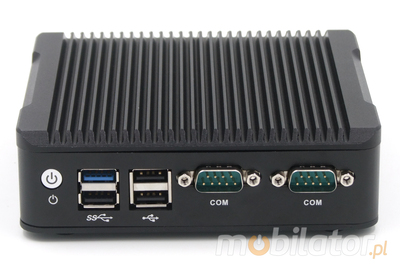

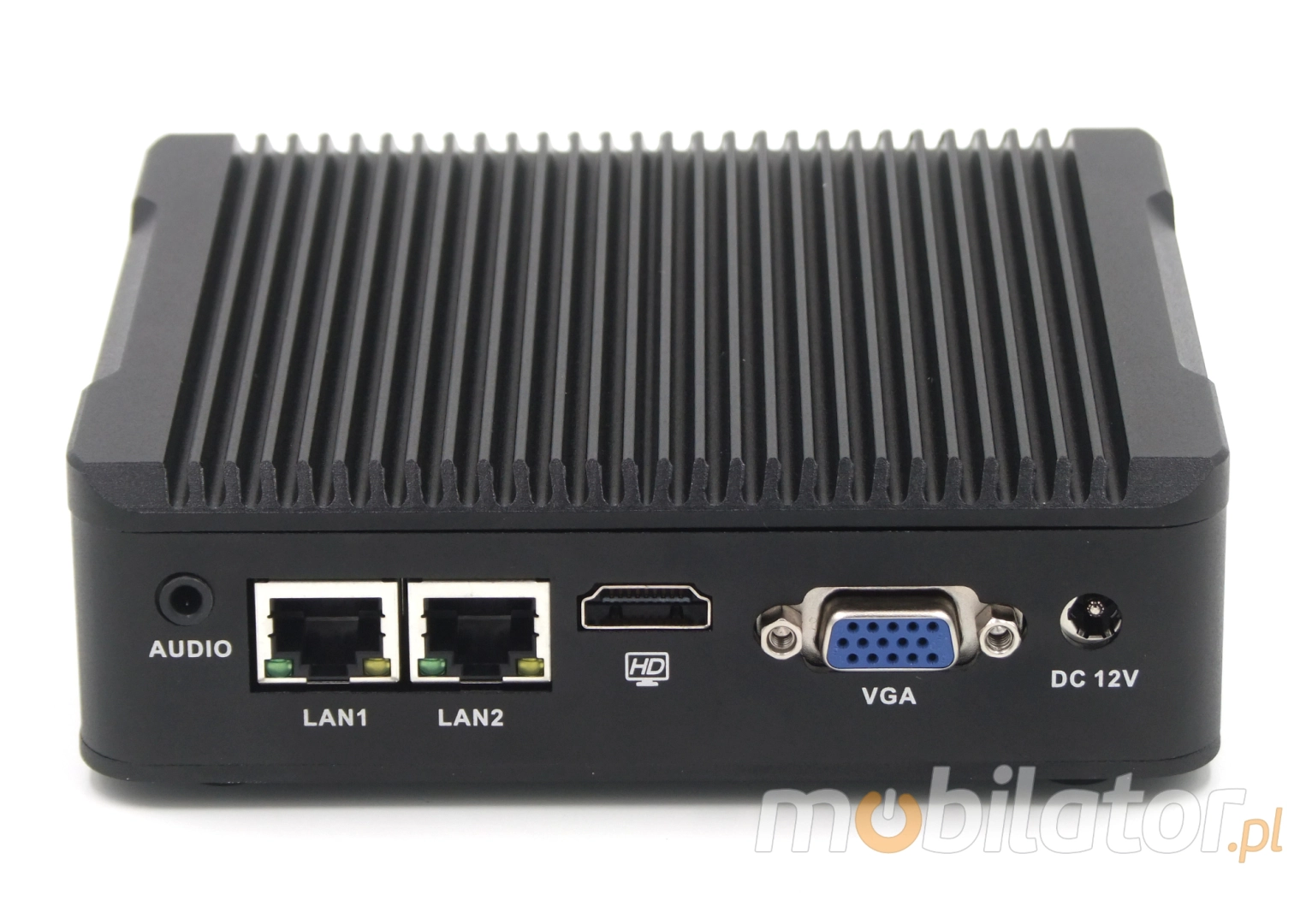

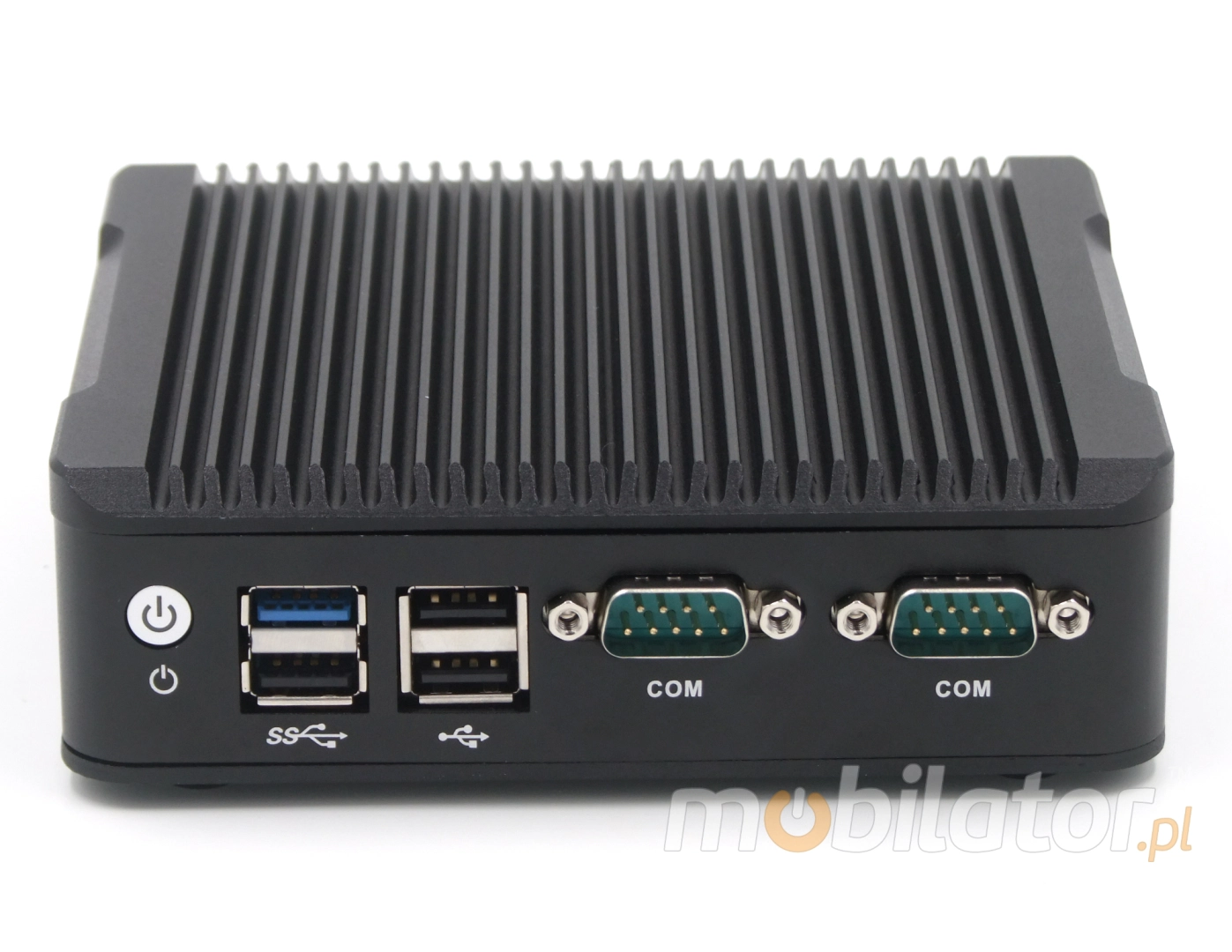

Integrated card - Intel RTL811E 1000M Lan and the Wi-Fi module allow connection to the network. The computer is equipped with: two LAN ports, one VGA port, one HDMI port, two USB 3.0 ports, two USB 2.0 ports, two COM(RS232) ports and a built-in connector on the motherboard: SATA port and mSATA port.

Industrial Computer Fanless MiniPC RS232 USB 3.0 COM LAN RJ-45 HDMI VGA Mini computer

Cooling

The industrial fanless MiniPC HyBOX 07PMF-J1900-2C uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go top… menu…

Application

Industrial MiniPC HyBOX 07PMF-J1900-2C are based on high-performance quad-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of HyBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Industrial Computer Fanless MiniPC RS232 USB 3.0 COM LAN RJ-45 HDMI VGA Mini computer of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Computer Fanless MiniPC RS232 USB 3.0 COM LAN RJ-45 HDMI VGA Mini computer

Areas of use of industrial MiniPC

Digital Engine

Industrial Computer Fanless MiniPC RS232 USB 3.0 COM LAN RJ-45 HDMI VGA Mini computer

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Industrial fanless MiniPC HyBOX 07PMF-J1900-2C by USB and COM ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC HyBOX 07PMF-J1900-2C can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Computer Fanless MiniPC RS232 USB 3.0 COM LAN RJ-45 HDMI VGA Mini computer

go top…

menu…

go top… menu…

Specifications

Dimension	H: 38 mm L: 126 mm W: 134 mm
Processor	Intel Celeron J1900 Quad Core(4x2GHz)
Chipset	Intel express chipset
RAM Memory	4GB DDR3
Graphic Card	Intel HD Graphics 400
Sound Card	Realtek ALC662
WLAN	Intel RTL8186/8111/8112 Gigabit NIC
Connectors	1x 12V DC Jack 2x USB 3.0 2x USB 2.0 2x RJ-45 LAN 1x VGA 1x HDMI 1x Audio 2x COM Wi-Fi

Supported OS
Microsoft Windows: 7/8/8.1/10, Linux
Installed OS
-----
Chipset
Intel express chipset
CPU Support
-----
Installed CPU
Intel Celeron J1900 Quad Core(4x2GHz)
Graphic Card
Intel HD Graphics 400
Memory Support
DDR3L (max. 8GB) 1333/1600MHz SO-DIMM
Installed Memory
4GB DDR3L (1 year warranty)
Storage (HDD) Support
-----
Installed Storage (HDD)
32 GB SSD (1 year warranty)
IP Norm
-----
Temp
0 ～70℃
Storage temperature
0 ～70℃
Humidity
10 ~ 85%
Others
Color Black
LAN
2x Intel RTL8186/8111/8112 Gigabit NIC
Wireless LAN card
Yes
3G
-----
Bluetooth
-----
Rear Panel (ports)
DC-IN 12V
2x RJ-45 LAN
1x HDMI
1x VGA
1x Audio
Front Panel (ports)
2x USB 3.0
2x USB2.0
2x COM(RS232)
Power ON/OFF
Expansion
HDMI Cable
HDMI to DVI Cable
HDMI to VGA Cable
Power
12V
Watch Dog Timer
-----
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
134 x 126 x 38 mm
Fanless
Yes
Weight
650g
Responsible Entity / Distributor
New Portable Devices

Compare all versions


3 YEARS WARRANTY Industrial Computer Fanless MiniPC HyBOX 07PMF-J1900-2C v.1
					Small size / Intel Celeron J1900 (4x2GHz)
2x COM / 2x RJ-45 LAN / 2x USB 3.0 / 1x VGA
2x USB 2.0 / 1x HDMI  / 1x Audio / Wi-Fi
2GB DDR3L RAM (1 year warranty)
16GB SSD (1 year warranty)

Gross1286.89 zł

3 YEARS WARRANTY Industrial Computer Fanless MiniPC HyBOX 07PMF-J1900-2C v.2
					Small size / Intel Celeron J1900 (4x2GHz)
2x COM / 2x RJ-45 LAN / 2x USB 3.0 / 1x VGA
2x USB 2.0 / 1x HDMI  / 1x Audio / Wi-Fi
4GB DDR3L RAM (1 year warranty)
32GB SSD (1 year warranty)

Gross1397.59 zł

3 YEARS WARRANTY Industrial Computer Fanless MiniPC HyBOX 07PMF-J1900-2C v.3
					Small size / Intel Celeron J1900 (4x2GHz)
2x COM / 2x RJ-45 LAN / 2x USB 3.0 / 1x VGA
2x USB 2.0 / 1x HDMI  / 1x Audio / Wi-Fi
4GB DDR3L RAM (1 year warranty)
64GB SSD (1 year warranty)

Gross1489.84 zł

3 YEARS WARRANTY Industrial Computer Fanless MiniPC HyBOX 07PMF-J1900-2C v.5
					Small size / Intel Celeron J1900 (4x2GHz)
2x COM / 2x RJ-45 LAN / 2x USB 3.0 / 1x VGA
2x USB 2.0 / 1x HDMI  / 1x Audio / Wi-Fi
4GB DDR3L RAM (1 year warranty)
500GB HDD (1 year warranty)

Gross1540.58 zł

3 YEARS WARRANTY Industrial Computer Fanless MiniPC HyBOX 07PMF-J1900-2C v.4
					Small size / Intel Celeron J1900 (4x2GHz)
2x COM / 2x RJ-45 LAN / 2x USB 3.0 / 1x VGA
2x USB 2.0 / 1x HDMI  / 1x Audio / Wi-Fi
4GB DDR3L RAM (1 year warranty)
128GB SSD (1 year warranty)

Gross1628.21 zł

3 YEARS WARRANTY Industrial Computer Fanless MiniPC HyBOX 07PMF-J1900-2C v.7
					Small size / Intel Celeron J1900 (4x2GHz)
2x COM / 2x RJ-45 LAN / 2x USB 3.0 / 1x VGA
2x USB 2.0 / 1x HDMI  / 1x Audio / Wi-Fi
8GB DDR3L RAM (1 year warranty)
1TB HDD (1 year warranty)

Gross1798.88 zł

3 YEARS WARRANTY Industrial Computer Fanless MiniPC HyBOX 07PMF-J1900-2C v.6
					Small size / Intel Celeron J1900 (4x2GHz)
2x COM / 2x RJ-45 LAN / 2x USB 3.0 / 1x VGA
2x USB 2.0 / 1x HDMI  / 1x Audio / Wi-Fi
8GB DDR3L RAM (1 year warranty)
256GB SSD (1 year warranty)

Gross1992.60 zł
