Product Update Date: 2024-10-08

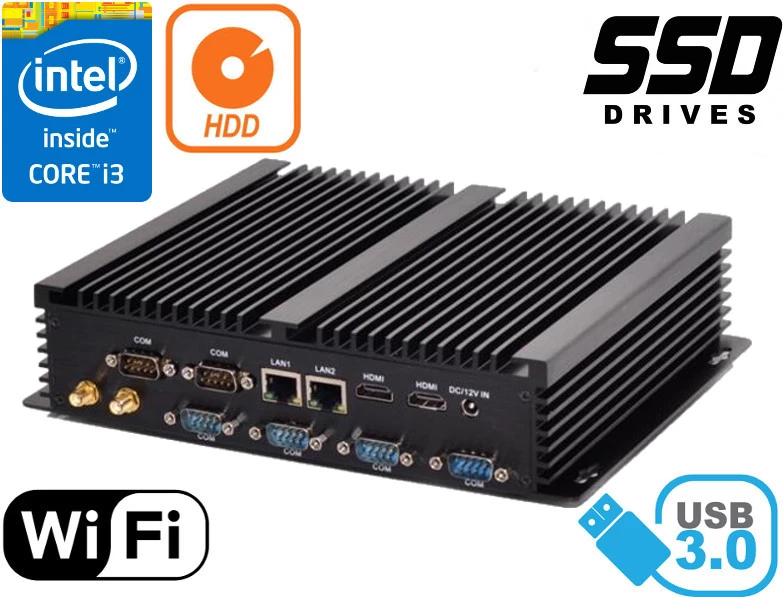

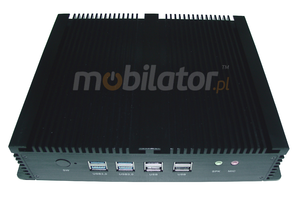

3 YEARS WARRANTY Industrial Computer Fanless MiniPC HyBOX 0B4PMF-i3-4010u v.5.1

Name: 3 YEARS WARRANTY Industrial Computer Fanless MiniPC HyBOX 0B4PMF-i3-4010u v.5.1
Brand: Mobilator
Price: 623.52 PLN
Availability: InStock

+32

Update Date: 2024.10.08

Guarantee 3 years

Net

506.93 €

Gross

623.52 €

Buy now!

Negotiate the price

								Ask about the product

 Product card

								Recommend to a friend

								Store

								Compare

Product availability 14 - 20 workdays

Przemysłowy Industrial Komputer Fanless MiniPC intel core ddr3 RS232 USB 3.0 COM LAN RJ-45 HDMI Mini Computer

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

MiniPC Nuc HyBOX 0B4PMF-i3-4010u is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

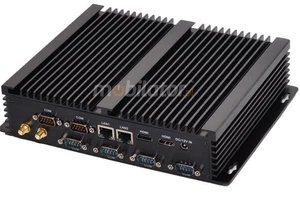

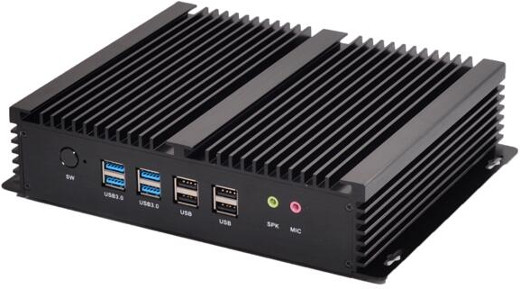

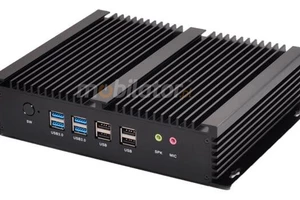

Housing dimensions are 234 (W) x175 (L) x50 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 4GB/8GB DDR3L memory. Integrated Intel HD Graphics 4400 video and audio ALC892 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 64GB/128GB/256GB and 500GB/1TB/2TB HDD.

The 3-year limited warranty does not apply to RAM and hard disk drive, which is provided with a separate one-year limited warranty!

Przemysłowy Industrial Komputer Fanless MiniPC intel core ddr3 RS232 USB 3.0 COM LAN RJ-45 HDMI Mini Computer

go top…

menu…

Communication & Connectors

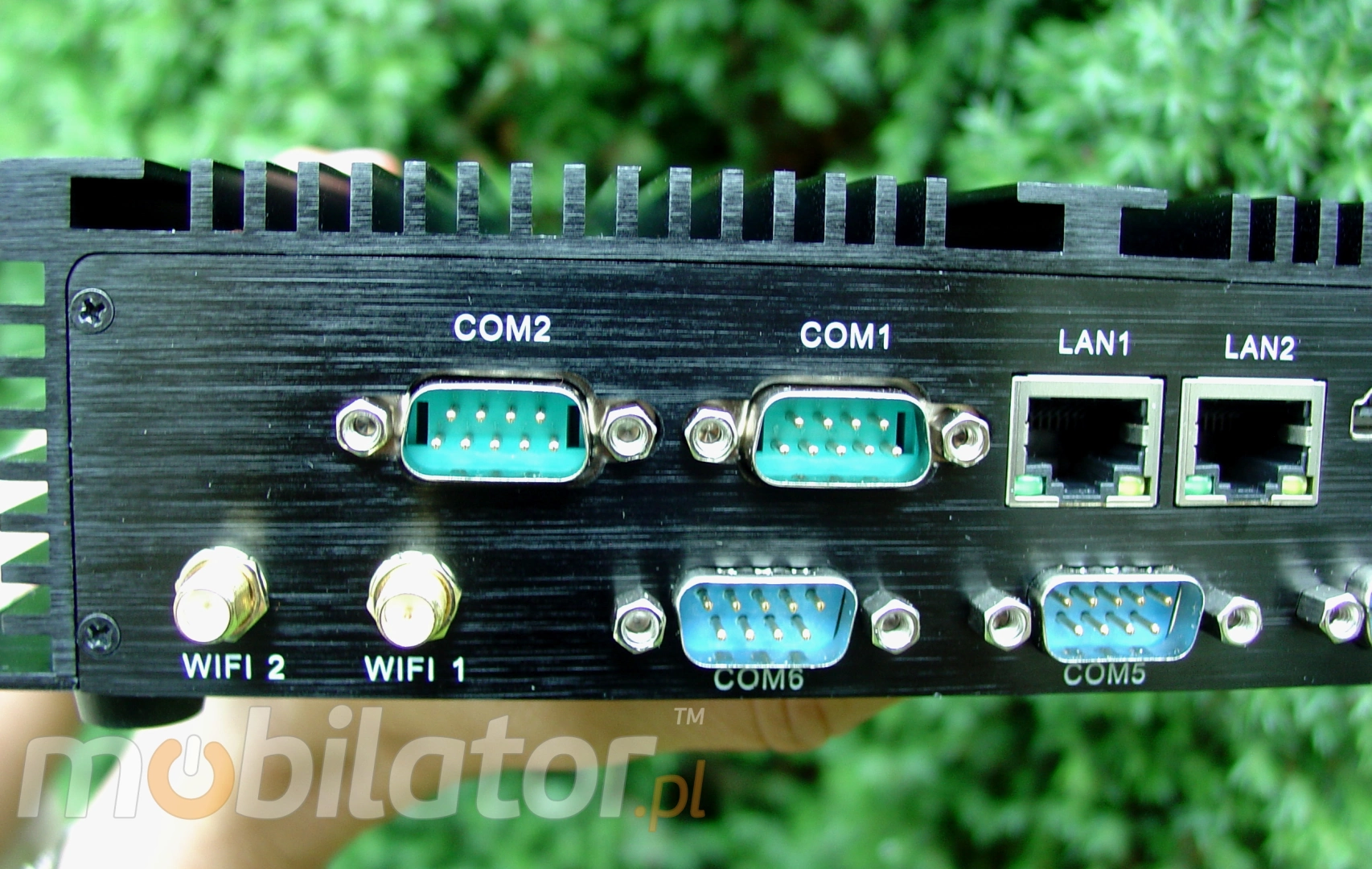

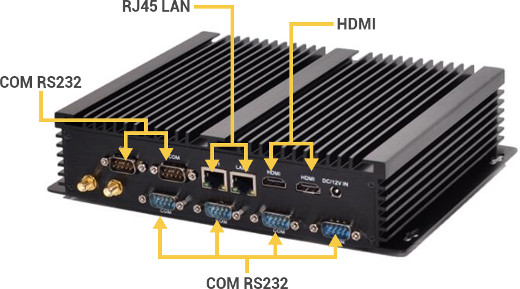

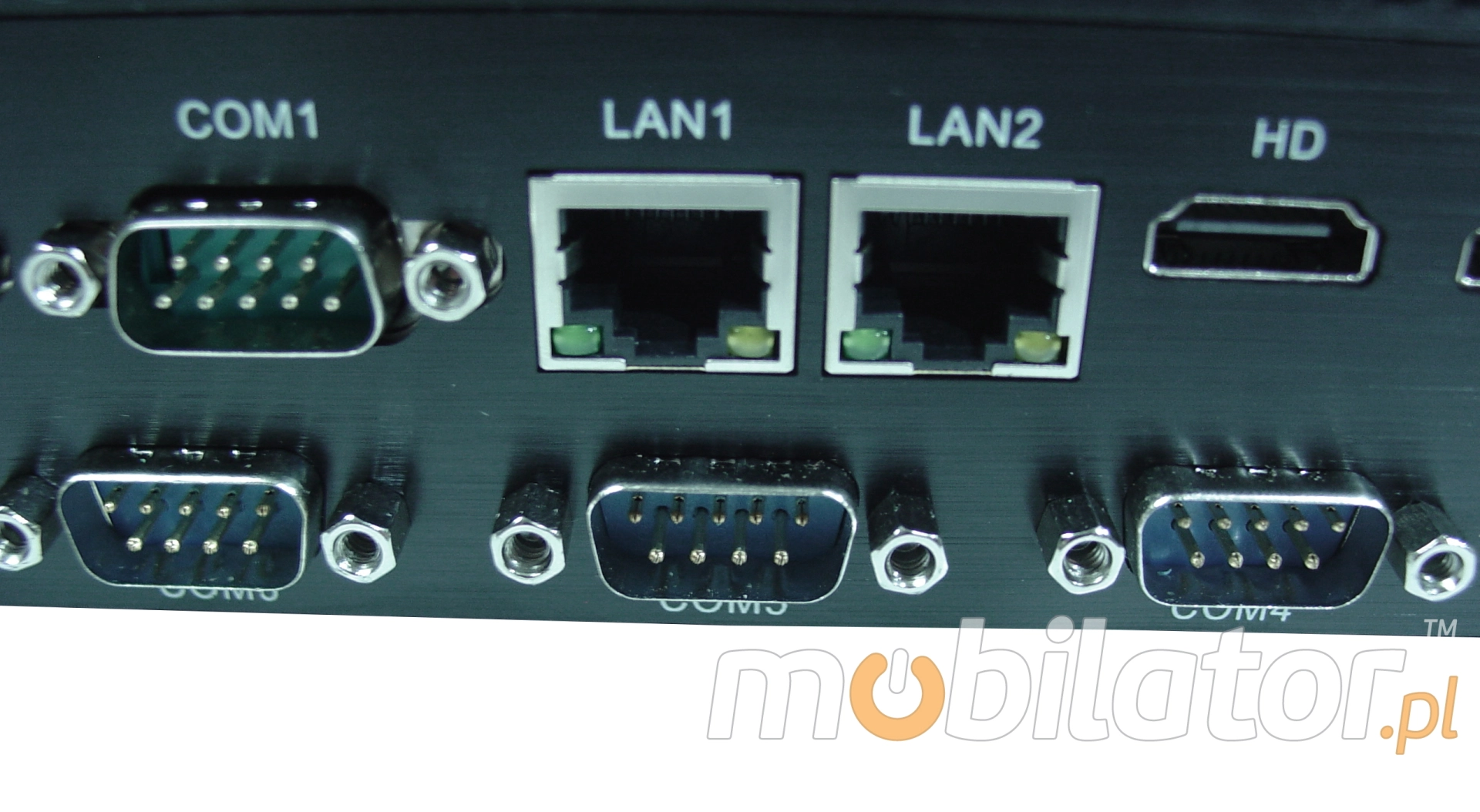

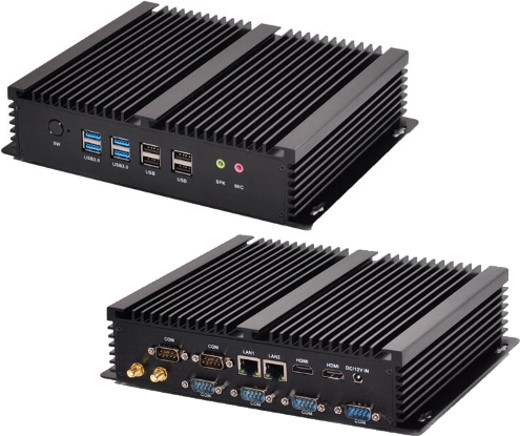

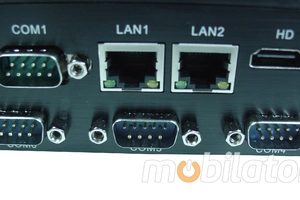

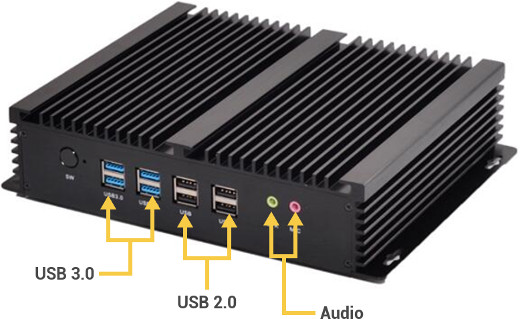

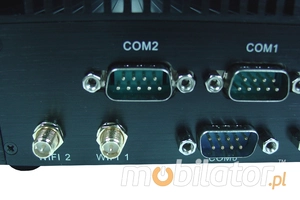

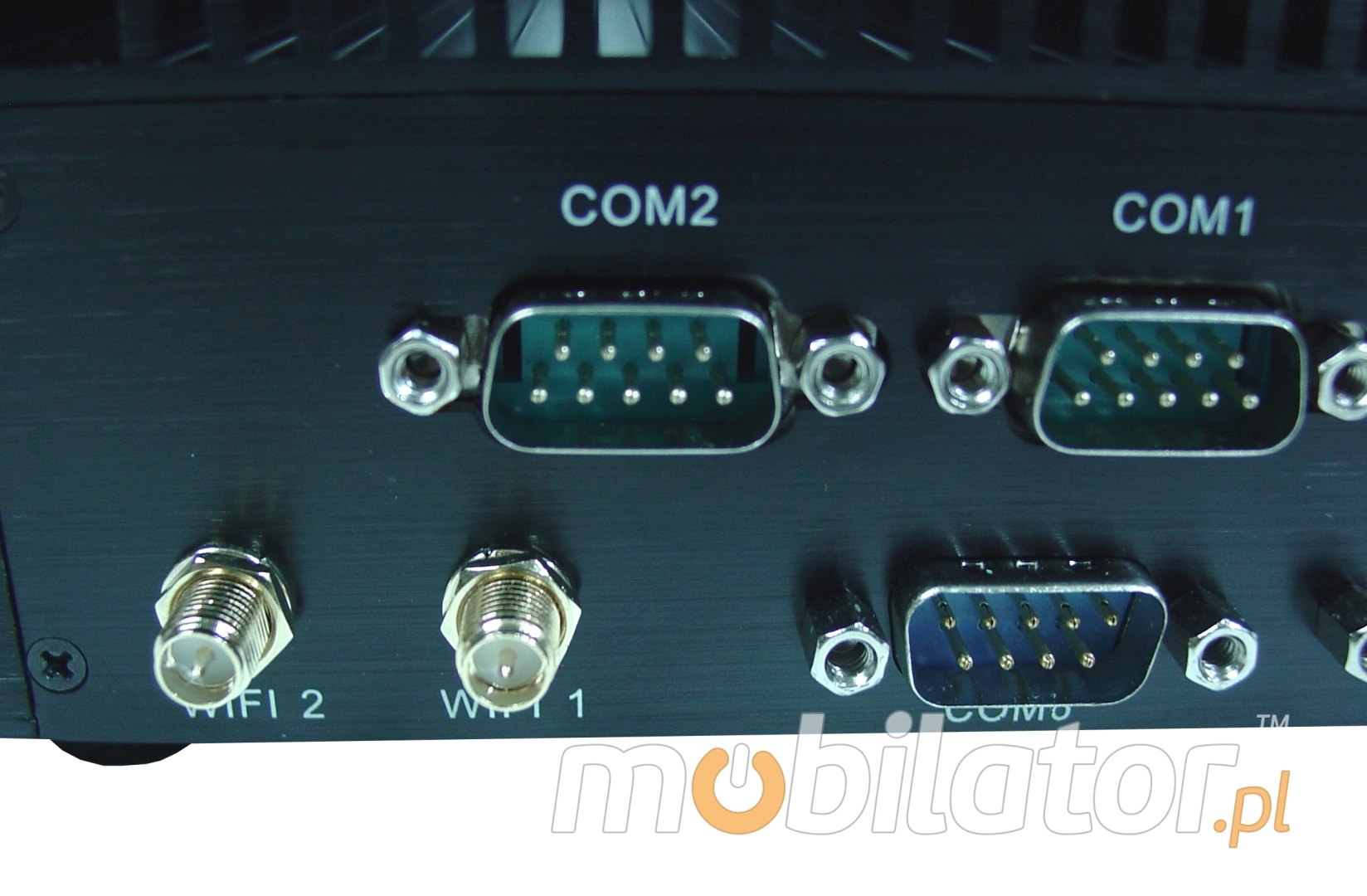

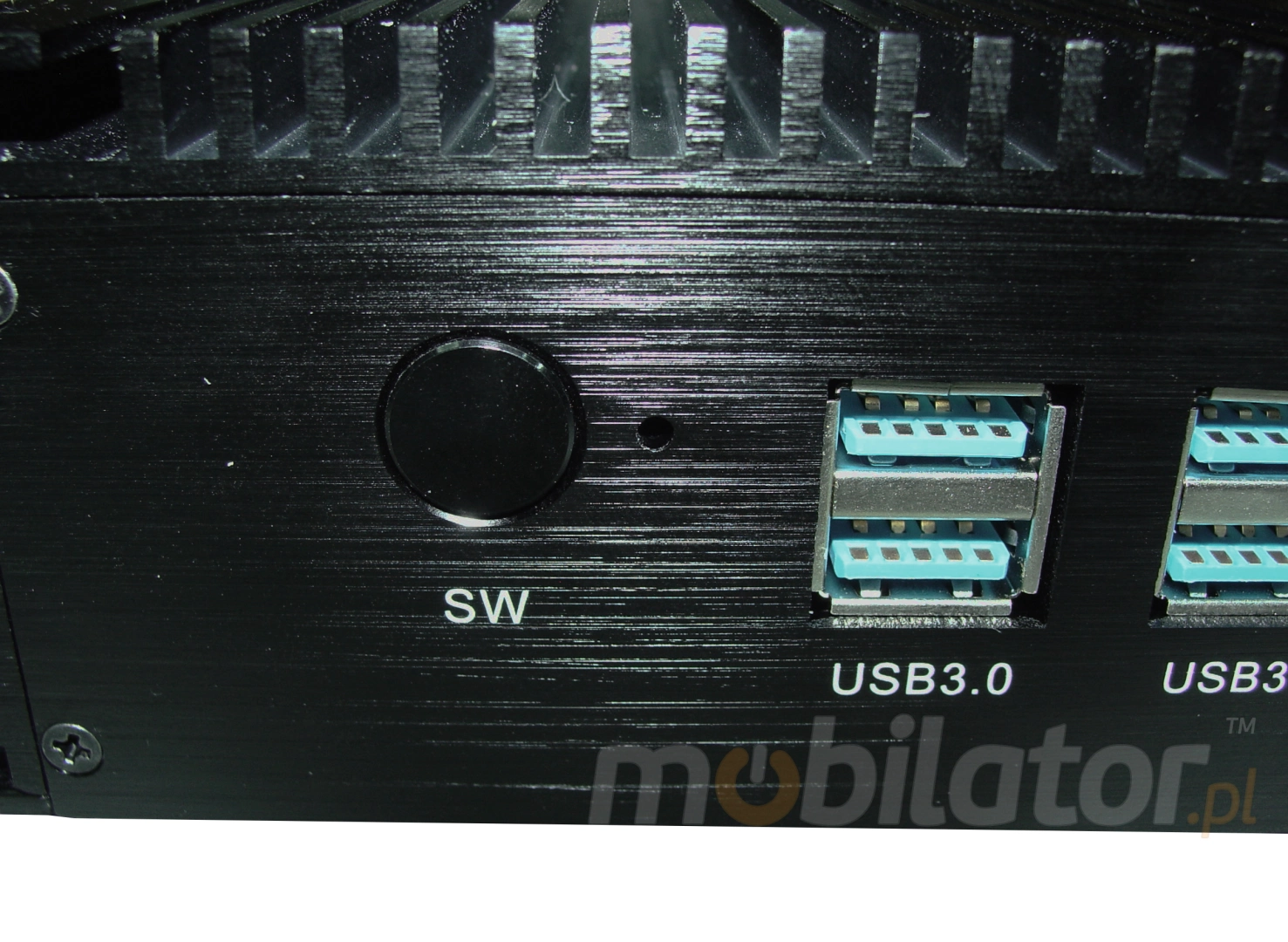

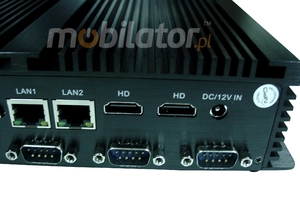

Integrated card - Intel 82574L Gigabit and the Wi-Fi module allow connection to the network. The computer is equipped with: two LAN ports, two HDMI ports, four USB 3.0 ports, four USB 2.0 ports, six COM(RS232) ports, one Mic and one Speaker port and a built-in connector on the motherboard: SATA port and mSATA port.

Przemysłowy Industrial Komputer Fanless MiniPC intel core ddr3 RS232 USB 3.0 COM LAN RJ-45 HDMI Mini Computer

Cooling

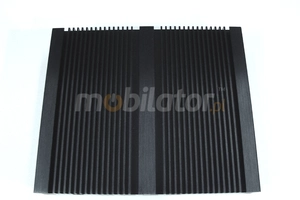

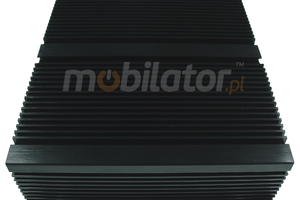

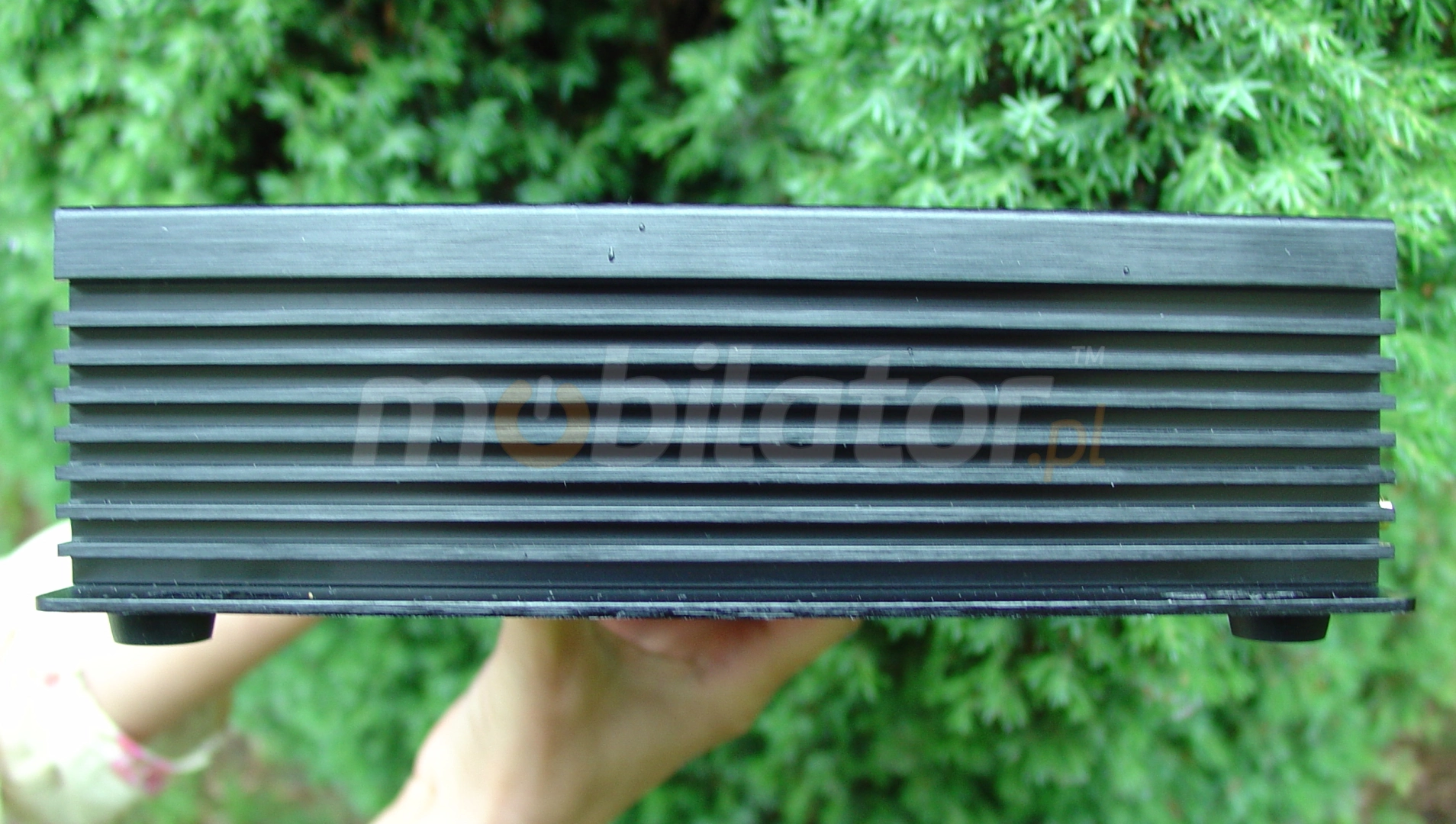

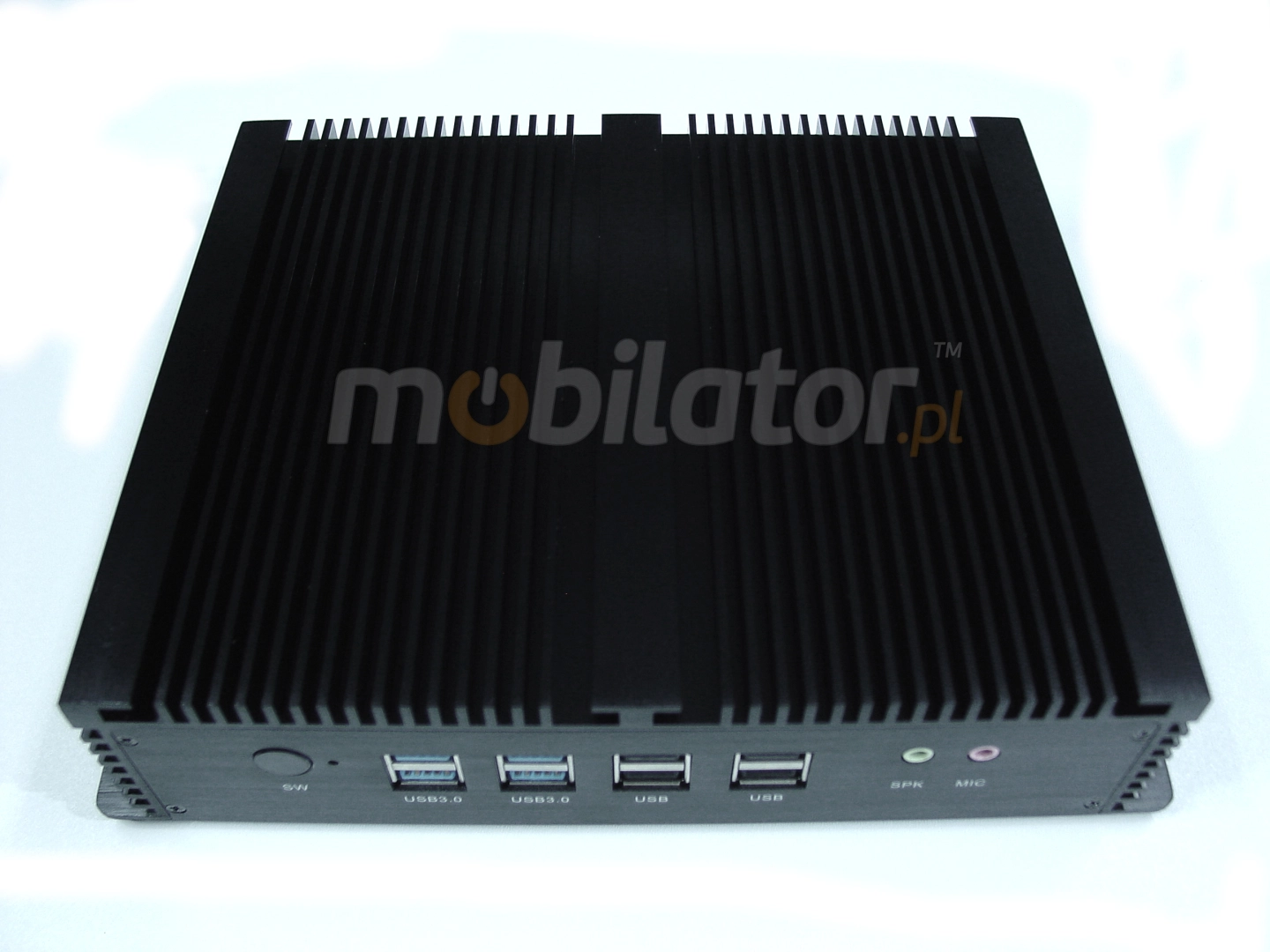

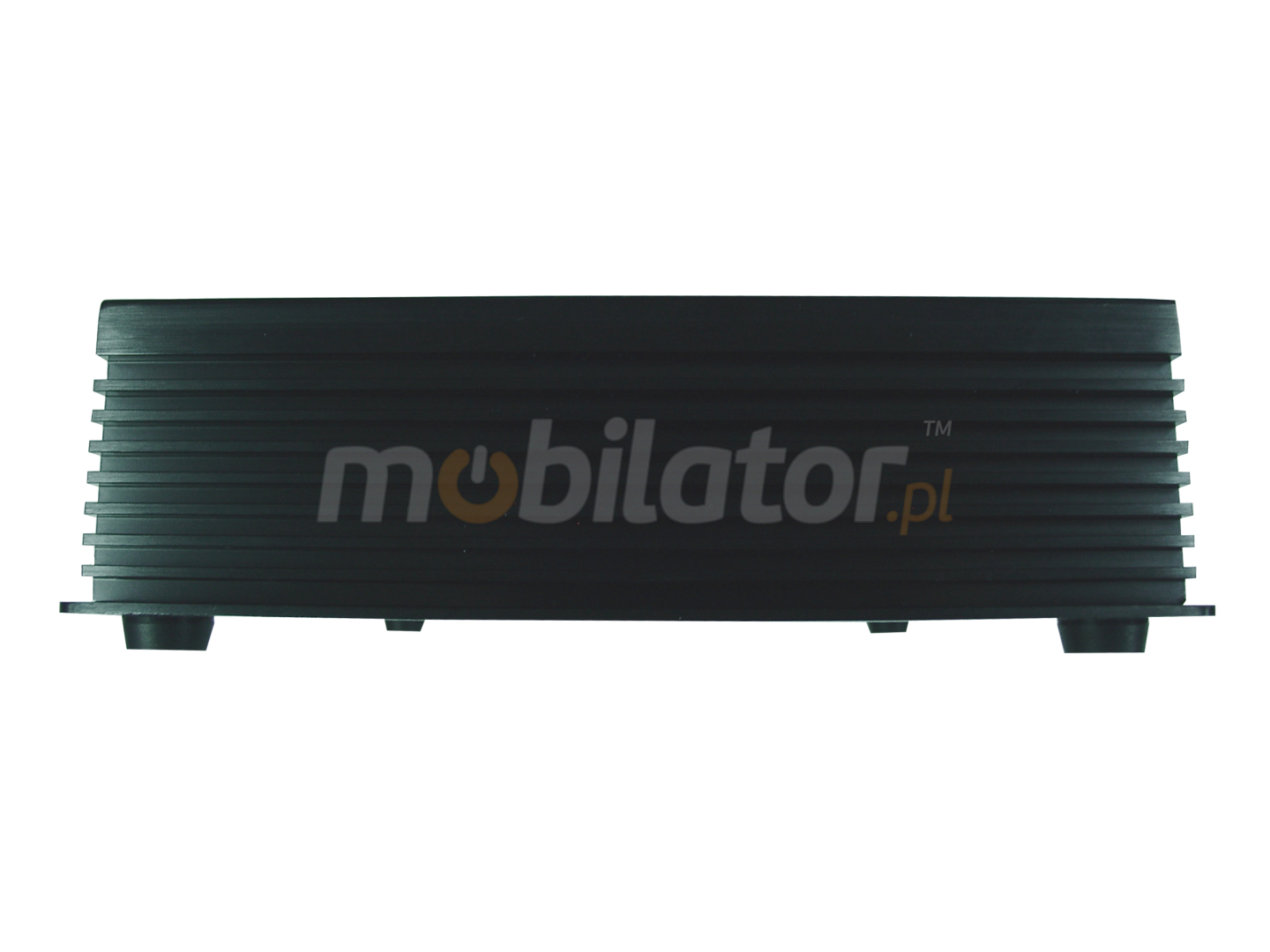

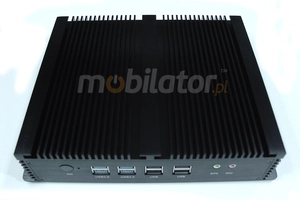

The industrial fanless MiniPC HyBOX 0B4PMF-i3-4010u uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go top… menu…

Application

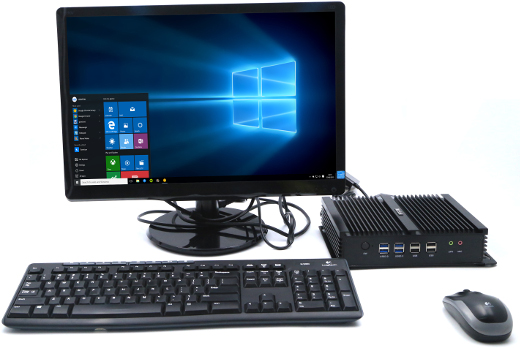

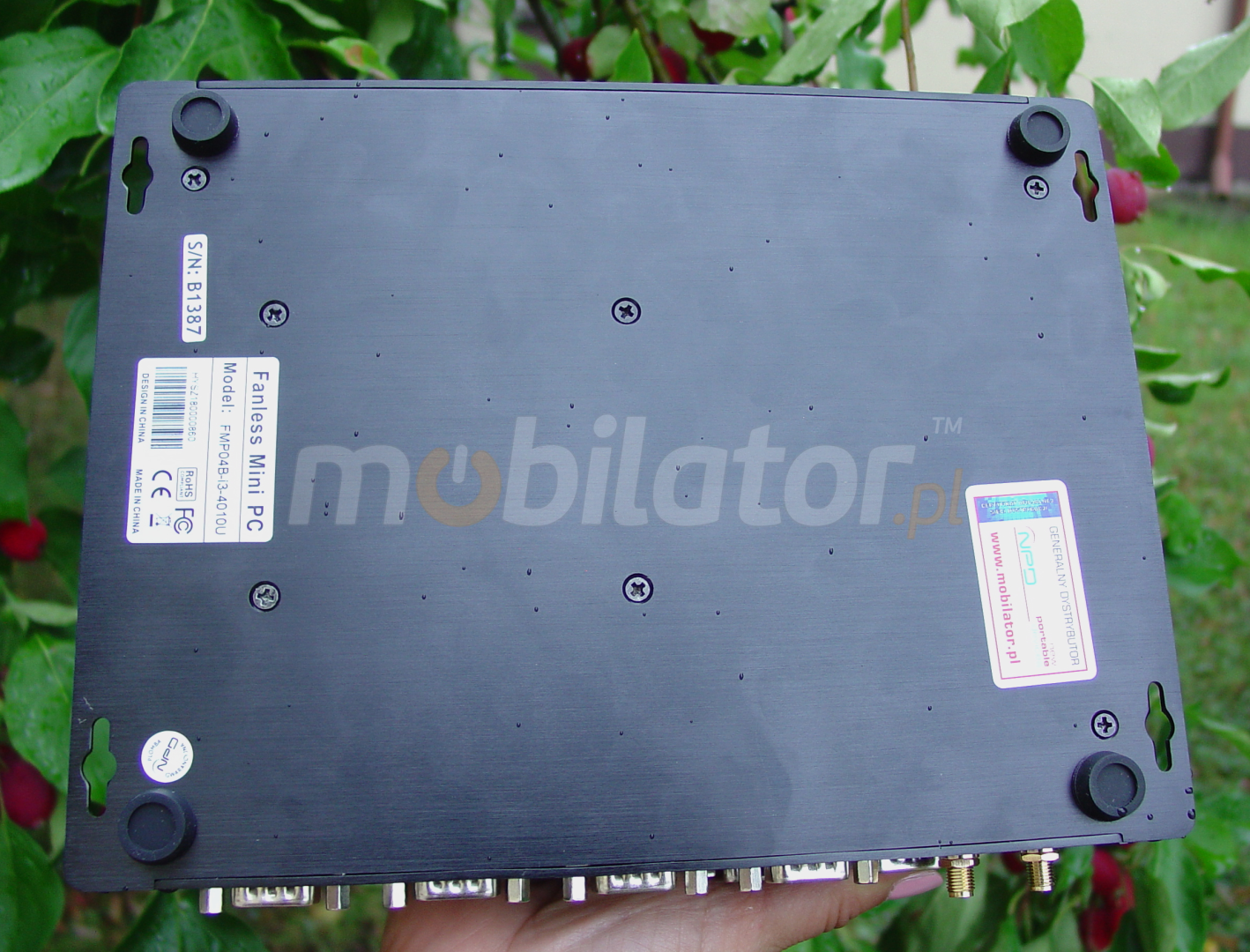

Industrial MiniPC HyBOX 0B4PMF-i3-4010u are based on high-performance quad-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of HyBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Przemysłowy Industrial Komputer Fanless MiniPC intel core ddr3 RS232 USB 3.0 COM LAN RJ-45 HDMI Mini Computer of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Przemysłowy Industrial Komputer Fanless MiniPC intel core ddr3 RS232 USB 3.0 COM LAN RJ-45 HDMI Mini Computer

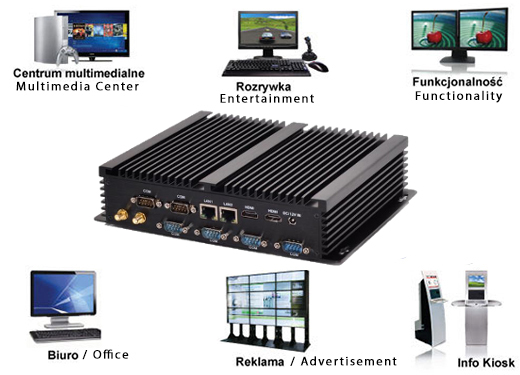

Areas of use of industrial MiniPC

Digital Engine

Przemysłowy Industrial Komputer Fanless MiniPC intel core ddr3 RS232 USB 3.0 COM LAN RJ-45 HDMI Mini Computer

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Industrial fanless MiniPC HyBOX 0B4PMF-i3-4010u by USB and COM ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC HyBOX 0B4PMF-i3-4010u can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Przemysłowy Industrial Komputer Fanless MiniPC intel core ddr3 RS232 USB 3.0 COM LAN RJ-45 HDMI Mini Computer

go top…

menu…

go top… menu…

Specifications

Dimension	H: 50 mm L: 175 mm W: 234 mm
Processor	Intel Core i3-4010U (2x1.7GHz)
Chipset	Intel express chipset
RAM Memory	4GB DDR3L
Graphic Card	Intel HD Graphics 4400
Sound Card	ALC892
WLAN	Intel 82574L Gigabit
Connectors	1x 12V DC Jack 4x USB 3.0 4x USB 2.0 2x RJ-45 LAN 2x HDMI 1x Audio 6x COM 1x Mic 1x Speaker Wi-Fi

Supported OS
Microsoft Windows: 7/8/8.1/10 Linux
Installed OS
-----
Chipset
Intel Haswell
CPU Support
-----
Installed CPU
Intel Core i3-4010U (2x1.7GHz)
Graphic Card
Intel HD Graphics 4400
Memory Support
DDR3L (max. 8GB) 1600MHz SO-DIMM
Installed Memory
8GB DDR3L (1 year warranty)
Storage (HDD) Support
-----
Installed Storage (HDD)
1TB HDD & 128GB SSD (1 year warranty)
IP Norm
-----
Temp
X ～100℃
Storage temperature
X ～100℃
Humidity
10 ~ 85%
Others
Color Black
LAN
2x Intel 82574L Gigabit
Wireless LAN card
Yes
3G
-----
Bluetooth
-----

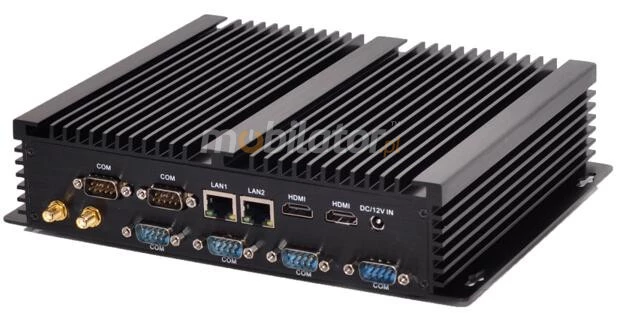

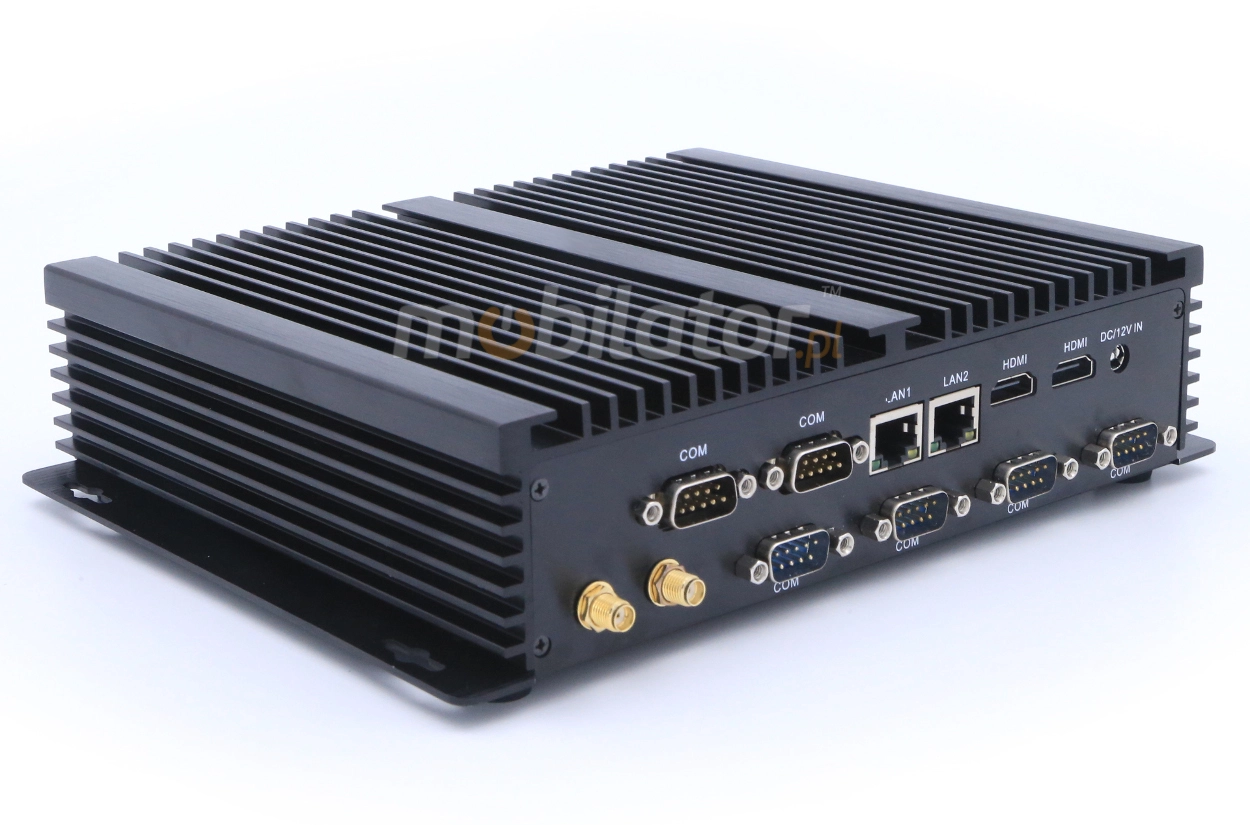

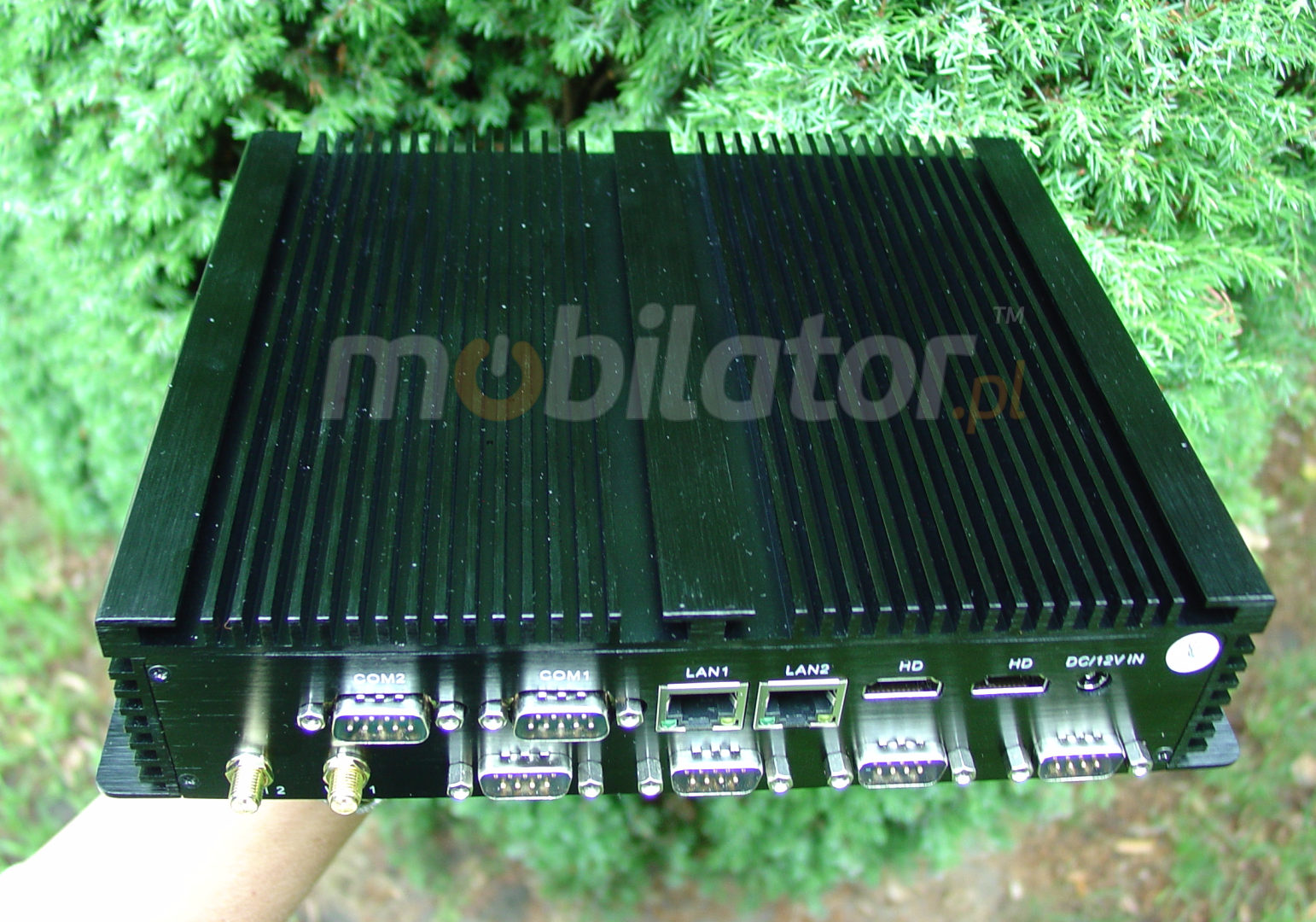

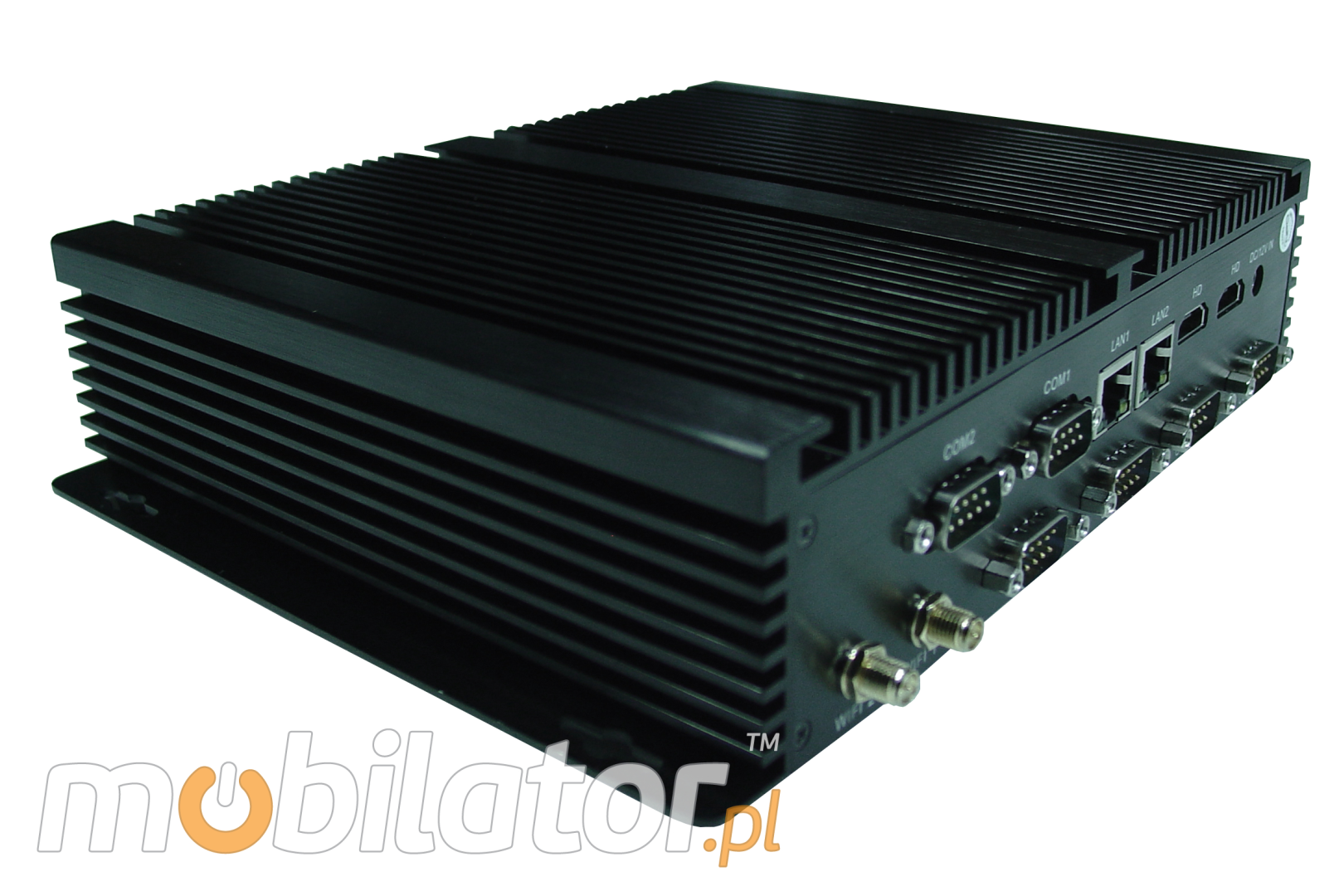

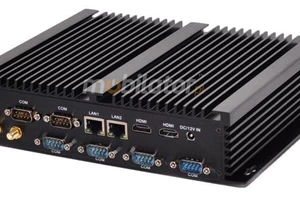

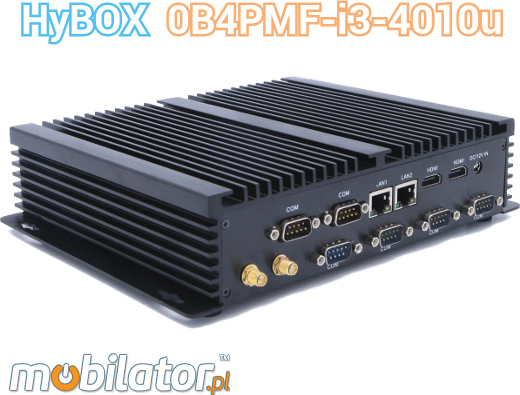

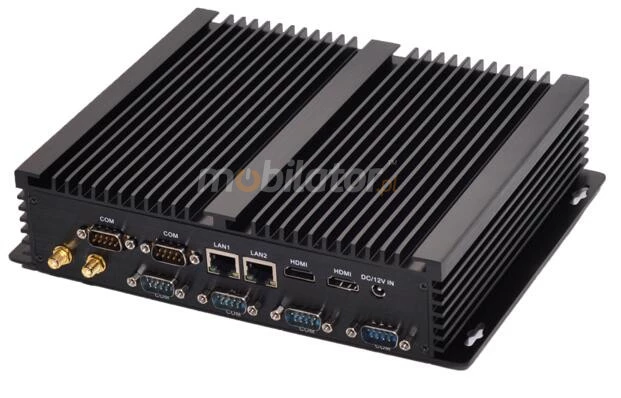

Rear Panel (ports)
DC-IN 12V
2x RJ-45 LAN
2x HDMI
6x COM(RS232)

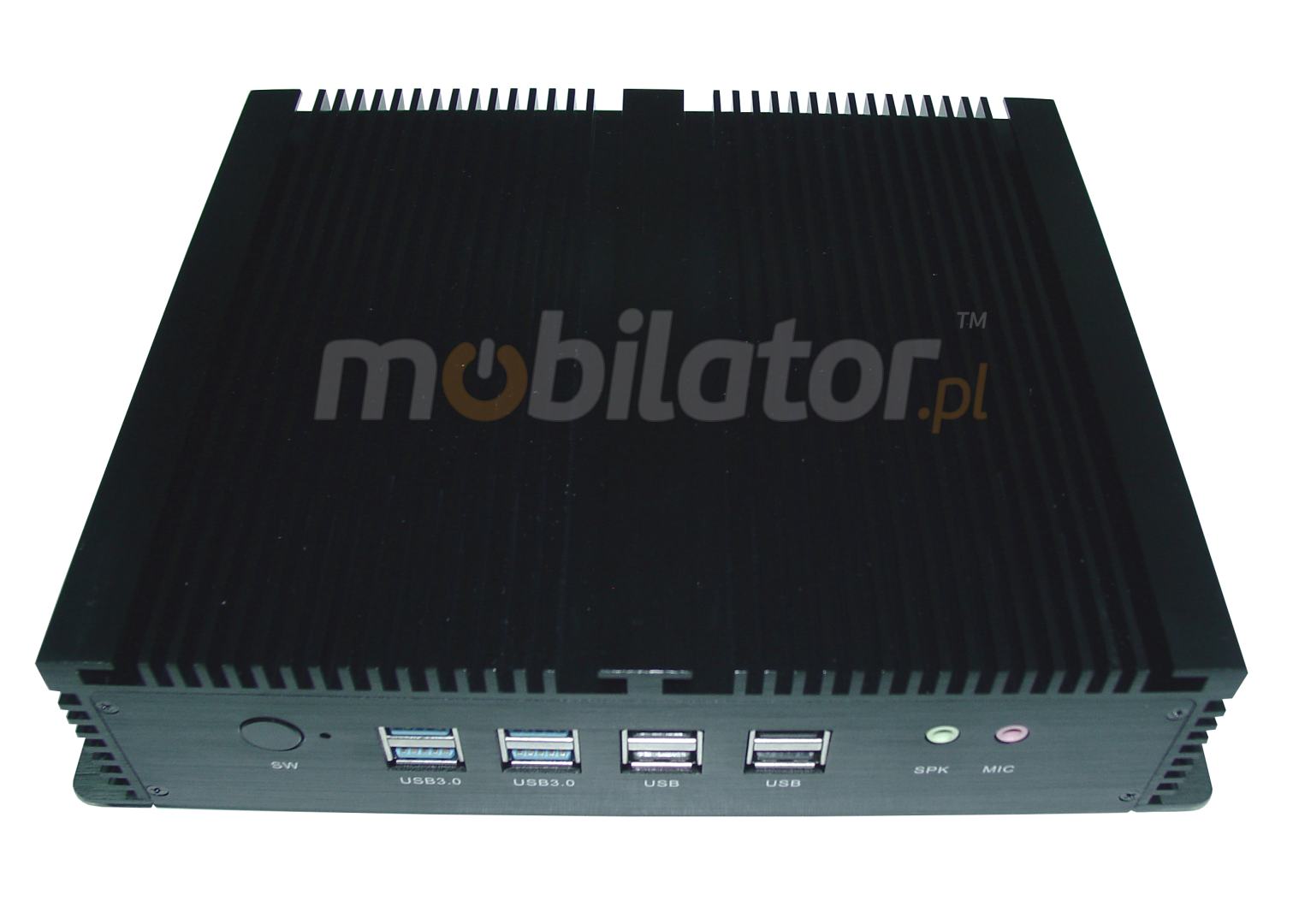

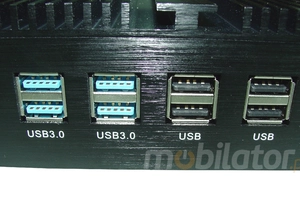

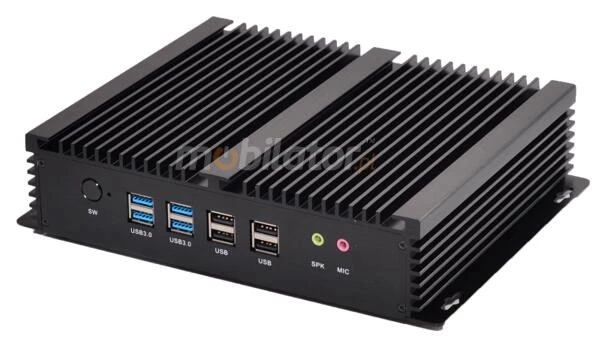

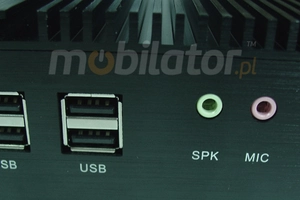

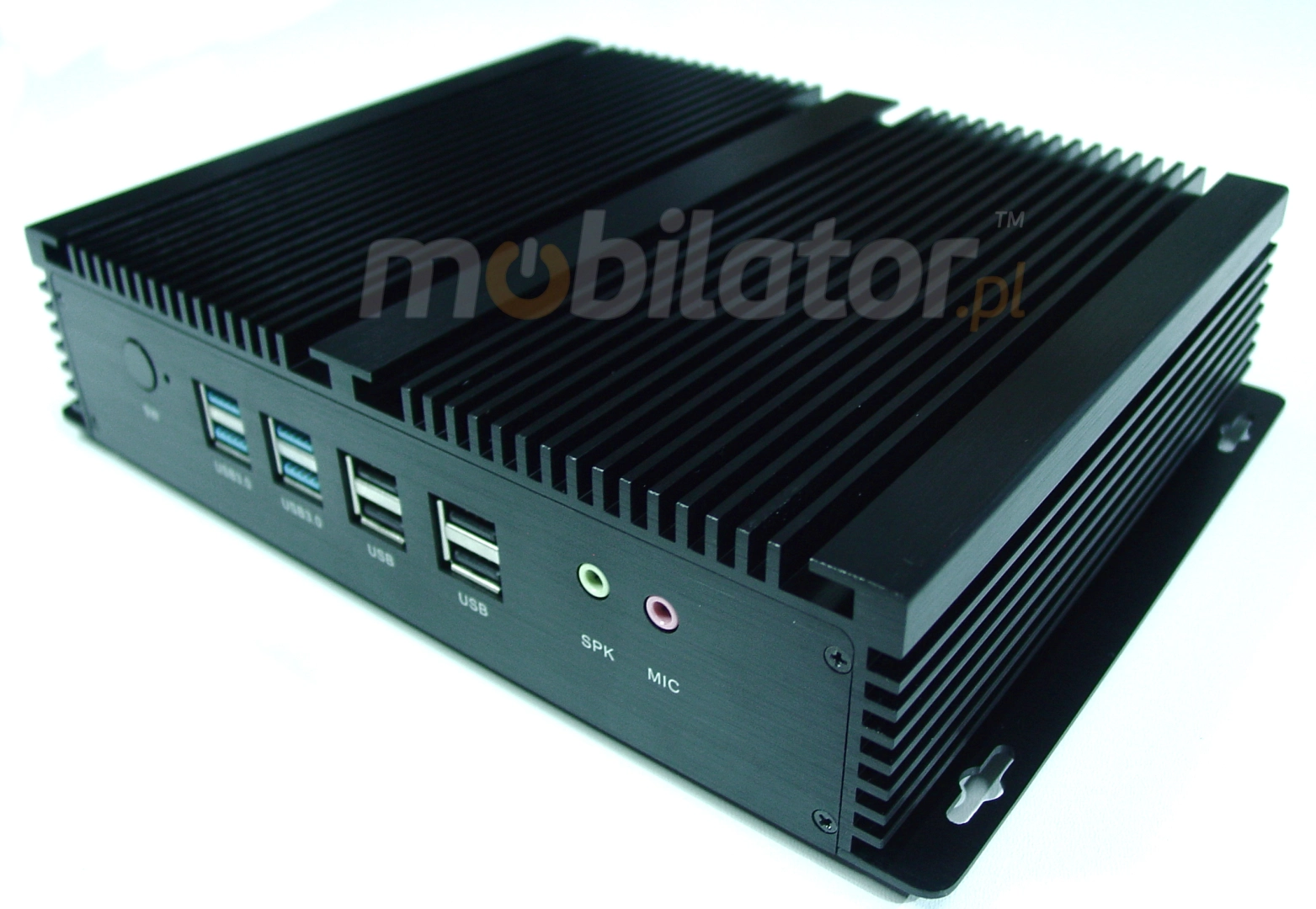

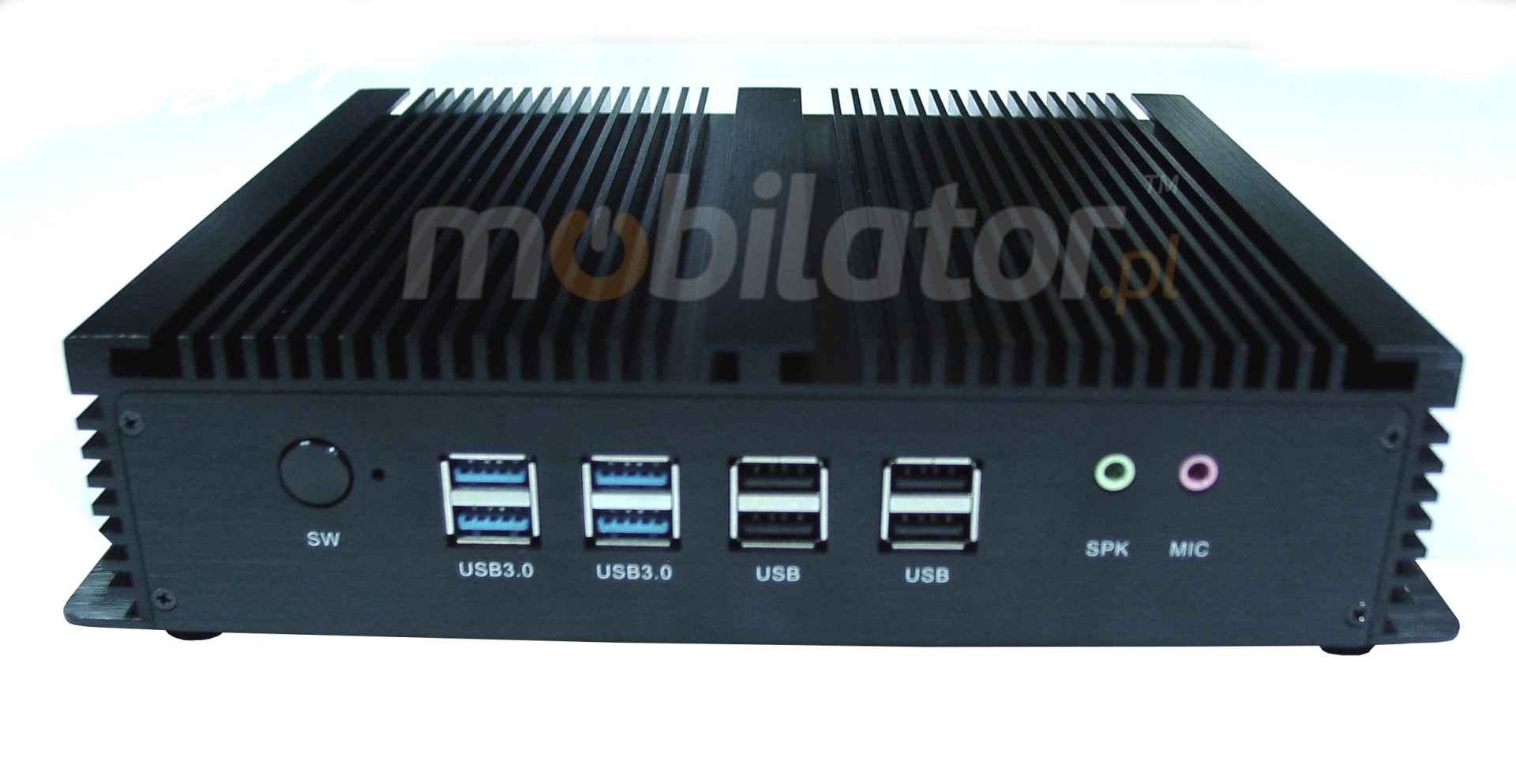

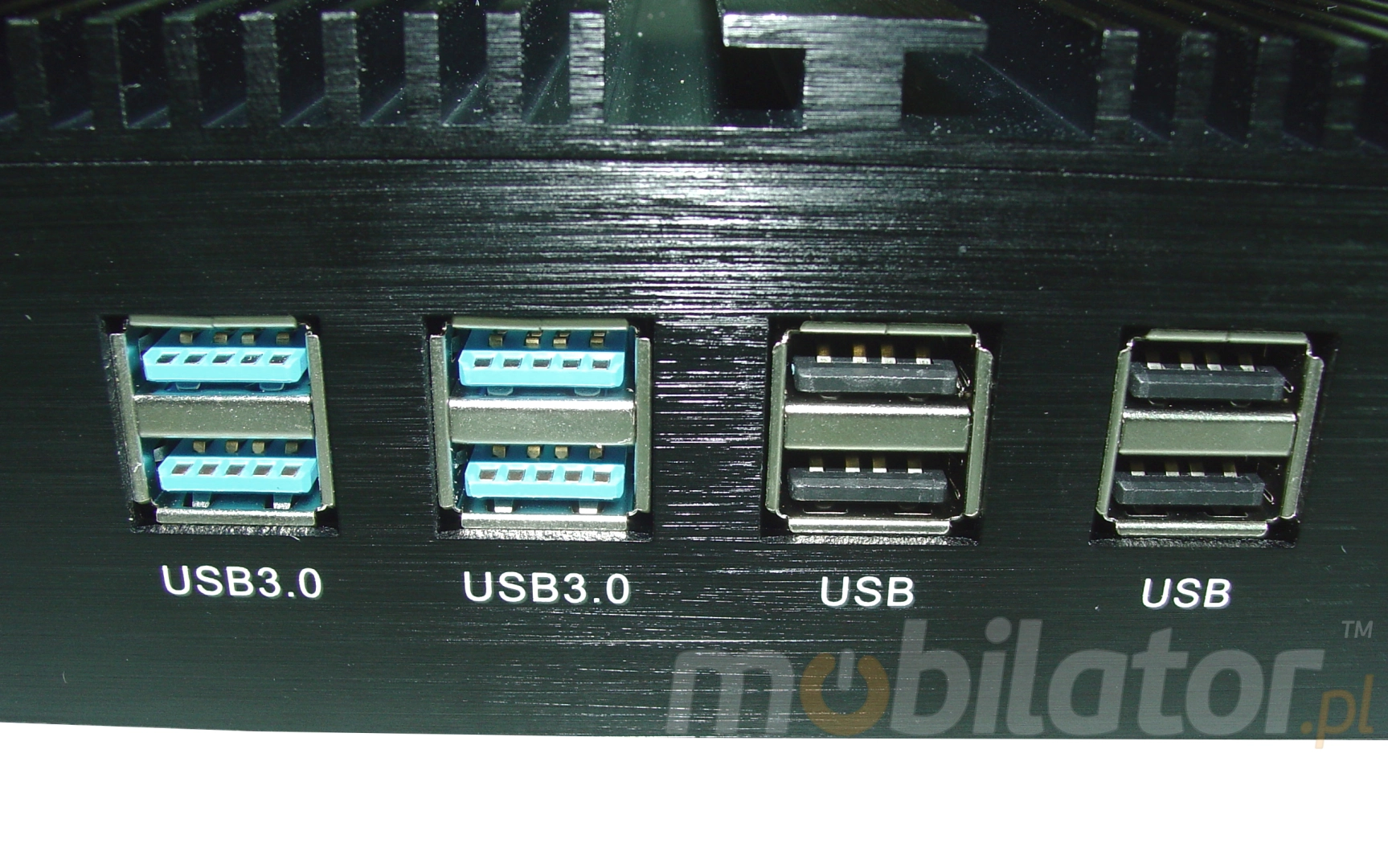

Front Panel (ports)

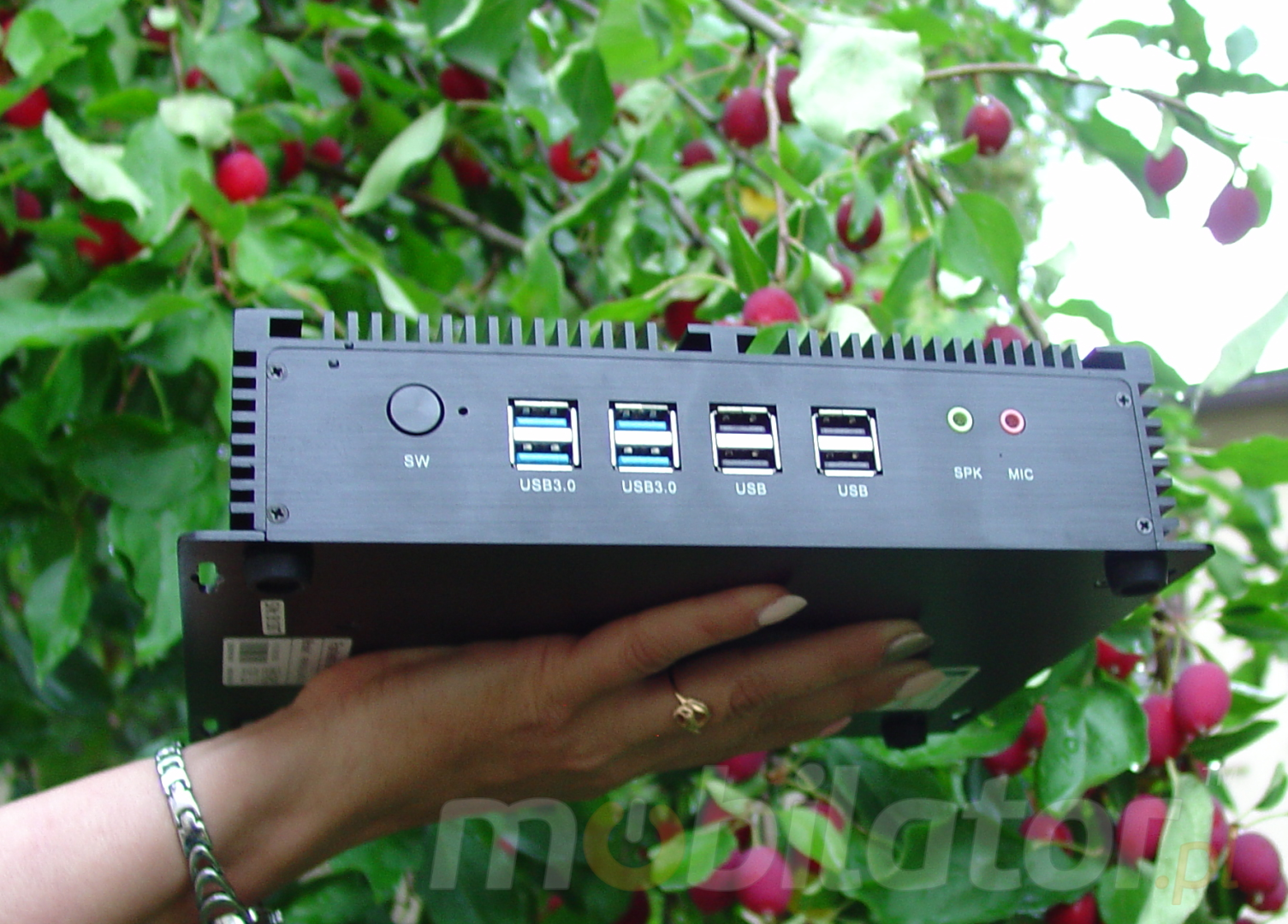

4x USB 2.0
4x USB 3.0
2x Audio
Power ON/OFF
Expansion
HDMI Cable
HDMI to DVI Cable
HDMI to VGA Cable
Power
12V
Watch Dog Timer
-----
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
234 x 175 x 50 mm
Fanless
Yes
Weight
1.35kg
