Product Update Date: 2015-10-12

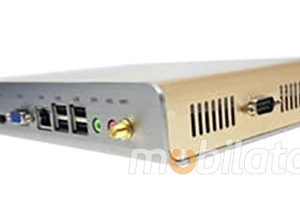

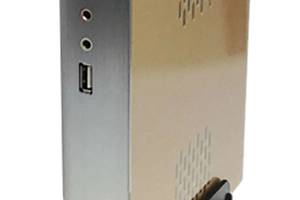

3x Industrial Fanless MiniPC mBOX-T30 v.1

Name: 3x Industrial Fanless MiniPC mBOX-T30 v.1
Brand: Mobilator
Price: 2810.57 PLN
Availability: InStock

Update Date: 2015.10.12

Guarantee 1 year (opt. 2)

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

Przemysłowy MiniPC mBOX-T30

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless MiniPC

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

mBOX-T30 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

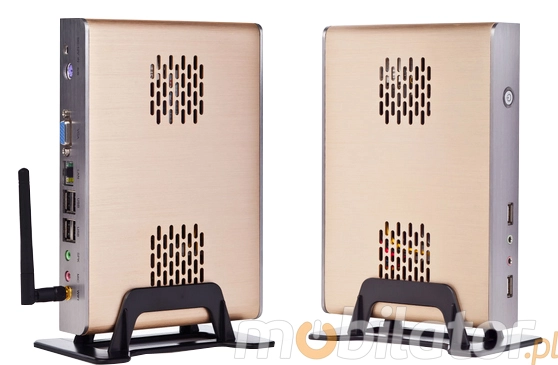

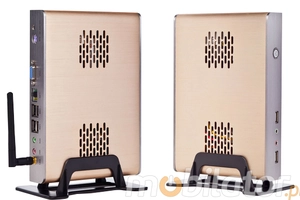

Housing dimension are 205 (W) x140 (L) x40 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 1.5 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space from 8GB SSD to 32GB SSD.

Przemysłowy MiniPC mBOX-T30

go top…

menu…

Communication & Connectors

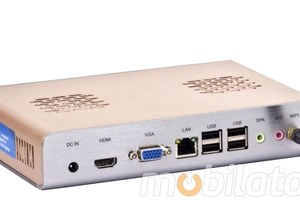

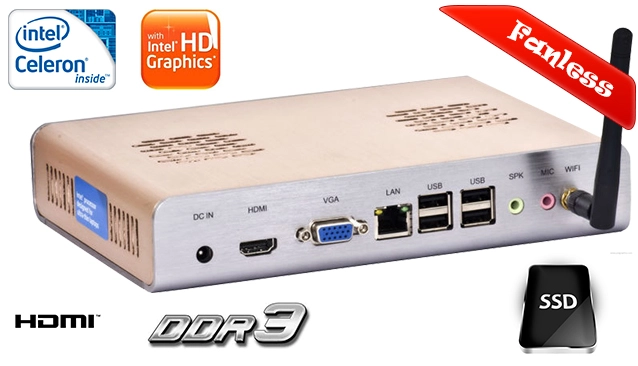

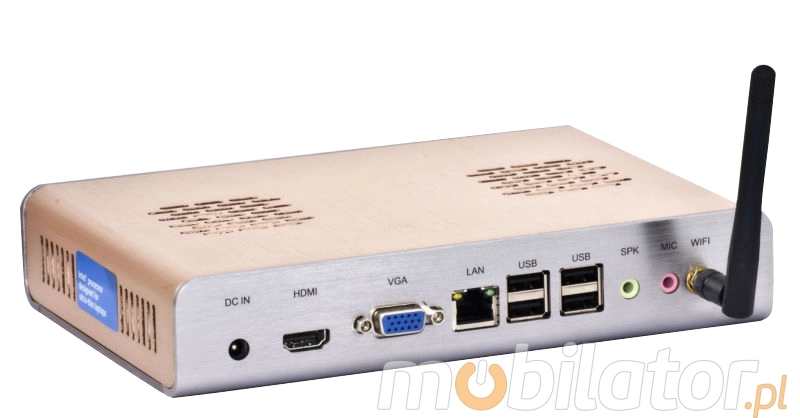

Integrated card - Intel RTL8111F (optional WiFi module) allow connection to the network. The computer is equipped with: one LAN port, one COM port (RS232), one HDMI port, one VGA outpu, six USB 2.0 ports.

Przemysłowy MiniPC mBOX-T30

Cooling

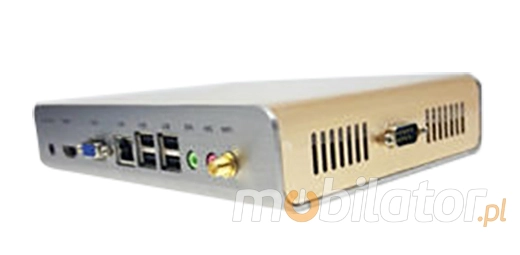

The industrial MiniPC mBOX-T30 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… menu…

Application

Industrial MiniPC Series mBOX-T30 are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of mBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Przemysłowy MiniPC mBOX-T30 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Przemysłowy MiniPC mBOX-T30

Areas of use of industrial MiniPC

Digital Engine

Przemysłowy MiniPC mBOX-T30

Trade

Small computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Industrial MiniPC mBOX-T30 by one COM port (RS232) can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC mBOX-T30 can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 6V to 34V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Przemysłowy MiniPC mBOX-T30

go top…

menu…

Specifications

Dimension	H: 40 mm L: 140 mm W: 205 mm
Weight	1.5 kg
Processor	Intel Celeron 1037u (2x 1.8GHz)
Chipset	Intel NM70 express chipset
RAM Memory	2GB DDR3 (optional 4GB)
Graphic Card	Intel HD Graphics
Sound Card	Realtek ALC662
WLAN	Intel RTL8111F
Connectors	1x COM(RS232) 1x wyjście 12V DC_JACK 6x USB 2.0 1x RJ-45 1x wyjście Audio 1x HDMI 1x Mic 1x VGA

Supported OS
Microsoft Windows: XP/Vista/7 , Linux
Installed OS
-----
Chipset
Intel NM70
CPU Support
-----
Installed CPU
Intel Celeron 1037u (2x1.8GHz)
Graphic Card
Intel HD Graphics
Memory Support
2GB DDR3 (can up to 4GB)
Installed Memory
2GB DDR3
Storage (HDD) Support
-----
Installed Storage (HDD)
8 GB SSD
IP Norm
-----
Temp
0 - 50 ℃
Storage temperature
-15 - 70 ℃
Humidity
0 ~ 95%
Others
Colour Silver, Case
LAN
Intel RTL8111F
Wireless LAN card
No (opctional Yes)
3G
No
Bluetooth
-----
Rear Panel (ports)
2x USB 2.0,
1x Audio,
1x RJ-45,
DC-in Jack,
 1x HDMI,
1x Mic,
1x COM(RS232),
1x VGA
Front Panel (ports)
2x USB 2.0
Expansion
WiFi
Power
12V
Watch Dog Timer
-----
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
205 x 140 x 40  mm
Fanless
Yes
Weight
1.5 kg
Responsible Entity / Distributor
New Portable Devices

Data sheet

Karta katalogowa mBOX-T30

141.76 KB

05.08.2014

Windows 7/8

Download

Compare all versions


Industrial Fanless MiniPC mBOX-T30 v.1
					Small size / Celeron Dual Core 1037u 2x1.8GHz
Grafika: Intel HD Graphic
RAM 2G DDR3 / Dysk 8GB SSD
1x LAN / 1x COM / 6x USB 2.0
1x HDMI / 1x VGA

Product from the Archive - production finished

Industrial Fanless MiniPC mBOX-T30 v.2
					Small size / Celeron Dual Core 1037u 2x1.8GHz
Grafika: Intel HD Graphic
RAM 2G DDR3 / Dysk 32GB SSD
1x LAN / 1x COM / 6x USB 2.0
1x HDMI / 1x VGA / WiFi

Product from the Archive - production finished

Industrial Fanless MiniPC mBOX-T30 v.3
					Small size / Celeron Dual Core 1037u 2x1.8GHz
Grafika: Intel HD Graphic
RAM 4G DDR3 / Dysk 32GB SSD
1x LAN / 1x COM / 6x USB 2.0
1x HDMI / 1x VGA / WiFi

Product from the Archive - production finished

3x Industrial Fanless MiniPC mBOX-T30 v.1
					Small size / Celeron Dual Core 1037u 2x1.8GHz
Grafika: Intel HD Graphic
RAM 2G DDR3 / Dysk 8GB SSD
1x LAN / 1x COM / 6x USB 2.0
1x HDMI / 1x VGA

Product from the Archive - production finished

3x Industrial Fanless MiniPC mBOX-T30 v.2
					Small size / Celeron Dual Core 1037u 2x1.8GHz
Grafika: Intel HD Graphic
RAM 2G DDR3 / Dysk 32GB SSD
1x LAN / 1x COM / 6x USB 2.0
1x HDMI / 1x VGA / WiFi

Product from the Archive - production finished

3x Industrial Fanless MiniPC mBOX-T30 v.3
					Small size / Celeron Dual Core 1037u 2x1.8GHz
Grafika: Intel HD Graphic
RAM 4G DDR3 / Dysk 32GB SSD
1x LAN / 1x COM / 6x USB 2.0
1x HDMI / 1x VGA / WiFi

Product from the Archive - production finished

10x Industrial Fanless MiniPC mBOX-T30 v.1
					Small size / Celeron Dual Core 1037u 2x1.8GHz
Grafika: Intel HD Graphic
RAM 2G DDR3 / Dysk 8GB SSD
1x LAN / 1x COM / 6x USB 2.0
1x HDMI / 1x VGA

Product from the Archive - production finished

10x Industrial Fanless MiniPC mBOX-T30 v.2
					Small size / Celeron Dual Core 1037u 2x1.8GHz
Grafika: Intel HD Graphic
RAM 2G DDR3 / Dysk 32GB SSD
1x LAN / 1x COM / 6x USB 2.0
1x HDMI / 1x VGA / WiFi

Product from the Archive - production finished

10x Industrial Fanless MiniPC mBOX-T30 v.3
					Small size / Celeron Dual Core 1037u 2x1.8GHz
Grafika: Intel HD Graphic
RAM 4G DDR3 / Dysk 32GB SSD
1x LAN / 1x COM / 6x USB 2.0
1x HDMI / 1x VGA / WiFi

Product from the Archive - production finished
