The BiBox 104-I58 panel computer is a versatile device that combines the functions of a desktop computer and a touchscreen. Its design is adapted to operate in harsh industrial environments characterized by high humidity, dust, exposure to water, and extreme temperatures. This ensures high performance and operational stability regardless of environmental conditions.

CertificateS

The BiBox 104-I58 computer panel has key CE, FCC, and RoHS certifications. These certifications ensure the device is safe to use (CE), does not interfere with other devices (FCC), and is free from harmful substances (RoHS). Obtaining these certifications confirms compliance with rigorous quality and environmental standards in force around the world. This ensures that the product is not only efficient and reliable but also completely safe for both the user and the environment. They guarantee that the manufacturer has met all necessary legal and technical requirements.

up…    menu…

Specification

Detailed device specification is available in the "Technical data".

The BiBox 104-I58 is a durable panel computer powered by an Intel Core i5-8250U processor. This powerful yet energy-efficient unit is ideal for industrial applications. Turbo Boost technology allows the processor to dynamically increase its frequency, allowing for smooth operation even with demanding applications. Its four cores and eight threads ensure high performance, allowing for simultaneous processing of multiple tasks without slowing down the system.

up…    menu…

This panel computer measures 270.50 mm wide, 217.9 mm high, and 51.8 mm deep. Its compact, flat housing is designed to fit perfectly in control cabinets and confined industrial spaces. The panel is packed in a cardboard box, each containing three panel computers. This box has a gross weight (GW) of approximately 12 kg. Included inside the box are a power adapter and a Wi-Fi antenna.

up…    menu…

A capacitive screen detects touch by changing the electrostatic field created when you touch the screen with your finger. Unlike resistive technology, it doesn't require any physical pressure. This makes operation precise and fluid, with the screen responding to even the lightest touches. This technology also supports multitouch, allowing for simultaneous recognition of multiple touch points, enabling gestures such as zooming or rotating.

The Aluminium Bezel Style design means that the device's screen frame is made of aluminium or has an aluminium finish. The primary purpose of this design is to give the device a premium look and feel, as aluminium is significantly more durable and rigid than standard plastic. Besides its aesthetic appeal and luxurious finish, the aluminium bezel provides better protection against scratches and damage, and also dissipates heat more efficiently. Furthermore, aluminium's lightweight nature allows for a slim profile without compromising structural strength.

*At the customer's request, it is possible to order the BiBox 104-I58 device in the Aluminum Bezel Style version. Click on the configurator at the top of the page to go to the product settings.

The BiBox 104-I58 panel is ideal for outdoor use, and its 350-nit screen provides good visibility in shaded areas or in moderate sunlight. This allows for comfortable use without any readability issues.

up…    menu…

REsistance

The IP65 standard means that the device's housing provides complete protection against dust ingress. It is also resistant to water jets from any direction. This makes it an ideal solution for use in harsh environments where the equipment is exposed to external factors but not immersed in water.

Firts digit              Protection level                Second digit
No special protection		No special protection
Protection from solid objects greater than 50mm in diameter		Protection from dripping water
Protection from object not greater than 12mm in diameter		Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter		Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter		Protection from splashed water
Complete protection against contact, Protection against dust deposit		Protection from water projected from a nozzle
Complete protectionm against contact, protection from infiltration of dust		Protection against heavy seas, or powerful jets of water
		Protection against immersion
		Protection against complete, continuous submersion in water

The ruggedized BiBox 104-I58 is built to withstand the most demanding conditions. Designed to operate in a wide temperature range (-10°C to 60°C), it is also resistant to relative humidity up to 95% (non-condensing). It can also be safely stored in extreme temperatures ranging from -20°C to 70°C.

up…    menu…

COMMUNICATIONS AND CONNECTIONS

The device features a single Mini-PCIe expansion slot, which serves as a universal port for installing additional modules. This slot can accommodate, for example, a Wi-Fi card for wireless internet connection, a 3G/4G module for cellular connectivity, or an mSATA drive for memory expansion. This feature allows the device to be easily customized to meet specific needs and applications.

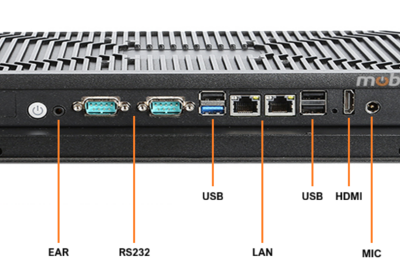

The BiBox 104-I58 is equipped with four USB ports, one HDMI port, and two LAN ports. It also has audio ports, including a microphone input (MICx1) and a headphone output (EARx1). Two RS-232 serial ports are available for industrial communication. The device does not have a VGA port and is powered by 12V DC.

Application

The BiBox 104-I58 Panel PC is ideal for retail environments, where it can control point-of-sale systems, display product information, and present advertisements on monitors. Compliant with the VESA mounting standard, the device can be easily mounted in various locations, such as at cash registers, in factory halls, or in delivery vehicles. This versatile solution will find its place in any retail chain.

do góry…    menu…

Specialized panel computers are reliable tools for use in the harshest environments. Their enclosures are resistant to dust and powerful water jets, as certified by the IP65 standard. This makes devices like the BiBox 104-I58 ideal for applications in construction, logistics, and manufacturing—anywhere where traditional equipment would quickly fail. This is durability you can rely on.

Thanks to its RS-232 interface, this industrial panel computer can be used to centrally control warehouse devices, significantly streamlining their operation. Its durable housing is ideally suited to harsh industrial environments. The device is resistant to dust and dirt, ensuring reliable operation even in highly polluted environments.

up…    menu…

Accessories and available versions

The BiBox 104-I58 industrial panel computer is available in several versions tailored to various needs. Clicking on the hardware configuration number will redirect you to the product with the parameters listed in the table below. Furthermore, upon request, we can create a configuration not currently available in our offer.

More photos in full resolution available in the "Gallery".
