READER RFID

RFID (Radio-Frequency Identification),  this technology is used to identify objects and flow control products. Extracting information from special tags that are attached to objects followed by radio. Depending on the type of tag changes the amount of information that can be stored as well as the maximum distance at which data can be read. RFID tags, is an alternative to barcode - more comfortable and more efficient.

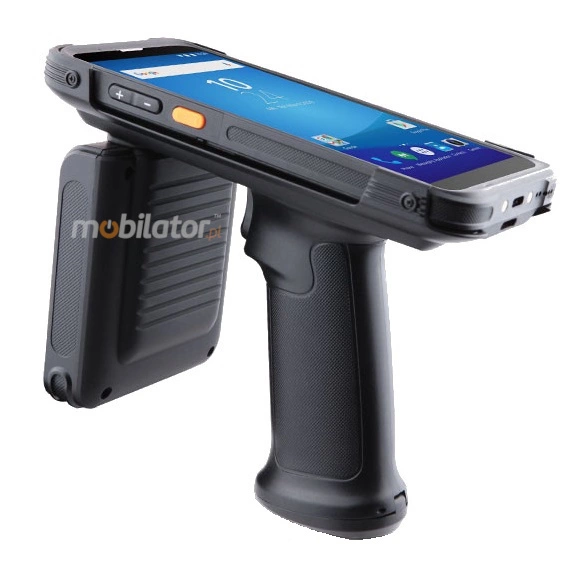

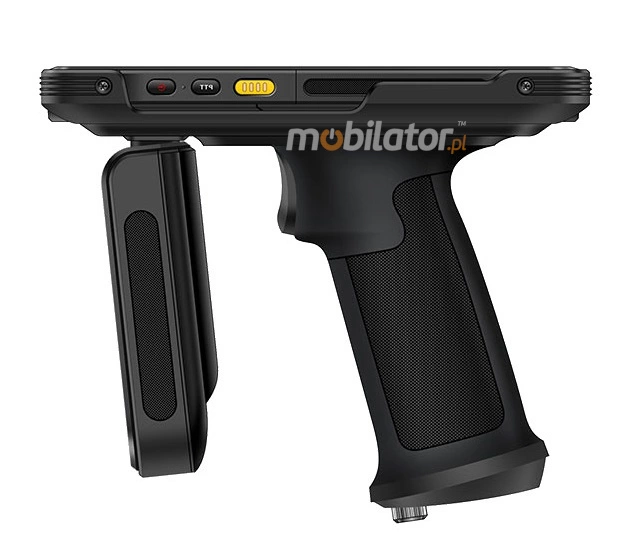

RFID UHF (902-928 MHz - America, 865-868 MHz - Europe) versions are designed to work hand-held mobile or fixed. Substantial differences in the construction of the result of the range and scope of their use. Handheld readers may not have extensive large-size antennas. Their sphere of sensitivity is limited and conditional on the orientation set by the operator. Readers intended for installation on transport carriages like stationary structures, but their antennas must include your sphere detection associated with dimensions of transported goods.

The Impinj Indy R2000 UHF Gen 2 RFID reader chip is a highly integrated, high-performance, low power, SiGe BiCMOS device for EPC Gen2 / ISO18000-63 (formerly 18000-6C) applications. The Indy R2000 can also be programmed to support ISO18000-6B, iPico and iP-X protocols; however, the current reference design does not support these protocols. The Indy R2000 reader chip supports a zero intermediate frequency (ZIF) architecture in the worldwide UHF industrial, science, and medical (ISM) band. The Indy R2000 reader chip contains all of the RF and baseband blocks to interrogate and receive data from compatible RFID tags.

Key Features:

Industry leading modem architecture uses modern digital signal processing which ensures high read reliability
Exclusive Self-jammer Cancellation Technology ensures read reliability even with high antenna reflections
Fully integrated voltage controlled oscillator (VCO) with world wide RFID coverage
Integrated Power Amplifier (PA)
High compression point quadrature downconverting mixer
Integrated RF envelope detectors for forward and reverse power sense
Integrated multipurpose Analog-to-Digital Converters (ADCs) and Digital-to-Analog Converters (DACs)
Configurable digital baseband
High speed synchronous serial bus or 4-bit parallel bus control

1D/2D SCANNER

Decode Ranges N6603:

100% U.P.C.: Near 46 mm – Far 419 mm
5 mil Code 39: Near 64 mm - Far 163 mm
10 mil Code 39: Near 28 mm – Far 338 mm
6.7 mil PDF417: Near 46 mm - Far 185 mm
10 mil Data Matrix: Near 53 mm – Far 203 mm

N6603 supports:

Linear: UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, MSI, Telepen, Trioptic, China Post 2D Stacked: PDF417, MicroPDF417, GS1 Composite 2D Matrix: Aztec Code, Data Matrix, QR Code, Micro QR Code, MaxiCode, Han Xin Code

Honeywell N6603 its maximum reading distance is around 70cm.
The barcode reader enables reading, decoding and sending to the computer data saved in the barcode or QR code. Thanks to dynamic scanning capabilities and a large reading range, our device accurately downloads data, which helps to increase the pace and work efficiency. The whole can be quickly started because thanks to the simplified installation procedure and the intuitive, convenient design, preparing the scanner for work is very easy.

E3200 Ultra-slim 2D Image Scan Engine
Scanning performance
a) Ultra-wide FOV design to improve bar code snappiness especially for long bar code.
b) Global Shutter CMOS Sensor bring much perfect motion tolerance performance.
c) Provides fast and accurate reading of barcodes and extraordinary motion tolerance, even on hard-to-read codes as well as those displayed on mobile phone screens, worn, dirty, poorly printed & bended bar codes.
d) High reading performance on color barcode, inverse barcode and DPM barcode.

Hardware characteristics
a) Ultra slim height, only 6.8 mm. Perfect for integration into ultra-slim devices.
b) Compatible design with some competitor’s product, directly integrated instead.

Unique Product Characteristics
a) Datalogic Decoding Technology and authorization algorithmic.
b) Flexible technical support on the integration of customer product.

Dimensions: 23,5 mm x 16,2 mm x 6,8 mm
WEIGHT: 2.2g

Coasia IA166S

Coasia IA166S, supports barcode type:
1D: UPC/EAN, UPC/EAN with supplementals, Code128, GS1-128, Code 39, Trioptic, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, IATA 2 of 5, Industrial 2 of 5,Codabar, Codablock F,MSI,Telepen,Code11, GS1 DataBar variants.

2D: PDF417, MicroPDF417, Composite Code,Data Matrix, Maxicode, QR Code,
MicroQR, Aztec, Hanxin Code

IA166S cost-effective entry-class 2D barcode scan engine, a computerized image recognition system, bring about a new era of 2D barcode scan engines.
IA166S, a tiny turnkey imager engine and illumination system that is smaller than a penny, ready to fit in your most space constrained designs.

SE4710 its maximum reading distance is around 75cm.
DECODE RANGES:
4 mil Code 39: Near 8.4cm - Far 22.4cm
5 mil Code 128: Near 7.1cm - Far 20.8cm
5 mil Code 39: Near 5.08cm - Far 34.3cm
5 mil PDF417: Near 7.9cm - Far 21.3cm
10 mil DataMatrix: Near 7.4cm - Far 25.7cm
100% UPCA: Near 4.6cm - Far 66.0cm
20 mil Code 39: Near 5.08cm - Far 76.2cm

SMALL SIZE - HIGHEST PERFORMANCE
The SE4710 features Zebra's patented, intelligent PRZM imaging technology, industry-leading decoding algorithms, and advanced focusing, optical and illumination systems - all in the slimmest and smallest body yet.

In addition, this model weighs only a few grams.

With its superb performance and working range, this miniature imager enables you to build mobile devices with the high-throughput scanning functionality your customers need to increase the productivity and efficiency of mobile workers - while maintaining the attractive design that today's workers expect.

LIGHTWEIGHT CONSTRUCTION
The SE4710 weighs less than 5 grams and is only 8.1 mm high, making it even very thin devices such as smartphones and scanning holders that can be equipped with enterprise-class data logging.

MIPI SUPPORT
Now you can integrate the latest processors into your products without sacrificing integration time, valuable mounting space for additional components, and without increasing costs. You can also bring your products to market faster.

UNIQUE RANGE
This device records barcodes at various distances - from almost direct contact to over 60 cm, and thanks to the wide field of view, it enables easy registration of large barcodes from a short distance and the registration of several codes at the same time.
