This rugged tablet is built for unforgiving environments and situations. Designed for extreme durability, the Chainway P100 meets the rigorous MIL-STD-810H and IP67 standards, ensuring complete protection against dust, water, shock, vibration, and extreme temperatures. Thanks to its efficient and safe 10,000 mAh battery, the tablet operates continuously for up to 13 hours. The screen guarantees excellent readability even in bright sunlight, and reliability is assured even in extreme cold.
The Chainway P100 industrial tablet comes standard with a one-year manufacturer's warranty. To ensure long-term operation, we offer the option of a paid extension to 2, 3, 4, or 5 years. To discuss details and purchase a custom warranty, please contact us.

MIL-STD-810H CERTIFICATE

MIL-STD-810H is a US military standard that specifies rigorous testing methods for devices' durability in extreme environmental conditions. This means that a tablet with this certification has successfully passed a series of simulated tests, including drops, shocks, vibrations, extreme temperatures (both hot and cold), humidity, and even salt spray. This certification guarantees exceptional ruggedness and durability, proving that the device can operate reliably even in the harshest field or industrial environments. In short, a tablet with MIL-STD-810H is a rugged device, designed to survive where standard electronics fail.

up…    menu…

Specification

Detailed device specification is available in the "Technical data".

At the heart of the Chainway P100 tablet is a powerful 2.4 GHz Octa-Core processor, which ensures smooth and fast performance, crucial for professional applications. Thanks to its eight-core architecture, the device can efficiently process multiple tasks simultaneously, guaranteeing high performance in the field. This dynamic combination of processing power and energy optimization meets the needs of the most demanding systems, from logistics to inventory.

up…    menu…

The Chainway P100 tablet is designed for professionals on the go. It's the perfect proof that rugged hardware doesn't have to be heavy or bulky. Its ergonomic design and slim casing ensure the tablet fits comfortably in your hand. Its low weight of 802g and well-thought-out dimensions of 263.5mm x 175mm x 13.5mm ensure comfortable use throughout a full day of field work..

up…    menu…

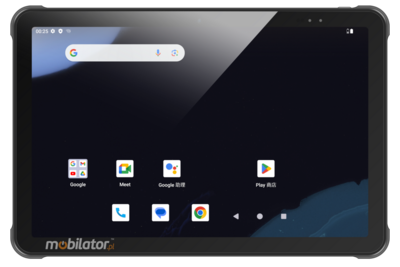

This tablet features a multi-touch panel protected by Corning Glass. These features ensure high precision and reliability, and the panel technology allows for easy control of the device using multiple fingers simultaneously. Furthermore, the advanced design supports operation even with gloves or wet hands.

Screen brightness, measured in nits, is a crucial factor in outdoor conditions. The Chainway P100 tablet reaches 800 nits, making it a top-of-the-line device for use in direct sunlight. This 800 nits rating, along with full dust and water resistance, ensures smooth and reliable interaction regardless of light intensity. This level of brightness allows for instant reading of complex data and maps without any visual distractions.

DATA COLLECTING

The industrial tablet is equipped with an NFC (Near-Field Communication) module, operating at the standard 13.56 MHz frequency. It provides short-range interaction, with an optimal range of 2 to 4 cm, ideal for fast and secure data exchange. The system supports key protocols such as ISO14443A/B and ISO15693, and can read and write to popular tags, including M1 (S50/S70) cards and advanced smart cards. This versatility effectively expands the tablet's capabilities in identification, access control, and data collection.

The barcode scanner built into the Chainway P100 tablet is the SE4100 2D module, guaranteeing fast and efficient reading and data transfer, crucial for dynamic field operations. This advanced scanning engine provides a wide reading range, effortlessly extracting information from both traditional 1D codes and complex 2D codes (including QR and Data Matrix). Crucially, this technology is designed to reliably read even damaged, faint, or poorly printed codes, eliminating downtime and significantly increasing workflow speed and efficiency.

up…    menu…

IP67 Protection

The IP67 standard, which the Chainway P100 tablet meets, defines the highest degree of protection provided by its casing against dust ingress and the effects of temporary immersion in water. This is a reliable solution for industries where absolute resistance to external factors and durability are essential. This certification guarantees that dust and dirt will not damage the tablet's internal components, even in the harshest field conditions. This means users can safely wash the device under running water or use it in heavy rain, which is essential for maintaining business continuity.

Firts digit              Protection level                Second digit
No special protection		No special protection
Protection from solid objects greater than 50mm in diameter		Protection from dripping water
Protection from object not greater than 12mm in diameter		Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter		Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter		Protection from splashed water
Complete protection against contact, Protection against dust deposit		Protection from water projected from a nozzle
Complete protectionm against contact, protection from infiltration of dust		Protection against heavy seas, or powerful jets of water
		Protection against immersion
		Protection against complete, continuous submersion in water

The military-grade design of this tablet ensures it can withstand accidental drops from up to 1.2 meters in working mode, even onto hard surfaces like concrete. This durability is crucial in dynamic industrial environments, where the risk of the device slipping out of your hands is high. This means users don't have to worry about costly damage or interruptions in their work after every drop. Combined with IP and MIL-STD-810H standards, this makes the Chainway P100 a device ready for extremely harsh field conditions.

The Chainway P100 is a specialized device designed for operation in extreme temperature conditions. It can operate continuously between -20°C and 50°C, and in storage mode, it can withstand temperatures from -40°C to 70°C. The device is also fully adapted to work in high-humidity environments, handling relative humidity ranging from 5% to 95% RH, provided there is no condensation. This means the P100 remains fully operational in both dry, desert conditions and humid, tropical climates.

up…    menu…

wireless communication

The Chainway P100 industrial tablet is equipped with a professional GNSS module that provides exceptional positioning accuracy. It supports four global satellite systems – GPS, GLONASS, GALILEO, and BEIDOU, augmented by A-GPS. This multi-system support guarantees fast and smooth navigation with low power consumption, allowing you to effortlessly reach any designated destination and precisely track routes in the field.

The CHAINWAY P100 tablet utilizes the modern Bluetooth 5.2 communication standard, crucial for professional work. This technology guarantees more stable and reliable connections with peripherals such as printers and headsets, eliminating data transmission interruptions. Most importantly, the 5.2 standard minimizes power consumption. This allows accessories and the tablet itself to operate significantly longer on a single charge, directly impacting efficiency and work continuity during long shifts.

Dual-band Wi-Fi provides fast internet access wherever a secured or open Wi-Fi connection is available. This is a convenient solution for users with a router and a Wi-Fi network at work or home, allowing for free connection use.

 up…    menu…

Application

The Chainway P100 is a device that streamlines the workflow of mobile sales representatives. Running on Android, the device enables efficient customer service and instant access to product databases, while information searches are fast and precise. Most importantly, however, is its lightning-fast connectivity: thanks to 5G and Wi-Fi modules, the tablet maintains constant, fast contact with headquarters. This allows for immediate ordering, invoicing, and real-time inventory updates. As a result, employees gain an operational advantage by working faster and eliminating time-consuming delays associated with data transmission.

do góry…    menu…

The Chainway P100 tablet stands out for its exceptional durability in extreme conditions. Its casing is completely dust- and waterproof, as confirmed by rigorous IP67 certifications and the MIL-STD-810H military standard. This makes the device ideal for even the harshest field conditions, such as construction sites or industrial infrastructure. Furthermore, the Chainway P100 is not just a shield, but also the brain of the operation. Thanks to specialized applications, the tablet becomes a key tool for monitoring and controlling production processes, as well as collecting and analyzing data in real time. This functionality allows for immediate work optimization and fast, accurate decision-making.

The Chainway P100 is the perfect tool for accelerating and streamlining warehouse workflows. It allows for the quick and precise execution of key tasks such as inventory, inventory control, and goods receiving and issuing. Built-in Wi-Fi and Bluetooth modules ensure constant access to data and facilitate communication with other devices, which is invaluable in everyday work.

up…    menu…

Accessories and available versions

We also offer a range of additional accessories for this durable tablet to further enhance its functionality and comfort. Below is a list of available accessories. Clicking the "Check" link will take you to a page with a description and price of the accessory.

The Chainway P100 for specialized applications is a rugged device, ideal for use in all conditions. Available in several configurations to suit your needs. Click on the number to see the details and parameters in the table. If you require a custom version, contact us and we will create one specifically for you.

More photos in full resolution available in the "Gallery".
