Product Update Date: 2024-10-14

Computer Industrial Fanless MiniPC mBOX Nuc Q190P v.1

Name: Computer Industrial Fanless MiniPC mBOX Nuc Q190P v.1
Brand: Mobilator
Price: 320.21 PLN
Availability: InStock

Update Date: 2024.10.14

Guarantee 1 year (opt. 2)

Net

260.34 €

Gross

320.21 €

Buy now!

Negotiate the price

								Ask about the product

 Product card

								Recommend to a friend

								Store

								Compare

Product availability 14 - 20 workdays

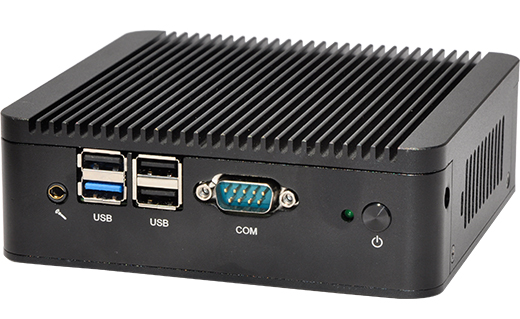

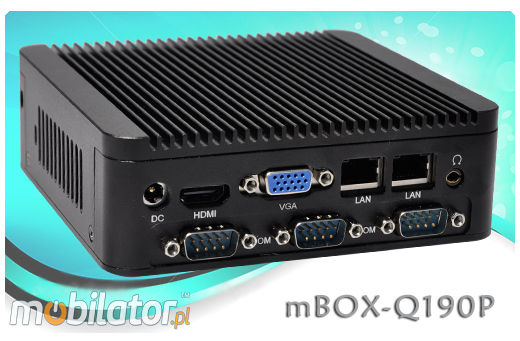

Computer Industrial Fanless MiniPC mBOX Nuc Q190P

Menu
Description
Communication & Connectors
Usability
Specifications

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

MBOX Nuc Q190P is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

Housing dimension are 135 (W) x128 (L) x45 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 0.82 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

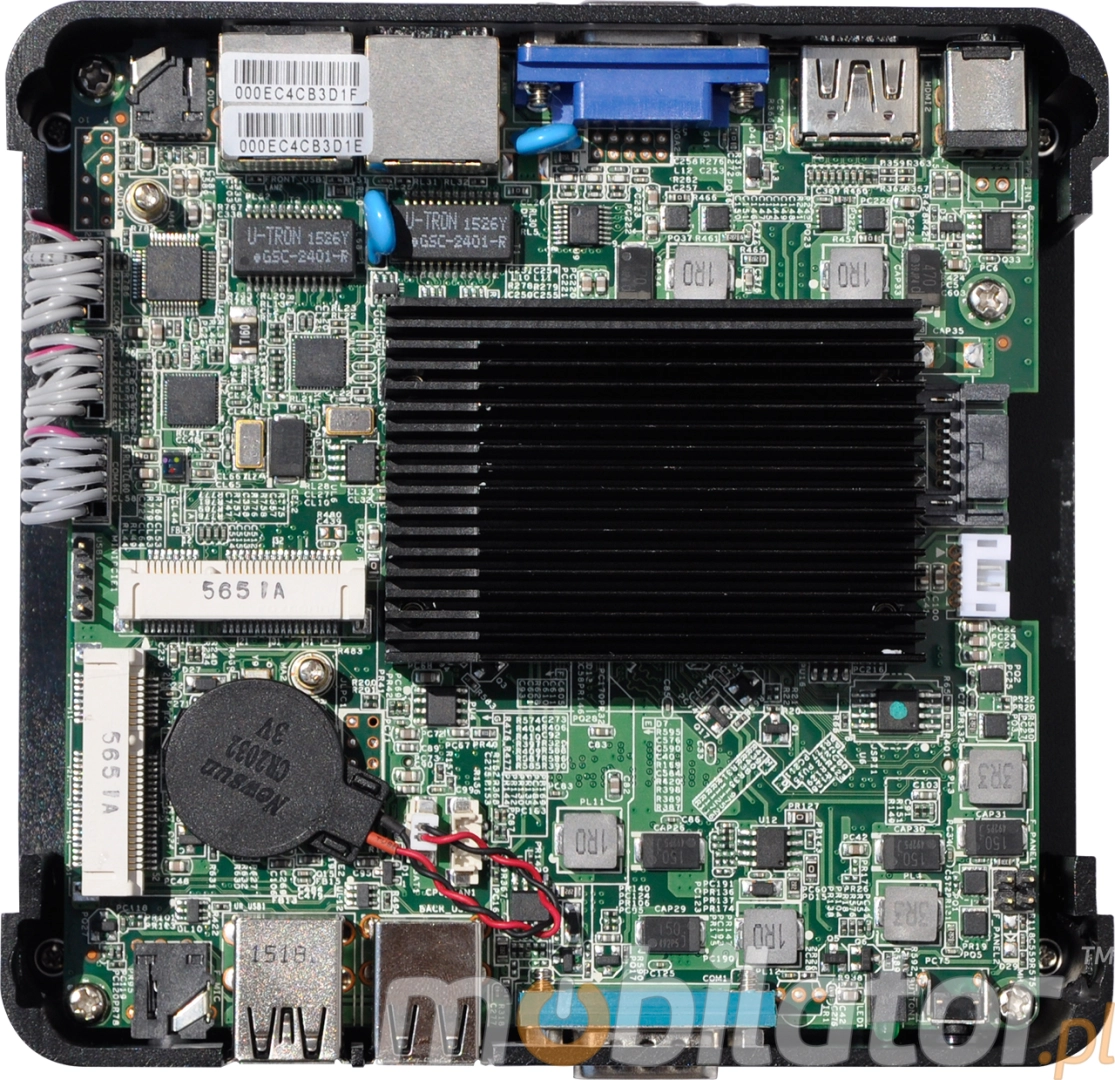

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB/128GB/256GB SSD or 500GB HDD. Support together: mSata SSD and 2.5 inch SSD/HDD - SATAIII.

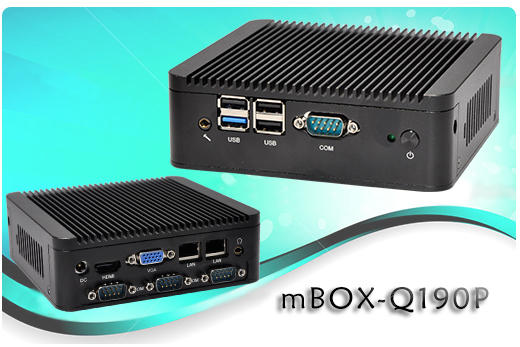

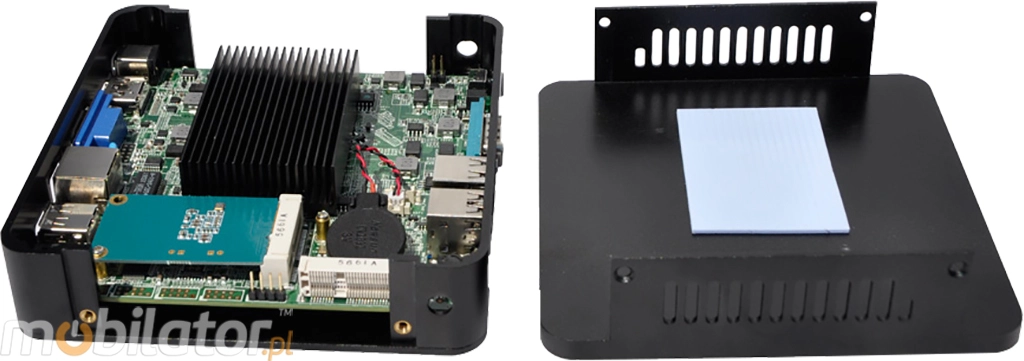

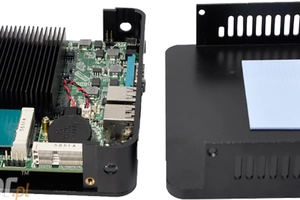

srodek minipc przemyslowy Computer Industrial Fanless MiniPC mBOX Nuc Q190P

Version for you

Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

	v.1	v.2	v.3	v.4	v.5	v.6
WIFI b/g/n
2GB RAM		-	-	-	-	-
4GB RAM	-				-	-
8GB RAM	-	-	-	-
32GB mSATA		-	-	-	-	-
64GB mSATA	-		-	-	-	-
128GB mSATA	-	-		-	-	-
256GB mSATA	-	-	-	-	-
500GB HDD	-	-	-			-

go top…

menu…

Communiaction & Connectors

Integrated card - Intel RTL8111E LAN and WiFi module allow connection to the network. The computer is equipped with: two LAN port, four COM (RS232) port, one VGA output, three USB 2.0 ports, one USB 3.0 port, one HDMI output one way audio, one microphone input.

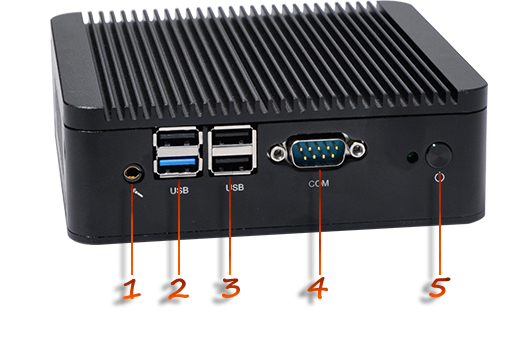

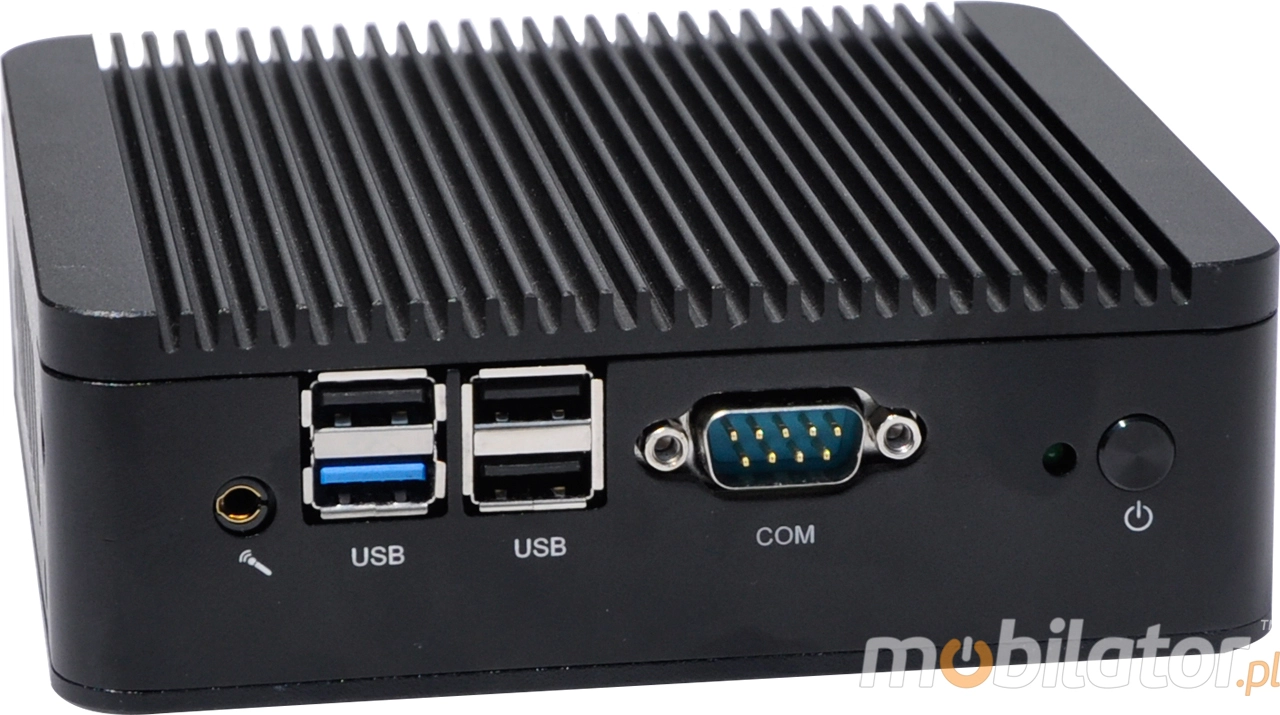

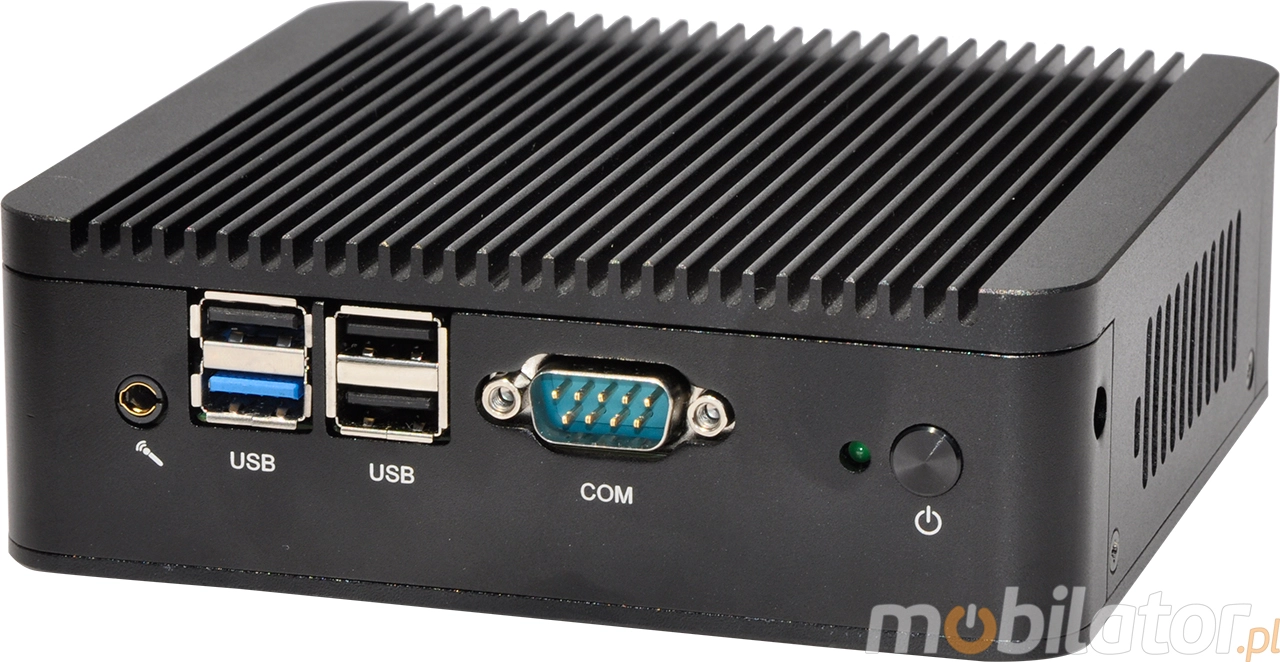

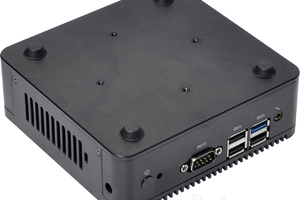

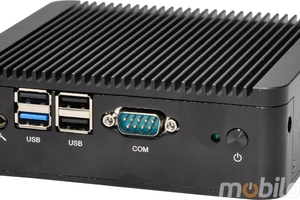

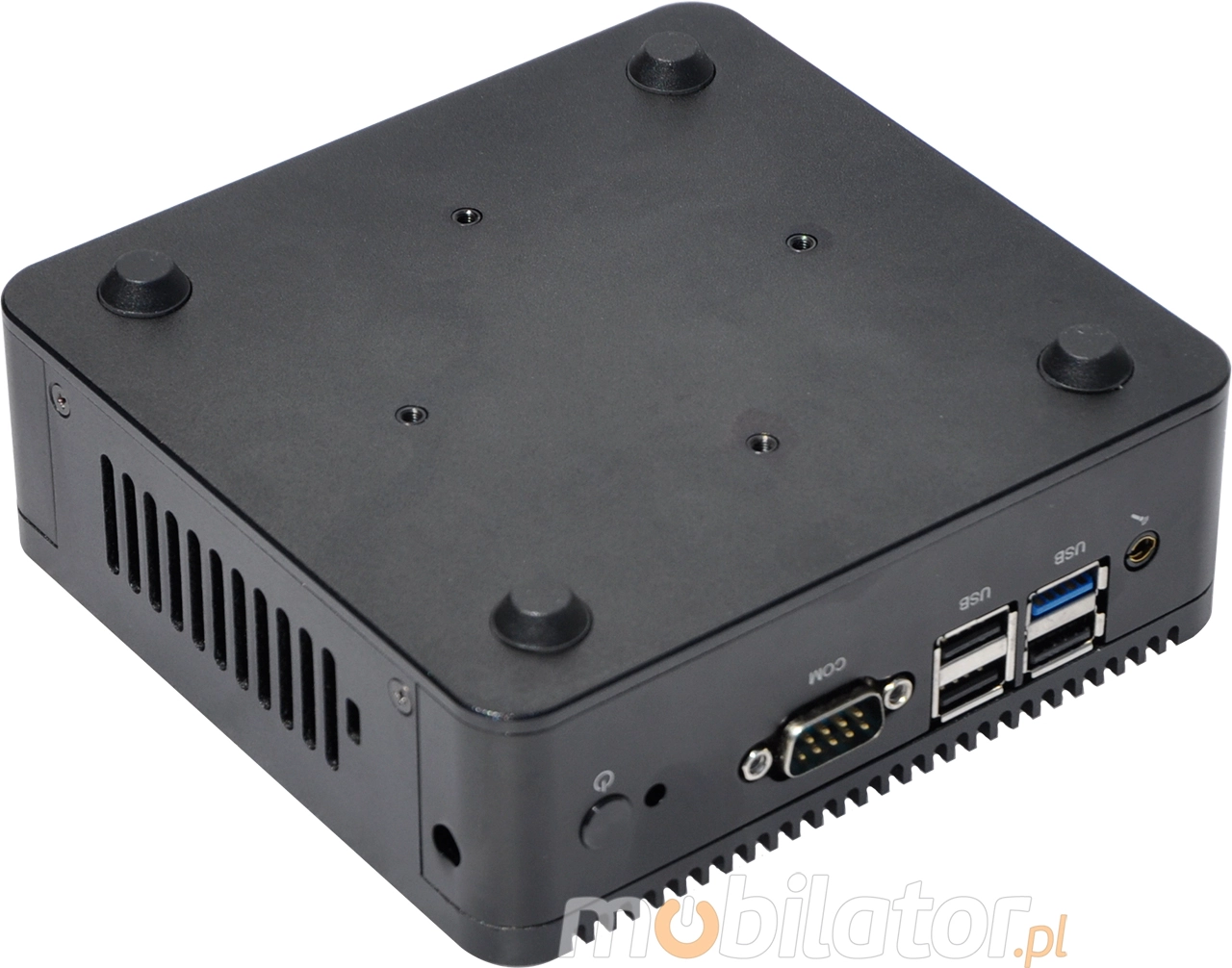

zlacza przod usb hdmi com Computer Industrial Fanless MiniPC mBOX Nuc Q190P

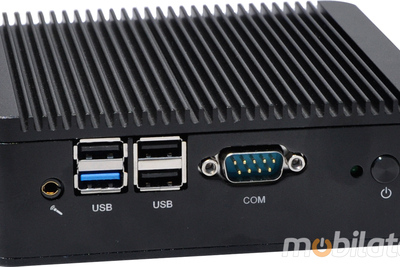

1. 1x Mic		4. 1x COM (RS232)
2. 1x USB 3.0		5. Power ON/OFF
3. 3x USB 2.0

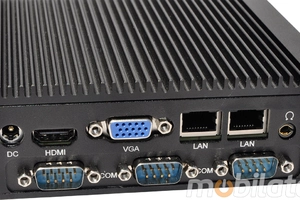

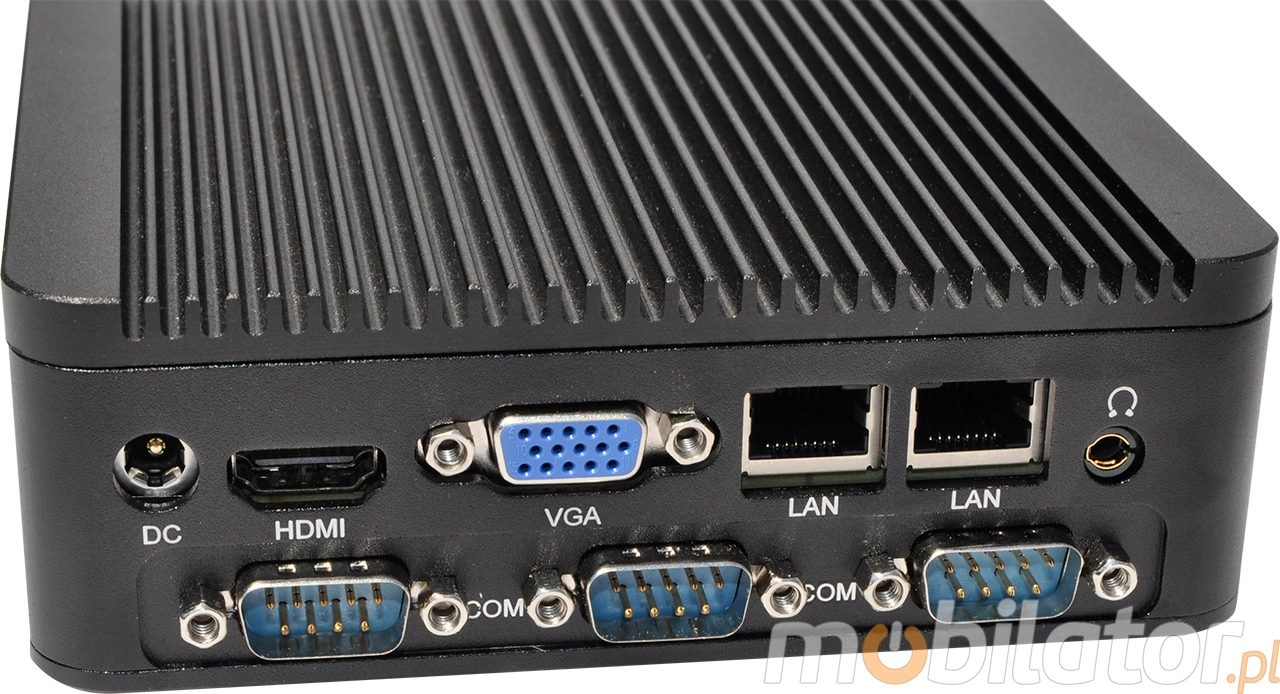

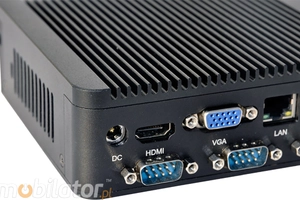

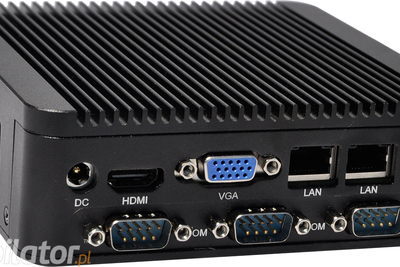

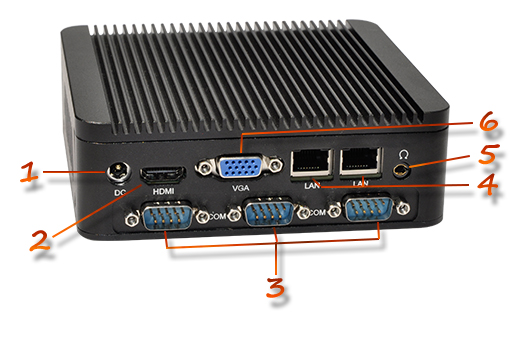

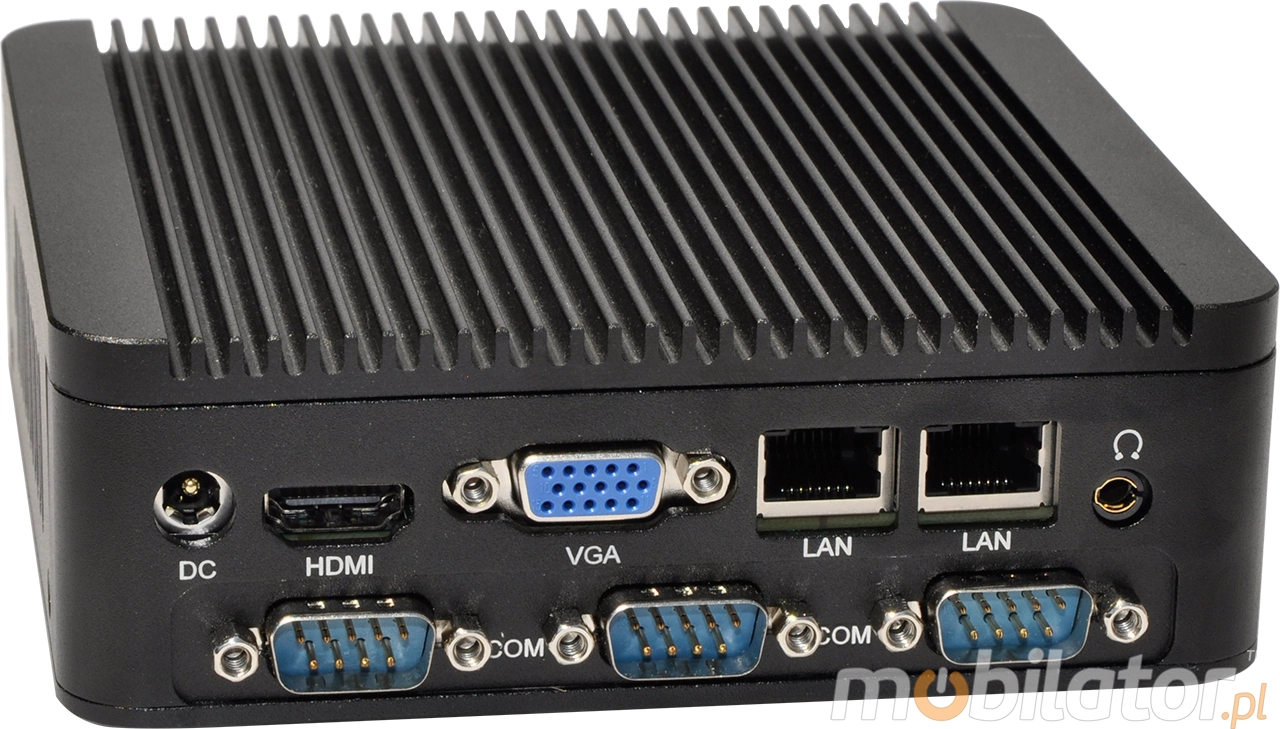

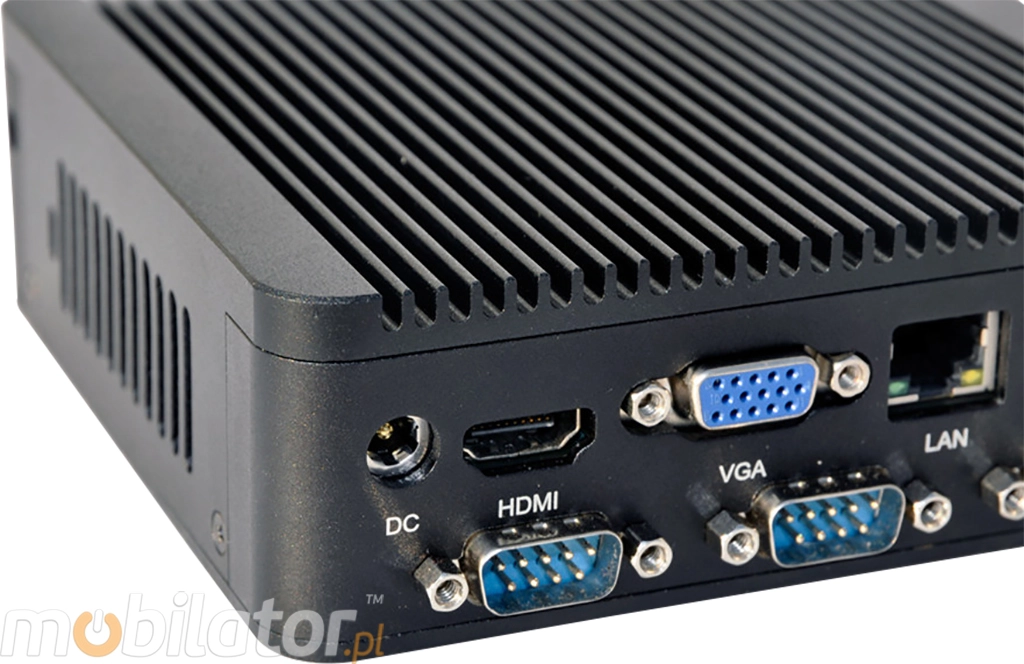

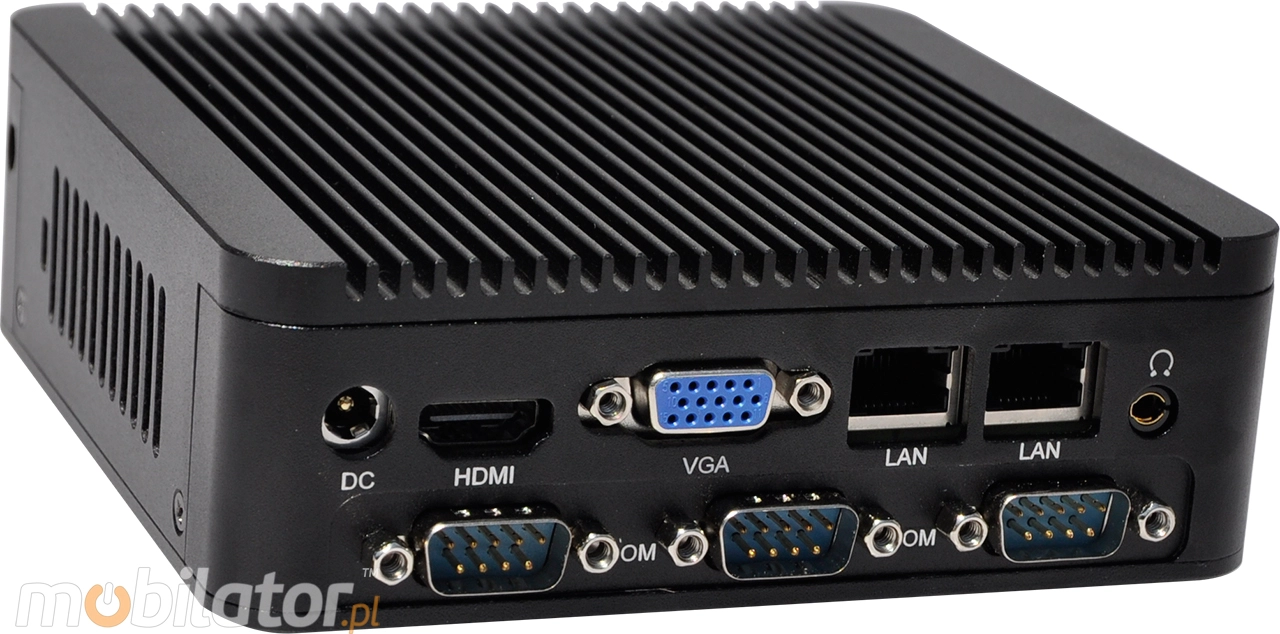

Computer Industrial Fanless MiniPC mBOX Nuc Q190P

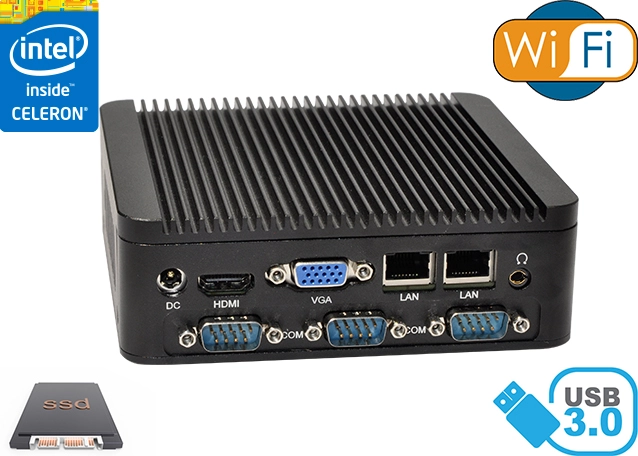

1. 1x DC-IN 12V		4. 2x LAN RJ-45
2. 1x HDMI		5. 1x Audio Jack
3. 3x COM(RS232)		6. 1x VGA

Cooling

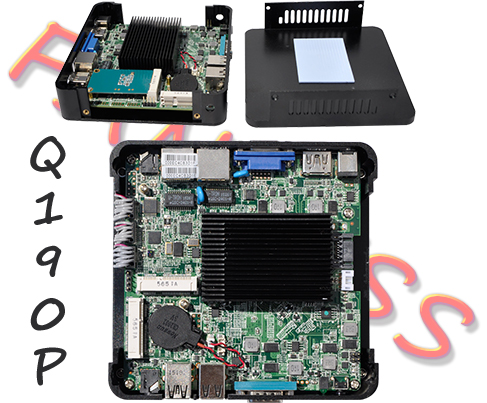

The industrial fanless MiniPC MBOX Nuc Q190P uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top…

menu…

Usability

Industrial MiniPC Series MBOX Nuc Q190P are based on high-performance quad-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications.

The biggest advantages Industrial Fanless MiniPC mBOX Nuc Q180P of these devices are: small size, performance and energy efficiency. An extra pair of brac Computer Industrial Fanless MiniPC mBOX Nuc Q190P kets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

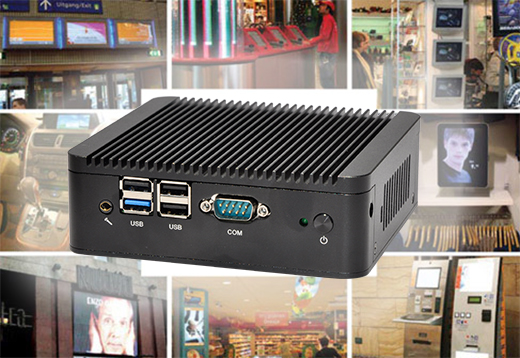

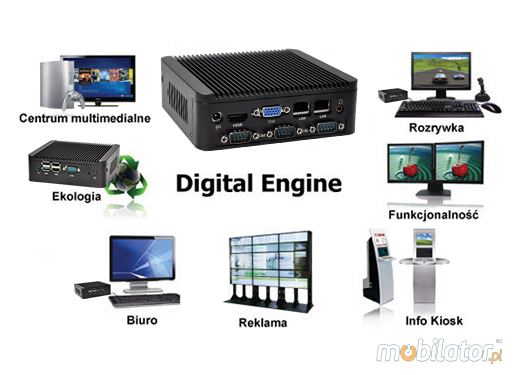

Areas of use of industrial MiniPC

Digital Engine

Computer Industrial Fanless MiniPC mBOX Nuc Q190P

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Warehouse

Industrial fanless MiniPC MBOX Nuc Q190P by to four USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless MBOX Nuc Q190P can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Computer Industrial Fanless MiniPC mBOX Nuc Q190P

go top…

menu…

Specifications

Dimensions	H: 45 mm L: 128 mm W: 135 mm
Weight	0,82kg
Processor	Intel Celeron J1900 (4x 2GHz)
Chipset	Intel NM70
RAM	2GB DDR3
Graphics	Intel HD Graphics
Sound Card	Realtek ALC662
WLAN	RTL8111E 10/100/1000 Controller
Connectors	1x Power ON/OFF 1x USB 3.0 3x USB 2.0 1x MIC 4x RS232 1x Power Input 1x HDMI 1x - VGA 2x - RJ45 1x - Speaker

Others
Colour Black, Aluminum
Chipset
Intel NM70
CPU Support
-----
Installed CPU
Intel Celeron J1900 (4x2GHz)
Memory Support
2GB DDR3 (max. 8GB)
Installed Memory
2GB DDR3
Graphic Card
Intel HD Graphics
Storage (HDD) Support
-----
Installed Storage (HDD)
32GB mSata SSD (opc. mSata SSD + 2,5" SSD/HDD)
CD/DVD Drive
-----
LAN
Realtek RTL8111E 10/100/1000 Controller
Wireless LAN card
Yes - WIFI b/g/n
Bluetooth
No
3G
No
TV Tuner
-----
Watch Dog Timer
0~255 sec
Front Panel (ports)
Power ON/OFF
1x USB 3.0
3x USB 2.0
1x MIC
1x COM (RS232)
Rear Panel (ports)
1x Power Input
1x HDMI
1x VGA
2x LAN (RJ45)
3x COM (RS232)
1x Audio Jack
1x Mic
Power
DC 12V
Supported OS
Microsoft Windows: 7/8/8.1, Linux
Installed OS
-----
Dimensions
135 x 128 x 45mm
Weight
0.82 kg
Expansion
-----
Fanless
Yes
Humidity
0 ~ 95%
Temp
0 - 50 ℃
IP Norm
-----
Storage temperature
-15 - 70 ℃
Responsible Entity / Distributor
New Portable Devices

Compare all versions


Computer Industrial Fanless MiniPC mBOX Nuc Q190P v.1
					Small size / Intel® Celeron J1900 4x2GHz
Graphics: Intel® HD Graphics
RAM 2G DDR3 / Disk 32GB SSD(opc. SSD+2,5")
2x LAN / 4x COM / 3x USB 2.0
1x HDMI / 1x VGA / 1x USB 3.0 / WiFi

Gross320.21 €

Computer Industrial Fanless MiniPC mBOX Nuc Q190P v.2
					Small size / Intel® Celeron J1900 4x2GHz
Graphics: Intel® HD Graphics
RAM 4G DDR3 / Disk 64GB SSD(opc. SSD+2,5")
2x LAN / 4x COM / 3x USB 2.0
1x HDMI / 1x VGA / 1x USB 3.0 / WiFi

Gross362.98 €

Computer Industrial Fanless MiniPC mBOX Nuc Q190P v.4
					Small size / Intel® Celeron J1900 4x2GHz
Graphics: Intel® HD Graphics
RAM 4G DDR3 / Disk 500GB HDD(opc. SSD+2,5")
2x LAN / 4x COM / 3x USB 2.0
1x HDMI / 1x VGA / 1x USB 3.0 / WiFi

Gross373.95 €

Computer Industrial Fanless MiniPC mBOX Nuc Q190P v.3
					Small size / Intel® Celeron J1900 4x2GHz
Graphics: Intel® HD Graphics
RAM 4G DDR3 / Disk 128GB SSD(opc. SSD+2,5")
2x LAN / 4x COM / 3x USB 2.0
1x HDMI / 1x VGA / 1x USB 3.0 / WiFi

Gross389.30 €

Computer Industrial Fanless MiniPC mBOX Nuc Q190P v.5
					Small size / Intel® Celeron J1900 4x2GHz
Graphics: Intel® HD Graphics
RAM 8G DDR3 / Disk 500GB HDD(opc. SSD+2,5")
2x LAN / 4x COM / 3x USB 2.0
1x HDMI / 1x VGA / 1x USB 3.0 / WiFi

Gross418.91 €

Computer Industrial Fanless MiniPC mBOX Nuc Q190P v.6
					Small size / Intel® Celeron J1900 4x2GHz
Graphics: Intel® HD Graphics
RAM 8G DDR3 / Disk 256GB SSD(opc. SSD+2,5")
2x LAN / 4x COM / 3x USB 2.0
1x HDMI / 1x VGA / 1x USB 3.0 / WiFi

Gross479.23 €
