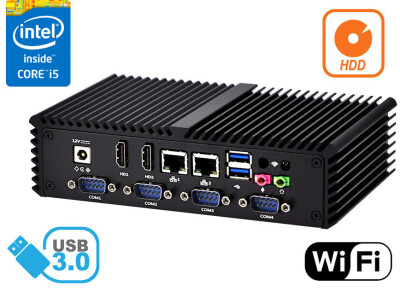

Computer Industrial Fanless MiniPC mBOX Nuc Q350P v.5

Name: Computer Industrial Fanless MiniPC mBOX Nuc Q350P v.5
Brand: Mobilator
Price: 2167.88 PLN
Availability: InStock

MiniPC z pasywnym chłodzeniem do przemysłu

Update Date: 2024.10.15

Guarantee 1 year (opt. 2)

Net

1762.50 zł

Gross

2167.88 zł

Buy now!

Negotiate the price

								Ask about the product

 Product card

								Recommend to a friend

								Store

								Compare

Product availability 14 - 20 workdays

Industrial Computer Fanless MiniPC Qunso ssd intel core i5 wi-fi com usb

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

Industrial Fanless MiniPC mBOX Nuc Q350P is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

Housing dimensions are 187 (W) x111 (L) x50 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 2/4GB/8GB DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB/128GB and 500GB HDD.

Industrial Computer Fanless MiniPC Qunso ssd intel core i5 wi-fi com usb

go top…

menu…

Communication & Connectors

Two Integrated cards - Intel I211-AT- 10/100/1000 Controller allow connection to the network. The computer is equipped with: two LAN ports, two HDMI ports, two USB 2.0 ports, four USB 3.0 ports, six COM (RS232) port, one Audio input and one Mic output.

Industrial Computer Fanless MiniPC Qunso ssd intel core i5 wi-fi com usb

Komputer Przemysłowy Fanless MiniPC mBOX Nuc Q150P intel core i5

The Industrial Computer Fanless MiniPC mBOX Nuc Q350P uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… menu…

Application

Industrial Computer Fanless MiniPC mBOX Nuc Q350P are based on high-performance quad-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of mBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Industrial Computer Fanless MiniPC Qunso ssd intel core i5 wi-fi com usb of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Computer Fanless MiniPC mBOX Nuc Q150P

Areas of use of industrial MiniPC

Industrial Computer Fanless MiniPC Qunso ssd intel core i5 wi-fi com usb

Digital Engine

Industrial Computer Fanless MiniPC Qunso ssd intel core i5 wi-fi com usb

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Industrial Computer Fanless MiniPC mBOX Nuc Q350P by USB and COM ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Industrial Computer Fanless MiniPC mBOX Nuc Q350P can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Computer Fanless MiniPC Qunso ssd intel core i5 wi-fi com usb

go top…

menu…

go top… menu…

Specifications

Dimension	H: 50 mm L: 111 mm W: 187 mm
Processor	Intel Core i5-4200U 1.6GHz
Chipset	Intel Chipset
RAM Memory	8GB
Graphic Card	Intel HD Graphics 4400
Sound Card	Realtek ALC662
WLAN	2 x Intel I211-AT- 10/100/1000 Controller
Connectors	1x 12V DC Jack 2x USB 2.0 4x USB 3.0 2x RJ-45 LAN 1x Mic 2x HDMI 6x COM (RS232) 1x Audio

Industrial Computer Fanless MiniPC Qunso ssd intel core i5 wi-fi com usb mobilator umpc

Supported OS
Microsoft Windows: 7/8/8.1/10, Linux
Installed OS
-----
Chipset
Intel express chipset
CPU Support
-----
Installed CPU
Intel Core i5-4200U (2x 1.6GHz)
Graphic Card
Intel HD Graphics 4400
Memory Support
DDR3L (max. 8GB) 1333MHz/1600MHz SO-DIMM
Installed Memory
8GB
Storage (HDD) Support
SSD/HDD
mSATA
Installed Storage (HDD)
500GB HDD
IP Norm
-----
Temp
0 ～50℃
Storage temperature
-20 ~ 80℃
Humidity
10 ~ 90%
Others
Colour Black
LAN
2 x Intel I211-AT- 10/100/1000 Controller
Wireless LAN card
Yes
3G
-----
Bluetooth
-----

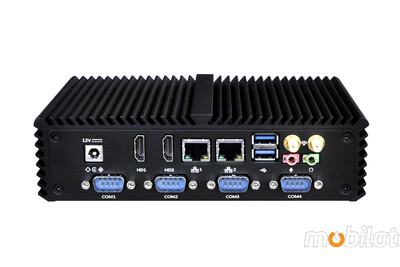

Rear Panel (ports)
DC-IN 12,
4x COM(RS232)
2x RJ-45 LAN
1x Mic
1x Audio
 2x HDMI
2x USB 3.0

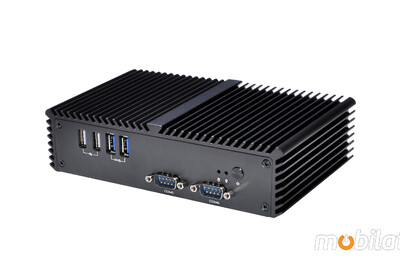

Front Panel (ports)
2x USB2.0
 2x USB 3.0
2x COM(RS232)
Power ON/OFF
Expansion
-----
Power
12V
Watch Dog Timer
0 ~ 255 sec
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
187 x 111 x 50 mm
Fanless
Yes
Weight
2.5kg
