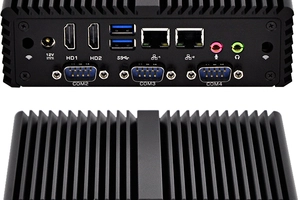

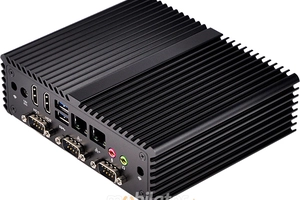

Computer Industrial Fanless MiniPC mBOX Nuc Q430P v.1

Name: Computer Industrial Fanless MiniPC mBOX Nuc Q430P v.1
Brand: Mobilator
Price: 1729.69 PLN
Availability: InStock

+10

Update Date: 2024.10.15

Guarantee 1 year (opt. 2)

Net

1406.25 zł

Gross

1729.69 zł

Buy now!

Negotiate the price

								Ask about the product

 Product card

								Recommend to a friend

								Store

								Compare

Product availability 14 - 20 workdays

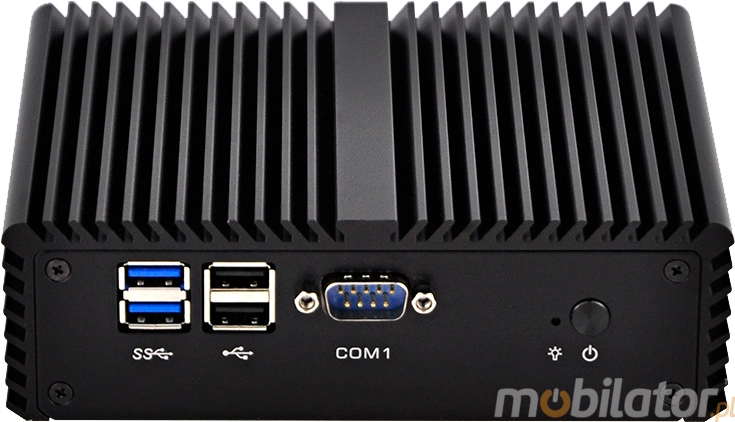

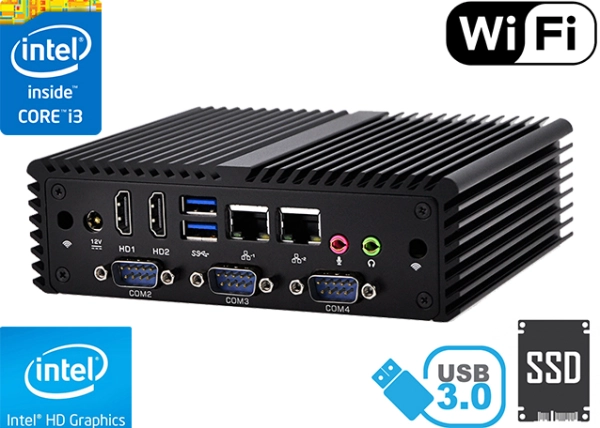

Industrial Computer Fanless MiniPC mBOX Nuc Q430P

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

Industrial Fanless MiniPC mBOX Nuc Q430P is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

Housing dimensions are 155 (W) x127 (L) x48 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 4/8GB DDR3 memory. Integrated Intel HD Graphics 4400 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB/128GB/256GB SSD and 500GB HDD.

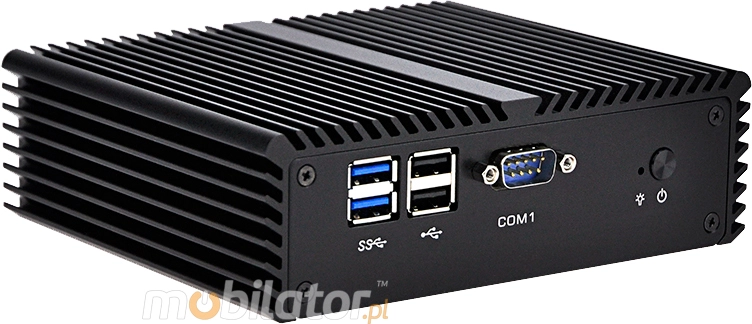

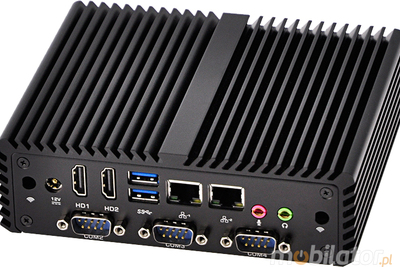

Industrial Computer Fanless MiniPC mBOX Nuc Q430P

go top…

menu…

Communication & Connectors

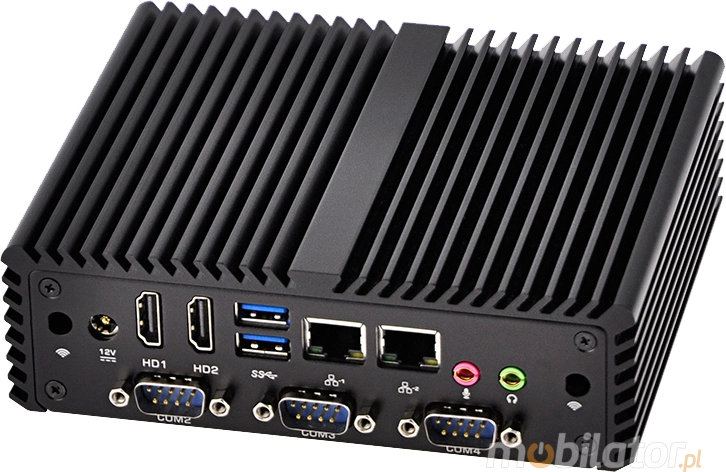

Integrated card - Realtek RTL8111E 10/100/1000 Controller and WiFi module allow connection to the network. The computer is equipped with: two LAN ports, two HDMI ports, two USB 2.0 ports, four USB 3.0 ports, four COM(RS232) ports one Audio input and one Mic output.

Industrial Computer Fanless MiniPC mBOX Nuc Q430P

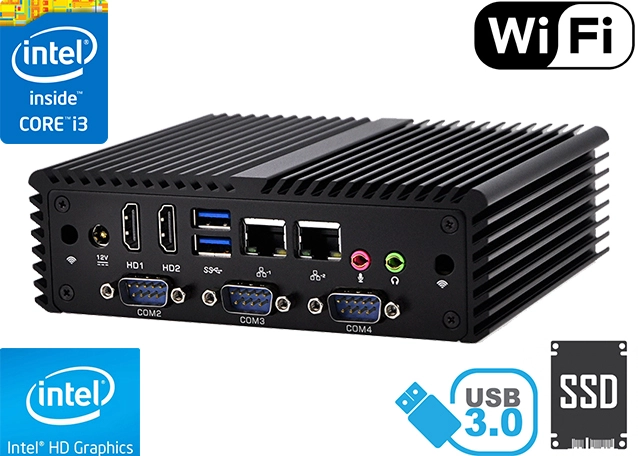

Industrial Computer Fanless MiniPC mBOX Nuc Q430P intel i3

Cooling

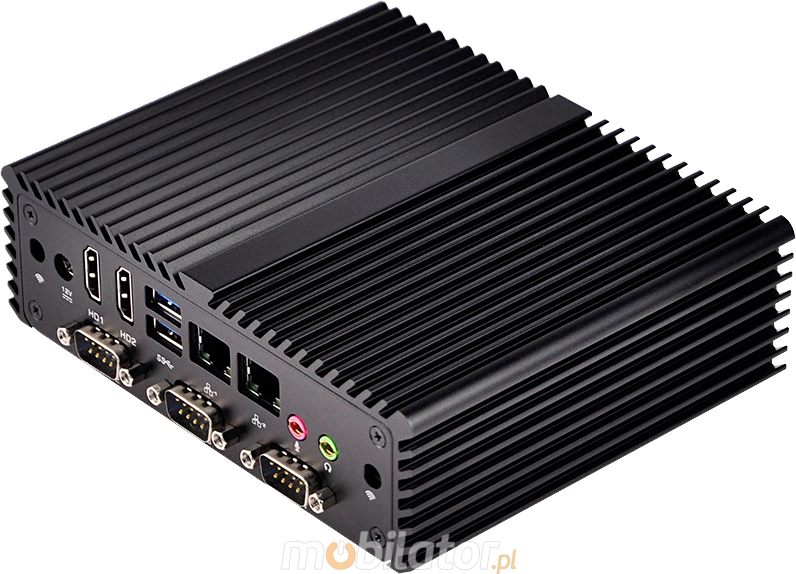

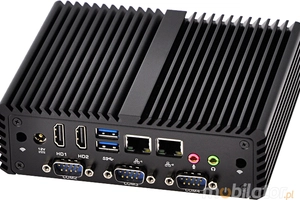

The Industrial Computer Fanless MiniPC mBOX Nuc Q430P uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… menu…

Application

Industrial Computer Fanless MiniPC mBOX Nuc Q430P are based on high-performance quad-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of mBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Industrial Computer Fanless MiniPC mBOX Nuc Q430P of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

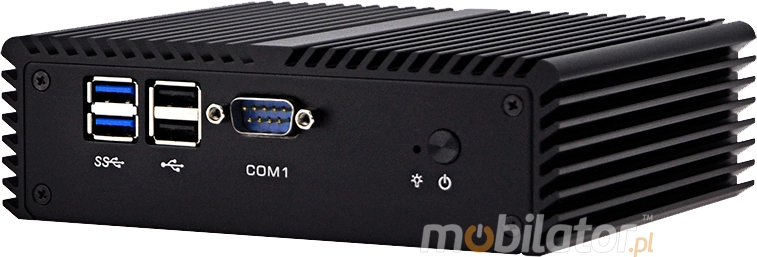

Industrial Computer Fanless MiniPC mBOX Nuc Q430P

Areas of use of industrial MiniPC

mBOX-Q430P

Digital Engine

Industrial Computer Fanless MiniPC mBOX Nuc Q430P

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Industrial Computer Fanless MiniPC mBOX Nuc Q430P by USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

Industrial Computer Fanless MiniPC mBOX Nuc Q430P can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

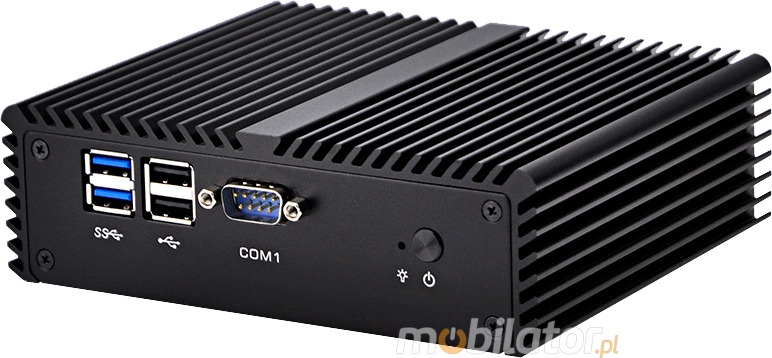

Industrial Computer Fanless MiniPC mBOX Nuc Q430P

go top…

menu…

go top… menu…

Specifications

Dimension	H: 38 mm L: 127 mm W: 155 mm
Processor	Intel i3 4005U Dual Core (2x1,7GHz)
Chipset	Intel Chipset
RAM Memory	4GB DDR3L
Graphic Card	Intel HD Graphics 4400
Sound Card	Realtek ALC662
WLAN	Realtek RTL8111E 10/100/1000 Controller
Connectors	1x 12V DC Jack 2x USB 2.0 4x USB 3.0 2x RJ-45 LAN 1x Mic 2x HDMI 1x Audio 4x COM(RS232)

Supported OS
Microsoft Windows: 7/8/8.1/10, Linux
Installed OS
-----
Chipset
Intel express chipset
CPU Support
-----
Installed CPU
Intel i3 4005U Dual Core (2x1,7GHz)
Graphic Card
Intel HD Graphics 4400
Memory Support
DDR3L (max. 8GB) 1333MHz/1600MHz SO-DIMM
Installed Memory
4GB DDR3L
Storage (HDD) Support
SSD/HDD
mSATA
Installed Storage (HDD)
32GB SSD (opc. SSD + 2,5" SSD/HDD)
IP Norm
-----
Temp
0 ～50℃
Storage temperature
-20 ~ 80℃
Humidity
10 ~ 90%
Others
Colour Black
LAN
Realtek RTL8111E 10/100/1000 Controller
Wireless LAN card
 Yes - 802.11 b/g/n
3G
-----
Bluetooth
-----

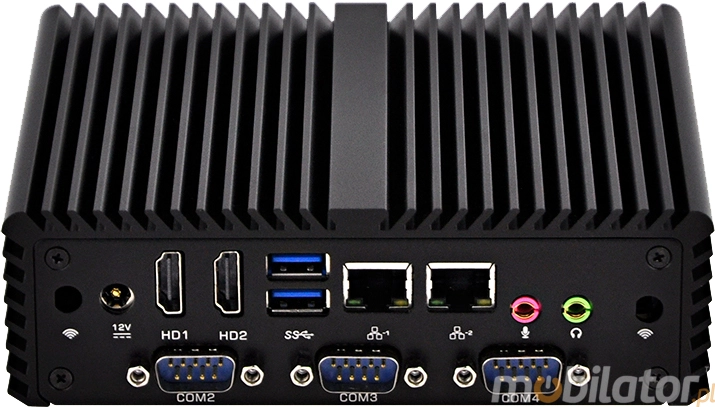

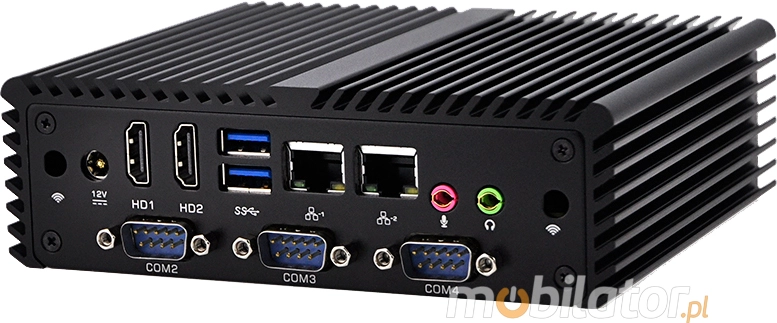

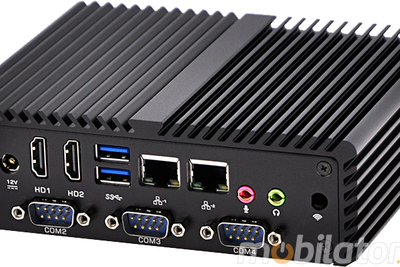

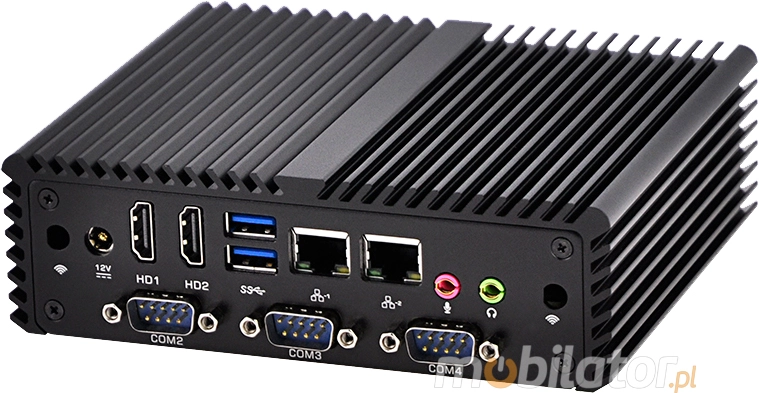

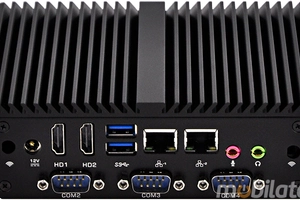

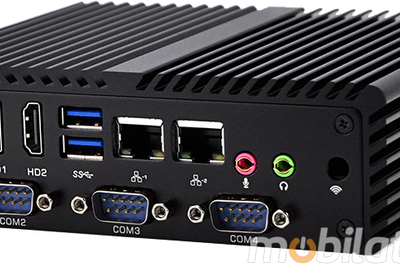

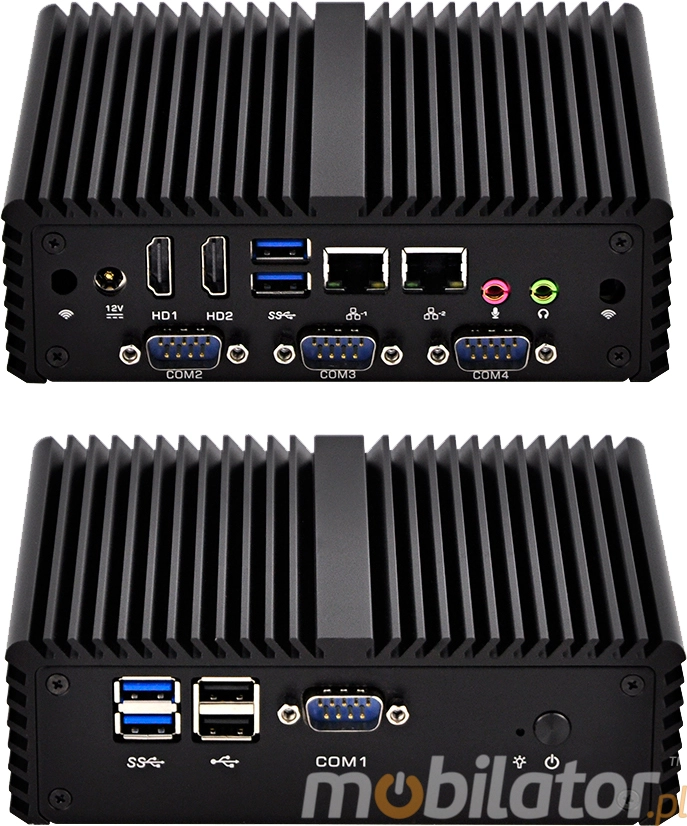

Rear Panel (ports)
DC-IN 12V,
 2x RJ-45 LAN,
3x COM(RS232),
1x Mic,
 1x Audio,
 2x HDMI,
 2x USB 3.0

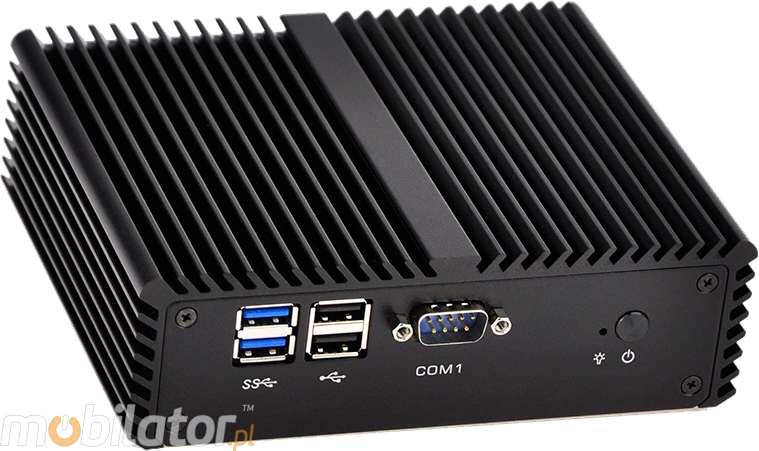

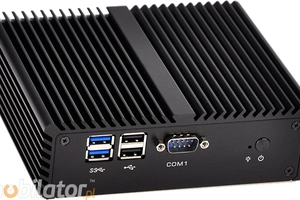

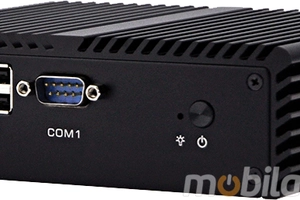

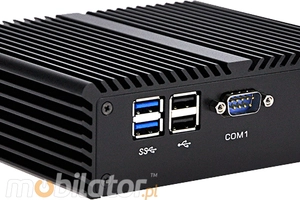

Front Panel (ports)
2x USB2.0
 2x USB 3.0
1x COM(RS232),
Power ON/OFF
Expansion
-----
Power
12V
Watch Dog Timer
0 ~ 255 sec
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
155 x 127 x 38 mm
Fanless
Yes
Weight
1000g
Responsible Entity / Distributor
New Portable Devices

Energooszczędny komputer odporny na ciężkie warunki

Wytrzymały komputer do automatyki przemysłowej

Compare all versions


Computer Industrial Fanless MiniPC mBOX Nuc Q430P v.Barebone
					Intel i3 4005U (2x1,7GHz)
Graphics: Intel® HD Graphics 4400
2x LAN / 2x USB2.0 / 4x USB 3.0 / 4x COM
2x HDMI  / 1x Audio / 1x Mic
RAM - no / Disc - no

Gross1476.00 zł

Computer Industrial Fanless MiniPC mBOX Nuc Q430P v.1
					Intel i3 4005U (2x1,7GHz)
Graphics: Intel® HD Graphics 4400
2x LAN / 2x USB2.0 / 4x USB 3.0 / 4x COM
2x HDMI  / 1x Audio / 1x Mic
WiFi / RAM 4GB DDR3L / Disc 32GB SSD

Gross1729.69 zł

Computer Industrial Fanless MiniPC mBOX Nuc Q430P v.2
					Intel i3 4005U (2x1,7GHz)
Graphics: Intel® HD Graphics 4400
2x LAN / 2x USB2.0 / 4x USB 3.0 / 4x COM
2x HDMI  / 1x Audio / 1x Mic
WiFi / RAM 4GB DDR3L / Disc 64GB SSD

Gross1826.55 zł

Computer Industrial Fanless MiniPC mBOX Nuc Q430P v.4
					Intel i3 4005U (2x1,7GHz)
Graphics: Intel® HD Graphics 4400
2x LAN / 2x USB2.0 / 4x USB 3.0 / 4x COM
2x HDMI  / 1x Audio / 1x Mic
WiFi / RAM 4GB DDR3L / Disc 500GB HDD

Gross1877.29 zł

Computer Industrial Fanless MiniPC mBOX Nuc Q430P v.3
					Intel i3 4005U (2x1,7GHz)
Graphics: Intel® HD Graphics 4400
2x LAN / 2x USB2.0 / 4x USB 3.0 / 4x COM
2x HDMI  / 1x Audio / 1x Mic
WiFi / RAM 4GB DDR3L / Disc 128GB SSD

Gross1941.86 zł

Computer Industrial Fanless MiniPC mBOX Nuc Q430P v.5
					Intel i3 4005U (2x1,7GHz)
Graphics: Intel® HD Graphics 4400
2x LAN / 2x USB2.0 / 4x USB 3.0 / 4x COM
2x HDMI  / 1x Audio / 1x Mic
WiFi / RAM 8GB DDR3L / Disc 500GB HDD

Gross2061.79 zł

Computer Industrial Fanless MiniPC mBOX Nuc Q430P v.6
					Intel i3 4005U (2x1,7GHz)
Graphics: Intel® HD Graphics 4400
2x LAN / 2x USB2.0 / 4x USB 3.0 / 4x COM
2x HDMI  / 1x Audio / 1x Mic /WiFi+BT
RAM 8GB DDR3L / Disc 256GB SSD

Gross2333.93 zł
