Check under "Versions" which has the possibility of a version of the device. To gain additional information about the device, click on "Ask for the product" or go to the contact form.

Select the version for yourself

Select the version tailored to their needs. Clicking on the number of hardware configuration you will be redirected to the product with the parameters listed below. On request can be created configuration available in the offer. The detailed parameters are available in the "Technical Data".

	OPM	VFL	ADSL2	VDSL2	1D (CCD)	Cable Tracing	DMM	IPTV	ONU
v.1			-	-	-	-	-	-	-
v.2				-	-	-	-	-	-
v.3			-		-	-	-	-	-
v.4			-	-		-	-	-	-
v.5				-		-	-	-	-
v.6		-		-		-	-	-	-
v.7				-			-	-	-
v.8			-			-	-	-	-
v.9				-				-	-
v.10			-	-	-	-	-	-
v.11			-					-	-
v.12		-	-			-	-	-	-
v.13				-		-	-		-
v.14			-			-	-		-

up… menu…

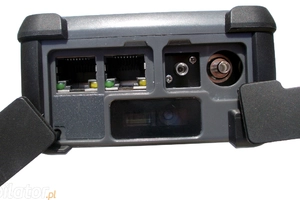

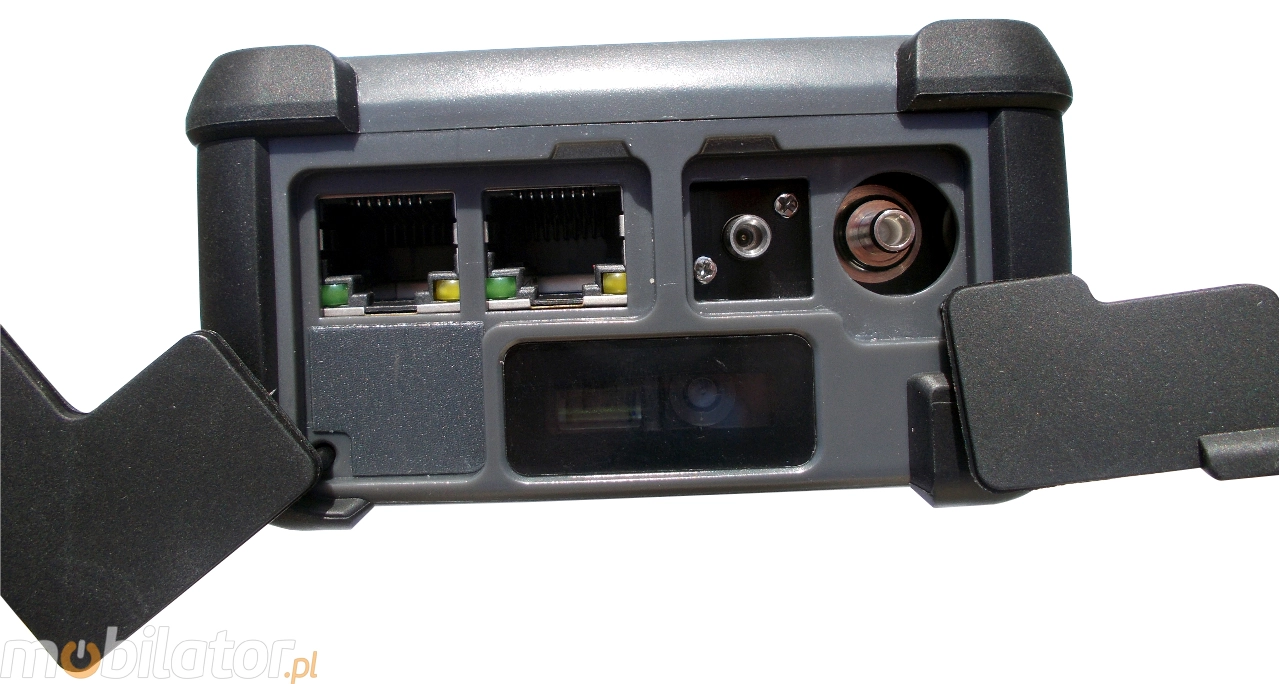

Connectors

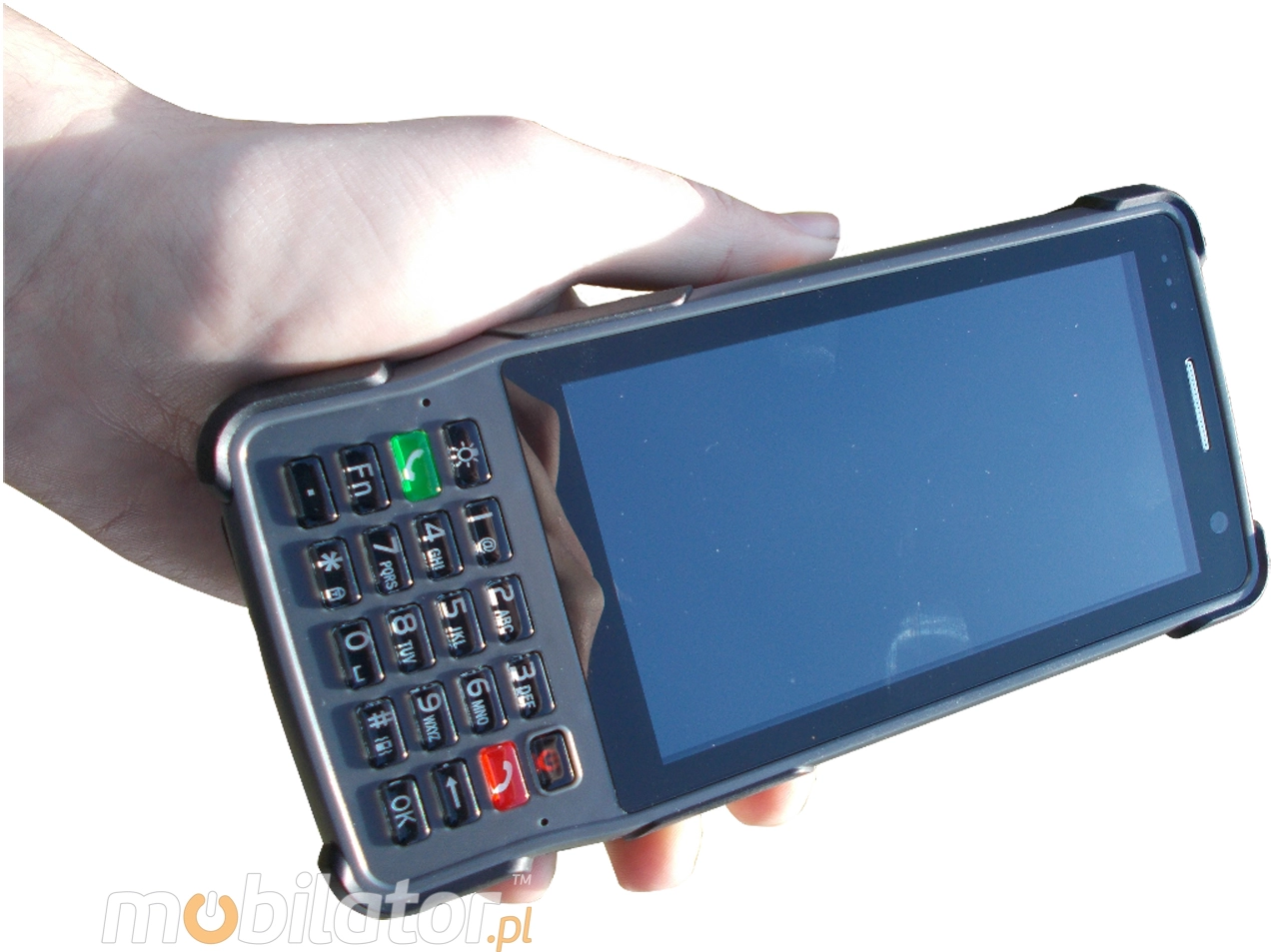

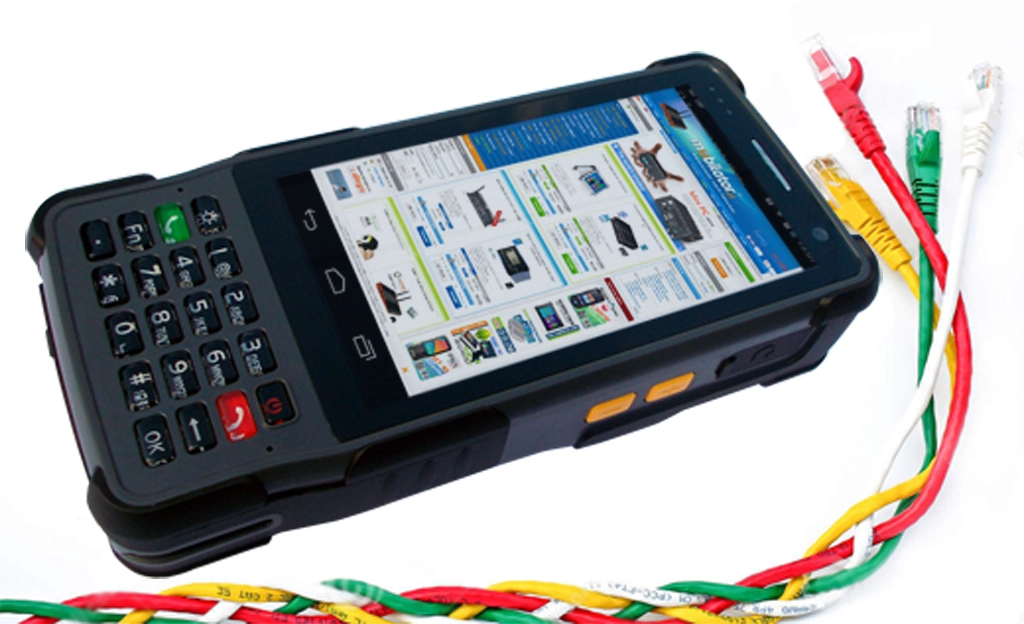

Multi Tester Senter ST327W a real "mega-machine". The device is equipped with a number of modules, testing and checking, eg. Internet connections.

Below are presented and characterized the various connectors and modules.

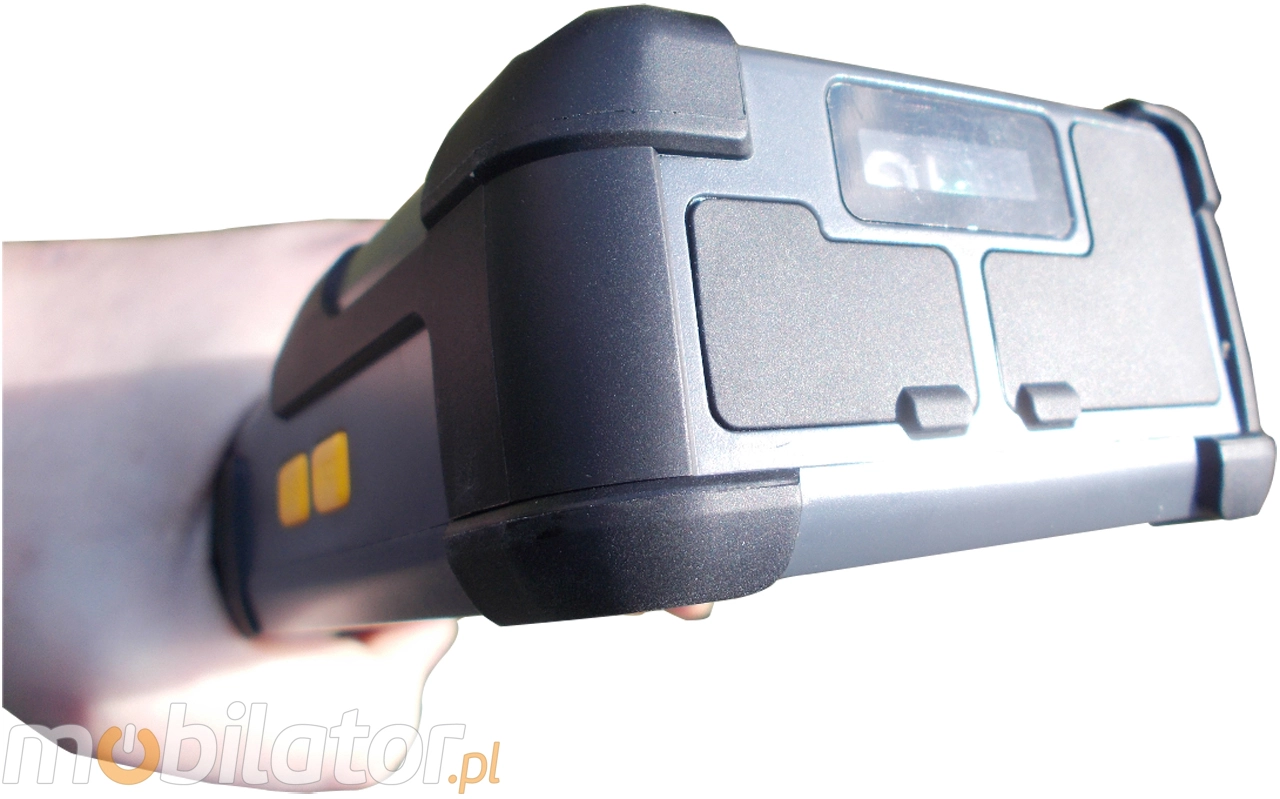

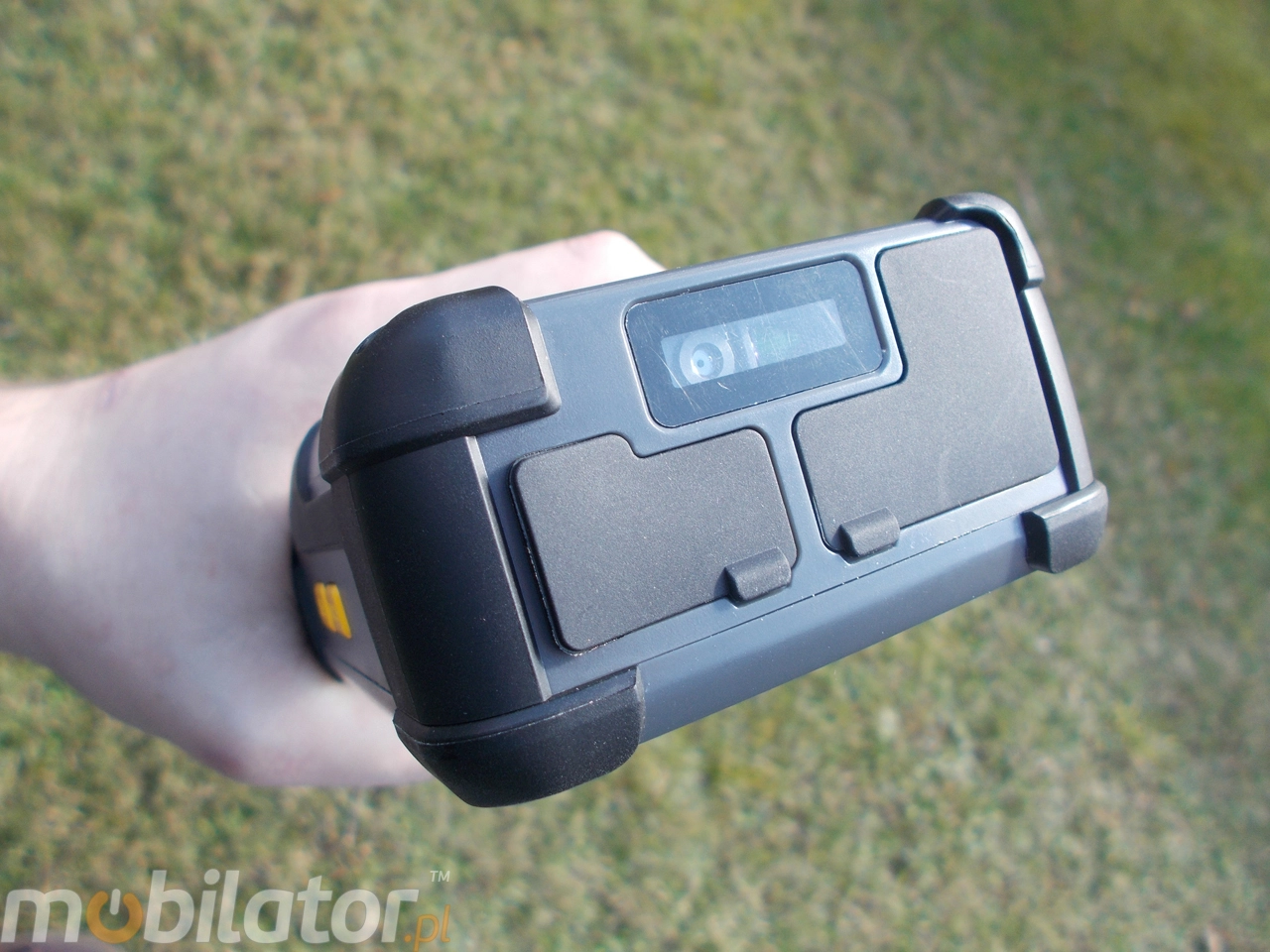

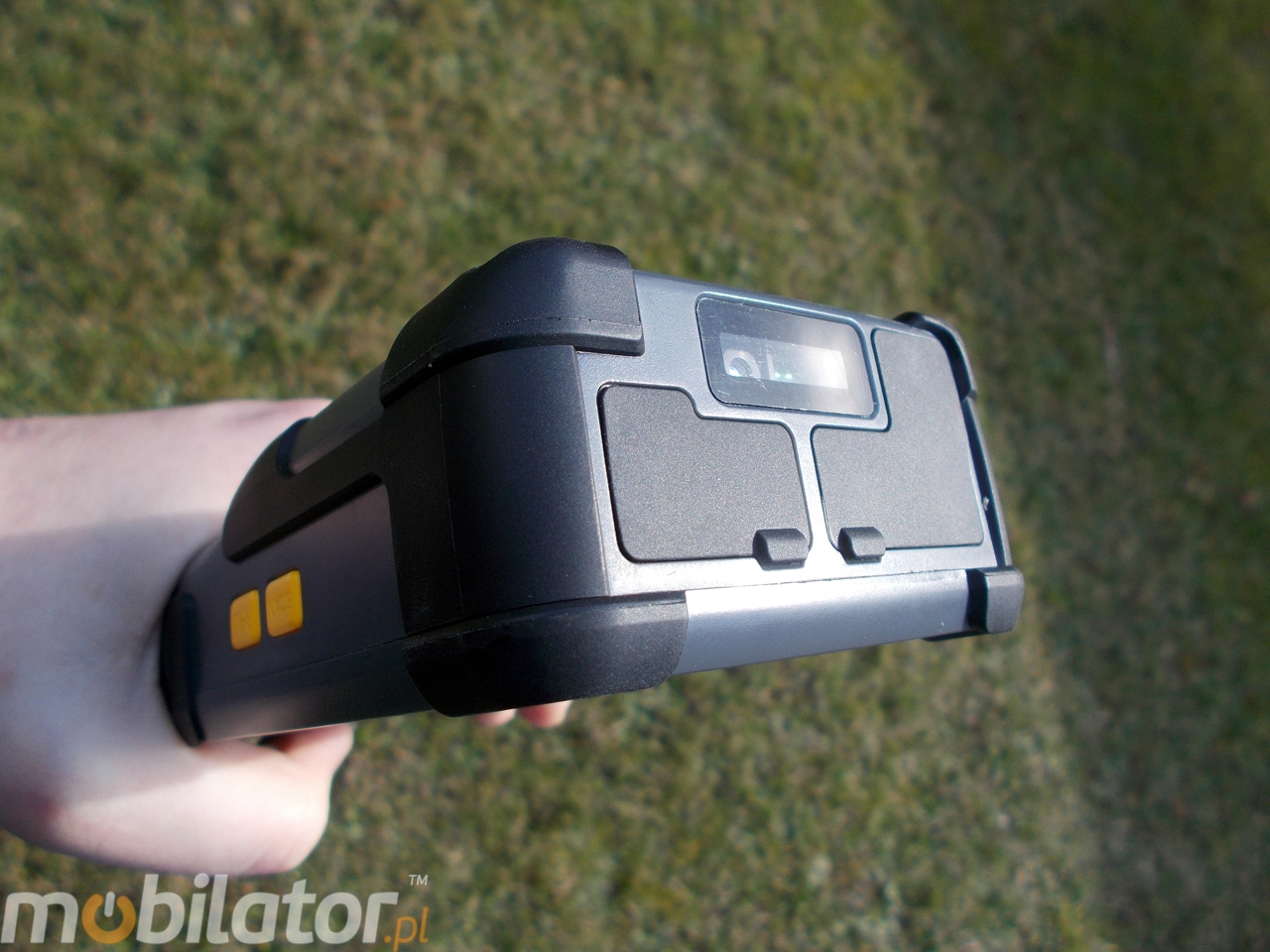

Barcode reader

Barcode reader allows to read, decode and transfer to your computer data stored in the bar code. With dynamic scanning capabilities and the large range of reading, data collector accurately collects data that helps improve the speed and efficiency. The whole can quickly start because thanks to simplified installation and an intuitive, comfortable design to prepare the scanner to work is very easy.

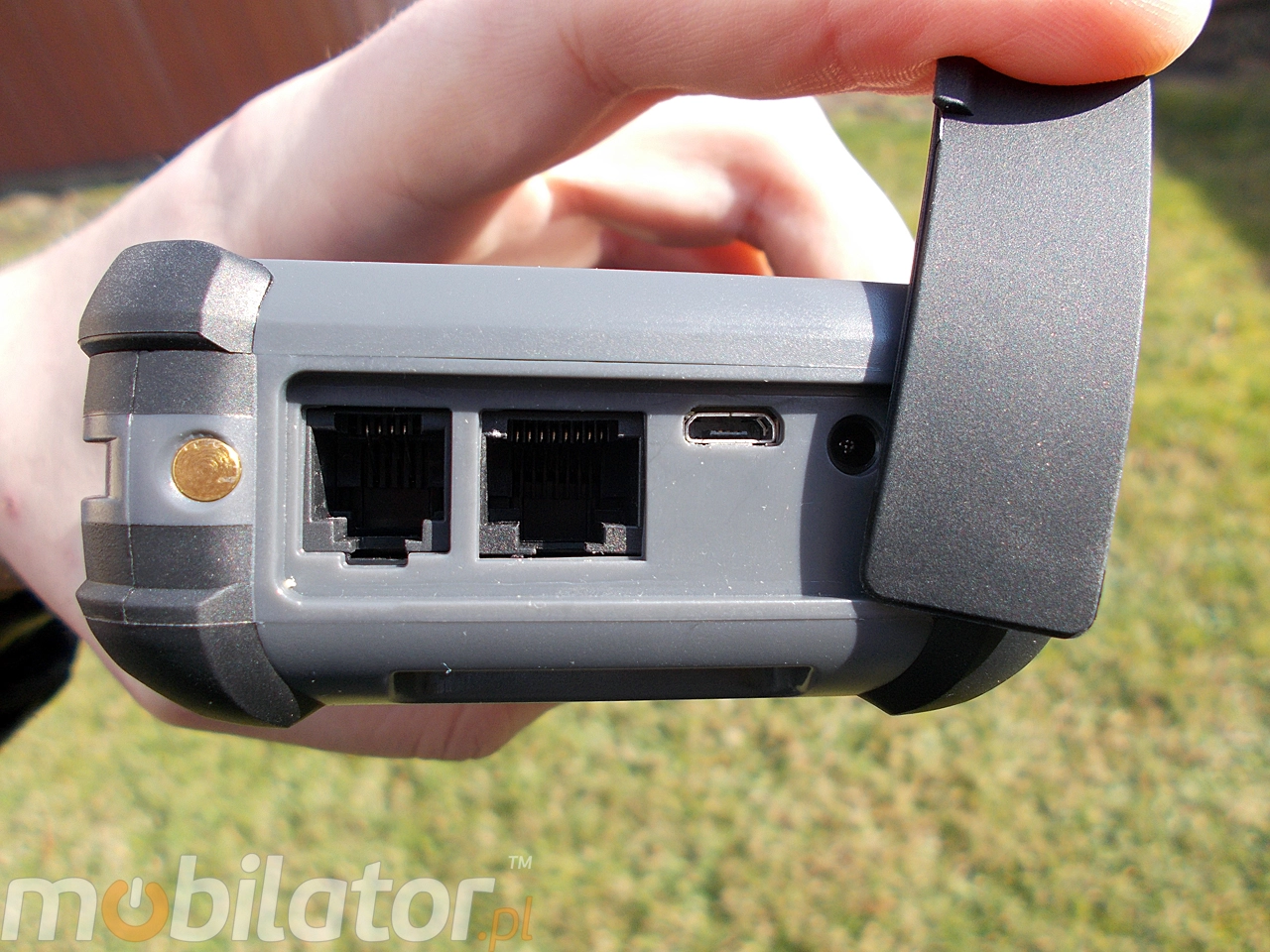

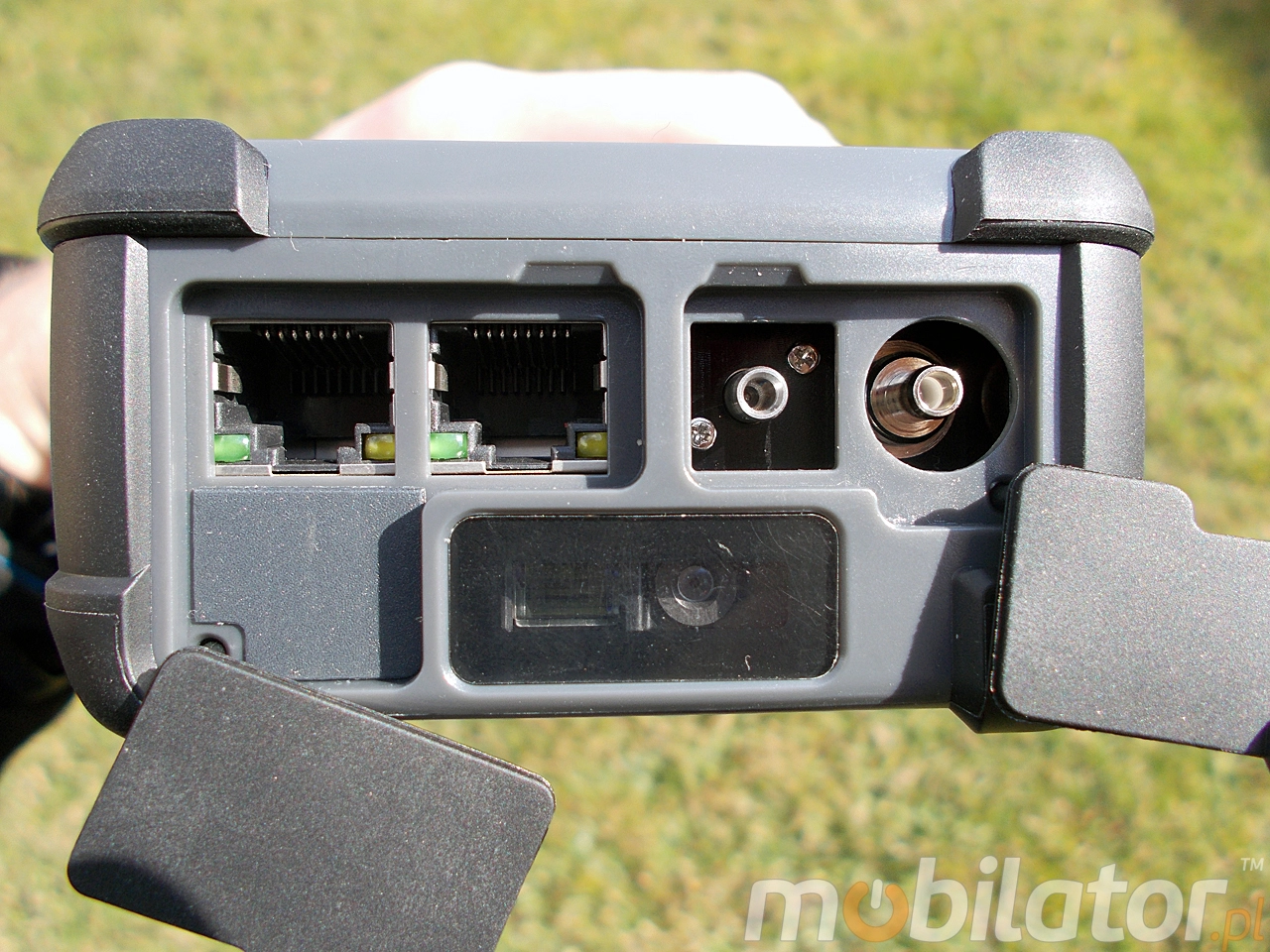

LAN (2 x RJ-45)

Multi Tester Senter ST327W has 2 ports RJ-45, through which the device can be connected to the network using a network cable (twisted pair). These ports can also be used for testing and an Internet connection.

Optical Power Control (OPM)

Optical port power control (OPM) is used to connect fiber optic interfaces for testing for optical power. By using diagnostic software installed on your device to test the power of fiber.

Visual Fault Locator (VFL)

Visual Fault Locator (VFL) is connected to the fiber interface and using a red LED enables you to locate interruption or damage to the fiber.

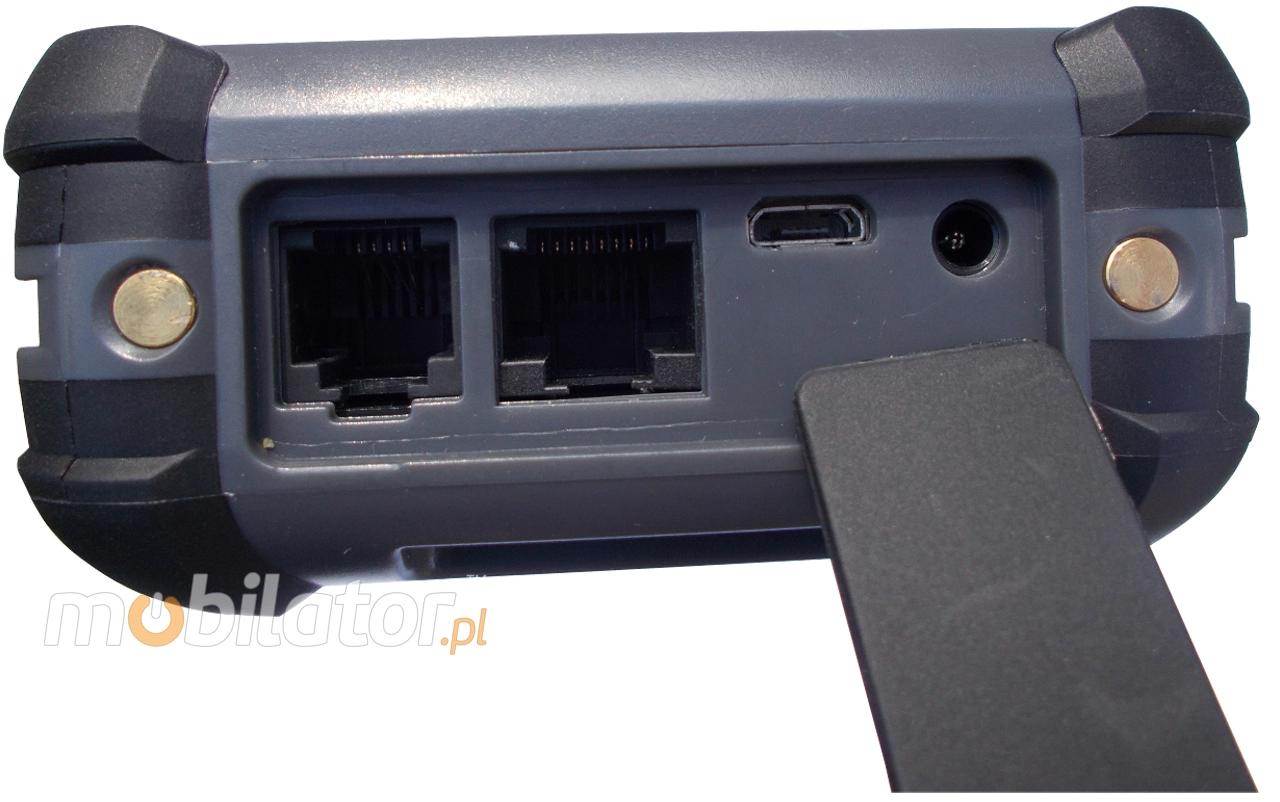

Port RJ-45

Port used to check network connection. By connecting the twisted pair cable to this port, you can check the connection of individual wires in a bundle.

Port RJ-11

Port for connecting the device to the telephone line to test the connection xDSL. This enables us to easily and quickly verify correct operation of the xDSL line with the software stored on the device.

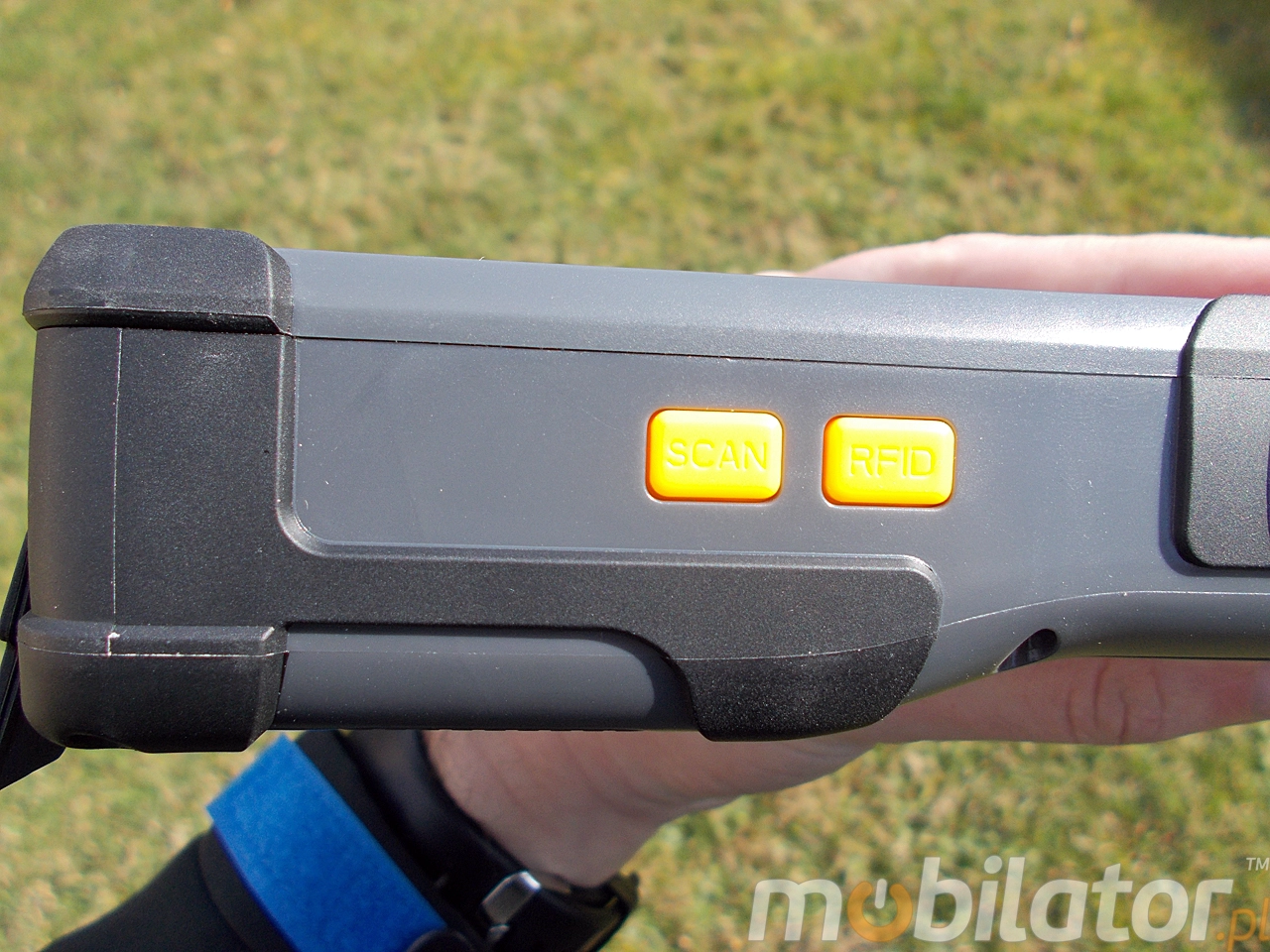

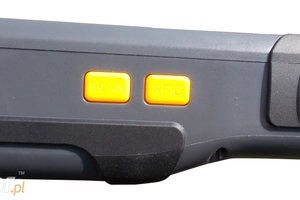

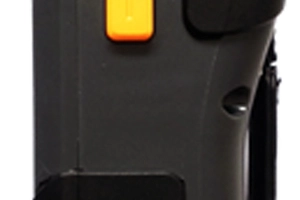

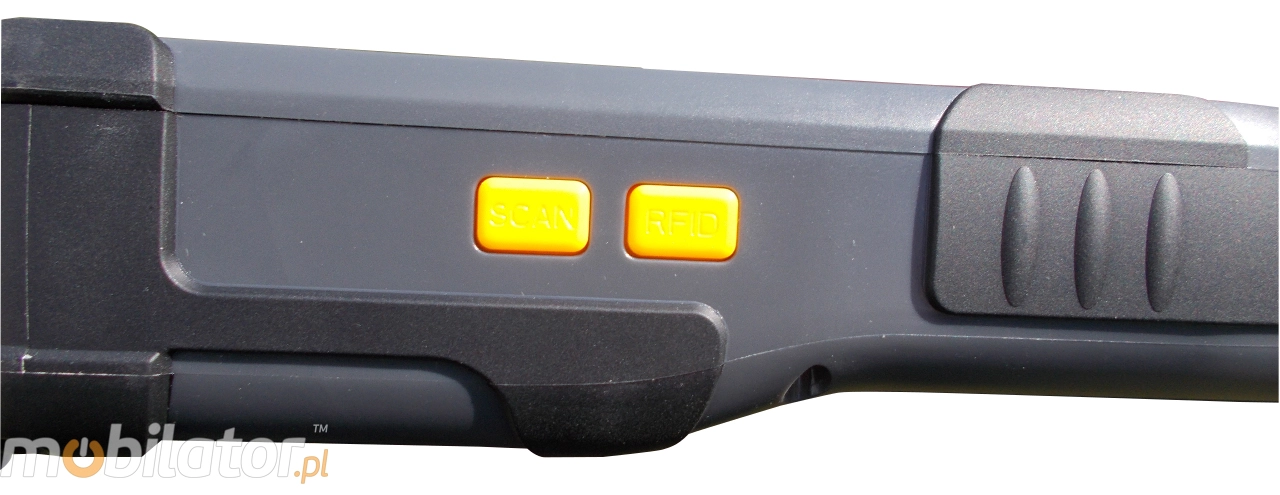

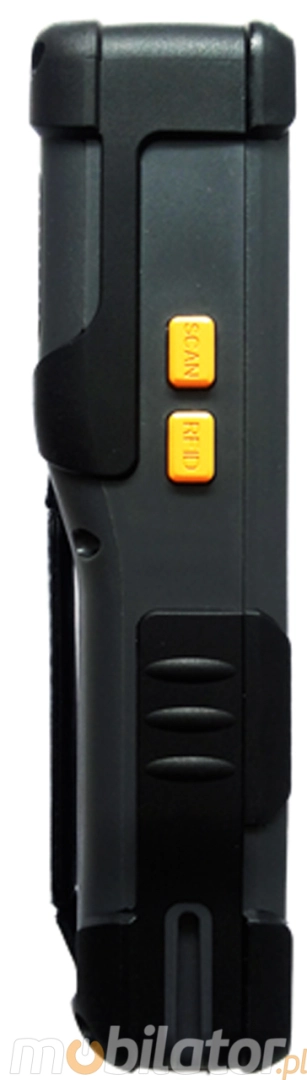

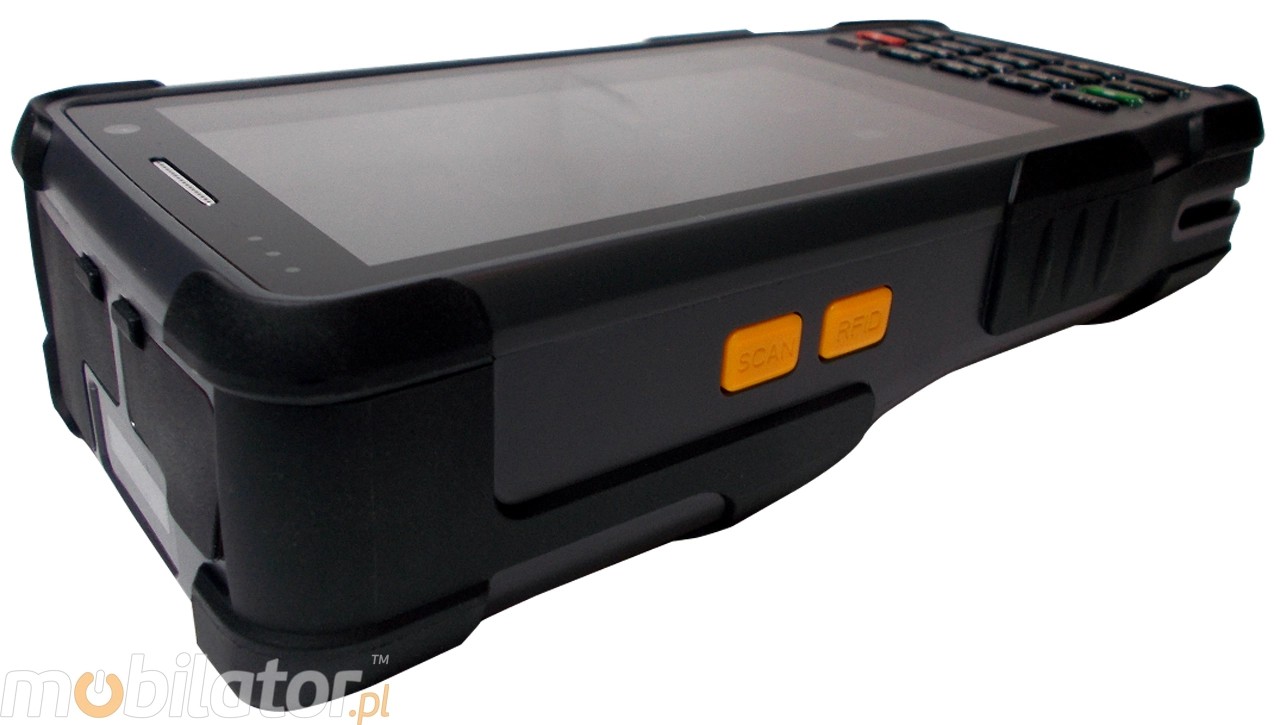

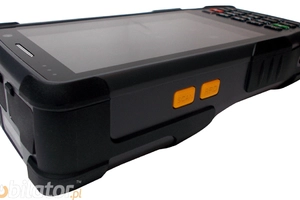

Function buttons

The device is equipped with the function keys such as SCAN and RFID.

SCAN function key is used to run the built-in barcode scanner and allows quick and easy to scan these codes.

RFID function key is used to start the embedded RFID modules, and you can scan these codes, depending on the version.

up… menu…

Use of a device

Multi Tester Senter ST327 - most advanced network tester

Diagnostics - Testing - Fault detection - Analysis

Multi Tester Senter ST327W is mainly used in telecommunications because of the contained diagnostic software and connectors for testing and the study of individual modules network.

The main use of the tester Senter ST327W are:

• Fault detection of fiber optic cables.
• Testing internet connection.
• Checking bandwidth.
• Testing power optical fiber.
• Functional testing of xDSL modems.

up… menu…

Resistance

Met the standards and tests carried out

up… menu…

Resistance hardware IP65

Grades IP is a classification of different degrees of protection of electrical appliances, which are provided by the enclosures of these devices according to PN-92 / E-08106. A number after the "IP" is really two digits. The first is protection against the access of people and animals to dangerous parts and protection against pollution, for example. Dust. The main point of access of foreign bodies into the device. The second digit is the degree of protection against water.

No special protection	0 0	No waterproofing
Protection from solid objects greater than 50mm in diameter	1 1	Protection from dripping water
Protection from solid objects greater than 50mm in diameter	2 2	Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter	3 3	Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter	4 4	Protection from splashed water
Complete protection against contact, Protection against dust deposit	5 5	Protection from splashed water
Complete protectionm against contact, Protection from infiltration of dust	6 6	Protection from water projected from a nozzle
	7	Protection against immersion
	8	Protection against complete, continuous submersion in water

up… menu…

Modules and wireless networks

With the WCDMA module, you need only insert a SIM card in the special slot and can immediately connect to the Internet. Integrated software allows you to automatically recognize and configure connections to mobile networks. In addition, used in ST327W internal 3G module adjusts automatically to transfer and network coverage. Built-in speaker and microphone makes it possible to make voice calls (the device can function as a standard mobile phone).

up… menu…

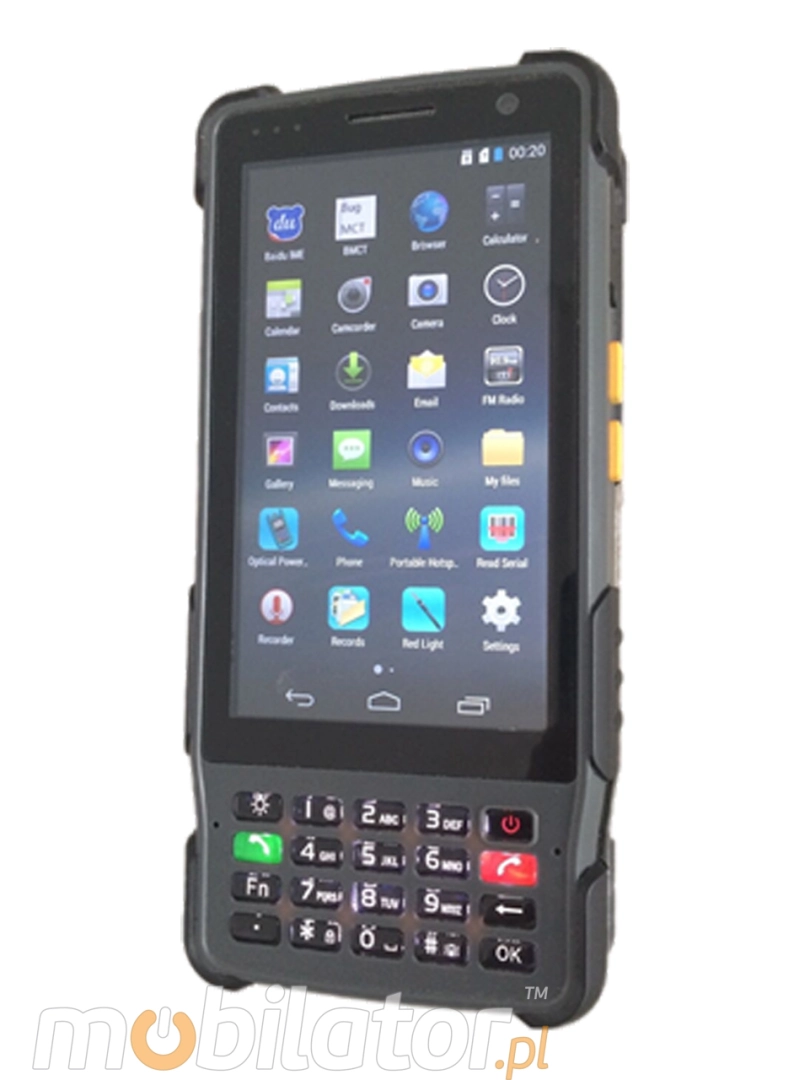

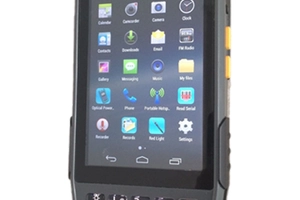

Test software

Multi Tester Senter ST327W has all kinds of software for testing individual modules. Below is a description of the individual and the use of the software:

xDSL Test This software uses an internal modem, xDSL, so that we can test xDSL lines. The test program at the level of the physical layer can test all the key parameters such as the state and the connection mode, upstream / downstream, the margin of noise and interference suppression, codes of individual errors (CRC, HEC, FEC, NCD, OCD) and the channel bits of the image. This software uses an internal modem, xDSL, so that we can test xDSL lines. With this feature, the user can check whether any problem lies with the user or not, and will receive information regarding the parameters and solutions to problems arising from communication modem to your computer. The interface shows the parameters reflecting the current state of the connection. By mapping the graphical connection status, we can see changes in individual parameters at any given time. This software is widely used when testing Internet connections using xDSL modems.
	Modem Emulation   The software used to emulate a modem user to eliminate errors modem user. It is a program designed to make it easier to diagnose potential faults modem and connection Multi Tester directly to the computer and test the proper operation of Internet connection.
Optical Power Test   The software used to emulate a modem user to eliminate errors modem user. The software used to test the power of the optical fiber. There are six wavelengths and in order to carry out the test, select the appropriate so that you can determine the current value of the optical power. The program allows you to record tests carried out which may facilitate their subsequent verification and comparison. The software used to emulate a modem user to eliminate errors modem user. When you select "Insp." You can prepare the formula for control of the line and by the possibility of naming the individual lines can be separated.
	Red light Visual Fault Locator (VFL) is connected to the fiber interface and using a red LED enables you to locate interruption or damage to the fiber.
Tracing The software used to test and track data on twisted pair cable. The program sends the generated video signal that the user can pick up with the receiver and thereby search for a path followed by moving data packet.
	Check Line Sequence Software designed to test and check the cable connections twisted. The program generates a sequence of signals and sends them, so you can check whether the individual wires in the cable "twisted pair" are in working order and properly transmit data.
Landline Telephone The software used for testing the phone line. Through this software you can connect and check its correct operation. With the built-xDSL port and RJ-11 we can do we are really in a very easy way.
	Network Layer Test Software to verify pings and pathways of transmission of packets. The program in an easy and quick way to check the pings which time transmission of data packets.
E Netcom The software used to search for devices on the local network using static connection through cable or via WiFi. The program shows currently running on the local network devices with their IP addresses and MAC addresses of network adapters.
	Download Meter Software to test the download speed naych, files. The program clearly shows the speed of data retrieval.
FTP Client Client FTP server allows fast connection to the server and retrieve or add a file. The program has a clear user interface and the administration login data we have access to files on an FTP server.
	ONU Register The software provides the connection to the modem via Ethernet. The program allows you to log into the configuration settings of the modem.
Records Software for viewing stored records test. With this application you can quickly and easily view and analyze previously performed and recorded the results of the tests.

up… menu…

Dimensions

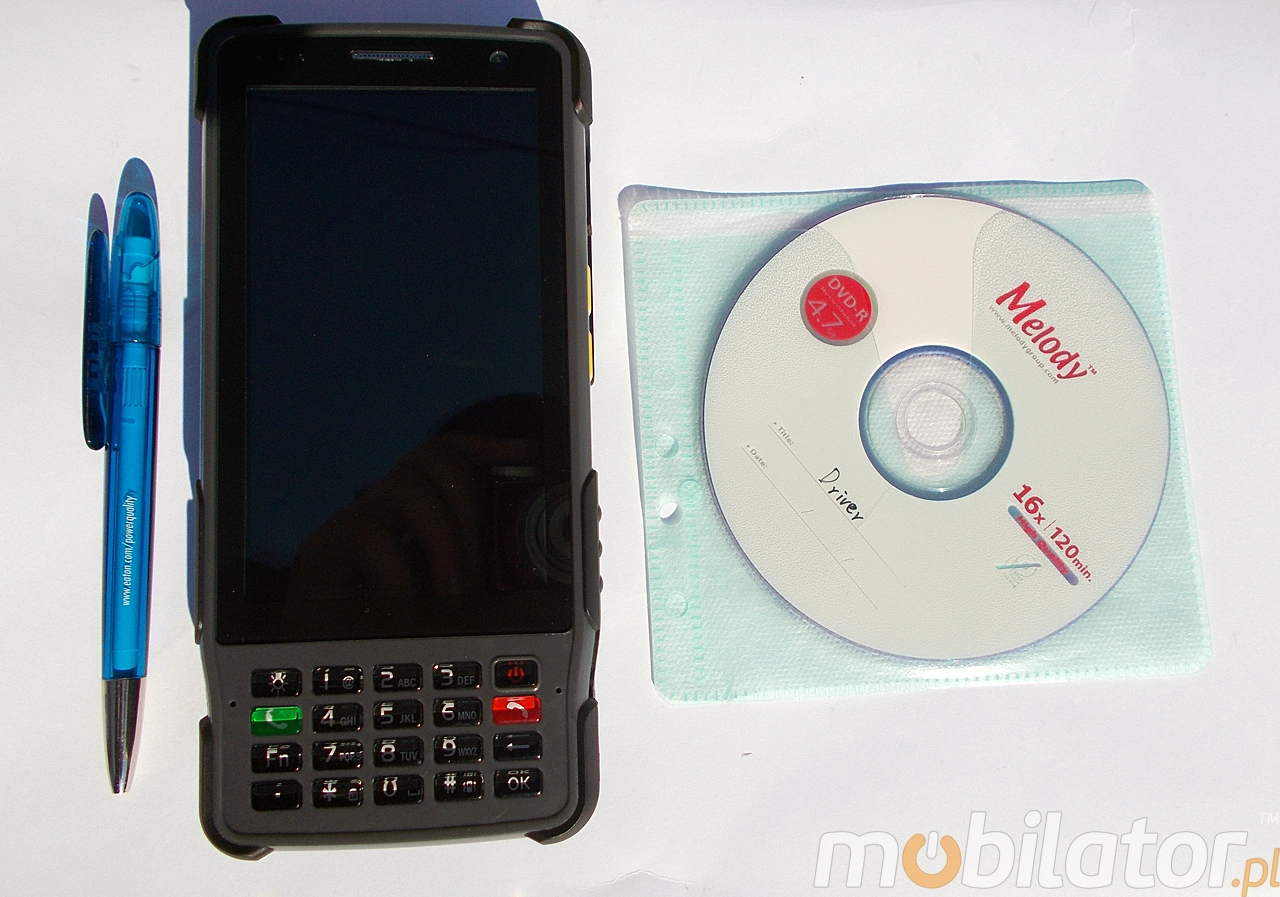

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag with ST327W this problem disappears forever, as it weighs only 550g and its dimensions (181 x 87 x 45mm) allow you to take it with you everywhere. With sleek performance and energy efficiency is on the forefront of devices in this segment and is very popular on the Polish market in the industrial segment.
