Durable Computer Industrial Fanless MiniPC IBOX-60011 WiFi v.2

Name: Durable Computer Industrial Fanless MiniPC IBOX-60011 WiFi v.2
Brand: Mobilator
Price: 810.41 PLN
Availability: InStock

Komputer przemysłowy do sterowania maszynami

Kompaktowy komputer do linii produkcyjnej

Bezwentylatorowy komputer do pracy ciągłej

Update Date: 2024.11.13

Guarantee 1 year (opt. 2)

Net

658.87 €

Gross

810.41 €

Buy now!

Negotiate the price

								Ask about the product

 Product card

								Recommend to a friend

								Store

								Compare

Product availability 14 - 20 workdays

Durable Computer Industrial Fanless MiniPC IBOX-60011 umpc mobilator intel core i5

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

Durable Computer Industrial Fanless MiniPC IBOX-60011 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

Housing dimensions are 237 (W) x165.6 (L) x70.5 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 8GB DDR4 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 256GB SSD.

Compare all versions

v.0 v.1 v.2 v.3 v.4 v.5 v.6

4GB RAM — ✔ — — — ✔ ✔

8GB RAM — — ✔ ✔ — — —

16GB RAM — — — — ✔ — —

128GB SSD — ✔ — — — ✔ ✔

256GB SSD — — ✔ — ✔ — —

500GB HDD — — — ✔ — — —

3G — — — — — ✔ —

4G — — — — — — ✔

Compare all versions

Durable Computer Industrial Fanless MiniPC IBOX-60011 umpc mobilator intel core i5

go top…

menu…

Communication & Connectors

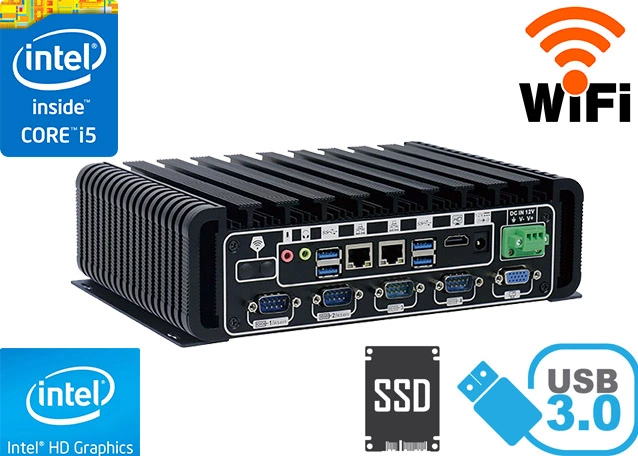

Integrated card - Intel i211AT 1000M Lan and WiFi module allow connection to the network. The computer is equipped with: two LAN ports, two HDMI ports, four USB 2.0 ports, four USB 3.0 ports, six COM (RS232) ports, one VGA output, one Audio input and one Mic output.

Durable Computer Industrial Fanless MiniPC IBOX-60011 umpc mobilator intel core i5

The Durable Computer Industrial Fanless MiniPC IBOX-60011 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… menu…

Application

Durable Computer Industrial Fanless MiniPC IBOX-60011 are based on high-performance dual-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Durable Computer Industrial Fanless MiniPC IBOX-60011 umpc mobilator intel core i5 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Computer Fanless MiniPC IBOX-601i3U

Areas of use of industrial MiniPC

Durable Computer Industrial Fanless MiniPC IBOX-60011 umpc mobilator intel core i5

Digital Engine

Durable Computer Industrial Fanless MiniPC IBOX-60011 umpc mobilator intel core i5

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Industrial Computer Fanless MiniPC IBOX-601i3U

Durable Computer Industrial Fanless MiniPC IBOX-60011 by USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Durable Computer Industrial Fanless MiniPC IBOX-60011 can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Durable Computer Industrial Fanless MiniPC IBOX-60011 mobilator umpc intel core i5

Industrial Computer Fanless MiniPC IBOX-601i3U

go top…

menu…

go top… menu…

Specifications

Dimension	H: 70.5 mm L: 165.6 mm W: 237 mm
Processor	Intel i5-6200U (2x2.3GH,Turbo 2.8GHz)
Chipset	Intel Chipset
RAM Memory	8GB
Graphic Card	Intel HD Graphics 520
Sound Card	Realtek ALC662
WLAN	Intel i211AT 1000M Lan
Connectors	1x 12V DC-IN 4x USB 2.0 4x USB 3.0 2x RJ-45 LAN 1x Mic 2x HDMI 1x VGA 6x COM (RS232) 1x Audio 1x WiFi

Others
Colour Black
Chipset
Intel express chipset
CPU Support
-----
Installed CPU
Intel i5 6200U Dual Core (2x2.3GHz,Turbo 2.8GHz)
Memory Support
DDR4 (max.16GB) 2133MHz SO-DIMM
Installed Memory
8GB DDR4
Graphic Card
Intel HD Graphics 520
Storage (HDD) Support
SSD/HDD
mSATA
Installed Storage (HDD)
256GB SSD
CD/DVD Drive
-----
LAN
Intel i211AT 1000M Lan
Wireless LAN card
Yes - 802.11 b/g/n
Bluetooth

3G
-----
TV Tuner
-----
Watch Dog Timer
-----

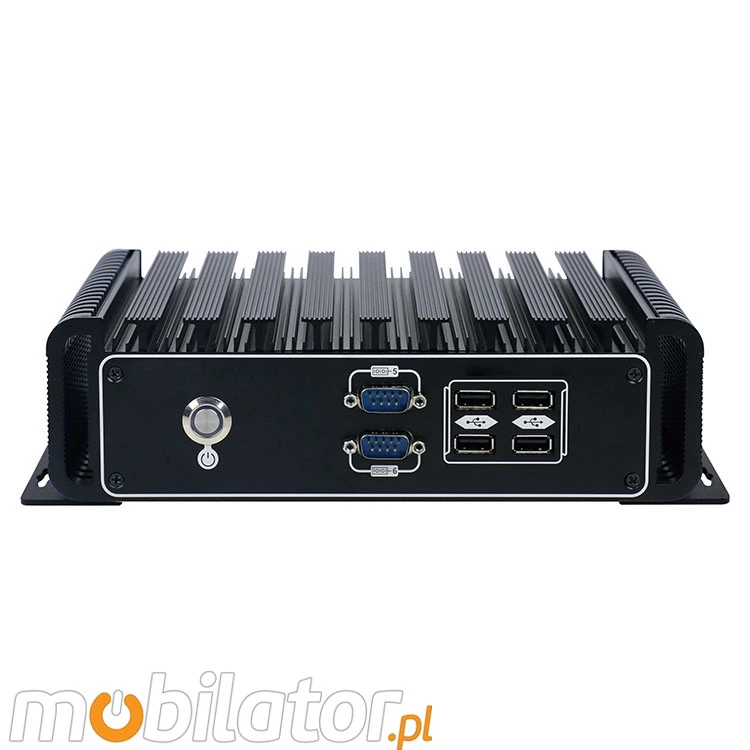

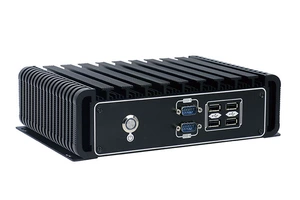

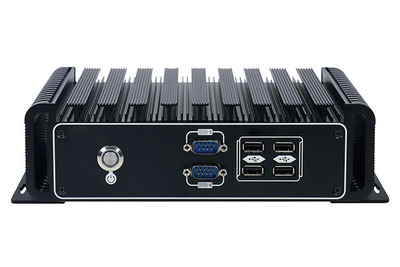

Front Panel (ports)
4x USB2.0
 2x COM(RS232)
Power ON/OFF

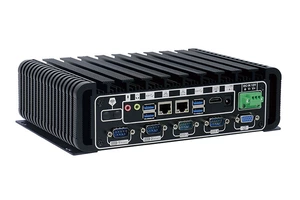

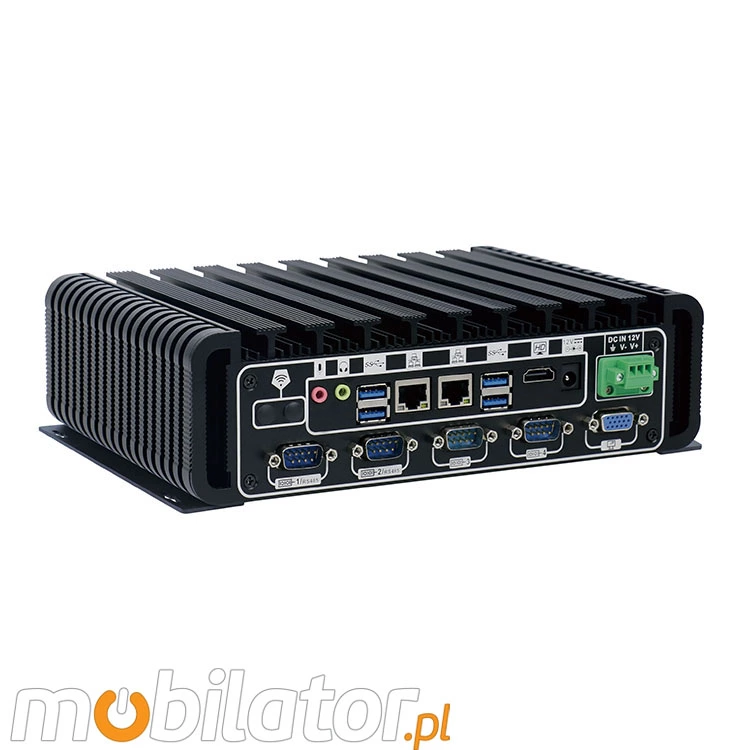

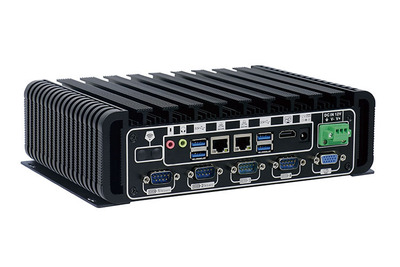

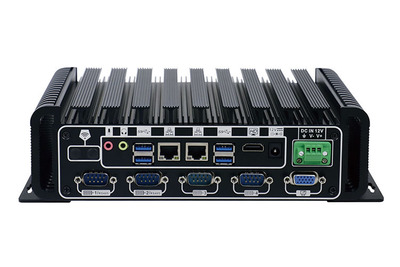

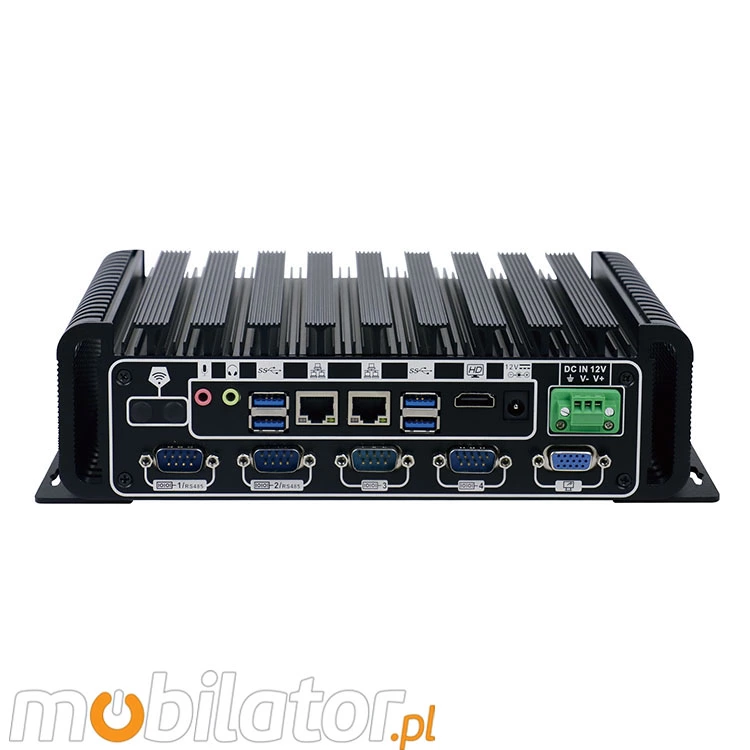

Rear Panel (ports)
DC-IN 12V,
 1x VGA,
 4x COM(RS232),
 2x RJ-45 LAN,
1x Mic,
 1x Audio,
 1x HDMI,
 2x USB 3.0
Power
9~19V(9~36V Optional)
Supported OS
Microsoft Windows: 7/8/8.1/10, Linux
Installed OS
-----
Dimensions
263 x 165 x 70 mm
Weight
3000g
Expansion
-----
Fanless
Yes
Humidity
10 ~ 90%
Temp
-10 ～50℃
IP Norm
-----
Storage temperature
-20 ~ 80℃
Responsible Entity / Distributor
New Portable Devices

Compare all versions


Durable Computer Industrial Fanless MiniPC IBOX-60011 Barebone
					Intel i5-6200U (2x2.3GHz,Turbo 2.8GHz)
Graphics: Intel® HD Graphics 520
2x LAN / 4x USB2.0 / 4x USB 3.0 / 1x VGA
1x HDMI  / 6x COM / 2x Audio/Mic
RAM-no / Disk-no

Gross651.40 €

Durable Computer Industrial Fanless MiniPC IBOX-60011 WiFi v.1
					Intel i5-6200U (2x2.3GHz,Turbo 2.8GHz)
Graphics: Intel® HD Graphics 520
2x LAN / 4x USB2.0 / 4x USB 3.0 / 1x VGA
1x HDMI  / 6x COM / 2x Audio/Mic /WiFi
RAM-4GB / Disk-128GB SSD

Gross761.06 €

Durable Computer Industrial Fanless MiniPC MiniPC IBOX-60011 v.3G
					Intel i5-6200U (2x2.3GHz,Turbo 2.8GHz)
Graphics: Intel® HD Graphics 520
2x LAN / 4x USB2.0 / 4x USB 3.0 / 1x VGA
1x HDMI  / 6x COM / 2x Audio/Mic /3G
RAM-4GB / Disk-128GB SSD

Gross790.67 €

Durable Computer Industrial Fanless MiniPC IBOX-60011 WiFi v.3
					Intel i5-6200U (2x2.3GHz,Turbo 2.8GHz)
Graphics: Intel® HD Graphics 520
2x LAN / 4x USB2.0 / 4x USB 3.0 / 1x VGA
1x HDMI  / 6x COM / 2x Audio/Mic /WiFi
RAM-8GB / Disk-500 HDD

Gross803.83 €

Durable Computer Industrial Fanless MiniPC IBOX-60011 WiFi v.2
					Intel i5-6200U (2x2.3GHz,Turbo 2.8GHz)
Graphics: Intel® HD Graphics 520
2x LAN / 4x USB2.0 / 4x USB 3.0 / 1x VGA
1x HDMI  / 6x COM / 2x Audio/Mic /WiFi
RAM-8GB / Disk-256GB SSD

Gross810.41 €

Durable Computer Industrial Fanless MiniPC MiniPC IBOX-60011 v.6
					Intel i5-6200U (2x2.3GHz,Turbo 2.8GHz)
Graphics: Intel® HD Graphics 520
2x LAN / 4x USB2.0 / 4x USB 3.0 / 1x VGA
1x HDMI  / 6x COM / 2x Audio/Mic /4G
RAM-4GB / Disk-128GB SSD

Gross834.53 €

Durable Computer Industrial Fanless MiniPC IBOX-60011 WiFi v.4
					Intel i5-6200U (2x2.3GHz,Turbo 2.8GHz)
Graphics: Intel® HD Graphics 520
2x LAN / 4x USB2.0 / 4x USB 3.0 / 1x VGA
1x HDMI  / 6x COM / 2x Audio/Mic /WiFi
RAM-16GB / Disk-256GB SSD

Gross881.69 €
