Durable Computer Industrial FanlessMiniPC IBOX-N13C i5 WiFi v.4

Name: Durable Computer Industrial FanlessMiniPC IBOX-N13C i5 WiFi v.4
Brand: Mobilator
Price: 701.32 PLN
Availability: InStock

Odporne komputery do automatyki przemysłowej

+29

Update Date: 2024.11.13

Guarantee 1 year (opt. 2)

Net

570.18 €

Gross

701.32 €

Buy now!

Negotiate the price

								Ask about the product

 Product card

								Recommend to a friend

								Store

								Compare

Product availability 14 - 20 workdays

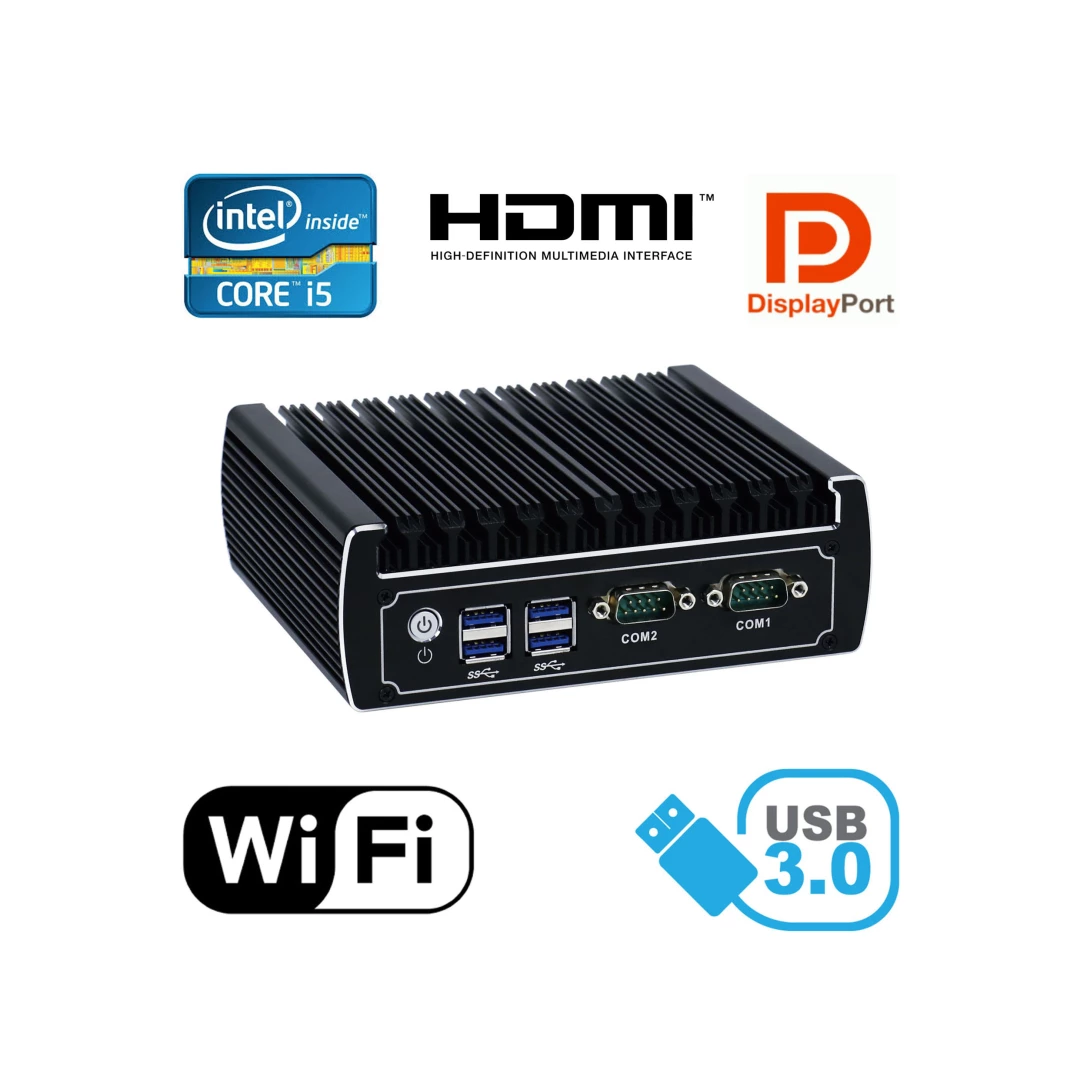

Durable Computer Industrial Fanless MiniPC IBOX-N13C i5 umpc mobilator intel core i5

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

Durable Computer Industrial Fanless MiniPC IBOX-N13C i5 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

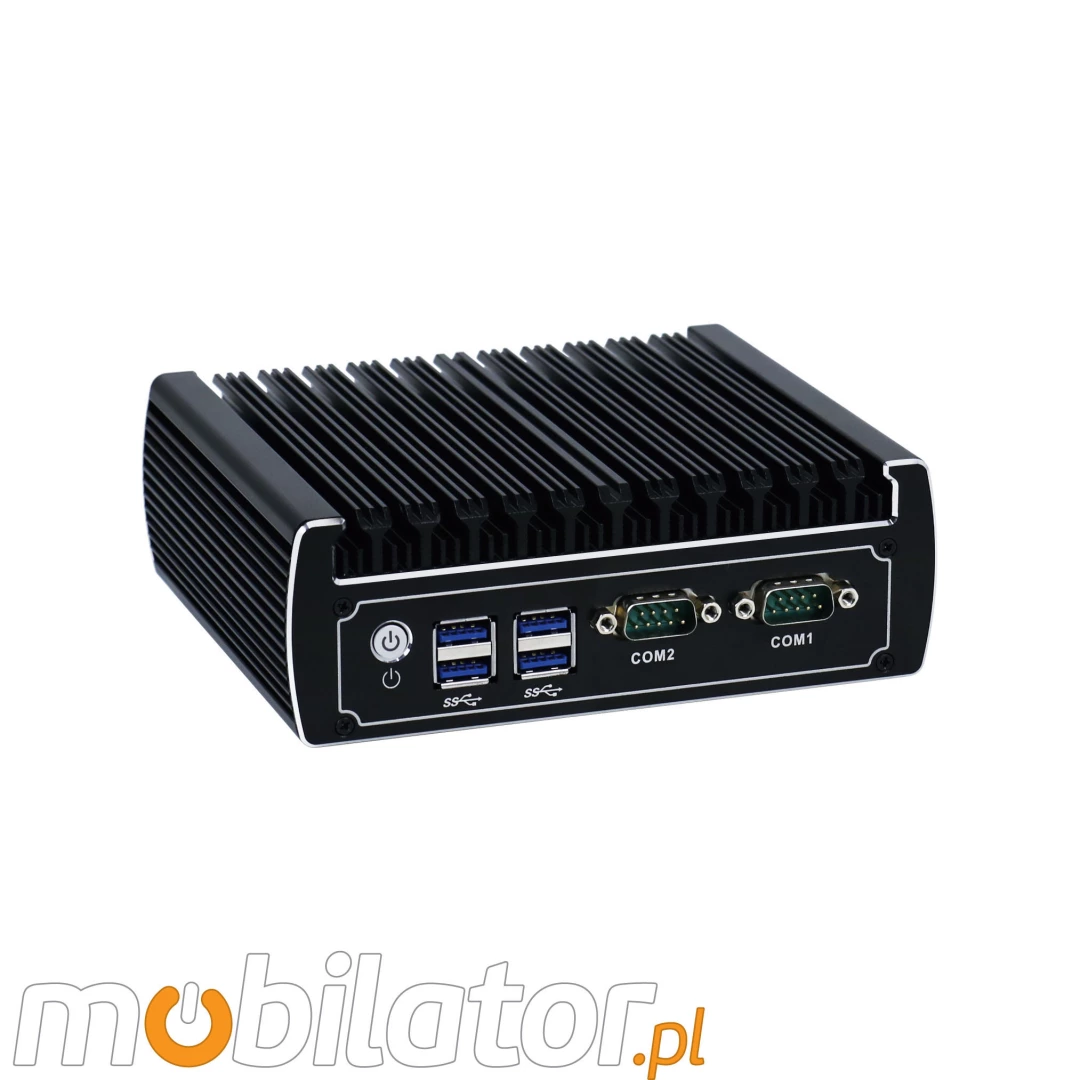

Housing dimensions are 155 (W) x126,5 (L) x52,5 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 16GB DDR4 memory. Integrated Integrated Intel HD Graphics 520 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 256GB SSD .

Compare all versions

v.0 v.1 v.2 v.3 v.4 v.5 v.6

4GB RAM — ✔ — — — — —

8GB RAM — — ✔ ✔ — ✔ ✔

16GB RAM — — — — ✔ — —

128GB SSD — ✔ — — — — —

256GB SSD — — ✔ — ✔ ✔ ✔

500GB HDD — — — ✔ — — —

3G — — — — — ✔ —

4G — — — — — — ✔

Compare all versions

Durable Computer Industrial Fanless MiniPC IBOX-N13C i5 mobilator umpc intel core i5

go top…

menu…

Communication & Connectors

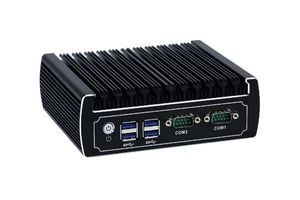

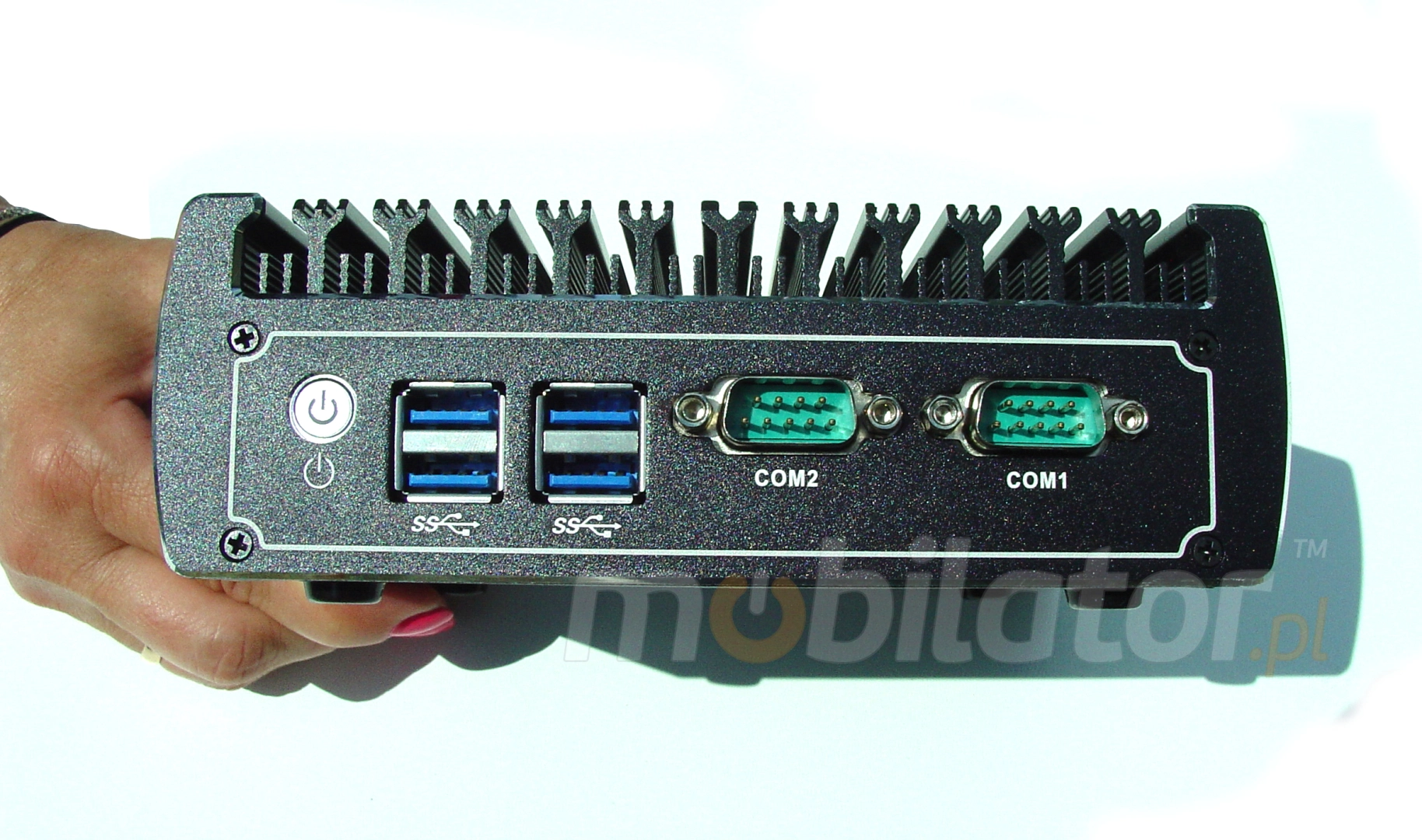

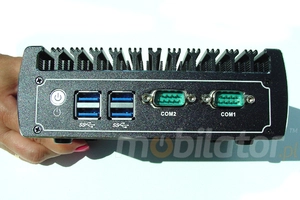

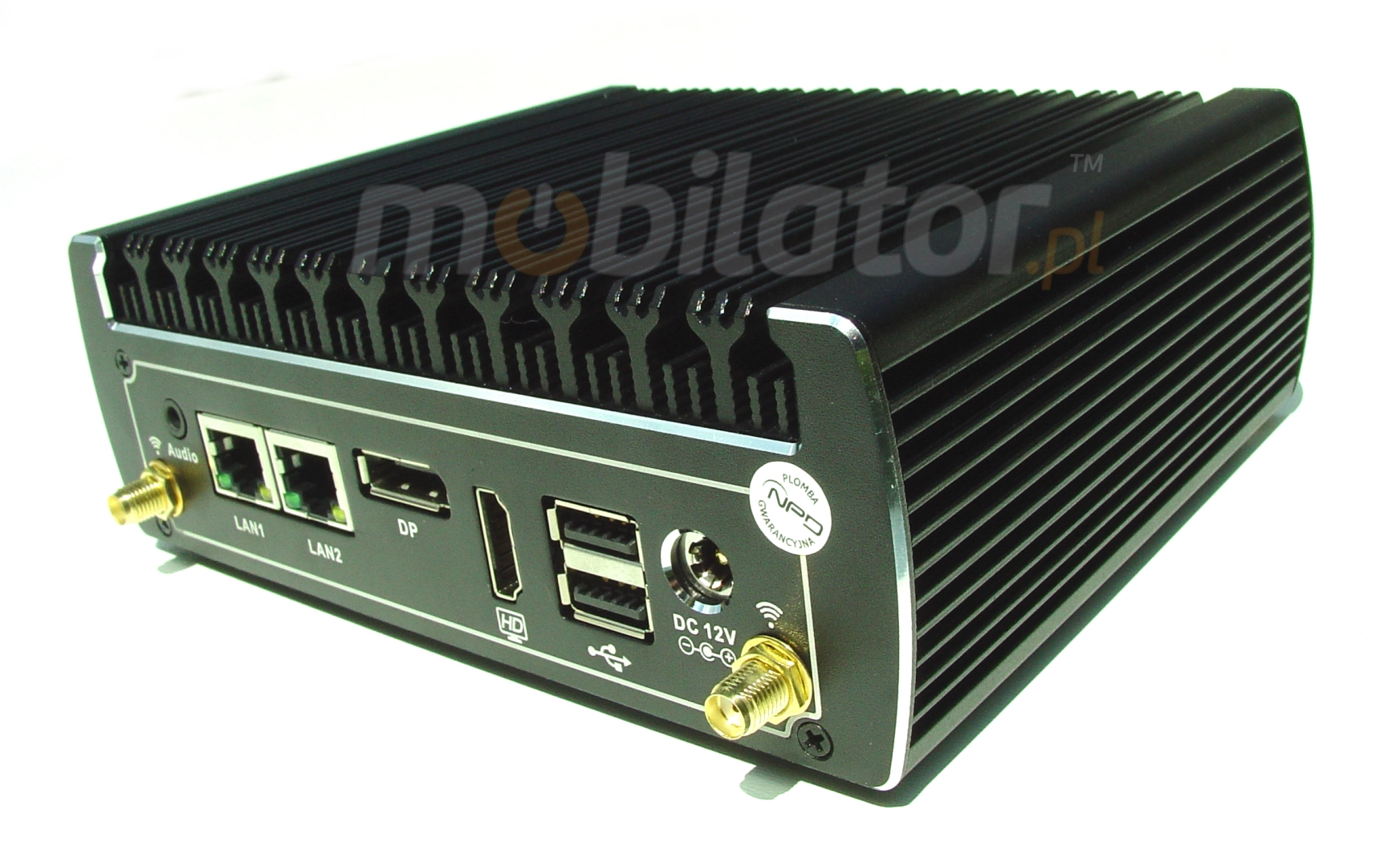

Integrated card - RTL8111E 10/100/1000M and WiFi module allow connection to the network. The computer is equipped with: two LAN ports, one HDMI port, one DP port, two USB 2.0 ports, four USB 3.0 ports, two COM RS232 ports.

Durable Computer Industrial Fanless MiniPC IBOX-N13C i5 umpc mobilator.pl intel core i5

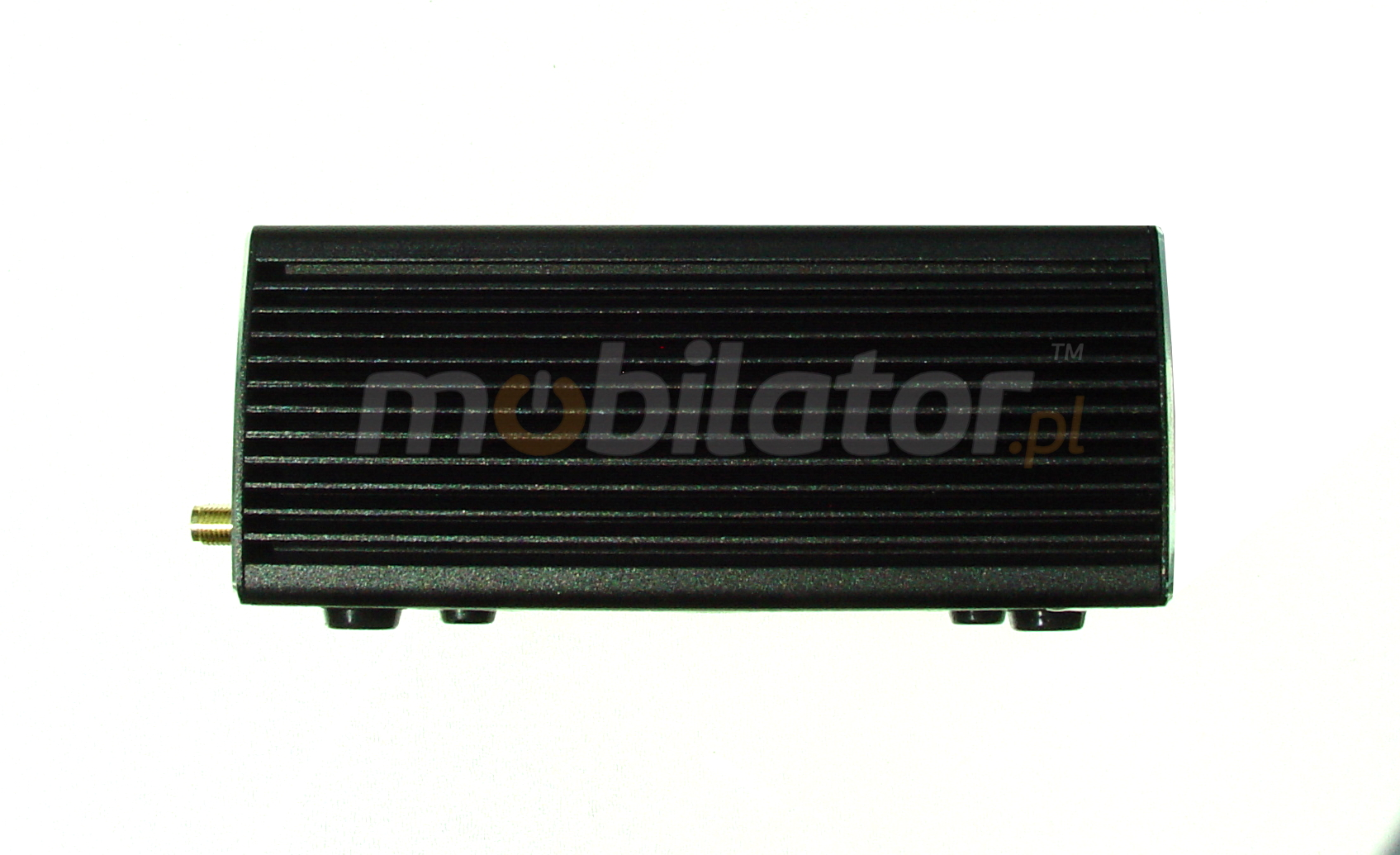

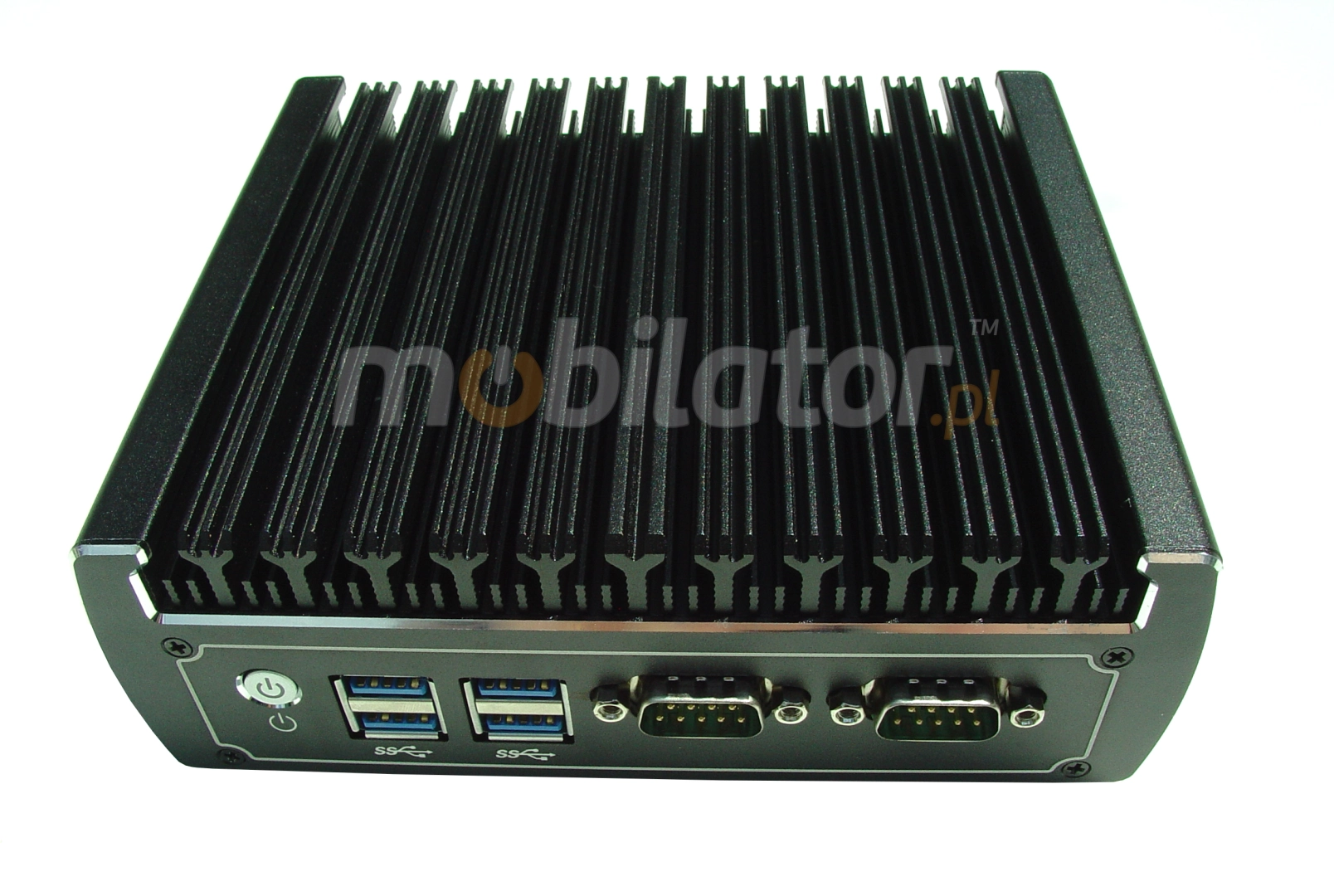

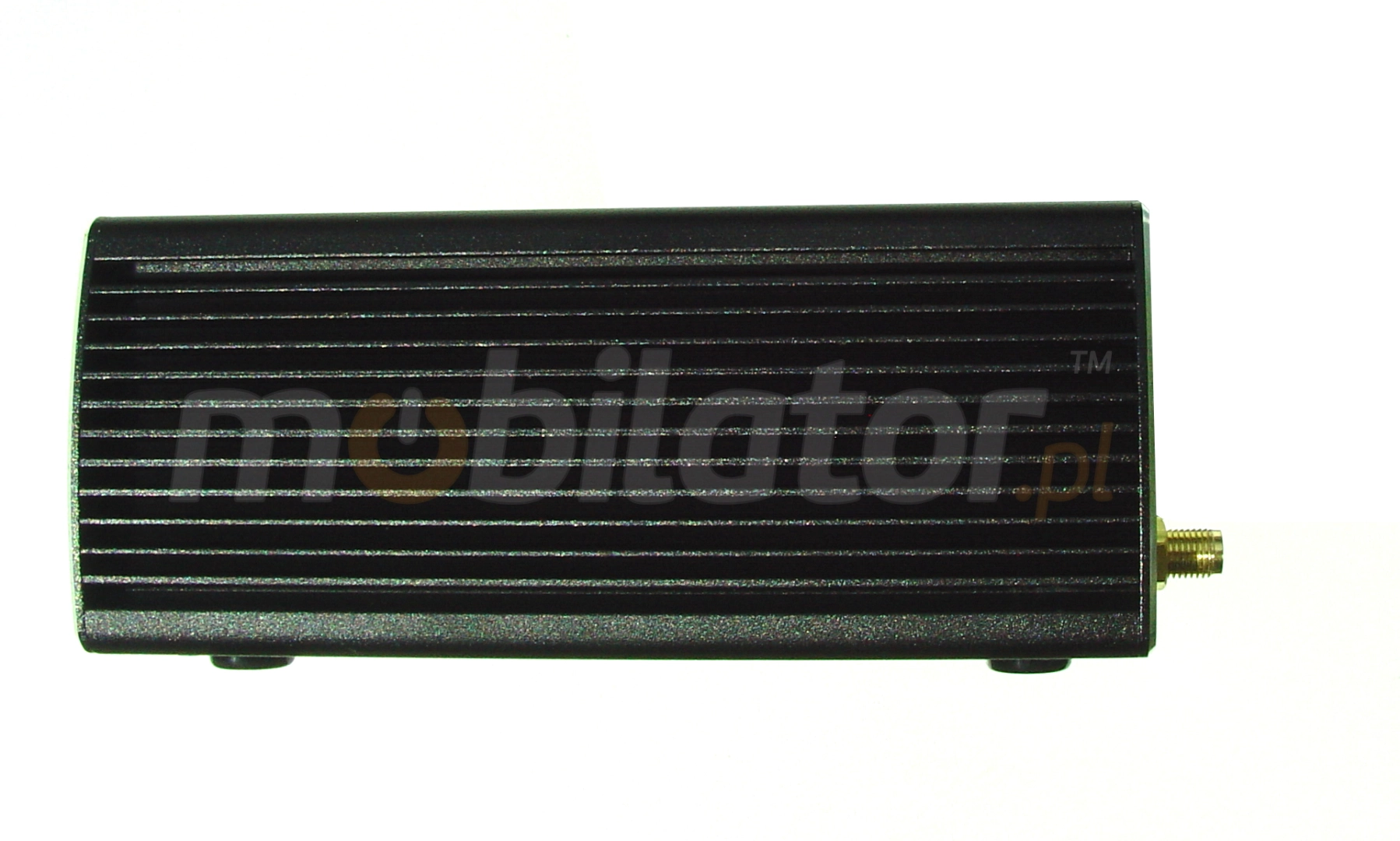

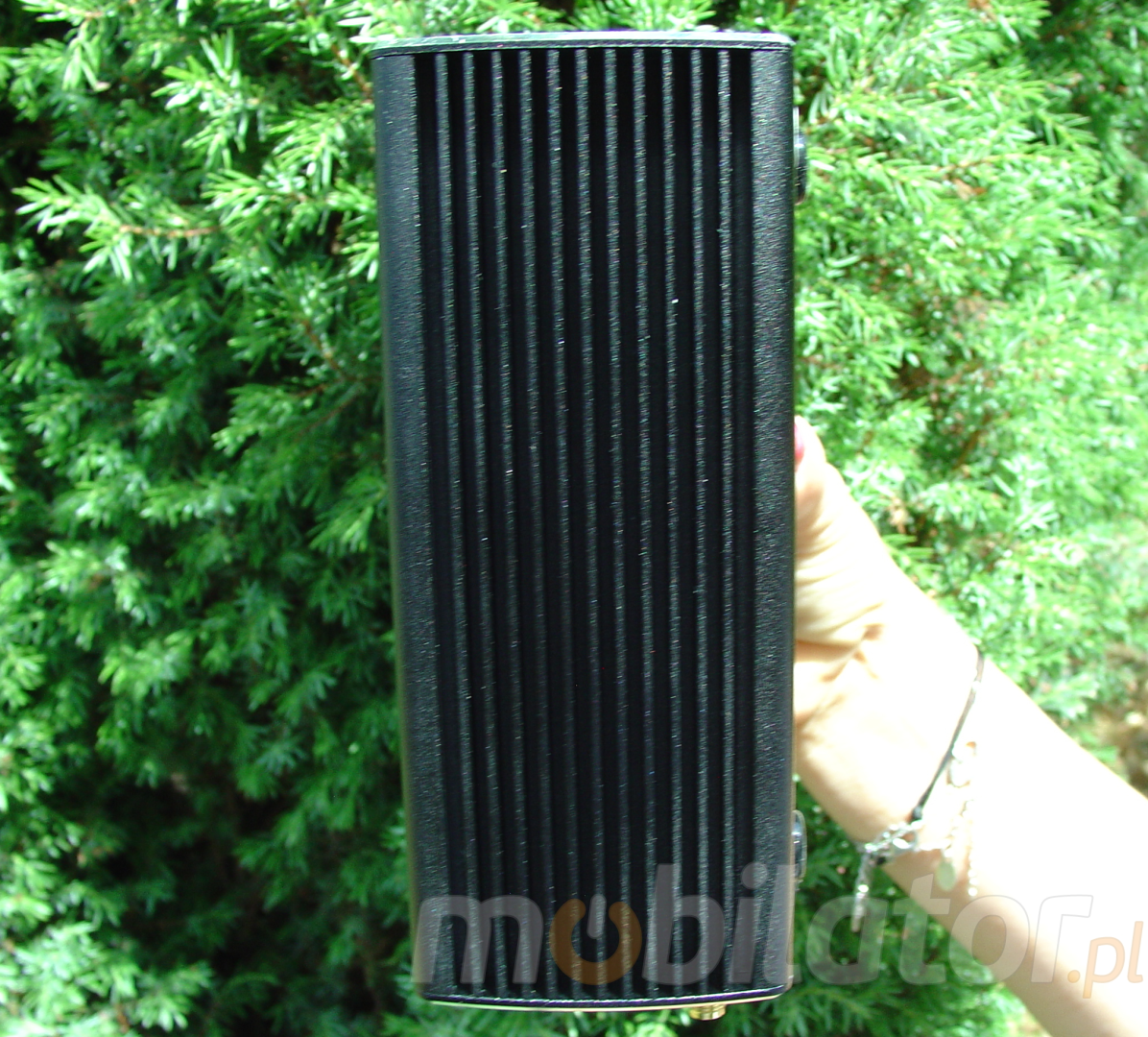

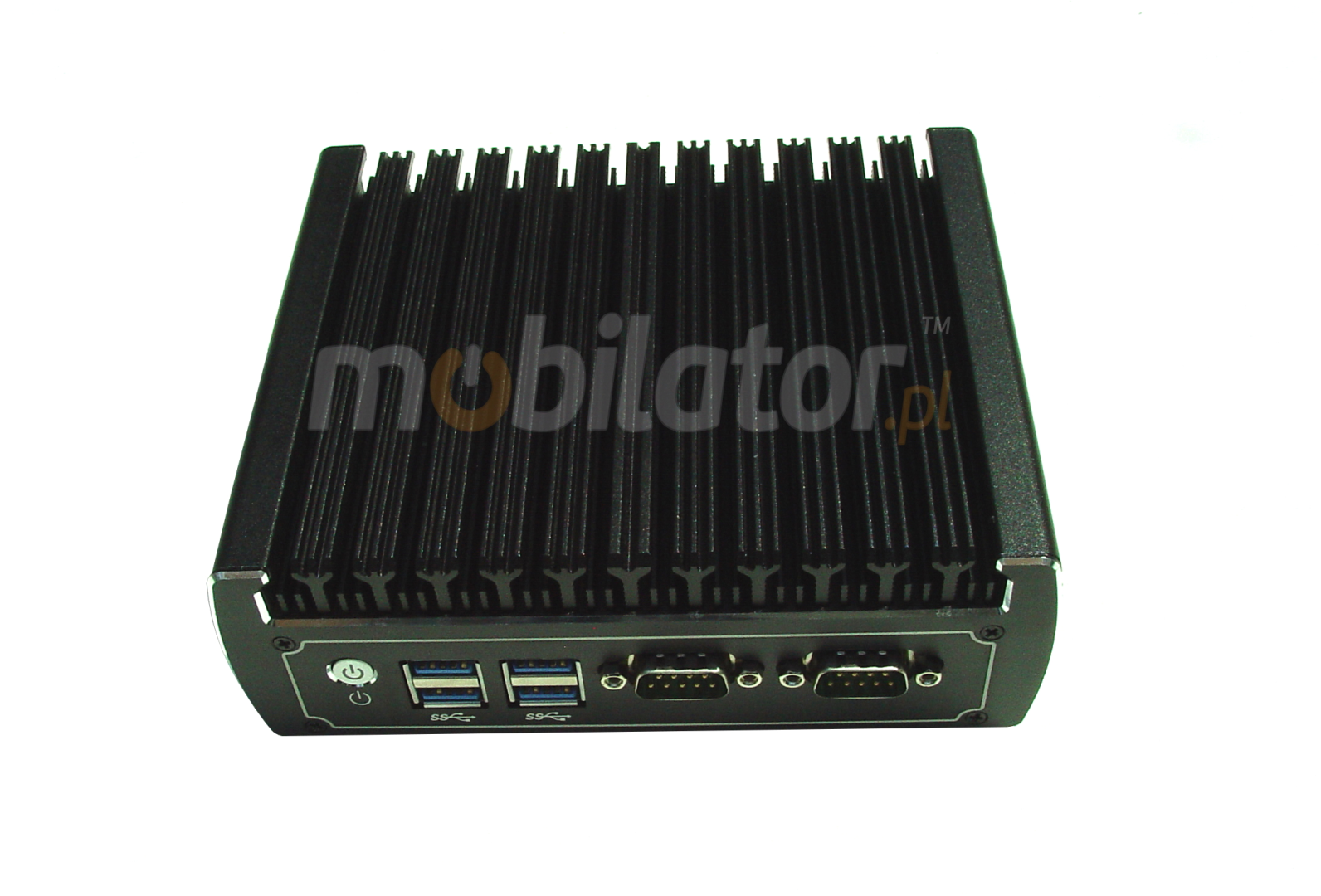

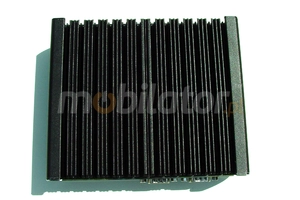

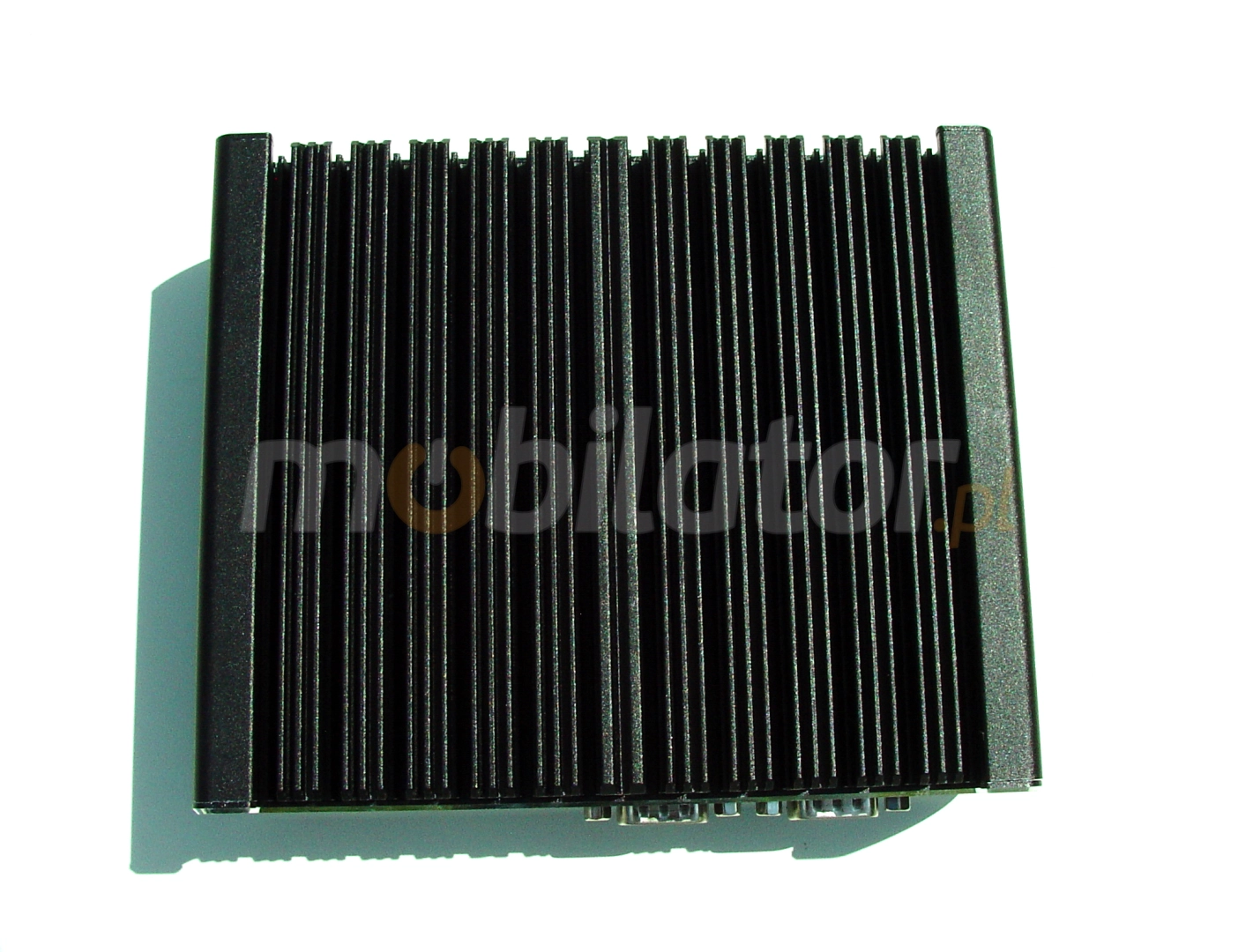

The Durable Computer Industrial Fanless MiniPC IBOX-N13C i5 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… menu…

Application

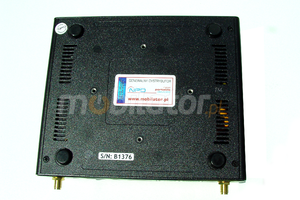

Durable Computer Industrial Fanless MiniPC IBOX-N13C i5 are based on high-performance dual-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Durable Computer Industrial Fanless MiniPC IBOX-N13C i5 umpc mobilator intel core i5 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Computer Fanless MiniPC IBOX-513NA

Areas of use of industrial MiniPC

Durable Computer Industrial Fanless MiniPC IBOX-N13C i5 mobilator umpc intel core i5

Digital Engine

Durable Computer Industrial Fanless MiniPC IBOX-N13C i5 mobilator umpc intel core i5

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Durable Computer Industrial Fanless MiniPC IBOX-N13C i5 umpc mobilator intel core i5

Industrial Computer Fanless MiniPC IBOX-513NA

Durable Computer Industrial Fanless MiniPC IBOX-N13C i5 by USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Durable Computer Industrial Fanless MiniPC IBOX-N13C i5 can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Computer Fanless MiniPC IBOX-601i3U

go top…

menu…

go top… menu…

Specifications

Dimension	H: 52,5 mm L: 126,5 mm W: 155 mm
Processor	Intel Core i5 6200U 2x2.3GHZ, turbo 2,8G
Chipset	Intel Chipset
RAM Memory	16GB
Graphic Card	Integrated Intel HD Graphics 520
Sound Card	Realtek ALC662
WLAN	RTL8111E 10/100/1000M
Connectors	1x 12V D-IN 4x USB 3.0 2x USB 2.0 2x RJ-45 LAN 1x HDMI 2x COM (RS232) 1x DP 1x Audio/Mic

Supported OS
Microsoft Windows: 7/8/8.1/10, Linux
Installed OS
-----
Chipset
Intel express chipset
CPU Support
-----
Installed CPU
Intel Core i5 6200U 2x2.3GHZ, turbo 2.8G
Graphic Card
Integrated Intel HD Graphics 520
Memory Support
DDR4 (max.16GB) 1866/2133MHz SO-DIMM
Installed Memory
16GB
Storage (HDD) Support
SSD/HDD
mSATA
Installed Storage (HDD)
256GB SSD
IP Norm
-----
Temp
-10 ～50℃
Storage temperature
-10 ~ 50℃
Humidity
0 ~ 95%
Others
Colour Black
LAN
RTL8111E 10/100/1000M
Wireless LAN card
Yes - 802.11 b/g/n
3G
-----
Bluetooth
-----

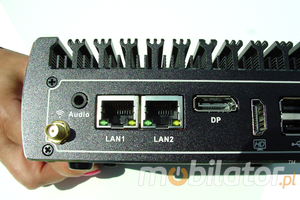

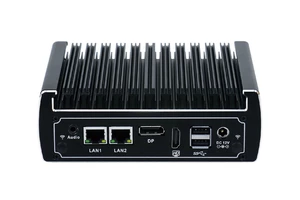

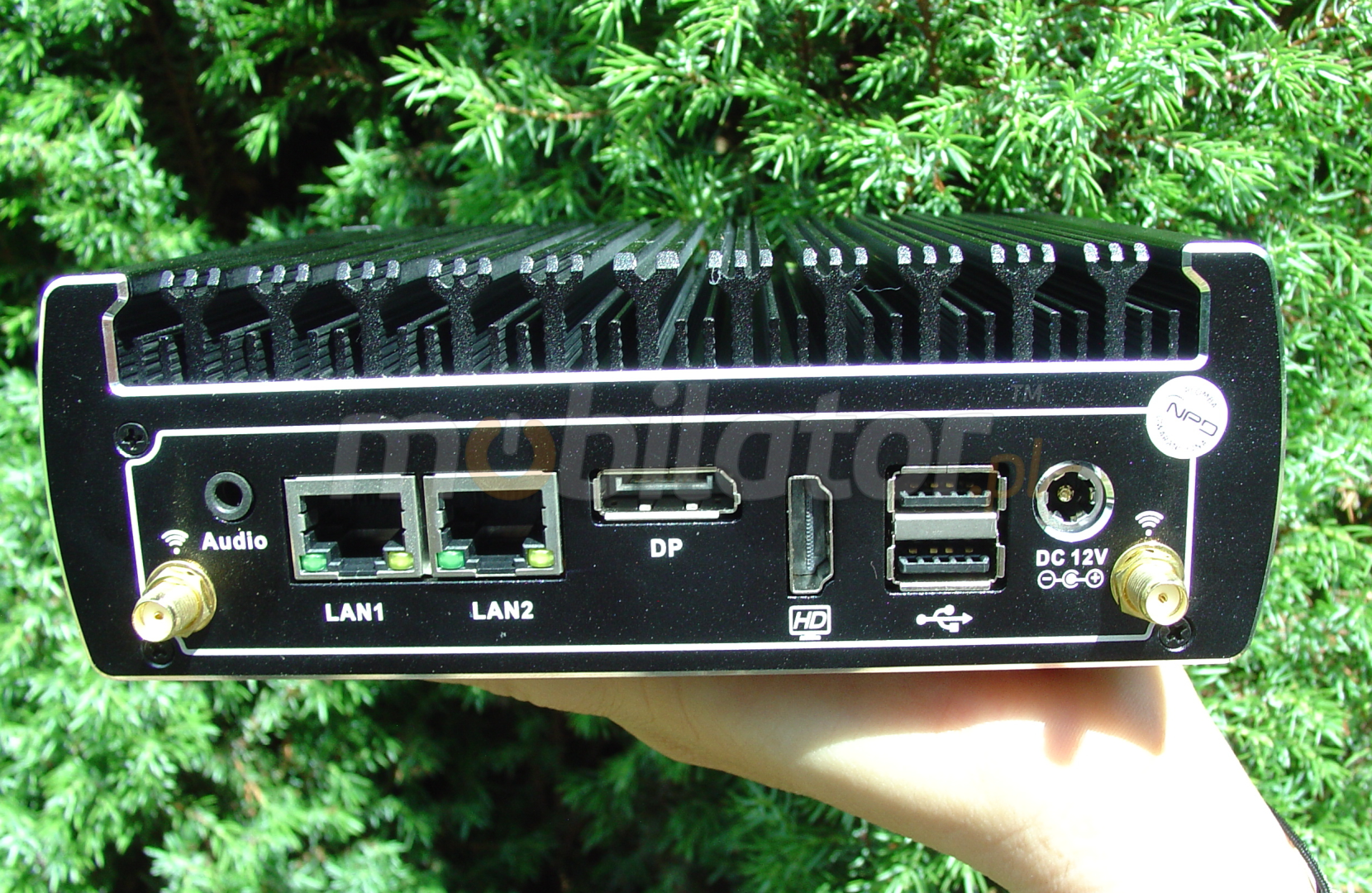

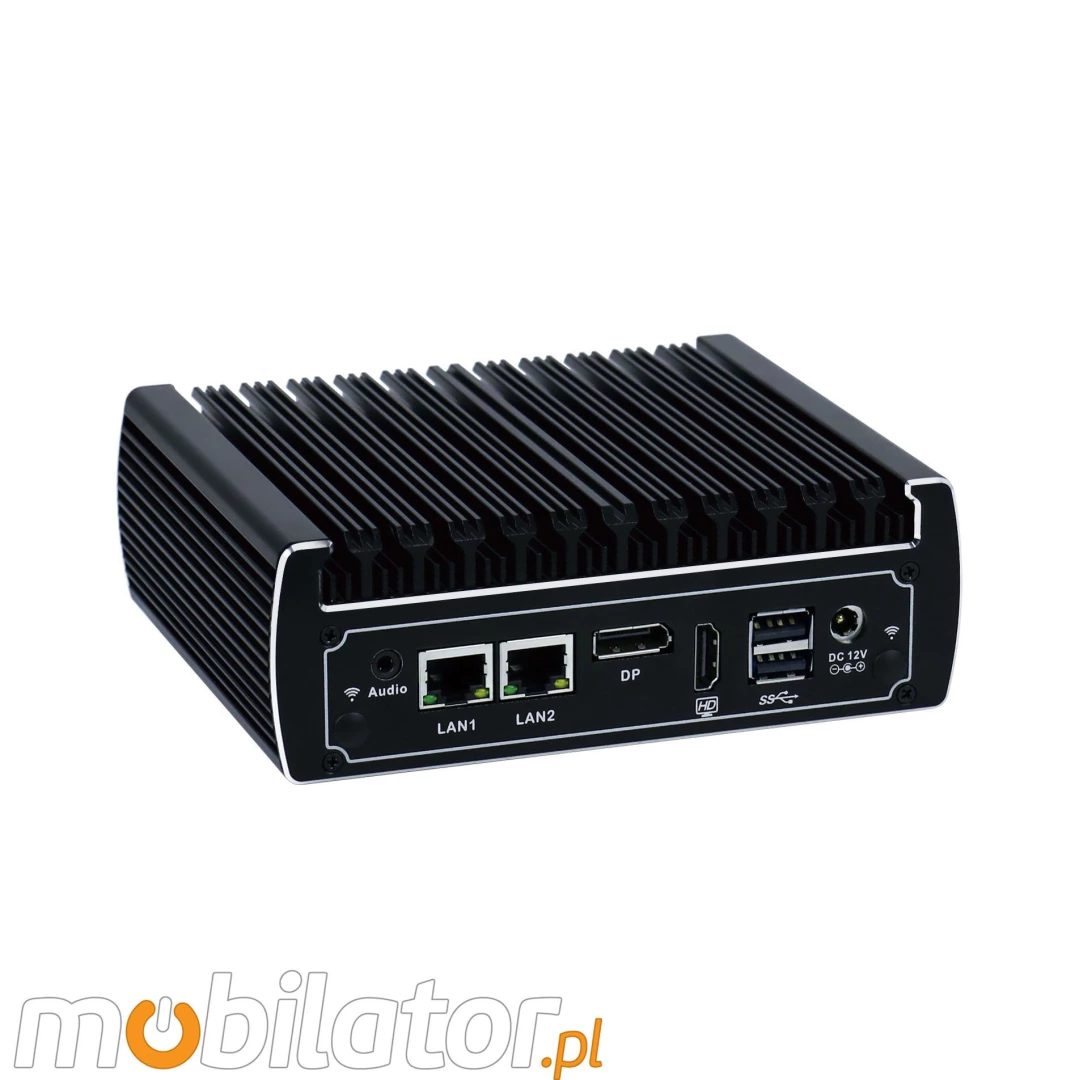

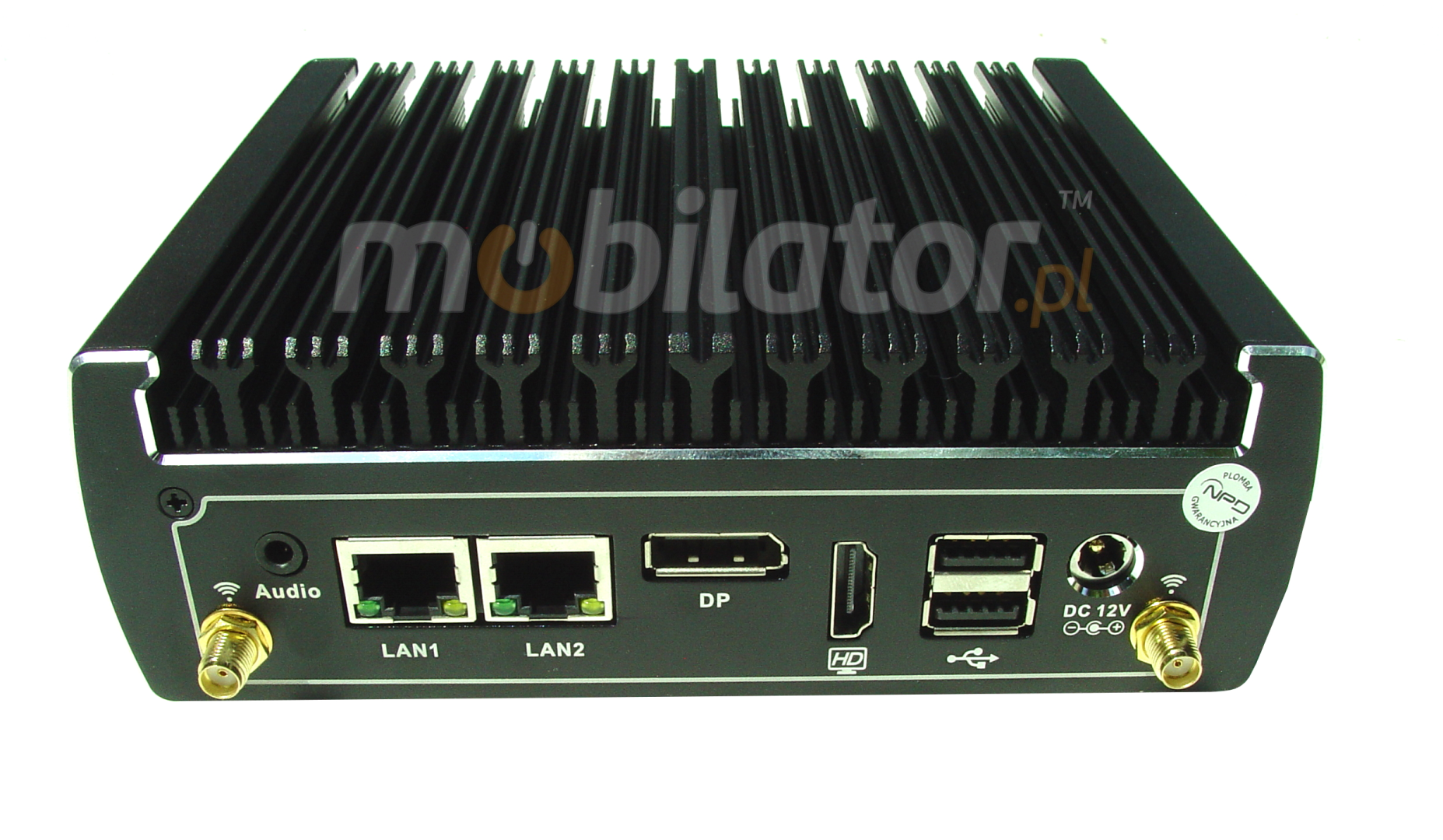

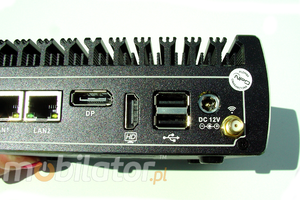

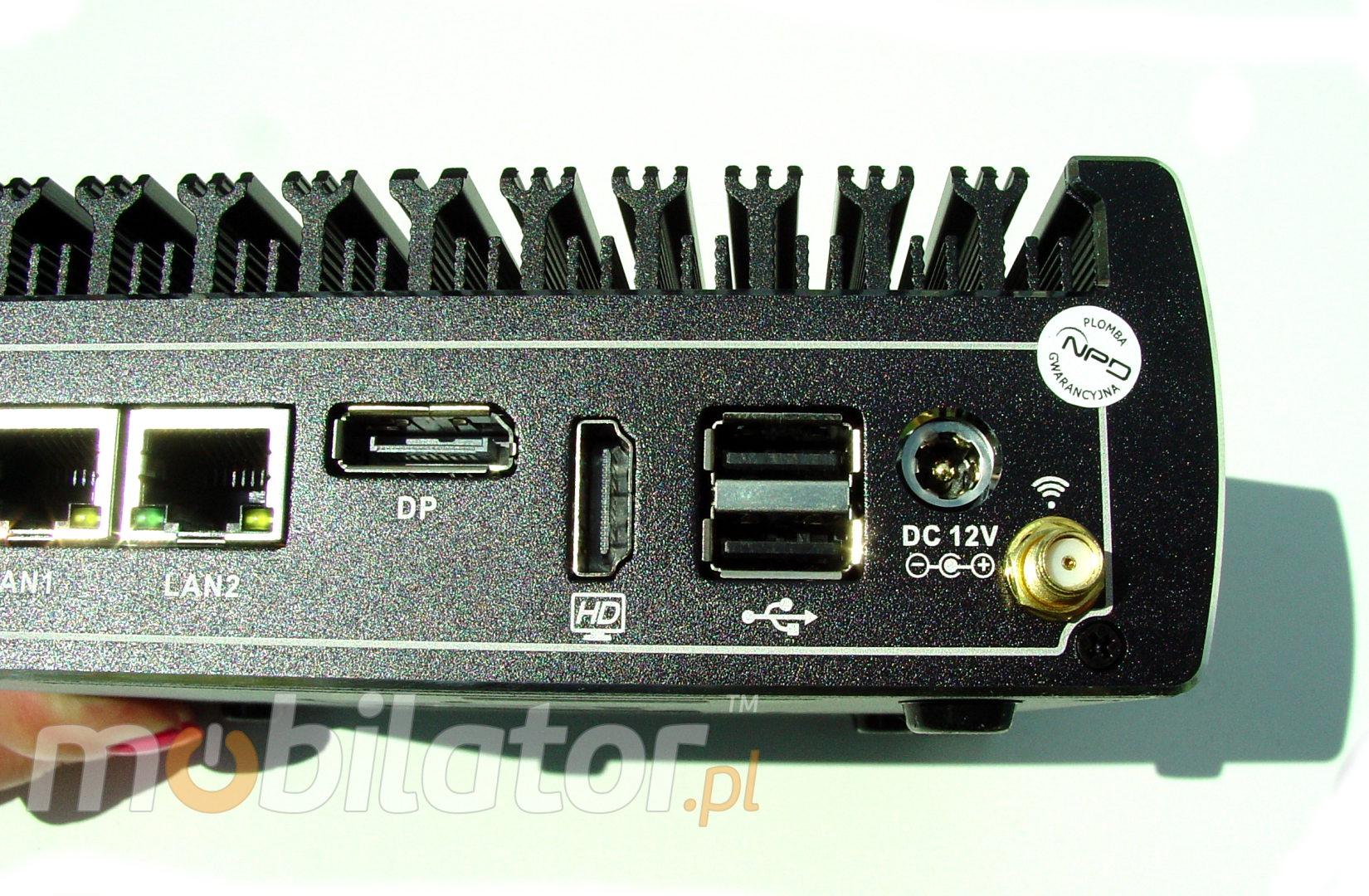

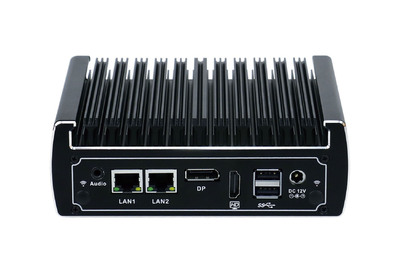

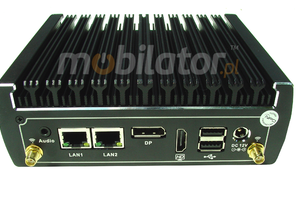

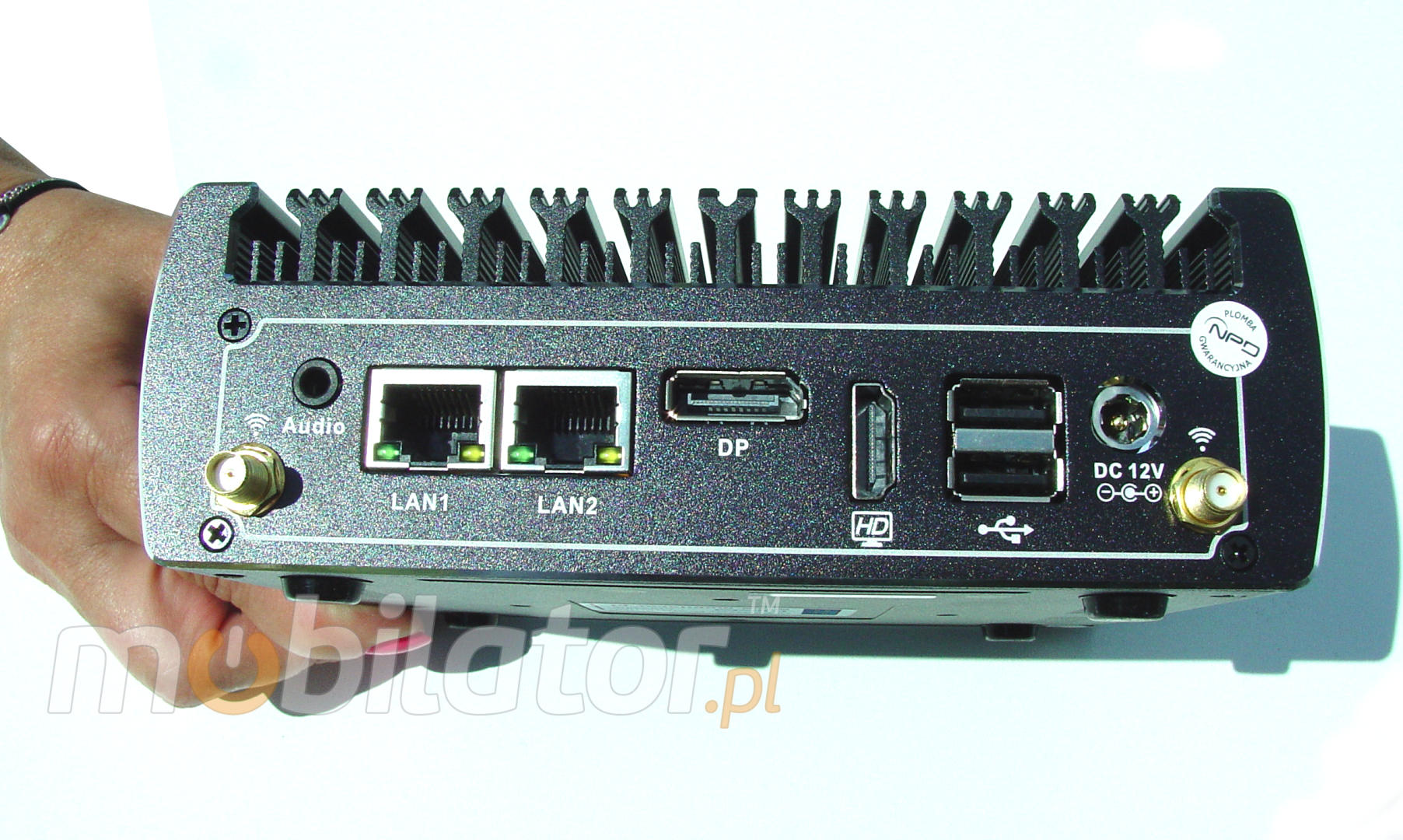

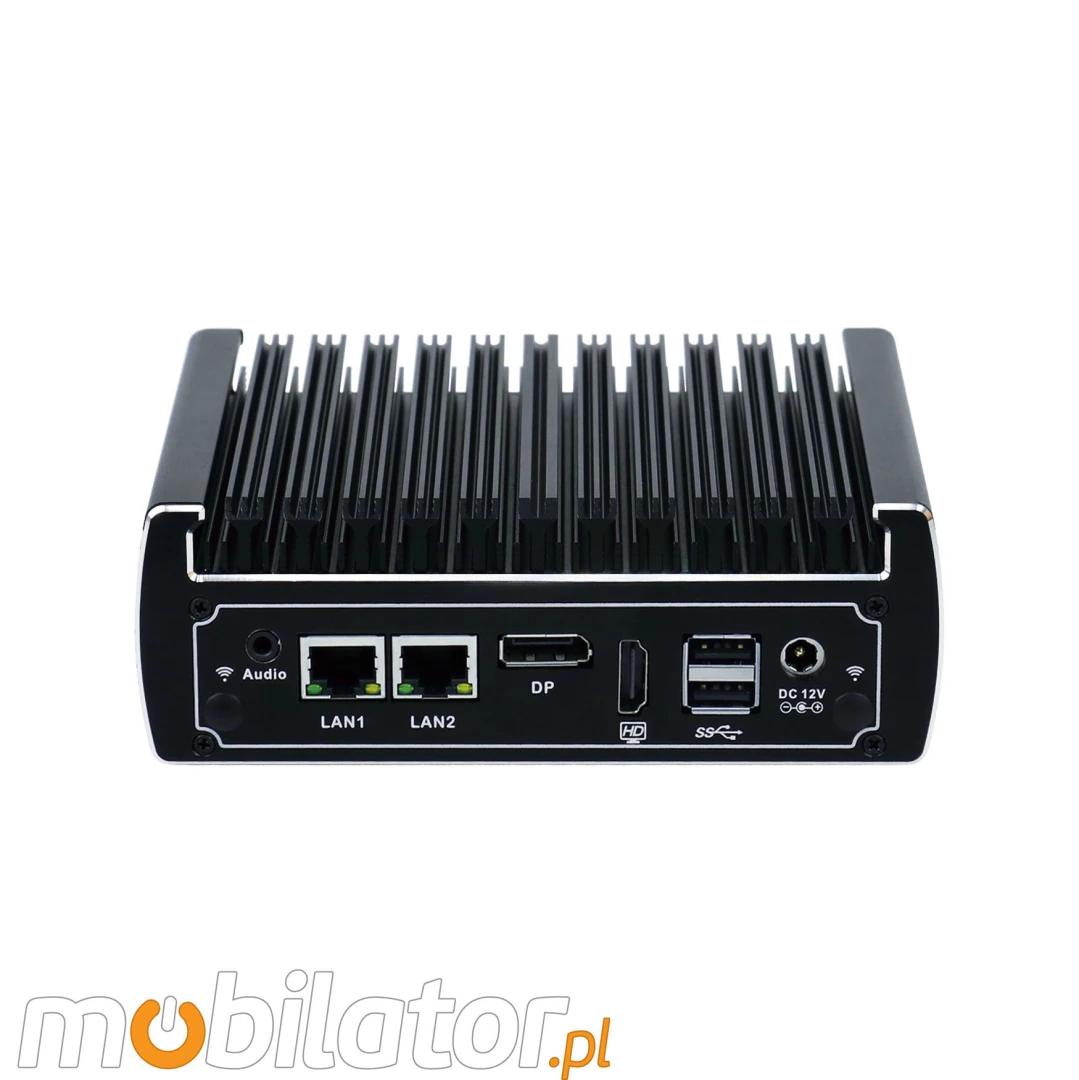

Rear Panel (ports)
DC-IN 12V,
 2x RJ-45 LAN
2x USB2.0
1xHDMI
1xBR
1xAUDIO/MIC

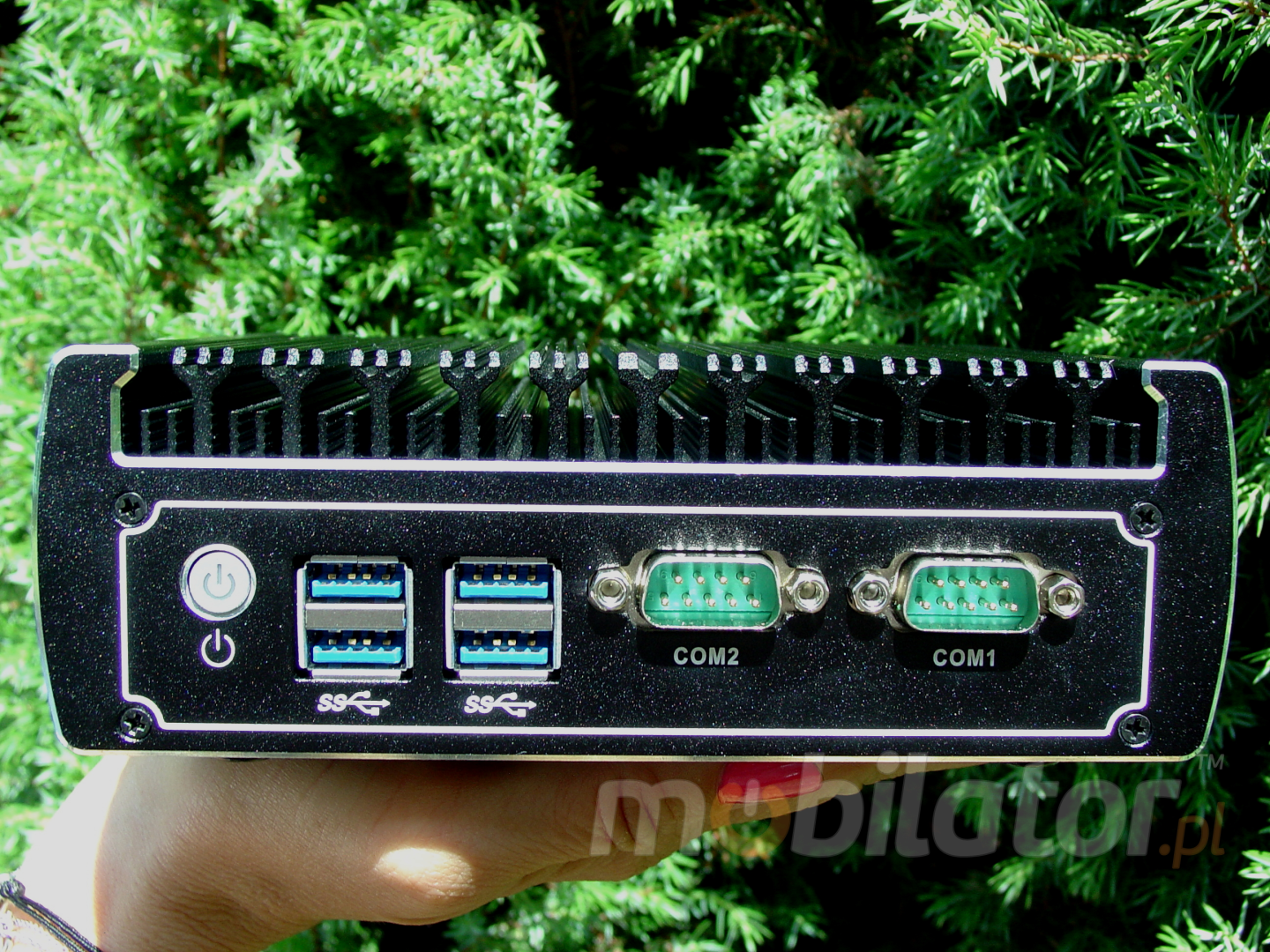

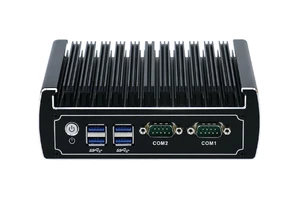

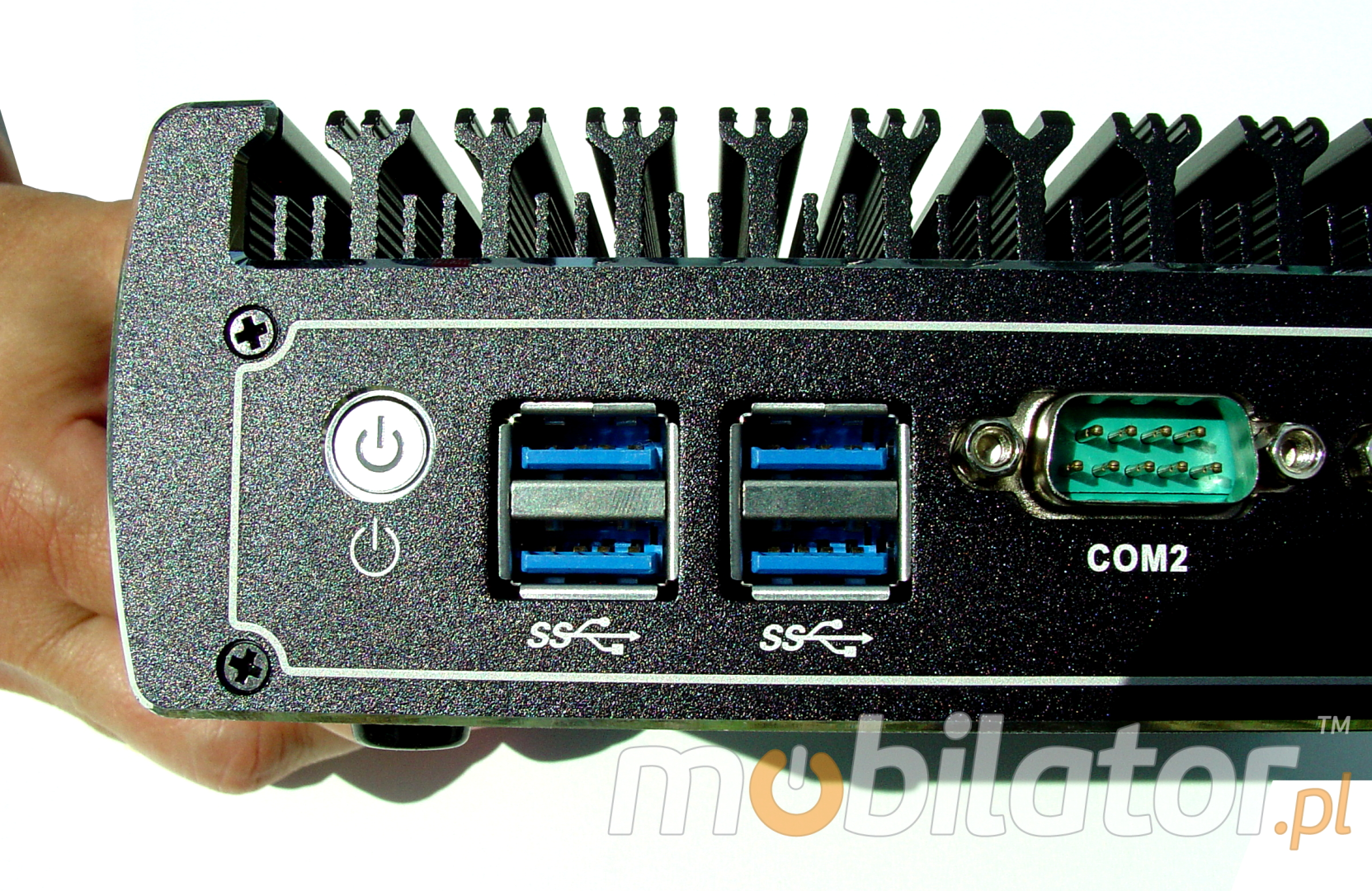

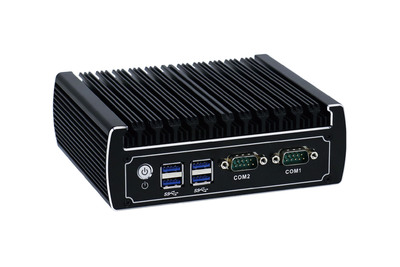

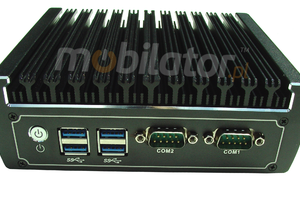

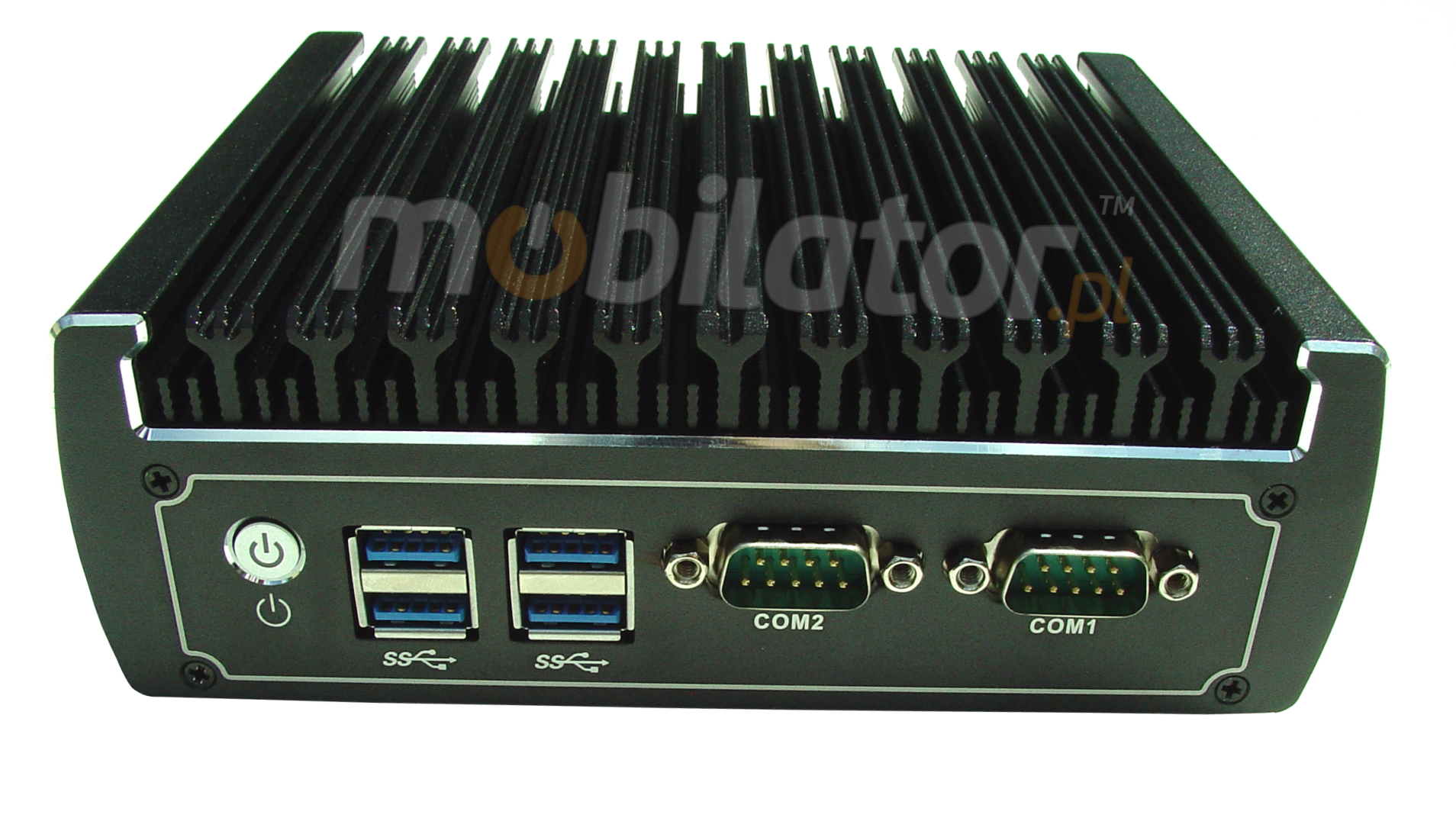

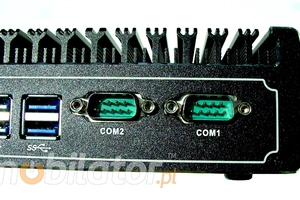

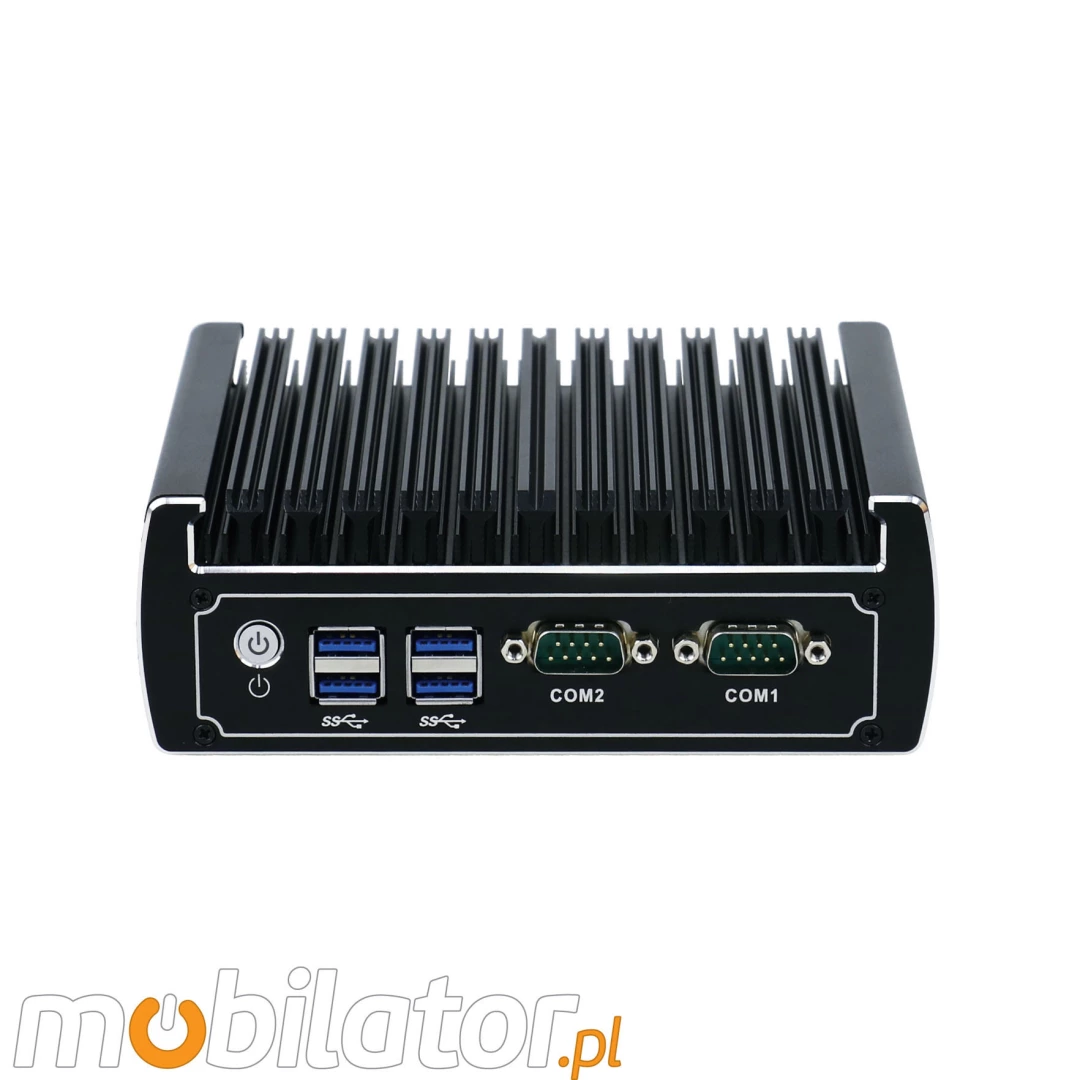

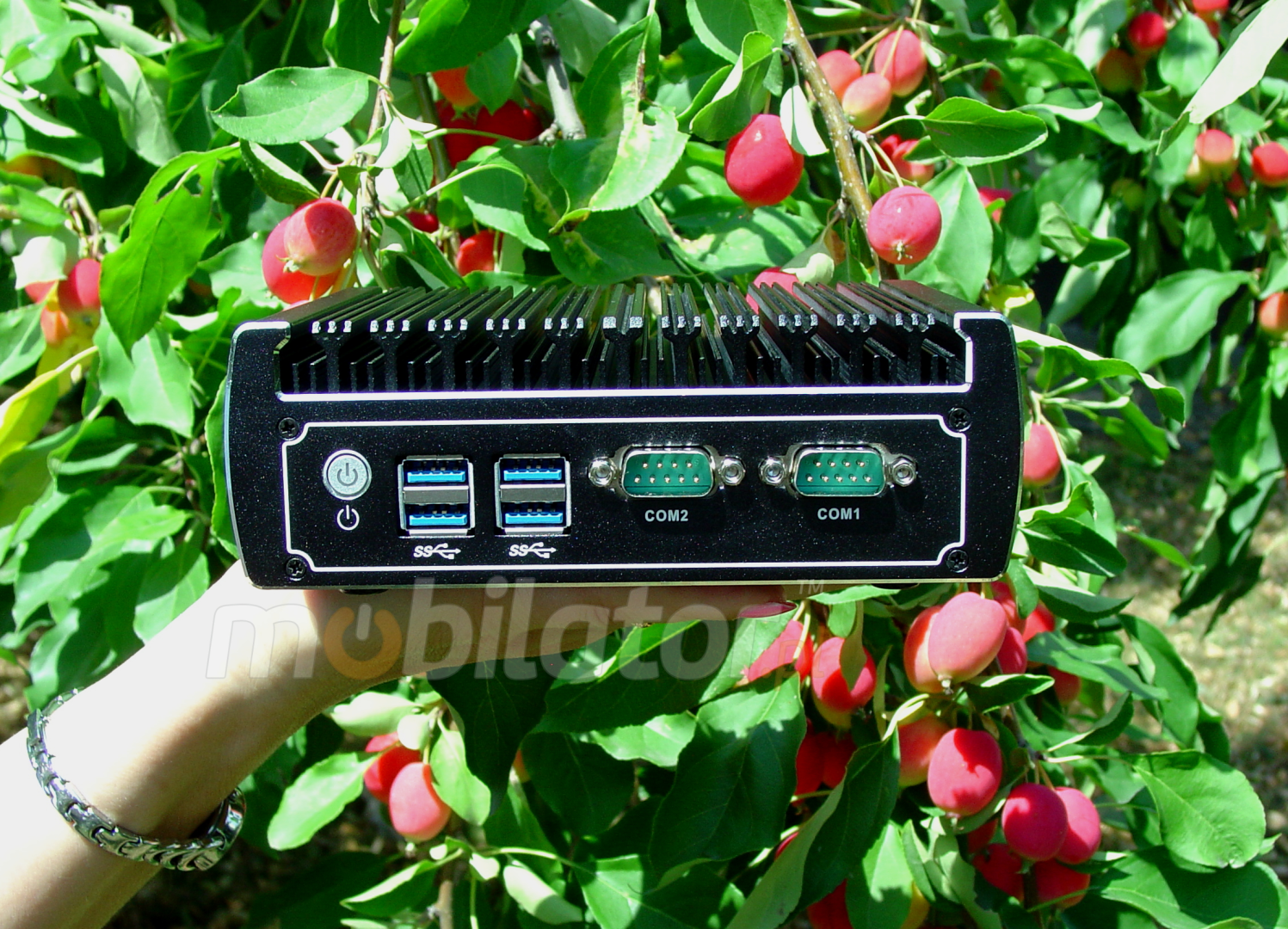

Front Panel (ports)
4x USB3.0

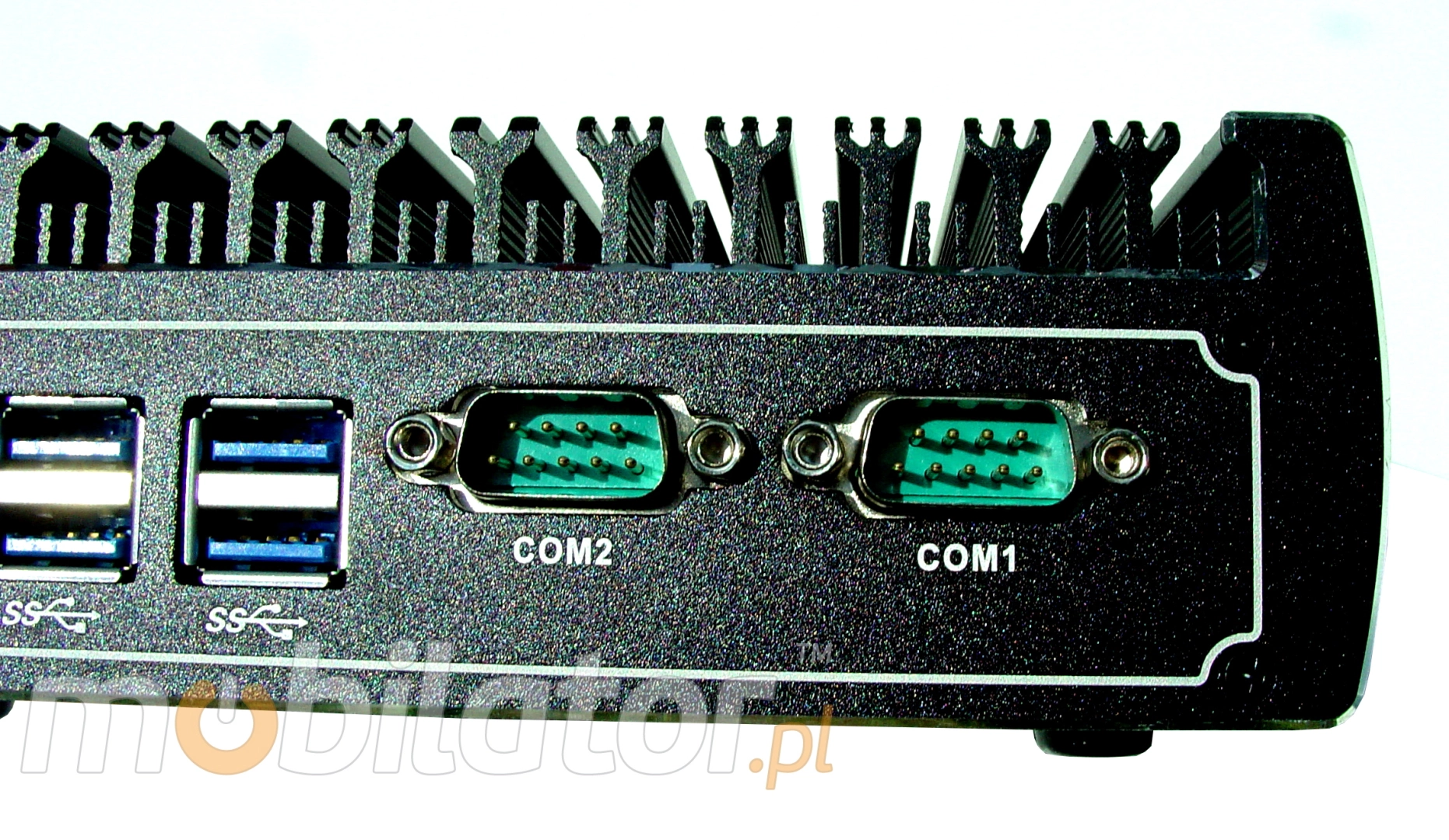

 1x COM(RS232)
Power ON/OFF

Expansion
-----
Power
12V
Watch Dog Timer
-----
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
155 x 126,5 x 52,5 mm
Fanless
Yes
Weight
1600g
Responsible Entity / Distributor
New Portable Devices

Komputer przemysłowy odporny na wibracje

Komputer przemysłowy z niskim poborem energii

Odporny komputer do pracy w trudnych warunkach

Kompaktowy komputer przemysłowy do szaf sterowniczych

Kompaktowy komputer do systemów wbudowanych

MiniPC z pasywnym chłodzeniem do przemysłu

Wytrzymały komputer do trudnych środowisk

Wzmocniony komputer przemysłowy do automatyki

Bezwentylatorowy komputer do warunków przemysłowych

Odporny komputer do instalacji przemysłowych

Compare all versions


Durable Computer Industrial FanlessMiniPC IBOX-N13C i5 Barebone
					Intel Core i5 6200U 2x2.3GHZ, turbo 2.8G
Grafika:Integrated Intel HD Graphics 520
2x LAN / 4x USB 3.0 / 1x HDMI
2x COM
RAM-no  / Disk-no

Gross467.92 €

Durable Computer Industrial FanlessMiniPC IBOX-N13C i5 WiFi v.1
					Intel Core i5 6200U 2x2.3GHZ, turbo 2.8G
Grafika:Integrated Intel HD Graphics 520
2x LAN / 4x USB 3.0 / 1x HDMI
2x COM  / WiFi
RAM-4GB  / Disk-128GB SSD

Gross579.06 €

Durable Computer Industrial FanlessMiniPC IBOX-N13C i5 WiFi v.3
					Intel Core i5 6200U 2x2.3GHZ, turbo 2.8G
Grafika:Integrated Intel HD Graphics 520
2x LAN / 4x USB 3.0 / 1x HDMI
2x COM  / WiFi
RAM-8GB  / Disk-500GB HDD

Gross622.41 €

Durable Computer Industrial FanlessMiniPC IBOX-N13C i5 WiFi v.2
					Intel Core i5 6200U 2x2.3GHZ, turbo 2.8G
Grafika:Integrated Intel HD Graphics 520
2x LAN / 4x USB 3.0 / 1x HDMI
2x COM  / WiFi
RAM-8GB  / Disk-256GB SSD

Gross629.08 €

Durable Computer Industrial FanlessMiniPC IBOX-N13C i5 v.5
					Intel Core i5 6200U 2x2.3GHZ, turbo 2.8G
Grafika:Integrated Intel HD Graphics 520
2x LAN / 4x USB 3.0 / 1x HDMI
2x COM  / 3G
RAM-8GB  / Disk-256GB SSD

Gross660.20 €

Durable Computer Industrial FanlessMiniPC IBOX-N13C i5 WiFi v.4
					Intel Core i5 6200U 2x2.3GHZ, turbo 2.8G
Grafika:Integrated Intel HD Graphics 520
2x LAN / 4x USB 3.0 / 1x HDMI
2x COM  / WiFi
RAM-16GB  / Disk-256GB SSD

Gross701.32 €

Durable Computer Industrial FanlessMiniPC IBOX-N13C i5 v.6
					Intel Core i5 6200U 2x2.3GHZ, turbo 2.8G
Grafika:Integrated Intel HD Graphics 520
2x LAN / 4x USB 3.0 / 1x HDMI
2x COM  / 4G
RAM-8GB  / Disk-256GB SSD

Gross704.66 €
