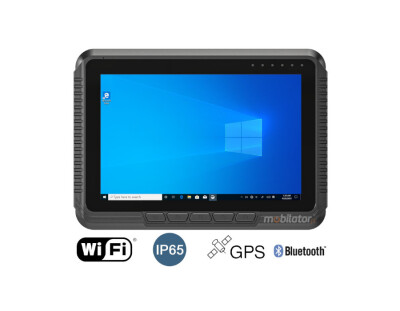

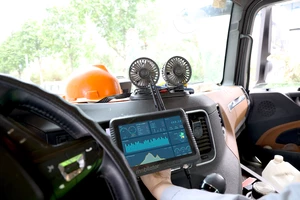

The Emdoor V80J is a modern automotive tablet designed for use in demanding road conditions. Featuring a reinforced design that resists vibration, shock, and temperature fluctuations, it's ideal for use in commercial and specialized vehicles. It meets IP65 and MIL-STD-810G standards, ensuring its resistance to dust, moisture, and mechanical damage.

Specification

*Additional features require accessories that will be added in individual versions

Straight cable ( 3x USB 2.0)

The cable required to obtain USB 2.0 connectors, enabling convenient and stable connection of devices.



Check

Elbow cable ( 3x USB 2.0)



The cable required to obtain USB 2.0 connectors, enabling convenient and stable connection of devices.



Check

Detailed device specification is available in the "Technical data".

This dust-proof tablet for use in agricultural vehicles uses the powerful and energy-efficient Intel Core JASPER LAKE N5100 processor. This unit utilizes hybrid technology with Performance and Efficient cores, ensuring high performance with low power consumption. Advanced cache management and dynamic resource allocation to individual cores increase data processing efficiency and shorten the device's response time. The tablet is ideal for transportation and fleet applications, and the modern CPU architecture ensures smooth operation even with intensive use of navigation systems and diagnostic software. With the ability to be powered directly from the vehicle's electrical system, the device operates reliably over long distances, without having to rely solely on the battery.

The Emdoor I10A waterproof tablet is built for durability and comfort. The slim and durable casing and stylish design make the tablet perfect for industrial and field use. The compact size has been carefully thought out to make the rugged tablet handy and ergonomic. The non-slip surface makes this durable tablet feel secure in your hand, while reinforced corners increase resistance to drops and impacts, protecting the device from damage.

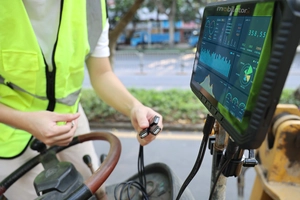

The capacitive screen of the EMDOOR V80J, a rugged tablet designed for use in firefighting vehicles, responds not to direct pressure on the surface, but rather to detect changes in the electrostatic field at the point of contact. This allows for exceptionally precise and sensitive operation, even with a light touch. Furthermore, multitouch technology enables simultaneous use of multiple touch points, increasing comfort and enabling intuitive operation of the shock-resistant tablet with multiple fingers simultaneously – even while wearing work gloves.

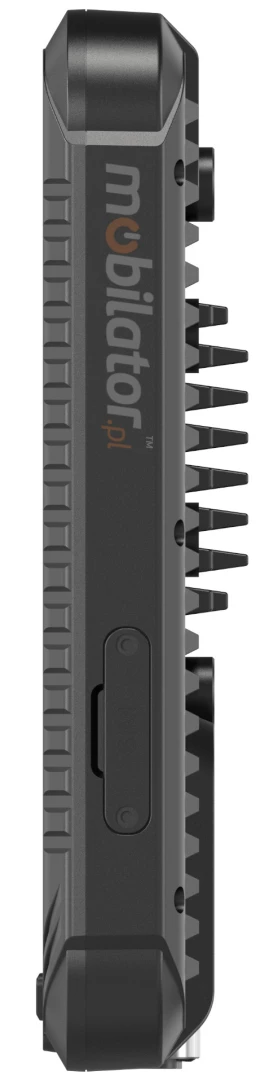

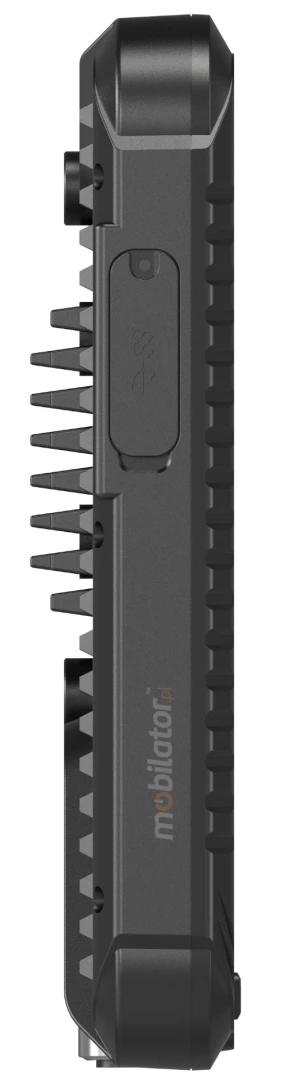

Volume button (+)

Volume button (-)

Customization button

*The SIM card slot is only available in the 4G version of the model.

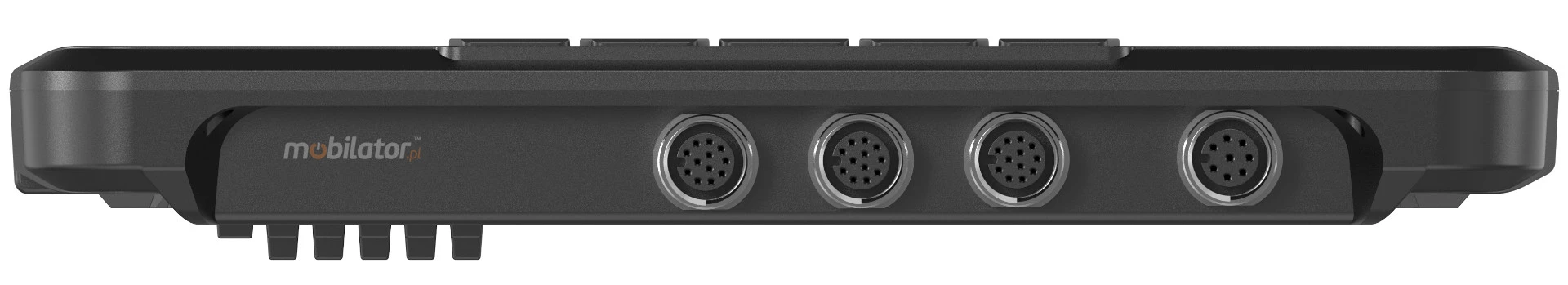

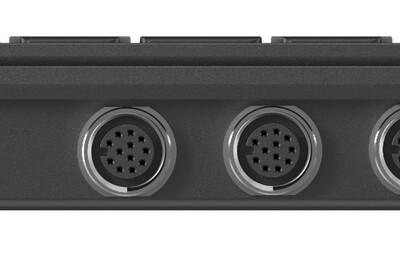

RJ-45 port for wired LAN

Port supporting RS-232 or RS485 for wired communication.

Port supporting USB 2.0 or CAN for wired communication.

*Additional features require accessories sold separately

up…    menu…

REsistance

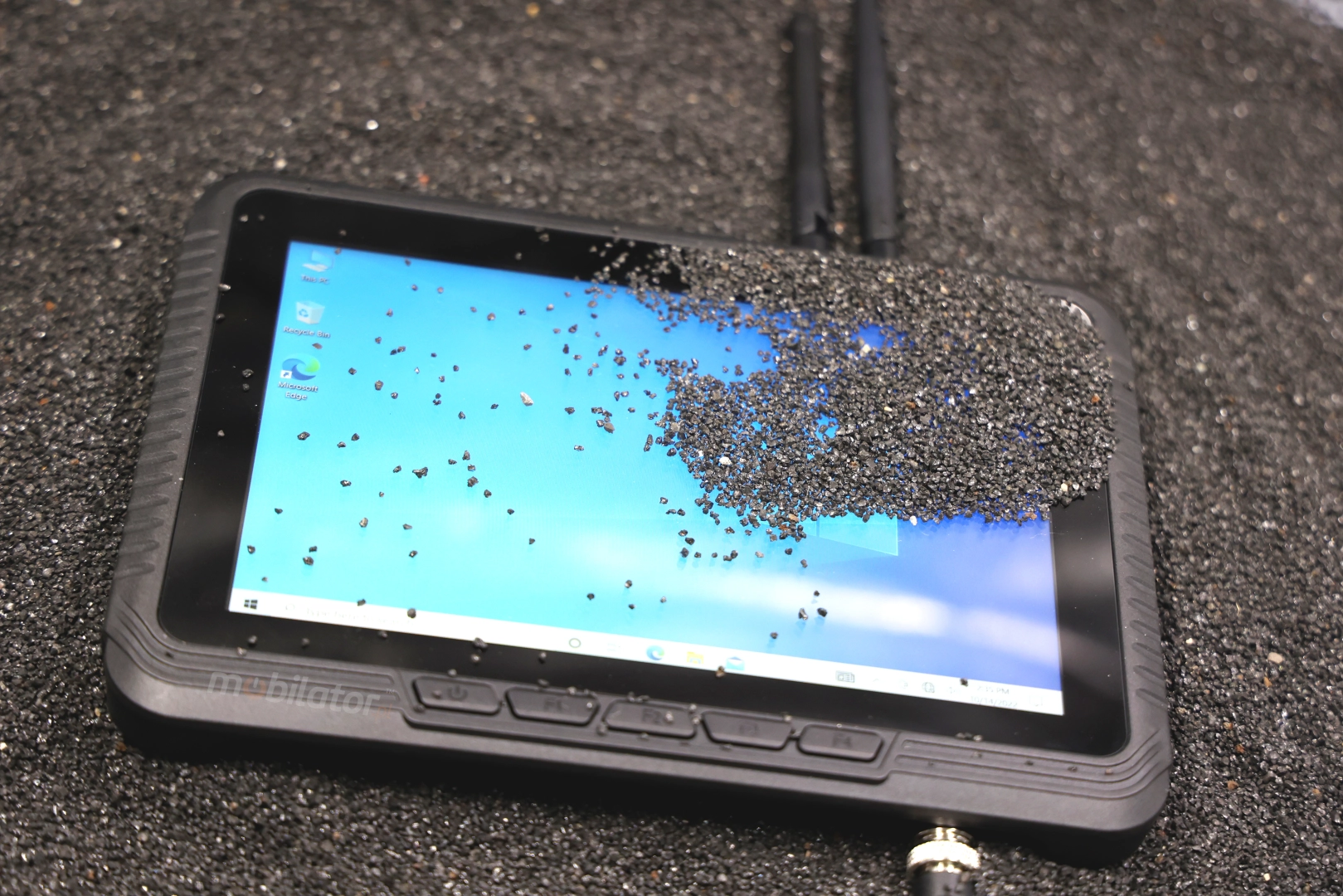

The Emdoor V80J in-vehicle tablet is designed for demanding environments and meets the IP65 standard, which specifies the level of protection against dust, access to hazardous internal components, and exposure to water—both splashes and pressurized water jets from any direction. This makes the device ideal not only for use inside a vehicle cabin or in an industrial environment, but also outdoors, in changing and harsh weather conditions. Regardless of its installation location, the tablet provides the reliability and durability required for everyday field and transport operations.

MIL-STD-810 is a military durability standard, used by the US Army, among others, that determines equipment's resistance to harsh environmental conditions. The specialized Emdoor V80J tablet for use in agricultural machinery meets this standard, meaning it is resistant to shock, drops, vibrations, high and low temperatures, moisture, and dust. Although this standard was originally developed for military equipment, it is now also successfully used in industry, transportation, logistics, mobile service, and automation systems – wherever reliability and durability are crucial.

The specially designed, ruggedized construction of the Emdoor V80J truck tablet is built for demanding applications in logistics, transportation, and field work. The device is highly resistant to accidental drops, withstanding drops of up to 1.22 meters in operating mode, even onto hard surfaces. It also meets the stringent requirements of the MIL-STD-810G military standard, ensuring its reliability and durability in harsh environmental conditions – both inside and outside the vehicle cabin.

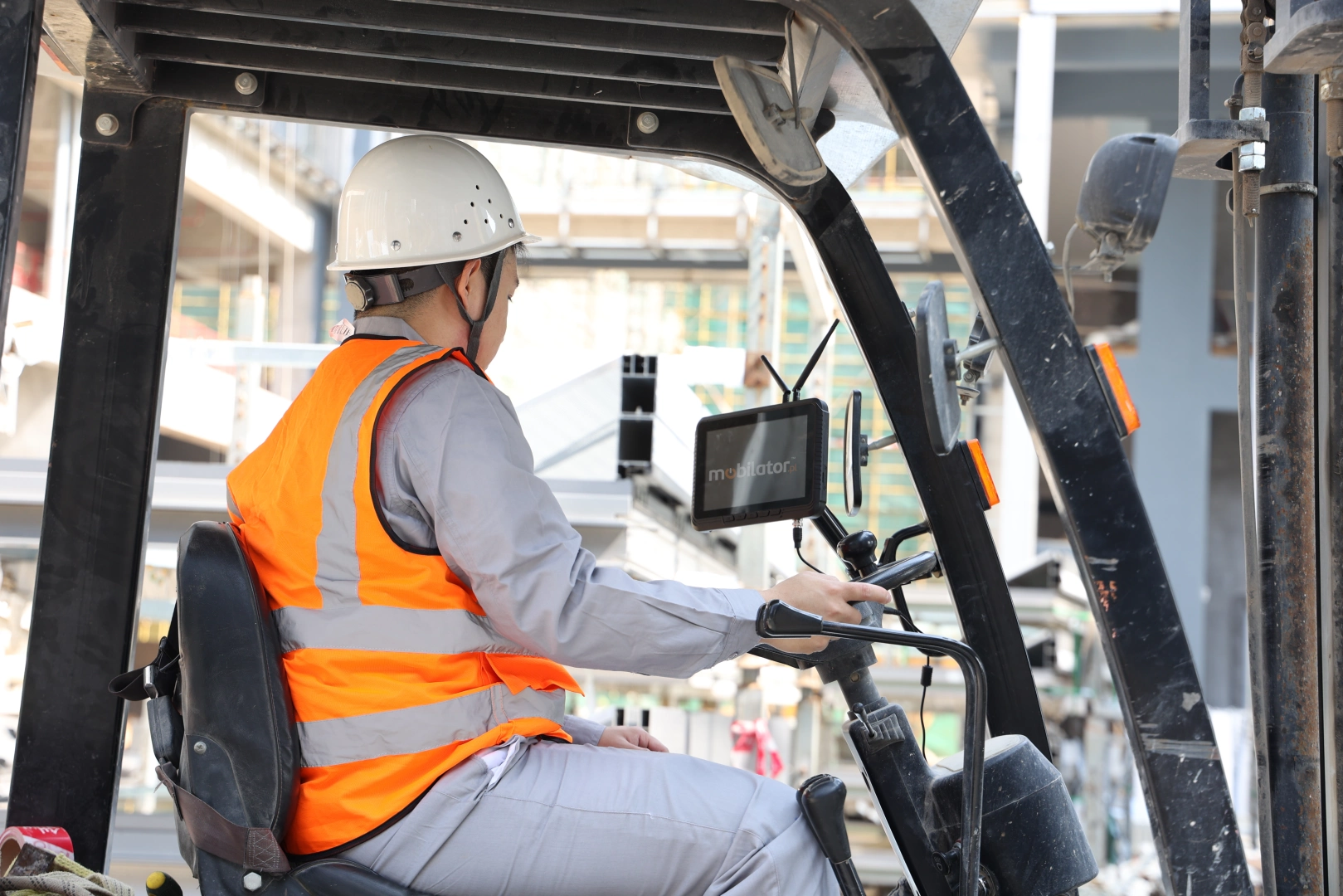

Designed for field work and variable environmental conditions, the Emdoor V80J forklift tablet performs well in both low and high temperatures. The device is rated for operation from -20°C to 60°C, ensuring reliable operation in both freezing winters and scorching hot days. In storage mode, the tablet can withstand an even wider temperature range – from -30°C to 70°C. Furthermore, thanks to its high humidity resistance, it can operate at up to 95% relative humidity, making it ideal for use in vehicles, warehouses, industrial halls, and harsh field conditions.

up…    menu…

wireless communication

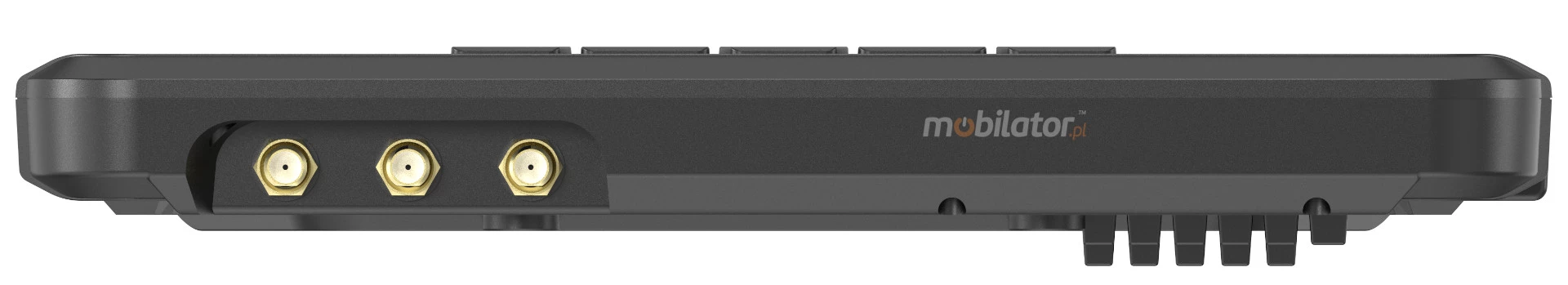

The waterproof Emdoor V80J in-car tablet is equipped with a precise U-Blox M7N GPS module, which combines low power consumption with high location accuracy. Navigation is fast and stable, enabling effective positioning and safe navigation even in challenging indoor and outdoor conditions.

The modern Bluetooth 5.0 module enables energy-efficient short-range communication with other devices such as printers, keyboards, RFID readers, scanners or headphones. This technology offers higher connection stability and speed compared to earlier versions, while reducing energy consumption.

The professional Emdoor V80J military vehicle tablet supports dual-band 802.11 a/b/g/n/ac Wi-Fi connectivity, operating in the 2.4GHz and 5.8GHz bands. This enables fast access to local networks and the internet both in the office and in the field, ensuring high stability and data throughput.

NFC (Near Field Communication) technology is a short-range wireless communication standard that enables data exchange over a distance of a few centimeters. Tablet for wholesalers - Emdoor V80J can be optionally equipped with a 13.56 MHz NFC module, compliant with ISO / IEC 14443A/B and ISO15693 standards. NFC will work in applications such as: access control, employee authorization, logistics or payment acceptance. The modern industrial tablet enables tag reading and cooperation with smart card systems with a range of up to 2-4 cm.

* Optional equipment, available on specific versions only.

up…    menu…

Application

Thanks to its multifunctionality and simple operation, the drop-proof Emdoor V80J tablet is an ideal tool for sales and field representatives. Modern mobile applications enable quick data collection, verification of contractors, presentation of offers and generation of sales documents. The tablet for the warehouse allows for issuing invoices, creating orders and synchronizing data with the ERP system in real time - regardless of location, thanks to access to the GSM or Wi-Fi network.

Industrial tablets adapted to harsh working conditions, such as the Emdoor V80J, are characterized by exceptional resistance to unfavorable working conditions. The dust- and waterproof housing confirmed by the IP65 certificate, as well as compliance with the MIL-STD-810G standard, allow for safe use of the solid tablet in places with increased humidity, dustiness, on construction sites and in industrial halls. Thanks to appropriate mobile applications, the waterproof tablet can act as a tool for supervising work, collecting data from the construction site and managing technical infrastructure and human resources.

The efficient Emdoor V80J industrial tablet is perfect for car services and workshops. Thanks to its durable construction, resistance to workshop conditions and support for 4G LTE, Wi-Fi and GPS connectivity, this device is ideal for work in a difficult environment. The reinforced tablet supports technicians in quick vehicle diagnostics, analysis of data from on-board systems and work with service documentation. Possibility to install software that allows, among others, reading errors, configuring vehicle systems, accessing diagrams and repair history, increasing the efficiency and precision of operations.

up…    menu…

ACCESSORIES AND Available versions

We offer a range of additional accessories for this innovative tablet to further enhance its functionality and comfort of use. Below is a list of available accessories. Click on the accessory name or the "Check" link to be taken to a page with a description and price of the accessory.

Mushroom GPS antenna

GPS antenna enabling precise reception of the satellite signal, guaranteeing stable and accurate determination of the device's location.







Check

Extra battery

Additional 1000mAh battery allows you to quickly replace a discharged battery.

Check

Charger

The EMDOOR mains charger is a reliable adapter with a European plug.

Check

Car charger

Allows you to charge your device in your car using the built-in cigarette lighter socket.

Check

RAM Holder

RAM holder enabling safe and stable mounting of devices, ensuring convenient adjustment and durability in everyday use.





Check

VESA

VESA mount designed for mounting monitors and screens compliant with the VESA standard, ensuring stability, safety and comfortable positioning of the device.



Check

Wide voltage module(9-36V)

Wideband module ensuring stable and reliable operation over a wide frequency range, ideal for applications requiring universality and high signal quality.



Check

Wide voltage module(20-80V)

Wideband module ensuring stable and reliable operation over a wide frequency range, ideal for applications requiring universality and high signal quality.



Check

Power adapter cable (1,2m)

Power supply cable ensuring reliable and safe power supply, ideal for applications requiring reliable and stable power supply to devices.





Check

Power adapter cable (6m)

Power supply cable ensuring reliable and safe power supply, ideal for applications requiring reliable and stable power supply to devices.





Check

The professional Emdoor V80J armored tablet is available in several versions tailored to different needs. By clicking on the hardware configuration number you will be redirected to the product with the parameters given in the table below. In addition, at the customer's request, it is possible to create a configuration currently unavailable in the offer.

More photos in full resolution available in the "Gallery".
