Industrial Fanless |
Description

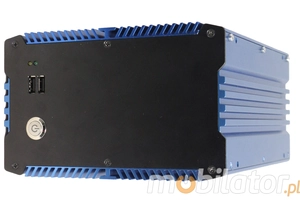

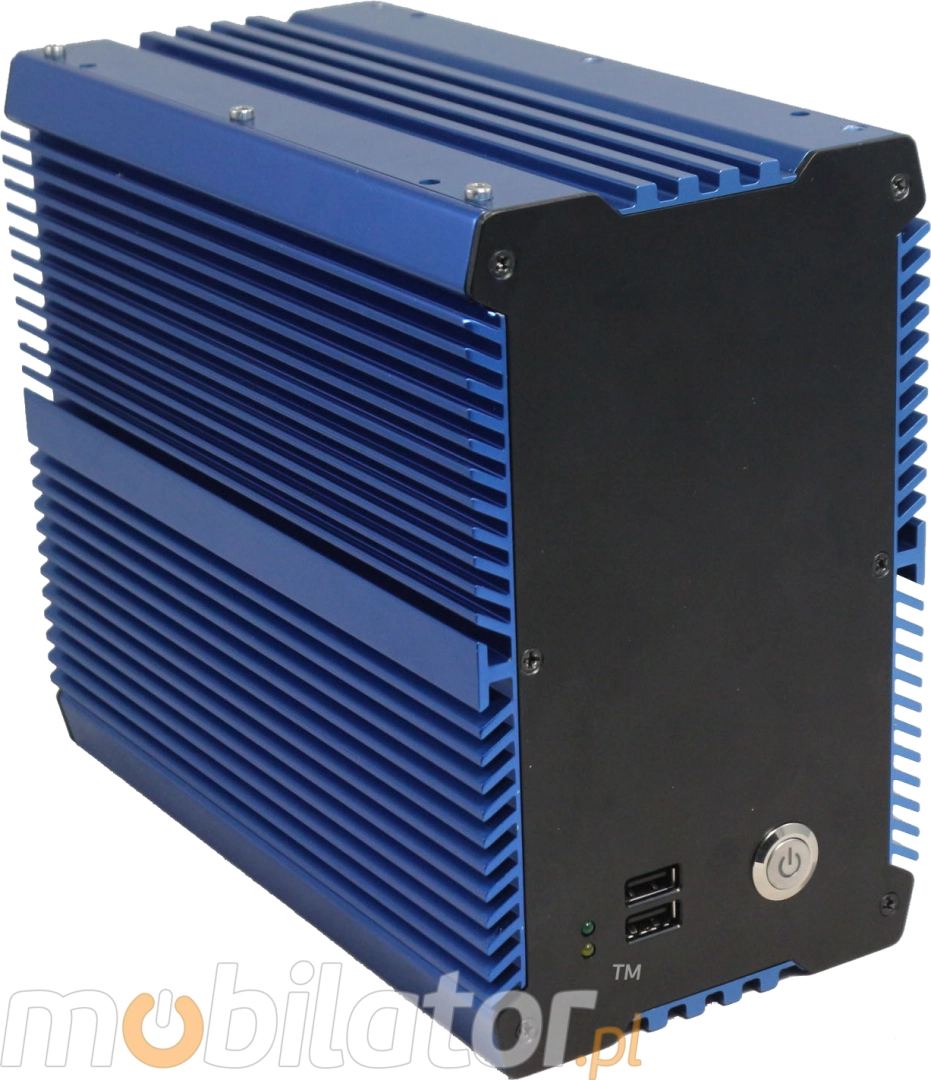

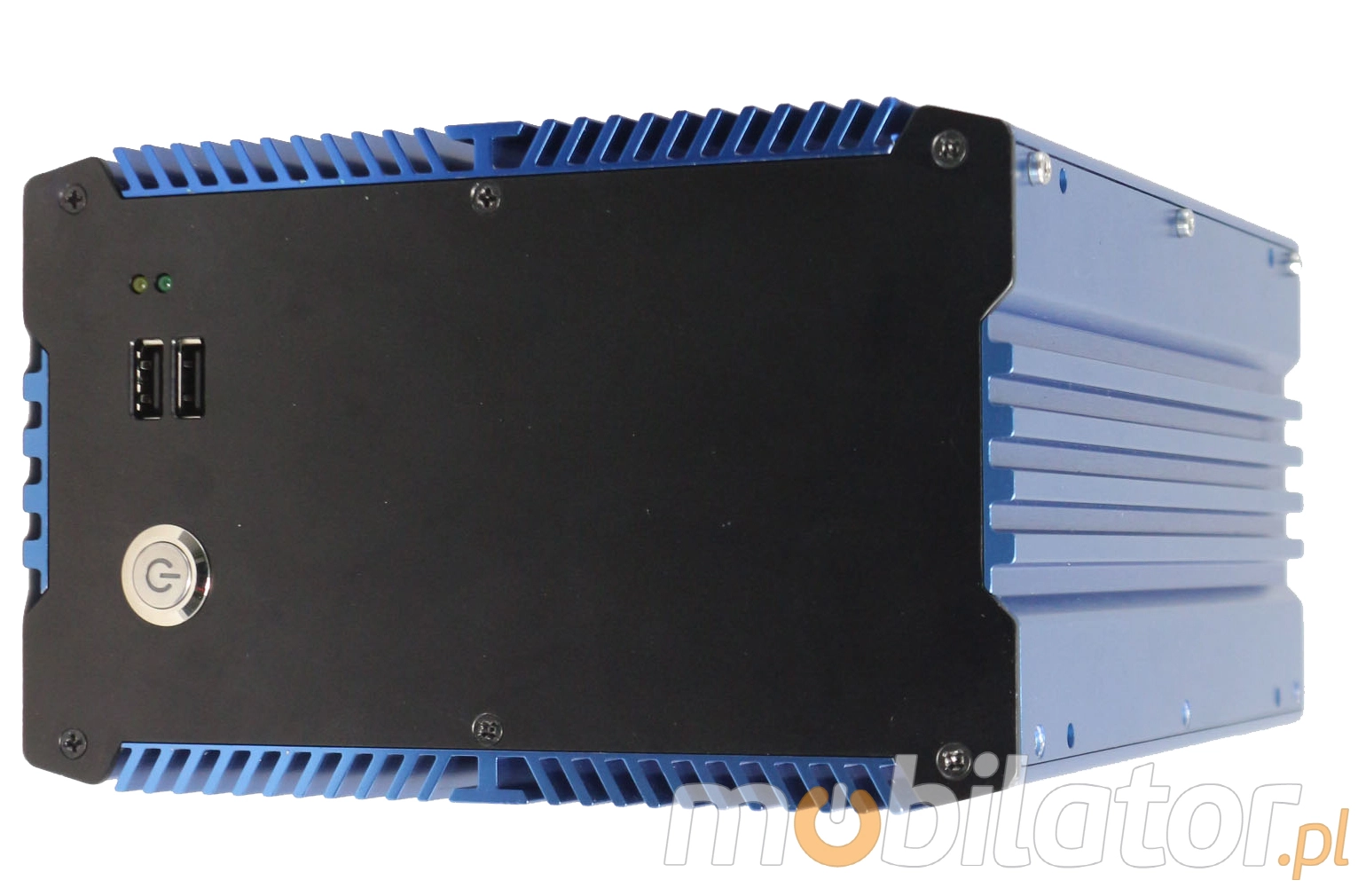

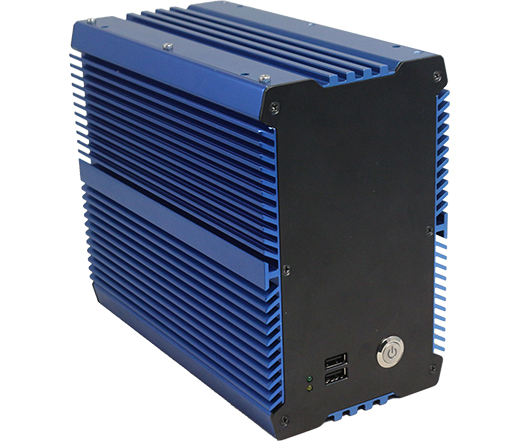

Housing dimension are 215 (W) x185 (L) x115 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.4 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space from 64GB SSD to 128GB SSD or 500GB HDD.
|
|
|
Communication & Connectors |
|

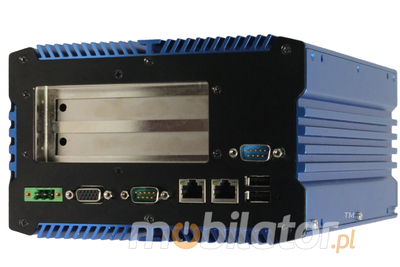

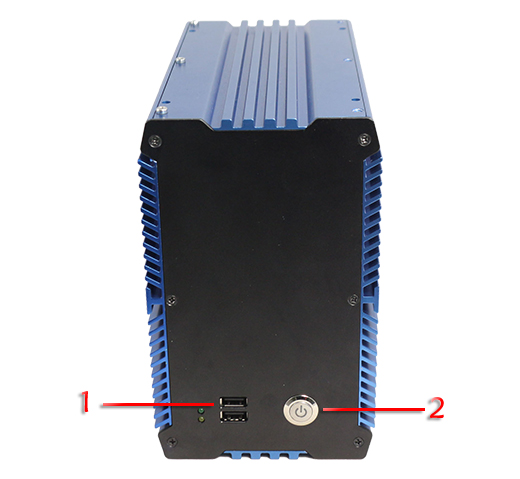

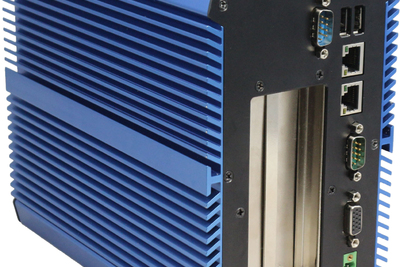

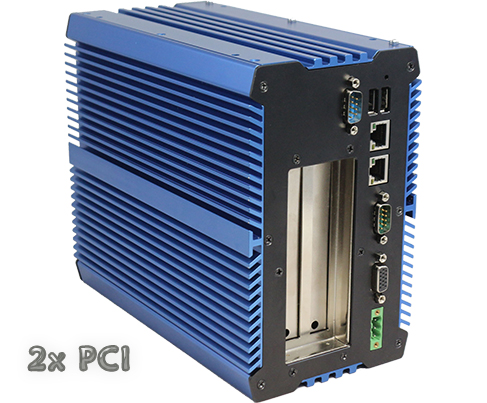

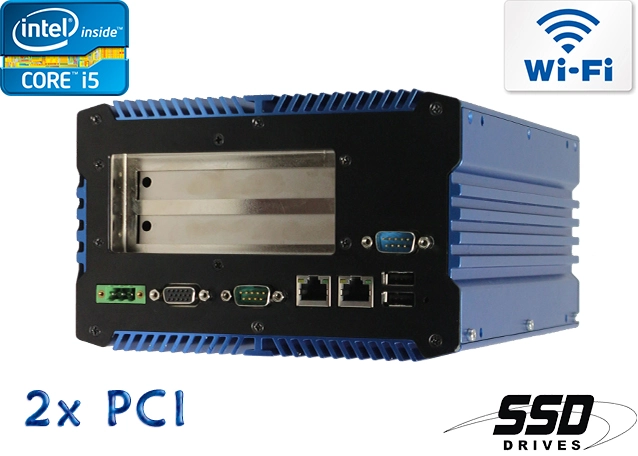

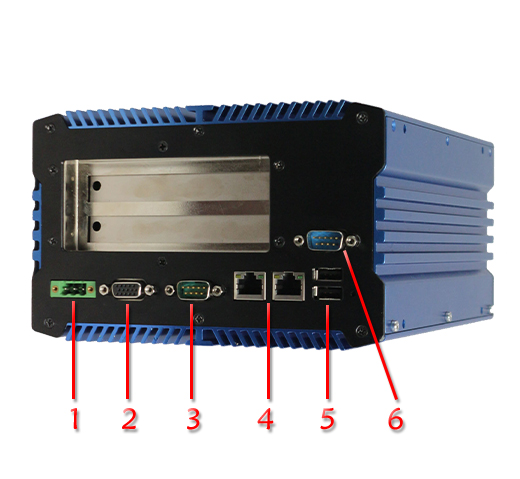

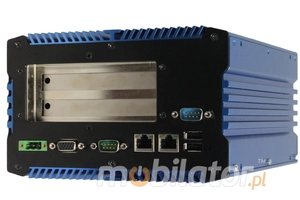

Integrated card - Intel RTL8111E 1000M and WiFi module allow connection to the network. The computer is equipped with: two LAN port, four COM ports (RS232) - in this can be 1x COM(RS422/485), one VGA output, four USB 2.0 ports, two PCI connector, one way audio, one microphone input and connectors built into the motherboard: two USB 2.0 ports, two PowerOUT outputs, one audio output, one CPUFAN, one LVDS connector.
LVDS Interface
|
Cooling

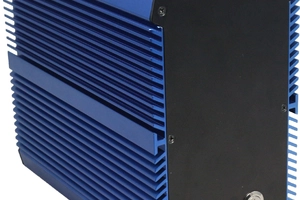

The industrial fanless MiniPC IBOX-3317UE (2PCI) uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.
|
|
;)
;)
;)
;)
