Industrial Fanless |
Description

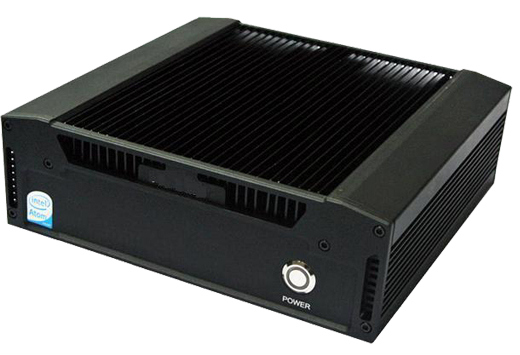

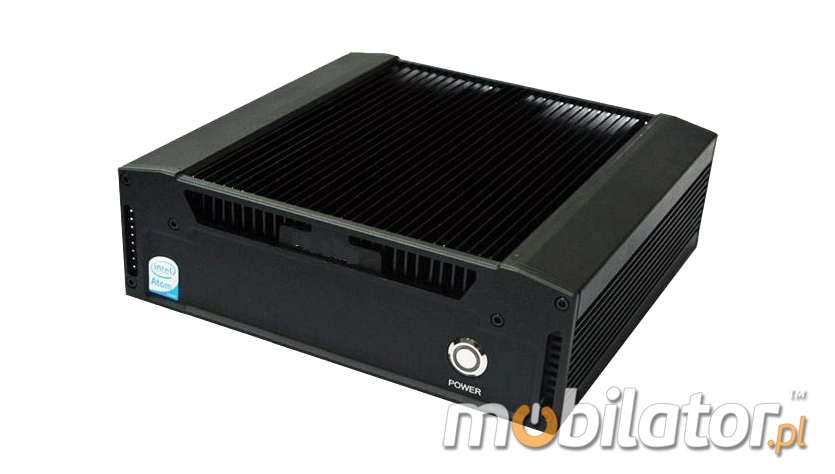

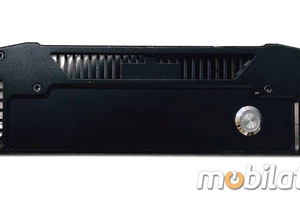

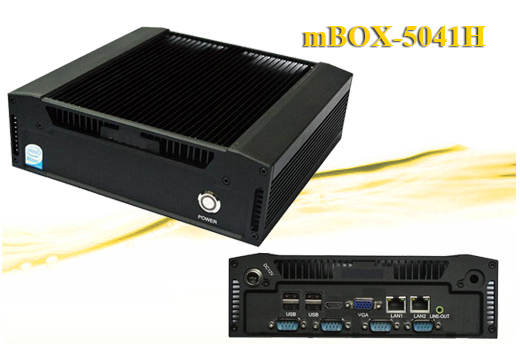

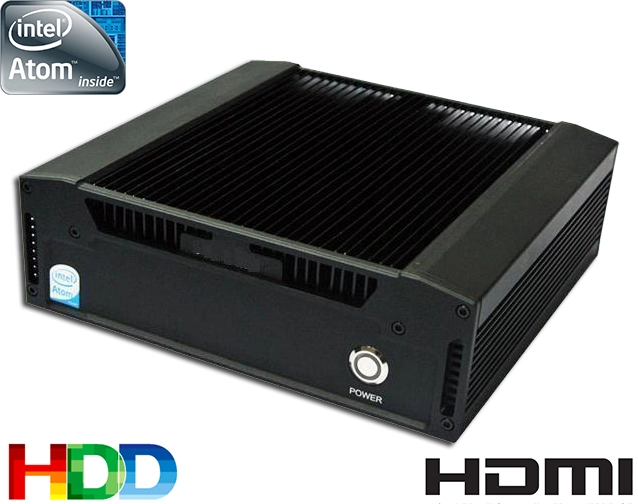

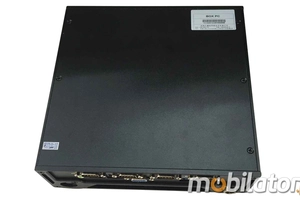

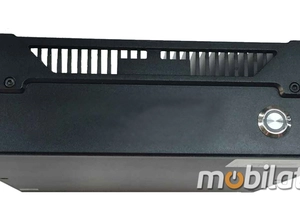

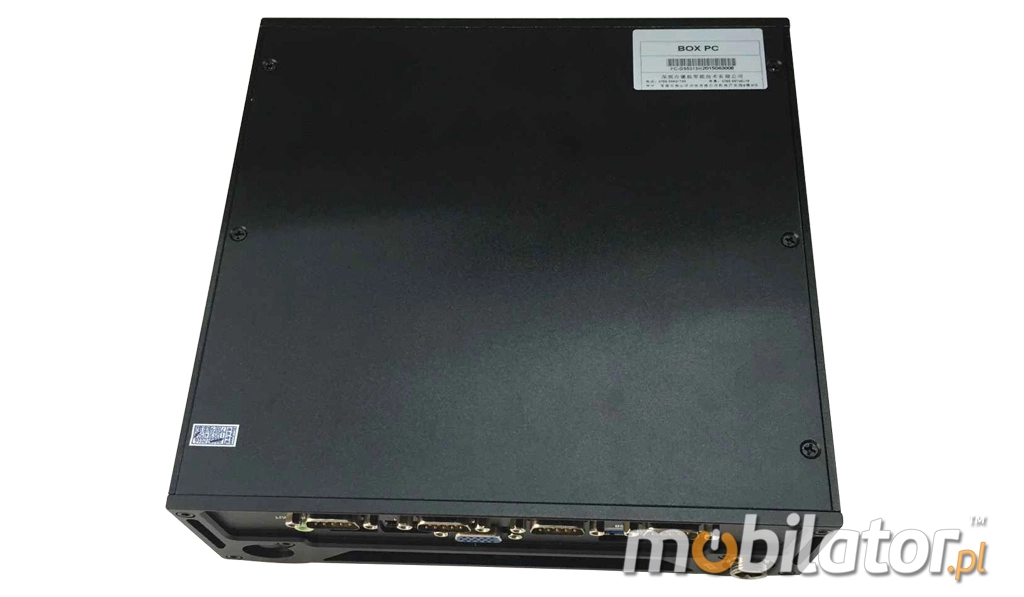

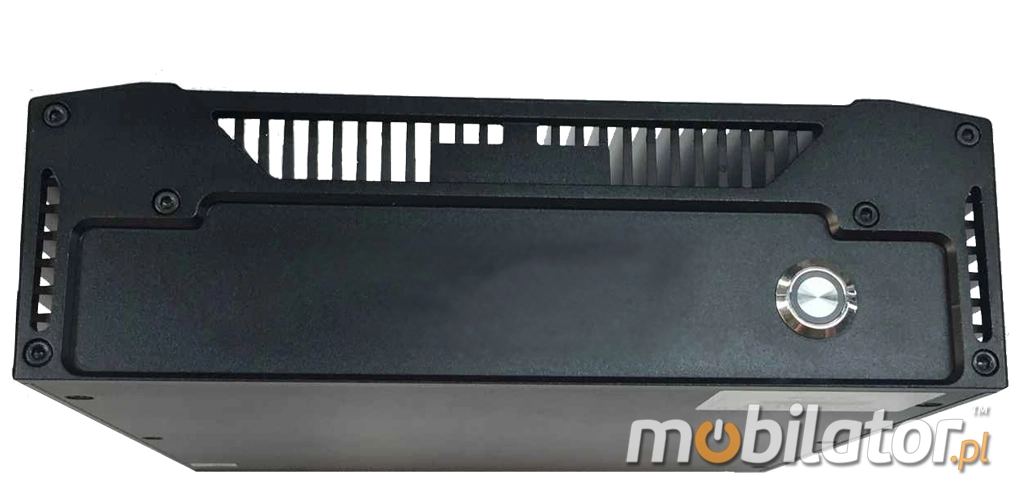

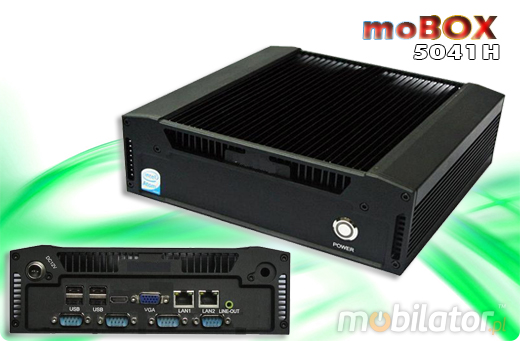

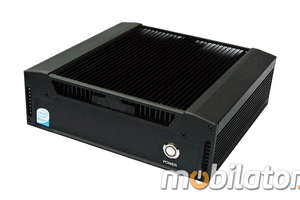

Housing dimension are 214 (W) x 206 (L) x 68 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 3.2 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

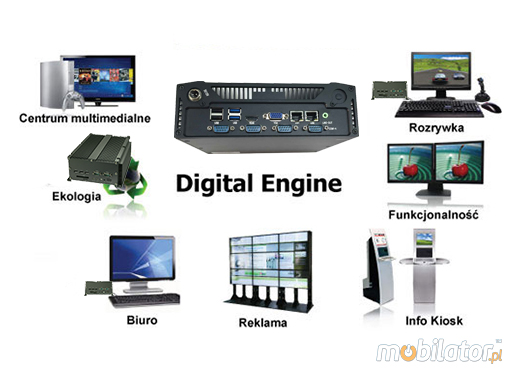

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space from 64GB SSD or 320GB HDD.
|
|
|
Communication & Connectors |
|

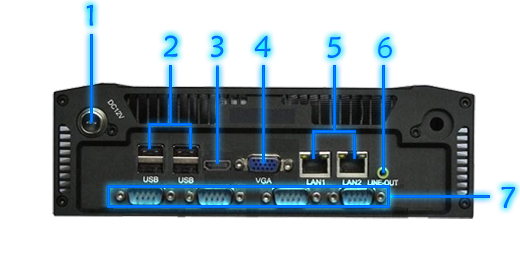

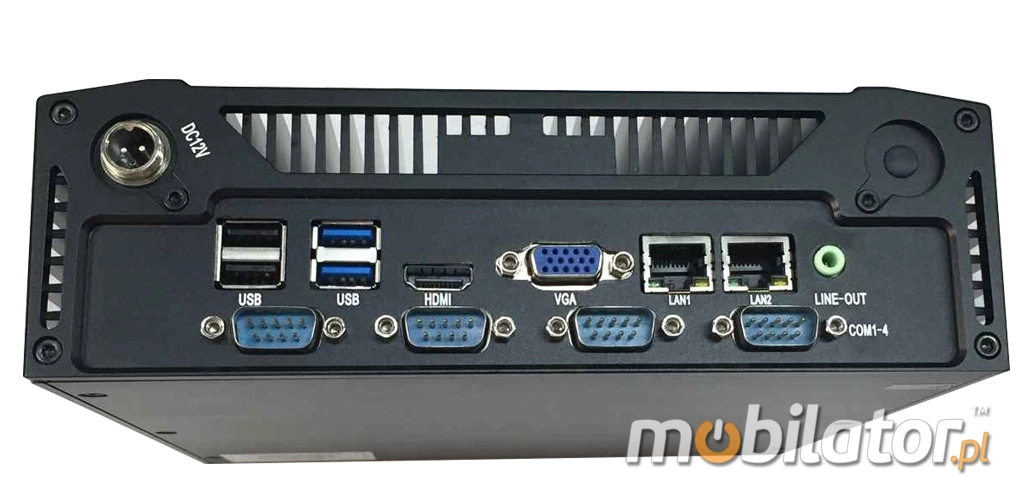

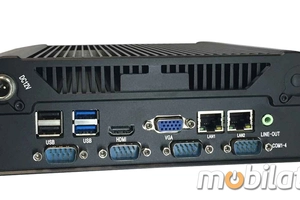

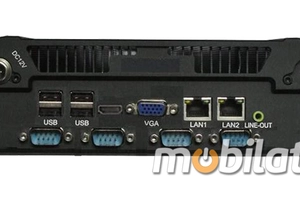

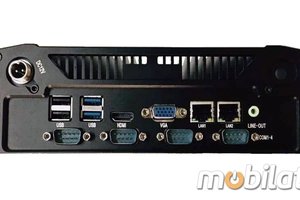

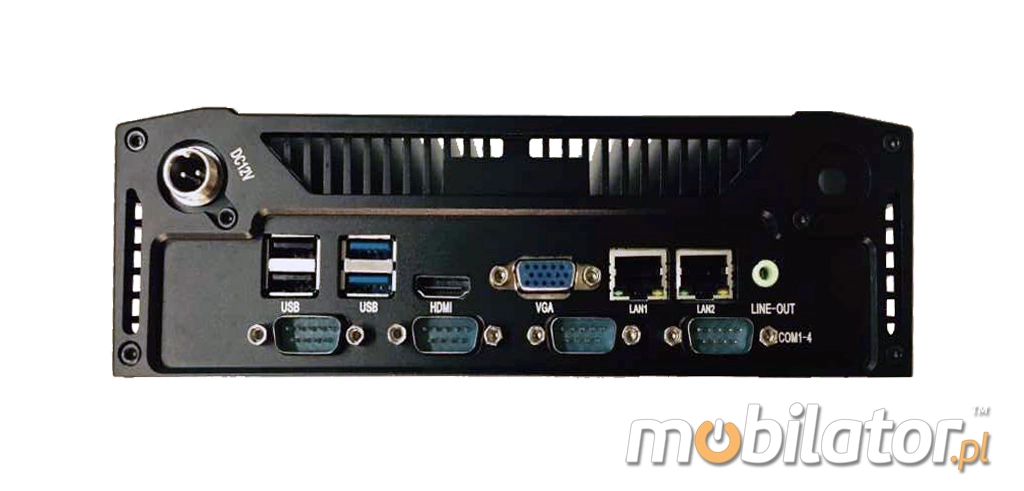

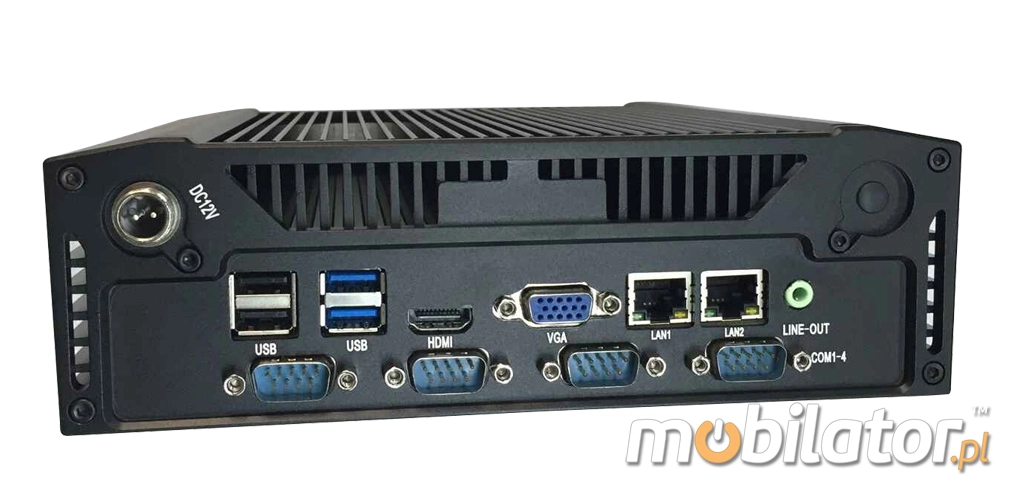

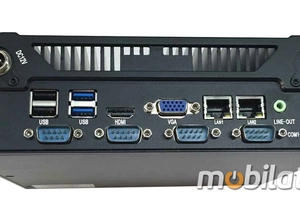

Integrated card - Intel 1000M Lan RTL8111E allow you to connect the device to the network. The computer is equipped with: two connectors LAN, four COM ports (RS232)- optionally one COM port can be replaced with a COM (RS485), one VGA output, four USB 2.0 ports, one HDMI output, one audio input.
|
Cooling

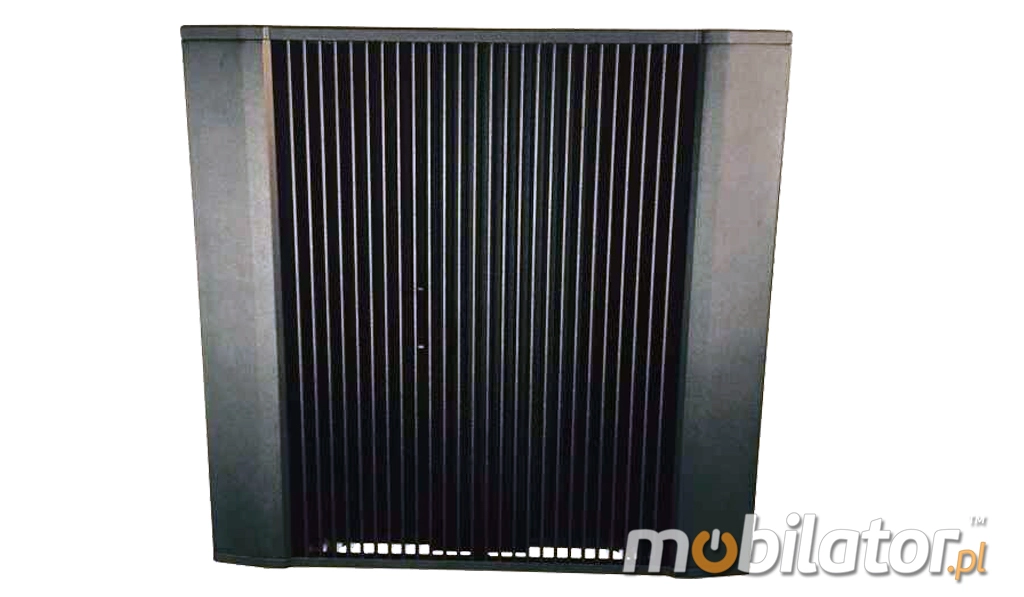

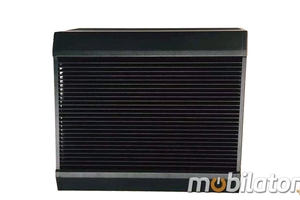

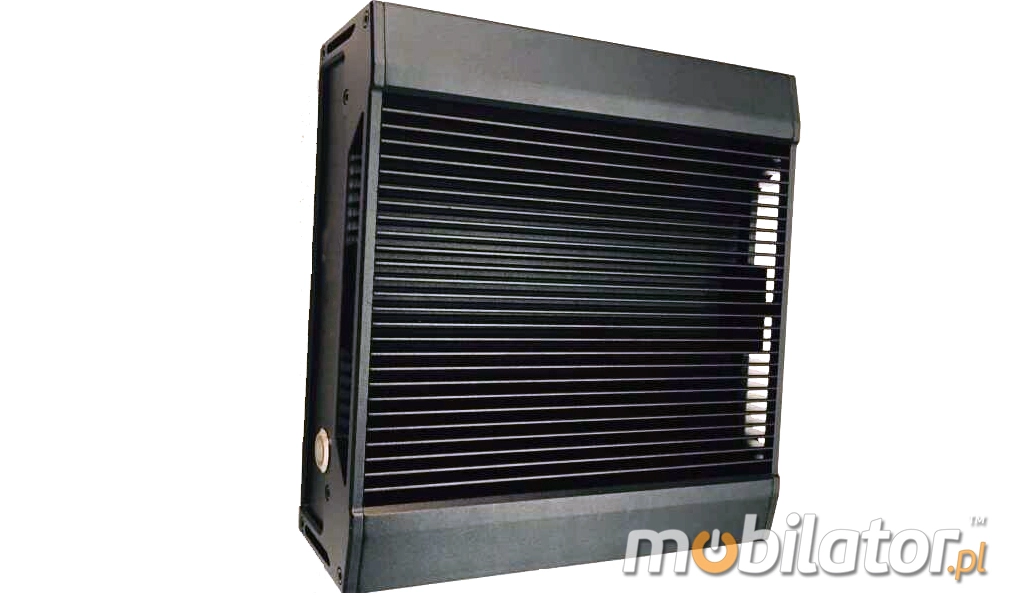

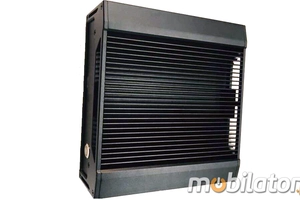

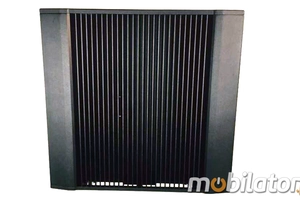

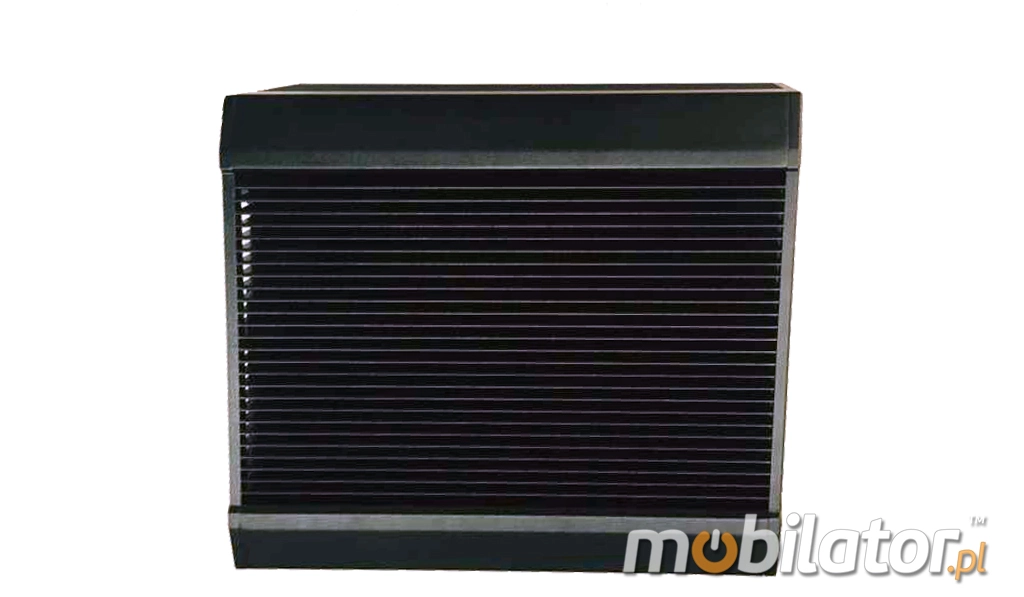

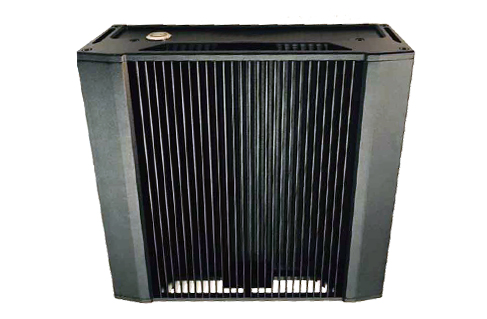

The industrial fanless MiniPC moBOX-5041h uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.
|
|
;)
;)
;)
;)
;)
;)
;)
;)
;)
;)
;)
