Product Update Date: 2015-06-25

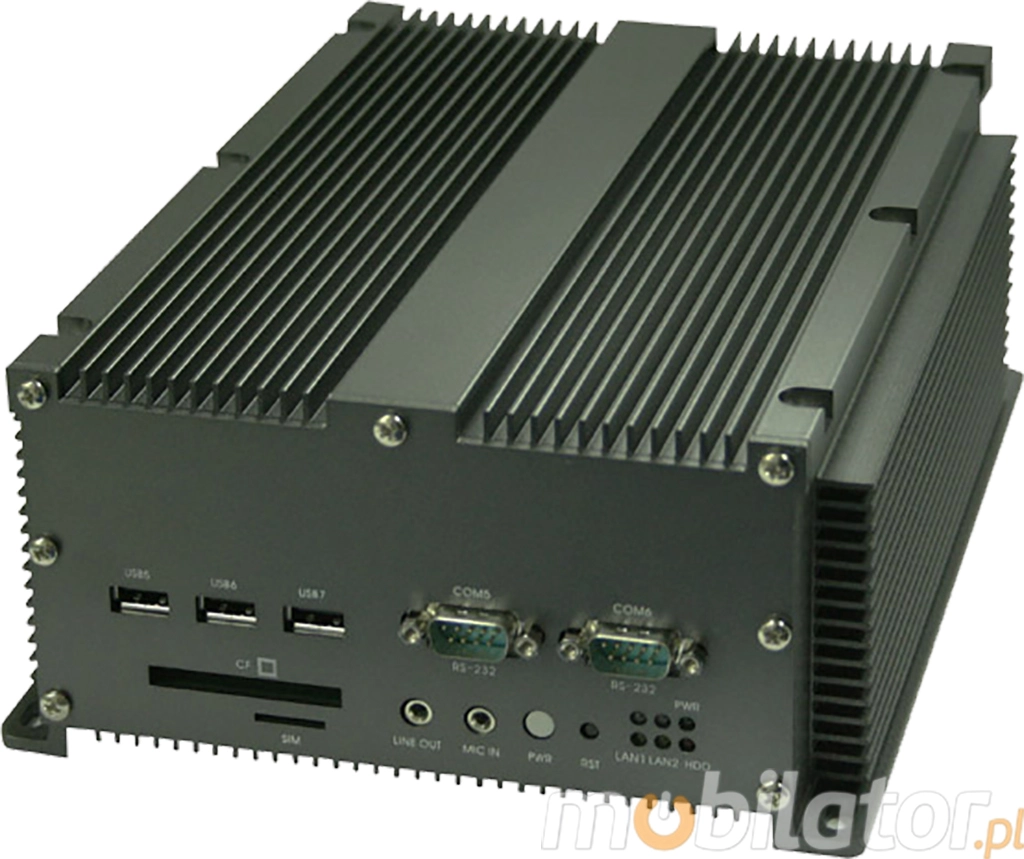

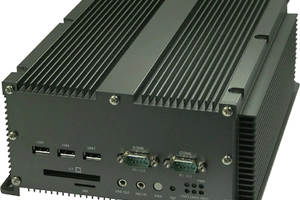

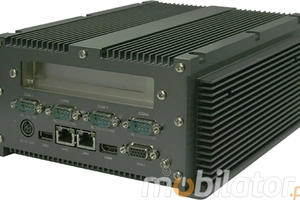

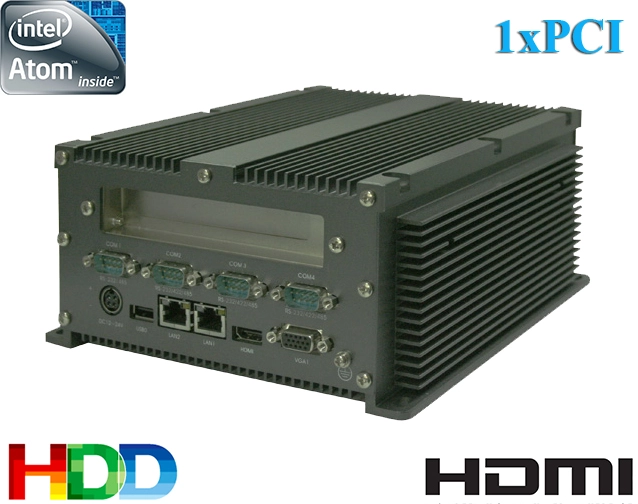

Fanless Industrial Computer MiniPC moBOX-525P1 (PCI) v.2

Name: Fanless Industrial Computer MiniPC moBOX-525P1 (PCI) v.2
Brand: Mobilator
Price: 3582.19 PLN
Availability: InStock

Update Date: 2015.06.25

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

Fanless Industrial Computer MiniPC moBOX-525P1 (PCI)

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

moBOX-525P1 (PCI) is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

Housing dimension are 195 (W) x210 (L) x95 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 3.3 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space from 64GB SSD to 128GB SSD or 320GB HDD to 1TB HDD.

Fanless Industrial Computer MiniPC moBOX-525P1 (PCI)

go top…

menu…

Communication & Connectors

Integrated card - Intel RTL8111E 1000M (optional 3G module) allow connection to the network. The computer is equipped with: two LAN port, six COM ports (RS232) - in this can be 1x COM(RS422/485), one VGA output, one HDMI output, four USB 2.0 ports, one PCI connector, CF card reader, SIM slot, one way audio, one microphone input.

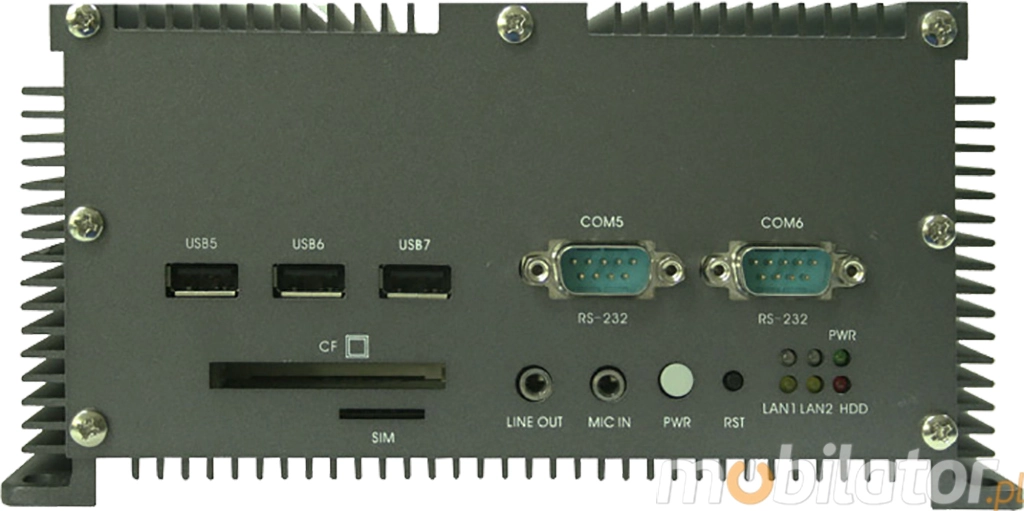

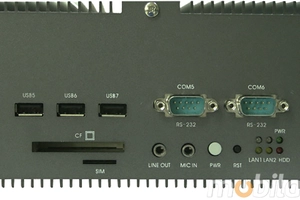

Fanless Industrial Computer MiniPC moBOX-525P1 (PCI)

1. 3x USB 2.0	5. 1x Mic
2. 1x Slot kart CF	6. Power ON
3. 1x Slot kart SIM	7. Reset
4. 1x Audio	8. 2x COM(RS232)

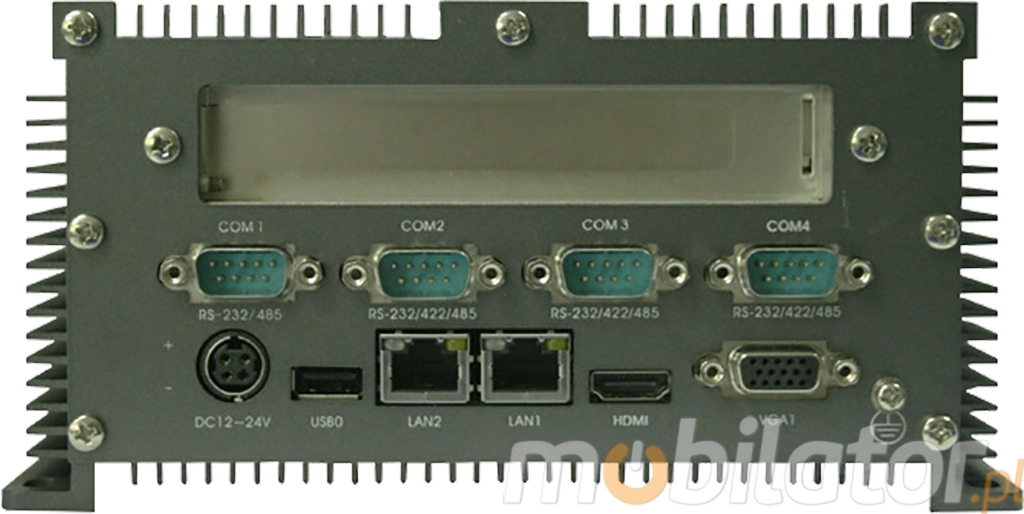

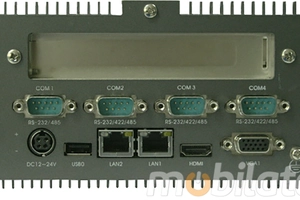

Fanless Industrial Computer MiniPC moBOX-525P1 (PCI)

1. DC-IN 12V	4. 1x HDMI	7. 1x PCI
2. 1x USB 2.0	5. 1x VGA
3. 2x RJ-45	6. 4x COM(RS232)

Cooling

The industrial fanless MiniPC moBOX-525P1 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go top… menu…

Application

Industrial MiniPC Series moBOX-P1 are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of moBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Fanless Industrial Computer MiniPC moBOX-525P1 (PCI) of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Fanless Industrial Computer MiniPC moBOX-525P1 (PCI)

Areas of use of industrial MiniPC

Digital Engine

Fanless Industrial Computer MiniPC moBOX-525P1 (PCI)

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Industrial fanless MiniPC moBOX-525P1 by to six COM port (RS232) can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless moBOX-525P1 can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Fanless Industrial Computer MiniPC moBOX-525P1 (PCI)

go top…

menu…

Specifications

Dimension	H: 95 mm L: 195 mm W: 210 mm
Weight	3,3kg
Processor	Intel Atom D525 (2x 1.8GHz)
Chipset	Intel® ICH9M
RAM Memory	4GB DDR3
Graphic Card	Intel HD Graphics
Sound Card	Realtek ALC662
WLAN	Intel RTL8111E 1000M Lan
Connectors	6x COM(RS232) 1x 12V DC_JACK 4x USB 2.0 2x RJ-45 1x CF card reader 1x SIM slot 1x Audio 1x PCI 1x Mic 1x VGA 1x HDMI

Supported OS
Microsoft Windows: XP/7, Linux
Installed OS
-----
Chipset
Intel® ICH9M
CPU Support
-----
Installed CPU
Intel Atom D525 (2x1.8GHz)
Graphic Card
Intel HD Graphics
Memory Support
2GB DDR3 (can up to 4GB)
Installed Memory
4GB DDR3
Storage (HDD) Support
-----
Installed Storage (HDD)
1TB HDD
IP Norm
-----
Temp
-20℃ ~ 50℃
Storage temperature
-40 - 80 ℃
Humidity
0 ~ 95%
Others
Colour Black, Case
LAN
Intel RTL8111E 1000M Lan
Wireless LAN card
No
3G
No (opctional Yes)
Bluetooth
-----
Rear Panel (ports)
1x USB 2.0,
2x RJ-45,
DC-in Jack,
 1x PCI,
4x COM(RS232),
1x VGA,
 1x HDMI
Front Panel (ports)
3x USB 2.0,
 Power ON,
 Reset,
 1x slot kart CF,
 1x slot kart SIM,
 2x COM(RS232),
 1x Audio,
 1x Mic
Expansion
-----
Power
12V
Watch Dog Timer
0 ~ 255 sec
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
195 x 210 x 95  mm
Fanless
Yes
Weight
3.3 kg
