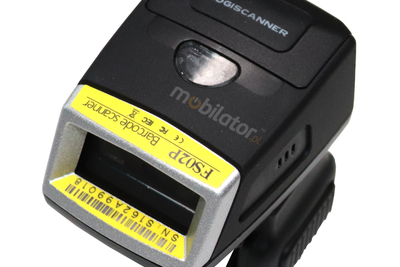

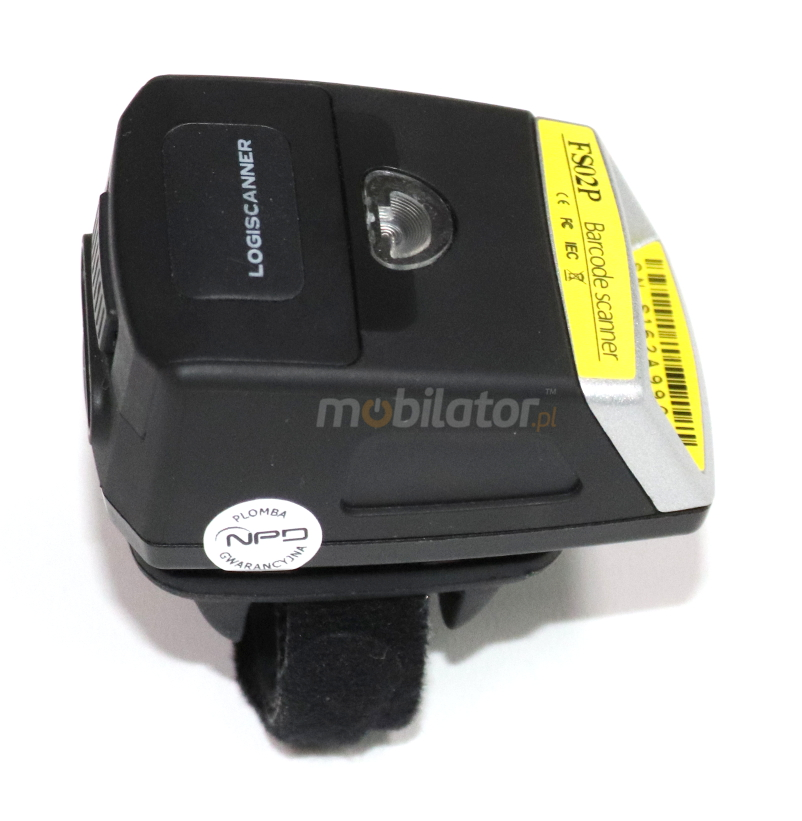

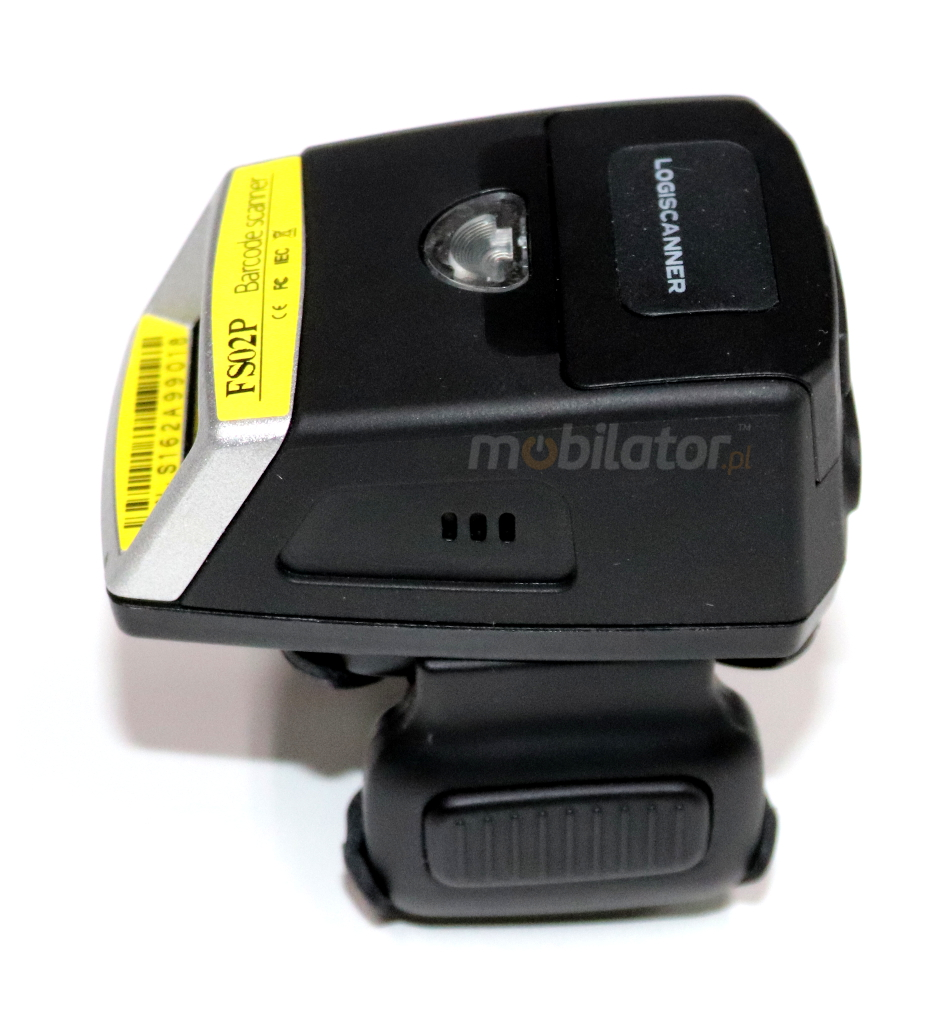

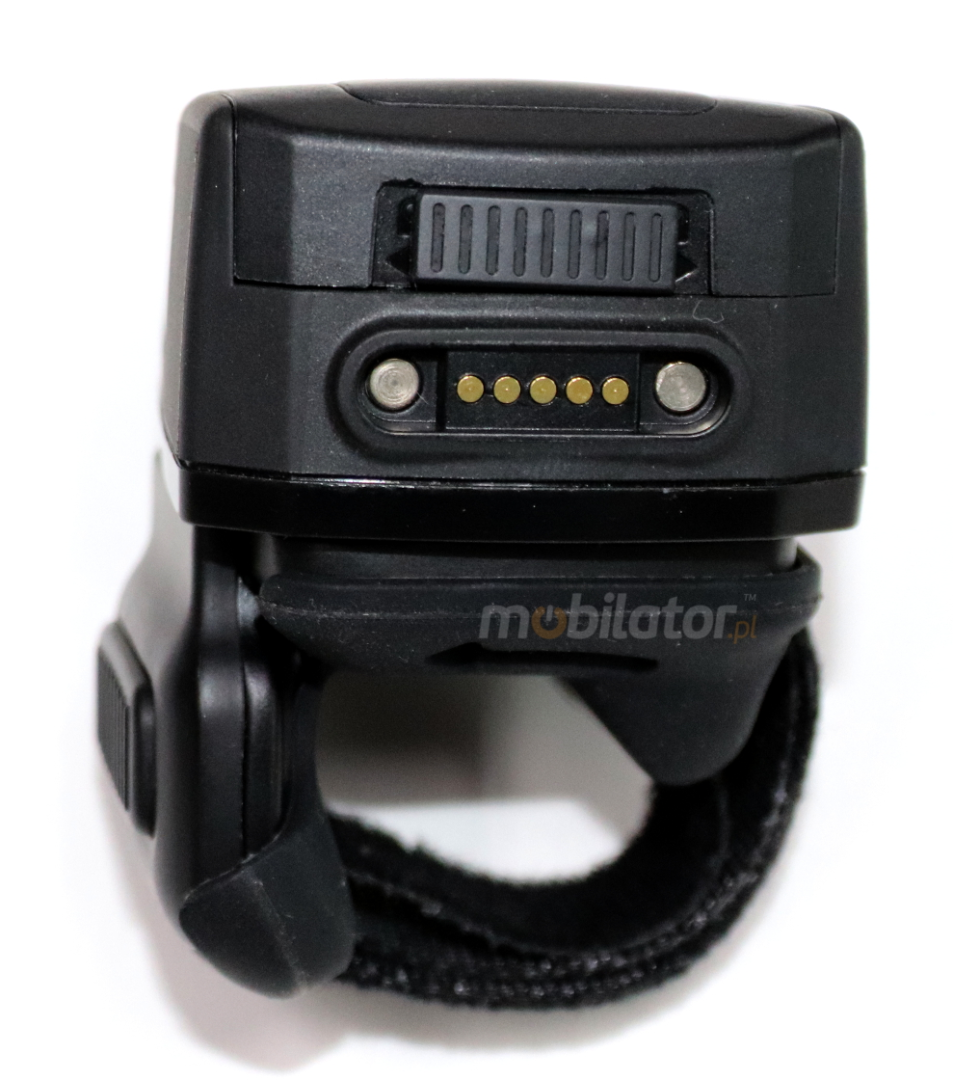

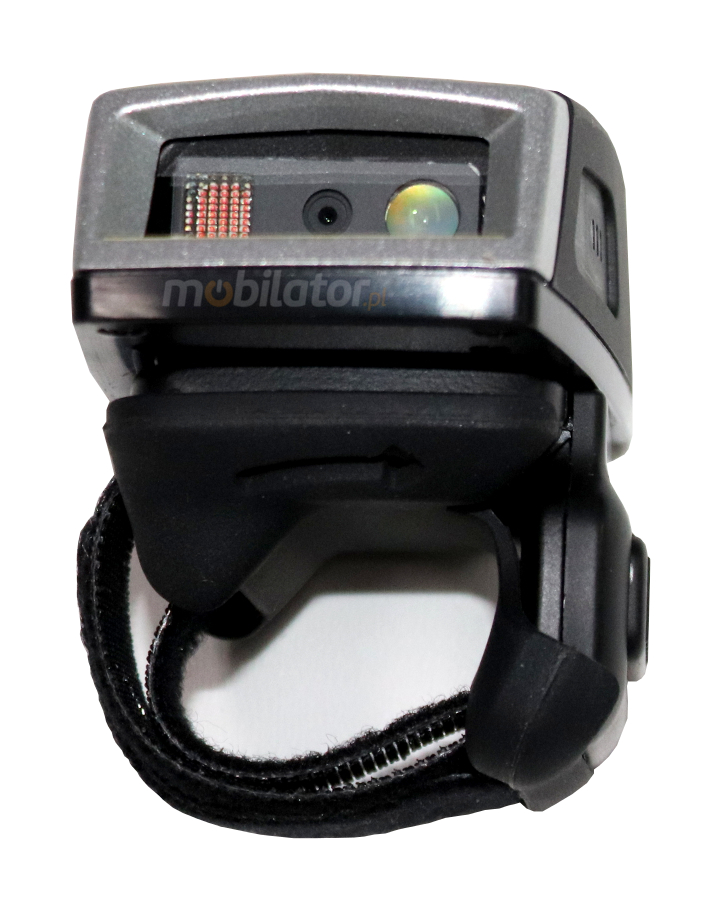

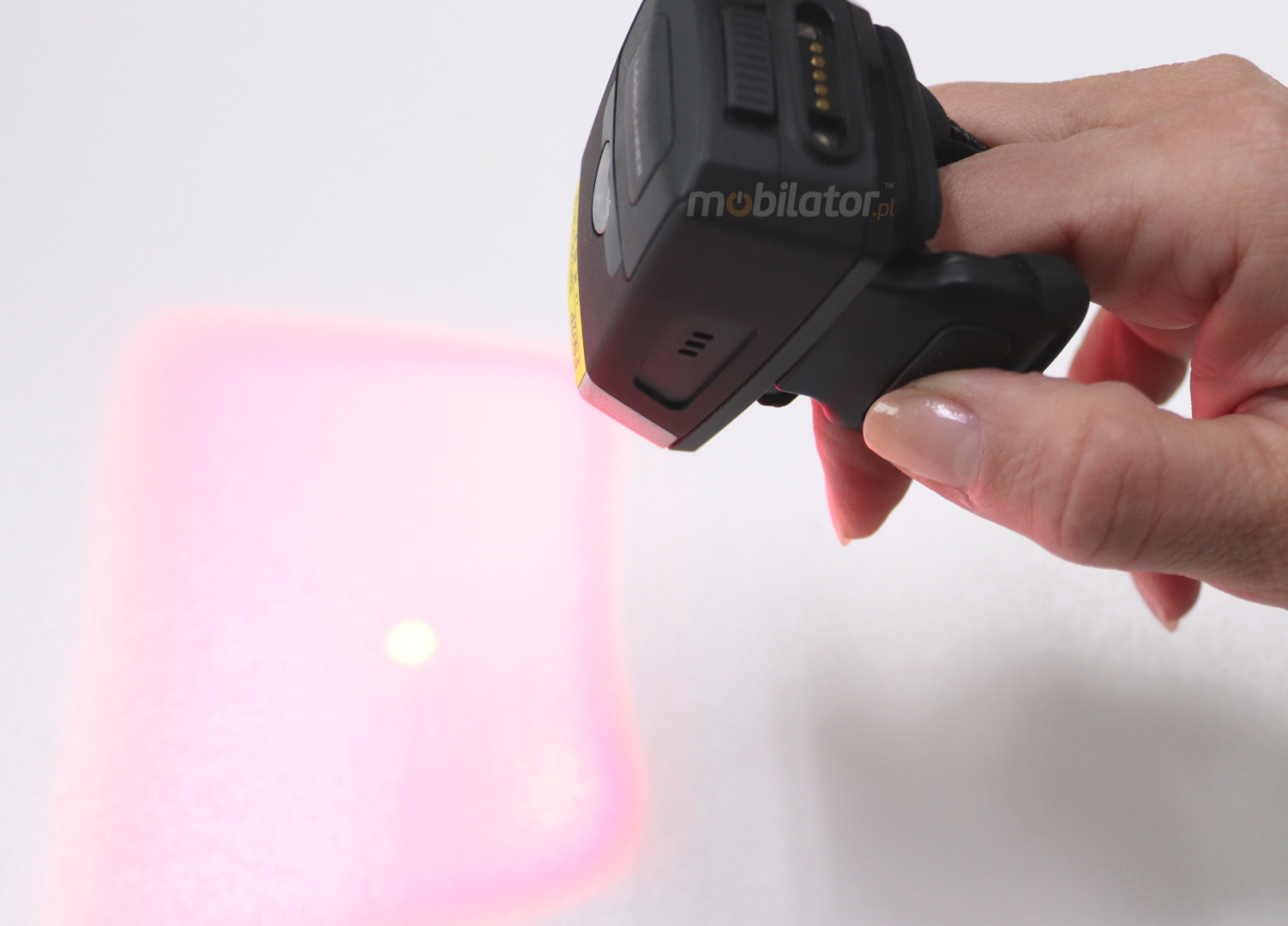

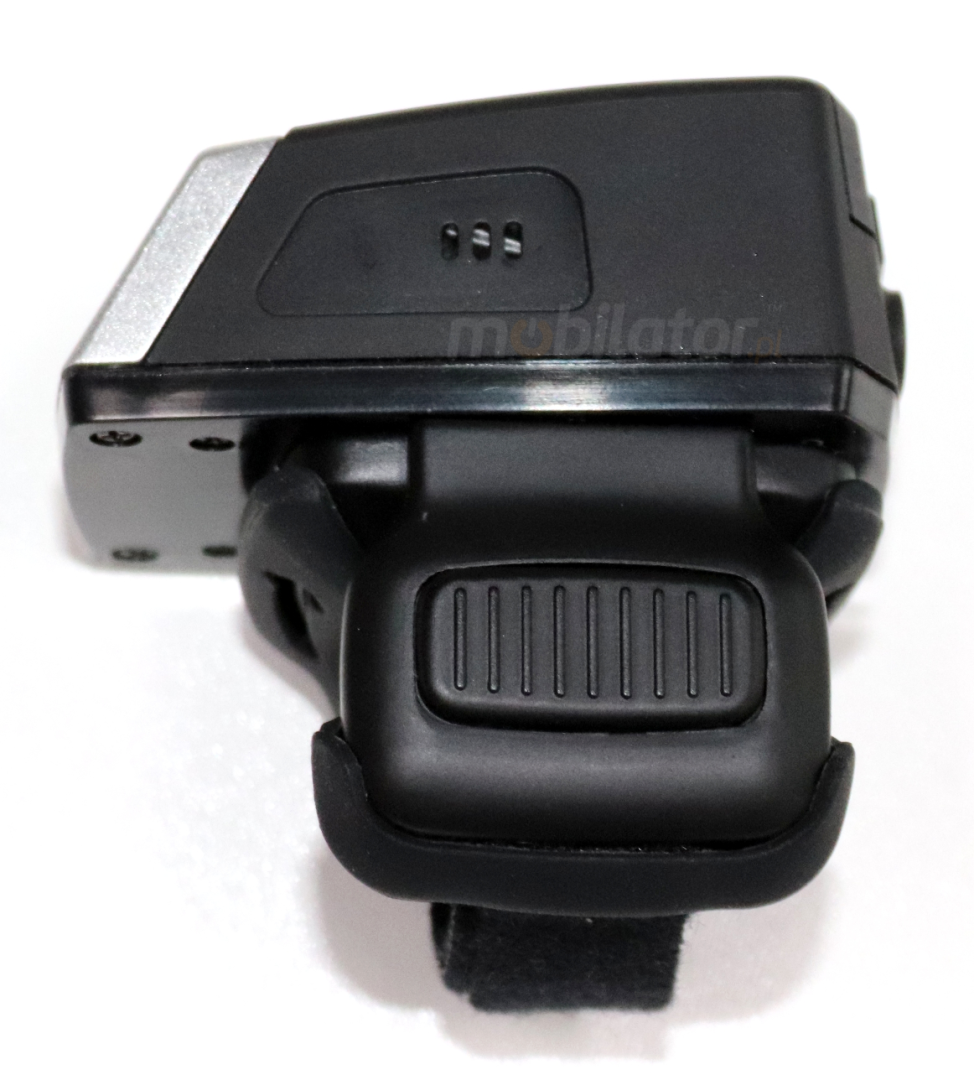

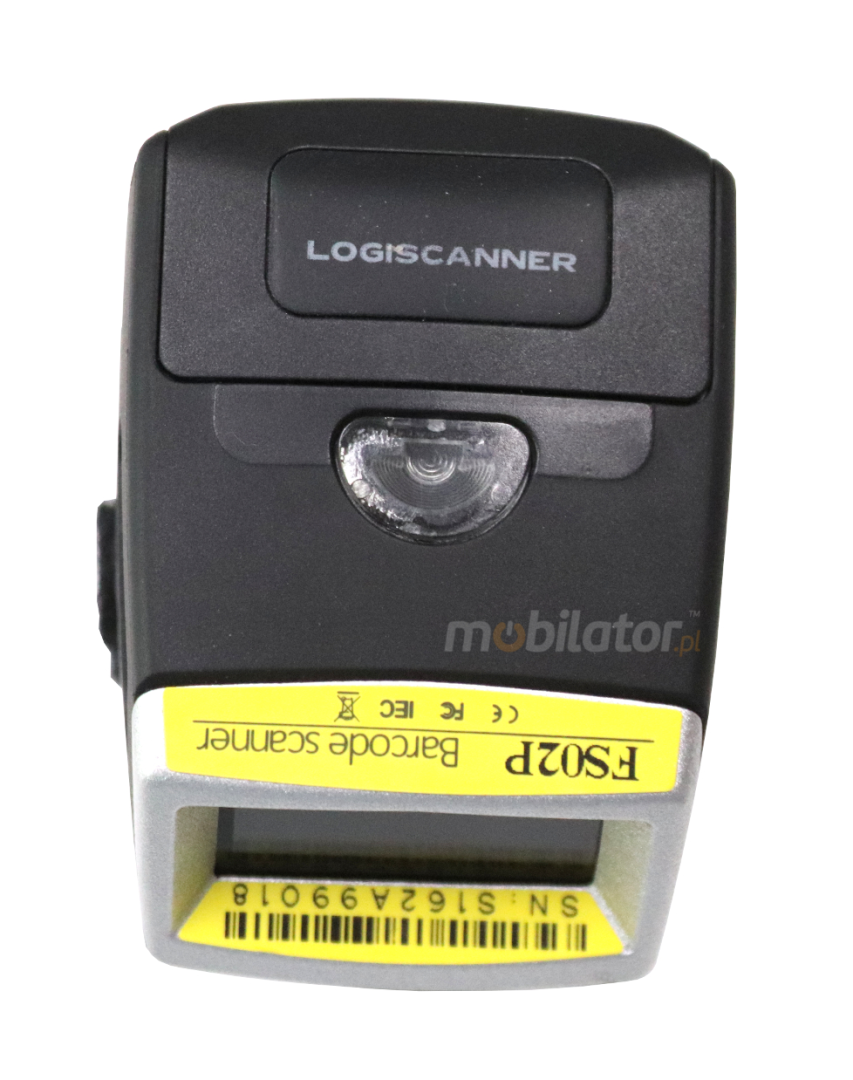

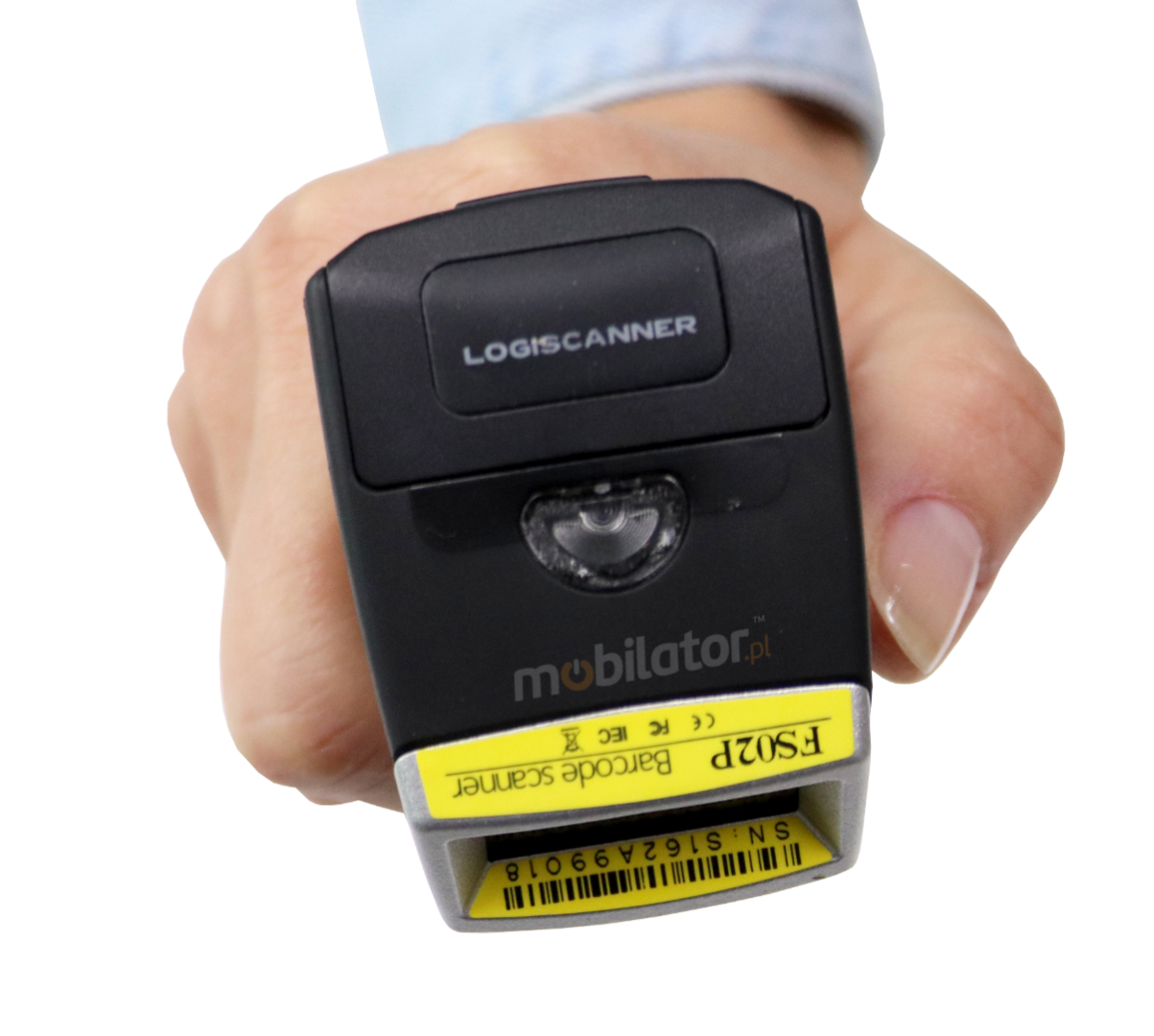

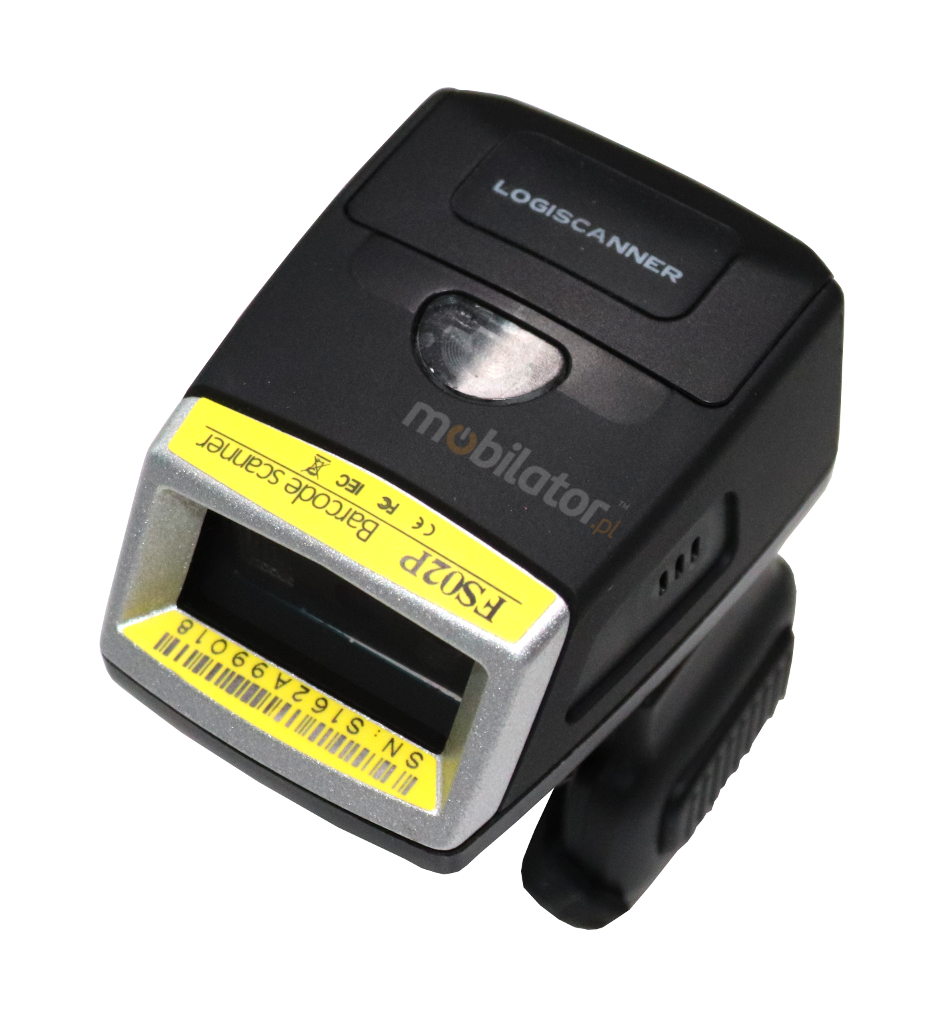

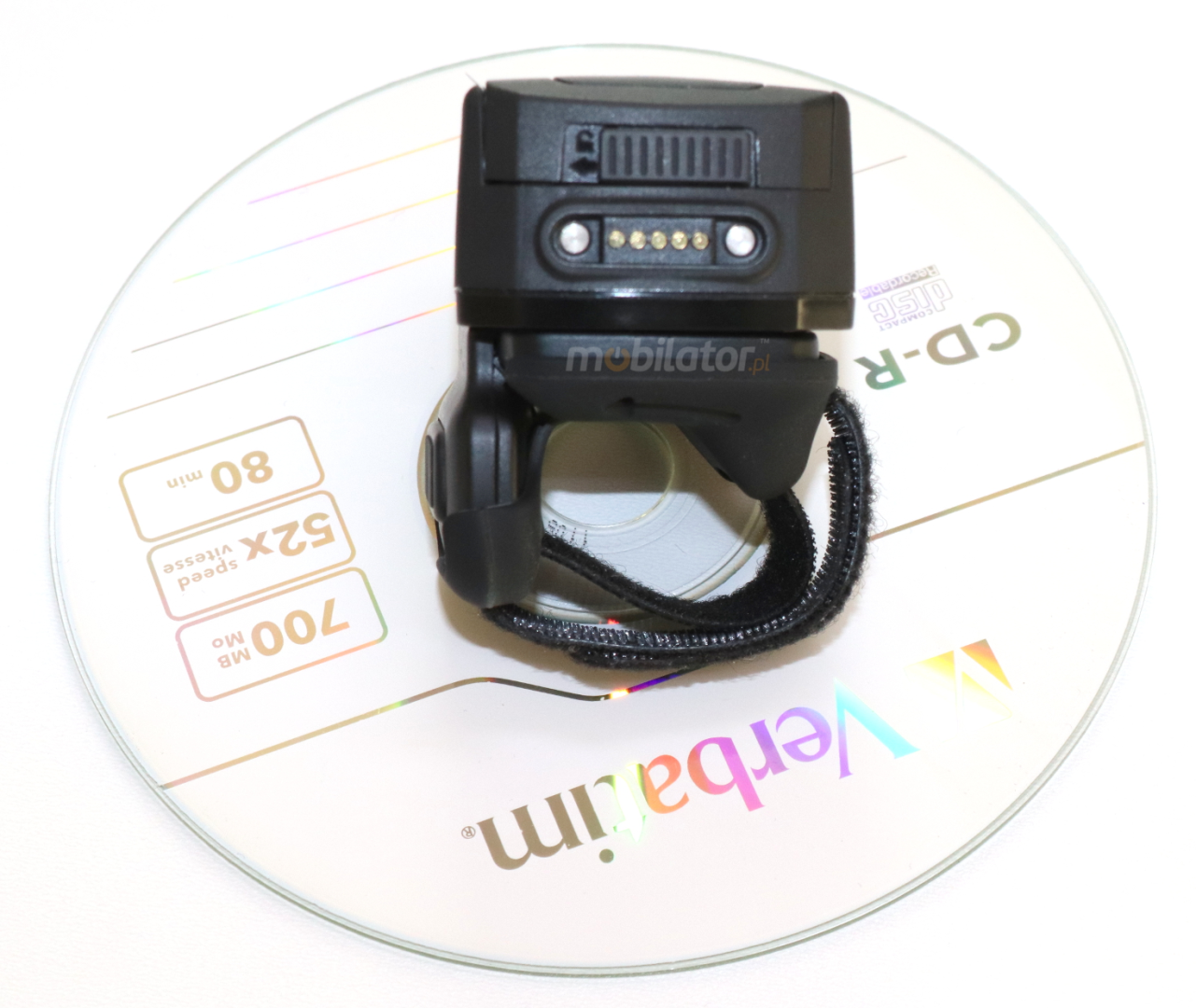

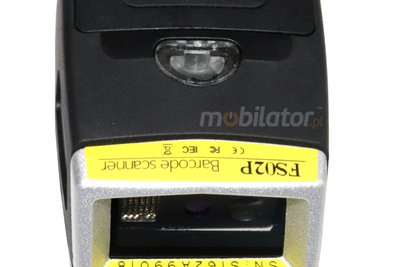

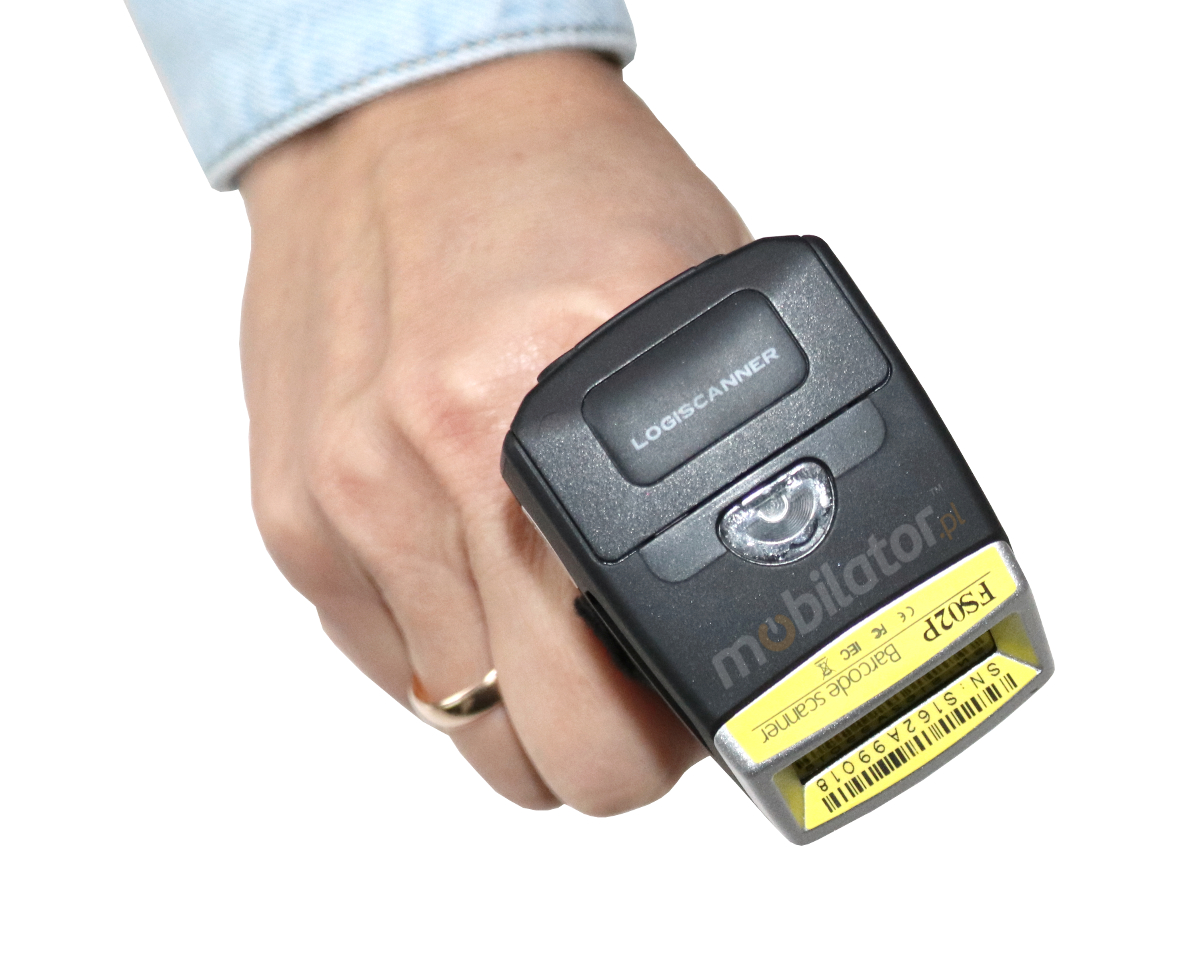

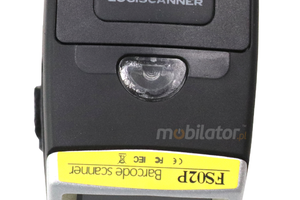

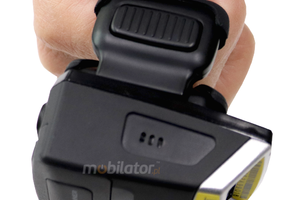

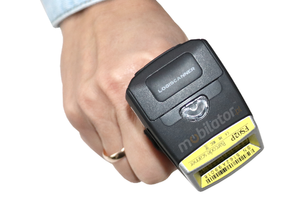

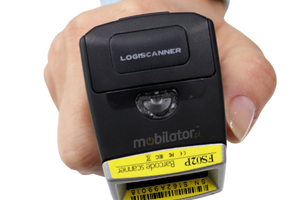

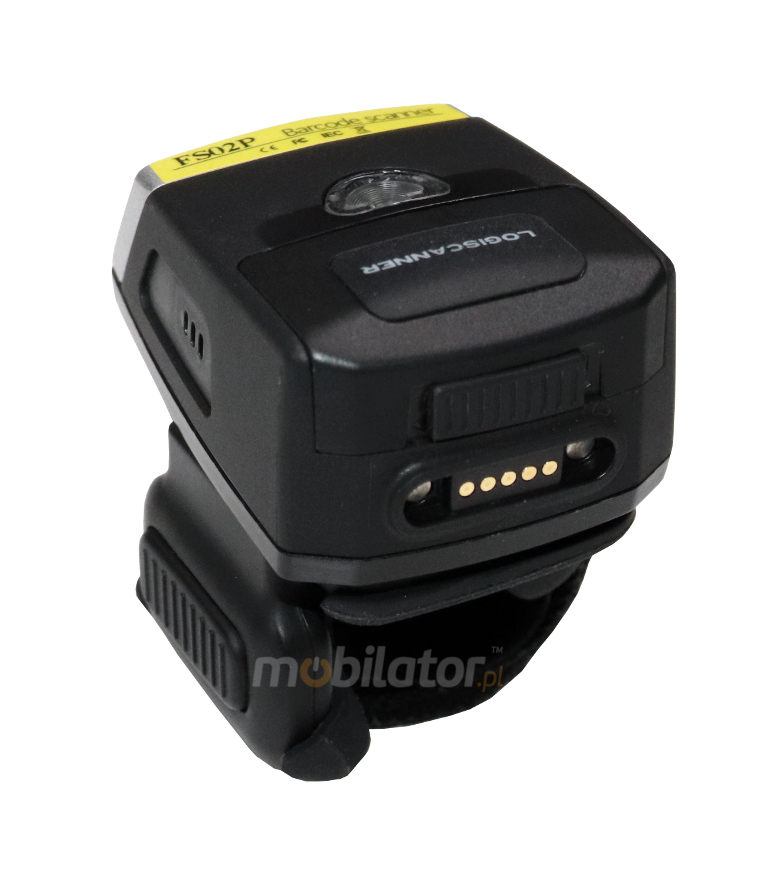

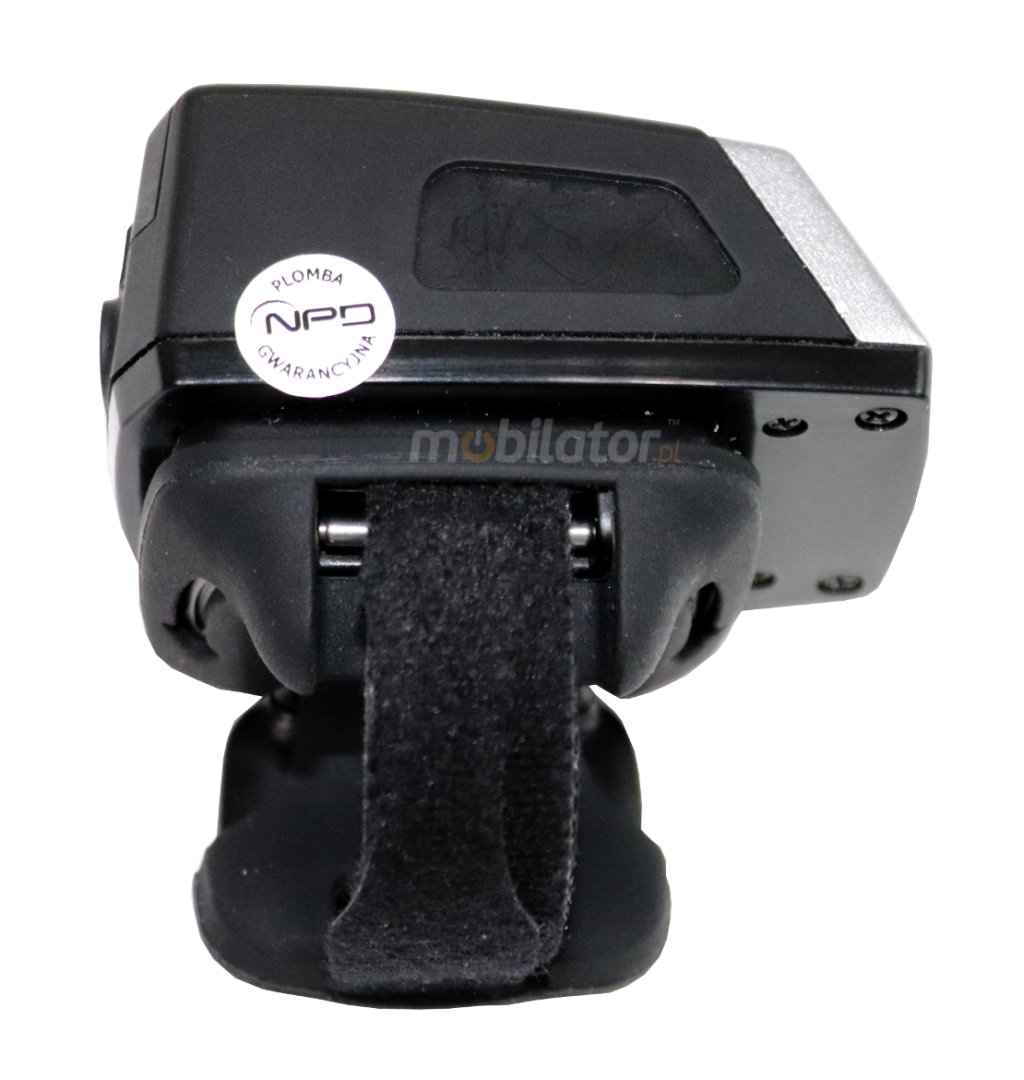

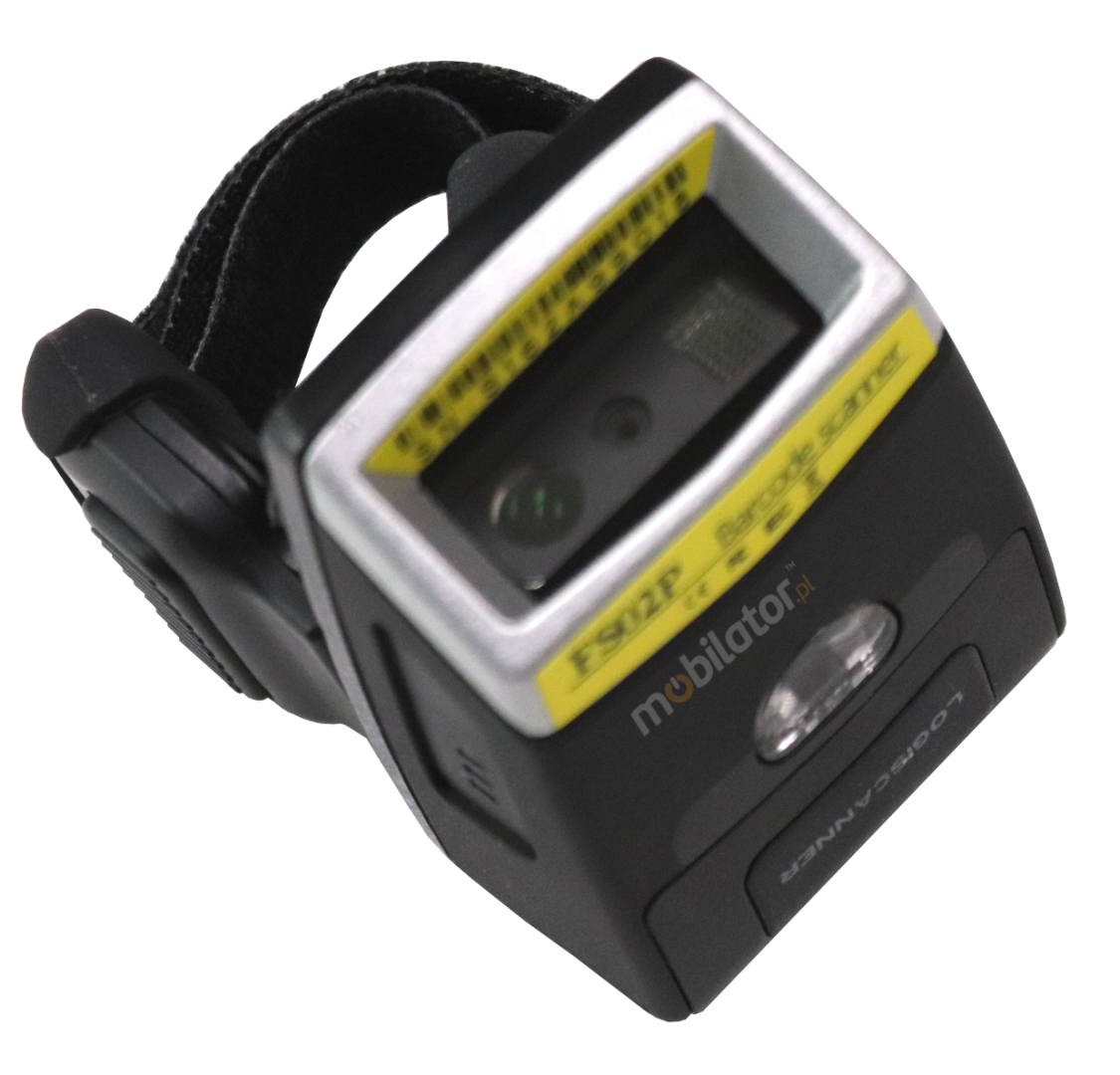

Fingering FS02P - mini barcode scanner 1D/2D - Ring - Bluetooth

Name: Fingering FS02P - mini barcode scanner 1D/2D - Ring - Bluetooth
Brand: Mobilator
Price: 220.07 PLN
Availability: InStock

+34

Update Date: 2024.08.26

Guarantee 1 year (opt. 2)

Net

178.92 €

Gross

220.07 €

Buy now!

Negotiate the price

								Ask about the product

 Product card

								Recommend to a friend

								Store

								Compare

Product availability 14 workdays

Description

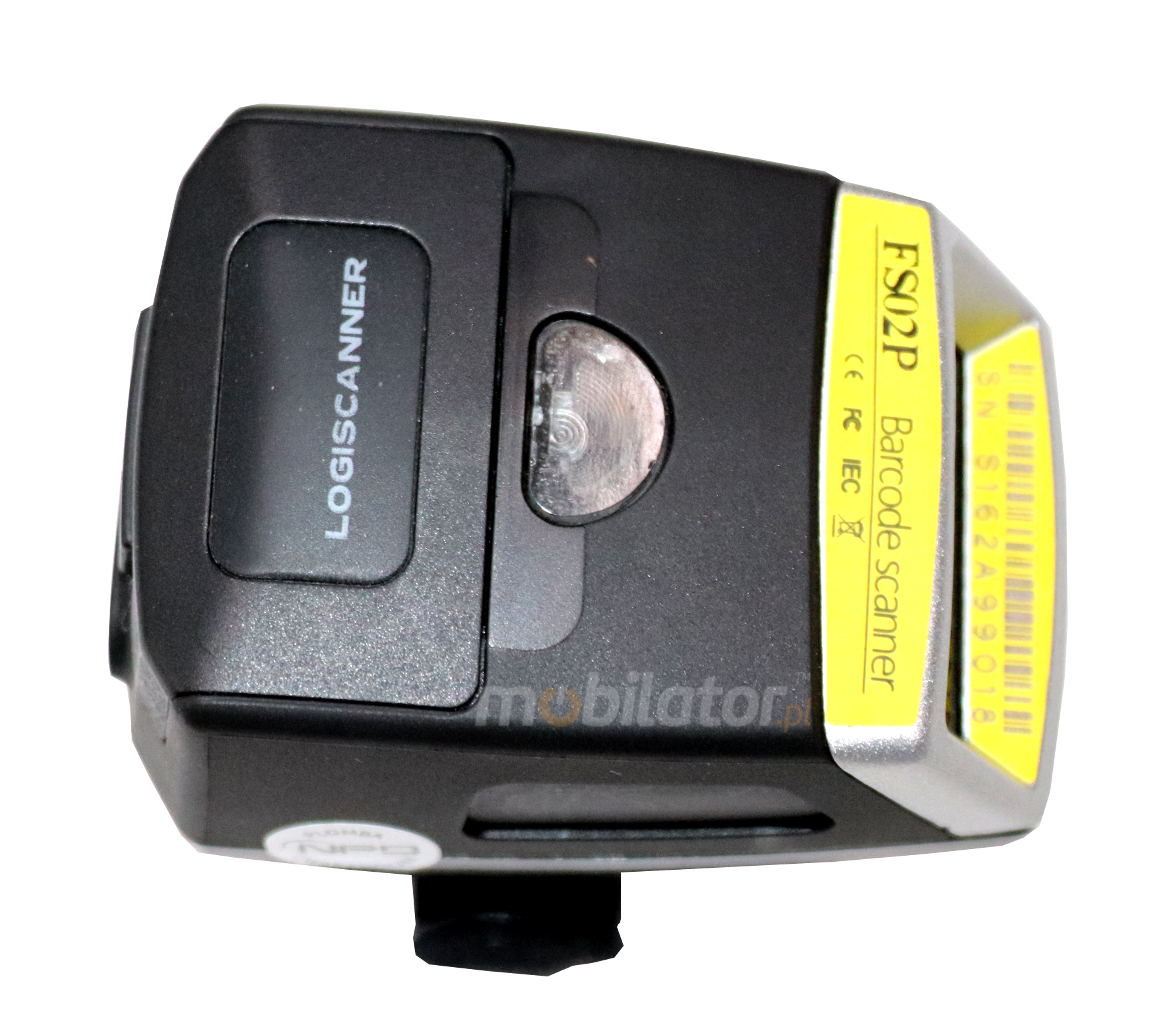

MobiScan Fingering FS02P is small size and powerful new generation barcode scanner.It design for picking and sorting application ,enable your operator to free hand and improve operational efficiency in your warehouse,distribution center and retail store. You never need setting an item down to check paper work order or picking up handheld scanner. Operator even no need to put heavy pakage to the desktop for scan ,it will save more time and physical strength. Compare with common wired handheld scanner, FS02P wearable scanner can increase 15% -30% productivity !

MobiScan FingerRing FS2D-Alar - mini skaner kodów kreskowych 2D CMOS- Pierścionkowy - Bluetooth Skaner 2D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI MobiScan Fingering FS02P intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers and logistics, quality controllers and inspectors of manufacturing processes and all those who need to work cataloging and storing the information read from the barcode .

2D Barcode Scanner - Fingering FS02P through Bluetooth module (which provides reliable communication) is compatible with mobile devices, data collectors and computers running on different operating systemch (see the text "Communication" - below).

MobiScan FingerRing FS2D-Alar - mini skaner kodów kreskowych 2D CMOS- Pierścionkowy - Bluetooth Skaner 2D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI FingerRing wearable ring scanner enable operator to move package ,products and materials,helping to increase more efficiency, It is very comfortable to wear it in whole working day ,with high performance laser scan engine ,even poor printed barcode can be read.The rugged rubber shell make daily use reliable even in the roughest environments.

MobiScan FingerRing FS2D-Alar - mini skaner kodów kreskowych 2D CMOS- Pierścionkowy - Bluetooth Skaner 2D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI FS02P is equipped with a Li-Ion battery with sufficient capacity 550mAh, which allows the scanner to work about four hours in scan mode (continuously working).

go top… menu…

Communication

MobiScan FingerRing FS2D-Alar - mini skaner kodów kreskowych 2D CMOS- Pierścionkowy - Bluetooth Skaner 2D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

The present device has a built-2D barcode reader that connecting via Bluetooth with your device. It provides information such as the name of the product, the type, approximate value, availability, and also allows for quick and convenient automatic grouping of data.

Designed to be tailored to different applications, wireless (Bluetooth) barcode scanner can be compatible with Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8, Windows 10 and Linux. Users can send data directly to a PC or in real time to mobile devices.

Portable (radio and bluetooth-arid) barcode readers using laser technology are comfortable and easy to use, with wide possibilities to set parameters. Enable automatic operation and manual. Read codes with different contrasts with a distance of several centimeters. The use of wireless communication (Bluetooth or radio) offer a range of up to 20m from the computer.

The device uses the HID interface

To scanner devices need to use the right software to a Bluetooth port collect data and display them in window of the user. The scanner is connected to the USB port and working in the so-called POS mode needs further appropriate driver, which once installed in the system creates a virtual port number specified - the so-called virtual COM port driver.
Most of the users is a (mistaken) belief that each scanner connected to a computer will send data, which can be further processed such as Notepad or MS Word. That's not true.To do so, use the scanner with the so-called keyboard emulation - connected to a computer via USB, but the scanner must be working in a standard USB HID (Human Interface Device) otherwise known as Low Speed USB also. In this way the data is sent to the computer in exactly the same way as does a USB keyboard. Hence the term emulation keyboard.
If we have the right scanner (USB HID) - when barcode in fact our introduce to Word or Notepad in the form of digits or in any place where we can place the cursor or wpiswać text data. Scanners USB HID usually do not require additional drivers, as the drivers for HID devices are standard in Windows.

Supported Bluetooth profiles SPP system.

SPP defines how to set up virtual serial ports (RS-232) and connect two devices via Bluetooth. SPP is a serial port profile. It is used in various devices (eg PC, GPS, industrial equipment).

Wireless barcode scanner works as a Bluetooth master (supporting SPP - Serial Port Profile). When paired with a computer or mobile device, the bar code can be read using a software virtual serial port (RS232 or COM port). This allows the device one can to both send and receive data via Bluetooth without connecting a serial cable to your computer .

go top…

menu…

Application

Compliance standards and tests performed

Work	0° do 50°C
Humidity	5% do 90% (No condensation)
Dust	IP6x (dust)
Water	IPx5 (Water splashes)
Drop	Multiple Drop 1.5m

go top… menu…

Resistance IP65

Degrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.

do góry… menu…

The first digit [x] Protection against solid objects	Protection Level	The second digits [y] Protection against liquids
No special protection		No special protection
Protection from solid objects greater than 50mm in diameter		Protection from dripping water
Protection from object not greater than 12mm in diamete		Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter		Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter		Protection from splashed water
Complete protection against contact, Protection against dust deposit		Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust		Protection against heavy seas, or powerful jets of water
		Protection against immersion
		Protection against complete, continuous submersion in water

do góry… menu…

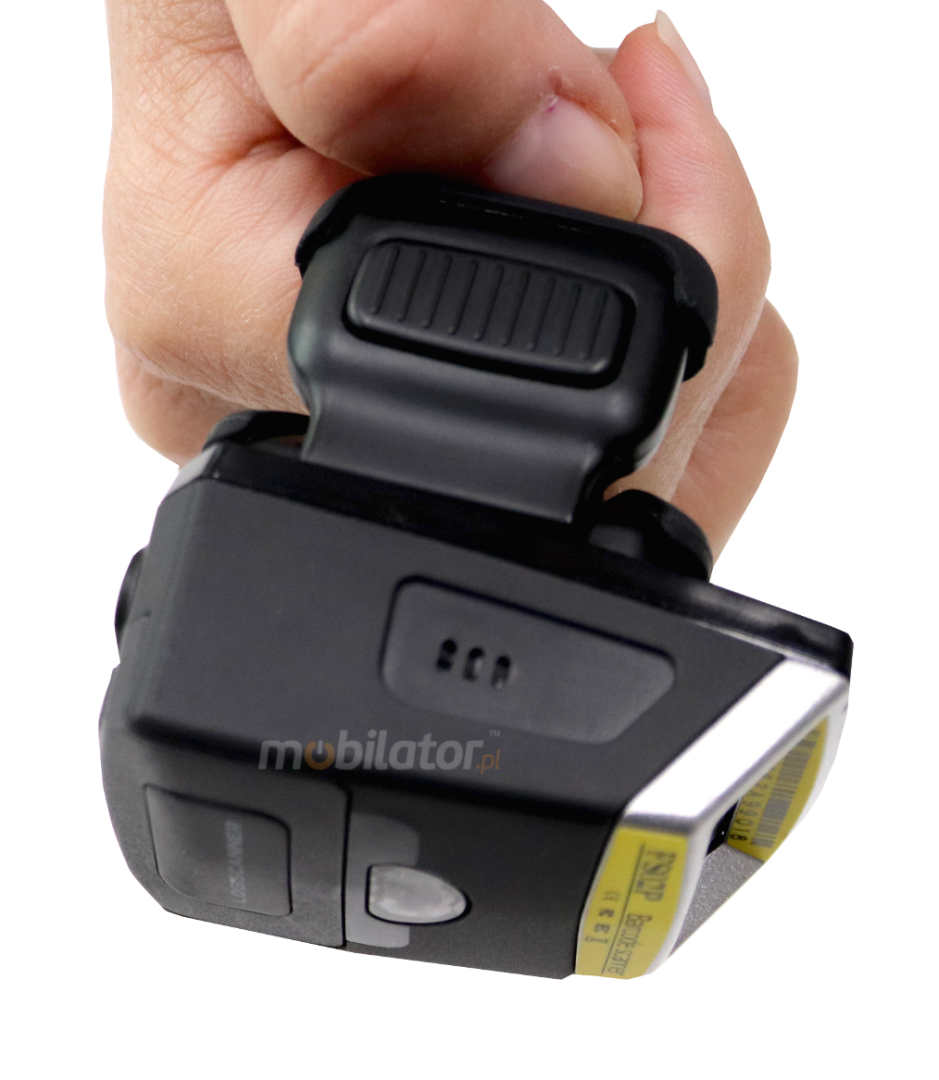

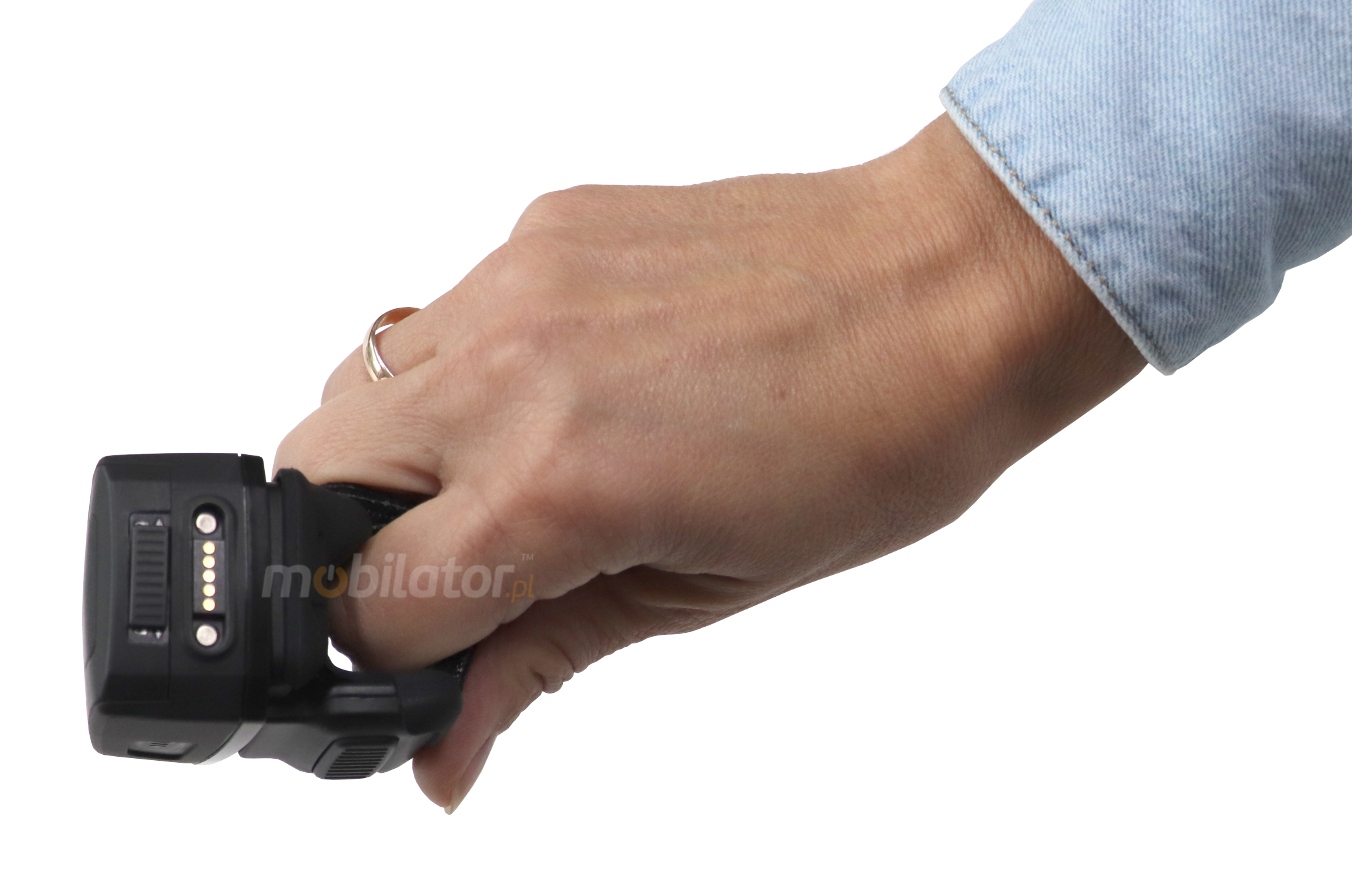

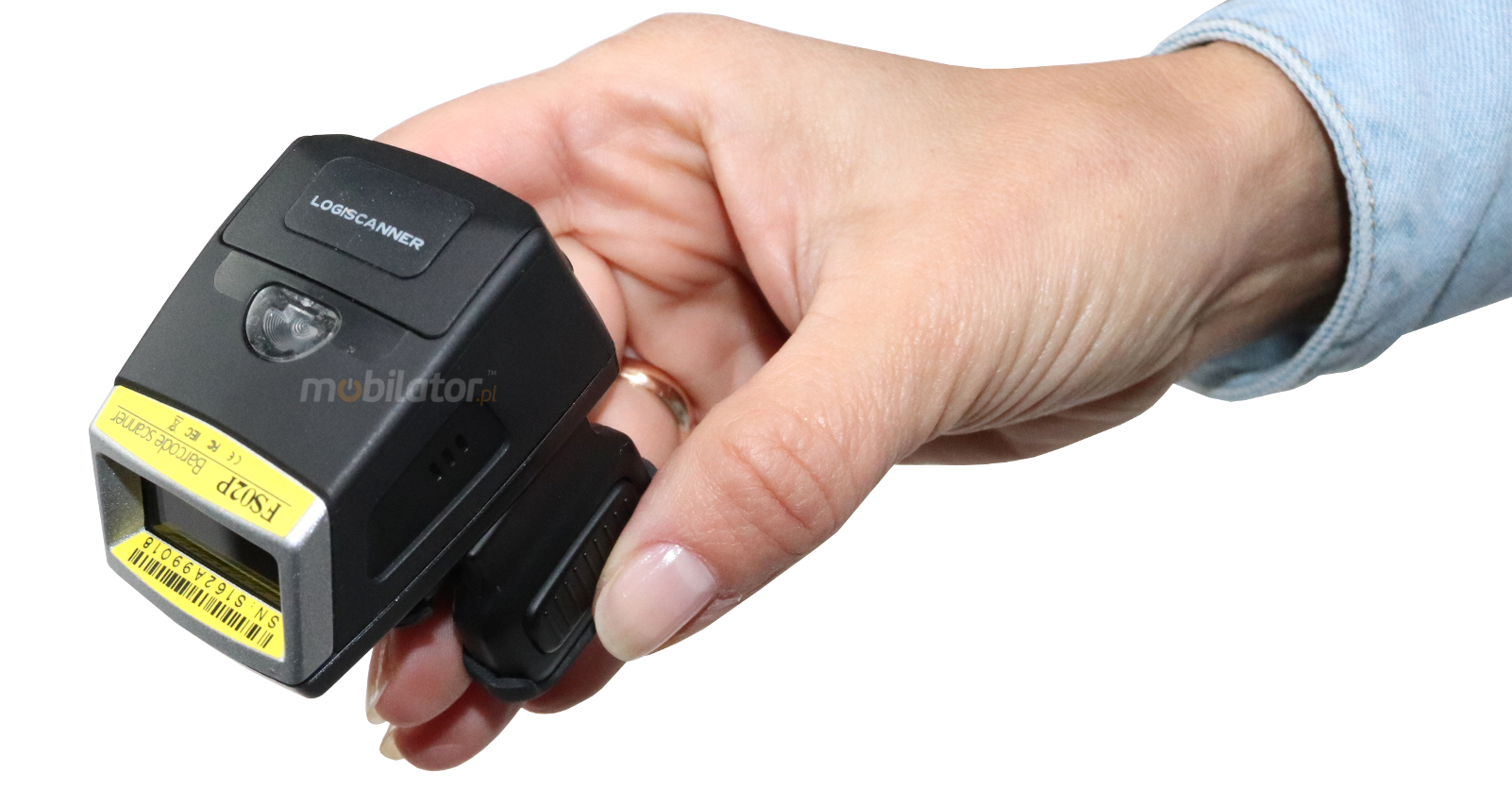

Fingering FS02P - mini barcode scanner 2D - Ring - Bluetooth which the manufacturer recommends widely used in situations where it is necessary to rapidly identify the goods in commerce, logistics, transport, shipping, industrial, financial and public sectors.

Accessories

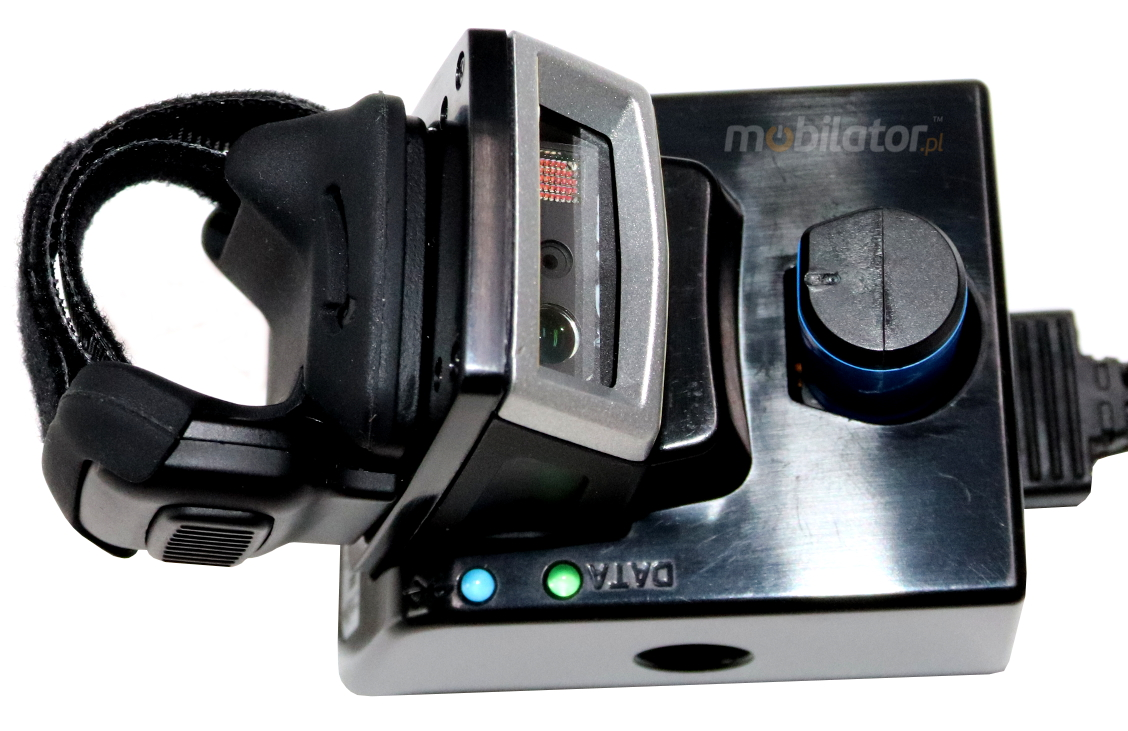

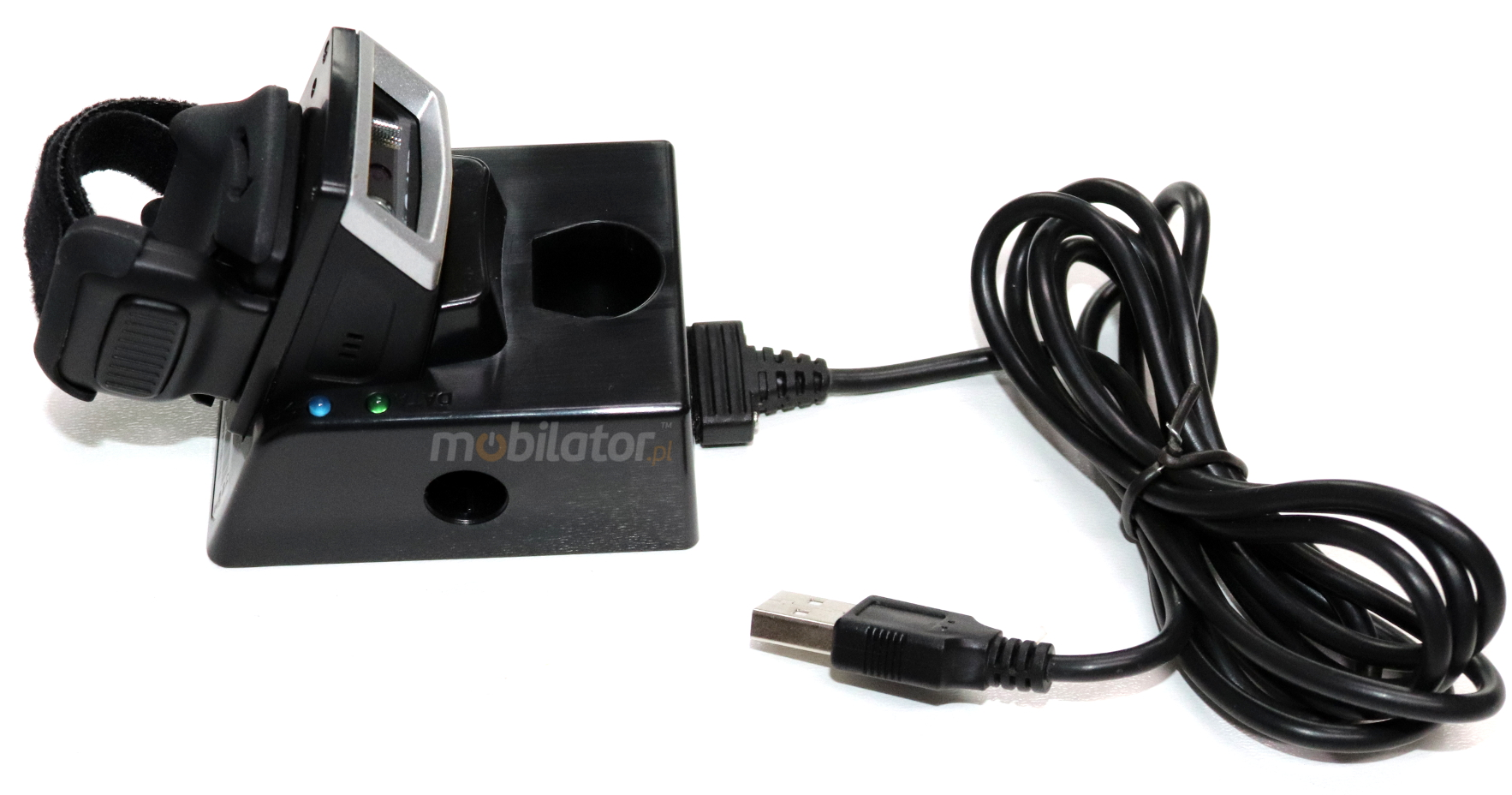

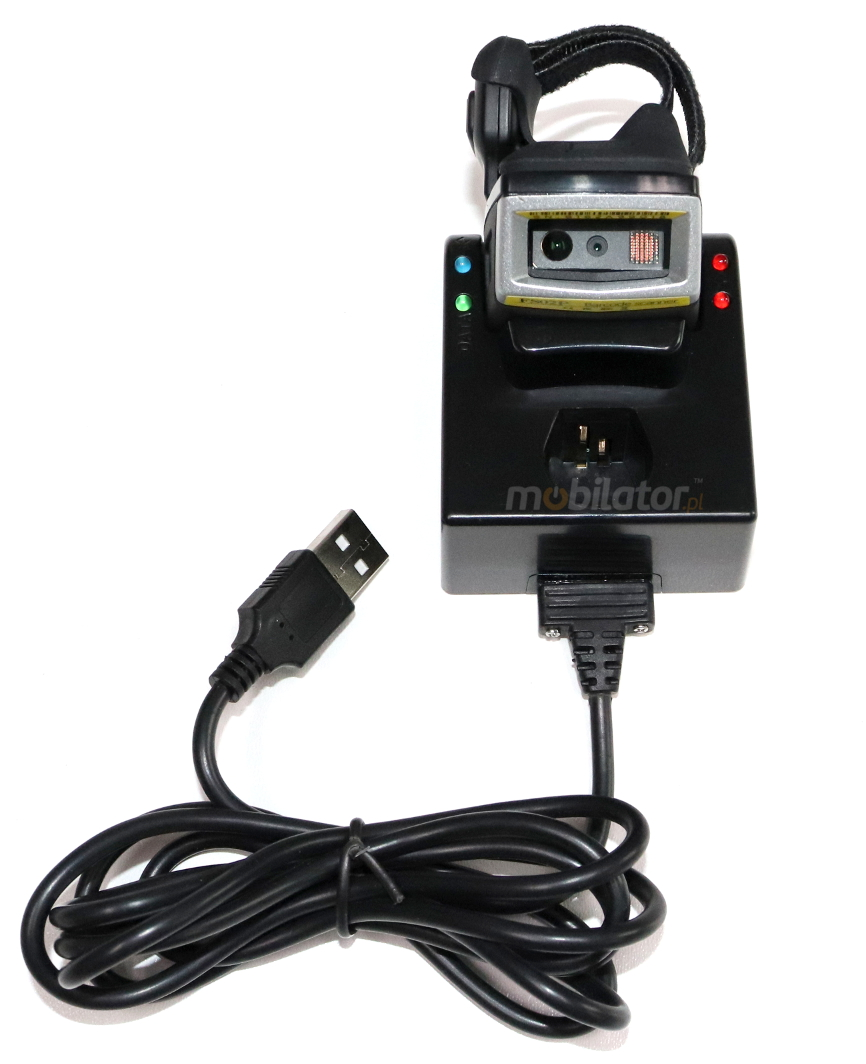

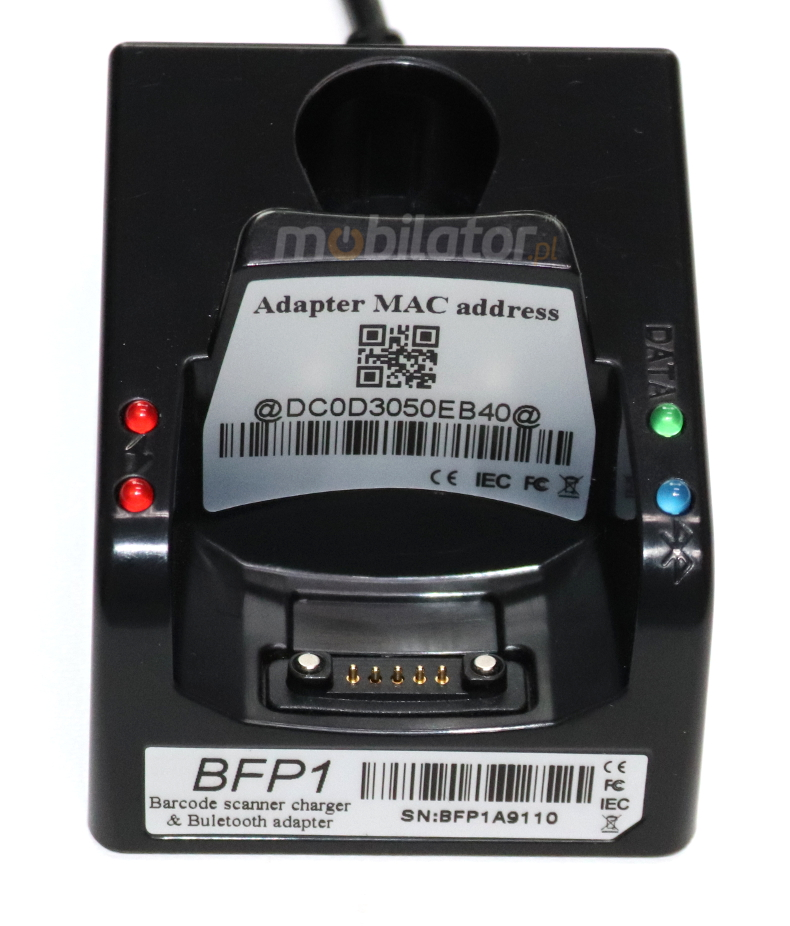

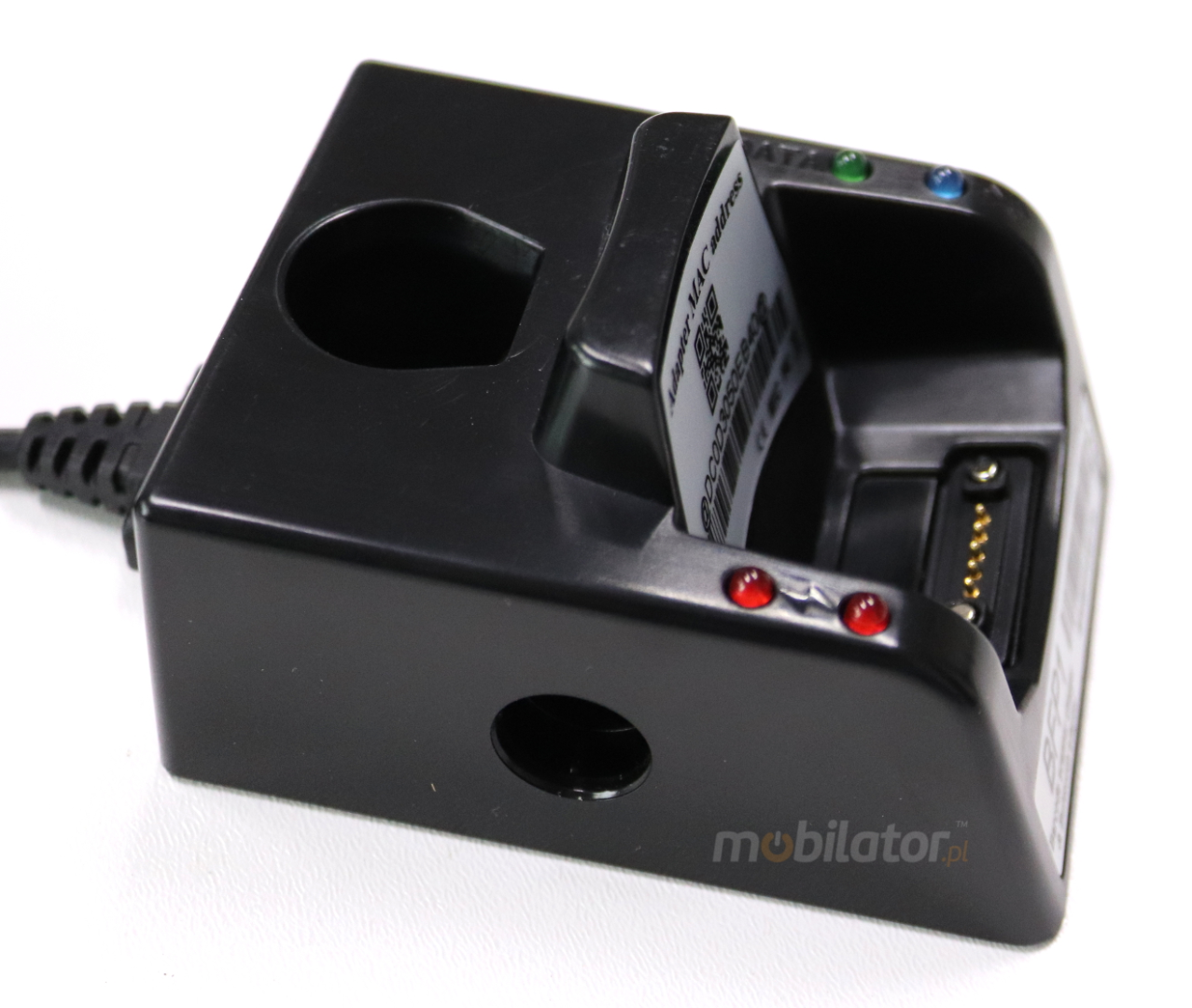

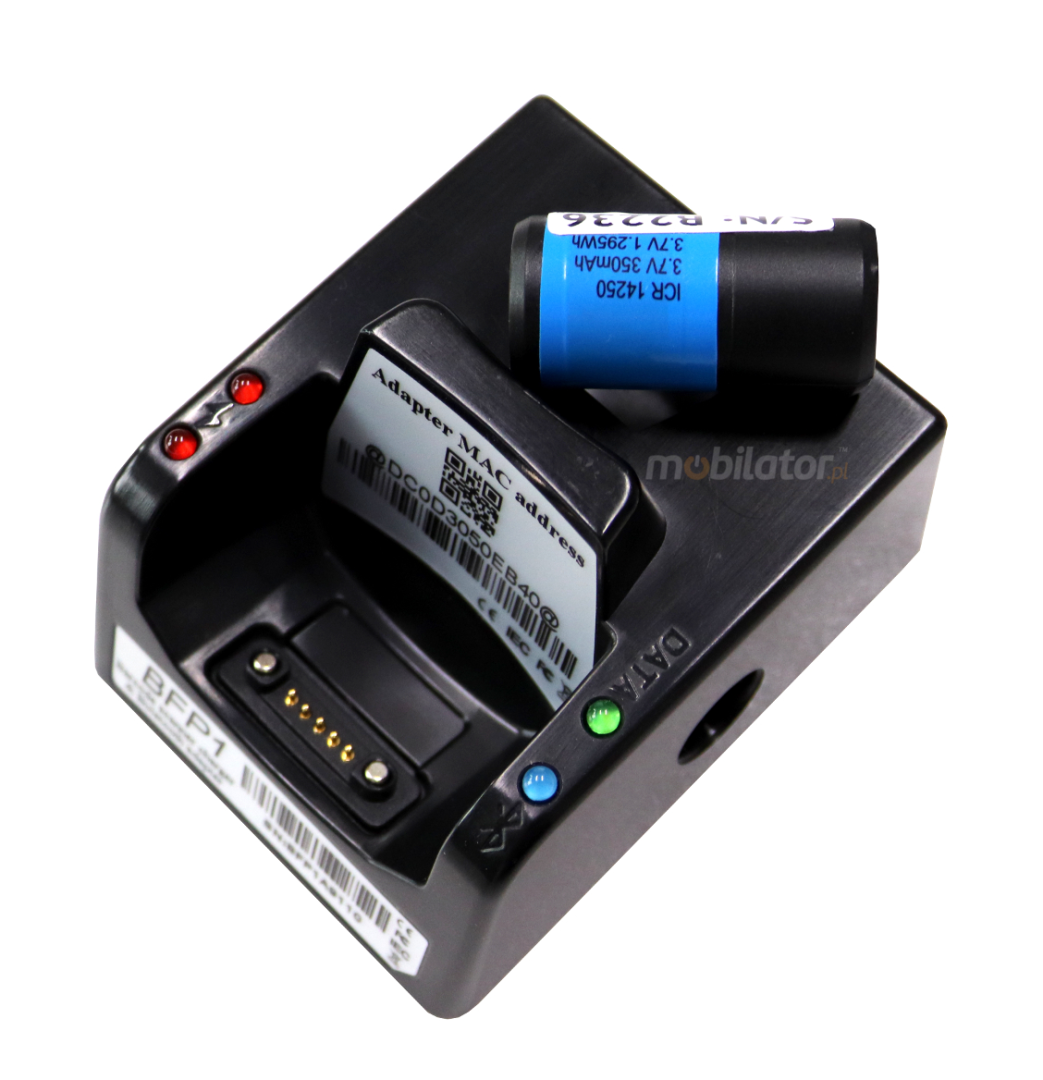

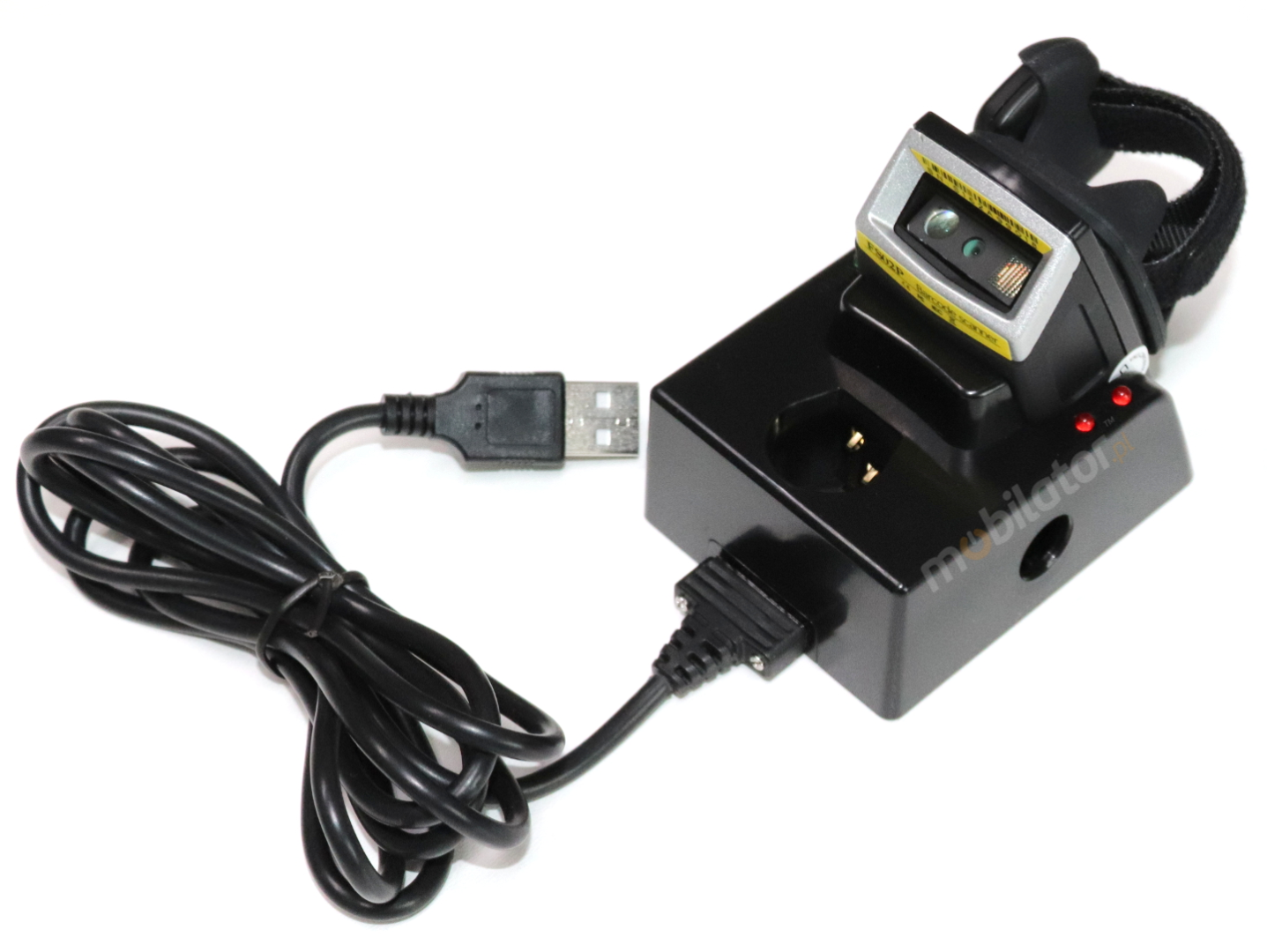

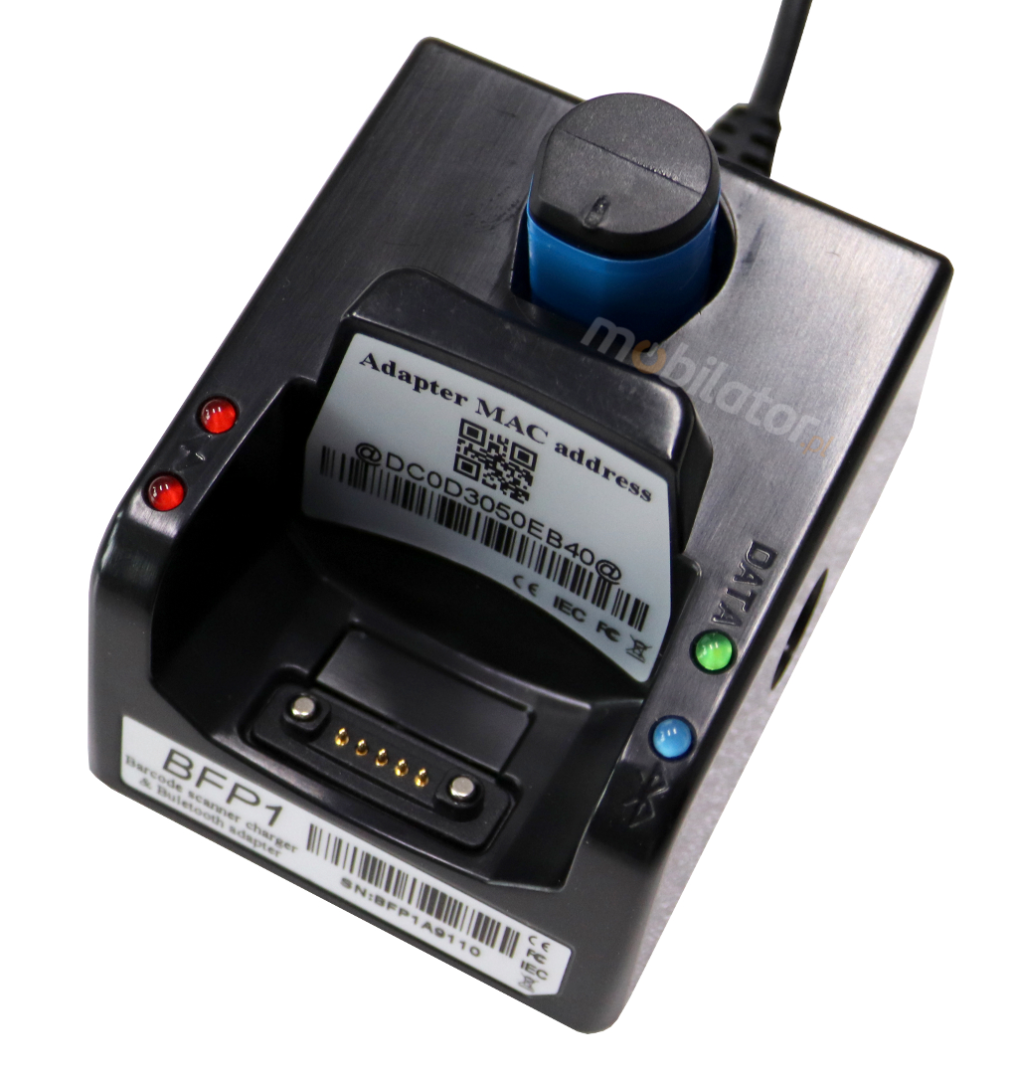

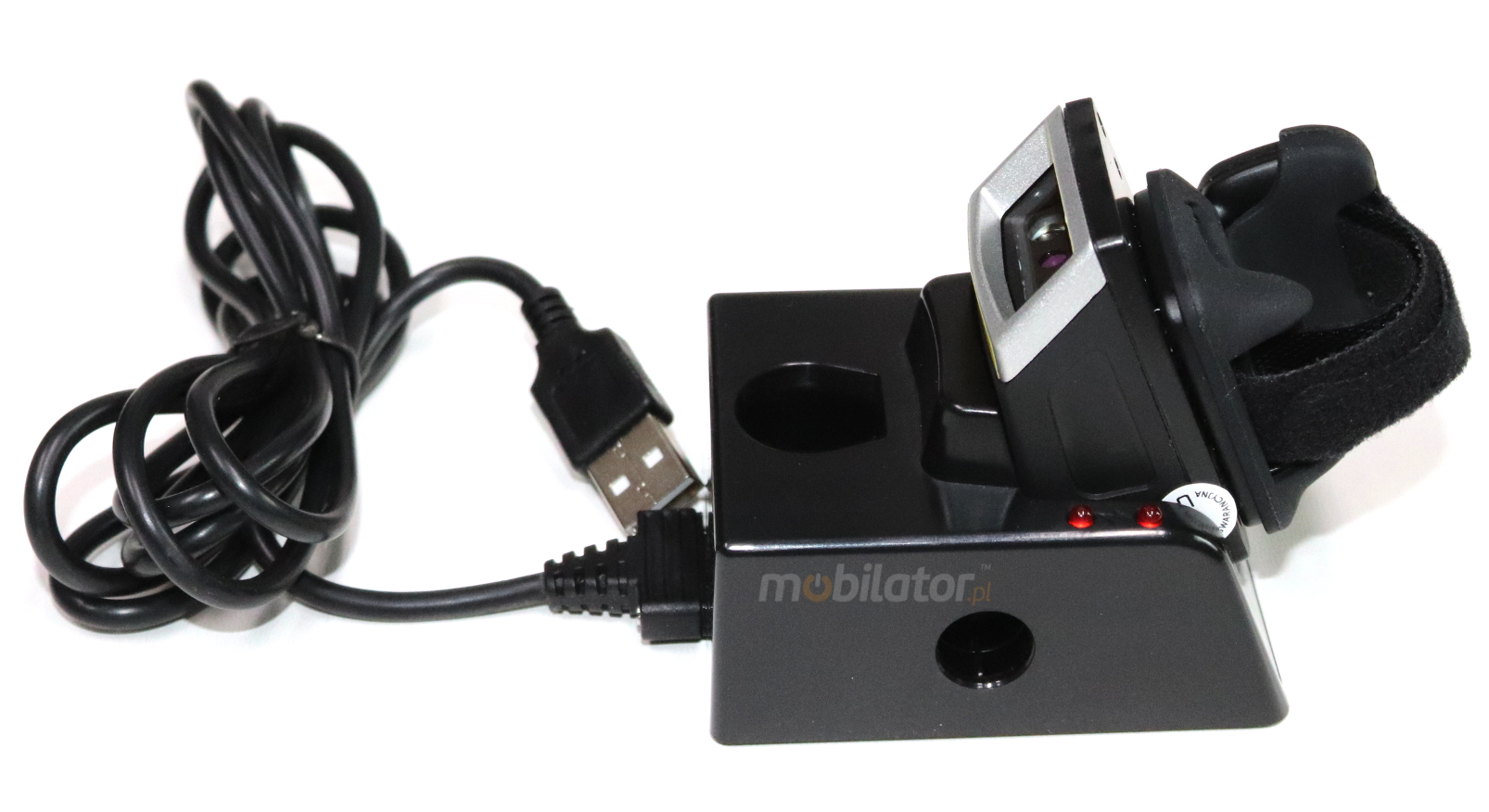

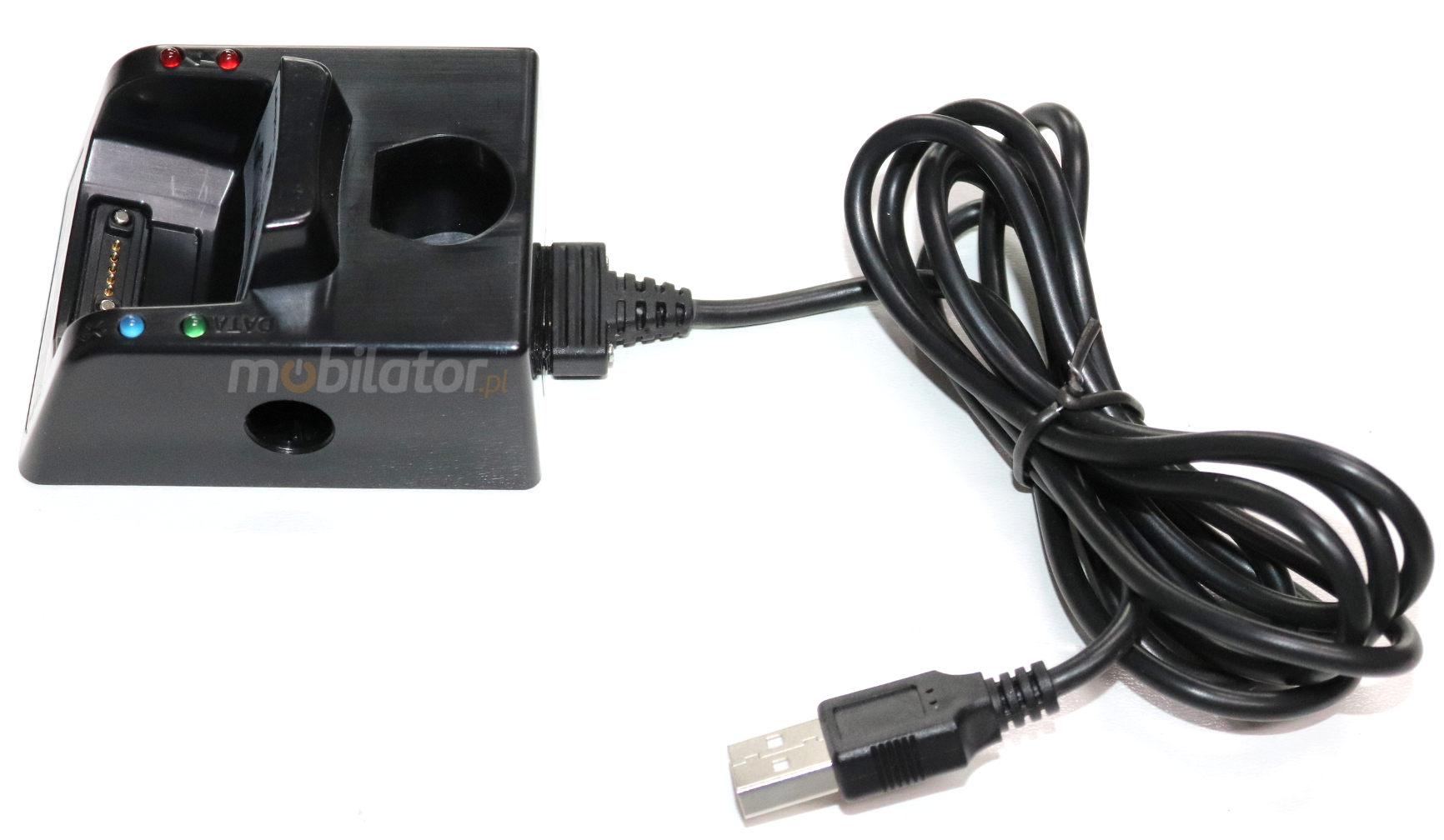

The Fingering FS2D-Alar comes standard with a charger station (option), battery (option) and Bluetooth 4.0 adapter.

Application

Pharmacy

It allows you to quickly identify and enter prescriptions into the database. With a small and lightweight design is easy to carry around in your pocket thus increases the efficiency of the orders received.

Trade

The device used to quickly read bar codes. Certainly can be applied to any kind of trade.

Magazine

Mini barcode reader allows you to quickly update the inventory with the help of Bluetooth wireless data transfer.

Logistics and transport

Scanner RING certainly will also use all kinds of transport as a barcode reader to help you quickly identify the goods.

go top…

menu…

Specifications

Barcode readers allow you to in the bar code read and send to your database. We offer high quality device for reading bar codes that work flawlessly even in the harshest industrial environments.

After scanning the coded data can be transferred to a computer or a portable database. Such a rapid and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes.
MobiScan FingerRing FS2D-Alar - mini skaner kodów kreskowych 2D CMOS- Pierścionkowy - Bluetooth Skaner 2D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

The bar code scanner can be connected to almost any device of computer - via USB.

Fingering FS02P - mini barcode scanner 1D/2D
Mechanical	Height:51.2 mm Width: 39.2 mm Lenght: 55 mm Weight: 65g
Electrical	DC: 5V - 300mA - DC
Scan Performance	Sensor Type: 1D/2D Scan Rate: 100 times Scan Angle: 60⁰, 60⁰, 360⁰(Skew,Pitch,Roll) Contrast: >20% Decode Speed: 100 times per second
Baterry Power (option)	Internal Baterry: - Li-ion 550 mAh, - 4 h（continuously working）
Barcode Type	UPC-A, UPC-E, UPC-E1, EAN-8/JAN-8, EAN-13/JAN-13, Bookland EAN, ISSN EAN, Code 128, GS1-128(formerly UCC/EAN-128), ISBT 128, Check ISBT Table, Code 128 Reduced Quiet Zone, Code 39, Trioptic Code 39, Convert Code 39 to Code 32, Code 32 Prefix, Code 39 Check Digit Verification, Code 39 Full ASCII, Code 39 Reduced Quiet Zone, Code 93, Code 11, Interleaved 2 of 5, I 2 of 5 Readuced Quiet Zone, Discrete 2 of 5, Codabar(NW-7), CLSI Editing, NOTIS Editing, MSI, Chinese 2 of 5, Matrix 2 of 5, GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded, Convert GS1 DataBar to UPC/EAN/JAN, Composite CC-C, Composite CC-A/B, Composite TLC-39, GS1-128 Emulation Mode for UCC/EAN Composite Codes PDF417, MicroPDF417, Code 128 Emulation, Data Matrix, Maxicode, QR Code, Micro QR, Aztec, HanXin, US Postnet, US Planet, UK Postal, Japan Postal, Australia Post, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal
Communication	RS232
Certificates	CE, Rohs, FCC, EN60950, IEC60825, IP65, EMC, 1.5m drop test(200 times). Utility Model Patent No.: ZL201420211350.8
Accessories	User manual, finger holder, battery charge station.

more photos in "Gallery"...

specification of this version is available in the "Specifications"...

Supported Operating Systems
Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8, Windows 10, Linux, MAC
Internal memory
512KB
Operation Voltage
RS232
Battery
---
Reading indicator
1D/2D
Scan rate
100 times/sec
Light source
Laser/CMOS
Resolution
640 x 400
Communication distance
10m
Readable codes
2 of 5 Industrial，QR Code 2 of 5 Matrix，Codabar，Code - 39， Code - 39 Extended (full ASCII)， Code - 93，Code - 128 (A, B, C)， 2 of 5 Interleaved,EAN-8，EAN-13，
Readable codes
2 of 5 Industrial，QR Code 2 of 5 Matrix，Codabar，Code - 39， Code - 39 Extended (full ASCII)， Code - 93，Code - 128 (A, B, C)， 2 of 5 Interleaved,EAN-8，EAN-13，
Sensor
2D (640x400)
Scan Angle
60⁰, 60⁰, 360⁰(Skew,Pitch,Roll)
Print Contrast Ratio
>20%
Scan range
（BASED ON CODE 39） 3.9mil:25mm-112mm; 10mil:31mm-420.5mm; 20mil:43mm-495mm; 30mil:64mm-537mm; 35mil:145mm-604mm
Cable Type
RS232
Battery Life
---
Communication
RS232 - SE2707
Interface/ Prole
---
Operating Temperature
0°C ~ 50°C
Storage Temperature
-20°C ~ 60°C
Relative Humidity
5% ~ 90%, non-condensing
Resistance IP
IP 65
Drop test
Multiple drops 1.5m
Barcodes 1D
Barcodes 1D:
2 of 5 Chinese
Yes
2 of 5 Discrete
Yes
2 of 5 IATA
No
2 of 5 Industrial
Yes
2 of 5 Interleaved
Yes
2 of 5 Matrix
Yes
2 of 5 Standard
No
BC - 412
No
Bookland EAN
Yes
Codabar
Yes
Codabar - NW7
Yes
Code - 11
Yes
Code - 11(USD-8)
Yes
Code - 32
Tak
Code - 39
Yes
Code - 39 Extended (full ASCII)
Yes
Code - 39 Trioptic
Yes
Code - 93
Yes
Code - 128 (A, B, C)
Yes
EAN-8
Yes
EAN-13
Yes
EAN -128 / UCC-128
No
GS1 DataBar
Yes
Intelligent Mail
No
ISBN
No
ISBT - 128
No
ISSN
No
ITF-6
No
ITF-14
No
KIX code
Yes
Matrix 25
Yes
MSI
Yes
MSI - Plessey
No
Pharmacode - One Track
No
Pharmacode - Two Track
No
Planet
No
Plessey
No
Post - Australian (4-State Postal Code)
No
Post - China (4-State Postal Code)
Yes
Post - Japanese (4-State Postal Code)
Yes
Post - Singapore (4-State Postal Code)
No
PostNET
No
Royal Mail (RM-4SCC)
No
Telepen Code
Yes
UK/Plessey
No
UPC - A
Yes
UPC - E
Yes
UPC - E1
Yes
Barcodes 2D
Barcodes 2D:
Aztec
Yes
Composite code
No
DataMatrix
Yes
MaxiCode
Yes
Micro PDF 417
Yes
Micro QR Code
Yes
PDF 417
Yes
QR Code
Yes
RSS
No
TLC-39
No
Housing material
ABS+PC
 Dimensions
55 x 39.2 x 51.2 mm
Weight
65g (include battery)
Responsible Entity / Distributor
New Portable Devices

User manual
FingerRing FS1D/2D-Alar
1.76 MB
26.05.2017
All
Download
Driver
FingerRing FS1D/2D-Alar - SDK - APK
9.35 MB
26.05.2017
Android/iOS/Windows
Download
User manual
FingerRing FS1D/2D-Alar - User Manual - Karta katalogowa
9.58 MB
26.05.2017
Android/iOS/Windows
Download

Compare all versions


Fingering FS02P - mini barcode scanner 1D/2D - Ring - Bluetooth
					Very small size: 55 x 39.2 x 51.2mm
IP65 Norm / COM Port
Scan Engine: EM3396 / Resistance: IP65
Connectivity: RS232 - EM3396
Compatible: Windows / Android / iOS / Linux

Gross196.73 €

Fingering FS02P - mini barcode scanner 1D/2D - Ring - Bluetooth
					Very small size: 55 x 39.2 x 51.2mm
COM Port
Scan Engine: SE2707 / Resistance: IP65
Connectivity: RS232 - SE2707
Compatible: Windows / Android / iOS / Linux

Gross220.07 €

Fingering FS02P - mini barcode scanner 1D/2D - Ring - Bluetooth
					Very small size: 55 x 39.2 x 51.2mm
Working time: 4h / Range: Up to 10m
Scan Engine: EM3396 / Resistance: IP65
Connectivity: Bluetooth 3.0 (HID / SPP)
Compatible: Windows / Android / iOS / Linux

Gross225.62 €

Fingering FS02P - mini barcode scanner 1D/2D - Ring - Bluetooth
					Very small size: 55 x 39.2 x 51.2mm
Working time: 4h / Range: Up to 10m
Scan Engine: EM3396 / Resistance: IP65
Connectivity: Bluetooth 3.0 (HID / SPP)
Compatible: Windows / Android / iOS / Linux

Gross248.96 €

Fingering FS02P - mini barcode scanner 1D/2D - Ring - Bluetooth
					Very small size: 55 x 39.2 x 51.2mm
Working time: 4h / Range: Up to 10m
Scan Engine: SE2707 / Resistance: IP65
Connectivity: Bluetooth 3.0 (HID / SPP)
Compatible: Windows / Android / iOS / Linux

Gross258.97 €

Fingering FS02P - mini barcode scanner 1D/2D - Ring - Bluetooth
					Very small size: 55 x 39.2 x 51.2mm
Working time: 4h / Range: Up to 10m
Scan Engine: EM3396 / Resistance: IP65
Connectivity: Bluetooth 3.0 (HID / SPP)
Compatible: Windows / Android / iOS / Linux

Gross264.53 €

Fingering FS02P - mini barcode scanner 1D/2D - Ring - Bluetooth
					Very small size: 55 x 39.2 x 51.2mm
Working time: 4h / Range: Up to 10m
Scan Engine: SE2707 / Resistance: IP65
Connectivity: Bluetooth 3.0 (HID / SPP)
Compatible: Windows / Android / iOS / Linux

Gross282.31 €

Fingering FS02P - mini barcode scanner 1D/2D - Ring - Bluetooth
					Very small size: 55 x 39.2 x 51.2mm
Working time: 4h / Range: Up to 10m
Scan Engine: SE2707 / Resistance: IP65
Connectivity: Bluetooth 3.0 (HID / SPP)
Compatible: Windows / Android / iOS / Linux

Gross297.87 €

Fingering FS02P - mini barcode scanner 1D/2D - Ring - Bluetooth
					Very small size: 55 x 39.2 x 51.2mm
Working time: 4h / Range: Up to 10m
Scan Engine: SE2707 / Resistance: IP65
Connectivity: Bluetooth 3.0 (HID / SPP)
Compatible: Windows / Android / iOS / Linux

Gross328.99 €

View:

Sorting:

MobiScan 77282D - mini barcode reader 2D - Bluetooth

Terminal mobilny mini do pracy magazynowej

» Very small size: 102x40x23 mm
» Working time: 9h / Range: Up to 40m
» Barcode Scanner 2D CMOS / Resistance: IP54
» Connectivity: Bluetooth 3.0 (HID / SPP)
» Compatible: Windows / Android / iOS / Linux

Net

88.55 €

Gross

108.92 €

Negotiate the price

Compare

Store

Buy now!

Details

Fingering FS02P - mini barcode scanner 1D/2D - Ring - Bluetooth

» Very small size: 55 x 39.2 x 51.2mm
» IP65 Norm / COM Port
» Scan Engine: EM3396 / Resistance: IP65
» Connectivity: RS232 - EM3396
» Compatible: Windows / Android / iOS / Linux

Net

159.94 €

Gross

196.73 €

Negotiate the price

Compare

Store

Buy now!

Details

Fingering FS02P - mini barcode scanner 1D/2D - Ring - Bluetooth

» Very small size: 55 x 39.2 x 51.2mm
» COM Port
» Scan Engine: SE2707 / Resistance: IP65
» Connectivity: RS232 - SE2707
» Compatible: Windows / Android / iOS / Linux

Net

178.92 €

Gross

220.07 €

Negotiate the price

Compare

Store

Buy now!

Details

Fingering FS02P - mini barcode scanner 1D/2D - Ring - Bluetooth

» Very small size: 55 x 39.2 x 51.2mm
» Working time: 4h / Range: Up to 10m
» Scan Engine: EM3396 / Resistance: IP65
» Connectivity: Bluetooth 3.0 (HID / SPP)
» Compatible: Windows / Android / iOS / Linux

Net

183.43 €

Gross

225.62 €

Negotiate the price

Compare

Store

Buy now!

Details

Fingering GS02 - mini barcode scanner 1D/2D - Ring - Bluetooth

» Very small size: 55 x 39.2 x 51.2mm
» Working time: 4h / Range: Up to 20m
» Engine: Zebra EM3396 (2D) / Resistance: IP65
» Connectivity: Bluetooth 3.0 (HID / SPP)
» Compatible: Windows / Android / iOS / Linux

Net

200.60 €

Gross

246.74 €

Negotiate the price

Compare

Store

Buy now!

Details

Fingering TS02 - mini barcode scanner 1D/2D - Ring - Bluetooth

» Very small size: 55 x 39.2 x 51.2mm
» Working time: 4h / Range: Up to 10m
» Engine: Zebra SE2707 (1D/2D) / Resistance: IP65
» Connectivity: Bluetooth 3.0 (HID / SPP)
» Compatible: Windows / Android / iOS / Linux

Net

200.60 €

Gross

246.74 €

Negotiate the price

Compare

Store

Buy now!

Details

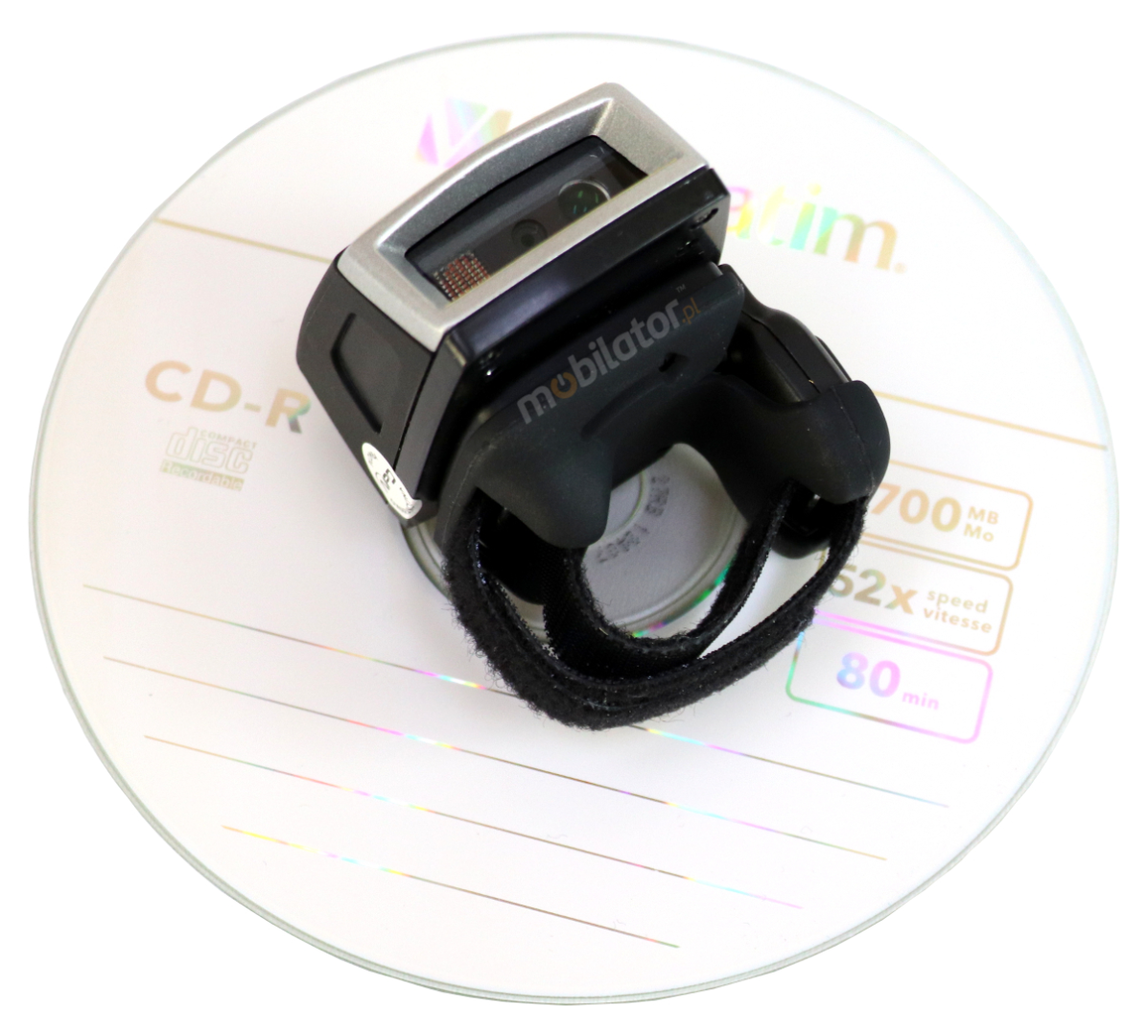

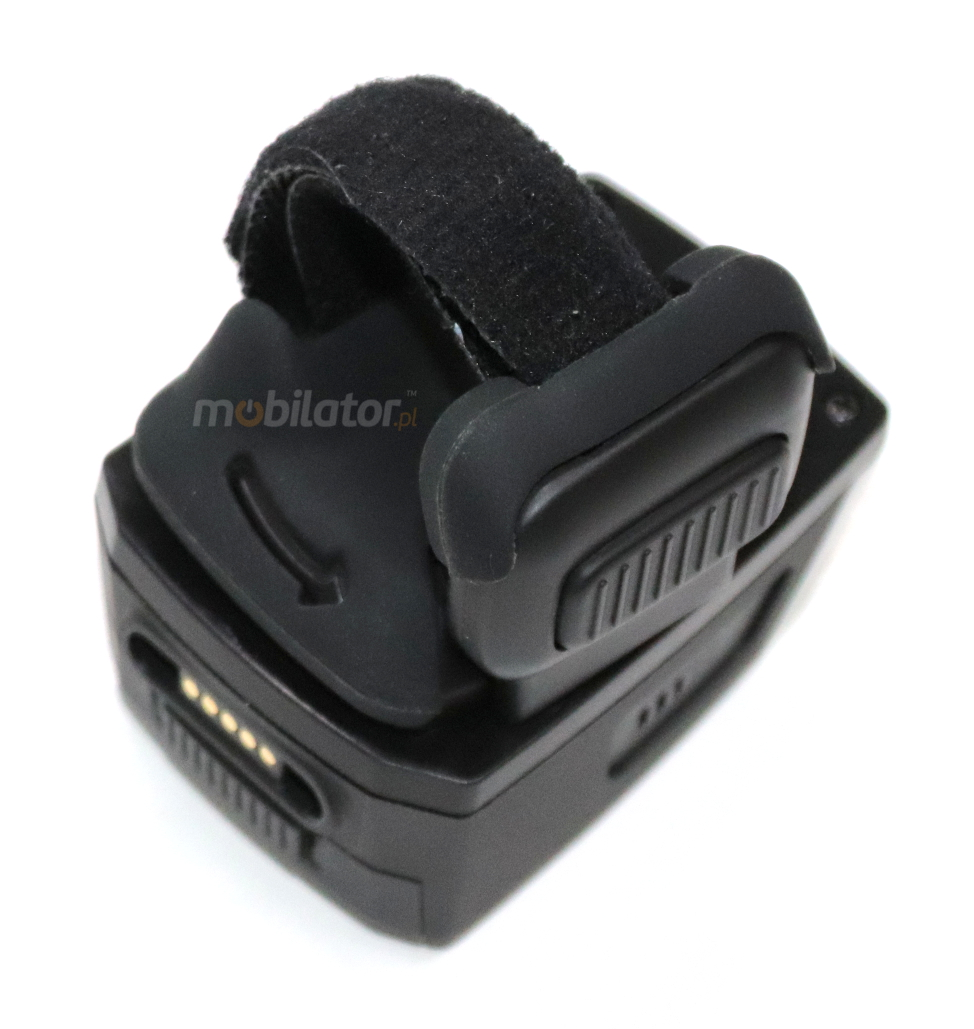

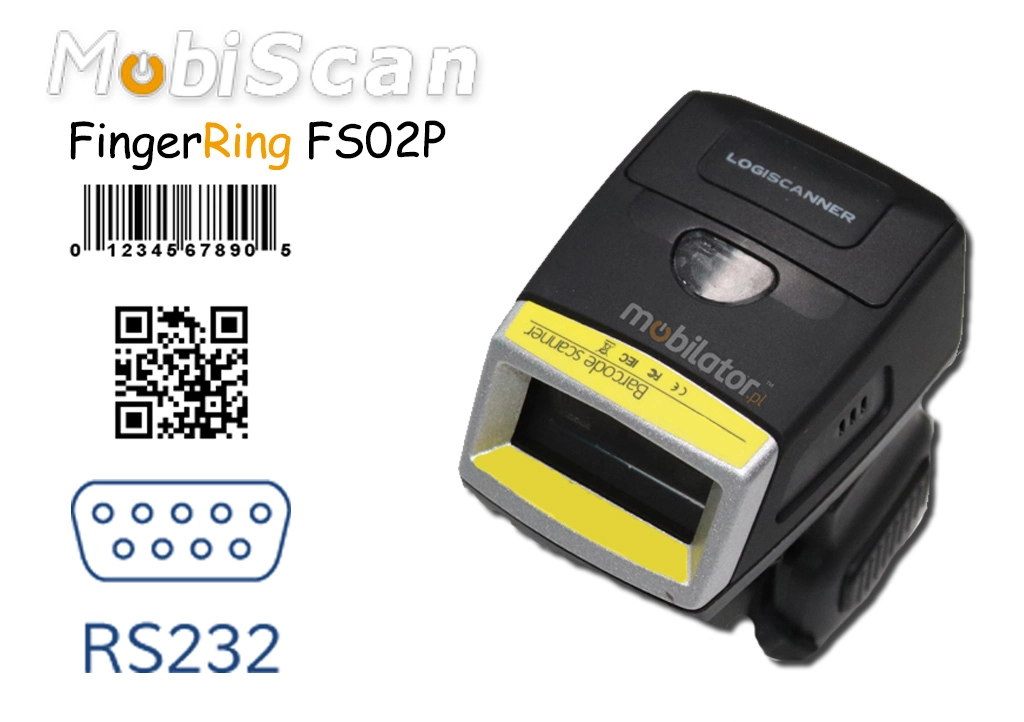

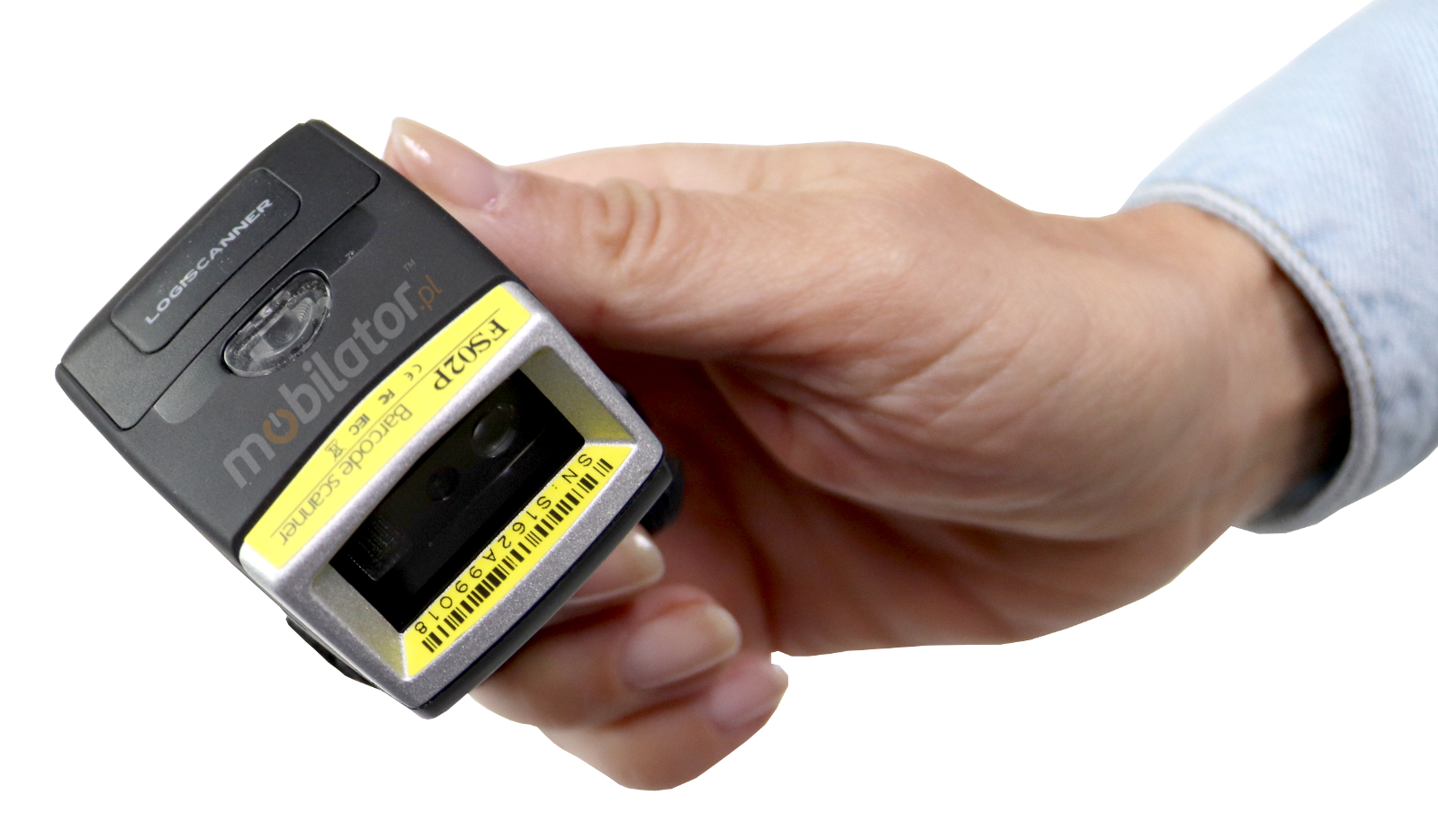

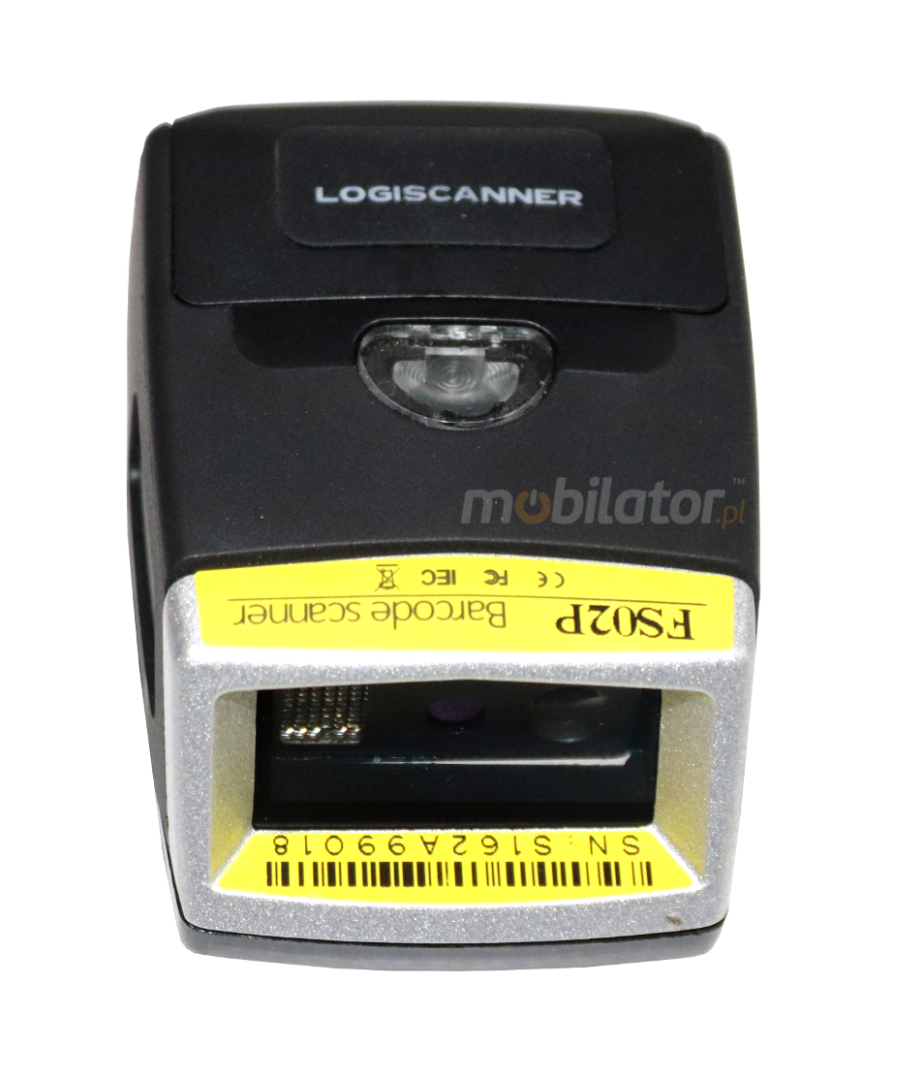

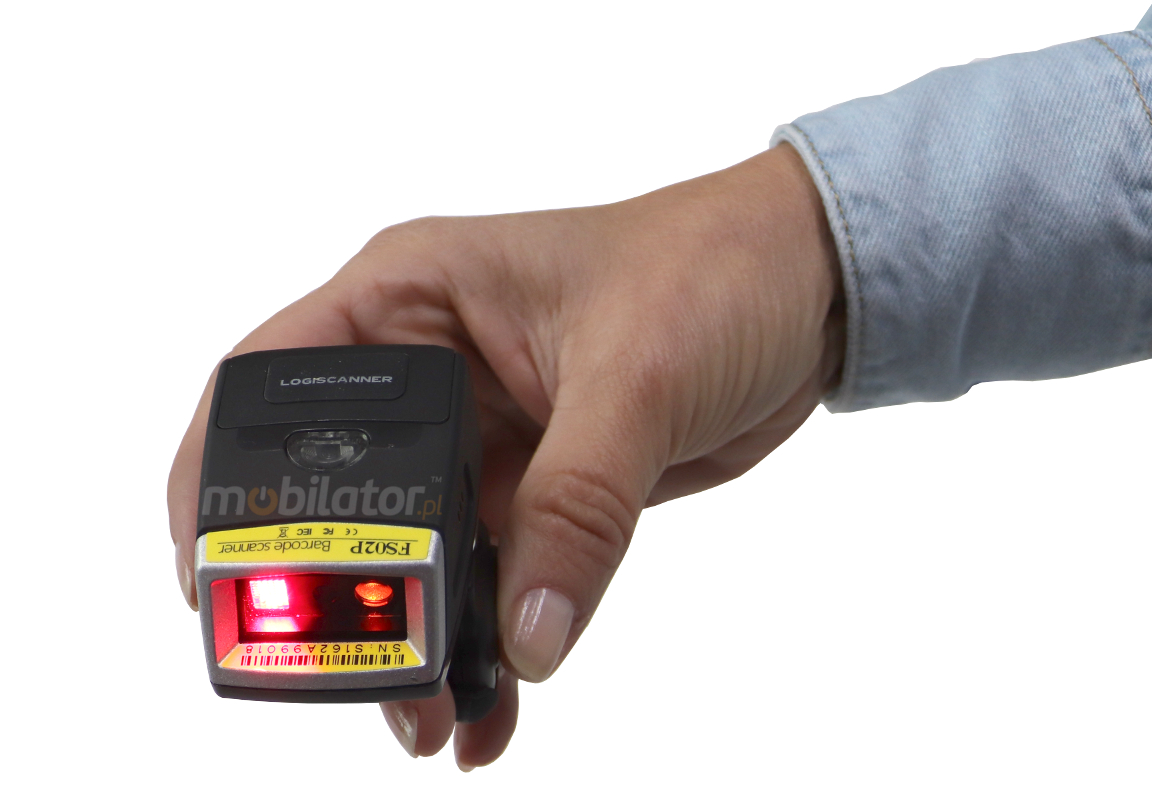

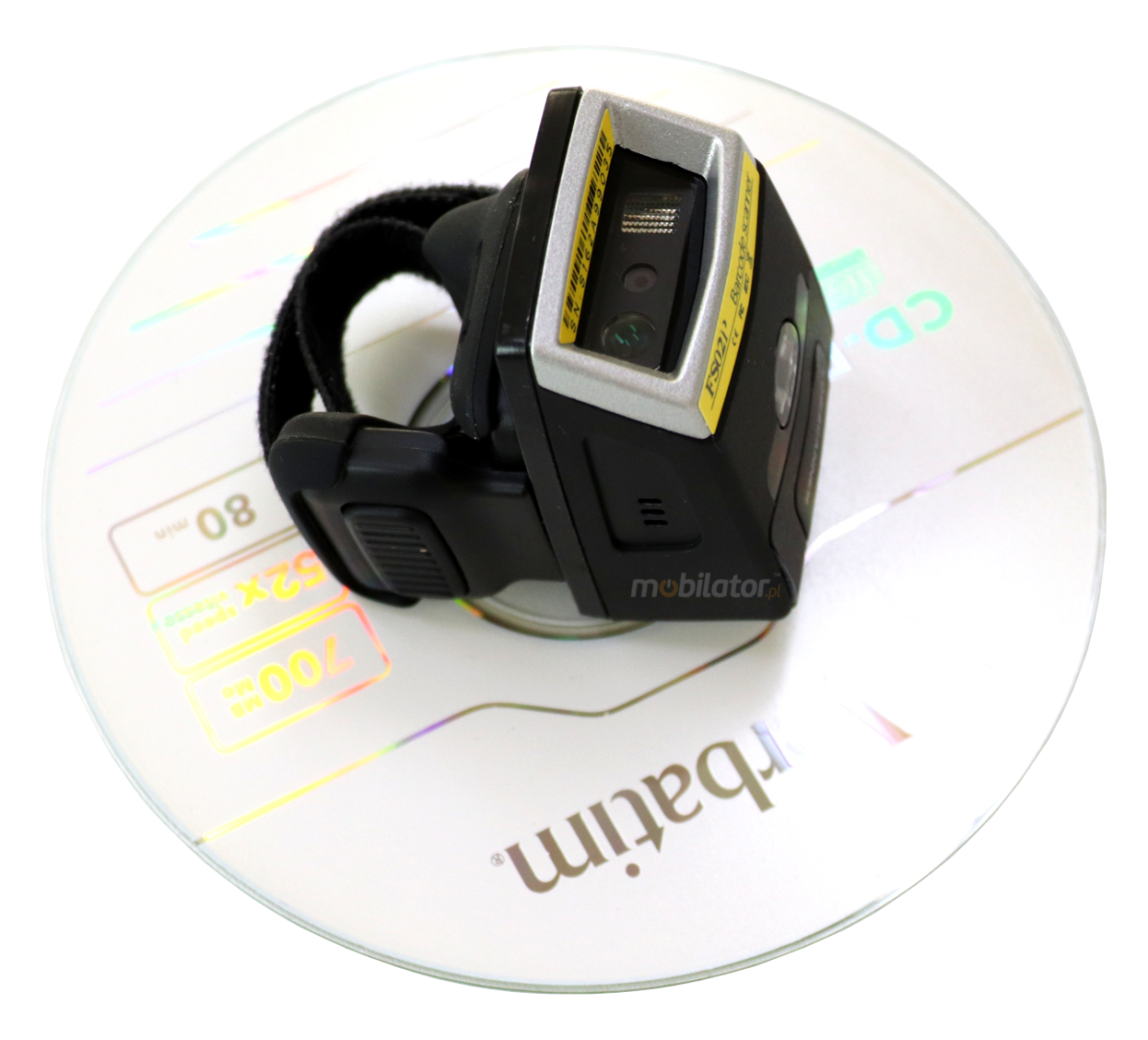

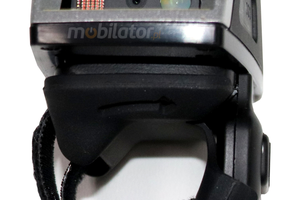

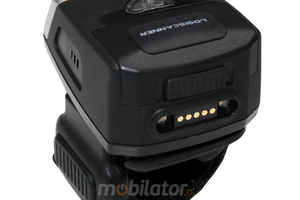

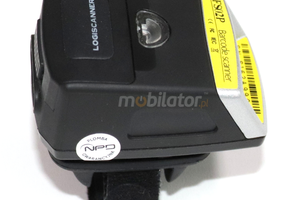

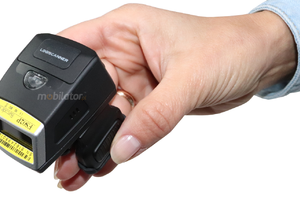

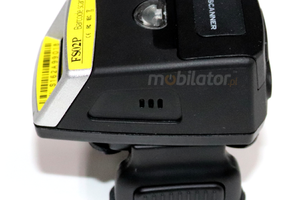

Fingering FS02P - mini barcode scanner 1D/2D - Ring - Bluetooth

Net

202.41 €

Gross

248.96 €

Negotiate the price

Compare

Store

Buy now!

Details

Fingering FS02P - mini barcode scanner 1D/2D - Ring - Bluetooth

» Very small size: 55 x 39.2 x 51.2mm
» Working time: 4h / Range: Up to 10m
» Scan Engine: SE2707 / Resistance: IP65
» Connectivity: Bluetooth 3.0 (HID / SPP)
» Compatible: Windows / Android / iOS / Linux

Net

210.54 €

Gross

258.97 €

Negotiate the price

Compare

Store

Buy now!

Details

Fingering FS02P - mini barcode scanner 1D/2D - Ring - Bluetooth

Net

215.06 €

Gross

264.53 €

Negotiate the price

Compare

Store

Buy now!

Details

Fingering GS02 - mini barcode scanner 1D/2D - Ring - Bluetooth

» Very small size: 55 x 39.2 x 51.2mm
» Working time: 4h / Range: Up to 20m
» Engine: Zebra SE2707 (1D/2D) / Resistance: IP65
» Connectivity: Bluetooth 3.0 (HID / SPP)
» Compatible: Windows / Android / iOS / Linux

Net

216.87 €

Gross

266.75 €

Negotiate the price

Compare

Store

Buy now!

Details
