| Mini-PC IBOX N3 | ||
|---|---|---|
| Processor |
Intel Celeron J1900Quad Core | 2.0 GHz | 2 MB L2 Cache |
|
| Operating system |
Support: Windows 7/8/10 Linux |
|
| RAM | 4GB | 8GB* DDR3L | |
| Hard drive |
SSD: 64|128*| 256*|512* GB HDD: 500GB*|1TB*|2TB * |
|
| Graphics card | Integrated Graphic Card | |
| Communication |
Bluetooth WiFi LAN: 2x Intel RTL8111E 1000M LAN |
|

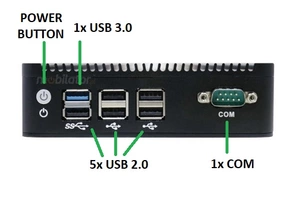

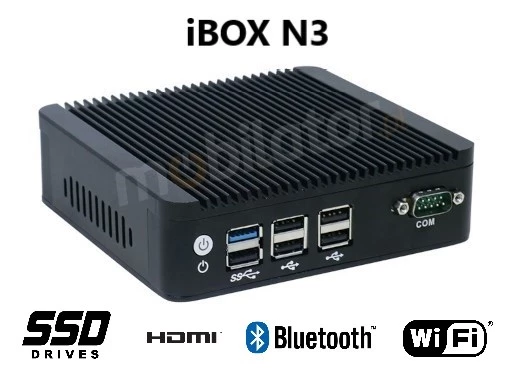

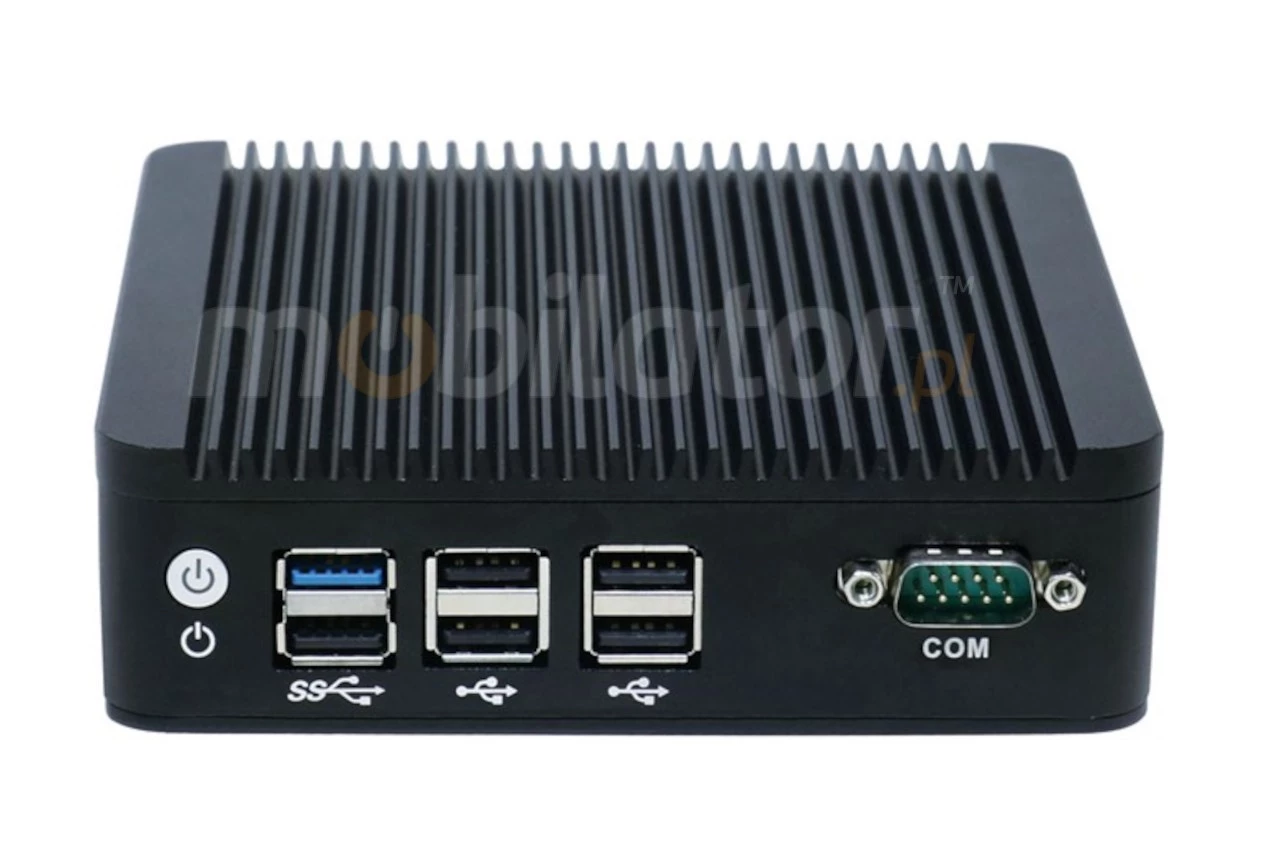

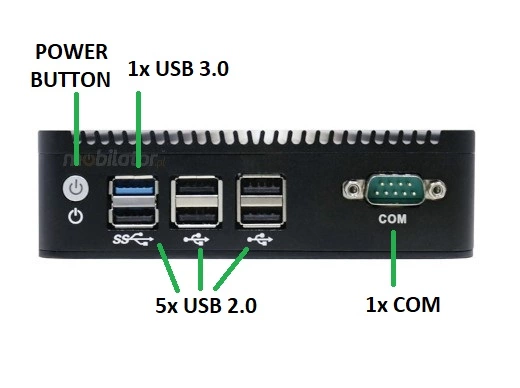

| Connectors - front panel |
1xUSB 3.0 | 5xUSB 2.0 | 1xCOM | Power button |
|

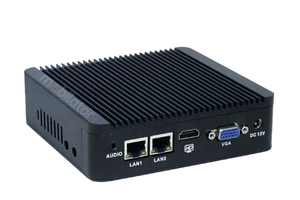

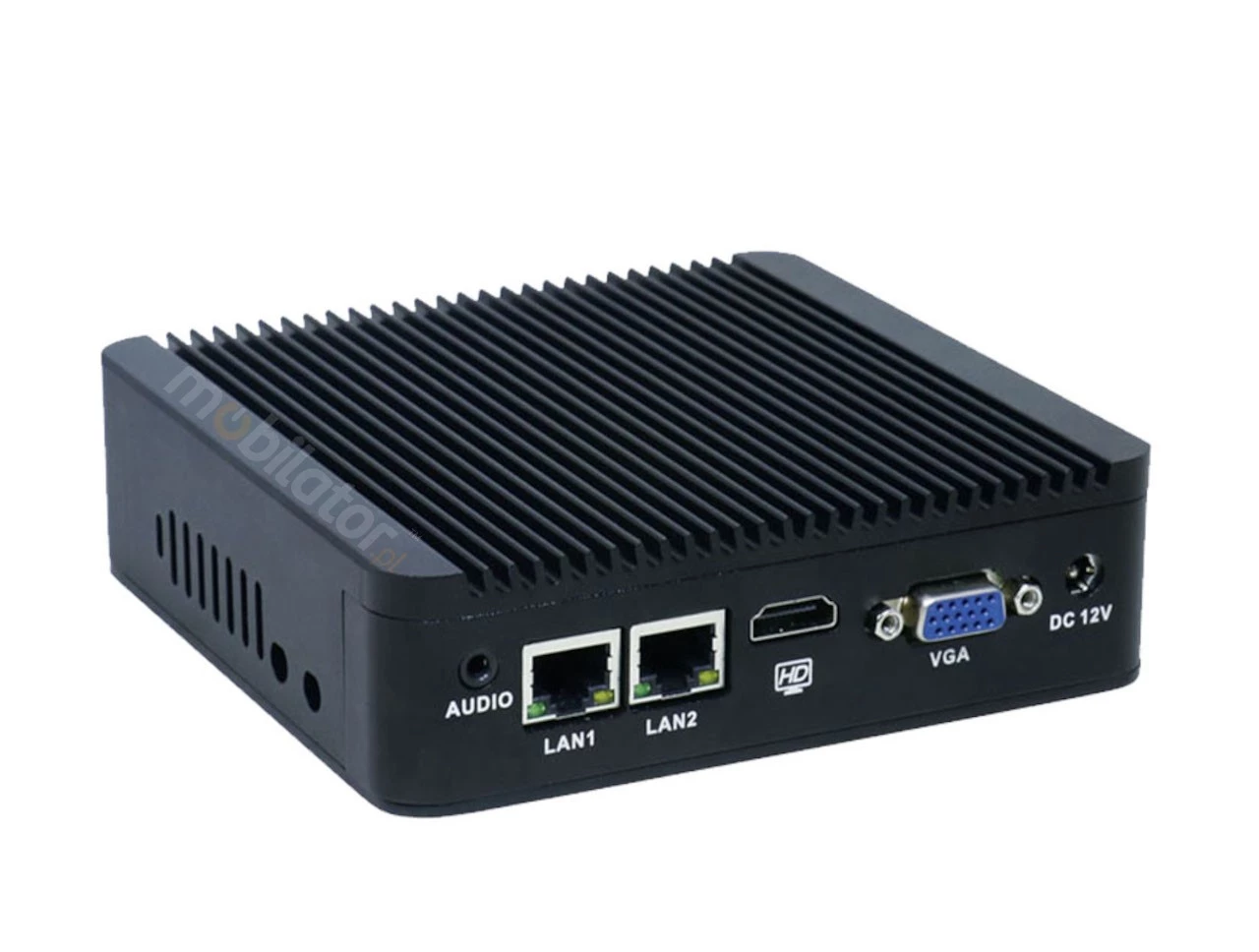

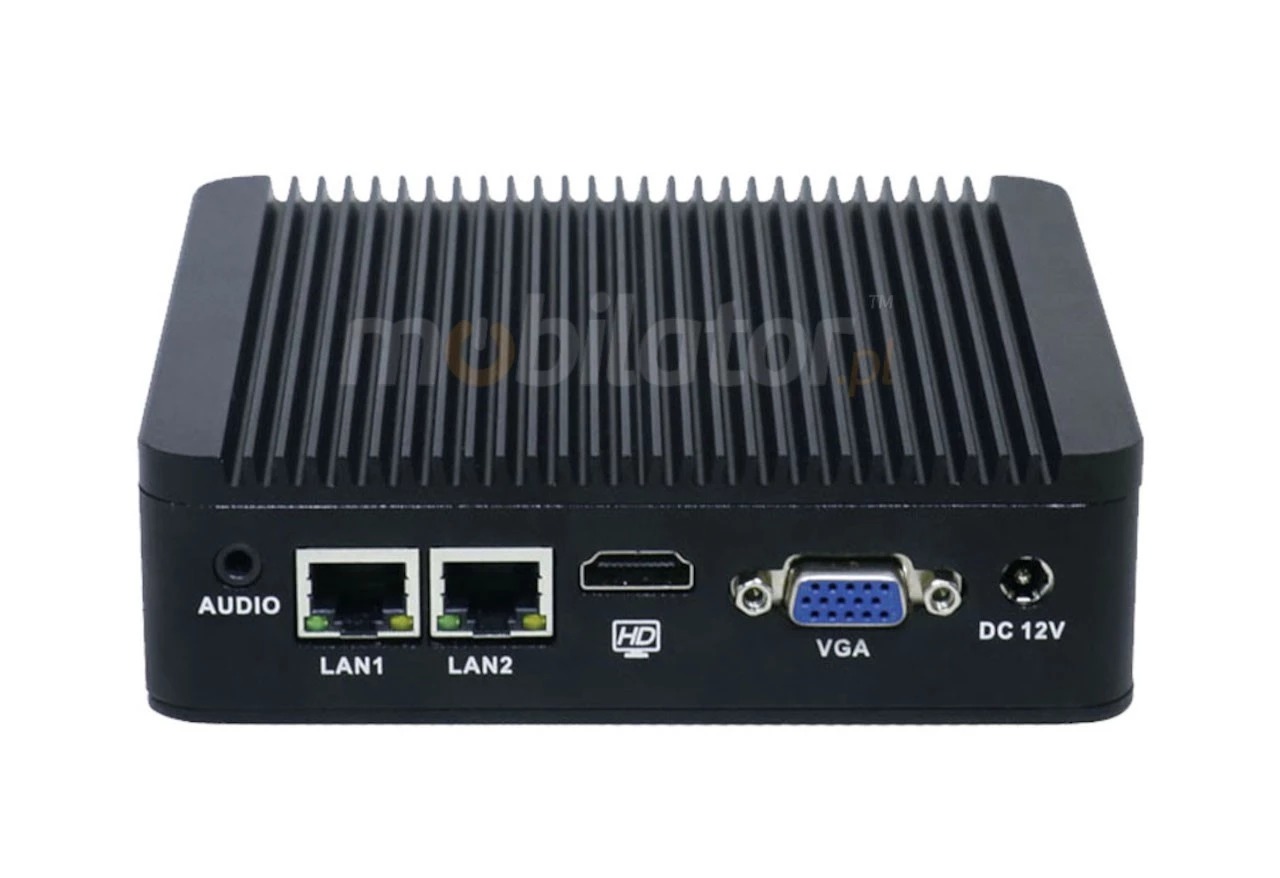

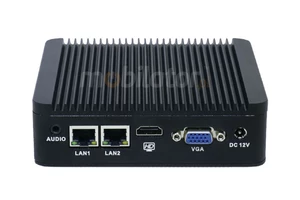

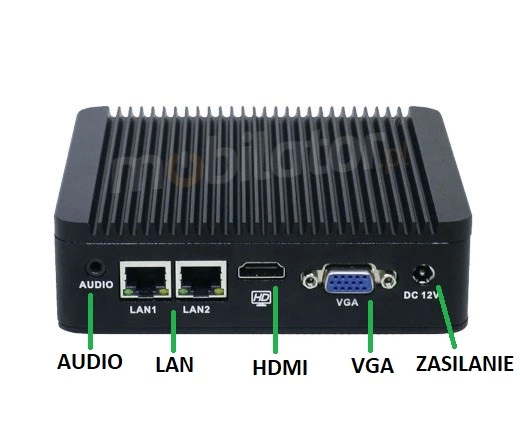

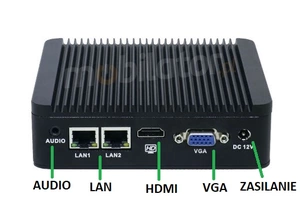

| Connectors - rear panel |
2x LAN | 1xHDMI | 1xVGA | Audio |
|
| Colors |
black (can be customized) |
|

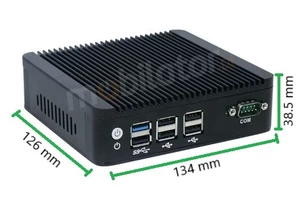

| Dimensions | 134 x 126 x 38,5 mm | |
| Weight | 0,7 kg | |
* Optional equipment, available only in specific versions of the device or on request.
The industrial mini computer IBOX N3 uses a powerful and energy-saving Intel Celeron J1900 processor. Inside, there are four cores that work together to efficiently process multiple tasks simultaneously. A shared cache that uses a multi-level hierarchy is dynamically allocated to each processor core based on workload. This leads to a reduction in the average access time to main memory. Provides greater manageability by reducing downtime and maintaining high performance by partitioning your computing processes into separate partitions.
Thanks to its small dimensions, the MiniPC is versatile both at home, in the office and in industry, for example in a production hall. It fits literally anywhere.

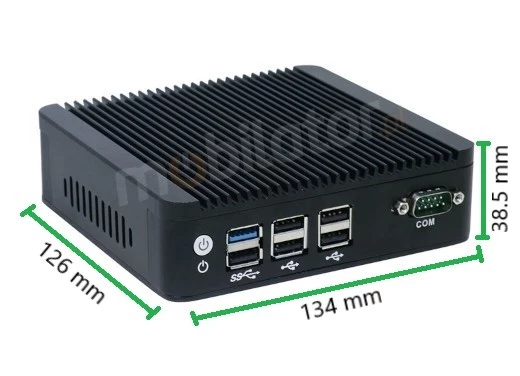

| Dimensions |
134 x 126 x 38,5 mm |
| Net weight | 0,7 kg |

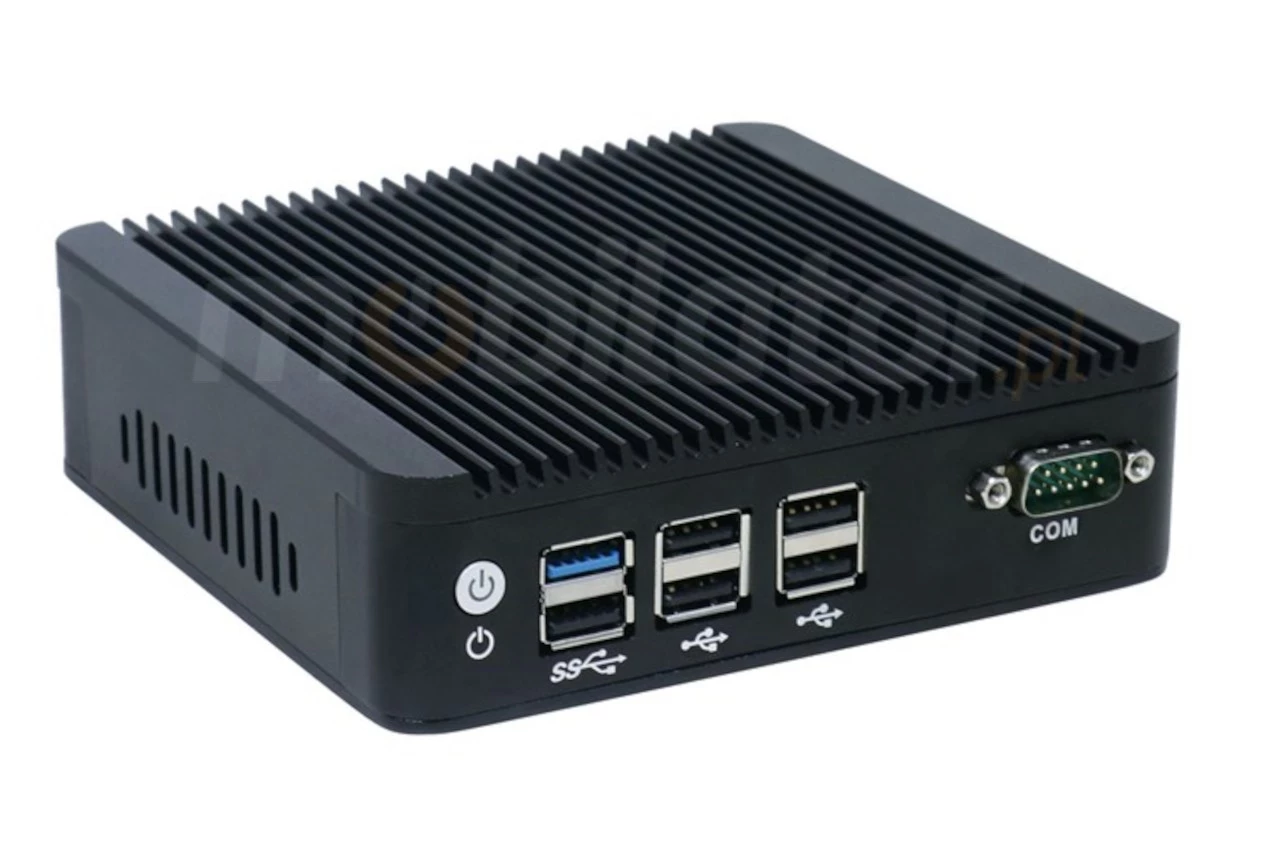

The industrial Mini PC uses a proven cooling system based only on solid elements, mainly heat sinks. This system uses the phenomenon of metals giving off heat energy to the environment - there are no additional moving elements such as fans. This solution ensures noiseless operation, lower failure rate and greater protection against dust and other dirt while reducing the amount of energy consumed.
IBOX N3 is designed for continuous operation both in very low and high temperatures in the range from -10 ° C (SSD) / 10 ° C HDD to 60 ° C.
| Temp. Work | -10°C SSD/10°C HDD to +60°C |
| Humidity | 5～95% relative humidity, non-condensing |

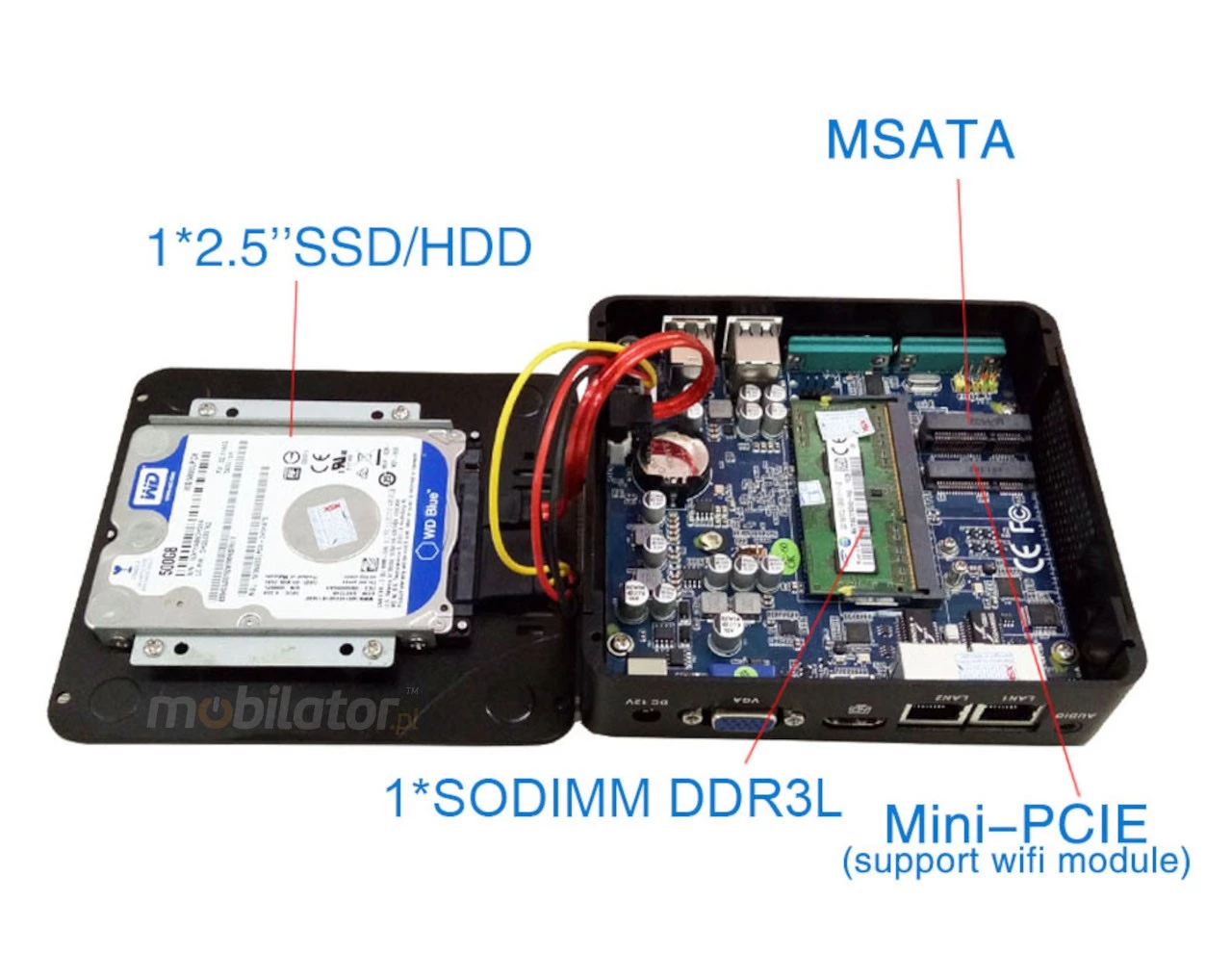

The passive cooling system used in IBOX N3 in conjunction with a plateless SSD drive makes this computer very resistant to various types of mechanical damage. An additional advantage of industrial computers is a solid structure made of high-quality aluminum and specially designed in such a way that, in addition to high efficiency in heat dissipation, it can also resist any external damage.
The Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. It is a convenient solution for people who have a router and a wireless network in their place of work or residence, which can be used at no additional charge. The industrial Mini PC IBOX N3 can be equipped with the technology standard - 802.11n, which allows you to transfer files at dizzying speeds up to 300 Mb / s.
We also have the option of extending our device with a Buetooth 4.0 module for communication with nearby devices.
MiniPC IBOX N3 has a built-in Realtek network card that can work in a fast Gigabit Ethernet network.
Mini PC is an ideal tool supporting us in the implementation of many activities in the field of trade, small dimensions increase the possibility of its adaptation to such activities as invoicing or preparing documentation, which in turn allows us to conveniently and optimally manage sales.
Thanks to its high performance, the industrial computer can be used to connect multiple devices in the warehouse and greatly facilitate their management. Its durable housing and fanless cooling system are perfect for the harsh conditions in such rooms. The solid construction guarantees long-term operation, even in dusty and dirty environments.
A small industrial computer can be used in transport thanks to the possibility of working with a 12V power supply. Then the mini computer can be used in passenger cars, buses, trams, taxis, trains and even in airplanes. It allows the driver to be informed about the current state of the vehicle, its current position to the management center, displaying information for passengers, etc. It will fulfill its functions very well in vehicles where small dimensions of the device are important.
The industrial mini computer IBOX N3 is offered in several versions tailored to different needs. In addition, at the customer's request, it is possible to create a configuration currently unavailable in the offer.
| v.2 | v.3 | v.4 | v.5 | v.6 | v.7 | v.8 | v.9 | Barebone | |
|---|---|---|---|---|---|---|---|---|---|
| WIFI | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | — |
| BLUETOOTH | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | — |
| 4GB RAM | ✔ | ✔ | — | — | — | ✔ | — | — | — |
| 8GB RAM | — | — | ✔ | ✔ | ✔ | — | ✔ | ✔ | — |
| 64 GB SSD | ✔ | — | — | — | — | — | — | — | — |
| 128GB SSD | — | ✔ | ✔ | — | — | — | — | — | — |
| 256 GB SSD | — | — | — | ✔ | — | — | — | — | — |
| 512 GB SSD | — | — | — | — | ✔ | — | — | — | — |
| 500GB HDD SATA | — | — | — | — | — | ✔ | — | — | — |
| 1TB HDD SATA | — | — | — | — | — | — | ✔ | — | — |
| 2TB HDD SATA | — | — | — | — | — | — | — | ✔ | — |
;)
;)
;)
;)
;)
;)
;)
;)
;)
