Product Update Date: 2015-08-04

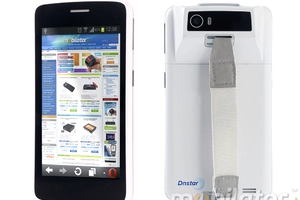

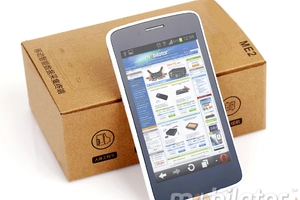

Industrial collector SMARTPEAK ME2SP-1D-SE955 Android v.2

Name: Industrial collector SMARTPEAK ME2SP-1D-SE955 Android v.2
Brand: SMARTPEAK
Price: 3039.61 PLN
Availability: InStock

+10

Update Date: 2015.08.04

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

Description
The collection and processing of data
Resistance
Modules and Wireless Networks
Minimalism

Smartpeak ME2 SP has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP54 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.

Description

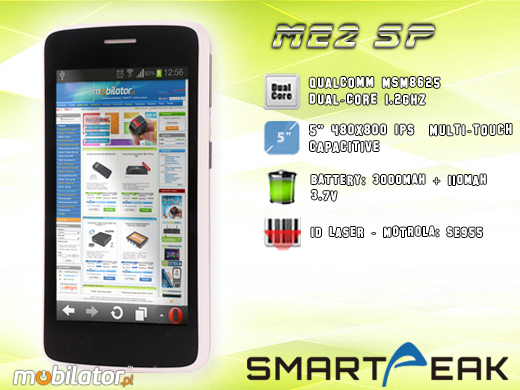

Kolektor przemysłowy SMARTPEAK ME2SP-1D Android RUGGED DATA COLLECTOR ME2SP 1 d barcode scanner czytnik kodow kreskowych 1d 2d

Processor	Qualcomm MSM8625 Dual-core 1.2GHz
Display	5" (800x480) WVGA \| LCD \| Sunlight readable \| IPS \| Capacitive \| Gorilla Glass
RAM	512MB
ROM	4GB
Connectors	MicroSD : Micro USB
GPS	-----
Audio	AudioJack : Speaker : Microphone
Camera	5Mpx
Battery	3.7V; 3000mAh + 110mAh Li-Ion

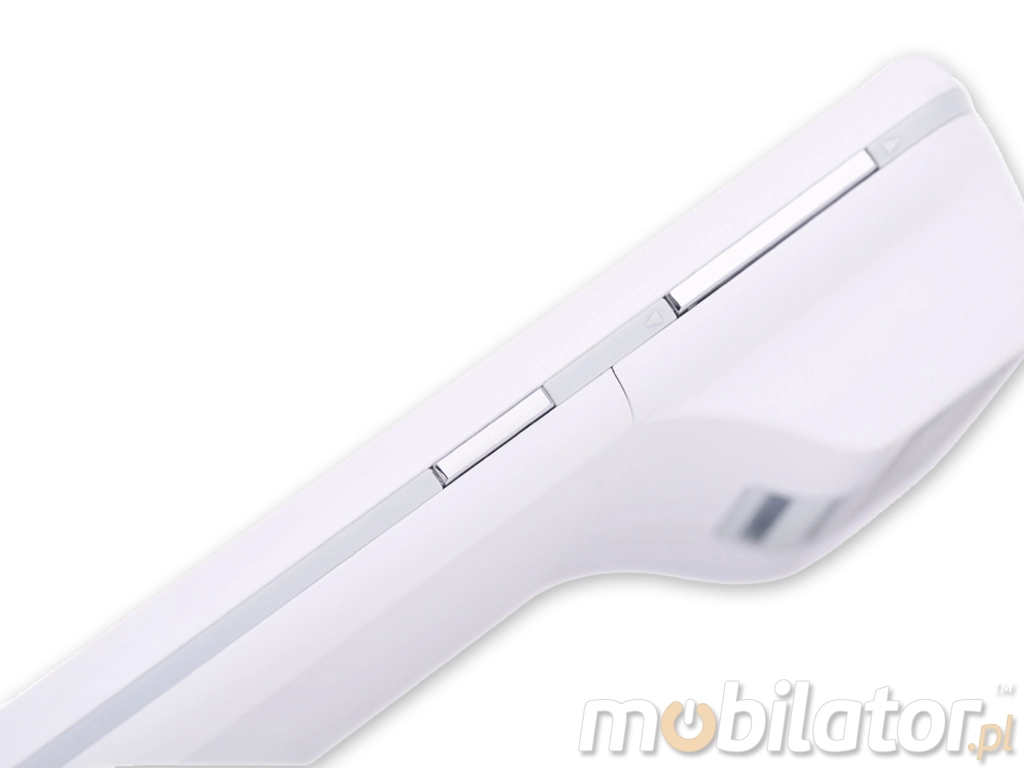

Keyboard	On-Screen + function keys
Environment	Android 4.1
Modules (factory)	WiFi : Bluetooth 4.0
Dimensions	150 mm x 80 mm x 12 mm - 260 g
Resistance	IP54
Readers (optional)		1D - MINDEO (LASER)
		1D - MOTROLA: SE955 (LASER)
		1D/2D -MOTROLA SE4500 (CMOS)
Sensors	Triaxial gravity sensor

Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

Select a version for yourself

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".

	1D (Laser)	1D (LASER)	1D/2D (CMOS)	Camera
v.1		-	-
v.2	-		-
v.3	-	-

go top... menu…

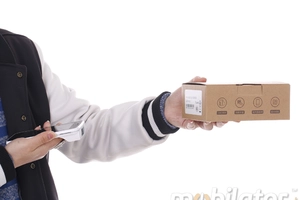

The collection and processing of data

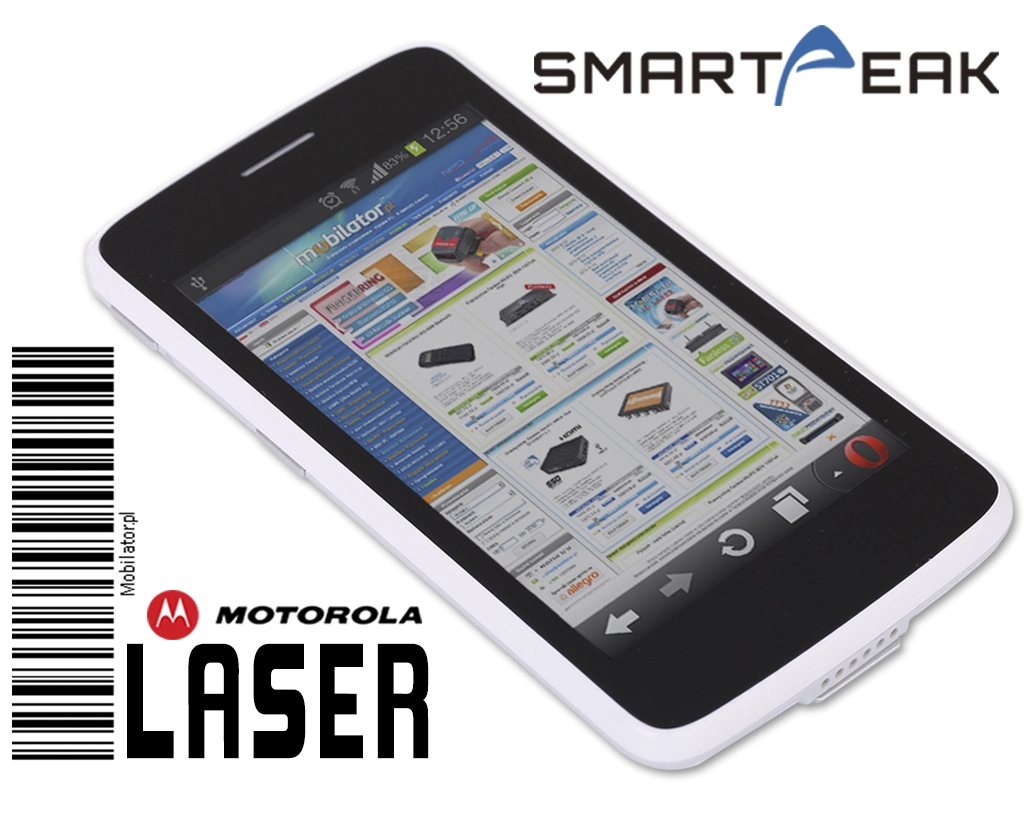

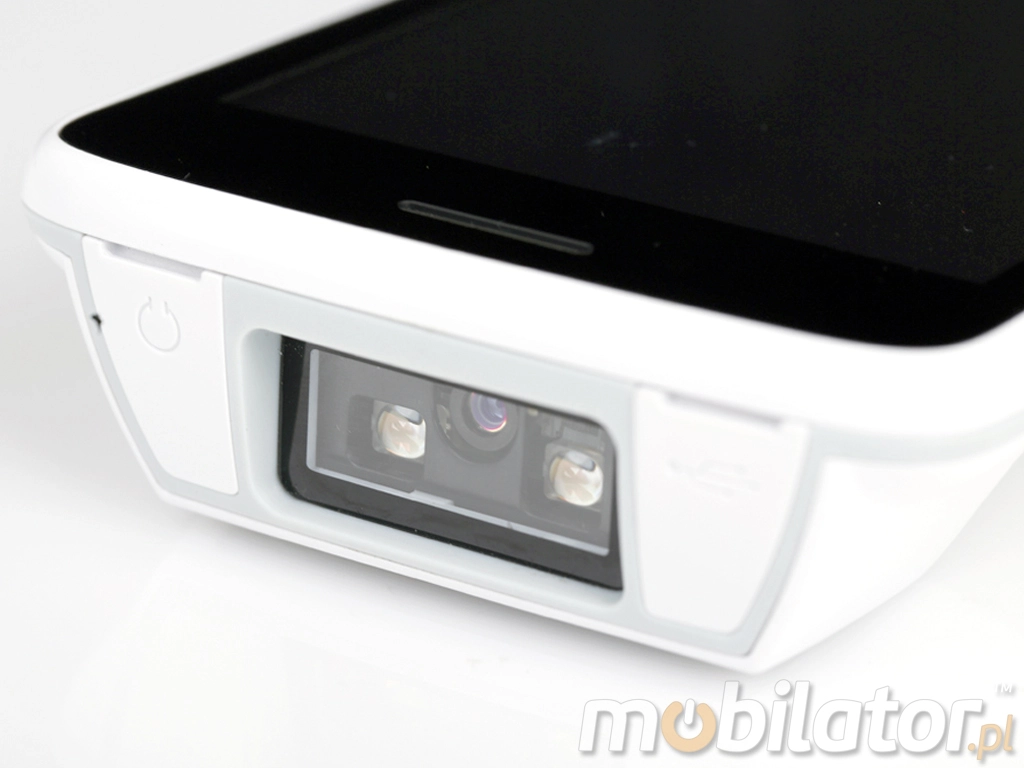

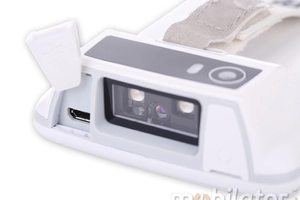

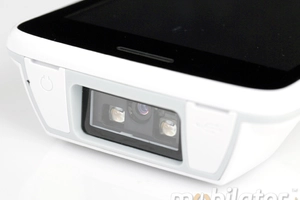

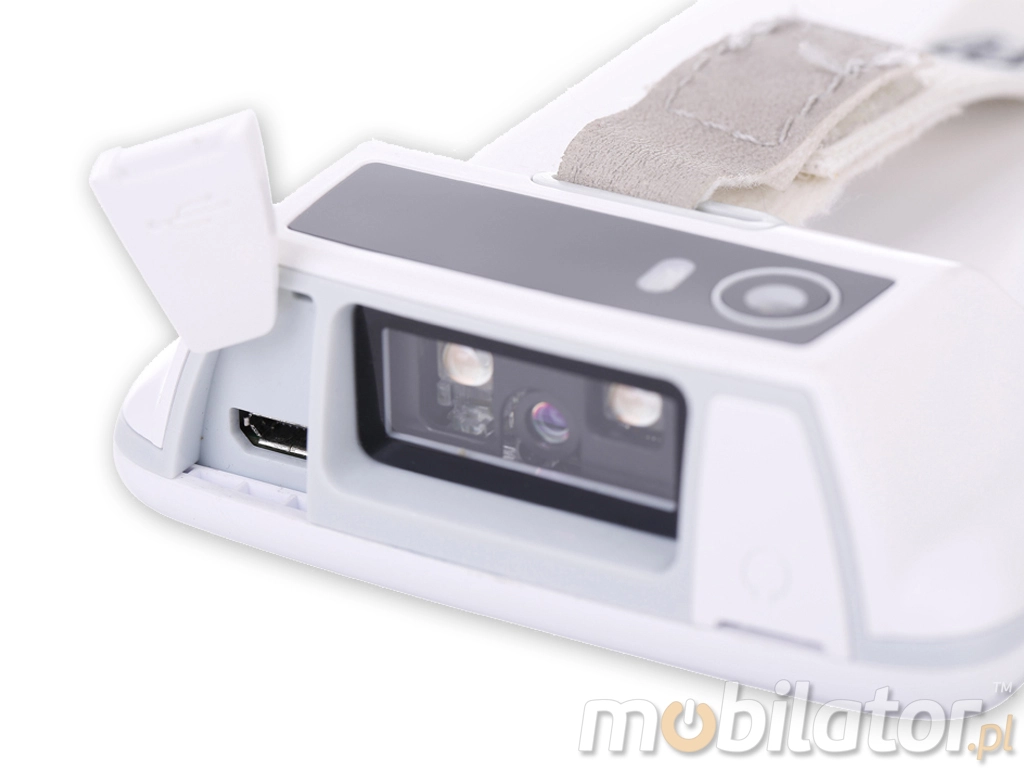

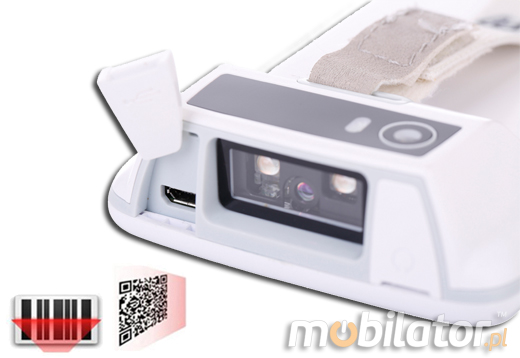

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

1D	1D / 2D
MINDEO (Laser)	MOTOROLA: SE4500 (CMOS)
MOTOROLA: SE955 (LASER)

Kolektor przemysłowy SMARTPEAK ME2SP-1D Android RUGGED DATA COLLECTOR ME2SP 1 d barcode scanner czytnik kodow kreskowych 1d 2d

go top... menu…

Resitance

Applicable standards

Operating	-20°C -- +60°C
Storage	-40°C -- +80°C
Humidity	10% - 90% RH \| non-condensing
Dust	IP5x (dust)
Water	IPx4 (water)
Drop	Multiple drops to concrete 4.0ft./1m the entire operation range

go top... menu…

Kolektor przemysłowy SMARTPEAK ME2SP-1D Android RUGGED DATA COLLECTOR ME2SP 1 d barcode scanner czytnik kodow kreskowych 1d 2d

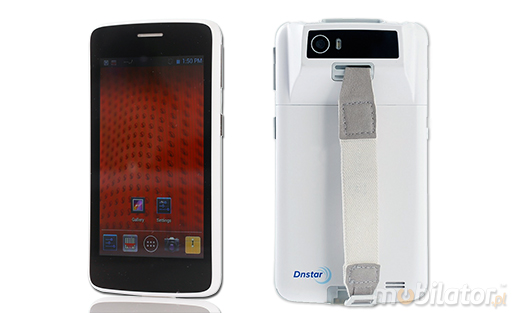

IP54 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

No special protection

No waterproofing

Protection from solid objects greater than 50mm in diameter

Protection from dripping water

Protection from solid objects greater than 50mm in diameter

Protection from vertically dripping water (tilted up to 15°)

Protection from object not greater than 2,5mm in diameter

Protection from sprayed water (tilted up to 60°)

Protection from object not greater than 1mm in diameter

Protection from splashed water

Complete protection against contact, Protection against dust deposit

Protection from splashed water

Complete protectionm against contact, Protection from infiltration of dust

Protection from water projected from a nozzle

Protection against immersion

Protection against complete, continuous submersion in water

go top... menu…

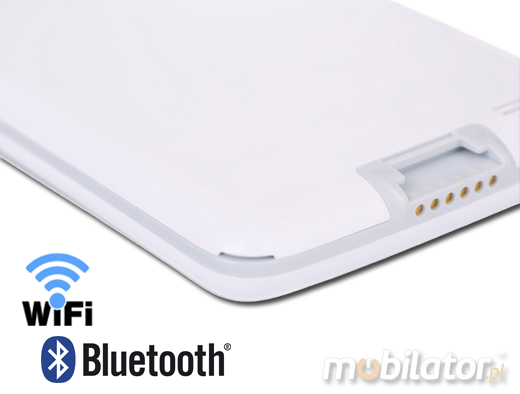

Modules and Wireless Networks

Kolektor przemysłowy SMARTPEAK ME2SP-1D Android RUGGED DATA COLLECTOR ME2SP 1 d barcode scanner czytnik kodow kreskowych 1d 2d

With the Wi-Fi module, you need only connect to a wireless network to anywhere have access to the Internet. The integrated software allows you to automatically recognize and configure the network connection. In addition, the ME2 SP used ininternal Bluetooth module, through which we can connect external devices.

WiFi	802.11a b/g/n
Bluetooth	Bluetooth 4.0 + EDR; Class II

go top... menu…

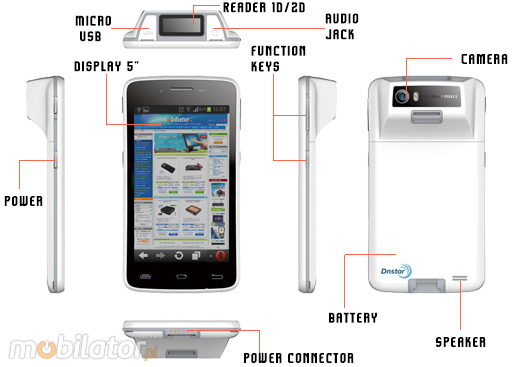

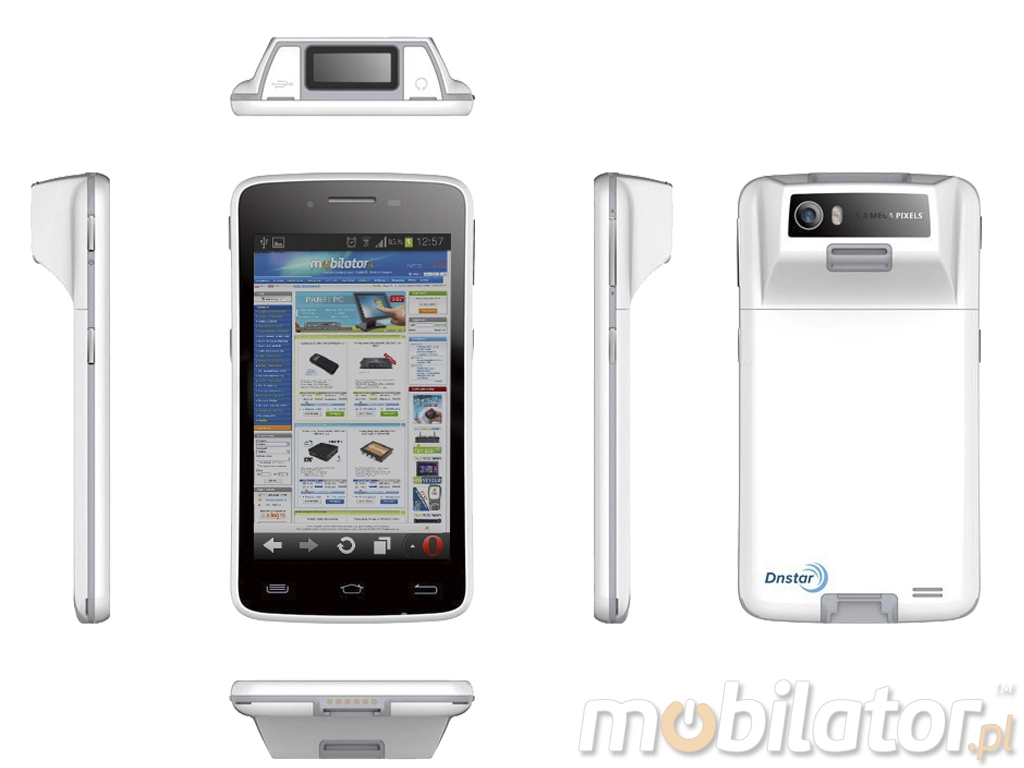

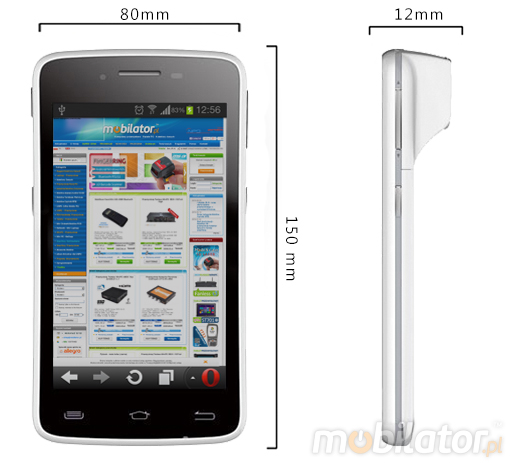

Minimalism

Kolektor przemysłowy SMARTPEAK ME2SP-1D Android RUGGED DATA COLLECTOR ME2SP 1 d barcode scanner czytnik kodow kreskowych 1d 2d

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have ME2 SP. The device weighs just 260g and its dimensions (150 x 80 x 12mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that ME2 SP is in a group of devices which enjoy great popularity in the European market in the industrial segment.

Kolektor przemysłowy SMARTPEAK ME2SP-1D Android RUGGED DATA COLLECTOR ME2SP 1 d barcode scanner czytnik kodow kreskowych 1d 2d

Dimensions	150 × 80 × 12mm
Weight	260g

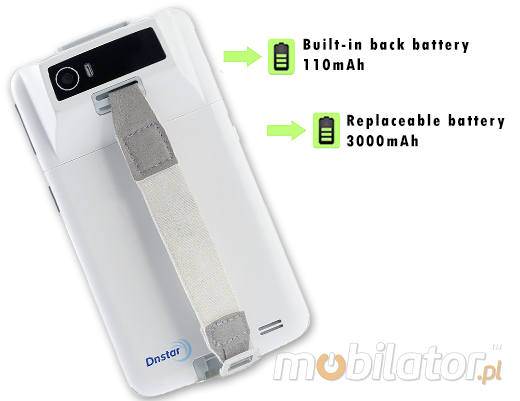

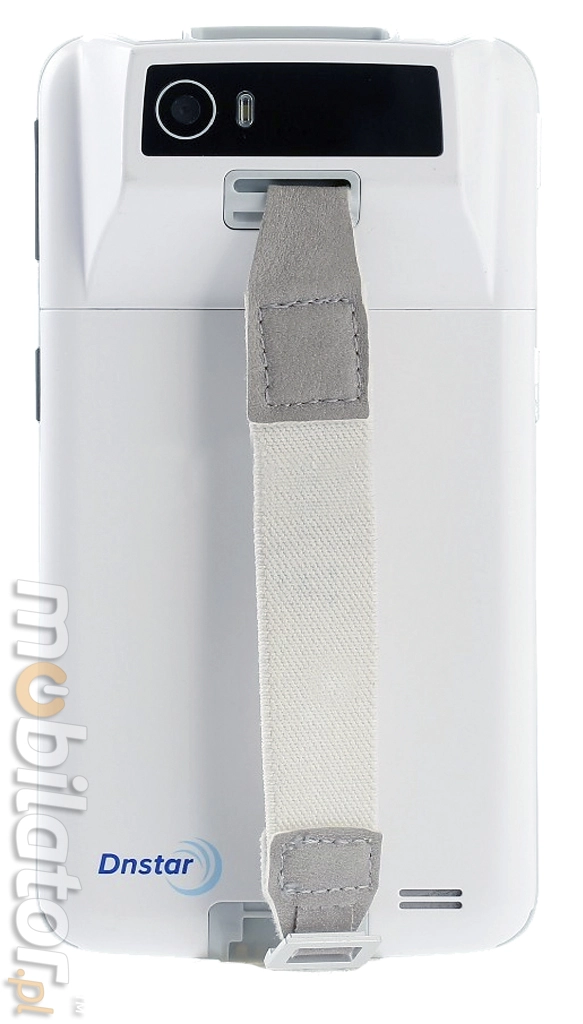

Quick change battery

Friendly design allows for fast replacement of the battery. This is useful when you working in the field with difficult conditions, where there is no additional power sources and the time is very important.

In addition, the use of hot-swap function known from mobile phones. Allows you to quickly connect additional battery without shutting down the operating system. So when you replace the battery will not lose valuable data.

Kolektor przemysłowy SMARTPEAK ME2SP-1D Android RUGGED DATA COLLECTOR ME2SP 1 d barcode scanner czytnik kodow kreskowych 1d 2d

go top... menu…

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

Operating System
Android 4.1
Display
5 ", capacitive, multi touch, WVGA (480x800), IPS, Corning Gorilla Glass, Sunlight readable
Brightness
350nits
Processor
Qualcomm MSM8625 Dual-core 1.2GHz
Memory
512MB
Hard Drive
4GB
Touch screen
Yes
Durability
IP54
Drop
1 meter
Shock
-----
Vibration
-----
Temperature
Operating temperature: -20°C -- +60°C
Storage temperature: -40°C -- +80°C
Humidity
10 to 90%(no condensation)
1D barcode scanner (reader)
1D LASER - Motorola SE955
2D barcode scanner (reader)
-----
RFID scanner (reader)
-----
Other

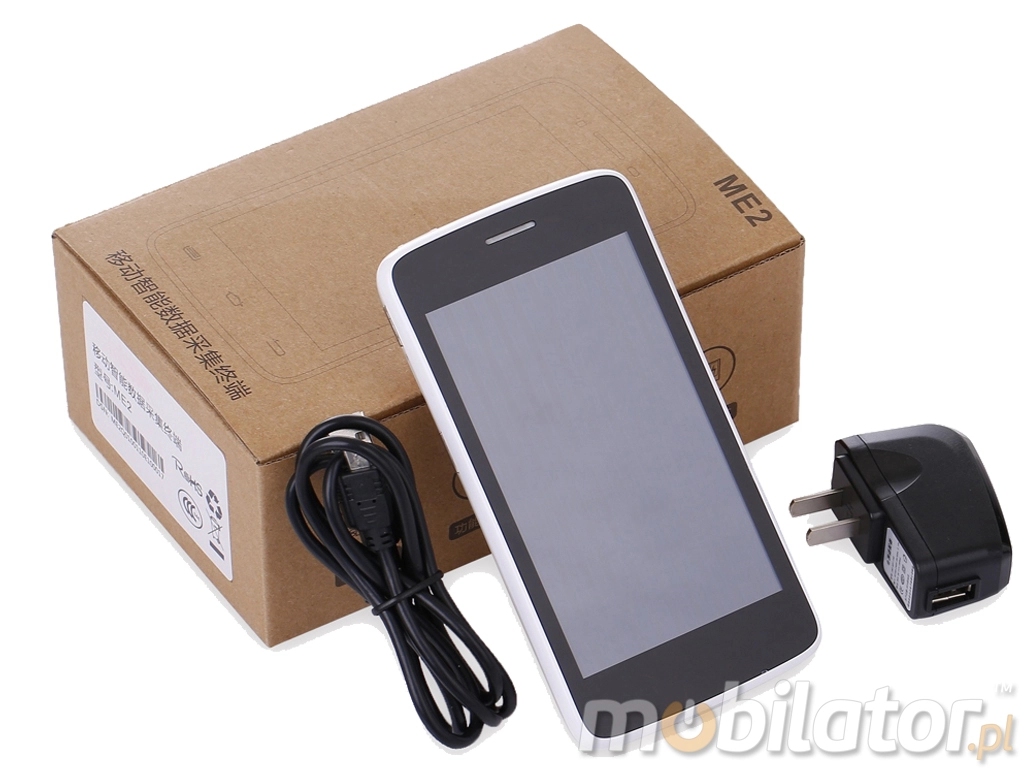

Factory accessories:
 - charger
 - hand strapSensors:
 - triaxial gravity
Battery
3.7V; 3000mAh + 110mAh Li-Ion
Working time on battery
7h
Fast battery replacement ability
Yes
HotSwap battery
No
LAN
No
WLAN
802.11b/g/n internal antenna
Bluetooth
Bluetooth 4.0 + EDR
WAN
-----
GPS
-----
Camera
Yes - 5Mpx
In/Out
micro USB (support OTG), AudioJack, Mirco SD card slot (max.32GB)
Optional accessories
-----
Docking station connector
No
VESA standard – holders and mounts support
-----
COM port
-----
Magnetic card reader (MSR)
-----
Microchip card reader
-----
Contrast
-----
Graphics card
-----
Chipset
-----
BIOS
-----
Casing material
high quality plastic
Flash Card Reader
microSD (max. 32GB)
CD/DVD
-----
Audio
AudioJack : Built-in Speaker : Microphone
Keyboard
On-screen + (function keys)
Additional Navigation Devices
-----
Color
white
Swivel Hinge
-----
VGA out
No
TV Out
-----
TV Tuner
-----
Security
-----
Waterproof
IP54
Sand and dust
IP54
Size
150 mm x 80 mm x  12 mm - 260 g
Fanless casing
Yes
Responsible Entity / Distributor
New Portable Devices

Compare all versions


Industrial collector SMARTPEAK ME2SP-1D Android v.1
					5"(800x480) IPS LCD - Capacitive
Dual Core 1.2GHZ / 512MB RAM / 4GB ROM
WiFi : Bluetooth : Camera 5Mpx
Android 4.1 | IP54
1D LASER MINDEO

Product from the Archive - production finished

Industrial collector SMARTPEAK ME2SP-1D-SE955 Android v.2
					5"(800x480) IPS LCD - Capacitive
Dual Core 1.2GHZ / 512MB RAM / 4GB ROM
WiFi : Bluetooth : Camera 5Mpx
Android 4.1 | IP54
1D LASER - Motorola SE955

Product from the Archive - production finished

Industrial collector SMARTPEAK ME2SP-2D-SE4500 Android v.3
					5"(800x480) IPS LCD - Capacitive
Dual Core 1.2GHZ / 512MB RAM / 4GB ROM
WiFi : Bluetooth : Camera 5Mpx
Android 4.1 | IP54
2D CMOS - Motorola SE4500

Product from the Archive - production finished
