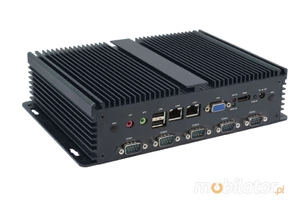

Industrial Fanless |
Description

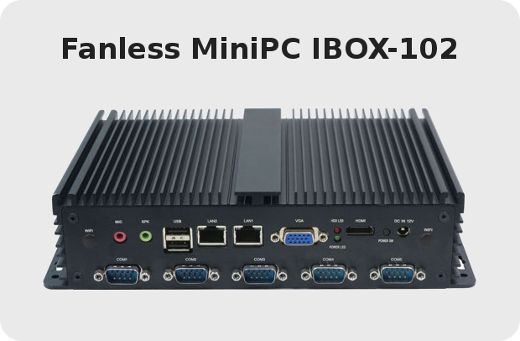

Housing dimensions are 234 (W) x 122 (L) x54 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

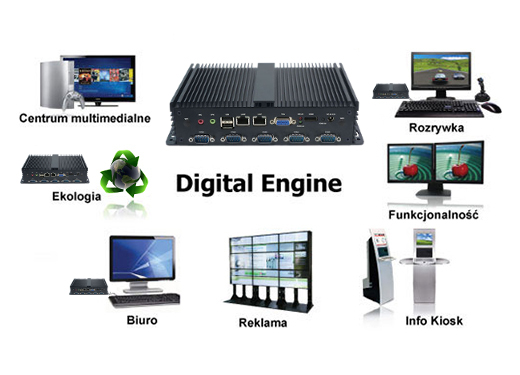

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 2GB/4GB DDR3 memory. Integrated Intel HD Graphics video allow you to play a wide range of applications - in Full HD quality. Disks offer free space 32GB/64GB/128GB SSD and 500GB HDD.
|
|
|
Communication & Connectors |
|

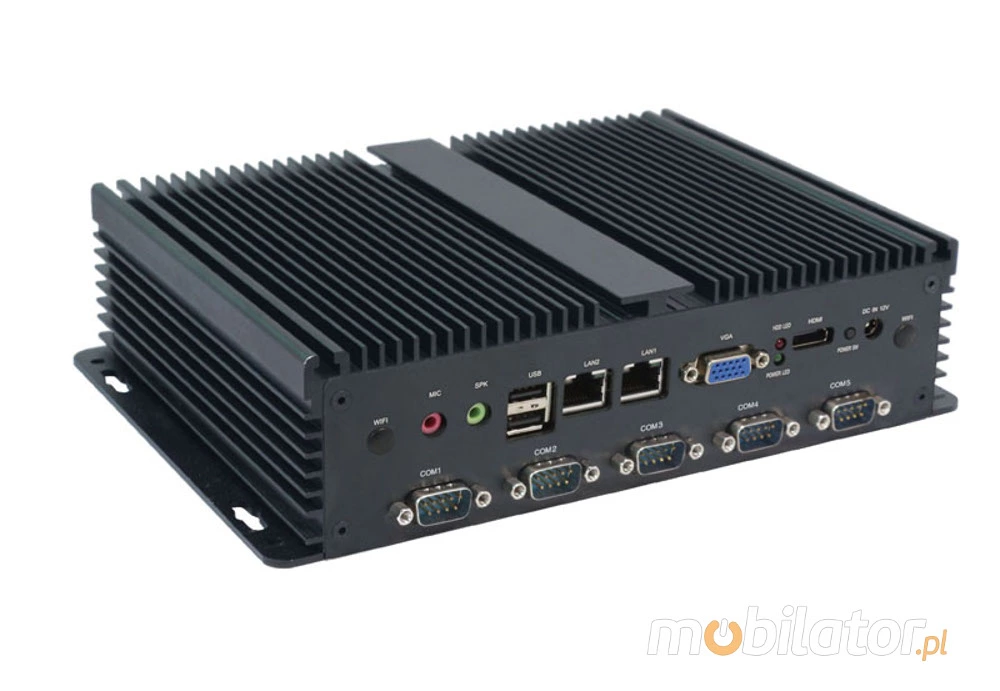

Integrated cards - Intel RTL8111E and the WiFi moduleallows connection to the network. The computer is equipped with: two RJ-45 LAN ports, one VGA port, one HDMI port, six USB 2.0 ports, six RS232 COM ports and a built-in connector on the motherboard: one mini SATA, one SATA slot and two Mini-PCIE connectors.

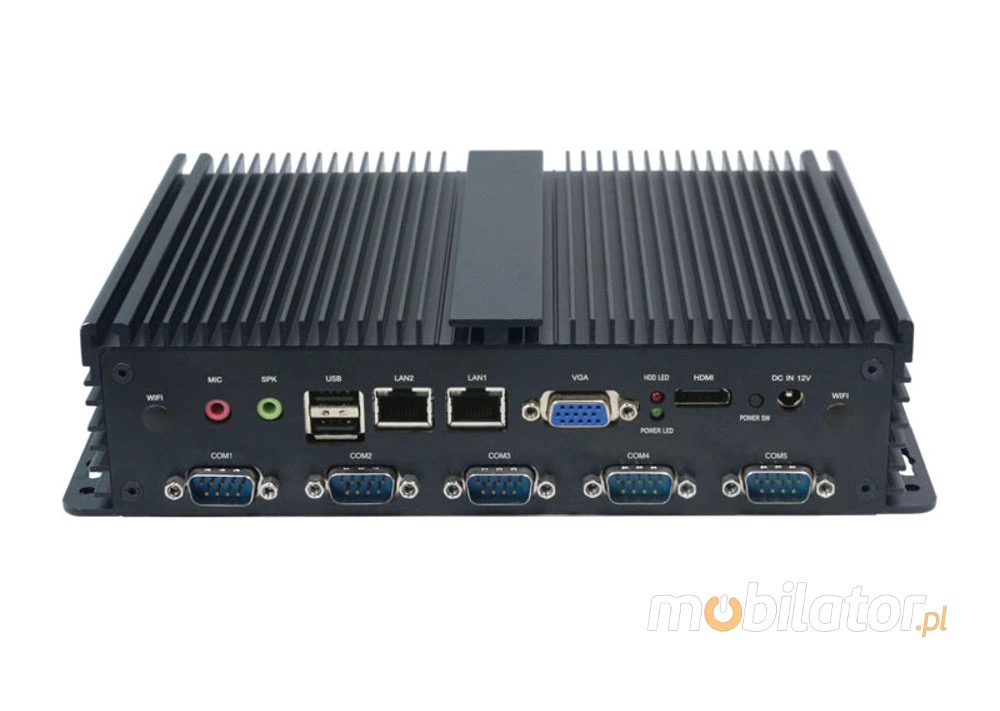

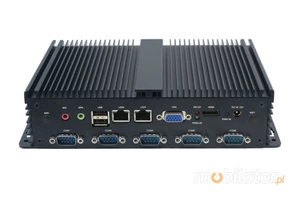

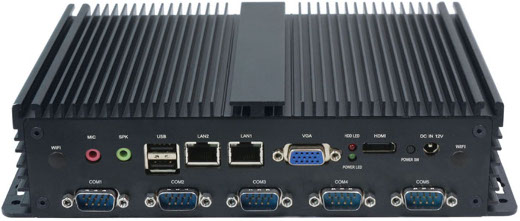

BACK:

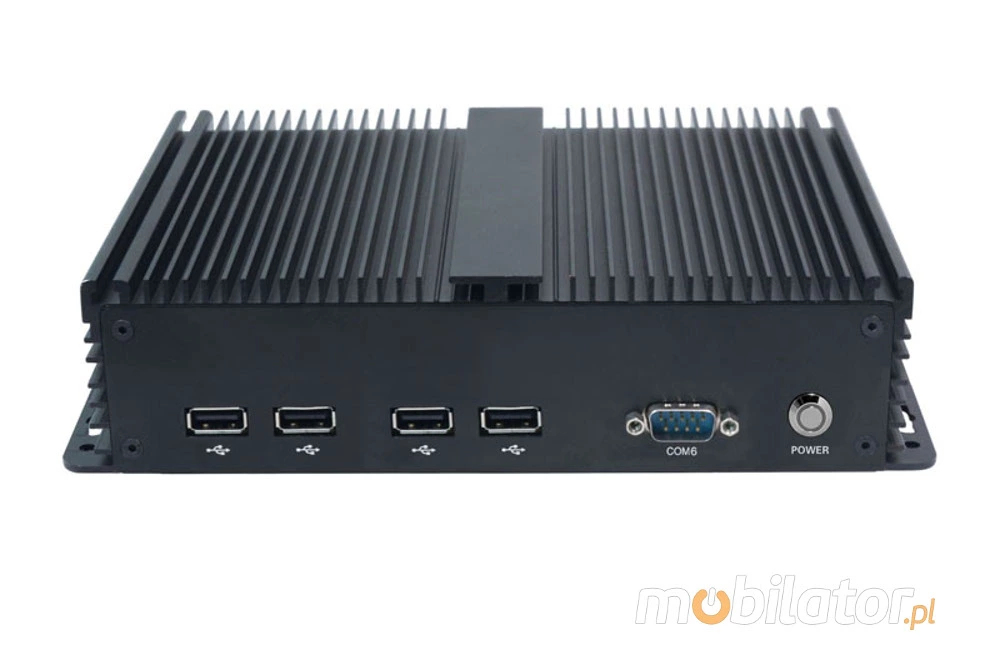

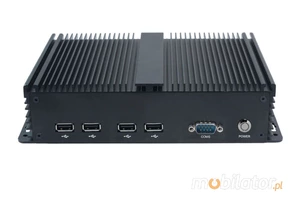

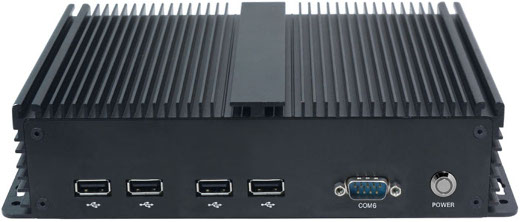

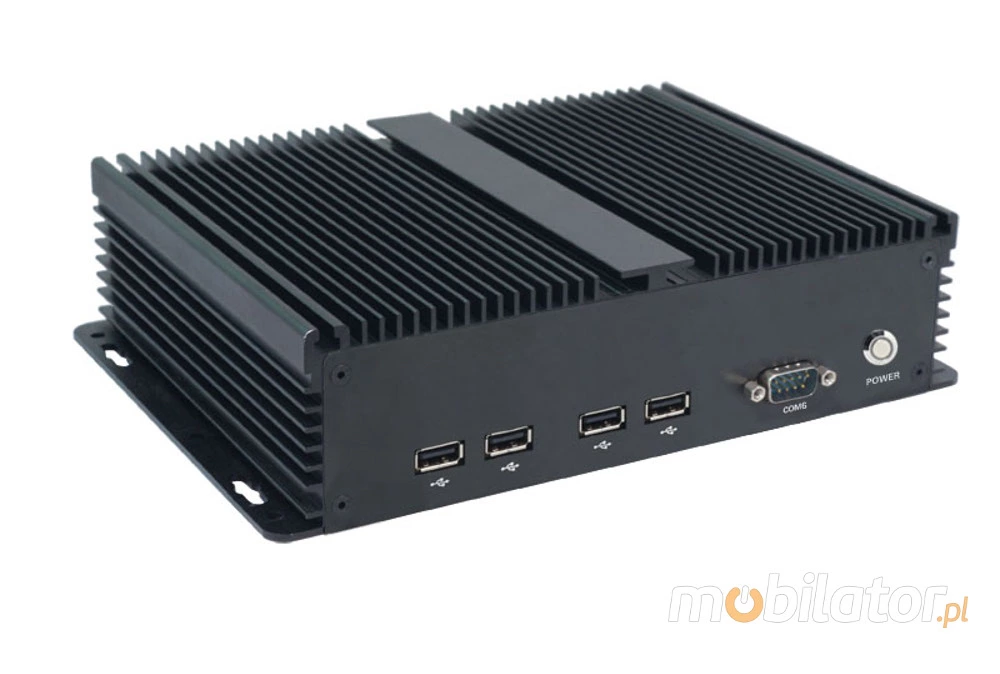

FRONT:
|
|
Cooling

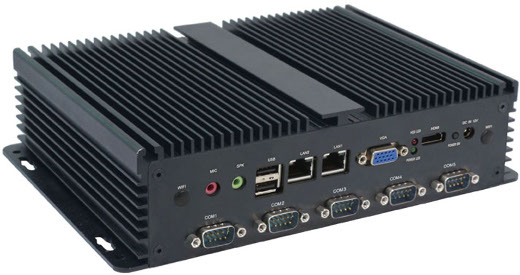

The industrial fanless MiniPC IBOX-102 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.
 |
|
;)
;)
;)
;)
