Industrial Computer Fanless MiniPC IBOX-207 v.4

Name: Industrial Computer Fanless MiniPC IBOX-207 v.4
Brand: Mobilator
Price: 462.36 PLN
Availability: InStock

Komputer przemysłowy z długim czasem pracy

Update Date: 2024.11.13

Net

375.90 €

Gross

462.36 €

Buy now!

Negotiate the price

								Ask about the product

 Product card

								Recommend to a friend

								Store

								Compare

Product availability 14 - 20 workdays

Industrial Computer Fanless MiniPC IBOX-207

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

MiniPC IBOX-207 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

Housing dimensions are 200 (W) x 234 (L) x65 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 2/4GB DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB/128GB SSD and 500GB HDD.

Industrial Computer Fanless MiniPC IBOX-207

go top…

menu…

Communication & Connectors

Integrated cards - Intel RTL8111E 1000M Lan and WiFi module allows connection to the network. The computer is equipped with: two LAN ports, one VGA port, optional COM ports ( max. 10), one HDMI port, eight USB 2.0 ports, and a built-in connector on the motherboard: three SATA ports, one MiniSATA port, one SIM Card slot, two Mini-PCIE connectors, four USB 2.0 connectors and one GPIO slot.

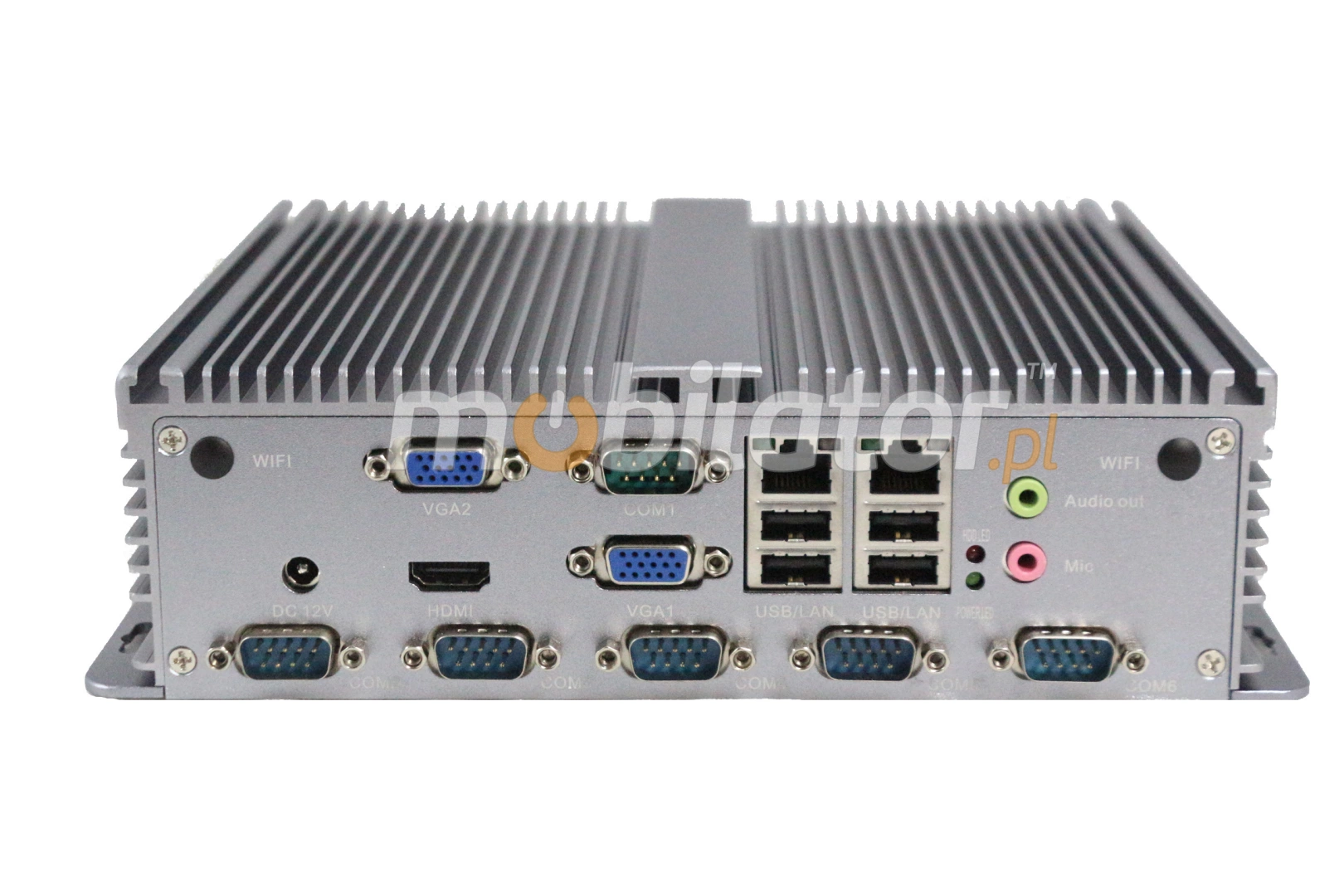

BACK:

Industrial Computer Fanless MiniPC IBOX-207

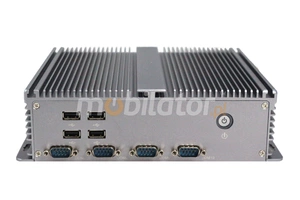

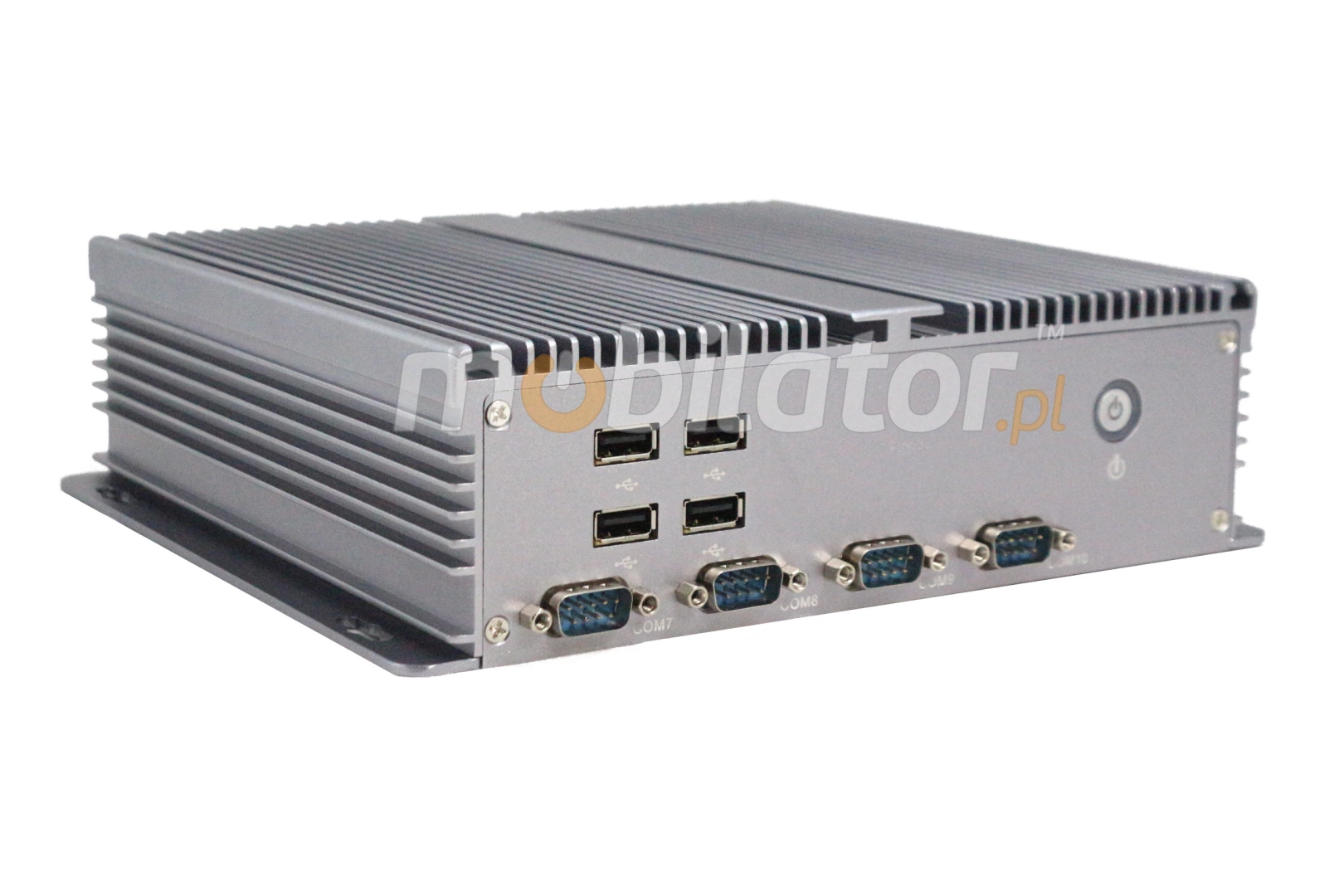

FRONT:

Industrial Computer Fanless MiniPC IBOX-207

Cooling

The industrial fanless MiniPC IBOX-207 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go top… menu…

Application

Industrial MiniPC IBOX-207 are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Industrial Computer Fanless MiniPC IBOX-207 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Computer Fanless MiniPC IBOX-207

Areas of use of industrial MiniPC

Digital Engine

Industrial Computer Fanless MiniPC IBOX-207

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Industrial fanless MiniPC IBOX-207 by USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC IBOX-207 can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Computer Fanless MiniPC IBOX-207

go top…

menu…

Specifications

Dimension	H: 65 mm L: 234 mm W: 200 mm
Processor	Intel Celeron1037U Dual Core(2x1.8GHz)
Chipset	Intel express chipset
RAM Memory	2/4GB DDR3
Graphic Card	Intel HD Graphics
Sound Card	Realtek ALC662
WLAN	Intel RTL8111E Gigabit 1000M Lan
Connectors	1x 12V DC Jack 8x USB 2.0 2x RJ-45 LAN 2x VGA 1x HDMI 1x Audio 1x SIM card 1~10x COM

Supported OS
Microsoft Windows: 7/8/8.1/10, Linux
Installed OS
-----
Chipset
Intel NM70 express chipset
CPU Support
-----
Installed CPU
Intel Celeron Dual Core 1037U ( 2x 1.8Ghz)
Graphic Card
Intel HD Graphics
Memory Support
DDR3 (max. 8GB)
Installed Memory
4GB DDR3
Storage (HDD) Support
-----
Installed Storage (HDD)
500GB HDD & 64GB SSD
IP Norm
-----
Temp
-20 ～80℃
Storage temperature
-20 ~ 80℃
Humidity
0 ~ 95%
Others
Color Black
LAN
Intel  RTL8111E 1000M Lan
Wireless LAN card
Yes
3G
No
Bluetooth
Yes
Rear Panel (ports)
4x USB2.0
COM(RS232) - 1~6, optional
2x LAN
2xPS/2
DC-IN 12
1x HDMI
2x VGA
1x Audio
1x Mic
Front Panel (ports)
4x USB2.0, Power ON/OFF, 1~4 optional
Expansion
-----
Power
12V
Watch Dog Timer
0 ~ 255 sec
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
234 x 200 x 65 mm
Fanless
Yes
Weight
~2kg
