Industrial Fanless |
Description

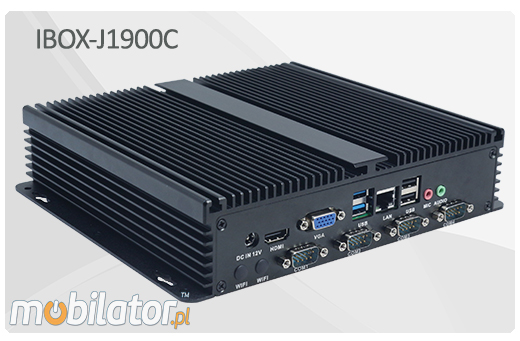

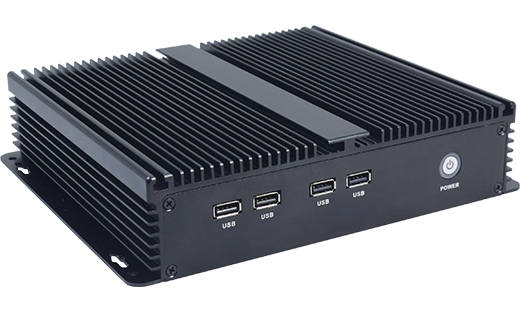

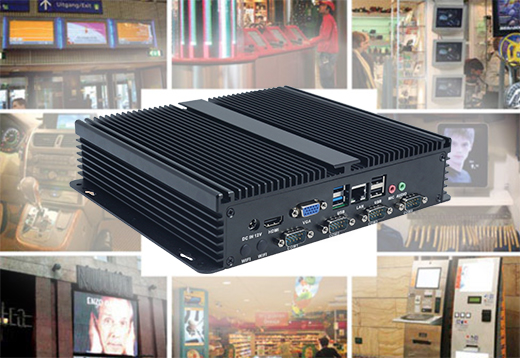

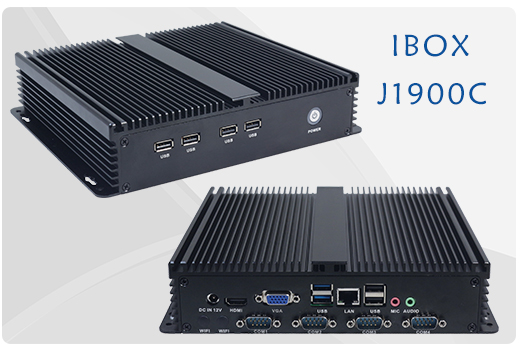

Housing dimensions are 234 (W) x204 (L) x54 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 1.6 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

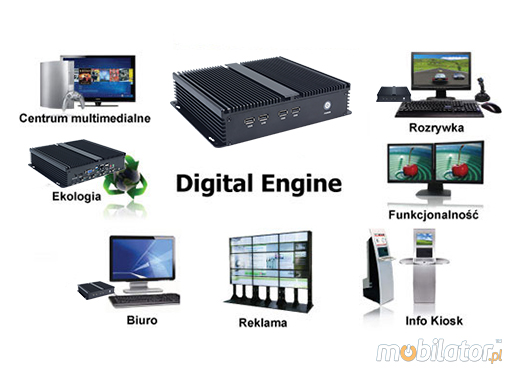

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality.
|
|
|
Communication & Connectors |
|

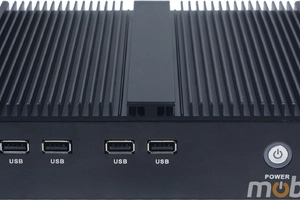

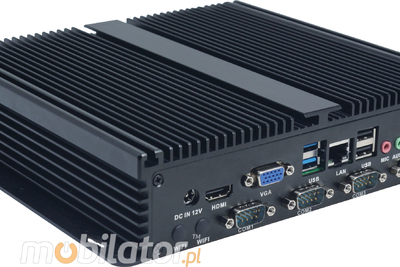

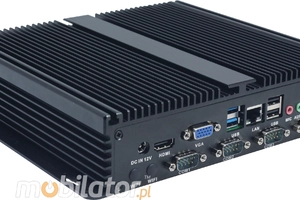

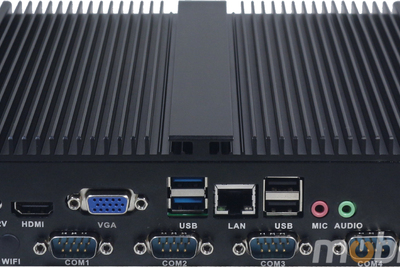

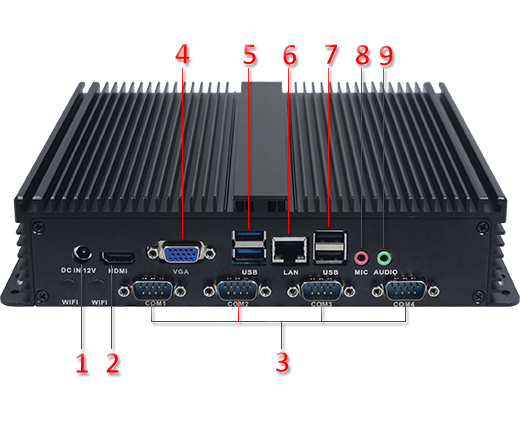

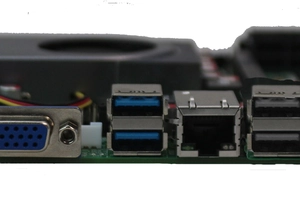

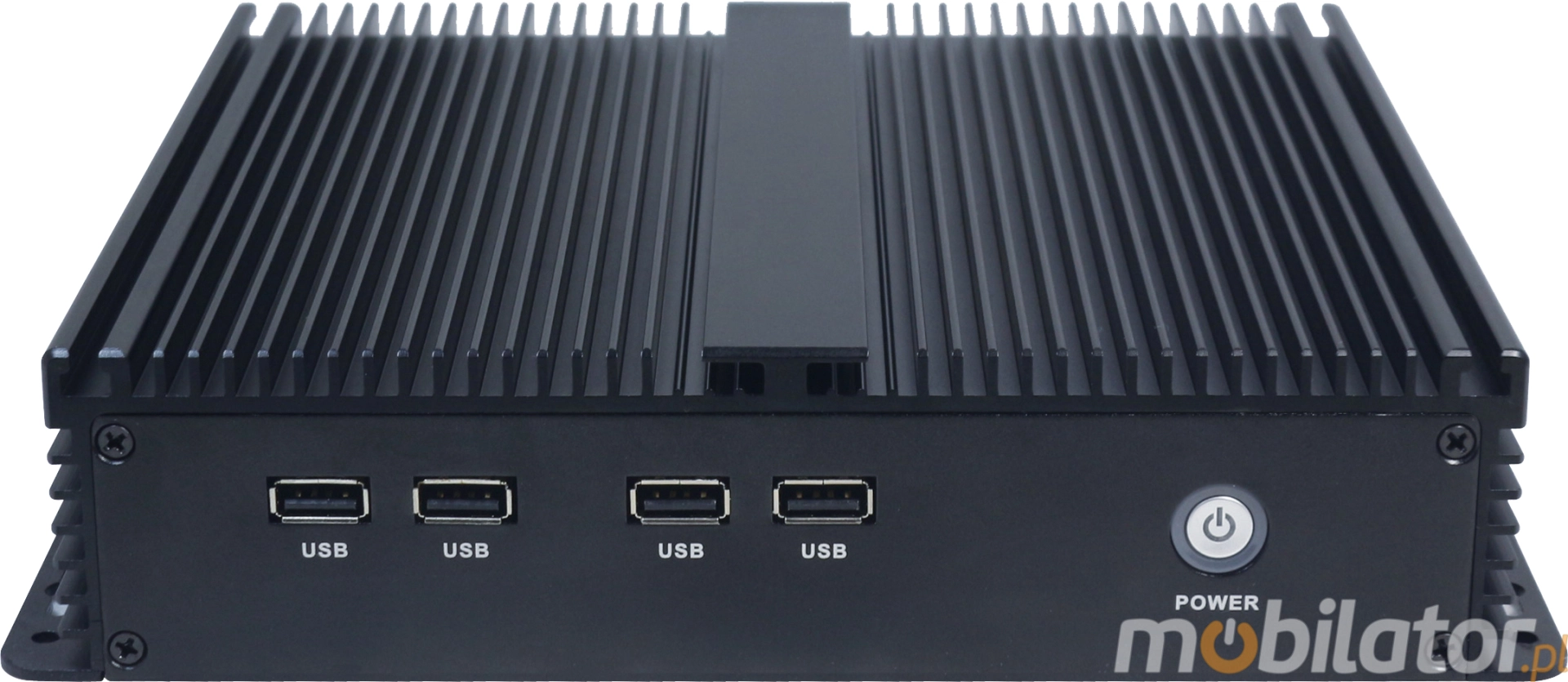

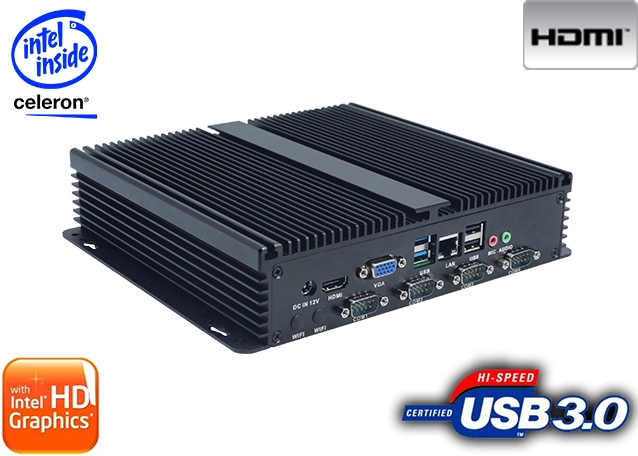

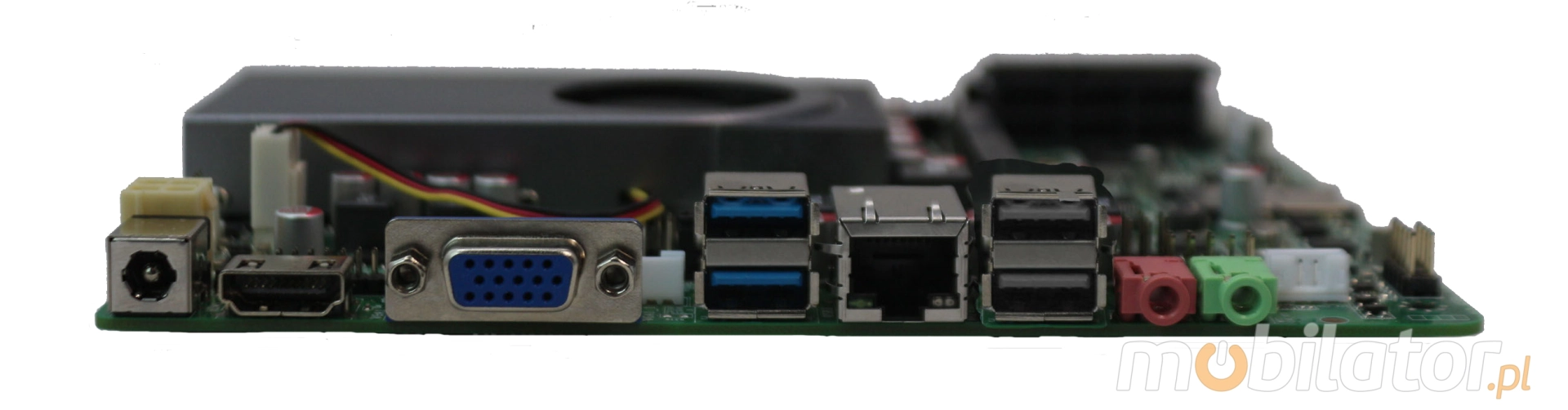

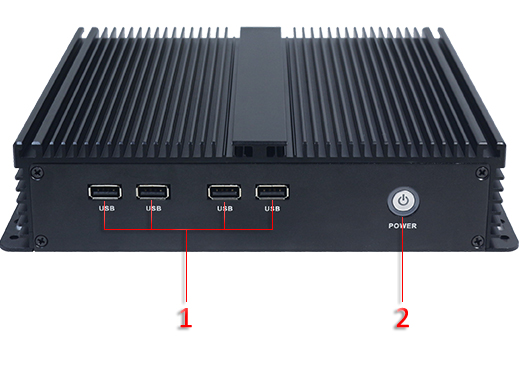

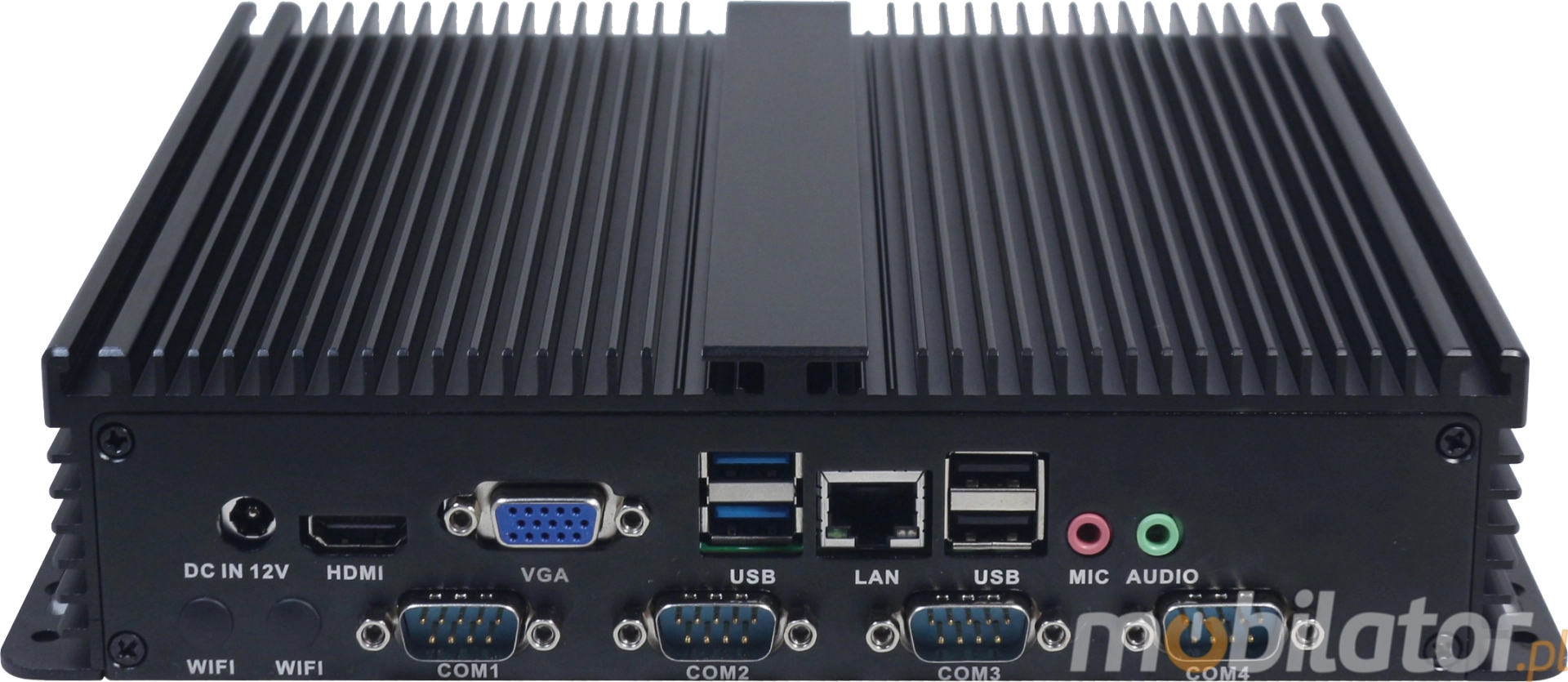

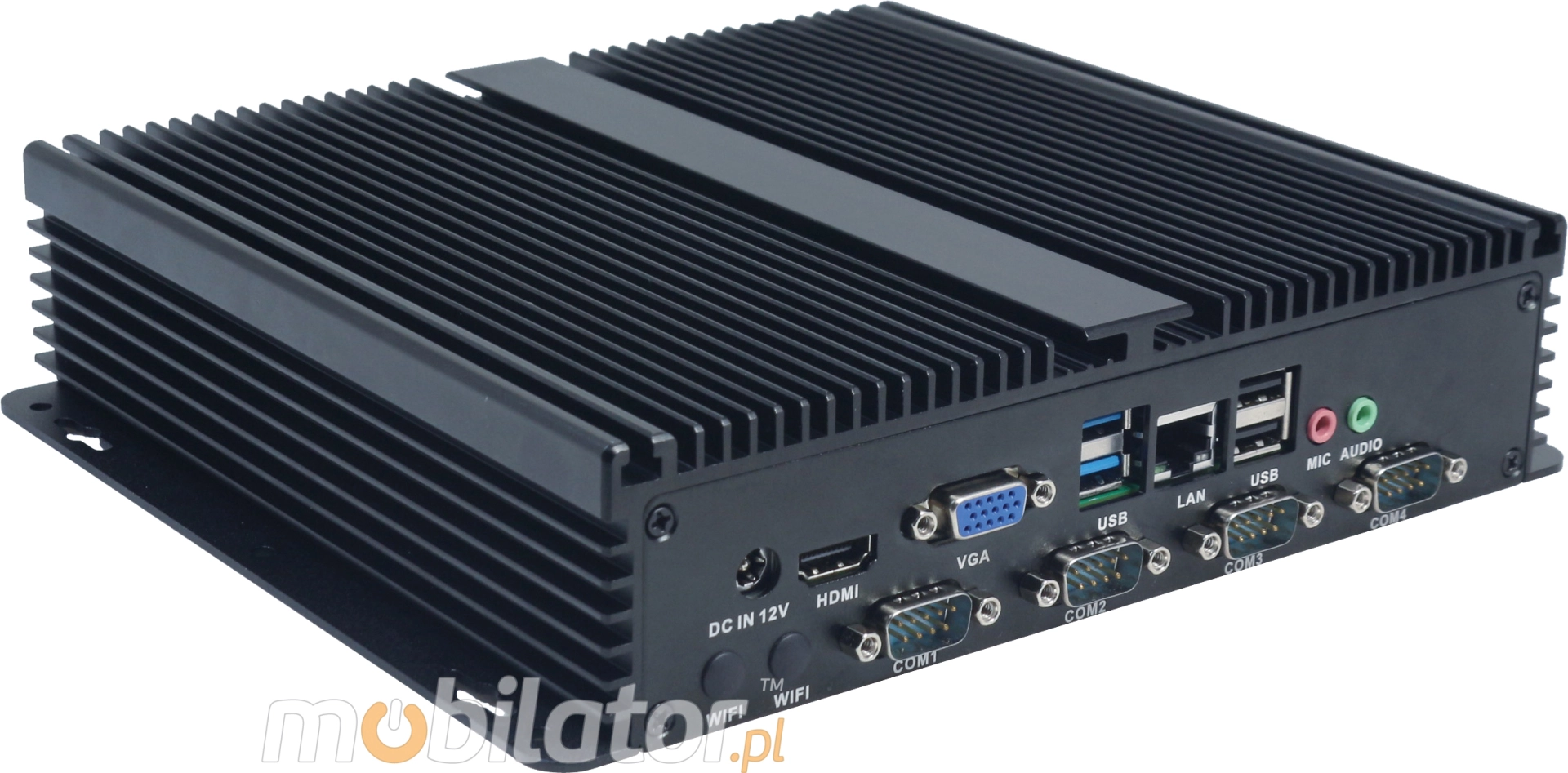

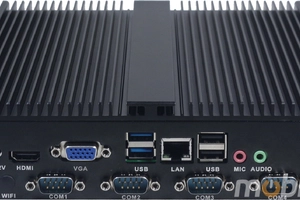

Integrated card - Intel 1000M Lan RTL8111E allows connection to the network. The computer is equipped with: one LAN port, four COM(RS232) port, one HDMI port, one VGA port, five USB 2.0 ports (max. 7xUSB), one USB 3.0 port, one way audio, one input mic and a built-in connector on the motherboard: one PowerOUT connector, one LVDS connector, one GPIO port and one Mini-PCIE connector.
|
Cooling

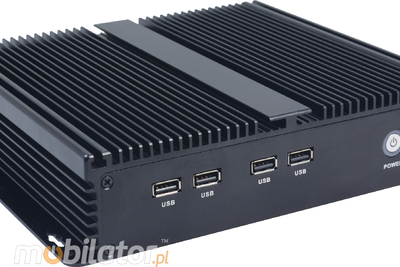

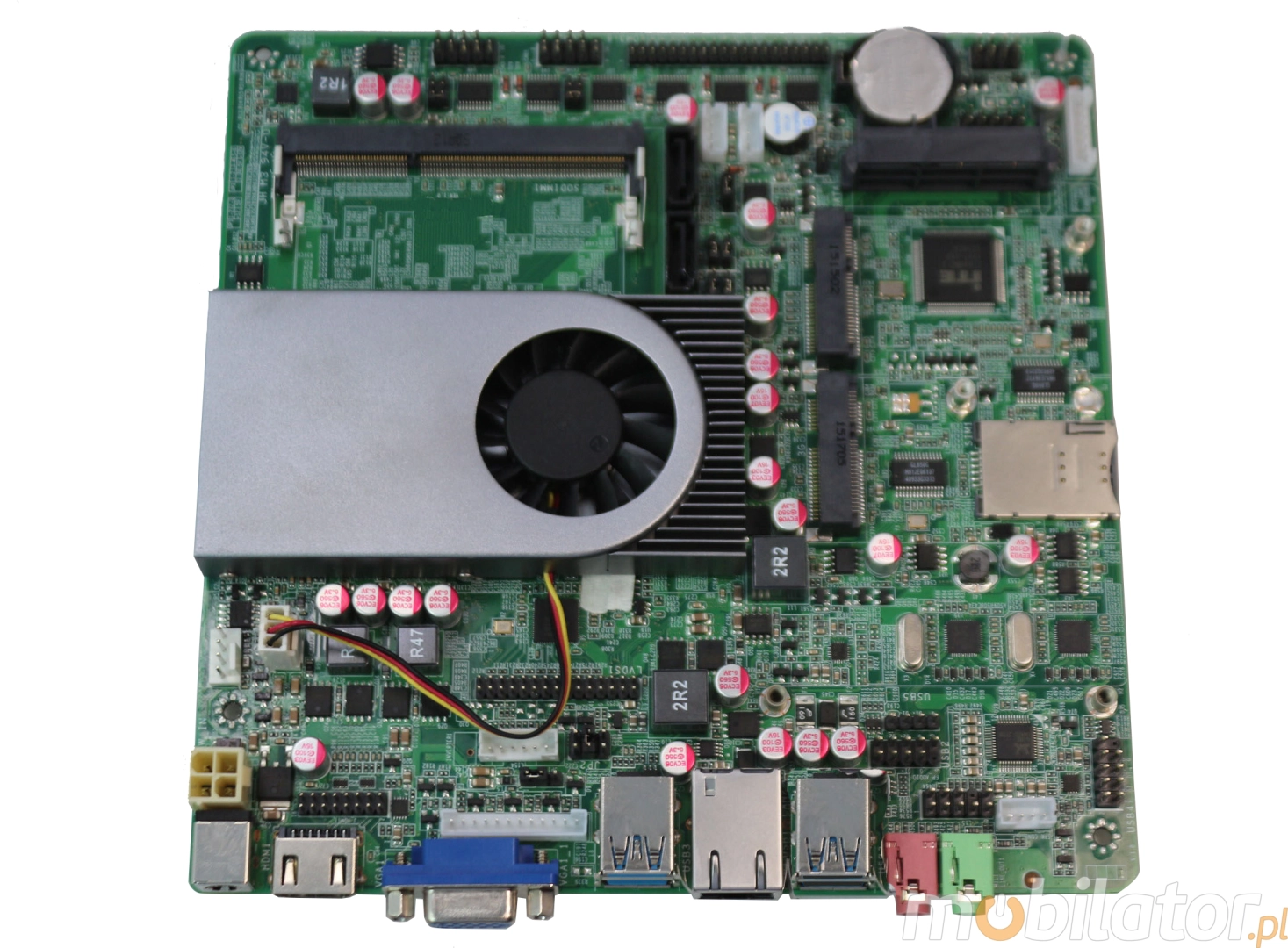

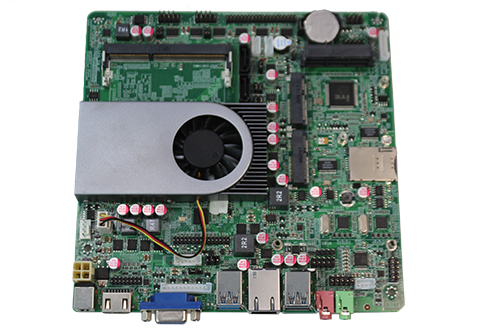

The industrial fanless MiniPC IBOX-J1900C uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.
|
|
;)
;)
;)
;)
;)
;)
