Industrial Fanless |
Description
Housing dimensions are 203.6 (W) x 265.4 (L) x 68 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 4/8/16GB DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 64GB/128GB/256GB SSD and 500GB HDD.
|
|
|
Communication & Connectors |
|
Integrated cards - Intel L210, Intel 217 and Wi-Fi module allows connection to the network. The computer is equipped with: two LAN ports, one VGA port, six COM ports, one PCI port, two DP ports, four USB 2.0 ports, four USB 3.0 ports and a built-in connector on the motherboard: four SATA ports, one MiniSATA port, and one Mini-PCIE connectors.

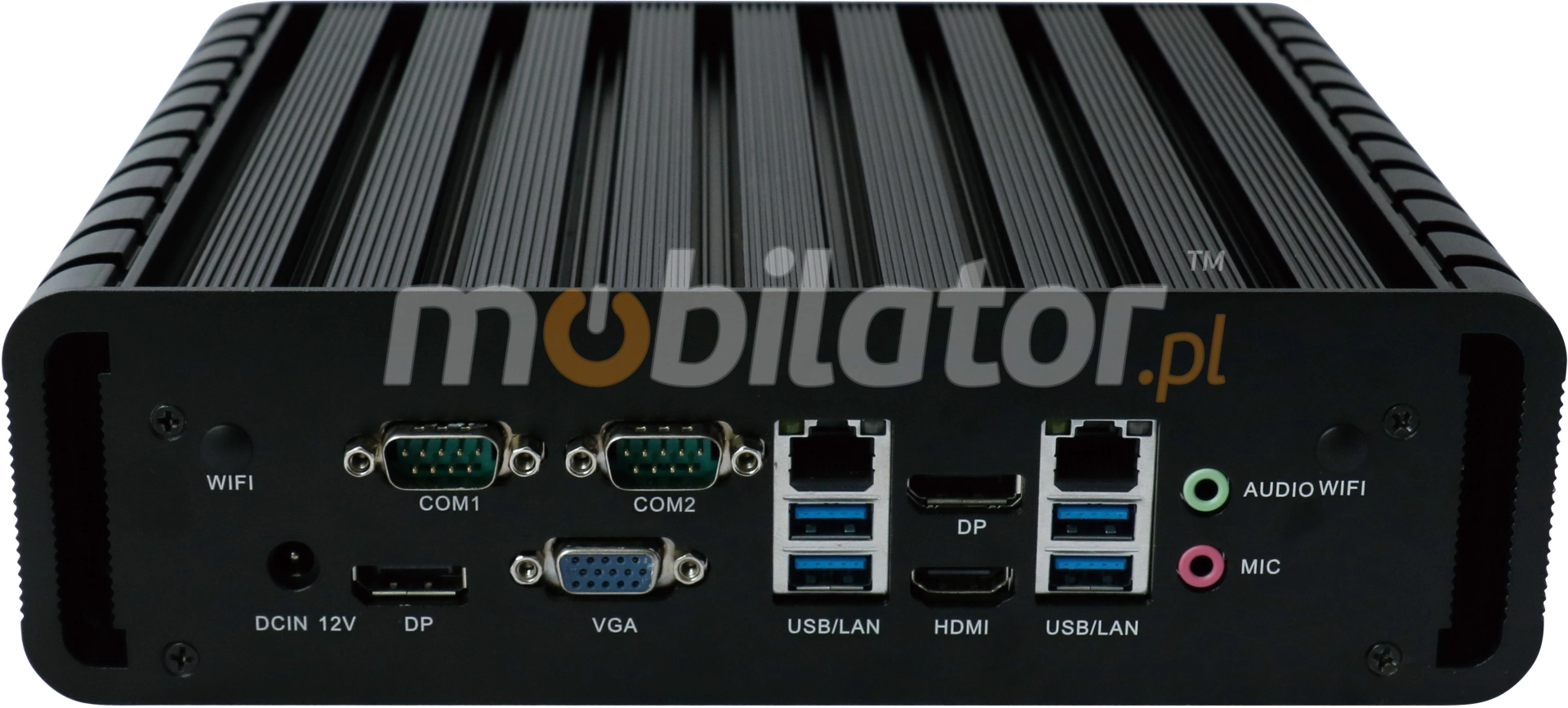

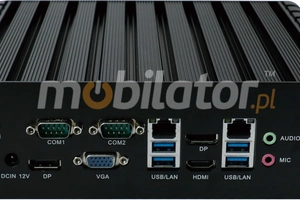

BACK:

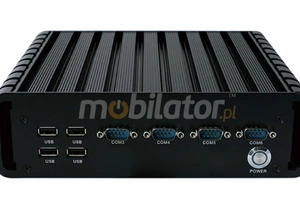

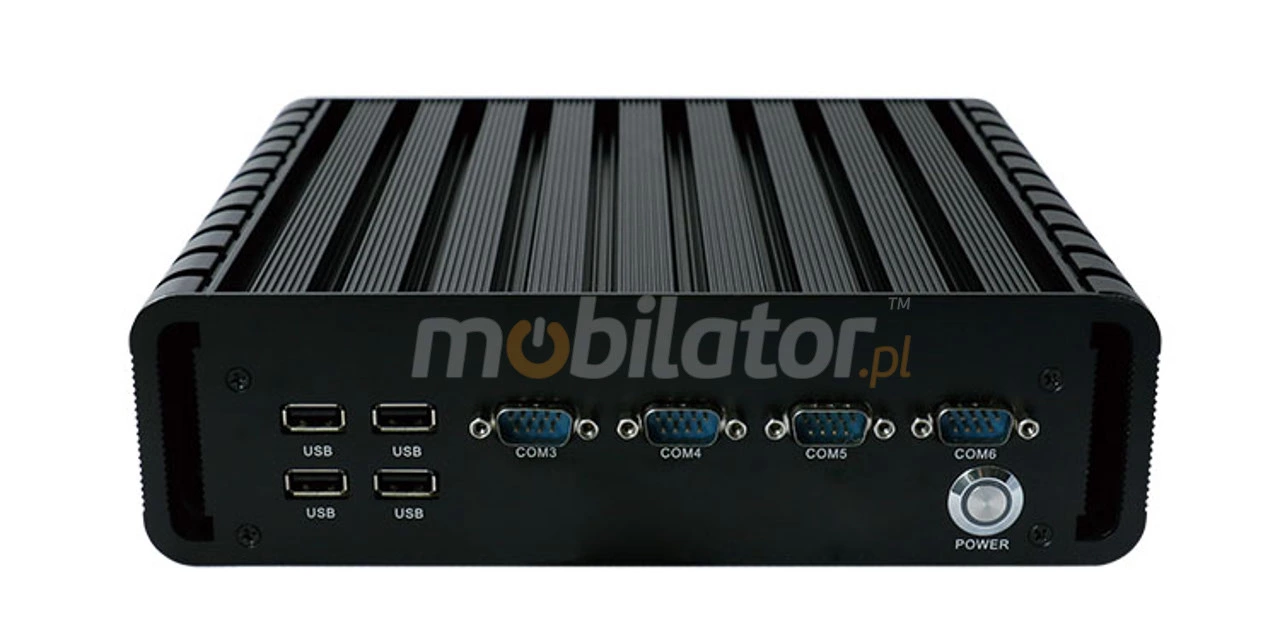

FRONT:
|
Cooling
The industrial fanless MiniPC IBOX-QM87 i7 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.
|
|
;)
;)
;)
