Industrial Computer Fanless MiniPC mBOX Nuc Q370G4 v.2

Name: Industrial Computer Fanless MiniPC mBOX Nuc Q370G4 v.2
Brand: Mobilator
Price: 554.61 PLN
Availability: InStock

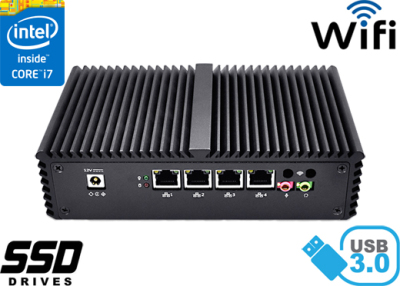

Energooszczędny komputer odporny na ciężkie warunki

+17

Update Date: 2024.10.15

Guarantee 1 year (opt. 2)

Net

450.90 €

Gross

554.61 €

Buy now!

Negotiate the price

								Ask about the product

 Product card

								Recommend to a friend

								Store

								Compare

Product availability 14 - 20 workdays

Industrial Computer Fanless MiniPC mBOX Nuc Q370G4

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

Industrial Computer Fanless MiniPC mBOX Nuc Q370G4 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

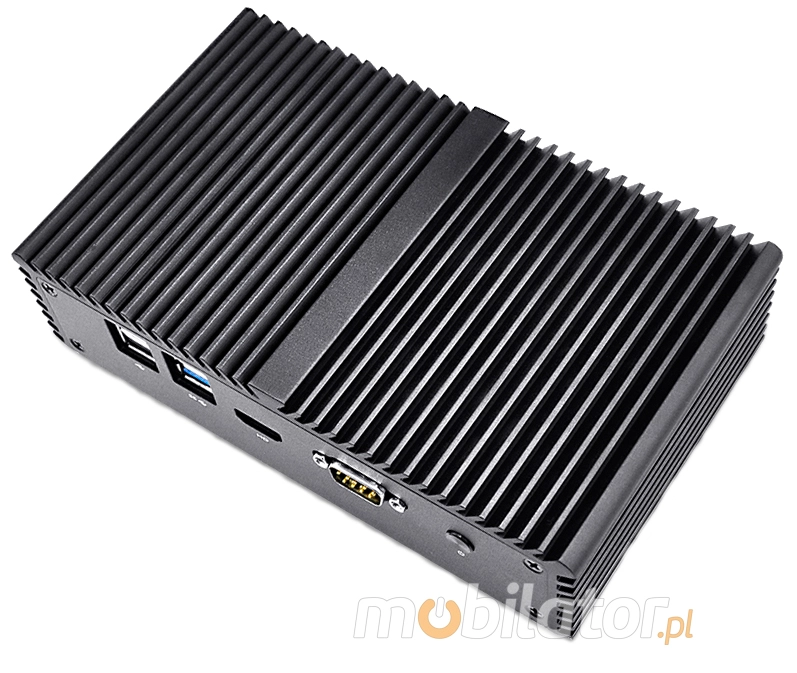

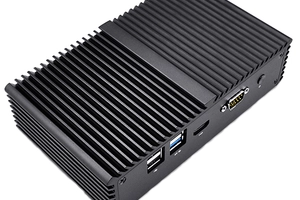

Housing dimensions are 187 (W) x111 (L) x50 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 4/8GB DDR3L memory. Integrated Intel HD Graphics 4400 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB/128GB SSD or 500GB HDD.

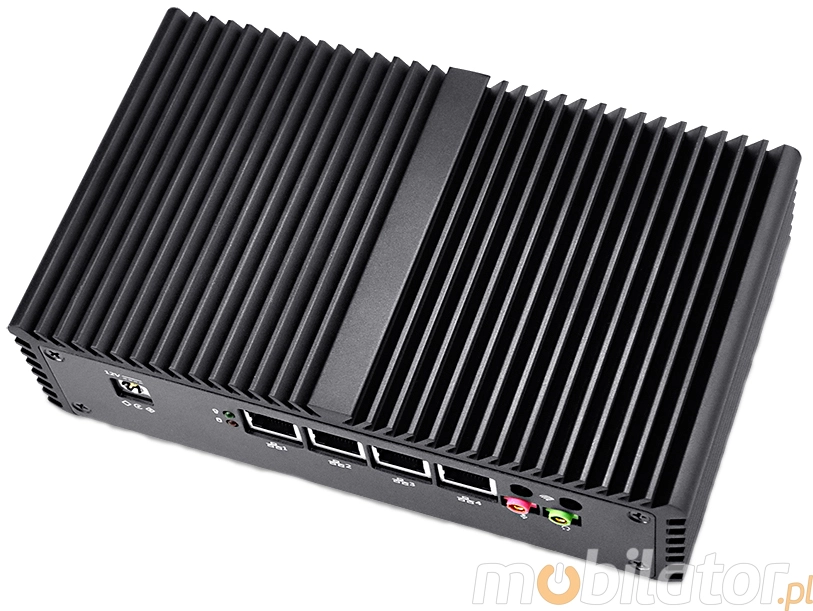

Industrial Computer Fanless MiniPC mBOX Nuc Q370G4

go top…

menu…

Communication & Connectors

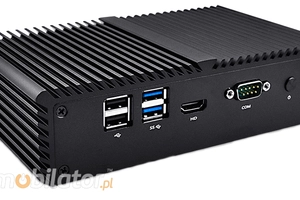

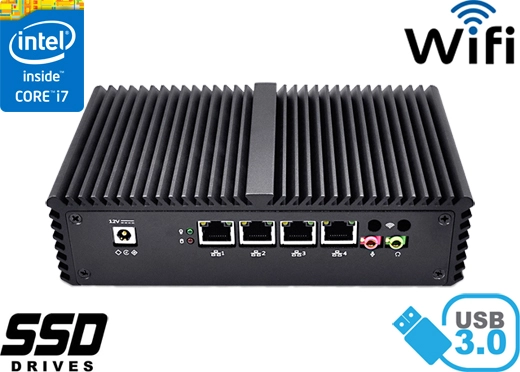

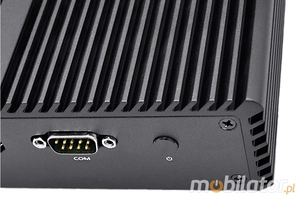

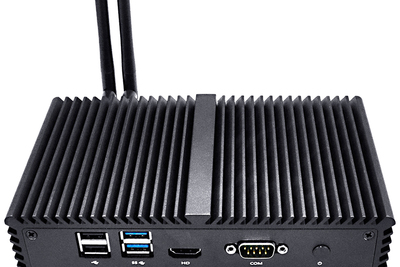

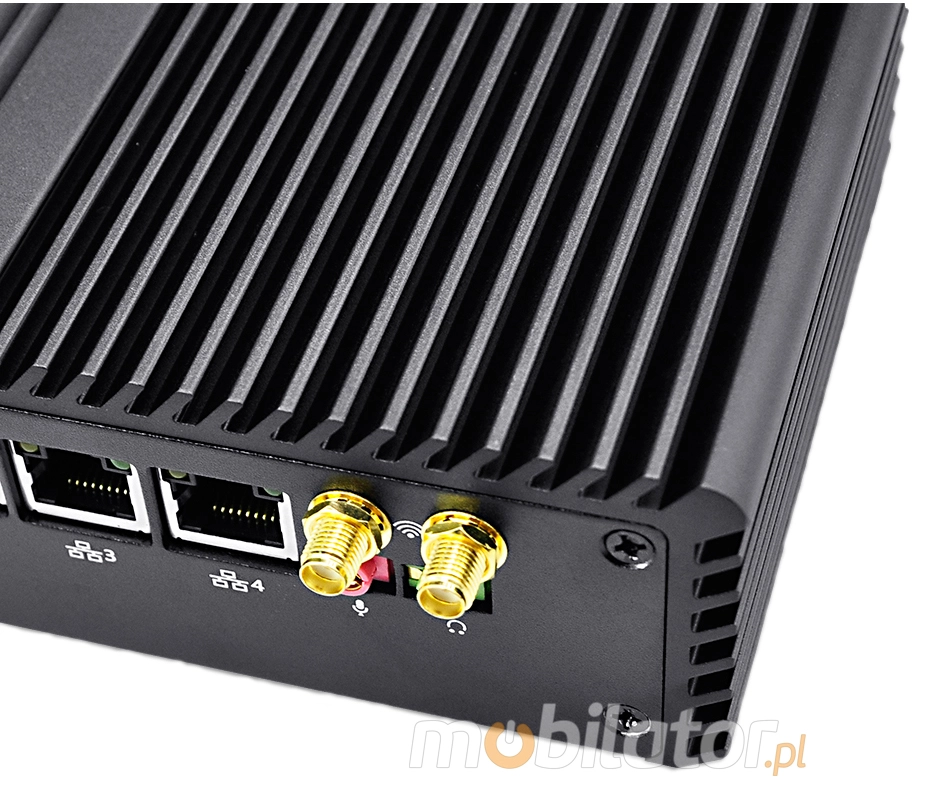

Integrated cards - Intel I211-AT- 10/100/1000 Controller and WiFi module allow connection to the network. The computer is equipped with: four LAN ports, one HDMI port, two USB 3.0 ports, two USB 2.0 ports, one COM(RS232) port and a built-in connector on the motherboard: SATA port, MiniSATA port, one Mini-PCIE connector.

Industrial Computer Fanless MiniPC mBOX Nuc Q370G4

Industrial Computer Fanless MiniPC mBOX Nuc Q370G4 intel i7 4500u

Cooling

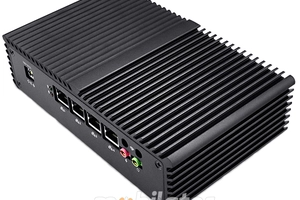

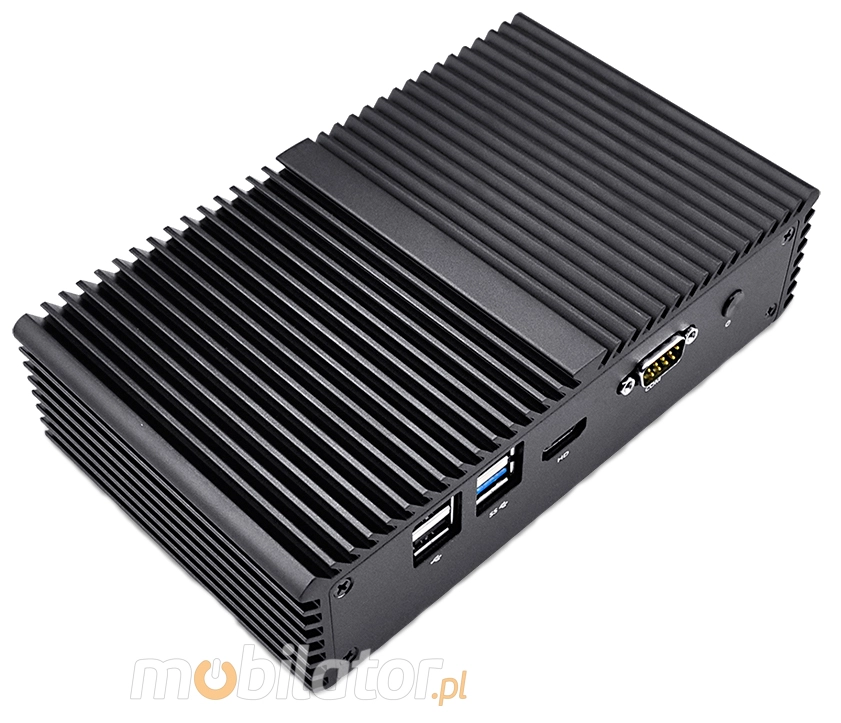

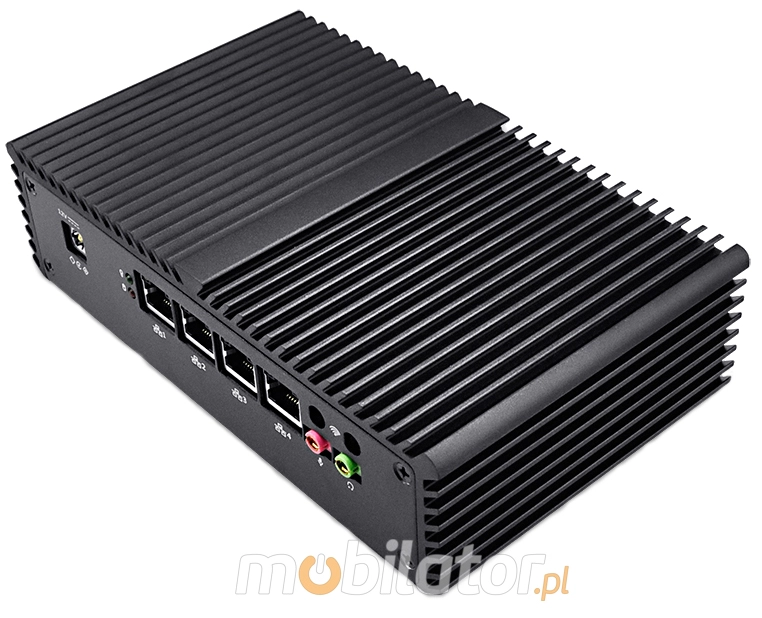

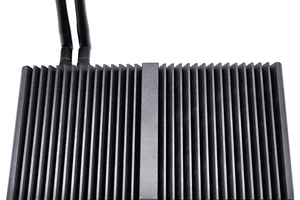

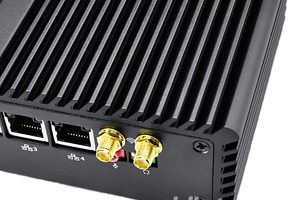

The Industrial Computer Fanless MiniPC mBOX Nuc Q370G4 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go top… menu…

Application

Industrial Computer Fanless MiniPC mBOX Nuc Q370G4 are based on high-performance dual-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of mBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Industrial Computer Fanless MiniPC mBOX Nuc Q370G4 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Computer Fanless MiniPC mBOX Nuc Q370G4

Areas of use of industrial MiniPC

Digital Engine

Industrial Computer Fanless MiniPC mBOX Nuc Q370G4

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

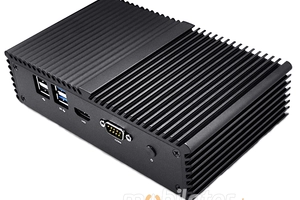

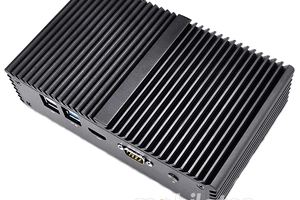

Industrial Computer Fanless MiniPC mBOX Nuc Q370G4 by USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

Industrial Computer Fanless MiniPC mBOX Nuc Q370G4 can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Computer Fanless MiniPC mBOX Nuc Q370G4

go top…

menu…

go top… menu…

Specifications

Dimension	H: 50 mm L: 111 mm W: 187 mm
Processor	Intel i7-4500U Dual Core(2x1,8GHz)
Chipset	Intel express chipset
RAM Memory	4GB DDR3L
Graphic Card	Intel HD Graphics 4400
Sound Card	Realtek ALC662
WLAN	4x Intel I211-AT- 10/100/1000 Controller
Connectors	1x 12V DC Jack 2x USB 3.0 2x USB 2.0 4x RJ-45 LAN 1x Mic 1x HDMI 1x Audio 1x COM(RS232)

Supported OS
Microsoft Windows: 7/8/8.1/10, Linux
Installed OS
-----
Chipset
Intel express chipset
CPU Support
-----
Installed CPU
Intel i7-4500U Dual Core (2x1,8GHz)
Graphic Card
Intel HD Graphics 4400
Memory Support
DDR3L (max. 8GB) 1333/1600 MHz,1.35V
Installed Memory
4GB DDR3L
Storage (HDD) Support
SSD / HDD
mSATA/SATA
Installed Storage (HDD)
64GB SSD
IP Norm
-----
Temp
-20 ～60℃
Storage temperature
-20 ~ 60℃
Humidity
0 ~ 95%
Others
Colour Black
LAN
4 x Intel I211-AT- 10/100/1000 Controller
Wireless LAN card
Yes
3G
-----
Bluetooth
-----

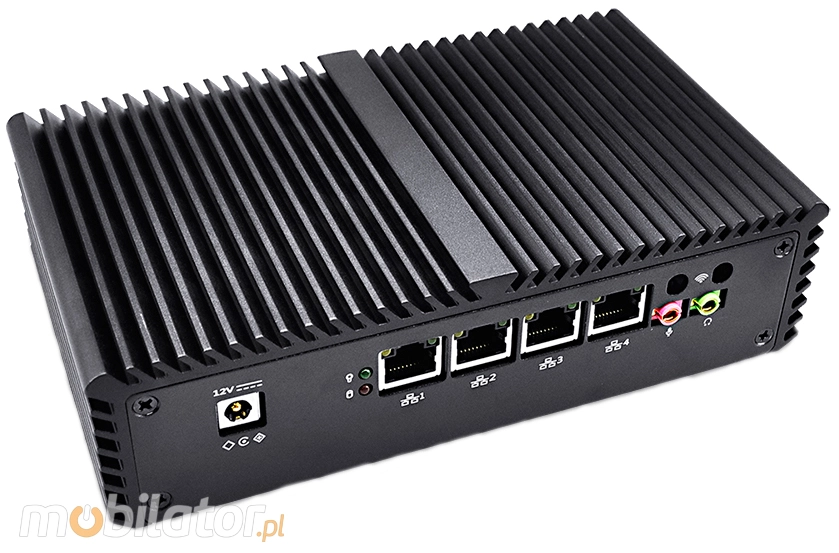

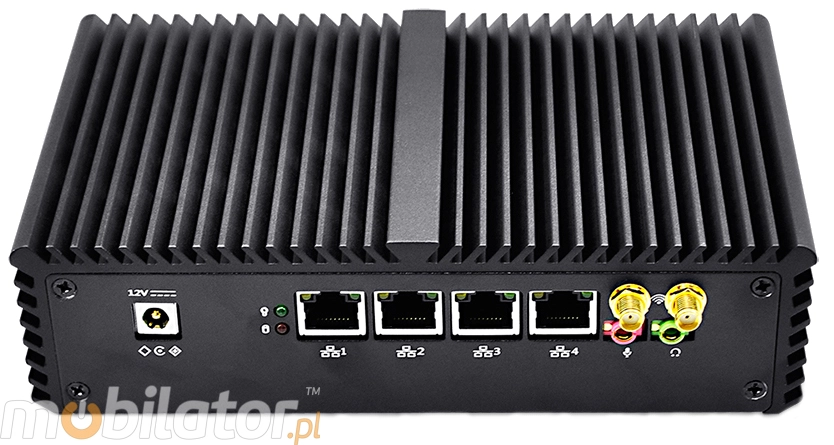

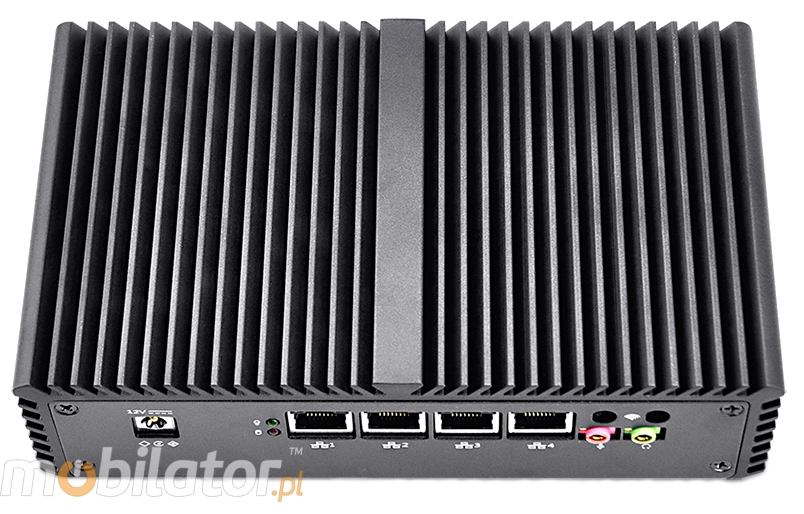

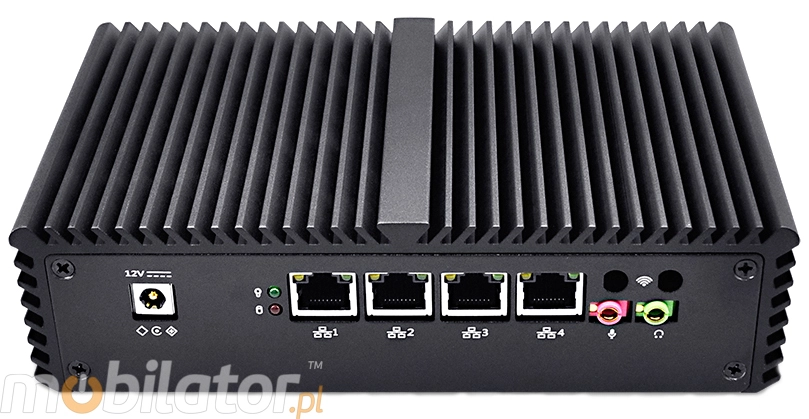

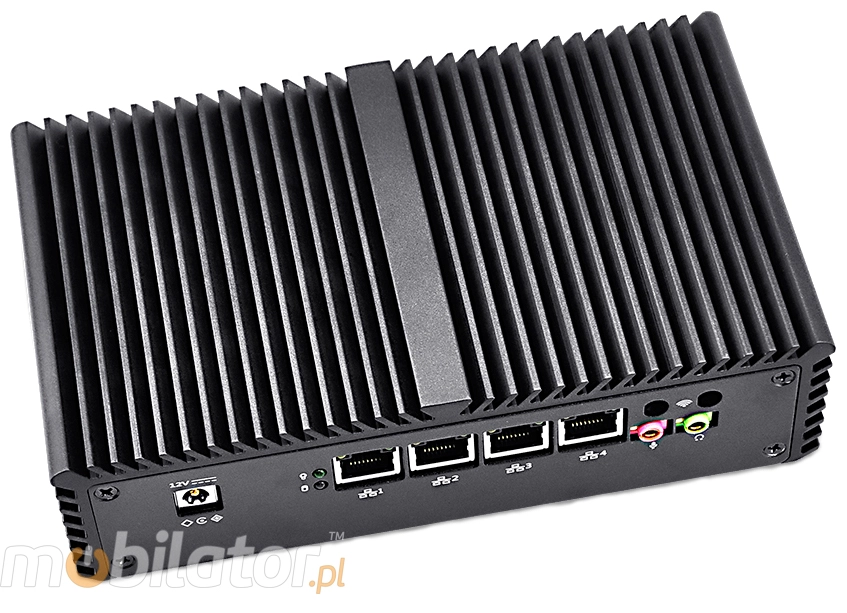

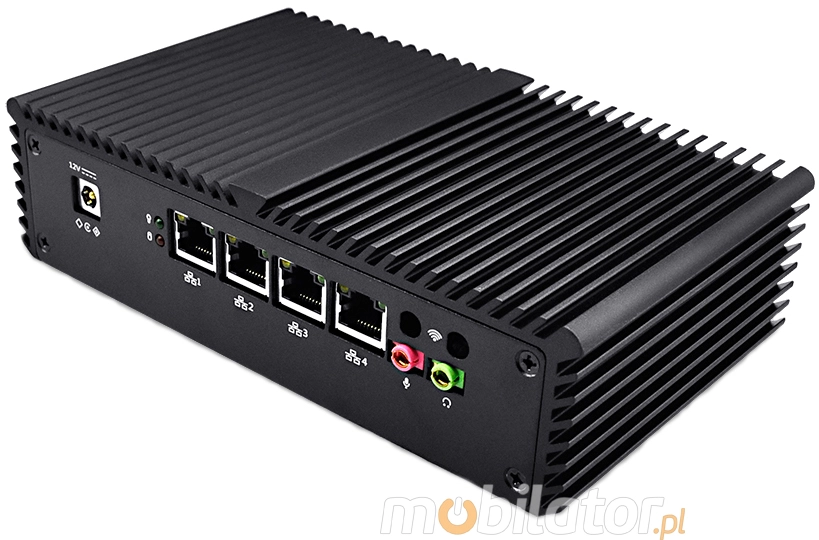

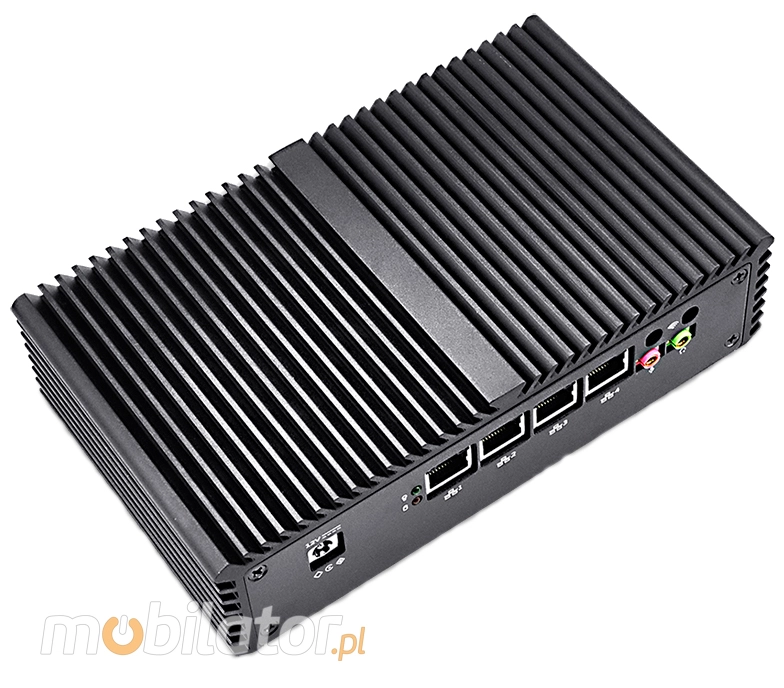

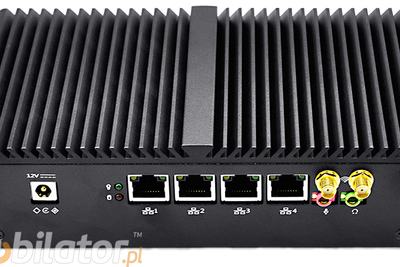

Rear Panel (ports)
DC-IN 12V,
 4x RJ-45 LAN,
 1x Audio,
 1x Mic

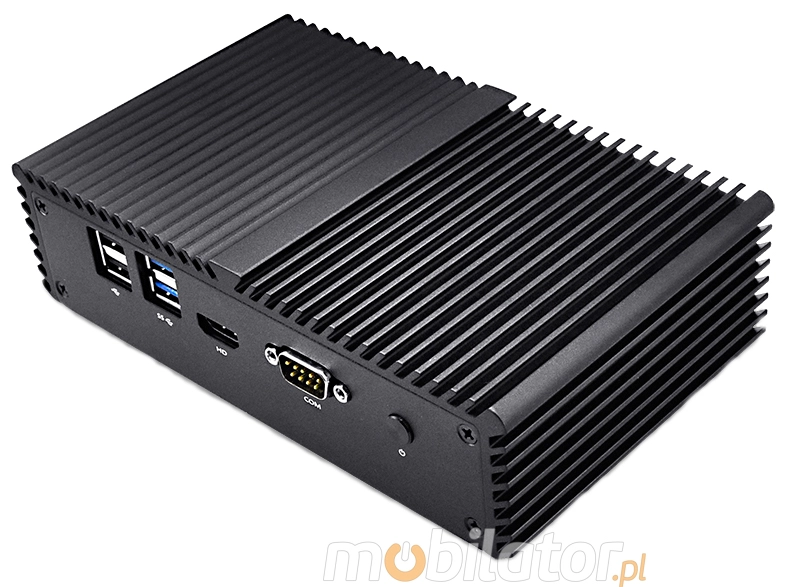

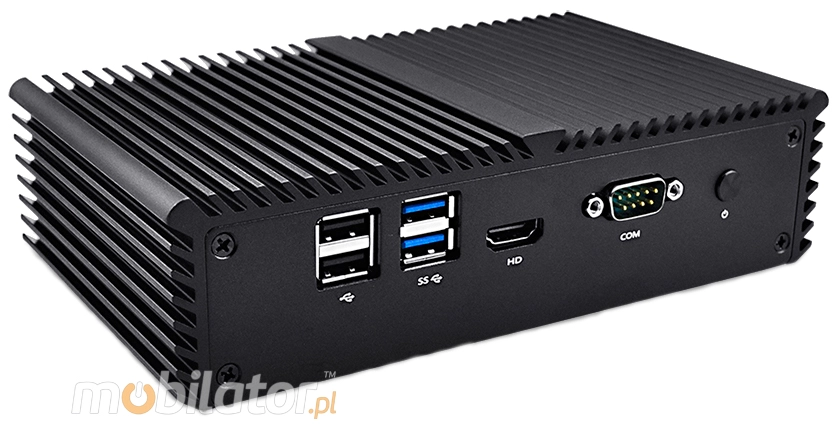

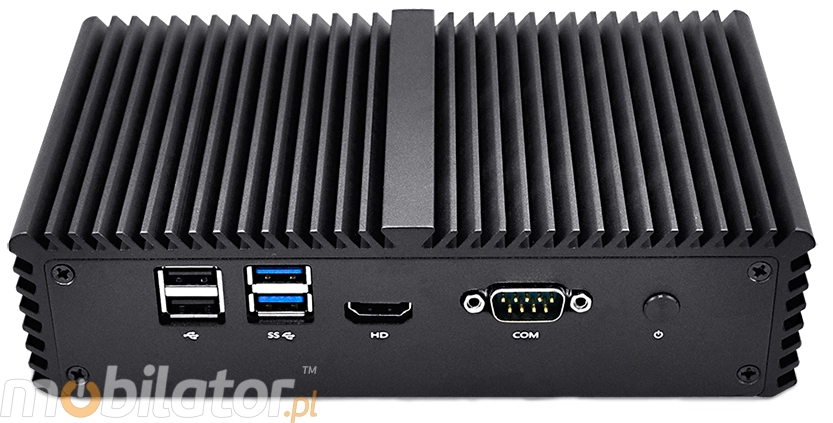

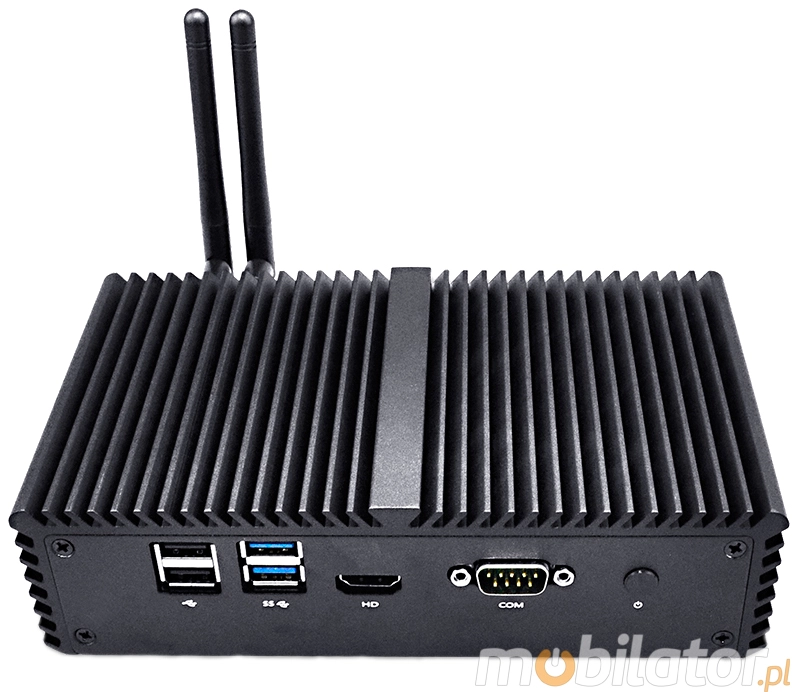

Front Panel (ports)

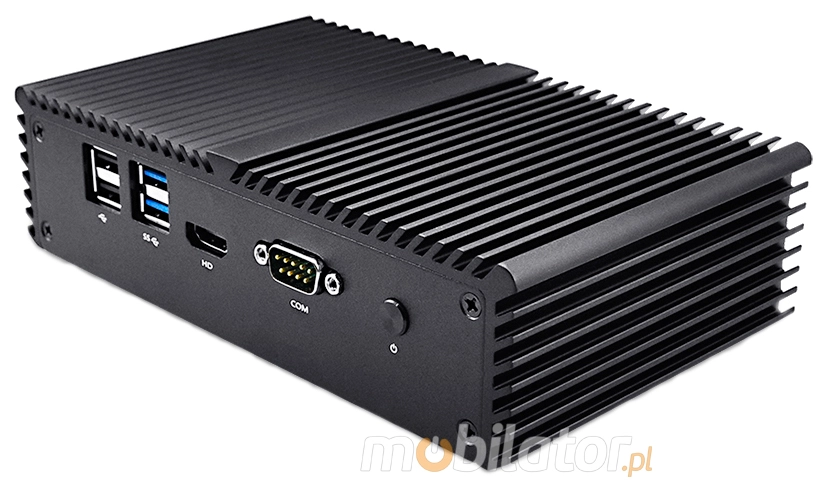

2x USB 3.0,
2x USB2.0

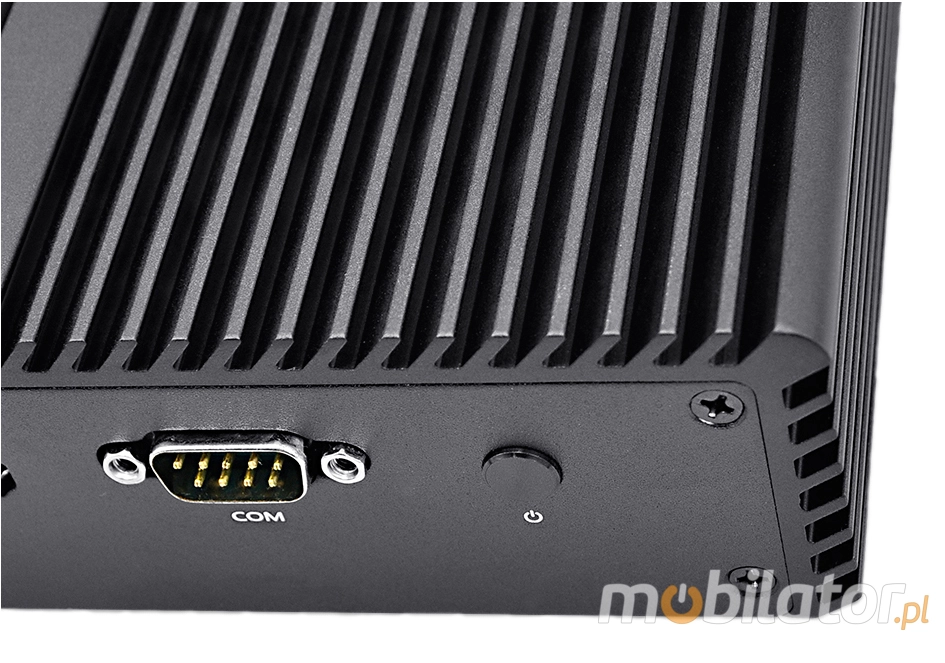

1x COM(RS232),
 1x HDMI,
Power ON/OFF
Expansion
-----
Power
12V
Watch Dog Timer
0 ~ 255 sec
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
187 x 111 x 50 mm
Fanless
Yes
Weight
-----
Responsible Entity / Distributor
New Portable Devices

Compare all versions


Industrial Computer Fanless MiniPC mBOX Nuc Q370G4 v.Barebone
					Małe rozmiary / Intel i7-4500U (2x1,8GHz)
Graphics: Intel® HD Graphics 4400
4x LAN / 2x USB3.0 / 2x USB2.0 / 1x COM
1x HDMI  / 2x Audio/Mic / WiFi
RAM - no / Disc - no

Gross457.92 €

Industrial Computer Fanless MiniPC mBOX Nuc Q370G4 v.1
					Małe rozmiary / Intel i7-4500U (2x1,8GHz)
Graphics: Intel® HD Graphics 4400
4x LAN / 2x USB3.0 / 2x USB2.0 / 1x COM
1x HDMI  / 2x Audio/Mic / WiFi
RAM 4GB DDR3L / Disc 32GB SSD

Gross531.27 €

Industrial Computer Fanless MiniPC mBOX Nuc Q370G4 v.2
					Małe rozmiary / Intel i7-4500U (2x1,8GHz)
Graphics: Intel® HD Graphics 4400
4x LAN / 2x USB3.0 / 2x USB2.0 / 1x COM
1x HDMI  / 2x Audio/Mic / WiFi
RAM 4GB DDR3L / Disc 64GB SSD

Gross554.61 €

Industrial Computer Fanless MiniPC mBOX Nuc Q370G4 v.3
					Małe rozmiary / Intel i7-4500U (2x1,8GHz)
Graphics: Intel® HD Graphics 4400
4x LAN / 2x USB3.0 / 2x USB2.0 / 1x COM
1x HDMI  / 2x Audio/Mic / WiFi
RAM 4GB DDR3L / Disc 128GB SSD

Gross581.29 €

Industrial Computer Fanless MiniPC mBOX Nuc Q370G4 v.4
					Małe rozmiary / Intel i7-4500U (2x1,8GHz)
Graphics: Intel® HD Graphics 4400
4x LAN / 2x USB3.0 / 2x USB2.0 / 1x COM
1x HDMI  / 2x Audio/Mic / WiFi
RAM 8GB DDR3L / Disc 500GB HDD

Gross610.18 €

Industrial Computer Fanless MiniPC mBOX Nuc Q370G4 v.5
					Małe rozmiary / Intel i7-4500U (2x1,8GHz)
Graphics: Intel® HD Graphics 4400
4x LAN / 2x USB3.0 / 2x USB2.0 / 1x COM
1x HDMI  / 2x Audio/Mic / WiFi
RAM 4GB DDR3L / Disc 240GB SSD

Gross671.31 €
