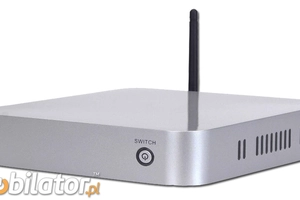

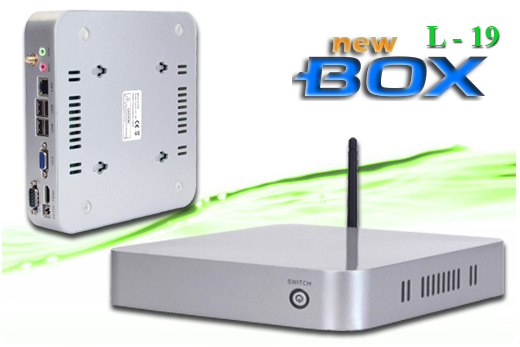

Industrial Computer Fanless MiniPC nBOX-L19 BAREBONE

Name: Industrial Computer Fanless MiniPC nBOX-L19 BAREBONE
Brand: Mobilator
Price: 743.19 PLN
Availability: InStock

Update Date: 2020.09.04

Guarantee 1 years

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

Description

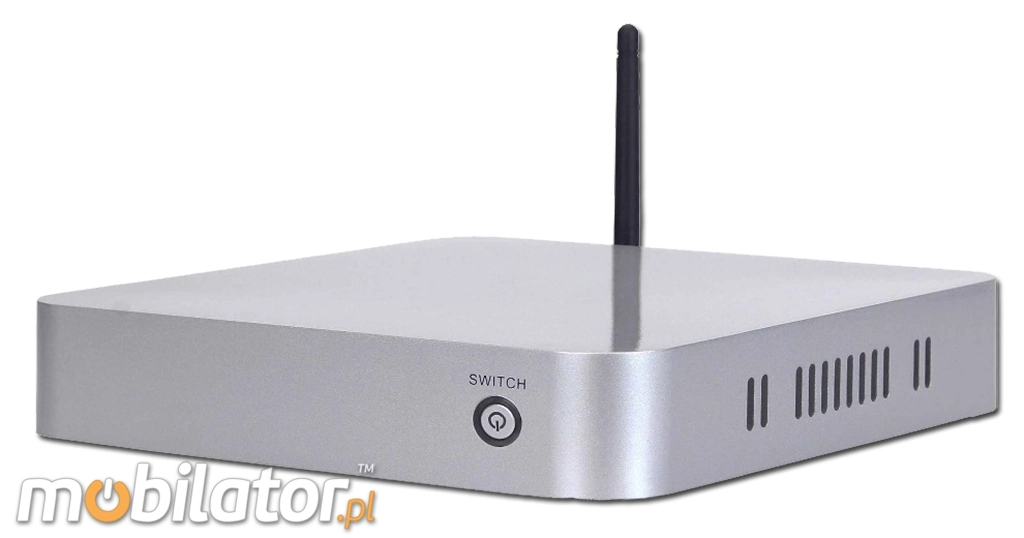

Housing dimensions are 197 (W) x 197 (L) x 40(H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.5 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

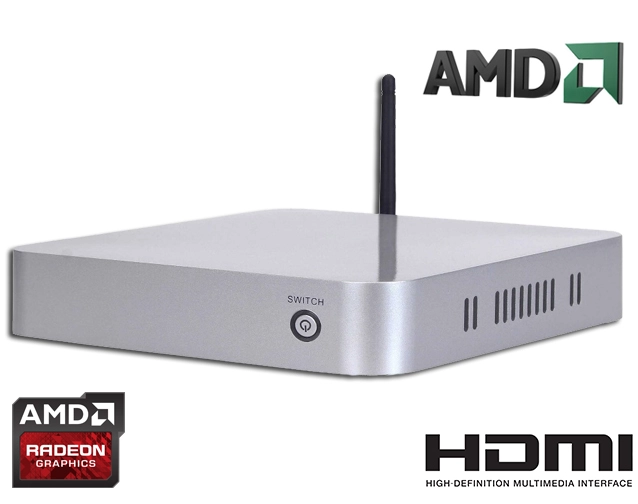

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated ATI Radeon HD video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality.

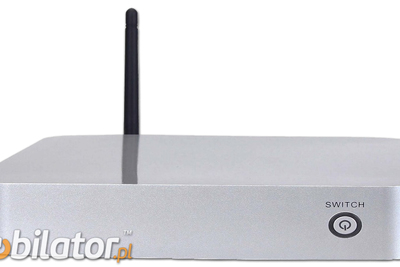

Industrial Computer Fanless MiniPC nBOX-L19 BAREBONE

go top…

menu…

Communication & Connectors

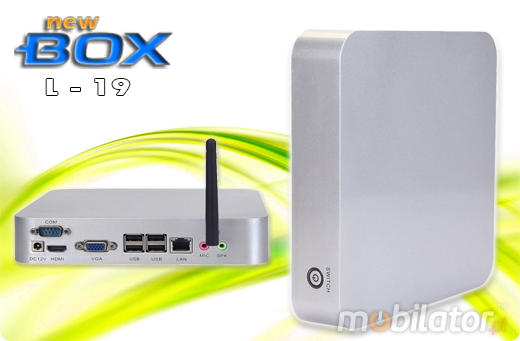

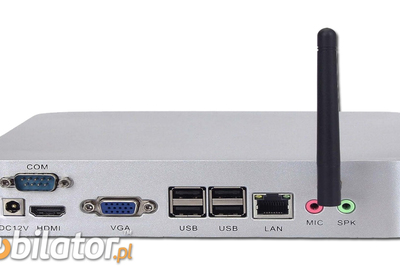

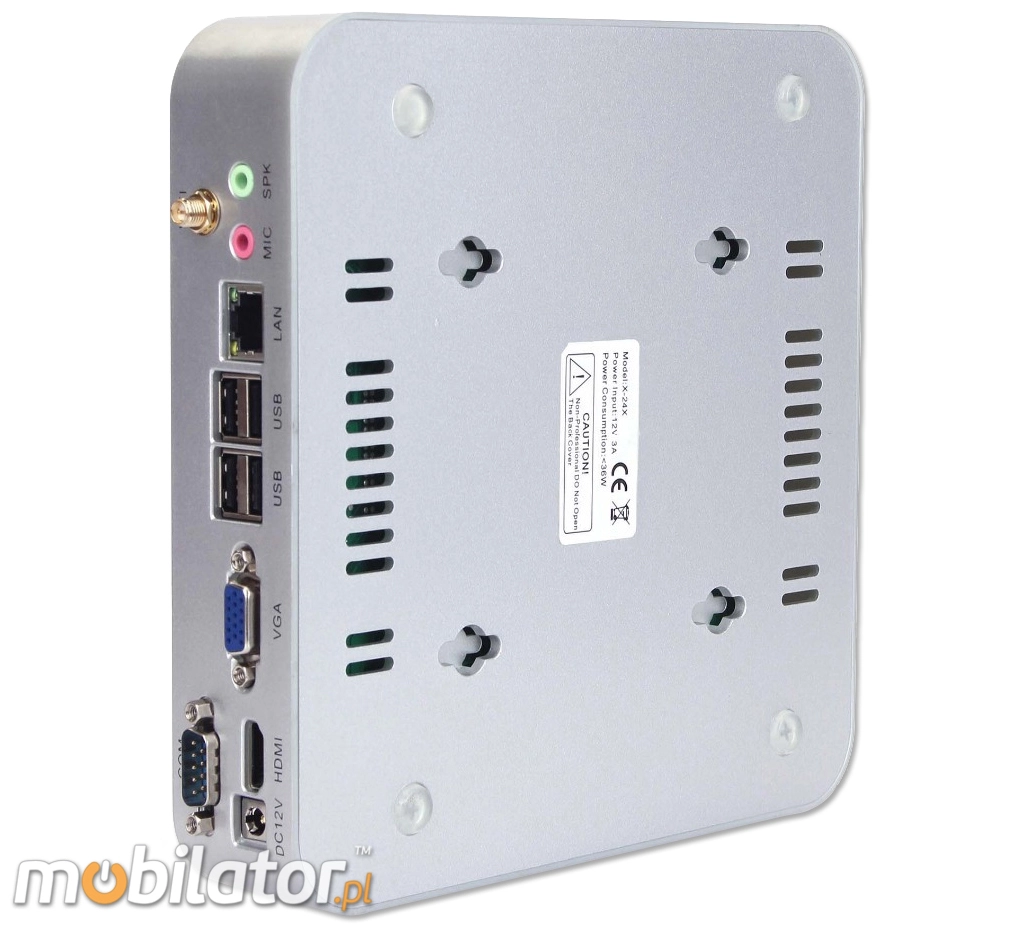

Integrated card NIC RTL8111DL Onboard Gigabit LAN allows you to connect the device to the network. The computer is equipped with: one LAN connector, one HDMI output, four USB 2.0 ports,, one VGA, one Mic input one audio input, optionally equips one in COM port (RS-232).

Industrial Computer Fanless MiniPC nBOX-L19 BAREBONE

Cooling

The industrial fanless MiniPC nBOX-L19 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go top… menu…

Application

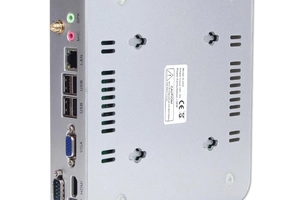

Industrial MiniPC Series nBOX-L19 are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Industrial Computer Fanless MiniPC nBOX-L19 BAREBONE of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Computer Fanless MiniPC nBOX-L19 BAREBONE

Dual dispaly

Areas of use of industrial MiniPC

Digital Engine

Industrial Computer Fanless MiniPC nBOX-L19 BAREBONE

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Industrial fanless MiniPC nBOX-L19 by seven USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless nBOX-L19 can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 6V to 34V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Computer Fanless MiniPC nBOX-L19 BAREBONE

go top…

menu…

go top… menu…

Specifications

Dimension	H: 40 mm L: 197 mm W: 197 mm
Weight	2,5 kg
Processor	AMD E240 (1.5GHz)
Chipset	AMD Hudson D1
RAM Memory	no
Graphic Card	ATI Radeon HD 6310
Sound Card	Realtek ALC662
WLAN	RTL8111DL Onboard NIC Gigabit LAN
Connectors	4 x USB 2.0 1 x HDMI 1 x VGA 1 x Mic 1 x Audio 1 x DC-IN 1 x LAN RJ45 1 x COM RS-232(opcja)

Others
Colour: Silver, Case: plastic
Chipset
AMD Hudson D1
CPU Support
-----
Installed CPU
AMD E240 (1.5GHz)
Memory Support
1GB DDR3 (can up to 8GB)
Installed Memory
No
Graphic Card
ATI Radeon HD 6310
Storage (HDD) Support
HDD/SSD
Installed Storage (HDD)
No
CD/DVD Drive
-----
LAN
1 * RTL8111DL Onboard NIC Gigabit LAN
Wireless LAN card
No
Bluetooth
-----
3G
-----
TV Tuner
-----
Watch Dog Timer
-----
Front Panel (ports)
-----

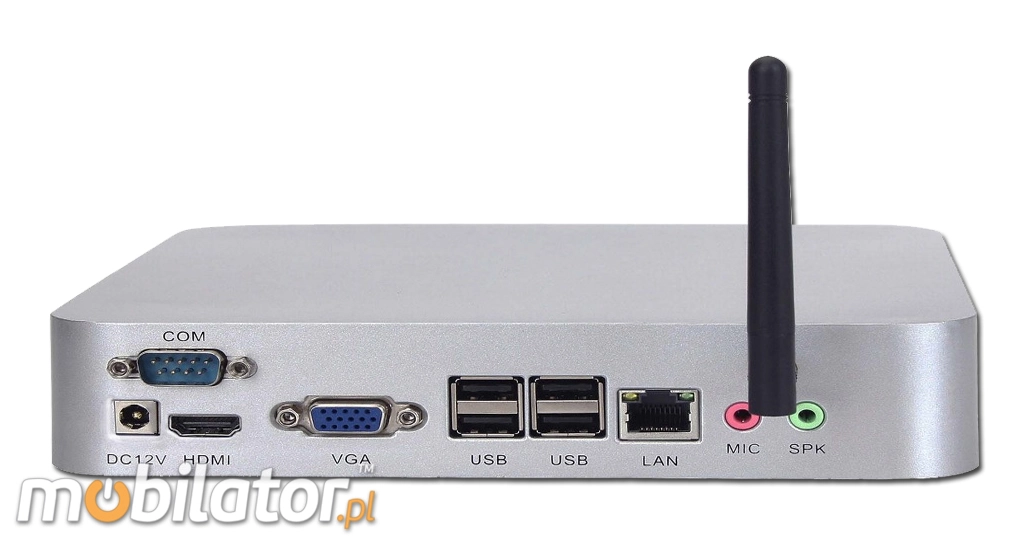

Rear Panel (ports)
4 x USB 2.0
1 x HDMI
1 x VGA
1 X Mic
1 X Audio
1 x DC-IN
1 x LAN RJ45
 1xCOM RS-232(option)
Power
12V
Supported OS
Microsoft Windows: 7/XP, Linux
Installed OS
-----
Dimensions
197 x 197 x 40 mm
Weight
2.5 kg
Expansion
-----
Fanless
No
Humidity
0 ~ 95%
Temp
0 ～50℃
IP Norm
-----
Storage temperature
-10 ~ 60℃
