Product Update Date: 2020-09-23

Industrial Computer Fanless MiniPC nBOX-X29-Y BAREBONE

Name: Industrial Computer Fanless MiniPC nBOX-X29-Y BAREBONE
Brand: Mobilator
Price: 850.79 PLN
Availability: InStock

Update Date: 2020.09.23

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

Description

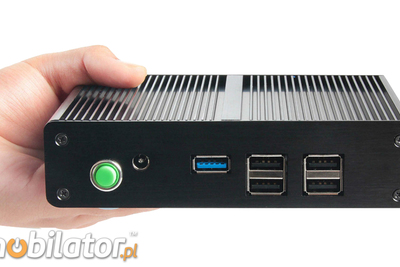

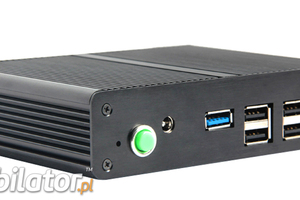

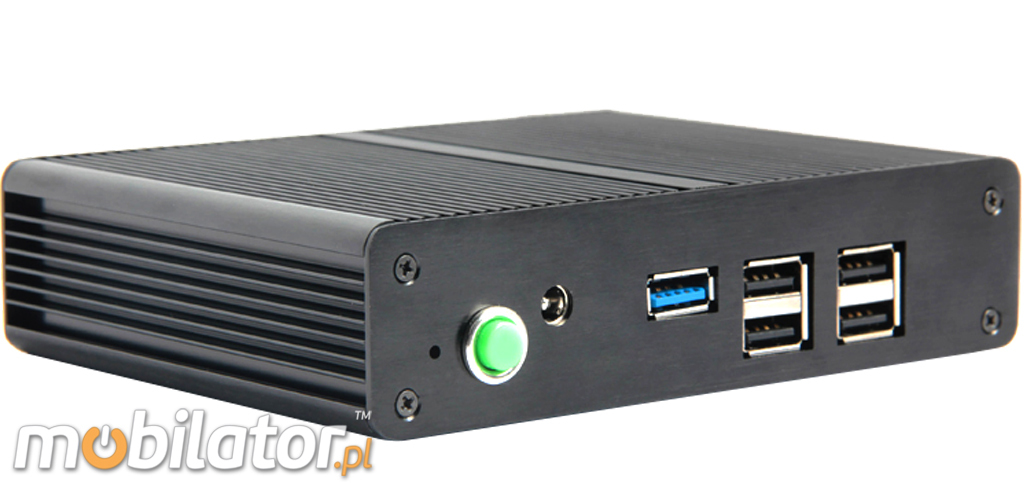

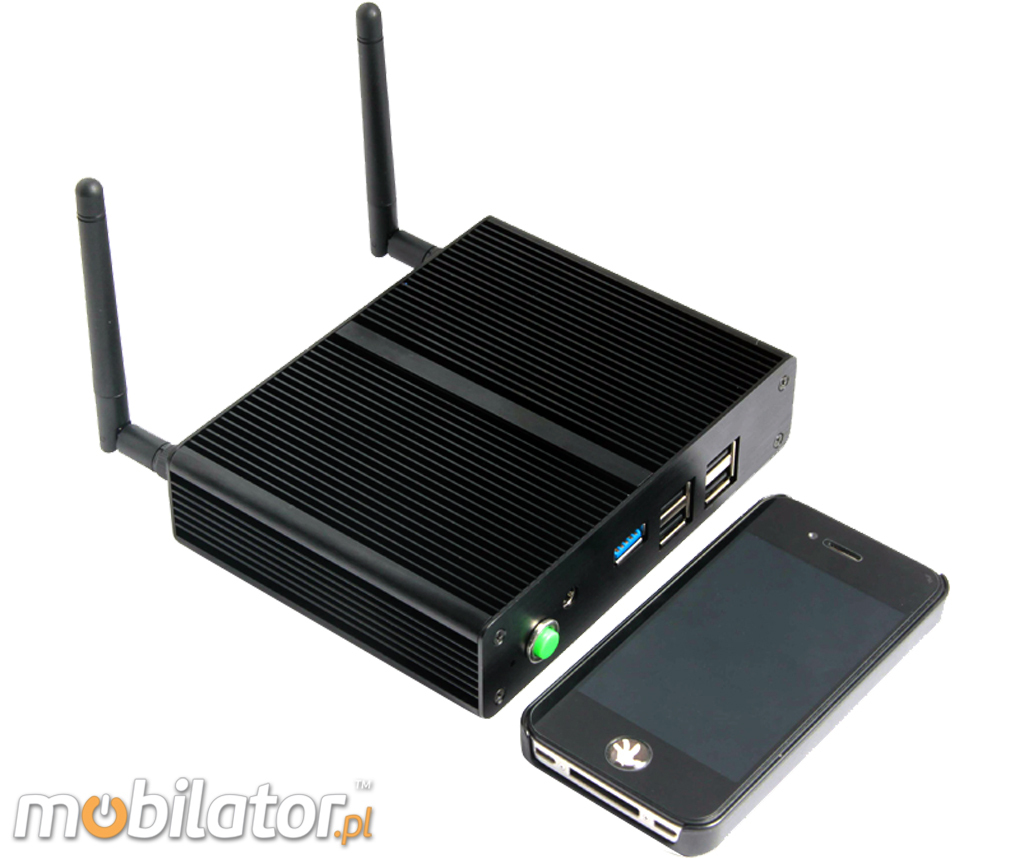

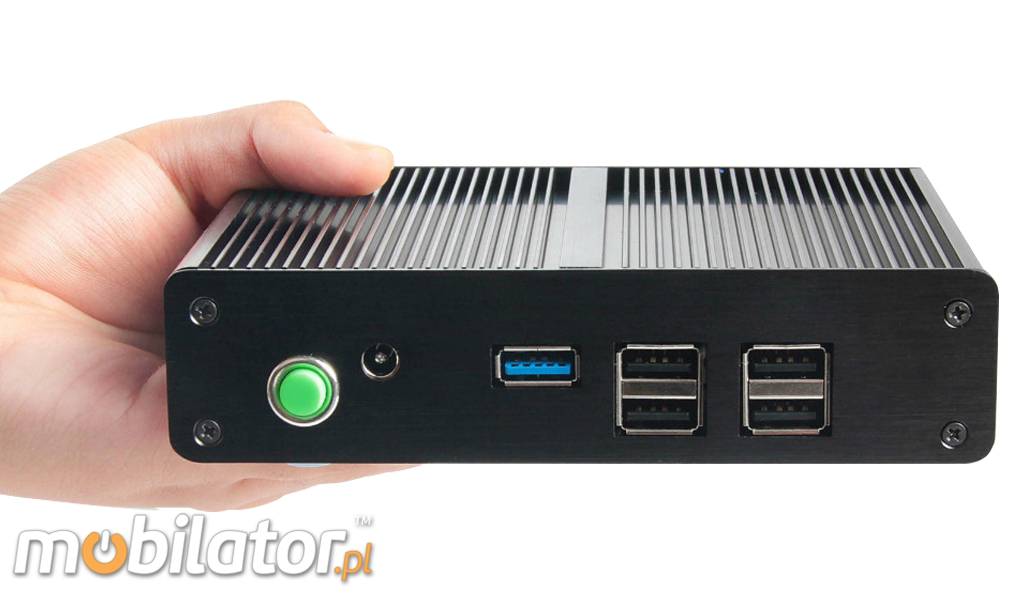

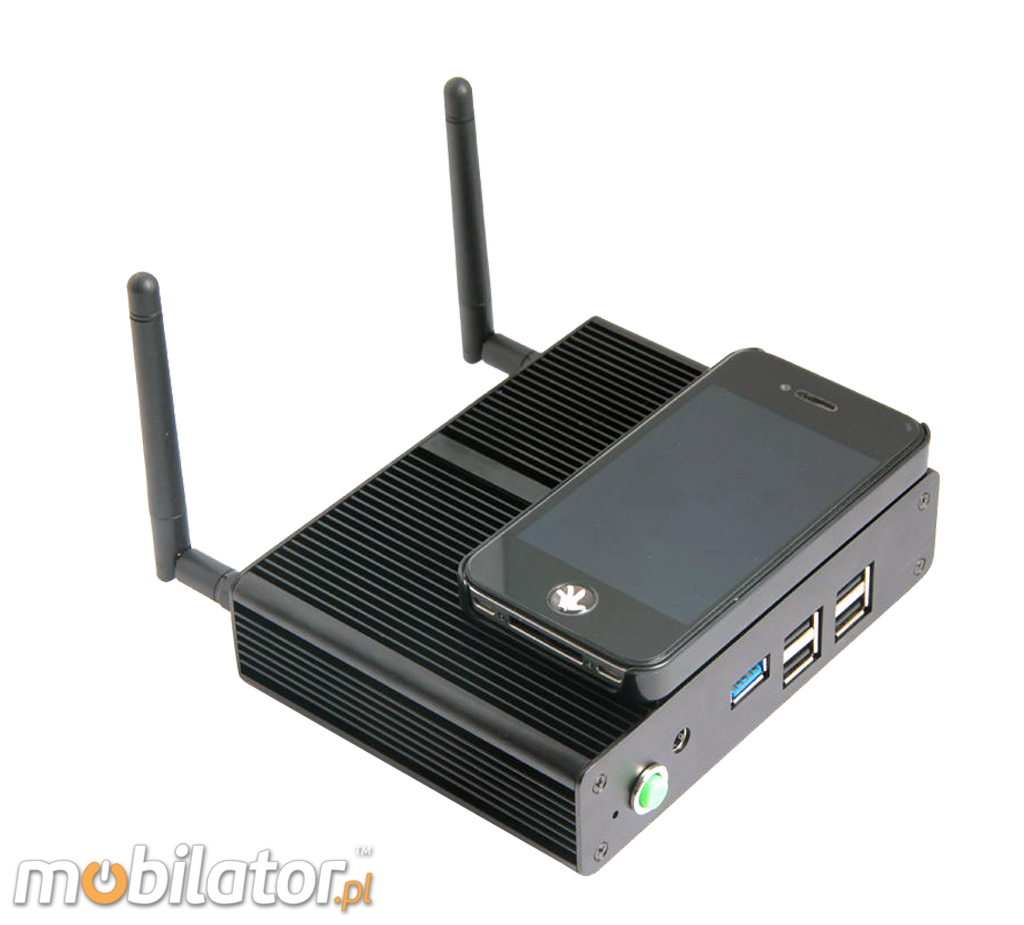

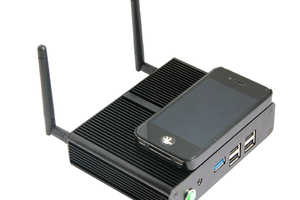

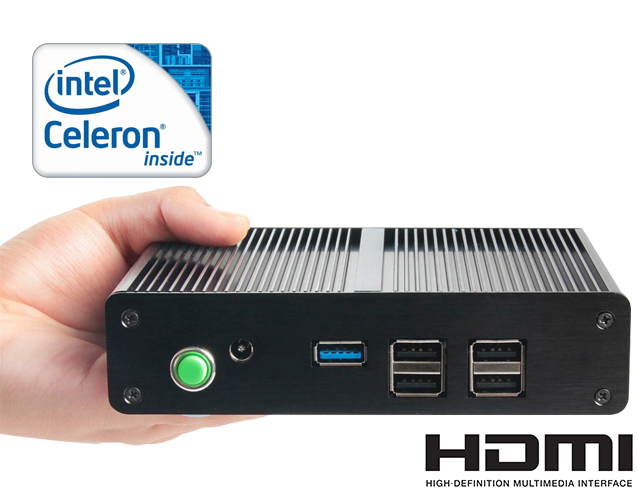

Housing dimensions are 130 (W) x 100 (L) x 35(H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 1 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality.

Industrial Computer Fanless MiniPC nBOX-X-29 Y BAREBONE

go top…

menu…

Communication & Connectors

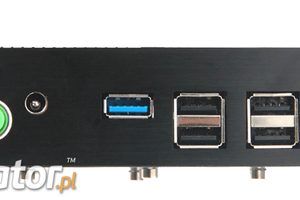

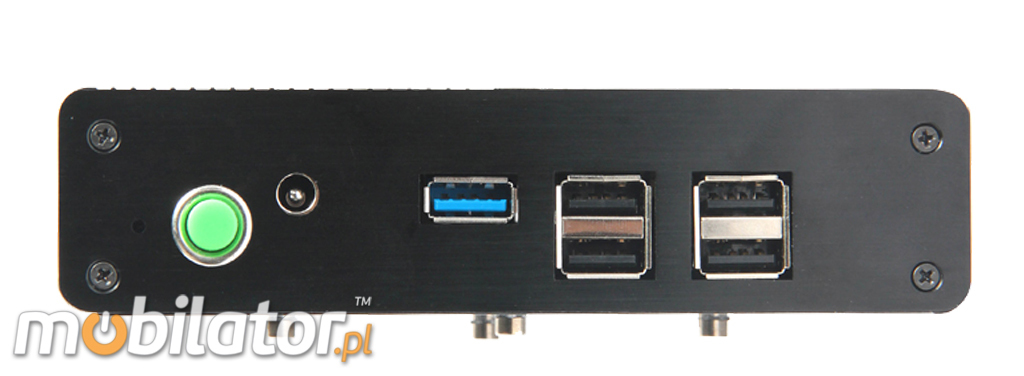

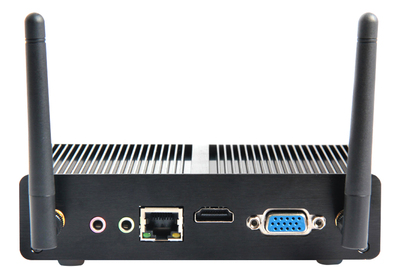

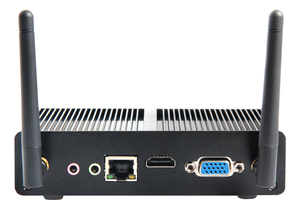

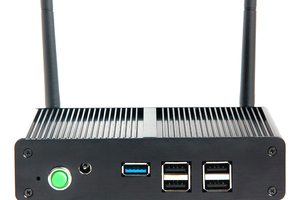

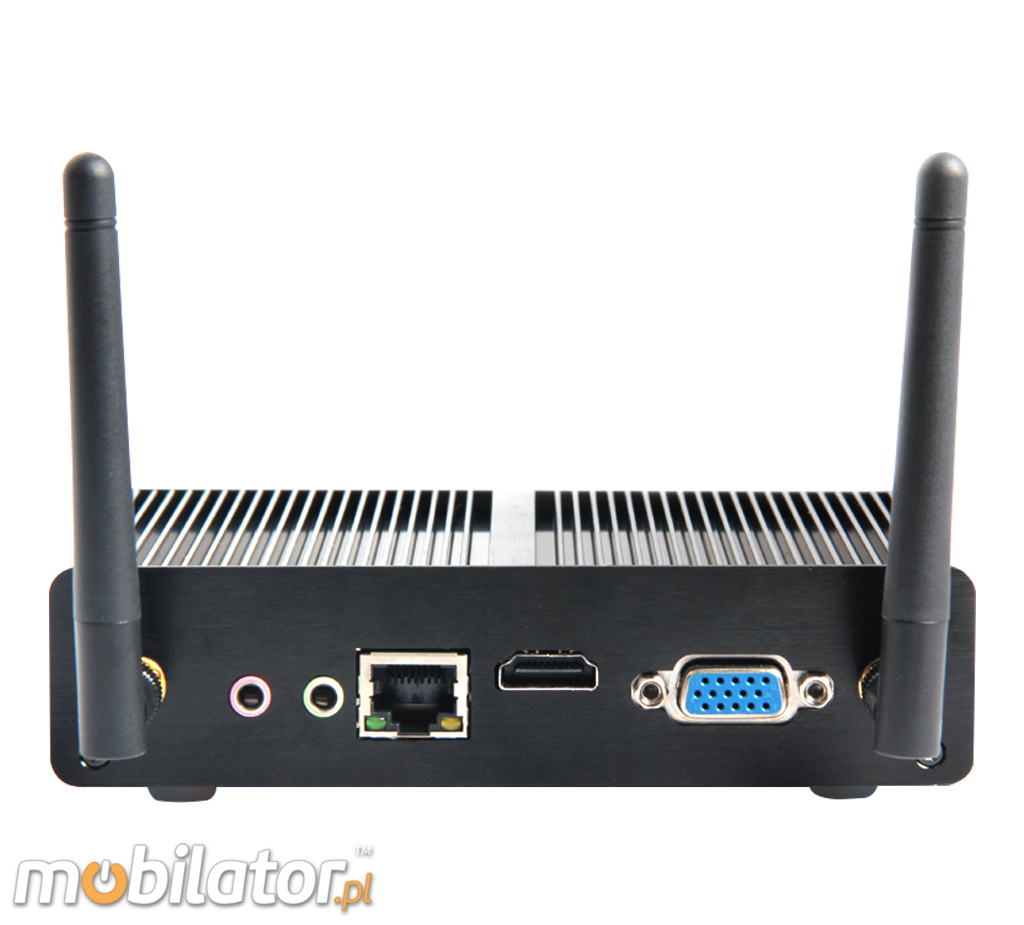

Integrated card NIC RTL8111DL Onboard Gigabit LAN allows you to connect the device to the network. The computer is equipped with: one LAN connector, one HDMI output, four USB 2.0 ports,one USB 3.0 port, one VGA, one Mic input one audio input.

Industrial Computer Fanless MiniPC nBOX-X-29 Y BAREBONE

Cooling

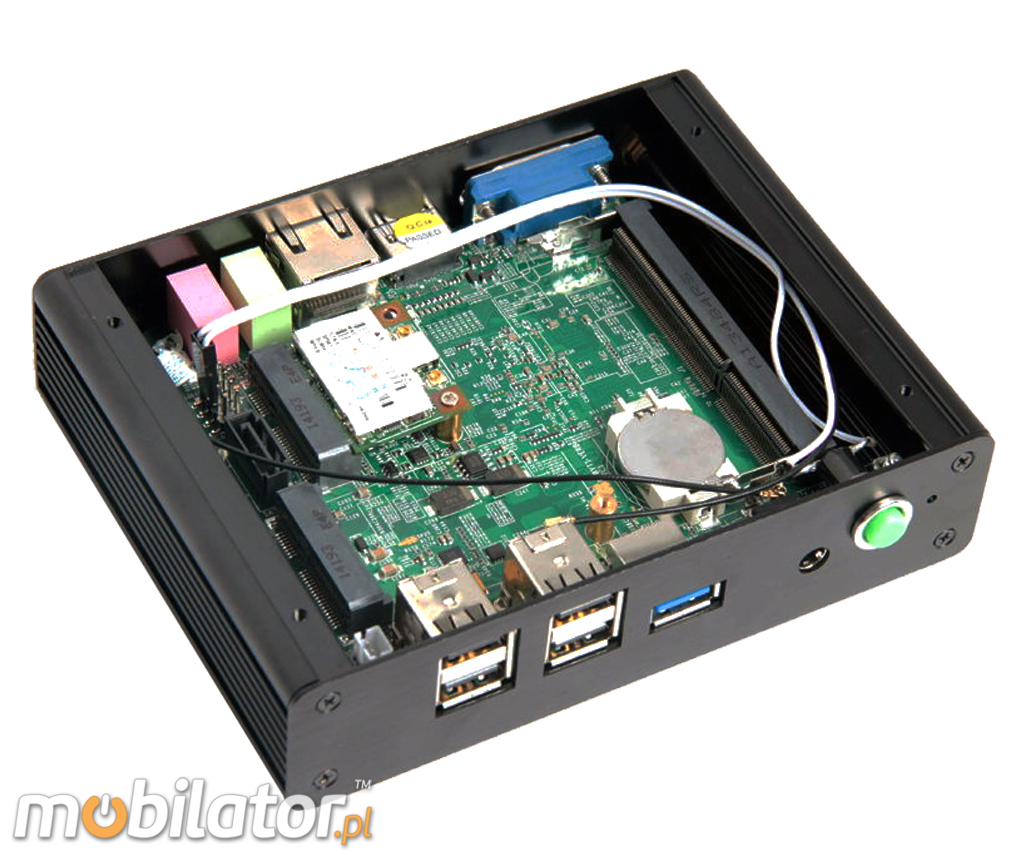

The industrial fanless MiniPC nBOX-X-29 Y uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go top… menu…

Application

Industrial MiniPC Series nBOX-X-29 Y are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Industrial Computer Fanless MiniPC nBOX-X-29 Y BAREBONE of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Computer Fanless MiniPC nBOX-X-25 X BAREBONE

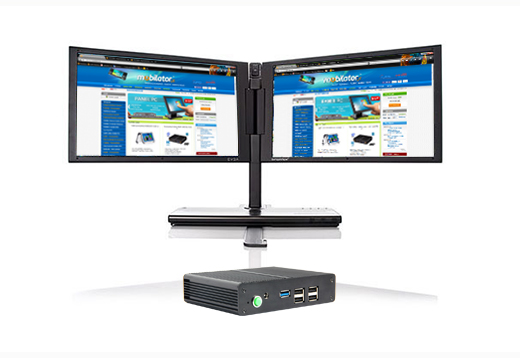

Dual dispaly

Areas of use of industrial MiniPC

Digital Engine

Industrial Computer Fanless MiniPC nBOX-X-29 Y BAREBONE

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Industrial fanless MiniPC nBOX-X-29 Y by seven USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless nBOX-X-29 Y can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 6V to 34V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Computer Fanless MiniPC nBOX-X-29 Y BAREBONE

go top…

menu…

go top… menu…

Specifications

Dimension	H: 35 mm L: 100 mm W: 130 mm
Weight	1 kg
Processor	Intel Celeron N2820 (2x2.13GHz)
Chipset	Intel Chipset
RAM Memory	no
Graphic Card	Intel HD
Sound Card	Realtek ALC662
WLAN	RTL8111DL Onboard NIC Gigabit LAN
Connectors	4 x USB 2.0 1 x HDMI 1 x VGA 1 x Mic 1 x Audio 1 x DC-IN 1 x LAN RJ45 1 x USB 3.0

Supported OS
Microsoft Windows: 7/XP, Linux
Installed OS
-----
Chipset
Intel Chipset
CPU Support
-----
Installed CPU
Intel Celeron N2820 (2x2.13GHz)
Graphic Card
Intel HD Graphics
Memory Support
2GB DDR3 (can up to 8GB)
Installed Memory
No
Storage (HDD) Support
HDD/SSD
Installed Storage (HDD)
No
IP Norm
-----
Temp
0 ～70℃
Storage temperature
-20 ~ 80℃
Humidity
10 ~ 90%
Others
Colour: Silver, Case: plastic
LAN
1 * RTL8111DL Onboard NIC Gigabit LAN
Wireless LAN card
No
3G
-----
Bluetooth
-----
Rear Panel (ports)
4 x USB 2.0
1 x USB 3.0
1 x HDMI
1 x VGA
1 X Mic
1 X Audio
1 x DC-IN
1 x LAN RJ45
Front Panel (ports)
-----
Expansion
-----
Power
12V
Watch Dog Timer
-----
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
130 x 100 x 35 mm
Fanless
No
Weight
1 kg
Responsible Entity / Distributor
New Portable Devices

Compare all versions

Industrial Computer Fanless MiniPC nBOX-X29-Y BAREBONE

Small size / Intel Celeron N2820 (2x2.13GHz) Grafika: Intel HD RAM - no / Disk - no 1x HDMI / 1x VGA / 4x USB 2.0 1x LAN / 1x Audio / 1x Mic / 1x USB 3.0
