Industrial Computer Fanless MiniPC Nuc IBOX-101 v.5

Name: Industrial Computer Fanless MiniPC Nuc IBOX-101 v.5
Brand: Mobilator
Price: 1955.76 PLN
Availability: InStock

Odporny komputer do instalacji przemysłowych

+25

Update Date: 2024.11.13

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

Industrial Computer Fanless MiniPC Nuc IBOX-501 N6

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

MiniPC Nuc IBOX-101 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

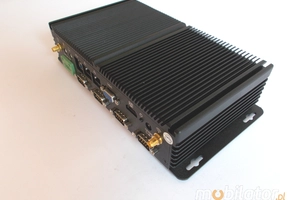

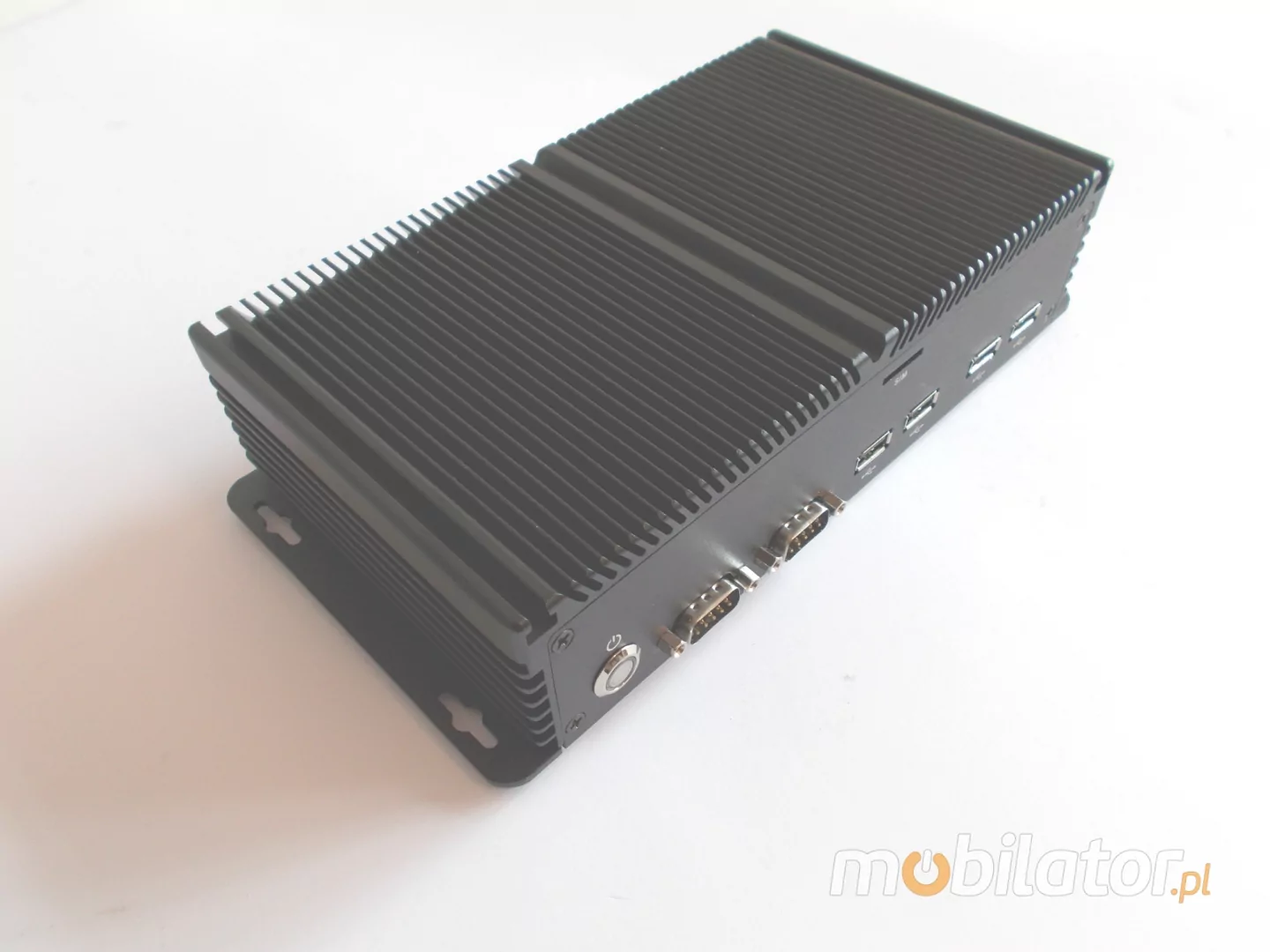

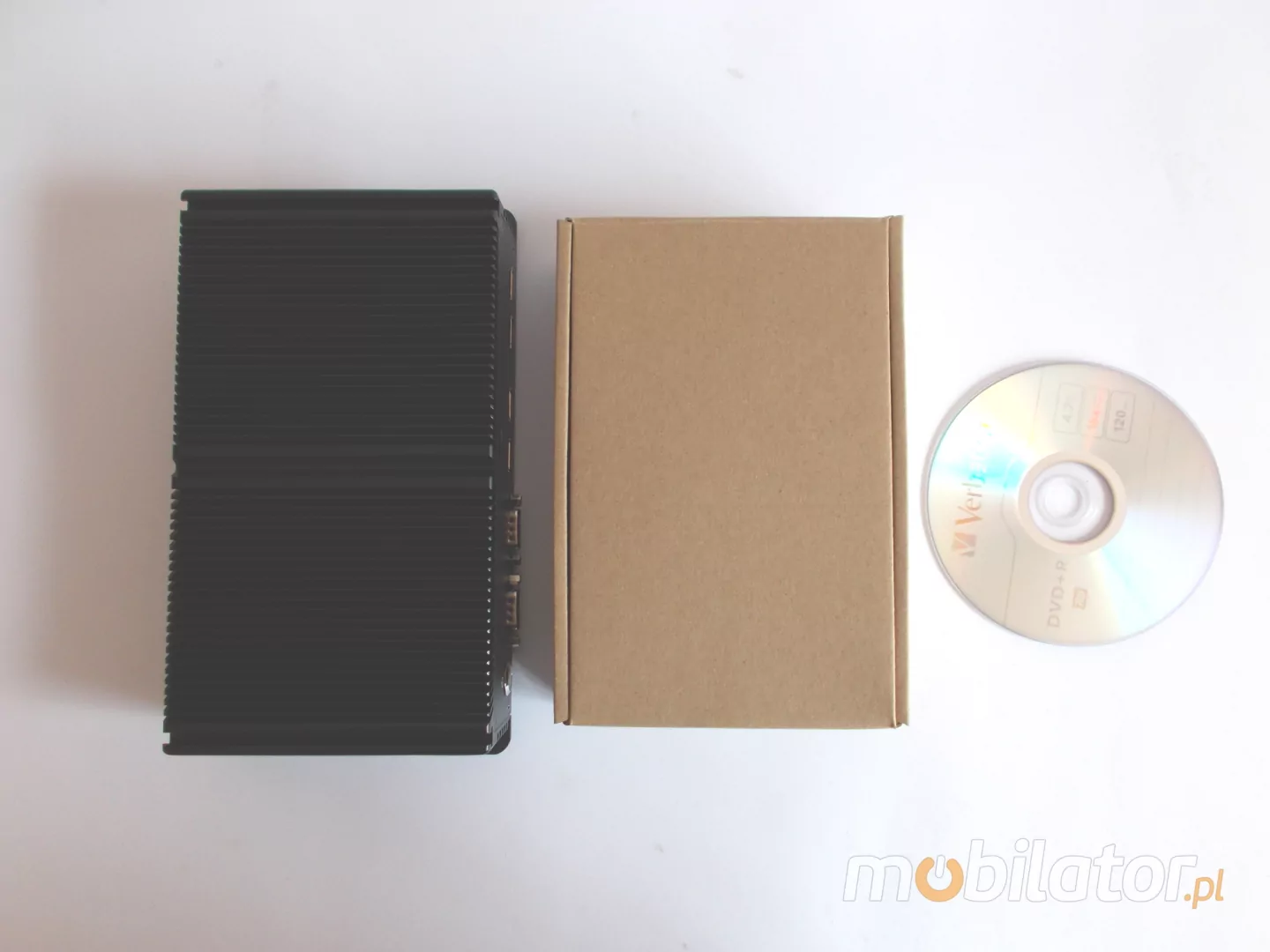

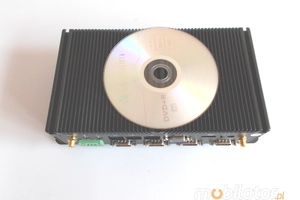

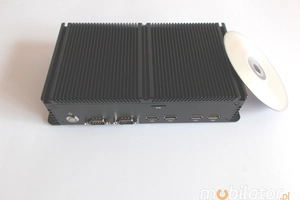

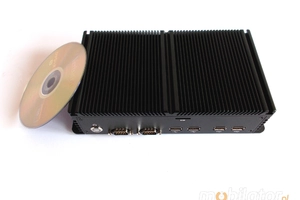

Housing dimensions are 234 (W) x122 (L) x54 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 2/4/8GB DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB/128GB SSD and 500GB HDD.

Industrial Computer Fanless MiniPC Nuc IBOX-501 N6

go top…

menu…

Communication & Connectors

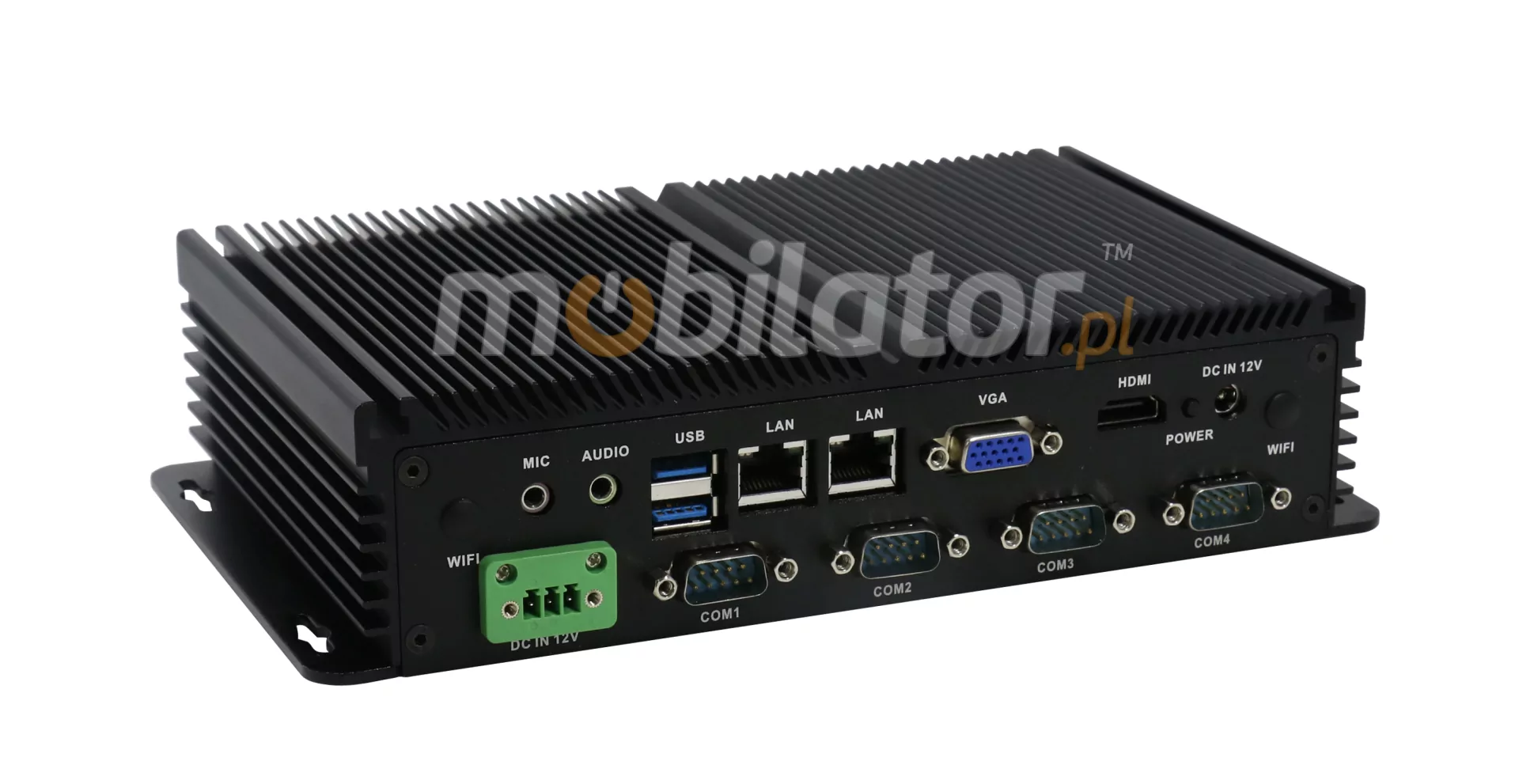

Integrated cards - Intel WGI211AT 1000M Lan and WiFi module allows connection to the network. The computer is equipped with: two LAN ports, one VGA port, six COM ports, one HDMI port, one GPIO interface one USB 3.0 ports, five USB 2.0 ports, SIM Card slot and a built-in connector on the motherboard: two SATA ports, one MiniSATA port, and two Mini-PCIE connectors.

Industrial Computer Fanless MiniPC Nuc IBOX-501 N6

Cooling

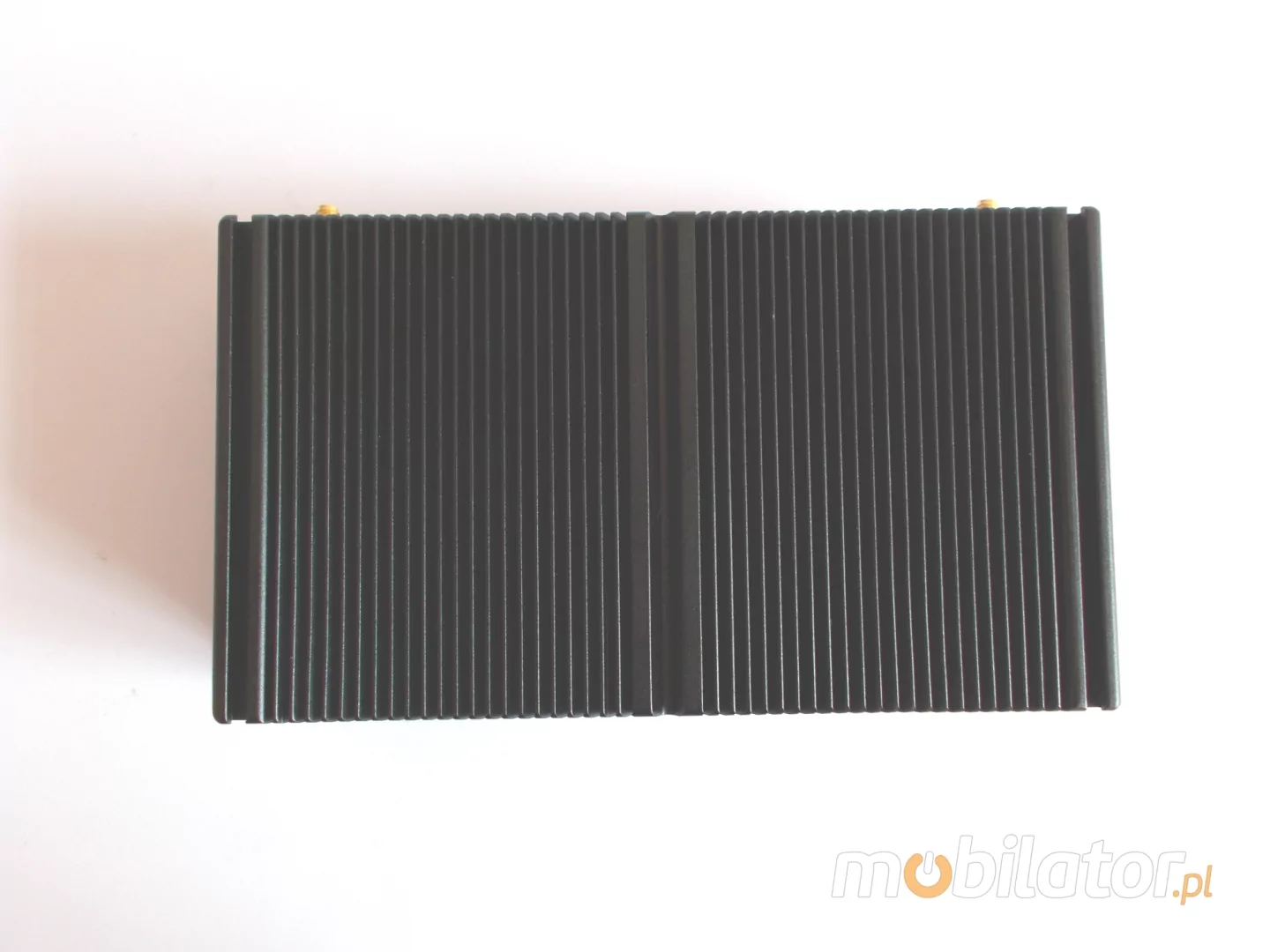

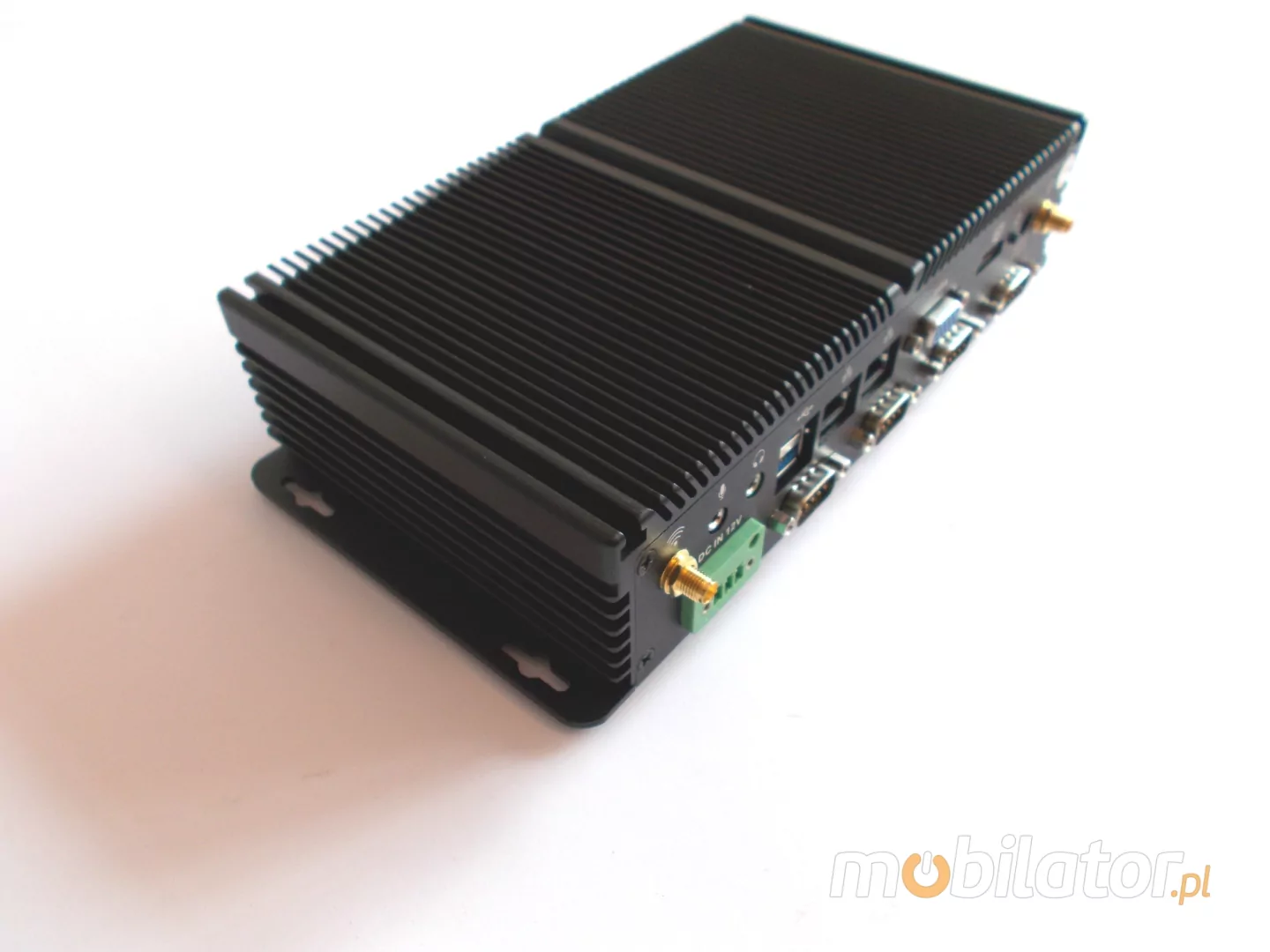

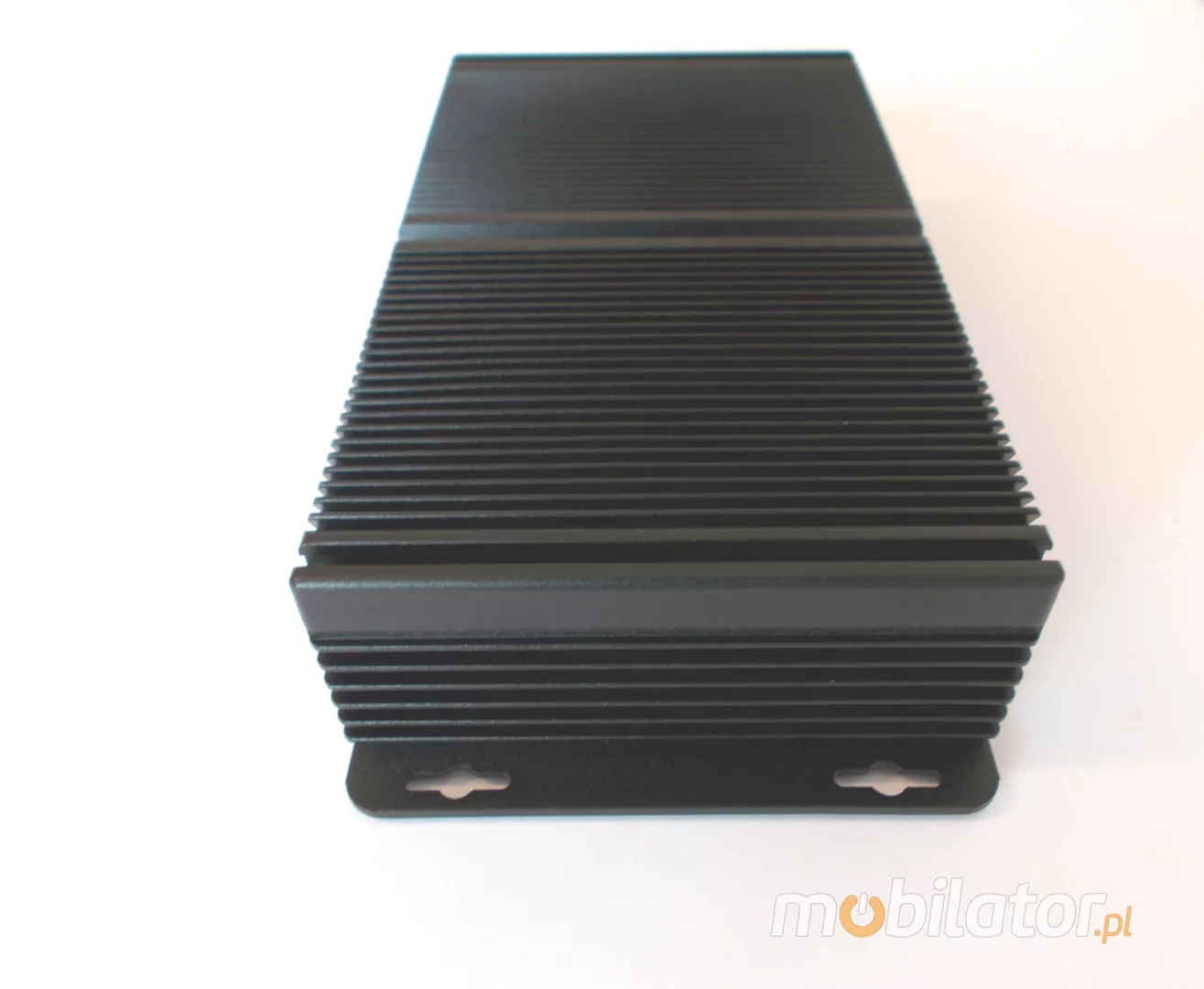

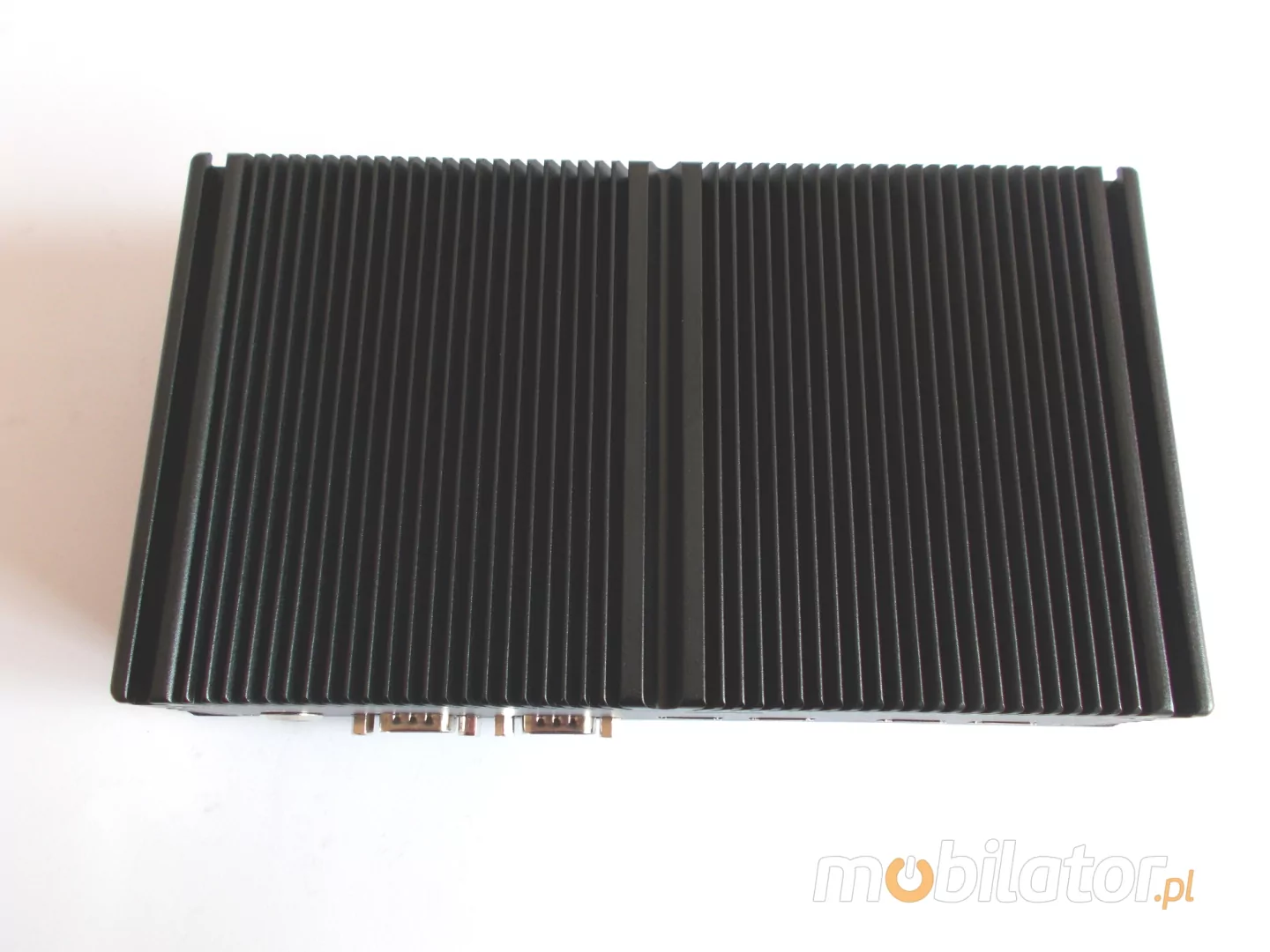

The industrial fanless MiniPC Nuc IBOX-101 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go top… menu…

Application

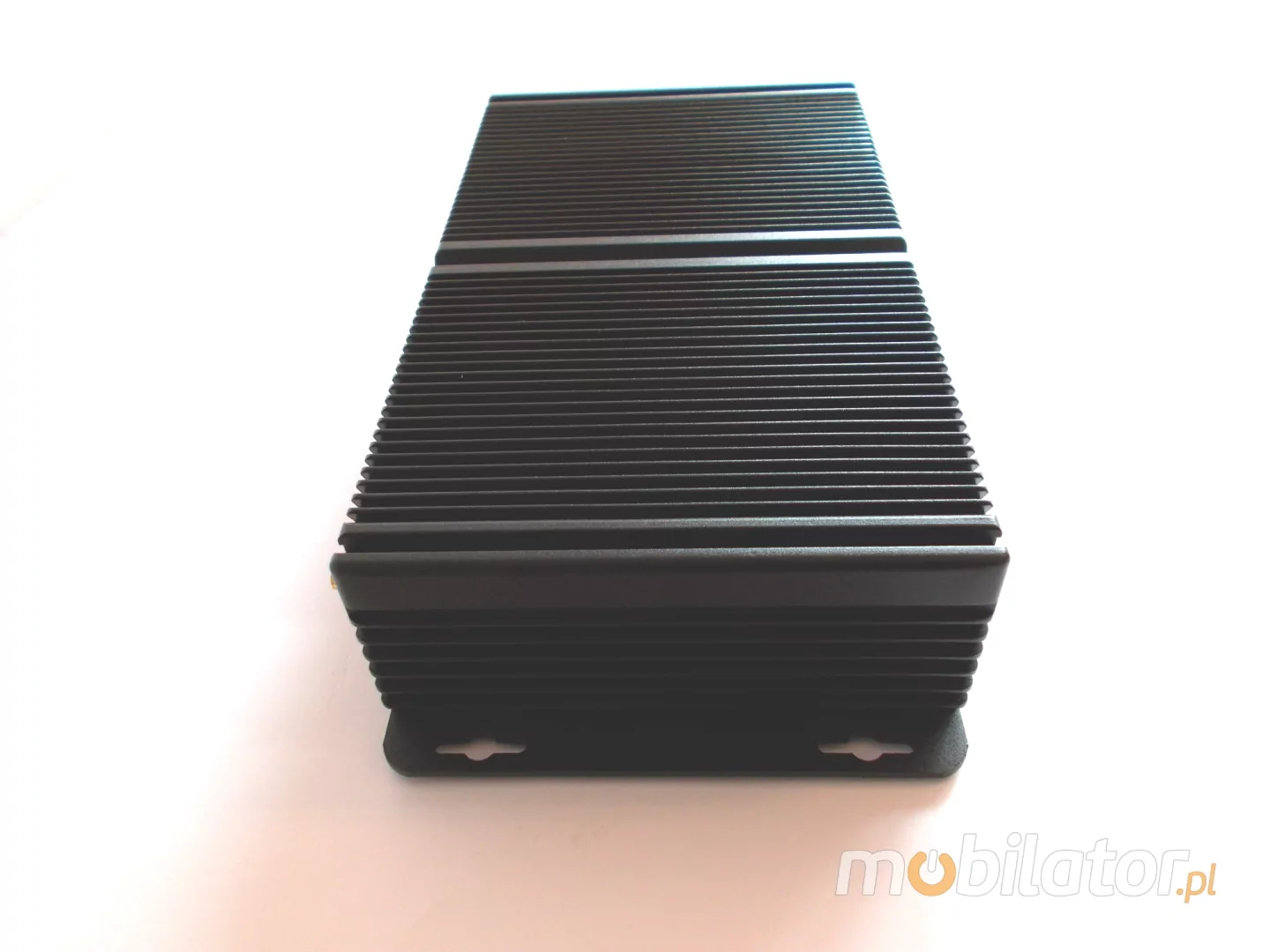

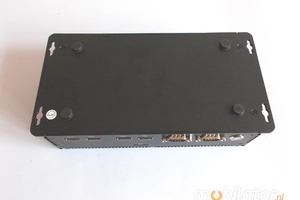

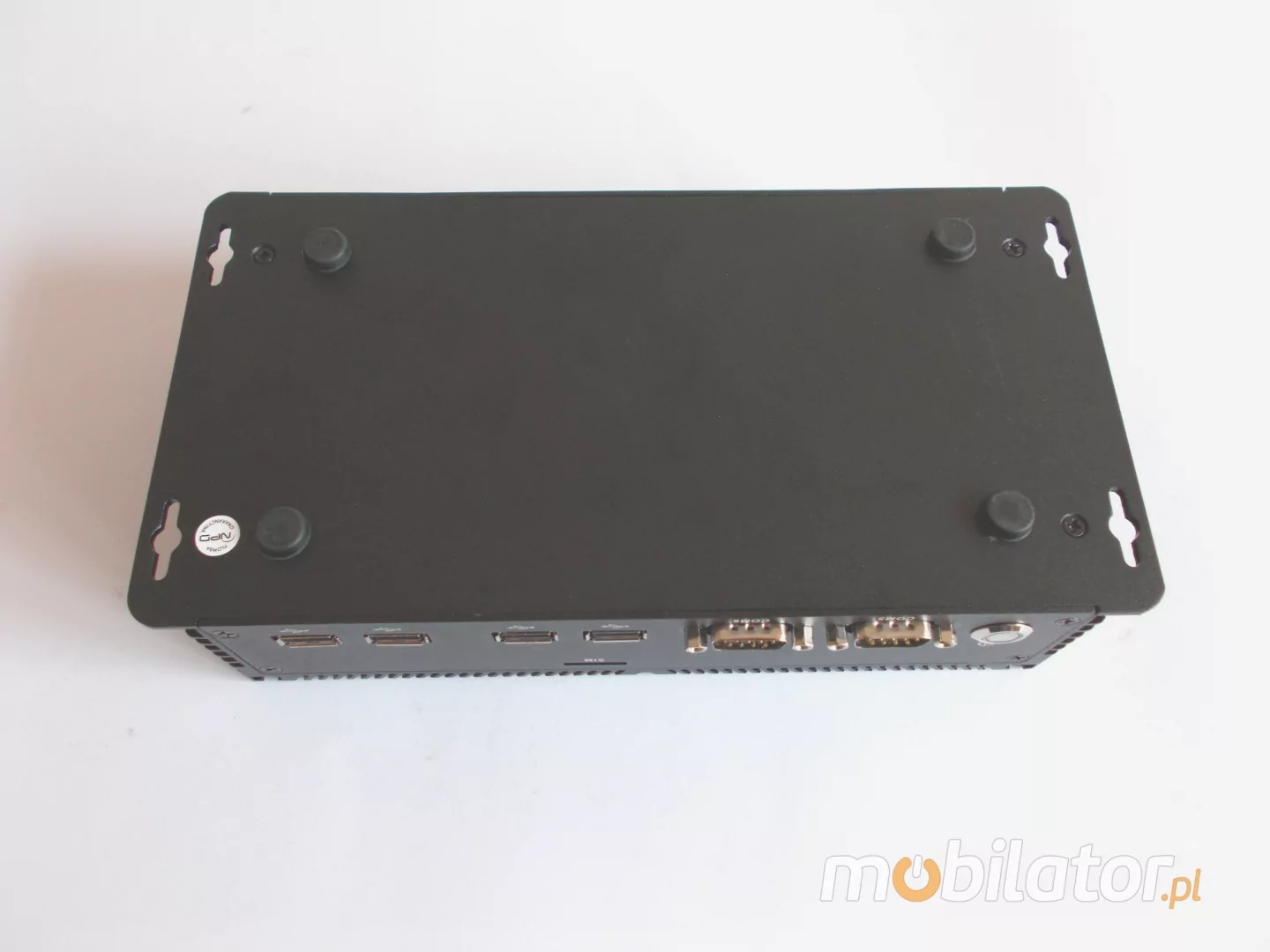

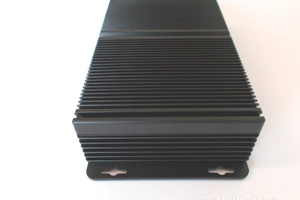

Industrial MiniPC Nuc IBOX-101 are based on high-performance four-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Industrial Computer Fanless MiniPC Nuc IBOX-501 N6 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Computer Fanless MiniPC Nuc IBOX-501 N6

Areas of use of industrial MiniPC

Digital Engine

Industrial Computer Fanless MiniPC Nuc IBOX-501 N6

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Industrial fanless MiniPC Nuc IBOX-101 by USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC Nuc IBOX-101 can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Computer Fanless MiniPC Nuc IBOX-501 N6

go top…

menu…

Specifications

Dimension	H: 54 mm L: 234 mm W: 122 mm
Processor	Intel Celeron J1900 Quad Core(4x2GHz)
Chipset	Intel express chipset
RAM Memory	2/4/8GB DDR3
Graphic Card	Intel HD Graphics
Sound Card	Realtek ALC662
WLAN	Intel WGI211AT Gigabit 1000M Lan
Connectors	1x 12V DC Jack 1x USB 3.0 5x USB 2.0 2x RJ-45 LAN 1x VGA 1x HDMI 1x Audio 1x Karta SIM 6x COM 1x GPIO

Supported OS
Microsoft Windows: 7/8/8.1/10, Linux
Installed OS
-----
Chipset
Intel express chipset
CPU Support
-----
Installed CPU
Intel Celeron J1900 Quad Core(4x2GHz)
Graphic Card
Intel HD Graphics
Memory Support
DDR3 (max. 8GB)
Installed Memory
4GB DDR3
Storage (HDD) Support
-----
Installed Storage (HDD)
128 GB SSD
IP Norm
-----
Temp
-20 ～60℃
Storage temperature
-20 ~ 60℃
Humidity
0 ~ 95%
Others
Colour Black
LAN
2 x Intel  WGI211AT 1000M Lan
Wireless LAN card
Yes
3G
Yes
Bluetooth
Yes

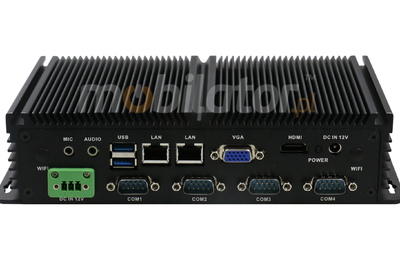

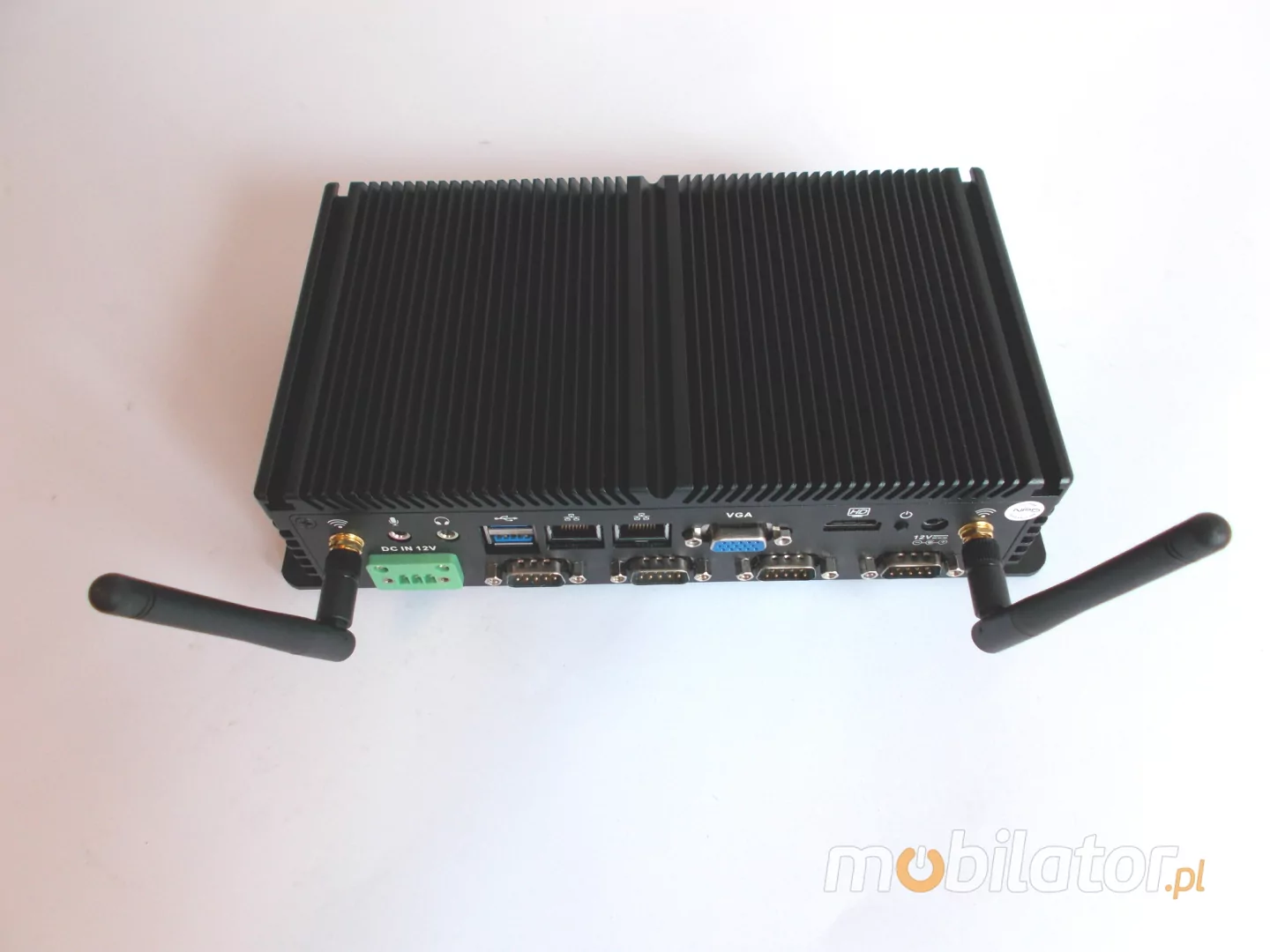

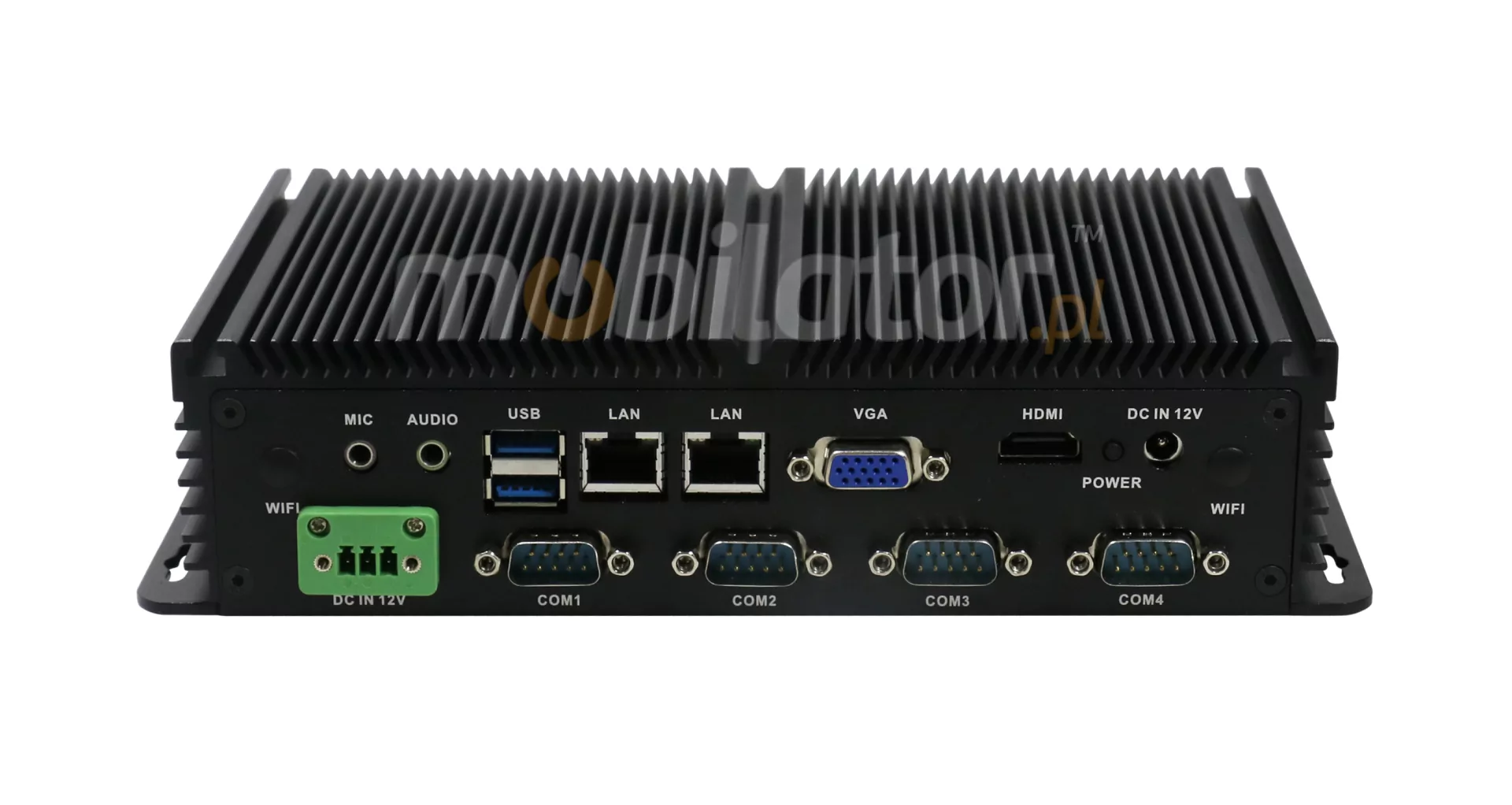

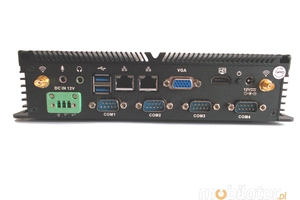

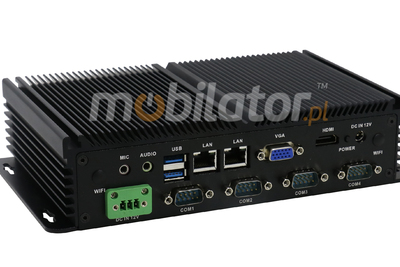

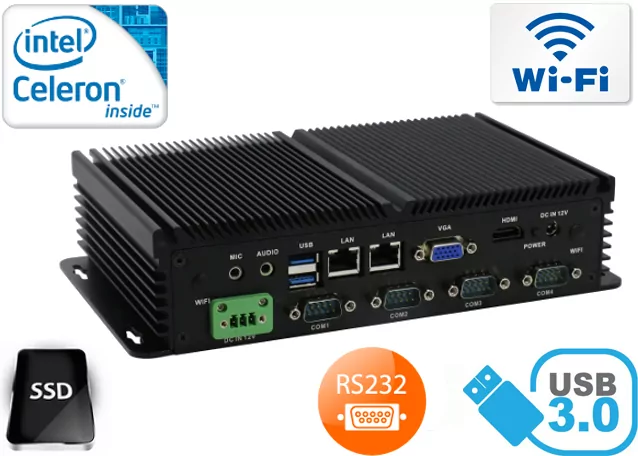

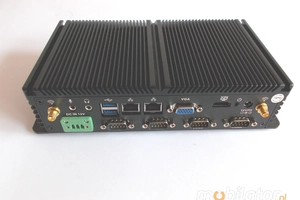

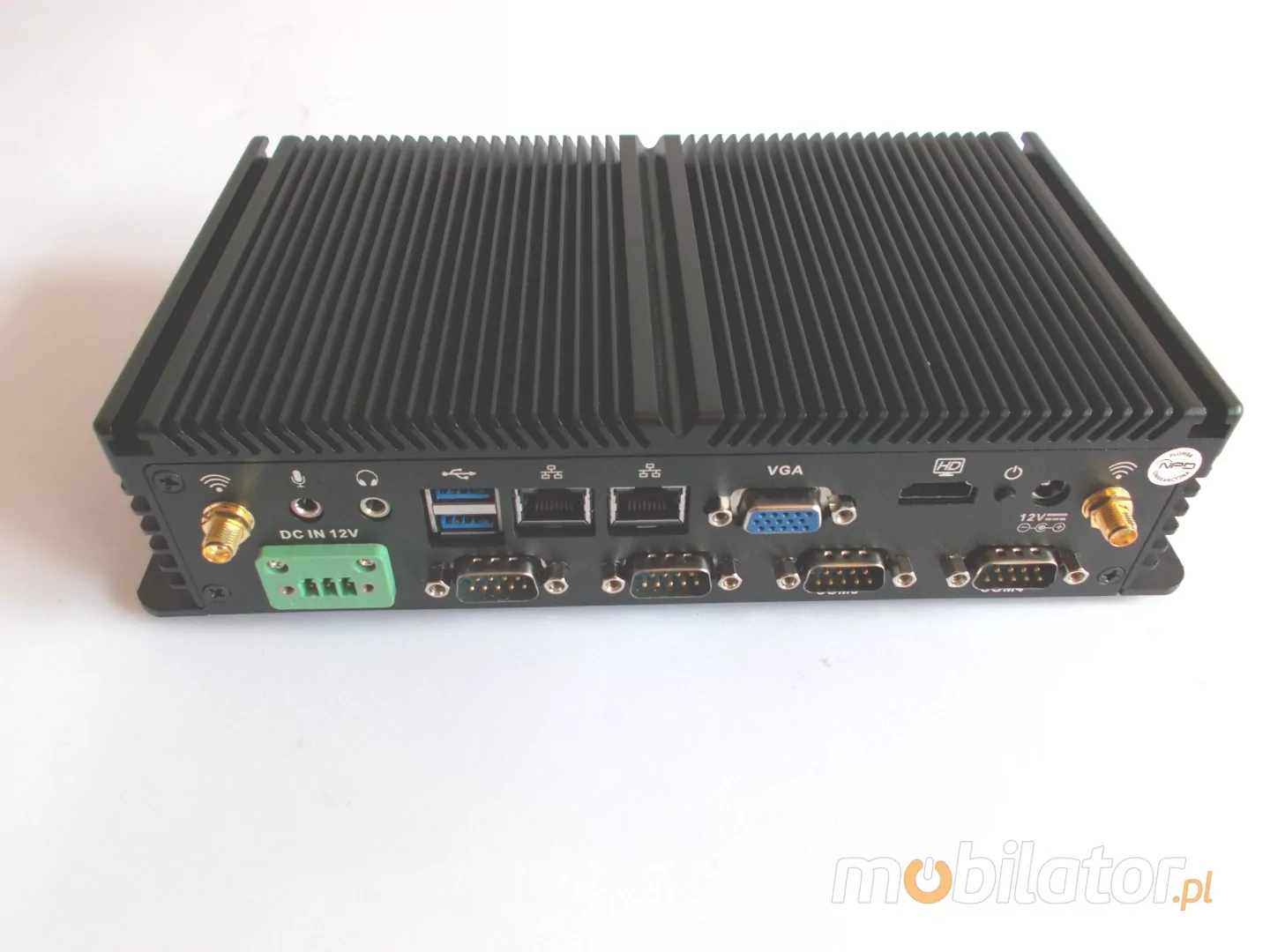

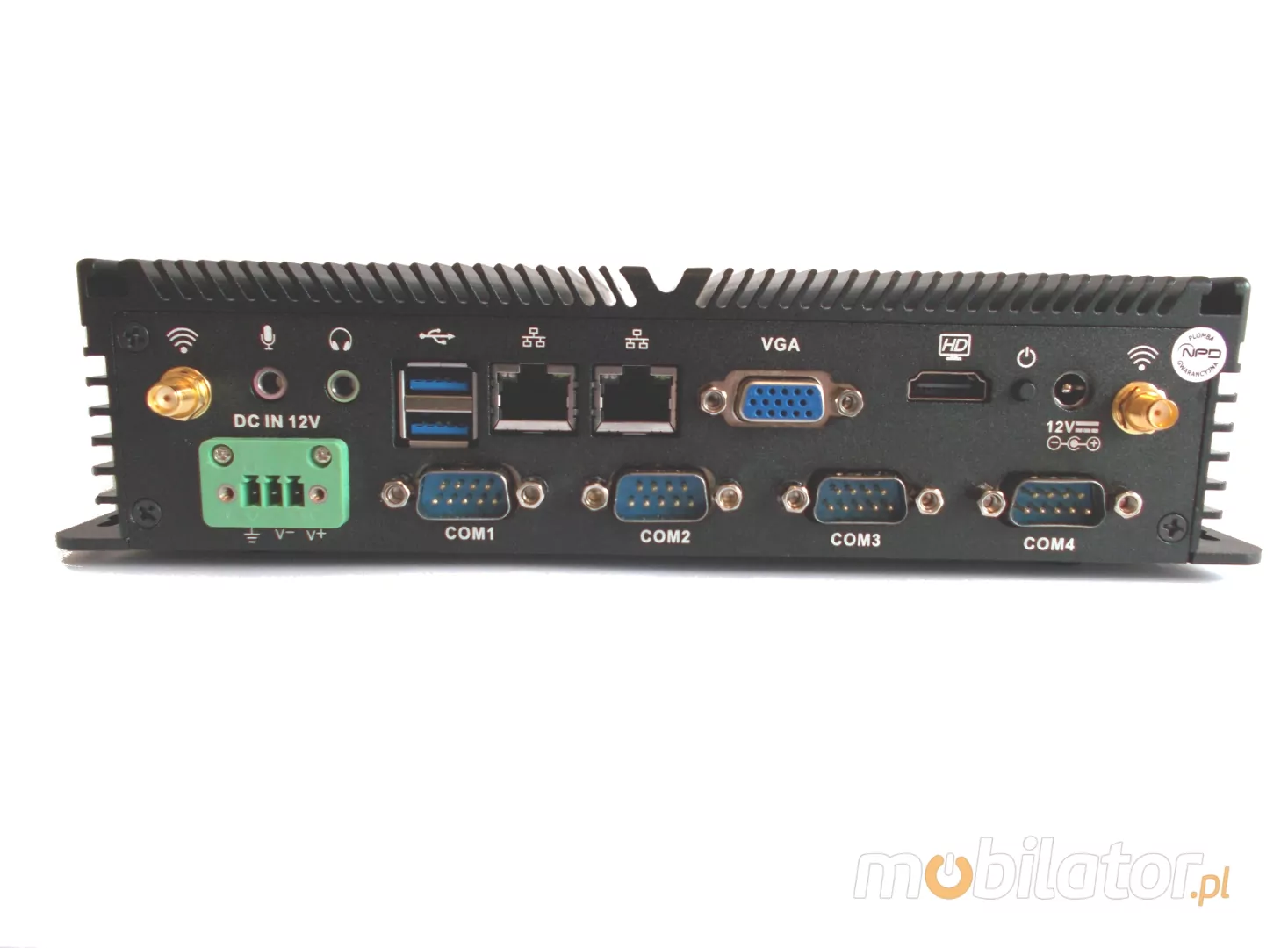

Rear Panel (ports)
1x USB2.0
1x USB3.0
4x COM
2x LAN
1xHDMI
DC-IN 12V
Power ON/OFF
1x VGA
1x Audio
1x Mikrofon

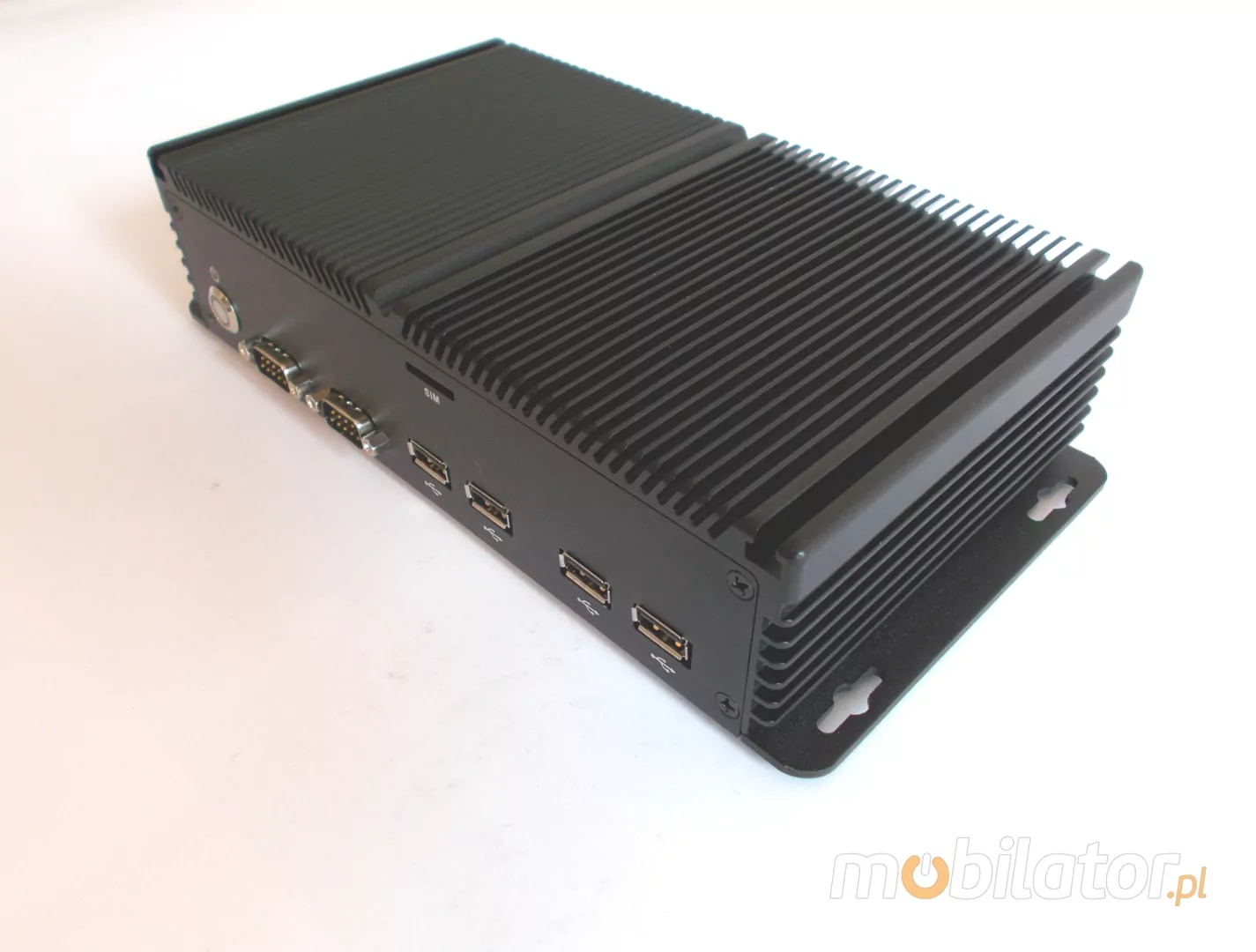

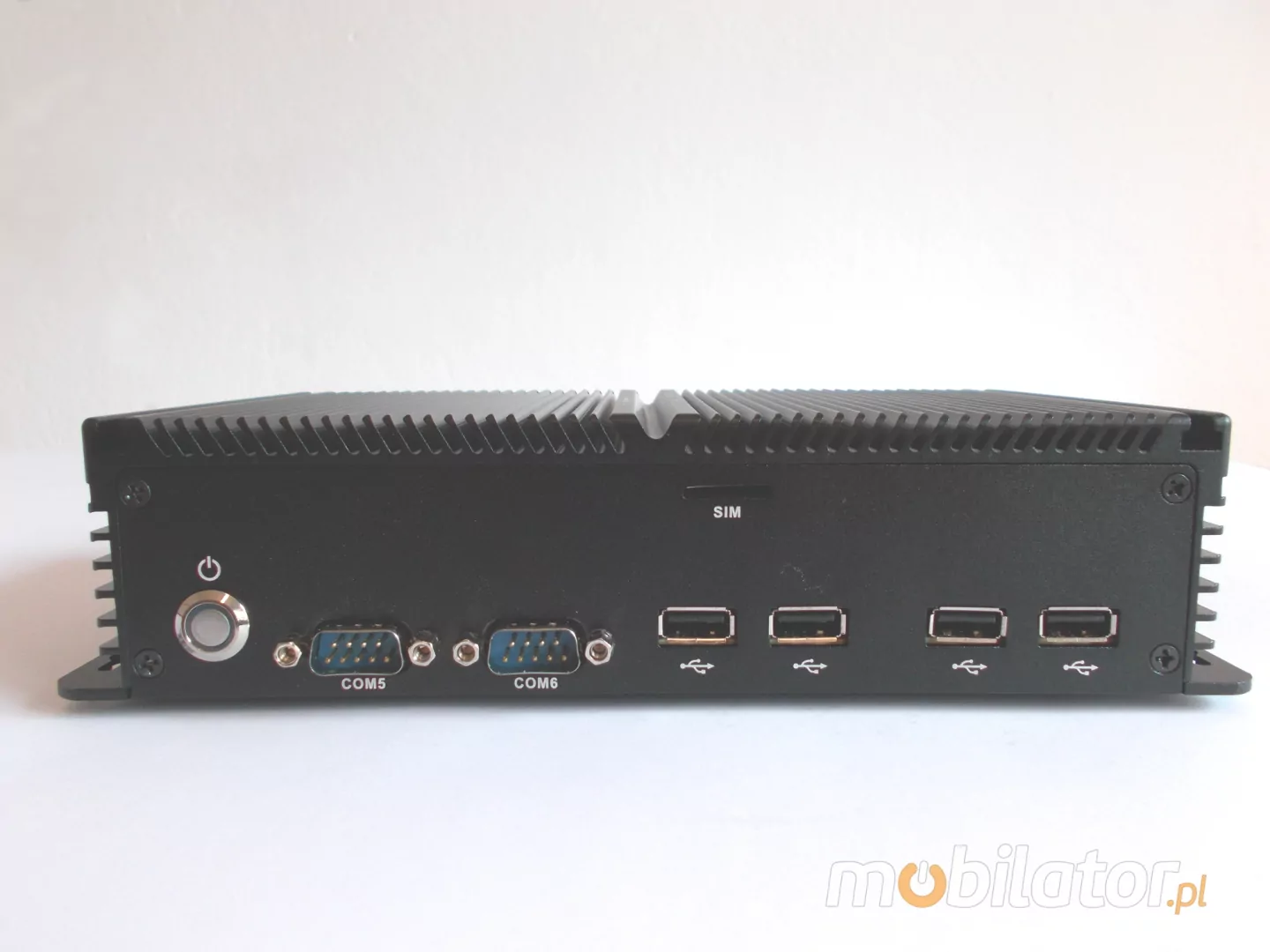

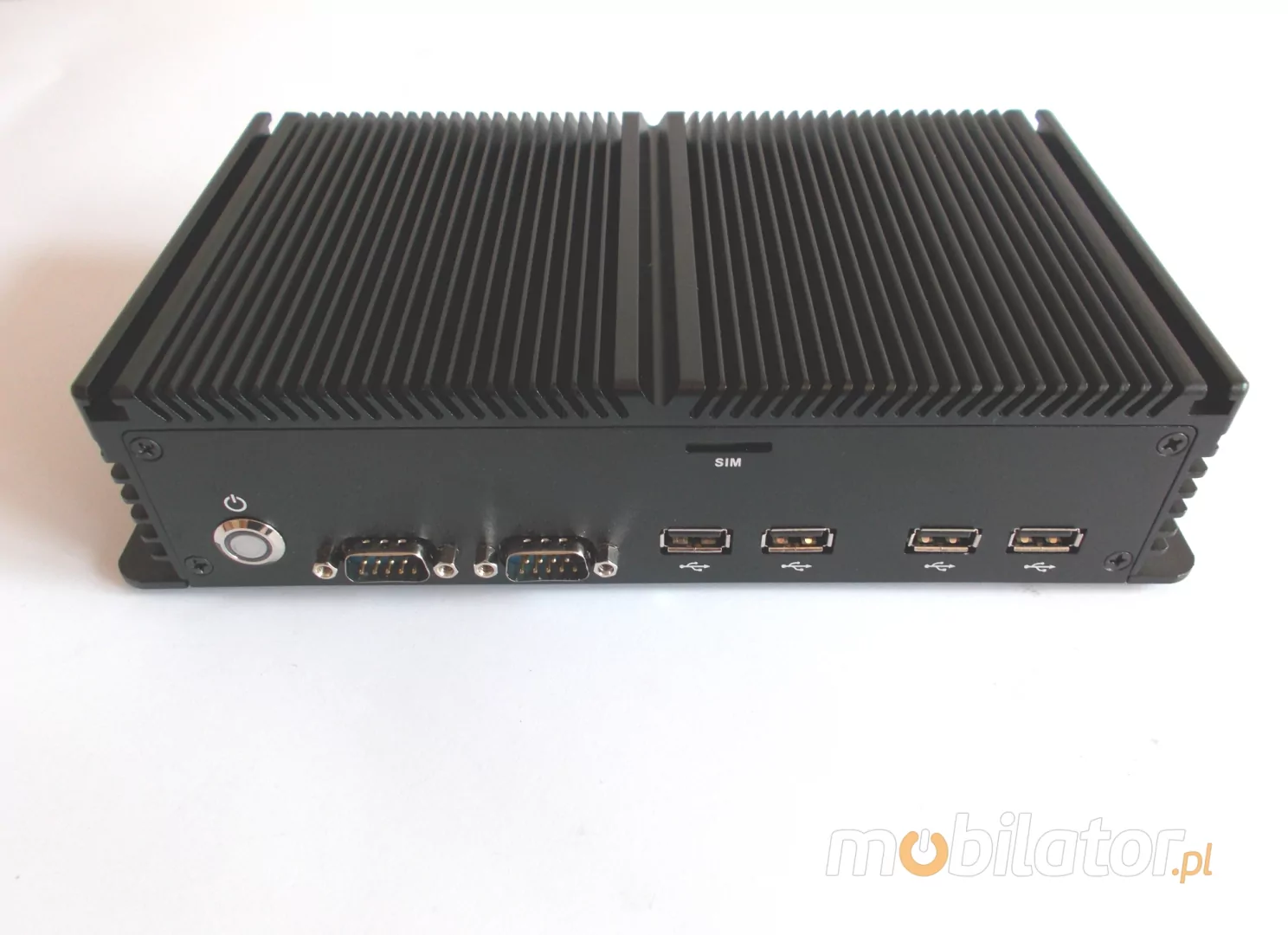

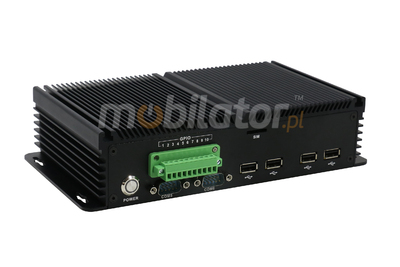

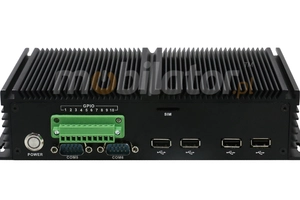

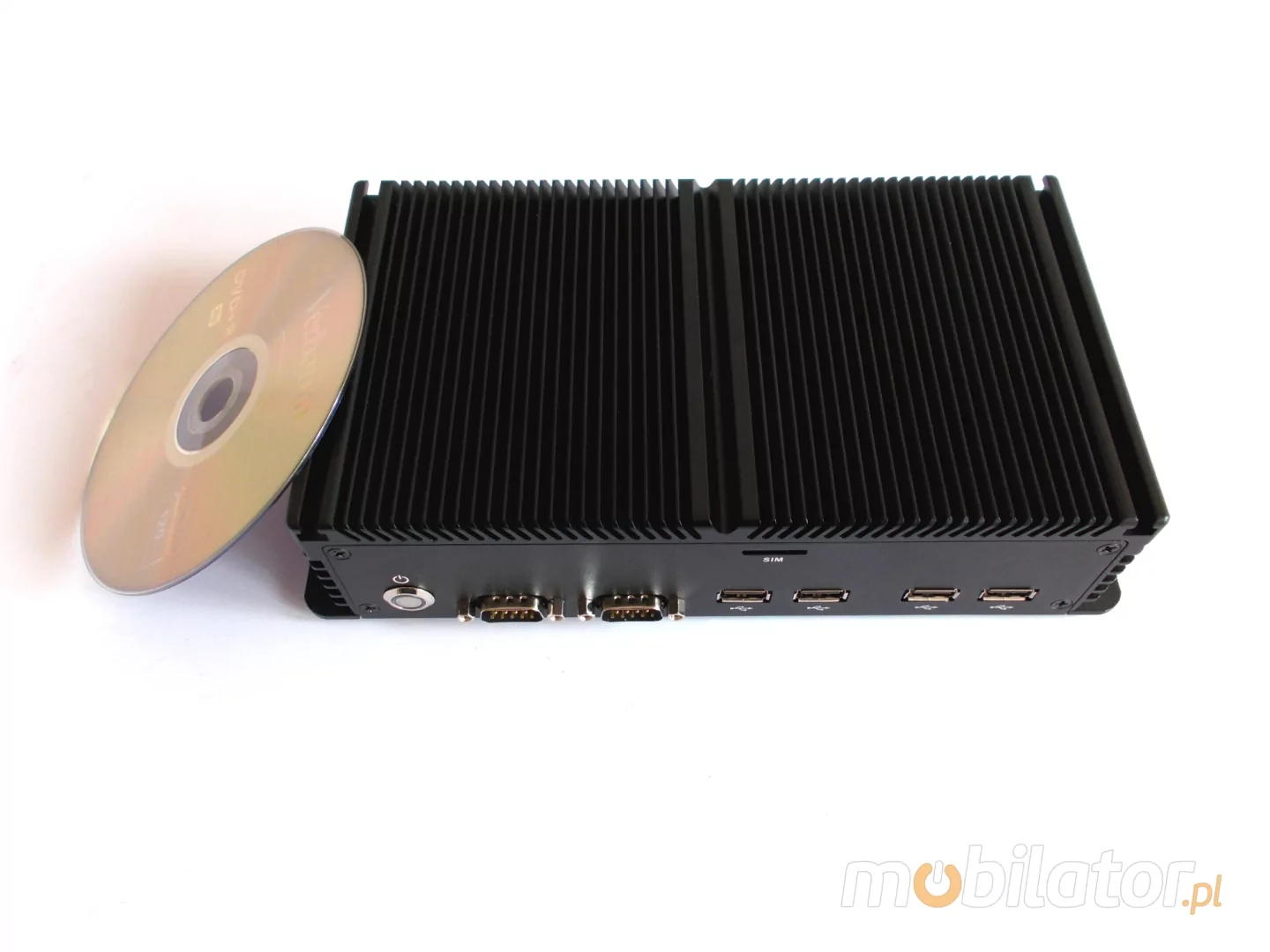

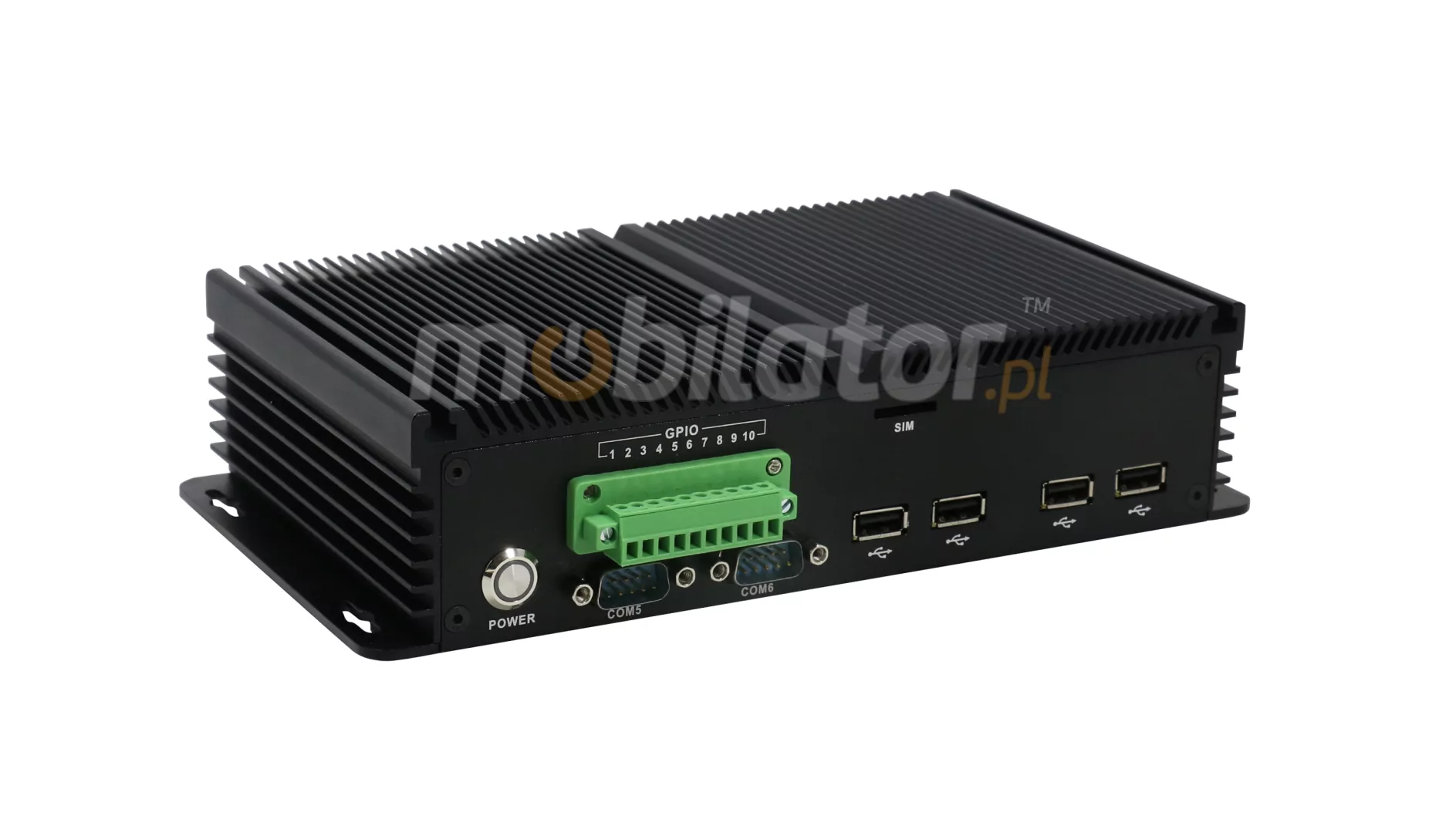

Front Panel (ports)
1x GPIO
5x USB2.0
1x SIM
2x COM, Power ON/OFF
Expansion
-----
Power
12V
Watch Dog Timer
0 ~ 255 sec
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
234 x 122 x 54 mm
Fanless
Yes
Weight
-----
