Industrial Computer Fanless MiniPC Nuc IBOX-501 N5 v.6

Name: Industrial Computer Fanless MiniPC Nuc IBOX-501 N5 v.6
Brand: Mobilator
Price: 344.34 PLN
Availability: InStock

Odporna jednostka centralna do hal produkcyjnych

MiniPC do sterowania robotami przemysłowymi

Przemysłowy komputer z wieloma interfejsami

Update Date: 2024.11.13

Guarantee 1 year (opt.2/3)

Net

279.95 €

Gross

344.34 €

Buy now!

Negotiate the price

								Ask about the product

 Product card

								Recommend to a friend

								Store

								Compare

Product availability 14 - 20 workdays

Industrial Computer Fanless MiniPC Nuc IBOX-501 N5

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

MiniPC Nuc IBOX-501 N5 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

Housing dimensions are 134 (W) x124 (L) x36 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 2/4/8GB DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB/128GB SSD and 500GB HDD.

Industrial Computer Fanless MiniPC Nuc IBOX-501 N5

go top…

menu…

Communication & Connectors

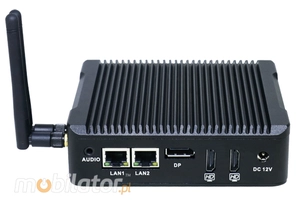

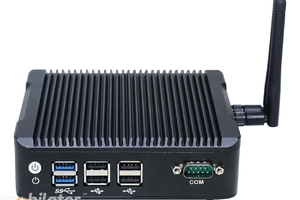

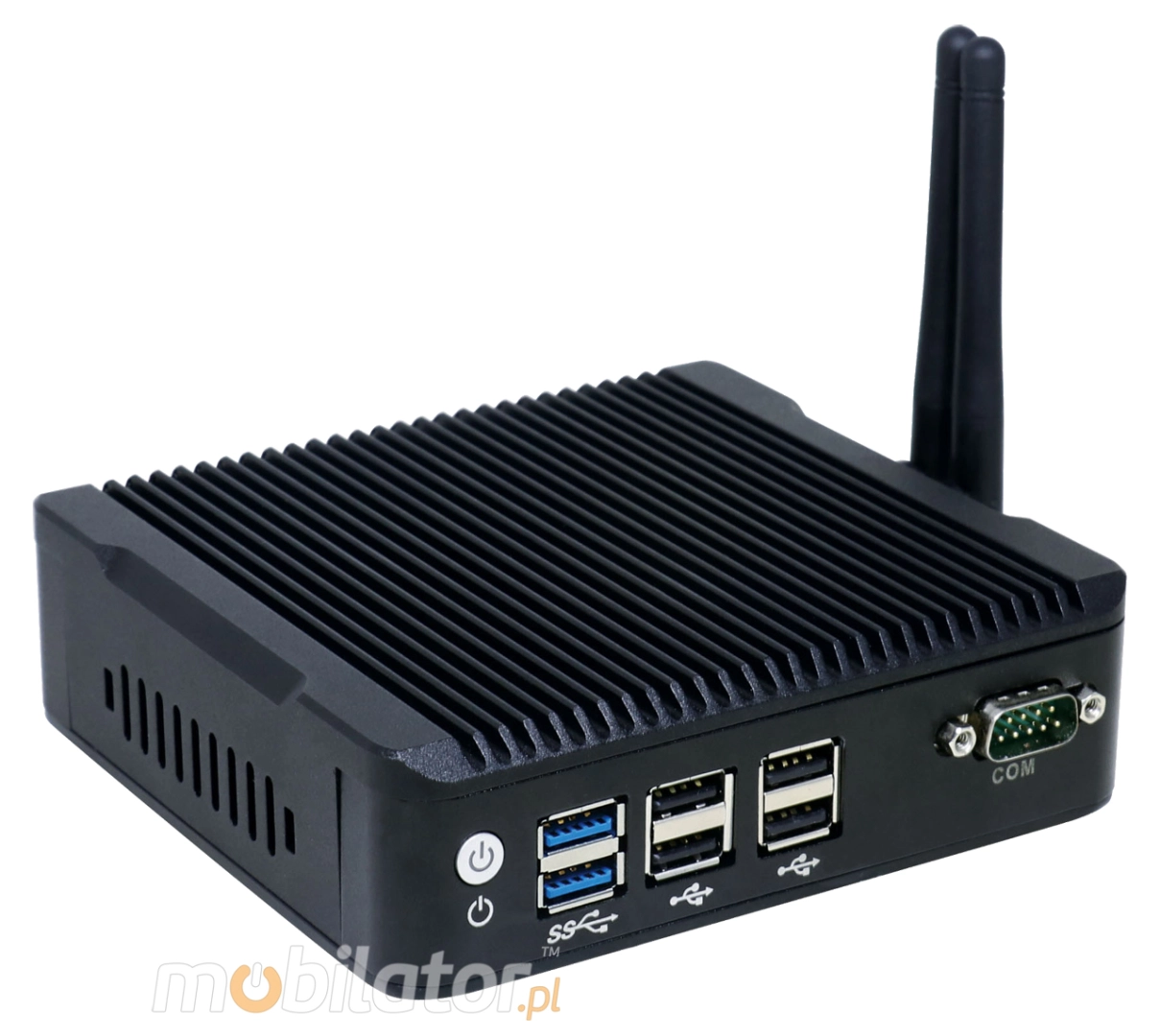

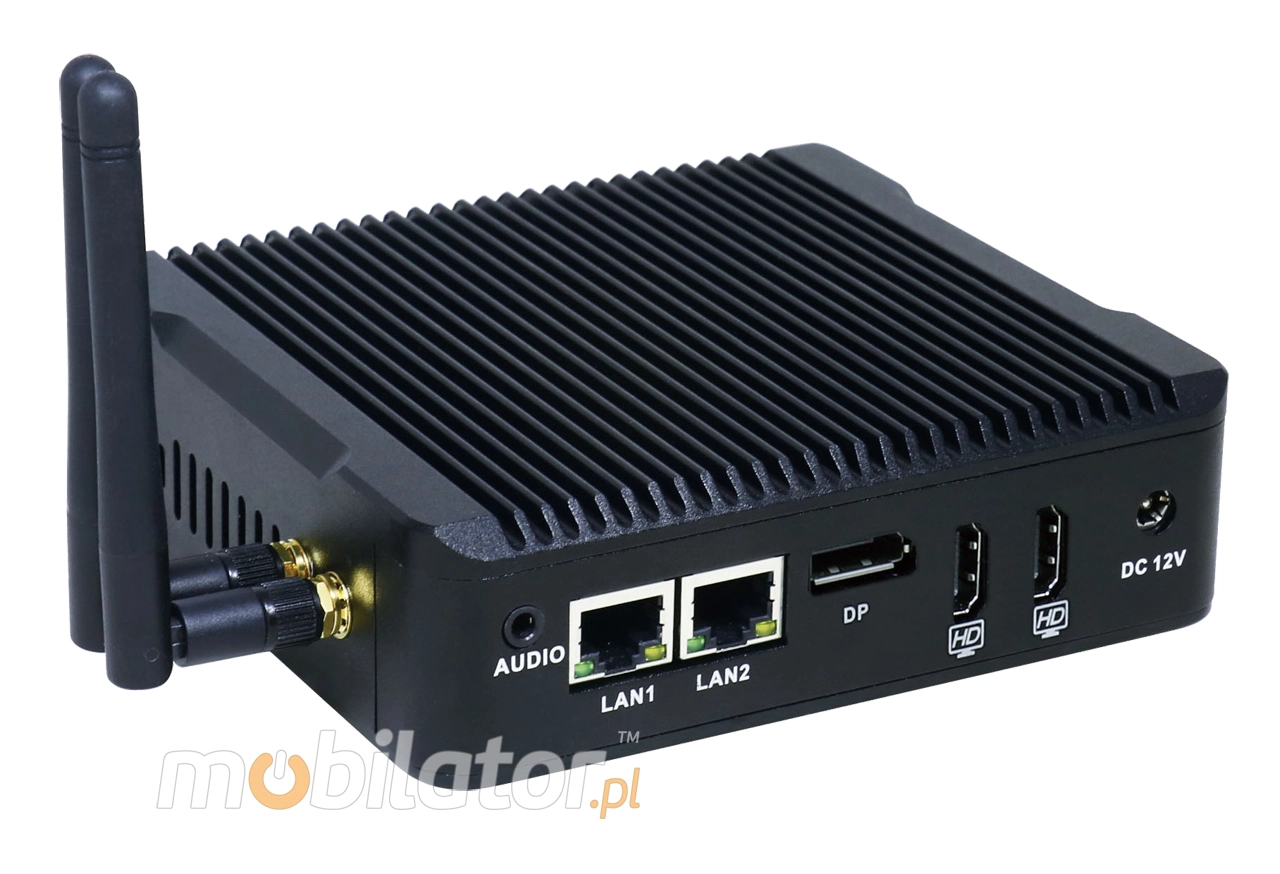

Integrated card - Intel RTL811E 1000M Lan and WiFi + Bluetooth allows connection to the network. The computer is equipped with: two LAN ports, one DP port, two HDMI ports, two USB 3.0 ports, four USB 2.0 ports, one COM(RS232) port and a built-in connector on the motherboard: SATA port, MiniSATA port, one RJ-45 COM and one Mini-PCIE connector.

Industrial Computer Fanless MiniPC Nuc IBOX-501 N5

Cooling

The industrial fanless MiniPC Nuc IBOX-501 N5 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… menu…

Application

Industrial MiniPC Nuc IBOX-501 N5 are based on high-performance quad-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Industrial Computer Fanless MiniPC Nuc IBOX-501 N5 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Computer Fanless MiniPC Nuc IBOX-501 N5

Areas of use of industrial MiniPC

Digital Engine

Industrial Computer Fanless MiniPC Nuc IBOX-501 N5

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Industrial fanless MiniPC Nuc IBOX-501 N5 by USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC Nuc IBOX-501 N5 can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Computer Fanless MiniPC Nuc IBOX-501 N5

go top…

menu…

go top… menu…

Specifications

Dimension	H: 36 mm L: 124 mm W: 134 mm
Processor	Intel Celeron N3160 Quad Core(4x1,6GHz)
Chipset	Intel express chipset
RAM Memory	8GB DDR3
Graphic Card	Intel HD Graphics
Sound Card	Realtek ALC662
WLAN	Intel RTL8111E Gigabit 1000M Lan
Connectors	1x 12V DC Jack 2x USB 3.0 4x USB 2.0 2x RJ-45 LAN 1x DP 2x HDMI 1x Audio 1x COM(RS232) WiFi + Bluetooth

Others
Colour Black
Chipset
Intel express chipset
CPU Support
-----
Installed CPU
Intel Celeron N3160 Quad Core(4x1,6GHz)
Memory Support
DDR3 (max. 8GB)
Installed Memory
8GB DDR3
Graphic Card
Intel HD Graphics
Storage (HDD) Support
-----
Installed Storage (HDD)
128GB SSD
CD/DVD Drive
-----
LAN
2 x Intel  RTL8111E 1000M Lan
Wireless LAN card
Yes
Bluetooth
Yes
3G
-----
TV Tuner
-----
Watch Dog Timer
0 ~ 255 sec
Front Panel (ports)
2x USB 3.0,
4x USB2.0
1x COM(RS232),
Power ON/OFF
Rear Panel (ports)
DC-IN 12V,
 2x RJ-45 LAN,
2x HDMI,
 1x DP,
 1x Audio
Power
12V
Supported OS
Microsoft Windows: 7/8/8.1/10, Linux
Installed OS
-----
Dimensions
134 x 124 x 36 mm
Weight
-----
Expansion
-----
Fanless
Yes
Humidity
0 ~ 95%
Temp
-20 ～60℃
IP Norm
-----
Storage temperature
-20 ~ 60℃
Responsible Entity / Distributor
New Portable Devices

Komputer przemysłowy gotowy na ekstremalne warunki

Compare all versions


Industrial Computer Fanless MiniPC Nuc IBOX-501 N5 v.1
					Małe rozmiary / Intel Celeron N3160 (4x1,6GHz)
Graphics: Intel® HD Graphics
RAM 2G DDR3 / Disc 32GB SSD
2x LAN / 2x USB3.0 / 4x USB2.0 / 1x COM
1x DP / 2x HDMI  / 1x Audio

Gross285.12 €

Industrial Computer Fanless MiniPC Nuc IBOX-501 N5 v.2
					Małe rozmiary / Intel Celeron N3160 (4x1,6GHz)
Graphics: Intel® HD Graphics
RAM 4G DDR3 / Disc 64GB SSD
2x LAN / 2x USB3.0 / 4x USB2.0 / 1x COM
1x DP / 2x HDMI  / 1x Audio / WiFi+BT

Gross305.96 €

Industrial Computer Fanless MiniPC Nuc IBOX-501 N5 v.5
					Małe rozmiary / Intel Celeron N3160 (4x1,6GHz)
Graphics: Intel® HD Graphics
RAM 4G DDR3 / Disc 128GB SSD
2x LAN / 2x USB3.0 / 4x USB2.0 / 1x COM
1x DP / 2x HDMI  / 1x Audio / WiFi+BT

Gross321.31 €

Industrial Computer Fanless MiniPC Nuc IBOX-501 N5 v.3
					Małe rozmiary / Intel Celeron N3160 (4x1,6GHz)
Graphics: Intel® HD Graphics
RAM 4G DDR3 / Disc 500GB HDD
2x LAN / 2x USB3.0 / 4x USB2.0 / 1x COM
1x DP / 2x HDMI  / 1x Audio / WiFi+BT

Gross337.76 €

Industrial Computer Fanless MiniPC Nuc IBOX-501 N5 v.6
					Małe rozmiary / Intel Celeron N3160 (4x1,6GHz)
Graphics: Intel® HD Graphics
RAM 8G DDR3 / Disc 128GB SSD
2x LAN / 2x USB3.0 / 4x USB2.0 / 1x COM
1x DP / 2x HDMI  / 1x Audio / WiFi+BT

Gross344.34 €

Industrial Computer Fanless MiniPC Nuc IBOX-501 N5 v.4
					Małe rozmiary / Intel Celeron N3160 (4x1,6GHz)
Graphics: Intel® HD Graphics
RAM 4G DDR3 / Disc 64GB SSD and 500GB HDD
2x LAN / 2x USB3.0 / 4x USB2.0 / 1x COM
1x DP / 2x HDMI  / 1x Audio / WiFi+BT

Gross370.66 €
