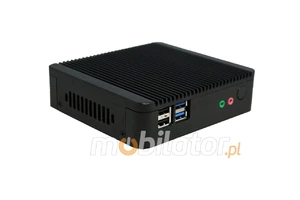

Industrial Computer Fanless MiniPC Nuc IBOX-Nano-J1900 N2A v.1

Name: Industrial Computer Fanless MiniPC Nuc IBOX-Nano-J1900 N2A v.1
Brand: Mobilator
Price: 289.08 PLN
Availability: InStock

Update Date: 2020.10.23

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

Description

Housing dimensions are 134 (W) x124 (L) x36 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 1.6 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB SSD.

Industrial Computer Fanless MiniPC Nuc IBOX-Nano- J1900

go top…

menu…

Communication & Connectors

Integrated card - Intel 1000M Lan RTL8111E and WiFi module allows connection to the network. The computer is equipped with: two LAN port, one RJ-45 COM port, one HDMI port, one VGA port, three USB 2.0 ports, one USB 3.0 port, one way audio, one input mic and a built-in connector on the motherboard: one NB connector, one Mini-SATA connector, one SATA port and one Mini-PCIE connector.

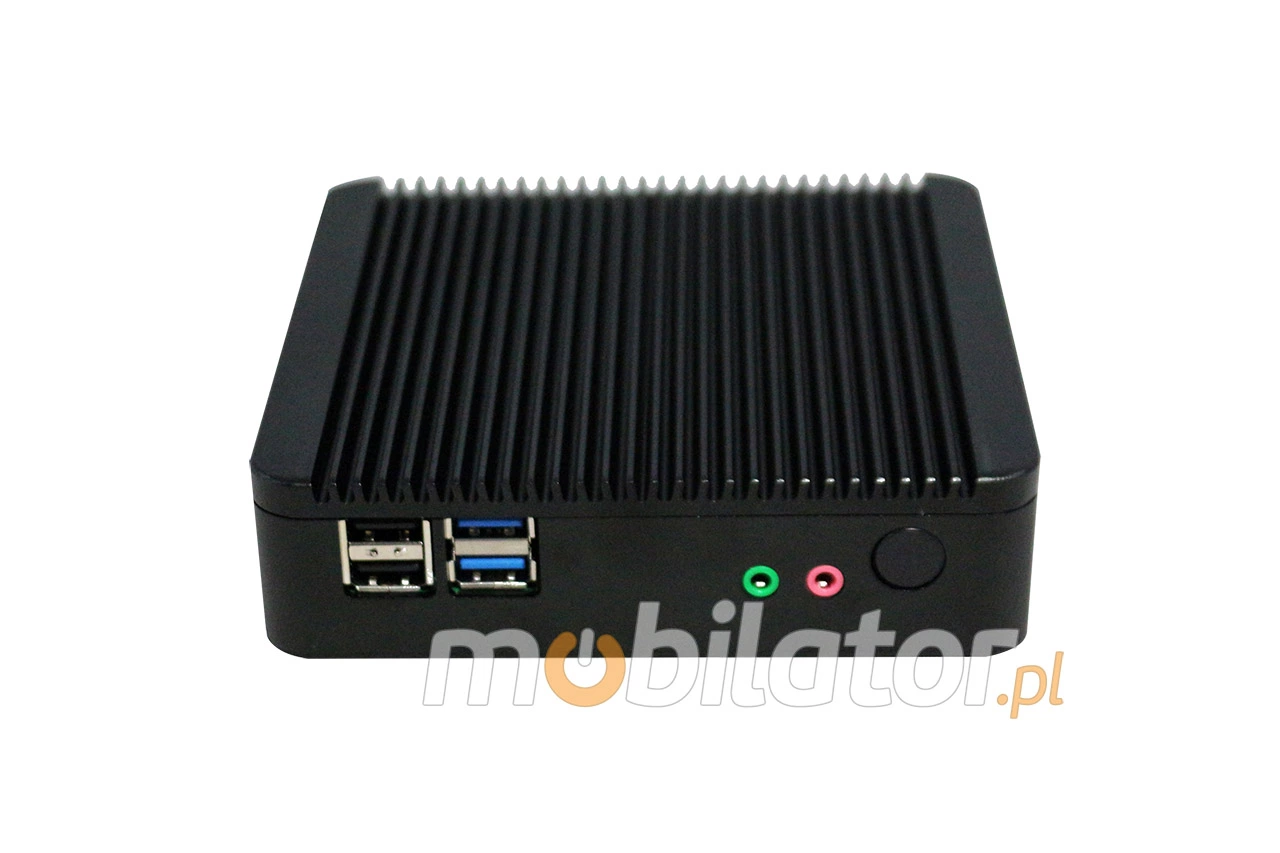

Industrial Computer Fanless MiniPC Nuc IBOX-Nano- J1900

1. 3x USB 2.0	3. Audio/Mic
2. 1x USB 3.0	4. Power ON/OFF

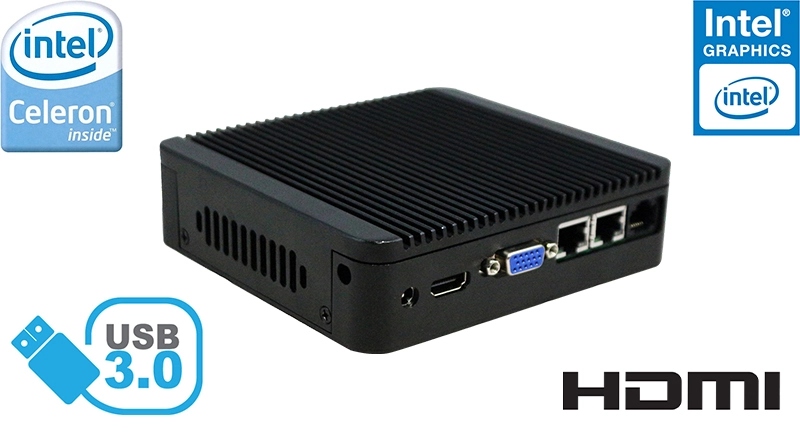

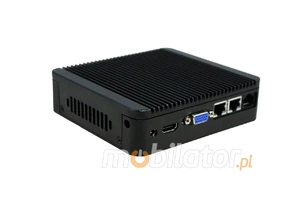

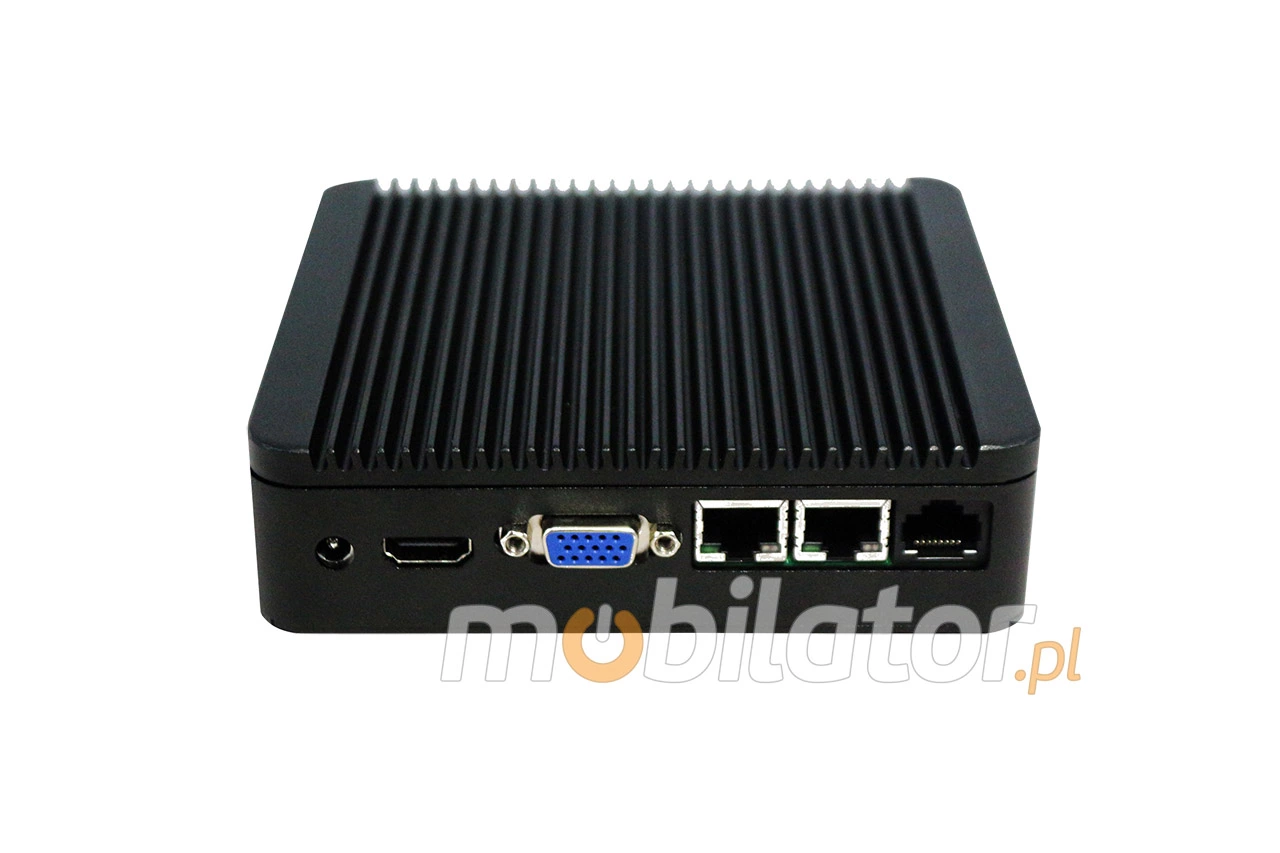

Industrial Computer Fanless MiniPC Nuc IBOX-Nano- J1900

1. DC-IN 12V		5. 1x RJ-45 COM
2. 1x HDMI
3. 1x VGA
4. 2x RJ-45 LAN

Cooling

The industrial fanless MiniPC IBOX-Nano-J1900 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go top… menu…

Application

Industrial MiniPC Series IBOX-Nano-J1900 are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Industrial Computer Fanless MiniPC Nuc IBOX-Nano- J1900 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Computer Fanless MiniPC Nuc IBOX-Nano- J1900

Dual dispaly

Areas of use of industrial MiniPC

Digital Engine

Industrial Computer Fanless MiniPC Nuc IBOX-Nano- J1900

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Industrial fanless MiniPC IBOX-Nano-J1900 by four USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless IBOX-Nano-J1900 can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 6V to 34V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Computer Fanless MiniPC Nuc IBOX-Nano- J1900

go top…

menu…

go top… menu…

Specifications

Dimension	H: 36 mm L: 124 mm W: 134 mm
Weight	1,6 kg
Processor	Intel Celeron Quad Core J1900 (4x 2GHz)
Chipset	Intel express chipset
RAM Memory	4GB DDR3
Graphic Card	Intel HD Graphics
Sound Card	Realtek ALC662
WLAN	Intel RTL8111E 1000M Lan
Connectors	1x RJ-45 COM 1x wyjście 12V DC_JACK 3x USB2.0 1x USB3.0 2x RJ-45 LAN 1x wyjście Audio 1x HDMI 1x VGA

Supported OS
Microsoft Windows: XP/Vista/7 , Linux
Installed OS
-----
Chipset
Intel express chipset
CPU Support
-----
Installed CPU
Intel Celeron Quad Core J1900 (4x2GHz)
Graphic Card
Intel HD Graphics
Memory Support
2GB DDR3 (can up to 8GB)
Installed Memory
4GB DDR3
Storage (HDD) Support
-----
Installed Storage (HDD)
32 GB SSD
IP Norm
-----
Temp
-20 ～60℃
Storage temperature
-20 ~ 60℃
Humidity
0 ~ 95%
Others
Colour Black
LAN
Intel RTL8111E 1000M Lan
Wireless LAN card
Yes
3G
-----
Bluetooth
-----
Rear Panel (ports)
DC-IN 12V,
 1x HDMI,
 1x VGA,
 2x RJ-45 LAN,
 1x RJ-45 COM
Front Panel (ports)
1x USB 3.0,
 3x USB 2.0,
 Audio/Mic,
 Power ON/OFF
Expansion
-----
Power
12V
Watch Dog Timer
0 ~ 255 sec
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
134 x 124 x 36  mm
Fanless
Yes
Weight
1.6 kg
