Industrial Fanless |
Description
Housing dimensions are 300 (W) x 183 (L) x40 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

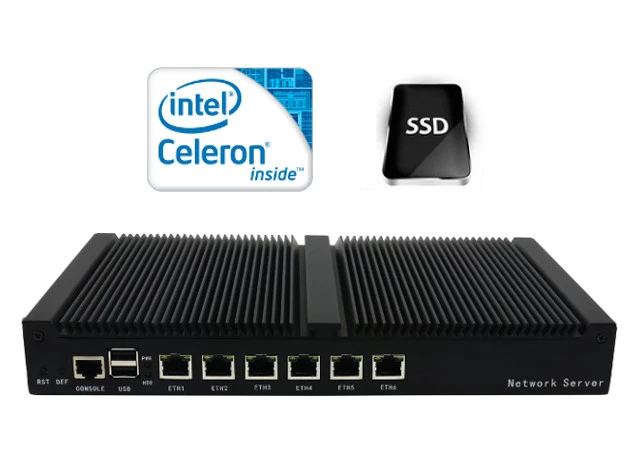

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 2GB/4GB/8GB DDR3 memory. Integrated Intel HD Graphics video allow you to play a wide range of applications - in Full HD quality. Disks offer free space 32GB/64GB/128GB SSD.
|
|
|
Communication & Connectors |
|
Integrated cards - Intel 82583V allows connection to the network. The computer is equipped with: six LAN ports, one VGA port, one RJ-45 COM port, two USB 2.0 ports, and a built-in connector on the motherboard: one mSATA, one disk slot 2.5" HDD and one Mini-PCIE connector.

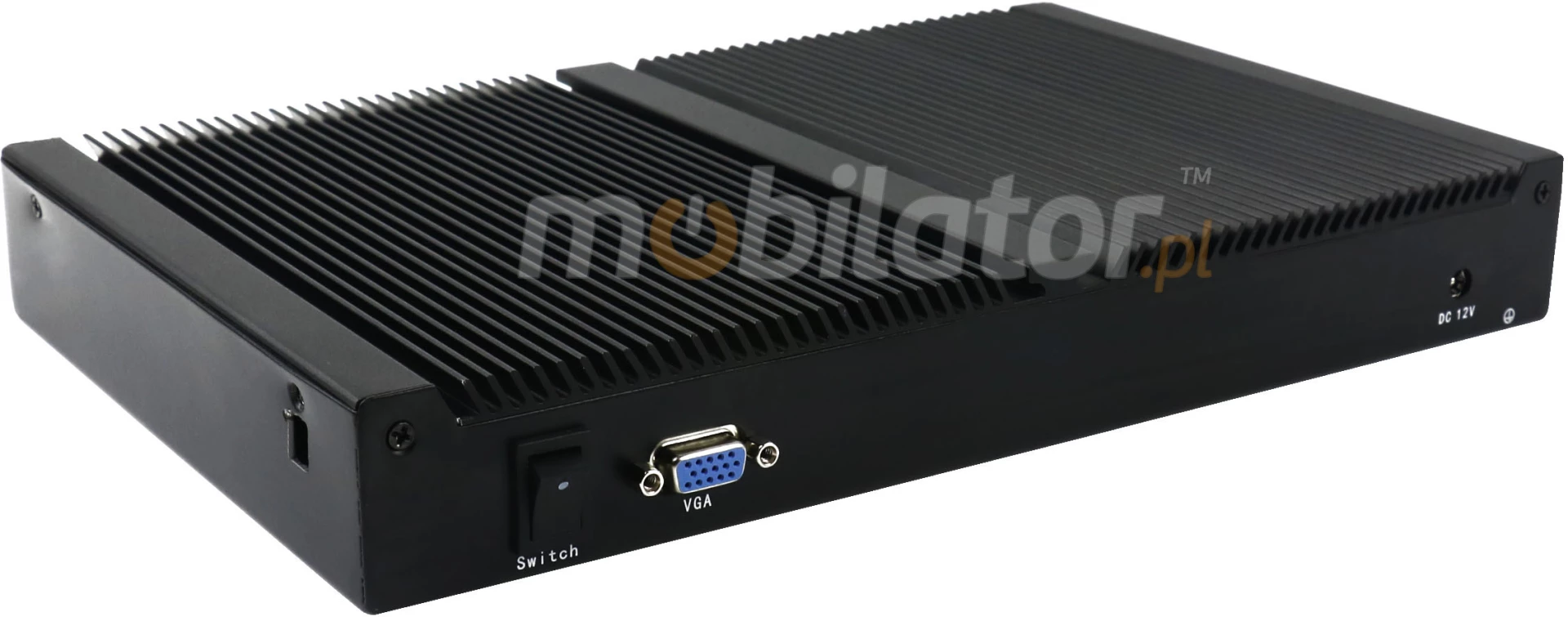

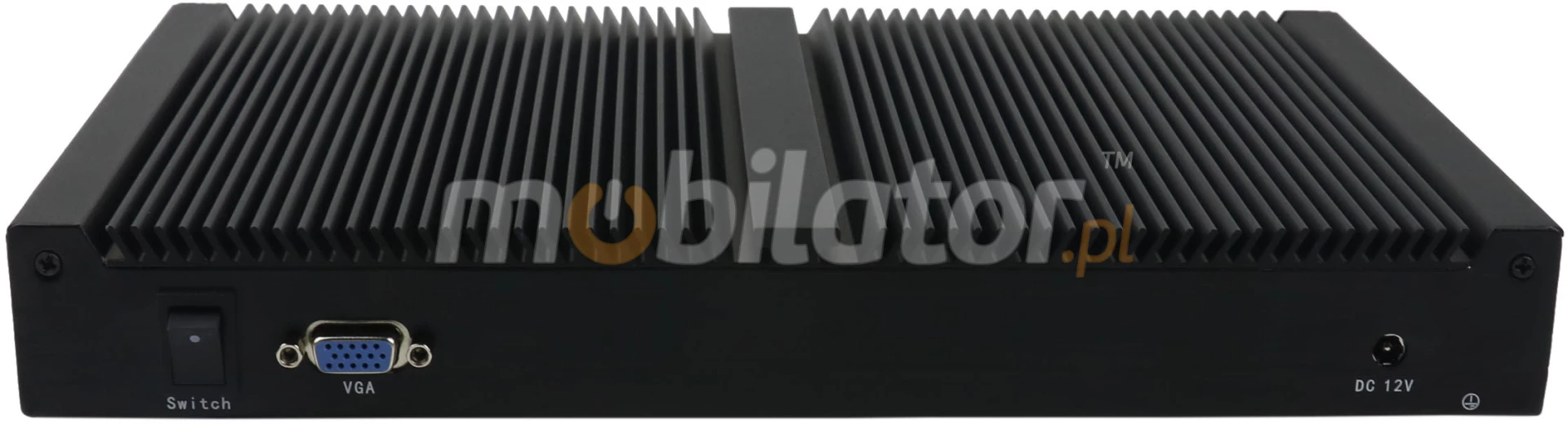

BACK:

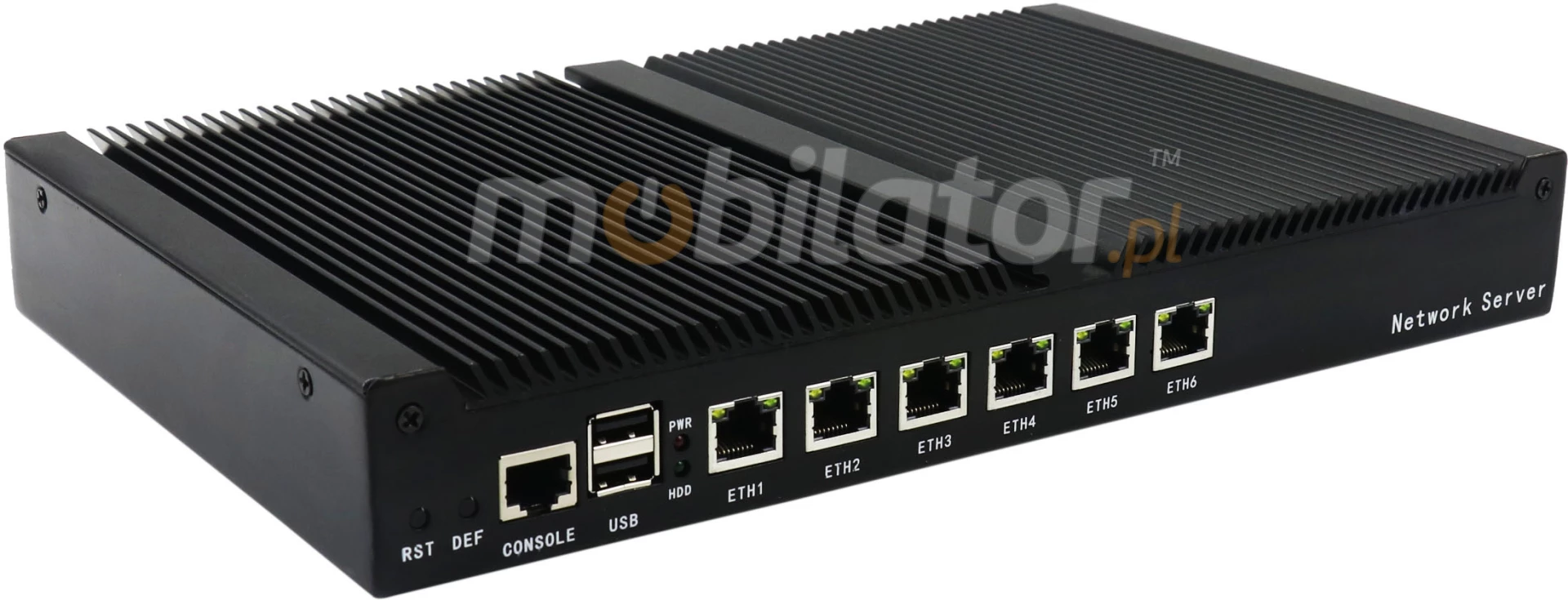

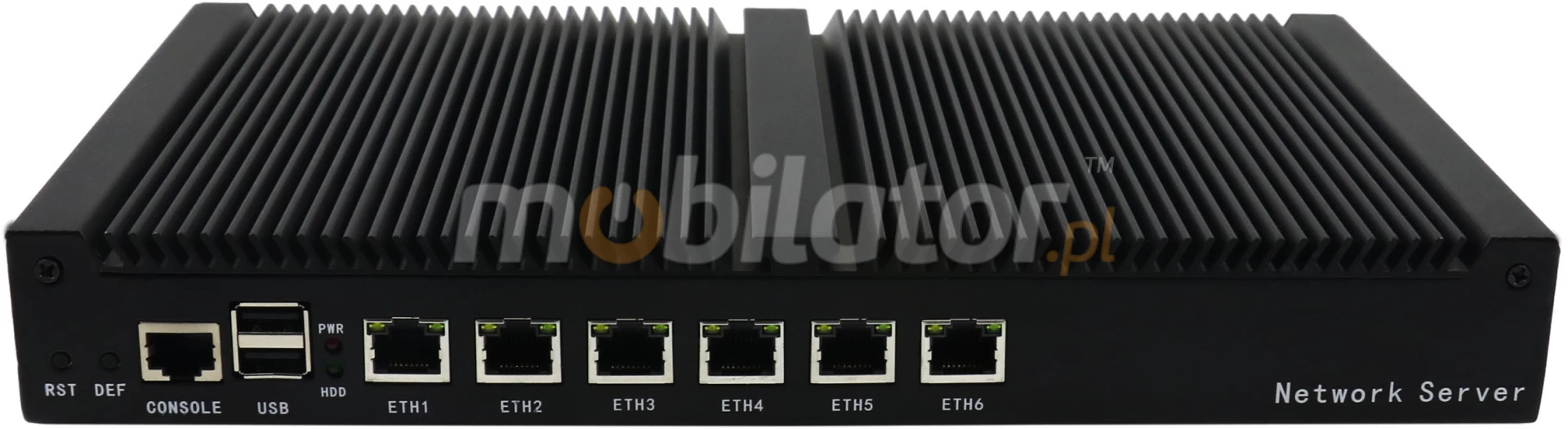

FRONT:
|
|
Cooling
The industrial fanless MiniPC IBOX-NS-FL6L uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.
 |
|
;)
;)
;)
;)
