Product Update Date: 2015-09-25

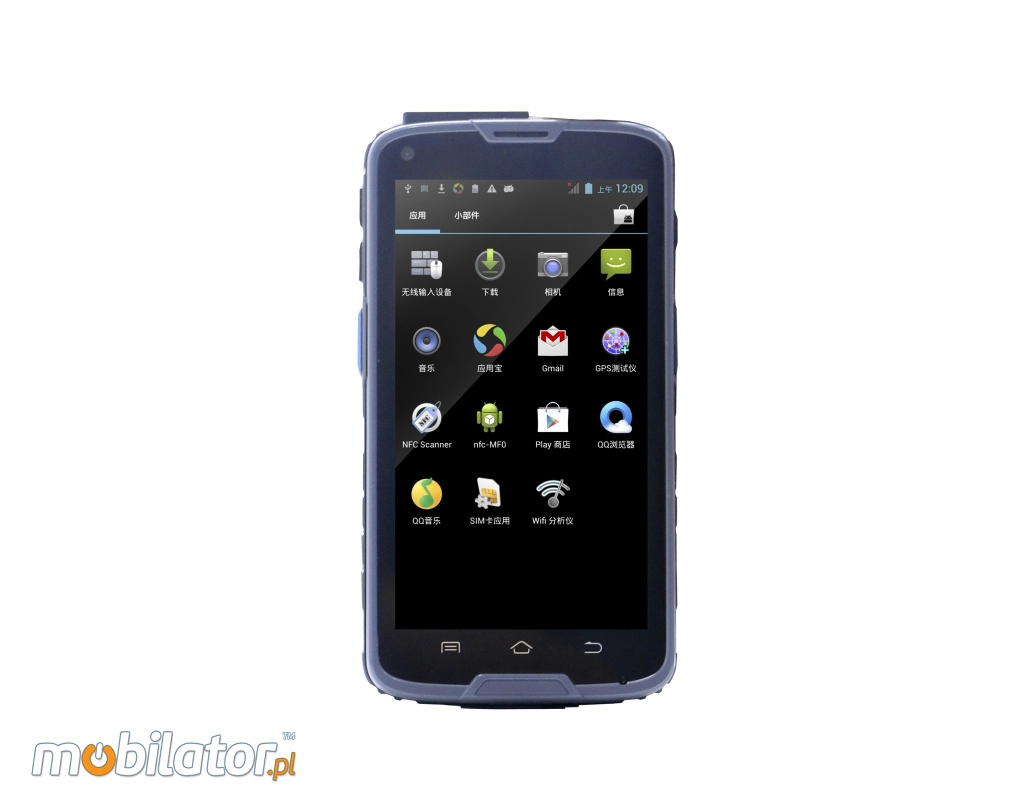

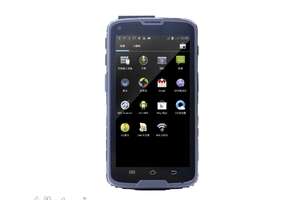

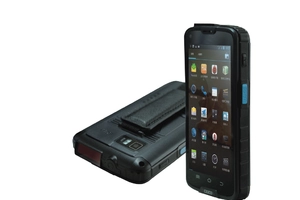

Industrial data collector CILICO C5T-2D

Name: Industrial data collector CILICO C5T-2D
Brand: CILICO
Price: 2977.46 PLN
Availability: InStock

Update Date: 2015.09.25

Guarantee 1 year (opt. 2)

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

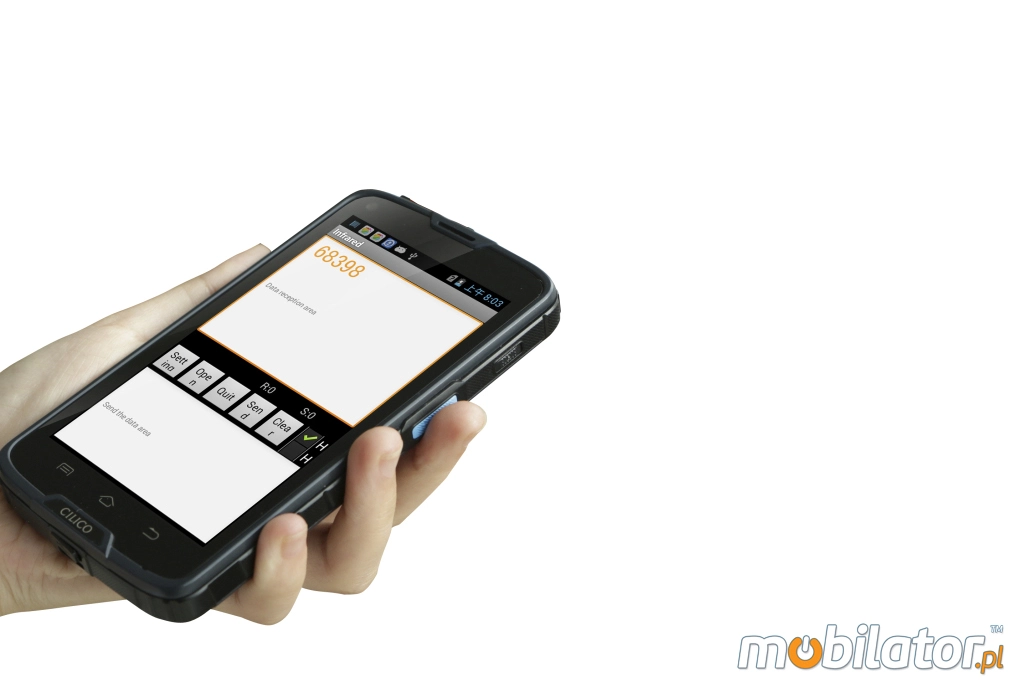

cilico c5 data collector 3g gps barcode scanner nfc

Description
Resistance
The collection and processing of data
Modules and Wireless Networks
Minimalism

Data collector C5 adopts the combination of platformization and modular function design concept. It not only has intelligent operation platform, but also has modular functions with flexible configuration. So it can satisfy the customized requirements from different customer.

Description

Processor	Mediatek MT6582 ARM® Cortex®-A7 (Quad Core 4x - 1.3GHz)
Graphics	Mali-400 MP
Display	5" (1280x720) LCD \| Multi-Touch \| Gorilla Glass
Type of display	Capacitive
RAM	1GB LPDDR2
ROM	4GB EMMC
Connectors (factory)	MicroUSB (OTG) \| MicroSD \| Port SIM \| Audio Jack \| Docking
GPS (factory)	GPS + A-GPS
Audio	Built-in Microphone \| Speaker \| Receiver \| Audio Jack
Camera (REAR)	8Mpx (Autofocus + Flash)
Camera (FRONT)	2Mpx
Keyboard	on-Screen
	Home \| Menu \| Return \| ON/OFF \| Volume
	2x - Barcode Trigger
Battery	Li-Polymer 4000mAh
	Standby mode - 168h
	Operating mode (depends on usage) - 6h
System	Android 4.2.2
Moduły (factory)	802.11 b/g/n \| Bluetooth v2.1+EDR \| 2G/3G \| GPS
Moduły (optional)	(1D) MINDEO™ UE966 (LASER) \| (1D/2D) NEWLAND™ EM3095 (CMOS) \| NFC
Housing	Black or White
Dimensions	1457816mm \| 250g (with battery)
Resistance	IP65
Sensors (factory)	G-Sensor \| Distance Sensor \| Light Sensor \| E-Compass
Warranty	12 months

Refer to the "Technical Data" that possibility is a version of the device. To gain additional information about the product click on the "Request for information" or go to the contact form.

Version for you

Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

	1D	2D
1D (LASER)		-
1D/2D (CMOS)	-
NFC

go top… menu…

Resistance

Operating	-20°C -- +70°C
Storage	-30°C -- +80°C
Relative Humidity	5% - 90% non-condensing
Dust	IP6x (dust)
Water	IPx5 (water)
Drop	1.2m

IP65

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

capacitive warehouse hospital industrial phone cilico c5

Complete protectionm against contact, Protection from infiltration of dust.

Protection from water projected from a nozzle.

go top… menu…

The collection and processing of data

Barcode Scanner

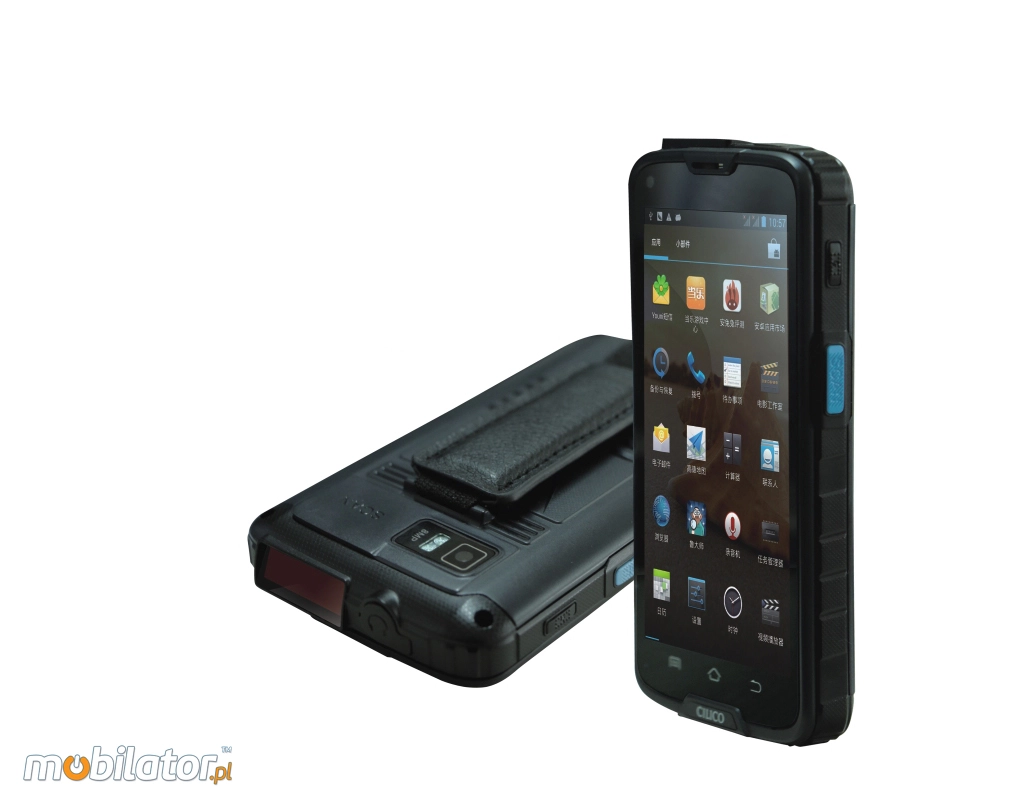

c5 cilico barcode scanner mindeo newland

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

1D	1D / 2D
MINDEO ™ UE966 (LASER)	NEWLAND™ EM3095 (CMOS)

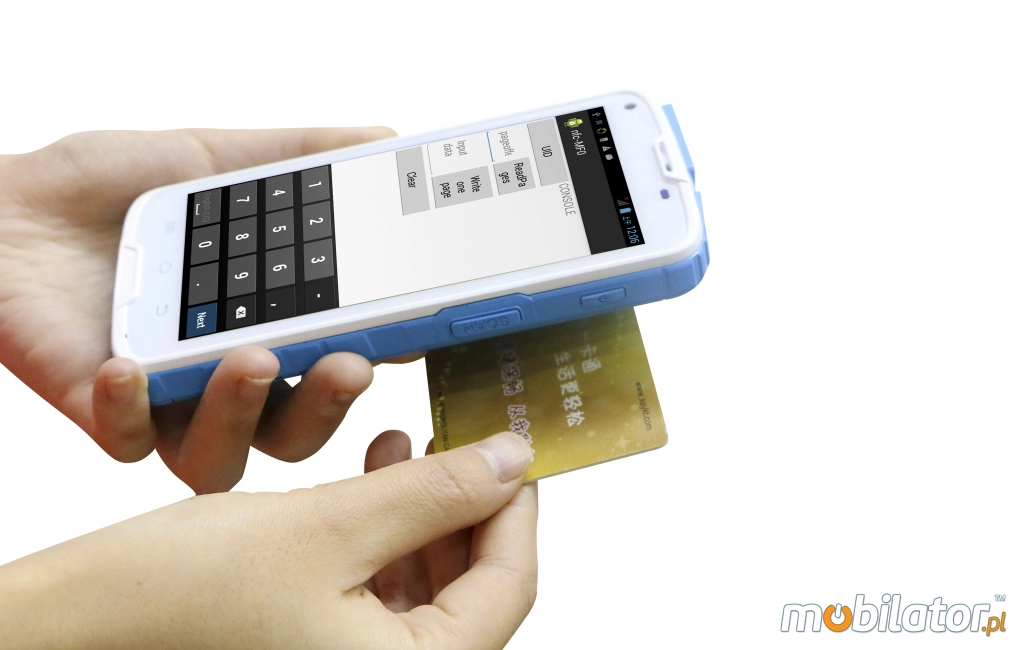

cilico data collector c5 nfc 13.56

NFC

Near field communication (NFC) is a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm (3.9 in) or less.

cilico rfid 13.56 nfc rfid 13.56

Type	NFC
Frequency	13.56 MHz
Reading distance	2 ~ 5 cm
Standard	ISO/IEC 15693
	ISO/IEC 14443A/B

go top… menu…

Modules and Wireless Networks

With 3G module, you need only insert a SIM card into a special slot and can immediately connect to the Internet. Integrated software allows you to automatically recognize and customize mobile networks. Also used in internal C5 WCDMA module adapts automatically to transfer and network coverage.

WIFI	802.11 a/b/g/n
GPS	GPS + A-GPS
Bluetooth	Bluetooth v2.1+EDR
2G/3G	850/900/1800/1900 Mhz
	2100MHz \| CDMA2000
	The ability to make voice calls

cilico hospital data collector CE

The latest WiFi wireless module operating in 802.11n provides a very fast and secure communication with the AP tablet such as a router, providing a fast and convenient web browsing, smooth playback of HD video.

go top… menu…

Minimalism

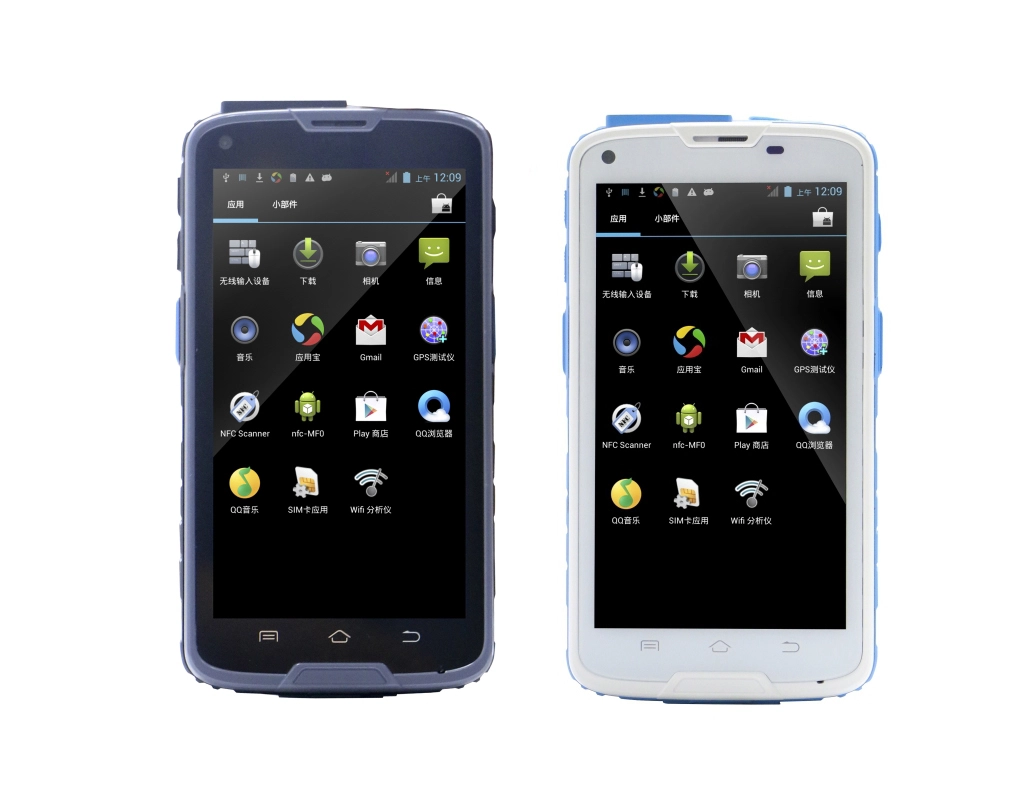

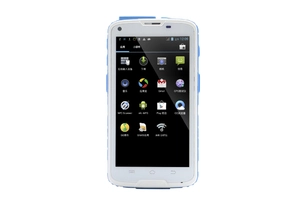

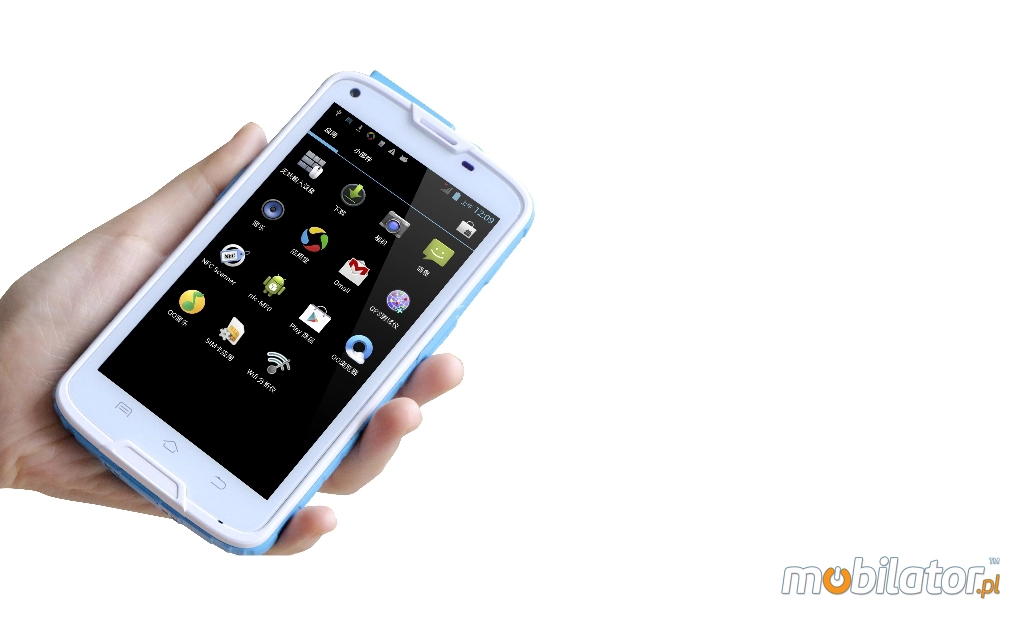

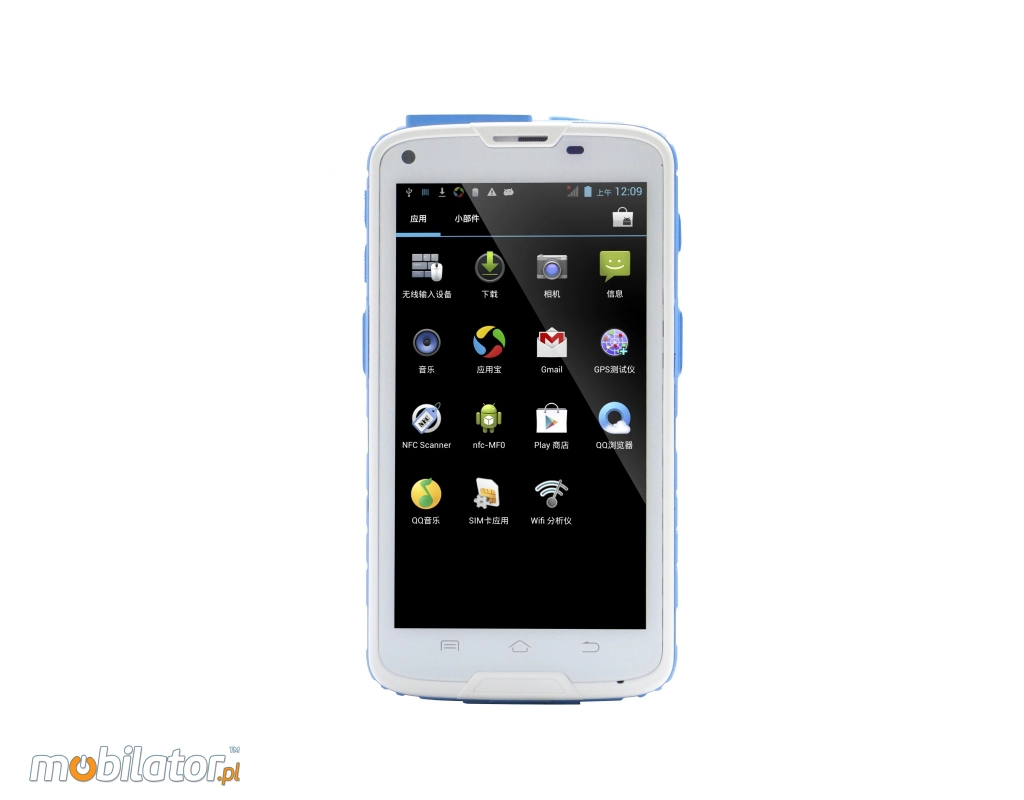

cilico c5 white choose color

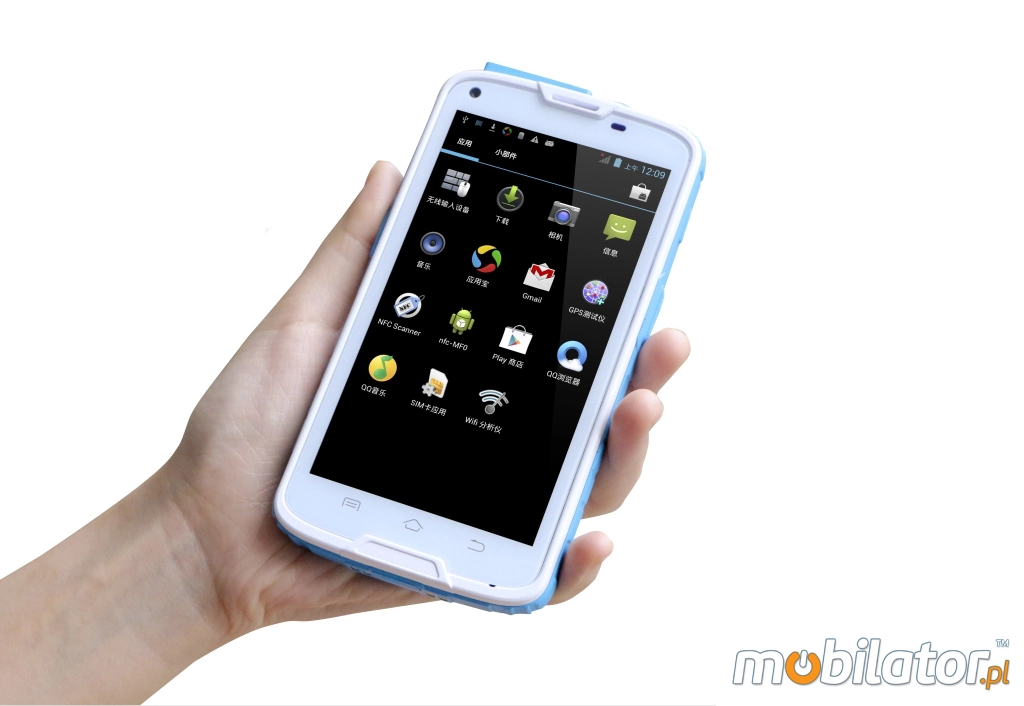

C5 weighs only 250g and its dimensions (145 x 78 x 16mm) allow you to take it with them everywhere. With sleek performance and energy efficiency is on the forefront of devices in this segment and enjoys great popularity on the Polish market in the industrial segment.

Dimensions	145 x 78 x 16mm
Weight	250g

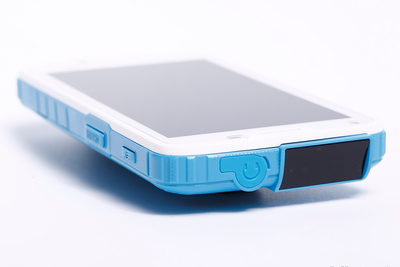

data collector c5 cilico

go top… menu…

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

Operating System
Android 4.2.2
Display
5" (1280x720) LCD | Multi-Touch | Szkło hartowane
Brightness
-----
Processor
Mediatek MT6582 ARM® Cortex®-A7 (Quad Core 4x - 1.3GHz)
Memory
1GB
Hard Drive
8GB
Touch screen
Yes - capacitive
Durability
IP65
Drop
1.2meters
Shock
-----
Vibration
-----
Temperature
Operating temperature: -20°C -- +70°C
Storage temperature: -30°C -- +80°C
Humidity
5% - 95% non-condensing
1D barcode scanner (reader)
(1D/2D) NEWLAND™ EM3095 (CMOS)
2D barcode scanner (reader)
(1D/2D) NEWLAND™ EM3095 (CMOS)
RFID scanner (reader)
NFC (13.56MHz)
ISO 14443A/B
15693
Other
Accessories:
1x - Charger
1x - microUSB Cable
1x - Battery

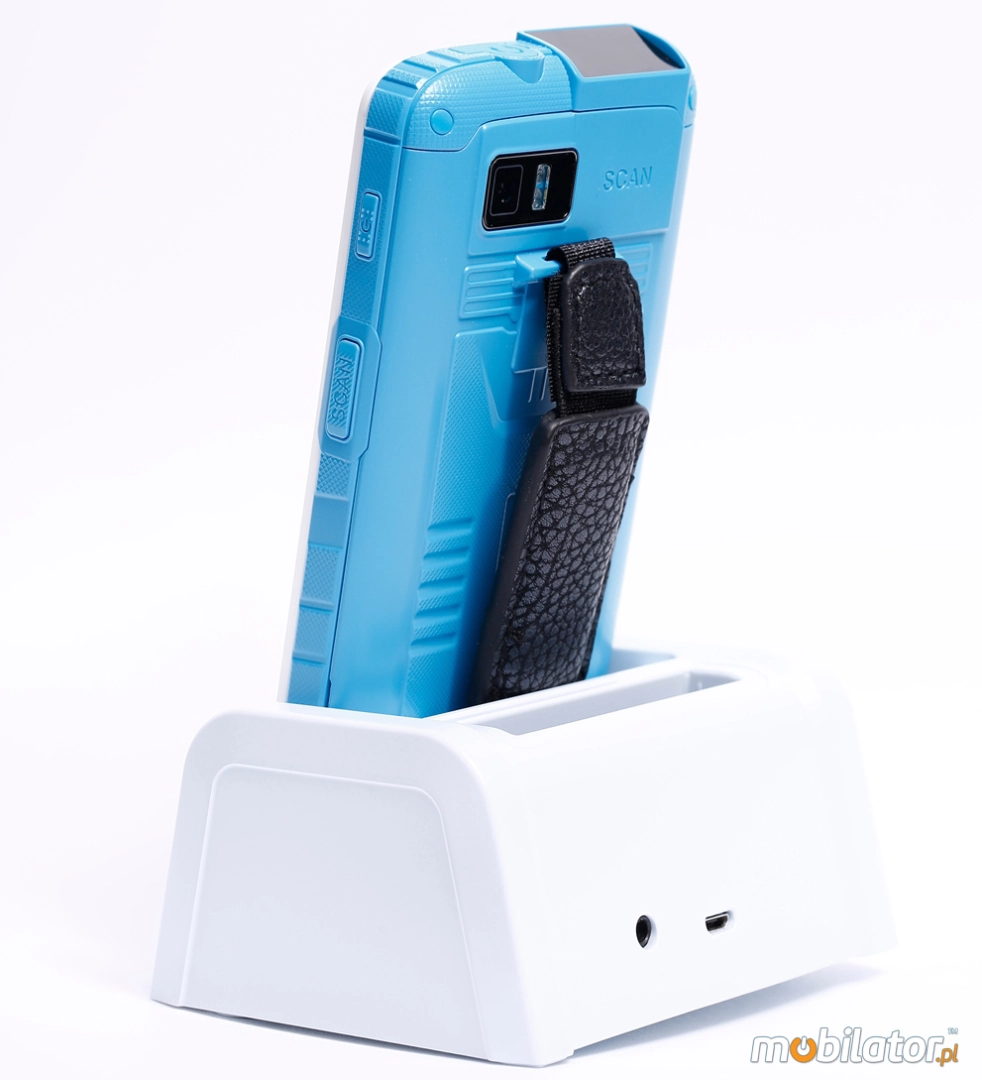

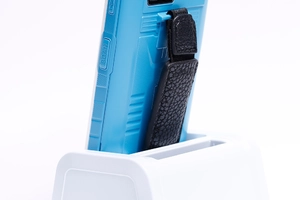

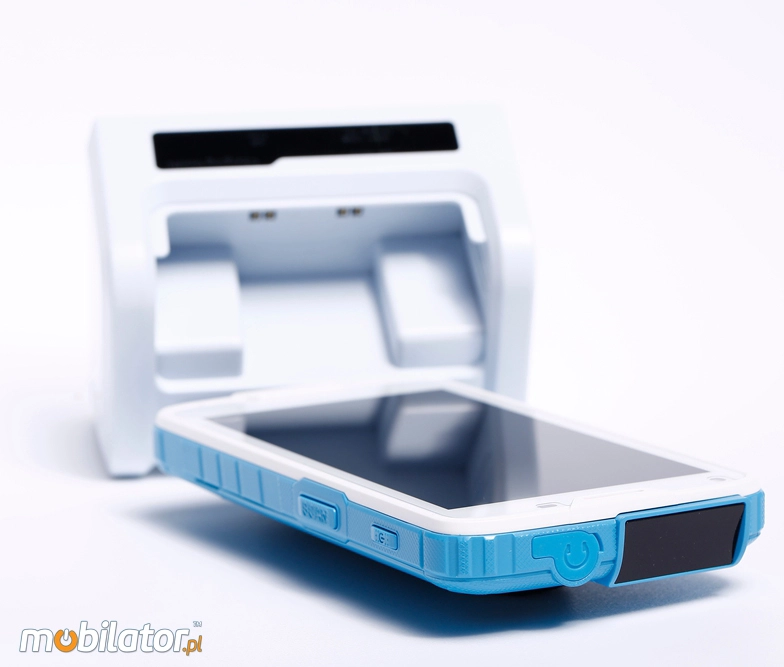

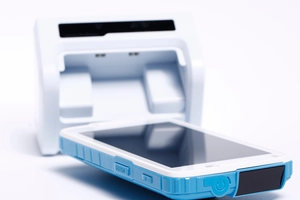

Charging Station (optional)Sensors:
G-Sensor
Distance Sensor
Light Sensor
E-Compass
Battery
Li-Polymer 4000mAh
Working time on battery
Operating time (depending on usage) - 6h
Standby time - 168h
Fast battery replacement ability
Nie
HotSwap battery
No
LAN
-----
WLAN
IEEE 802.11b/g/n
Bluetooth
Bluetooth v2.1+EDR
WAN
2G: 850/900/1800/1900 Mhz
3G: 2100MHz | CDMA2000
GPS
GPS + A-GPS
Camera
REAR: 8MPX (Auto Focus+ Flash)
Optional accessories
-----
Docking station connector
-----
VESA standard – holders and mounts support
-----
COM port
No
Magnetic card reader (MSR)
-----
Microchip card reader
-----
Contrast
-----
Graphics card
Mali-400 MP
Chipset
-----
BIOS
-----
Casing material
high quality plastic and rubber
Flash Card Reader
Yes - max. 32GB
CD/DVD
-----
Audio
Built-in Microphone | Built-in Speaker | Receiver | Audio Jack
Keyboard
on-Screen
Home | Menu | Return | ON / OFF | Volume
2x - Barcode Trigger
Additional Navigation Devices
-----
Color
black or white
Swivel Hinge
-----
VGA out
-----
TV Out
-----
TV Tuner
-----
Security
IP65
Waterproof
IPx5
Sand and dust
IP6x
Size
145*78*16mm
250g
Fanless casing
Yes
Responsible Entity / Distributor
New Portable Devices

Certyficate

CILICO C5 - CE Certificate

62.68 KB

24.09.2015

Android/iOS/Windows

Download

Software

CILICO C5 - SDK (Barcode Scanner)

2.84 MB

24.09.2015

Android/iOS/Windows

Download
