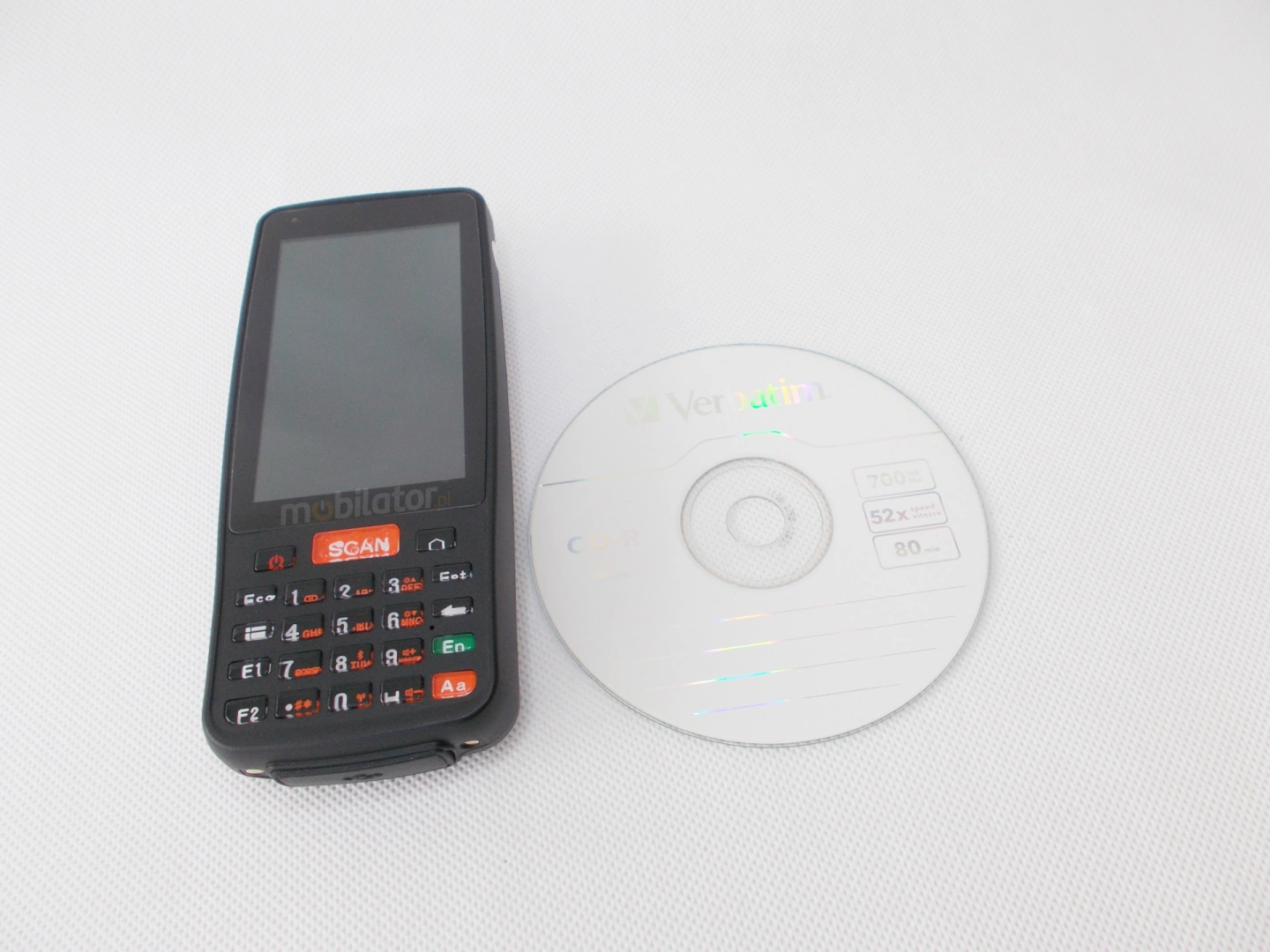

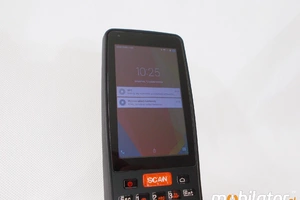

Industrial Data Collector MobiPad A41 NFC RFID + Camera

Name: Industrial Data Collector MobiPad A41 NFC RFID + Camera
Brand: Mobilator
Price: 1392.61 PLN
Availability: InStock

Terminal kodów kreskowych z wzmocnioną obudową

Update Date: 2024.10.30

Guarantee 1 year (opt. 2)

Net

1132.20 zł

Gross

1392.61 zł

Buy now!

Negotiate the price

								Ask about the product

 Product card

								Recommend to a friend

								Store

								Compare

Product availability 14 - 20 workdays

Description
The collection and processing of data
Use of a device
Resistance
Modules and Wireless Networks
Minimalism

MobiPad A41 has a specially designed, reinforced structure, adapted to harsh environmental conditions.

Description

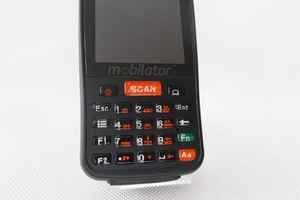

MobiPad A41 functional keys mobilator.eu

Processor	28nm ARM Qual-core cortex A53 @1.3-1.5GHz
Display	4" (480x800) IPS \| Capacitive
RAM	1GB
ROM	8GB
Connectors	1x microUSB, 1x micro USB typu C(optional) \| 1x Micro SD(max. 64GB) \| 2x SIM 2x PSAM(optional)
GPS	Autonomous GPS receiver with built-in Assisted-GPS (A-GPS)
Audio	Speaker \| Mikrofon
Camera(optional)	Rear: 5 Mpx with flash
Battery	3.7V 4000mAh Li-Ion
Keyboard	Numeric (+function keys) + On-Screen
Environment	Android 5.1

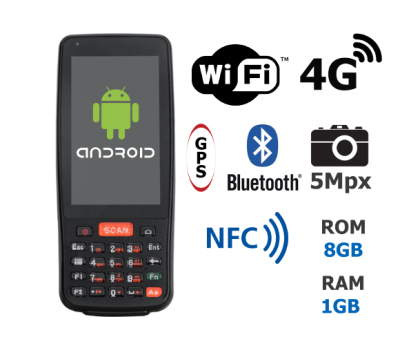

Modules	4G/3G \| WiFi \| Bluetooth 4.0 \| GPS \| NFC
Dimensions	162 x 70 x 31mm 345g
Readers(optional)	1D (Laser) Motorola SE955 \| 2D (CCD)

Select a version for each other

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".

	v.1	v.2	v.3	v.4
RAM Memory - 1GB
ROM Memory - 8GB
Camera 5Mpx	-
1D (Laser) Motorola	-	-		-
2D (CCD)	-	-	-

go top… menu…

Use of device

Data collector MobiPad A41 can be used for projects like: supermarket cashless payment, inventory management and logistics tracking. Device will be also good option to business data management and other services.

Operating temperature: -15 ° C ~ 55°C

Operating Humidity: 0% ~ 90%

go top… menu…

The collection and processing of data

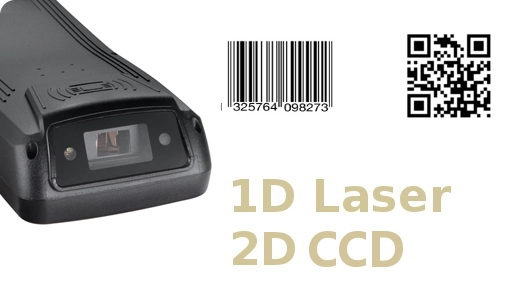

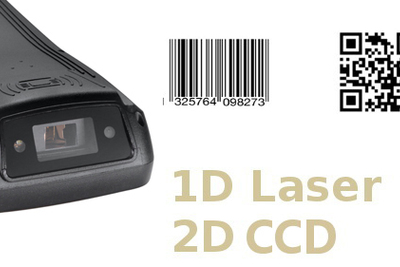

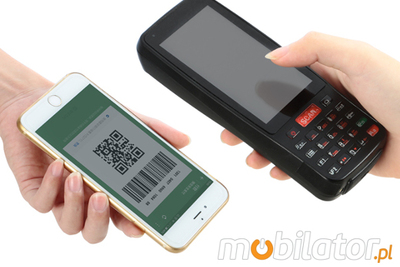

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

MobiPad A41 1D Laser 1d laser MobiPad A41 wifi 2d scanner

Near Field Communication (NFC)

MobiPad A41 1D Laser 1d laser MobiPad A41 wifi nfc

Its a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm or less. NFC devices are used in contactless payment systems, similar to those used in credit cards and electronic ticket smartcards and allow mobile payment to replace/supplement these systems. NFC is used for social networking, for sharing contacts, photos, videos or files.

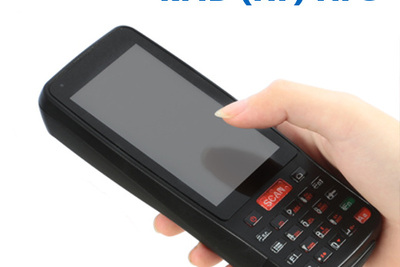

	RFID (HF) NFC
Frequency	13.56 MHz
Reading distance	od 1 do 5 cm
Supported card standard	Mifare Felica
Supported standards	ISO/IEC 14443 A/B
	ISO 15693

go top... menu…

Resitance

Applicable standards

Operating	-15°C -- +55°C
Storage	-20°C -- +70°C
Humidity	0% - 90%
Dust	IPxx (dust)
Water	IPxx (water)
Drop	1.2m

go top... menu…

MobiPad A41 1D Laser 1d laser MobiPad wifi gorilla glass 2D ccd

go top... menu…

Modules and Wireless Networks

MobiPad A41 Laser 1d laser MobiPad A41 wifi gps modules

When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 4G module used in MobiPad A41 NFC devices are used in contactless payment systems, similar to those used in credit cards and electronic ticket smartcards and allow mobile payment to replace/supplement these systems. NFC is used for social networking, for sharing contacts, photos, videos or files.

WiFi	802.11 b/g/n
GPS	Yes
Bluetooth	Bluetooth V4.0
4G/3G	3G(CDMA/EVDO/WCDMA/TD-SCDMA) 4G(LTE-FDD:B1/ B3/ B7/B8/B28 oraz LTE-TDD:B38/B39/B40/B41
	The ability to make voice calls

go top... menu…

Minimalism

mobipad 1d laser MobiPad A41 functional keys case description You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have MobiPad A41. The device weighs just 345g and its dimensions (162 x 70 x 31mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that A41 is in a group of devices which enjoy great popularity in the European market in the industrial segment.

Dimensions	162 × 70 × 31mm
Weight	345g

go top... menu…

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

Operating System
Android 5.1
Display
4 "(480x800) IPS LCD - capacitive| high resolution
Brightness
320 nits
Processor
28nm ARM Qual-core cortex A53 @1.3-1.5GHz
Memory
1GB
Hard Drive
-----
Flash Memory
8GB
Touch screen
Yes
Durability
------
Drop
1.2 meters
Shock
-----
Vibration
-----
Temperature
Operating temperature: -10°C -- +55°C
Storage temperature: -20°C -- +70°C
Humidity
0 - 90%
1D barcode scanner (reader)
none (available in other versions)
2D barcode scanner (reader)
none (available in other configurations)
RFID scanner (reader)
NFC (13.56MHz) ISO/IEC 14443A/B, ISO 15693
Mifare, Felica
Other
-----
Battery
3.7V 4000mAh Li-Ion
Working time on battery
>9 hours
Fast battery replacement ability
No
HotSwap battery
-----
LAN
No
WLAN
IEEE 802.11 b/g/n
Bluetooth
Bluetooth 4.0
WAN
4G LTE-FDD:B1/ B3/ B7/B8/B28 oraz LTE-TDD:B38/B39/B40/B41
3G CDMA/EVDO/WCDMA/TD-SCDMA
GSM/GPRS/EDGE 850/900/1800/1900MHz
GPS
Integrated autonomous GPS receiver
Built-in Assisted-GPS (A-GPS) services and software utilities

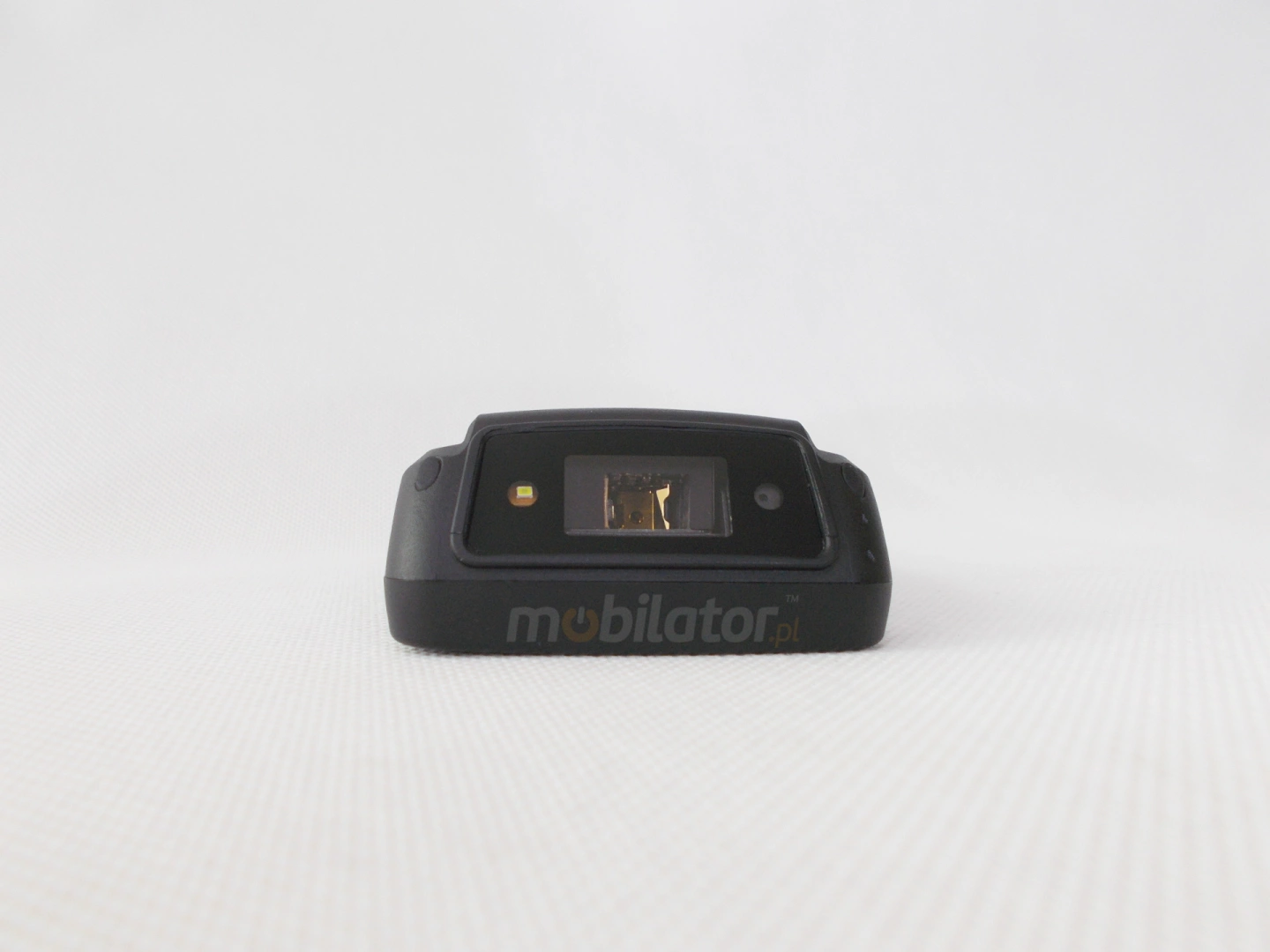

Camera
Rear: 5Mpx + Flash
In/Out
1 x microUSB, 1x microUSB Typu C (option), 1 x Micro SD(max.64GB), 2 x SIM, 2 x PSAM(option)
Optional accessories
-----
Docking station connector
No
VESA standard – holders and mounts support
-----
COM port
No
Magnetic card reader (MSR)
-----
Microchip card reader
-----
Contrast
-----
Graphics card
Mali-T720
Chipset
-----
BIOS
-----
Casing material
high quality plastic and rubber
Flash Card Reader
microSD (max. 64GB)
CD/DVD
-----
Audio
Microphone
Keyboard
Alphanumeric (+ function keys) : On-screen
Additional Navigation Devices
-----
Color
Black
Swivel Hinge
-----
VGA out
No
TV Out
-----
TV Tuner
-----
Security
-----
Waterproof
-----
Sand and dust
-----
Size
162 ×70 ×31mm- 345g
Fanless casing
Yes
Responsible Entity / Distributor
New Portable Devices

Odporny na uszkodzenia mechaniczne skaner magazynowy

Odporny na upadki kolektor do pracy zewnętrznej

Solidny i niezawodny kolektor dla przemysłu

Wzmocniony skaner do użytku w zakładach produkcyjnych

Antywstrząsowy kolektor kodów kreskowych

Terminal skanujący odporny na ekstremalne warunki

Skaner kodów kreskowych do pracy w trudnych warunkach

Wstrząsoodporny i pyłoszczelny terminal do magazynu

Kolektor danych z ochroną przed wstrząsami

Profesjonalny skaner magazynowy wzmocniony

Bezprzewodowy kolektor danych z wzmocnioną obudową

Przemysłowy skaner kodów o wysokiej odporności

Wytrzymały terminal mobilny dla logistyki

Software

MobiPad A41 aplikacje i SDK

12.52 MB

10.11.2017

Android

Download

Compare all versions


 Industrial Data Collector MobiPad A41 NFC RFID
					4"(480x800) - capacitive
Cortex A53 1.3GHz | 1GB RAM | 8GB ROM
WiFi | Bluetooth 4.0 | GPS | 4000mAh
Android 5.1 | 4G LTE | NFC

Gross1356.20 zł

 Industrial Data Collector MobiPad A41 NFC RFID + Camera
					4"(480x800) - capacitive
Cortex A53 1.3GHz | 1GB RAM | 8GB ROM
WiFi | Bluetooth 4.0 | GPS | 4000mAh
Android 5.1 | 4G LTE | NFC | Camera 5Mpx

Gross1392.61 zł

 Industrial Data Collector MobiPad A41 Motorola 1D Laser Scanner
					4"(480x800) - capacitive
Cortex A53 1.3GHz | 1GB RAM | 8GB ROM
WiFi | Bluetooth 4.0 | GPS | 4000mAh
Android 5.1 | 4G LTE | NFC | Camera 5Mpx
Scanner 1D(Laser) Motorola SE955

Gross1579.20 zł

 Industrial Data Collector MobiPad A41 2D Barcodes Reader
					4"(480x800) - capacitive
Cortex A53 1.3GHz | 1GB RAM | 8GB ROM
WiFi | Bluetooth 4.0 | GPS | 4000mAh
Android 5.1 | 4G LTE | NFC | Camera 5Mpx
Scanner 2D(CCD)

Gross1761.24 zł
