Product Update Date: 2019-09-04

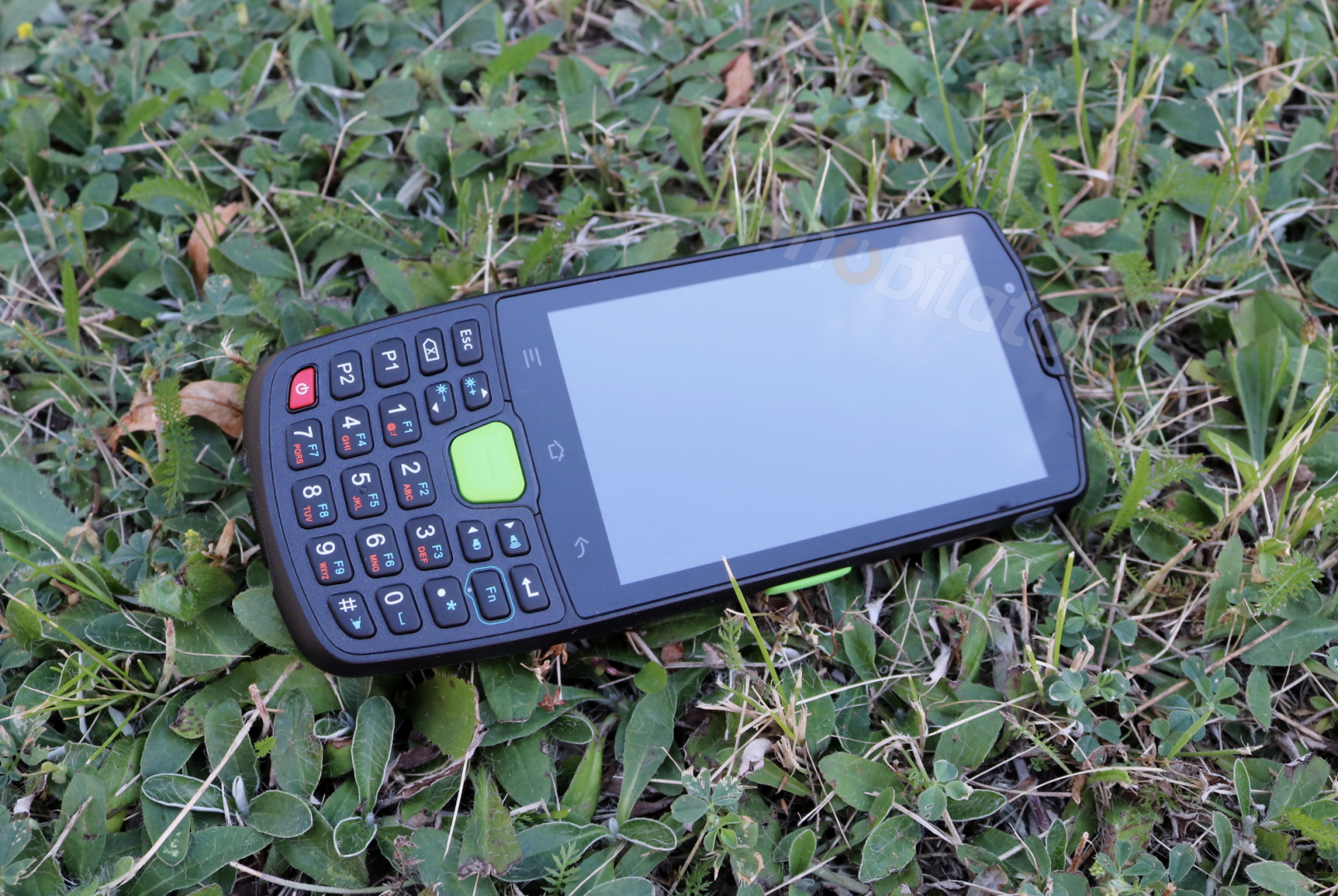

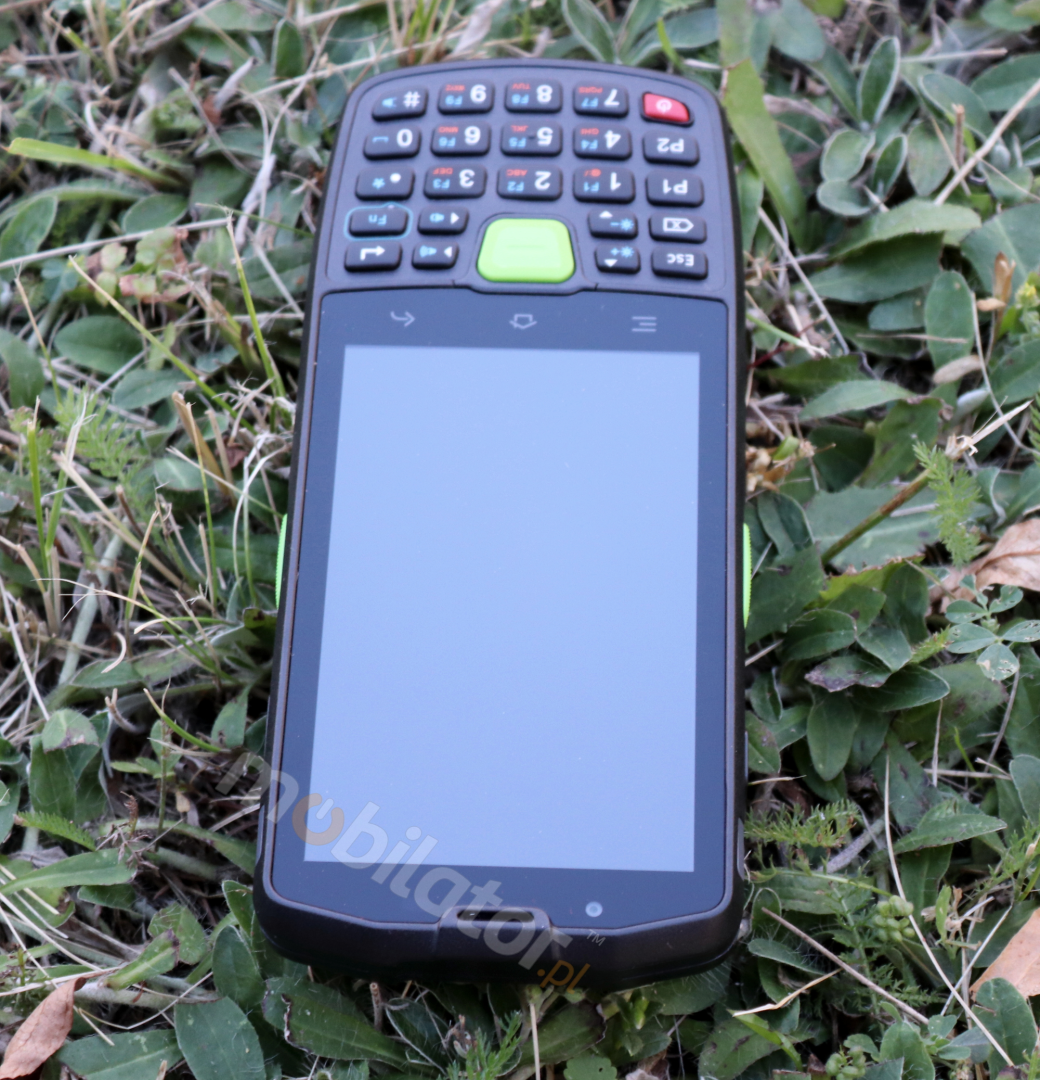

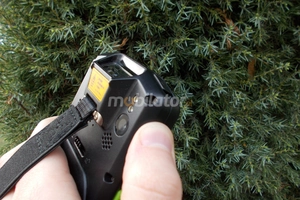

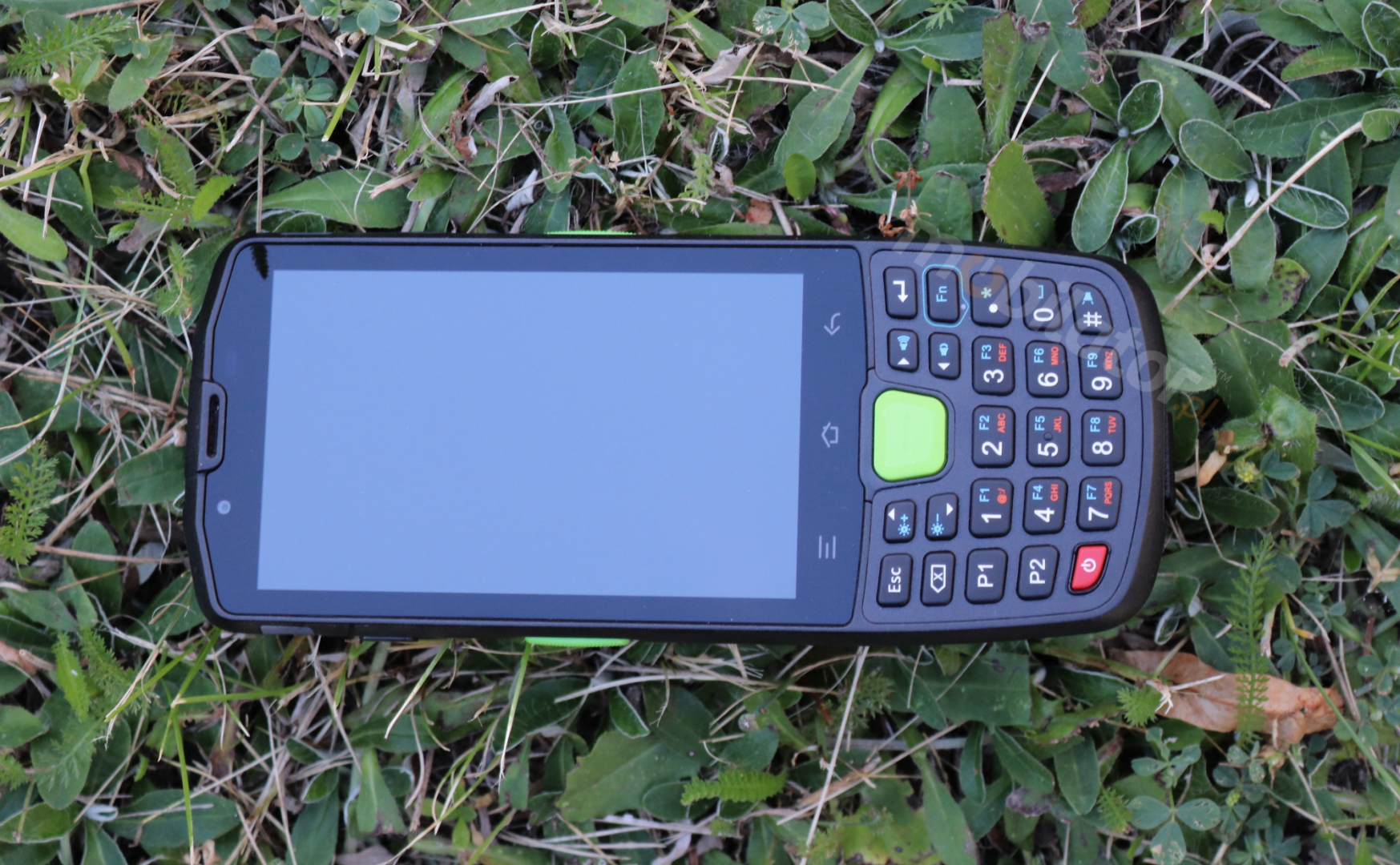

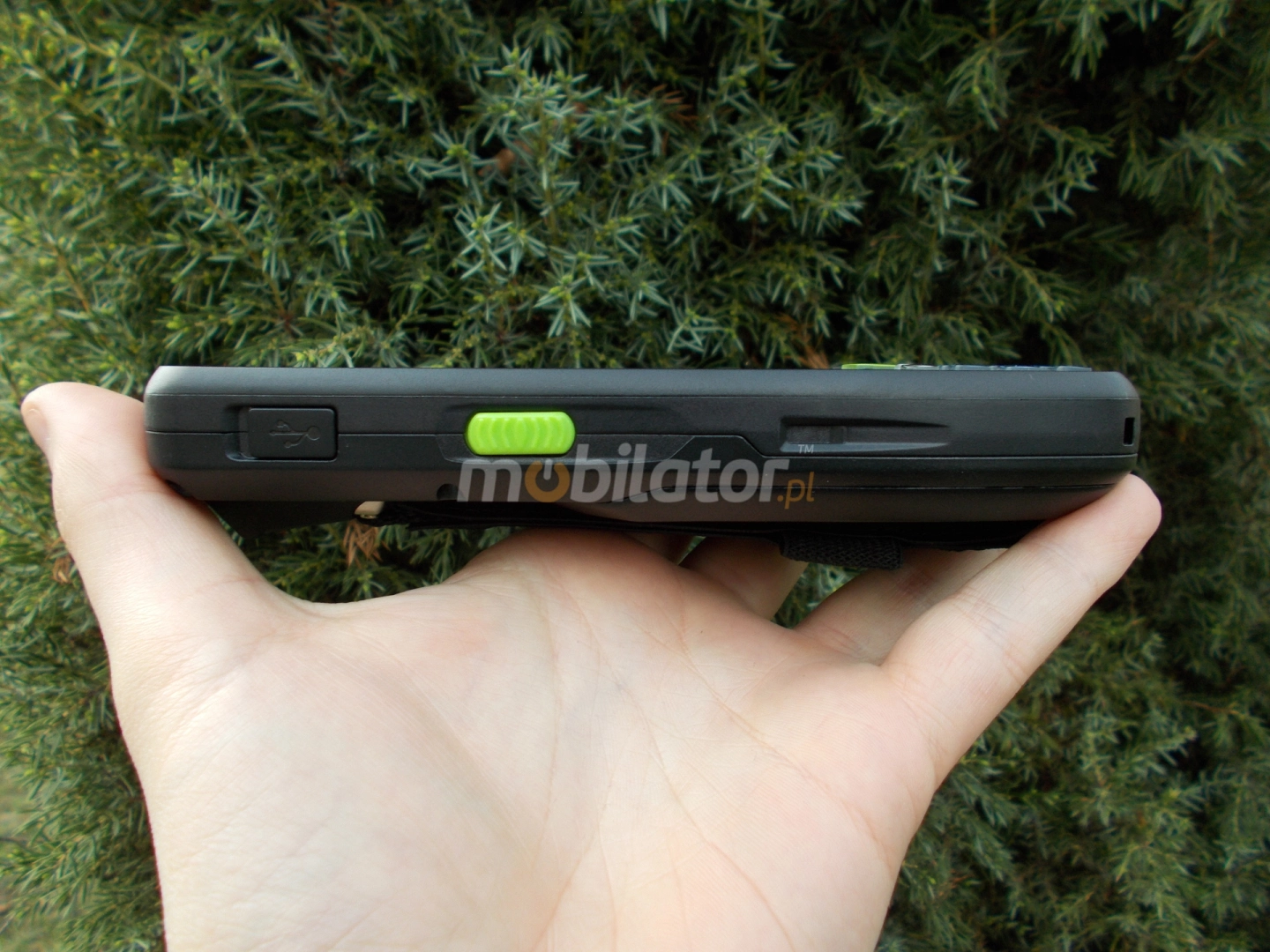

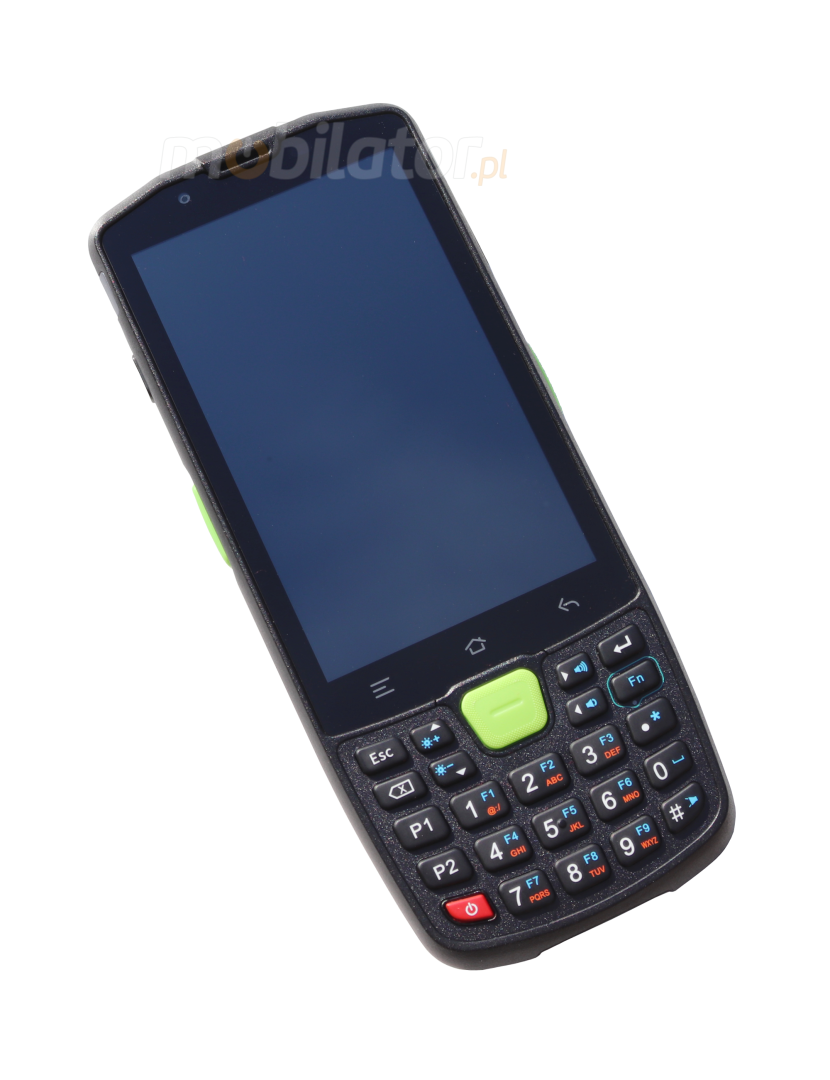

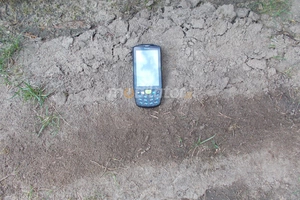

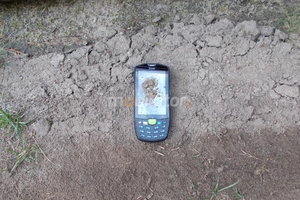

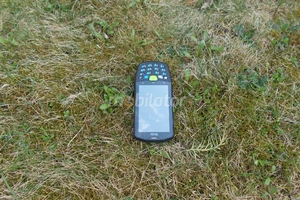

Industrial Data Collector MobiPad MPS8W 2D v.1

Update Date: 2019.09.04

Guarantee 1 years

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

Description
The collection and processing of data
Resistance
Modules and Wireless Networks
Minimalism

MobiPad MPS8W has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP67 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.

Description

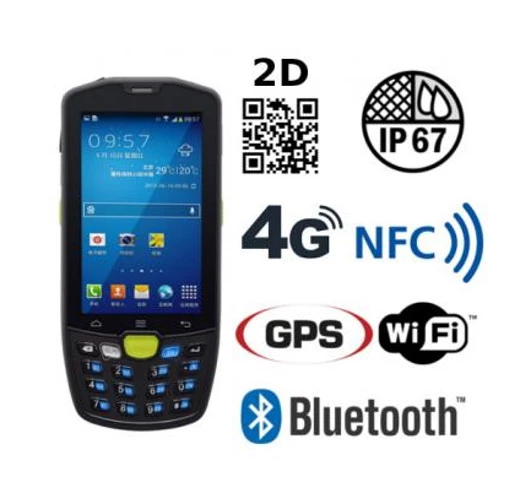

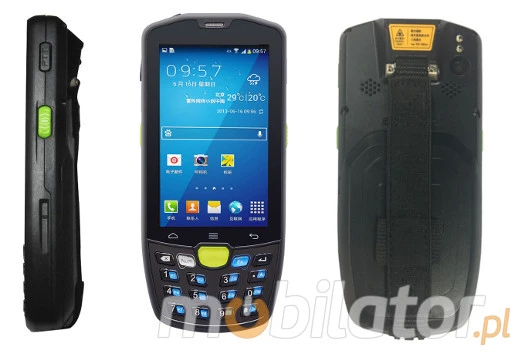

MobiPad MPS8W 2d CMOS

Processor	Cortex Quad-Core 1.2GHz
Display	4" (800x480) IPS \| Capacitive
RAM	1GB \| 2GB (depends of version)
ROM	8GB \| 16GB (depends of version)
Connectors	microUSB \| Micro SD \| SIM
GPS	GPS
Audio	AudioJack \| Speaker \| Microphone
Camera	Rear: 5Mpx \| 8Mpx (depends of version)
Battery	3.8V 4000mAh Li-Ion 3.7V, 60mAh Li-Ion (HotSwap - depends of version)
Keyboard	Numeric (+function keys) + On-Screen
Environment	Android 4.4 \| Android 5.1 (depends of version)
Modules(optional)	3G\| 4G \| WiFi \| Bluetooth \| GPS \| NFC
Dimensions	156mm70mm27mm
Resistance	IP67
Readers	2D Honeywell N6603(factory) \| 1D Motorola SE965(optional)

Select a version for each other

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".

	v.1	v.2	2Y v.1	3Y v.1	v.3	v.4
Android 4.4	-		-	-	-
Android 5.1		-				-
8GB ROM Memory	-		-	-	-
16GB ROM Memory		-				-
1GB RAM Memory	-		-	-	-
2GB RAM Memory		-				-
Motorola SE965	-	-	-	-
Honeywell N6603		-			-	-
Motorola SE4500	-		-	-	-	-
Camera 5Mpx	-		-	-	-
Camera 8Mpx		-				-
HotSwap		-				-
2 years warranty	-	-		-	-	-
3 years warranty	-	-	-		-	-

do góry… menu…

The collection and processing of data

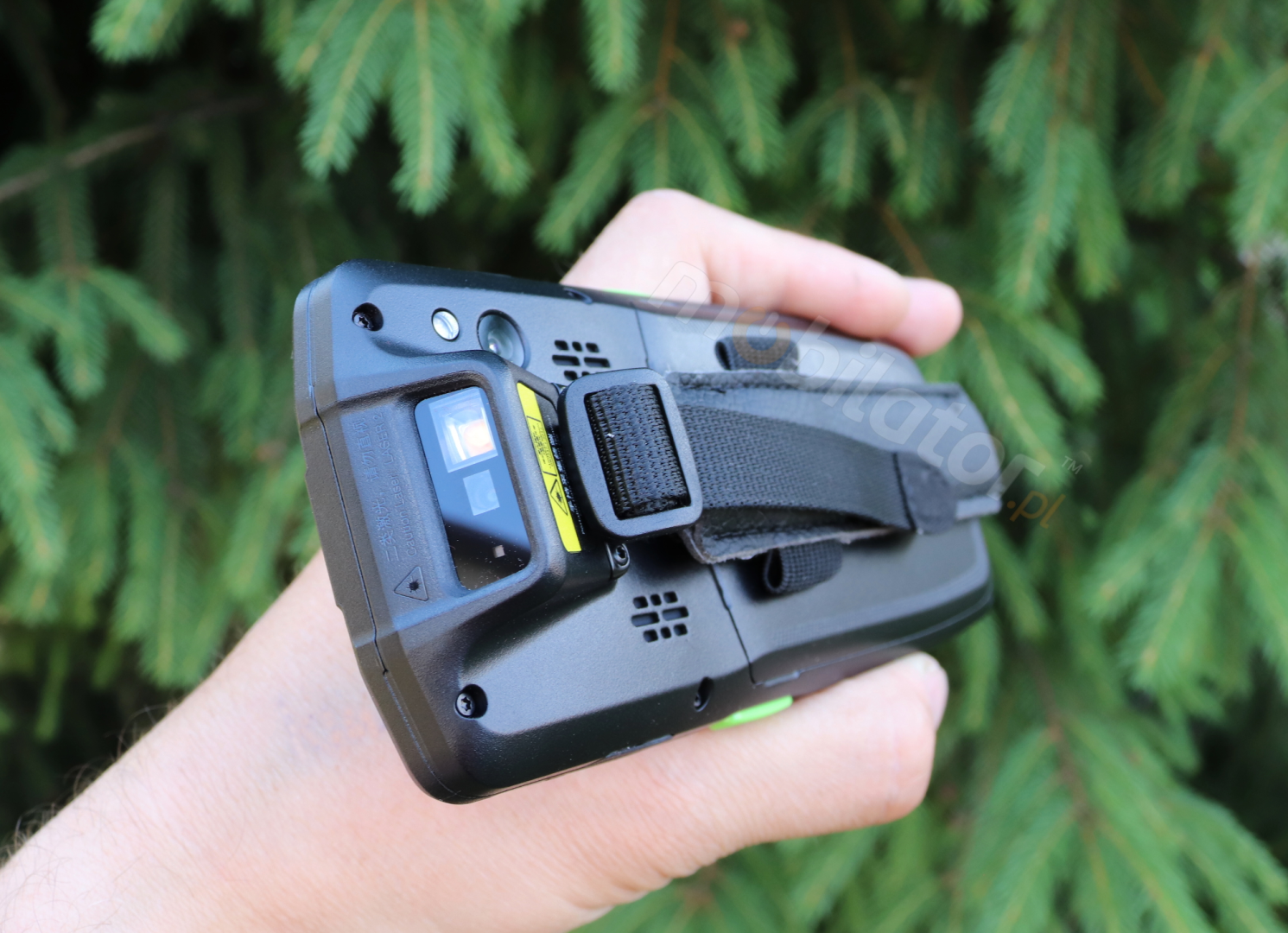

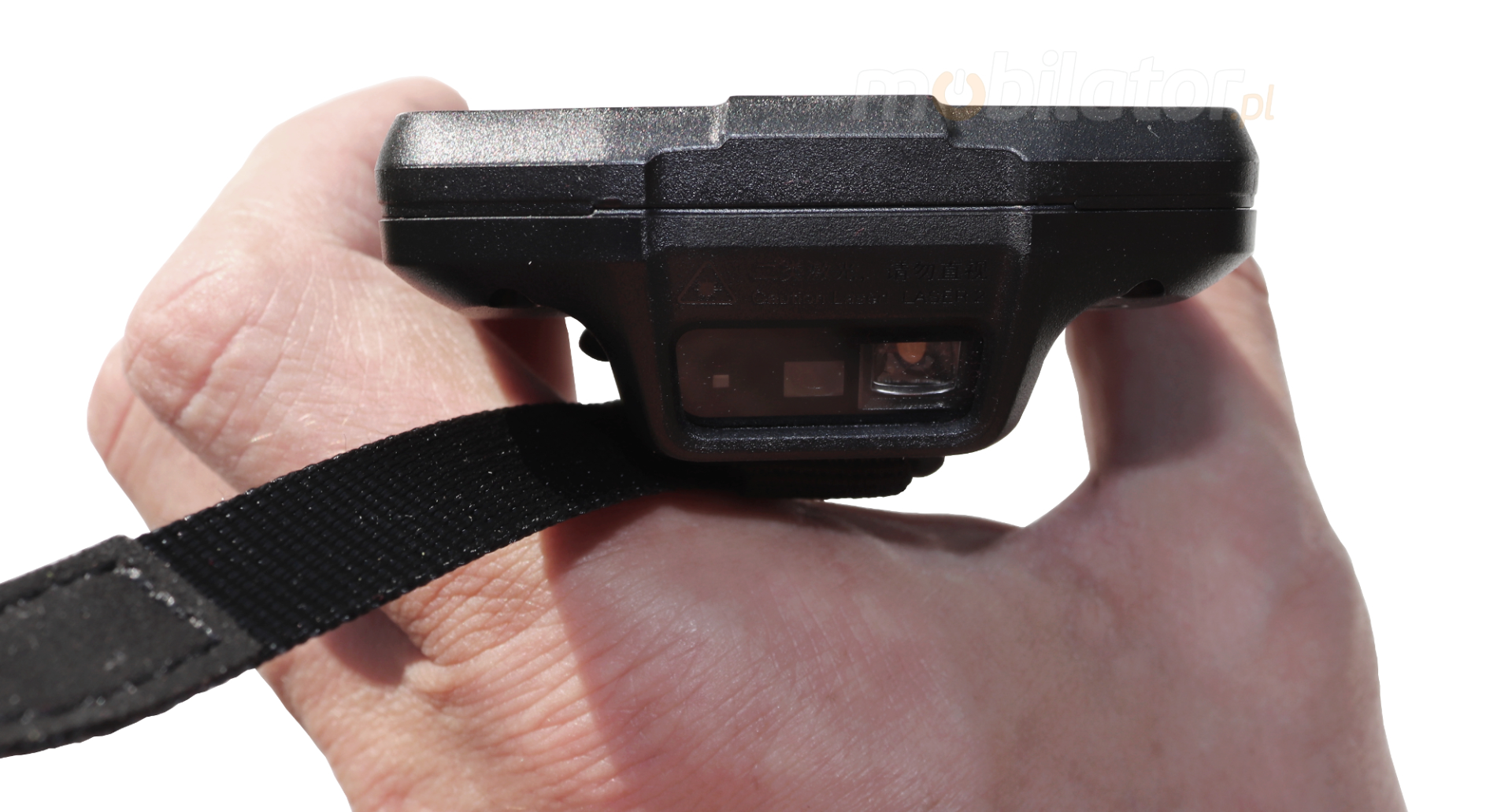

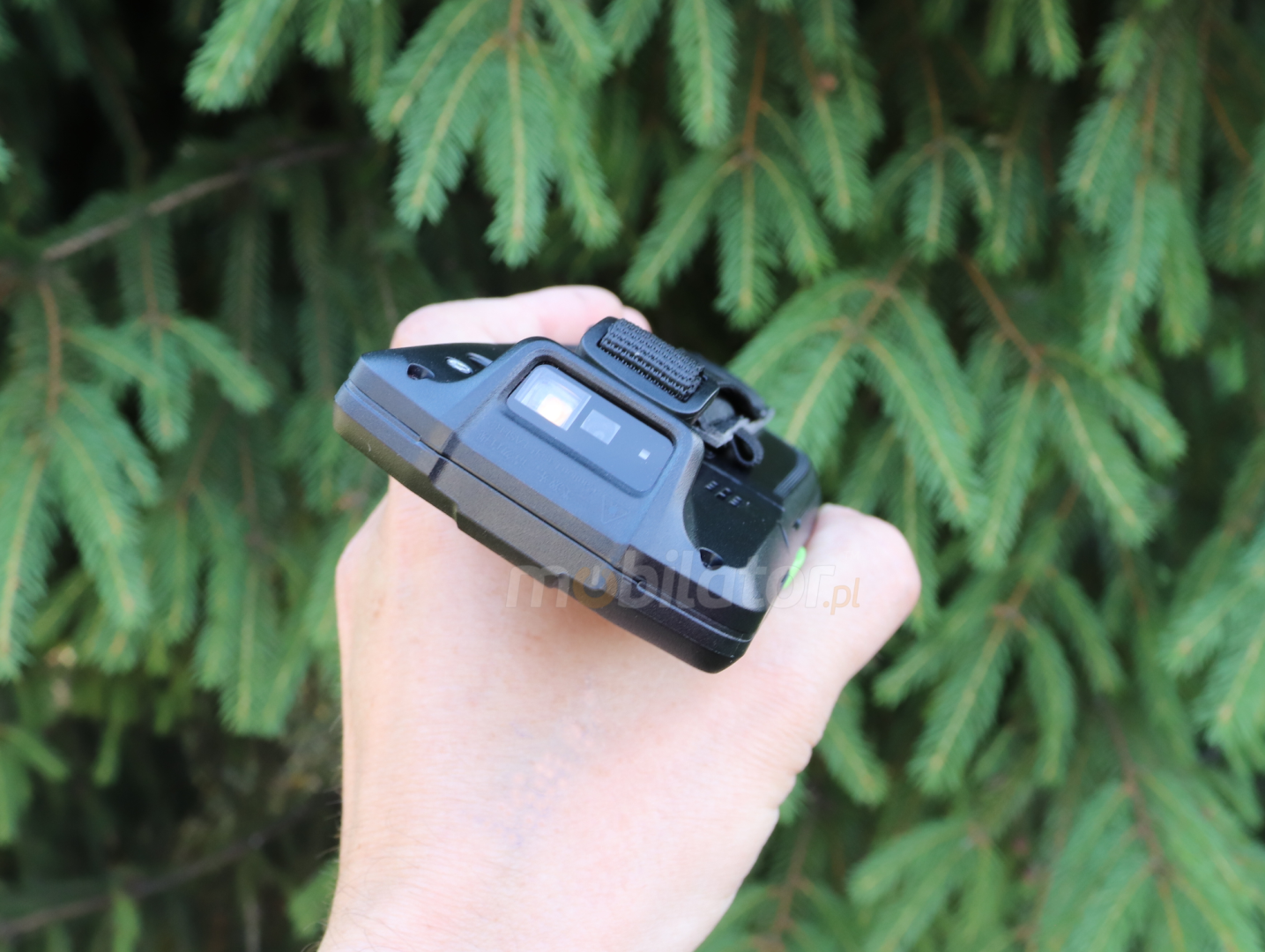

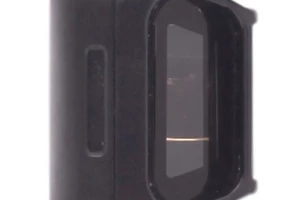

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

MobiPad MPS8W 2D CMOS wifi

Near Field Communication (NFC)

Its a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 5 cm or less.

	NFC
Frequency	13.56 MHz
Reading distance	od 1 do 5 cm
Supported standards	ISO 14443
	ISO 15693
	ISO 18092

go top... menu…

Resitance

Applicable standards

Operating	-20°C -- +50°C
Storage	-40°C -- +60°C
Humidity	5% - 95% RH \| non-condensing
Dust	IP6x (dust)
Water	IPx7 (water)
Drop	5ft./1.5m

go top... menu…

MobiPad MPS8W 2D CMOS wifi

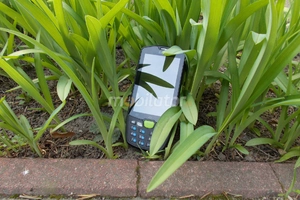

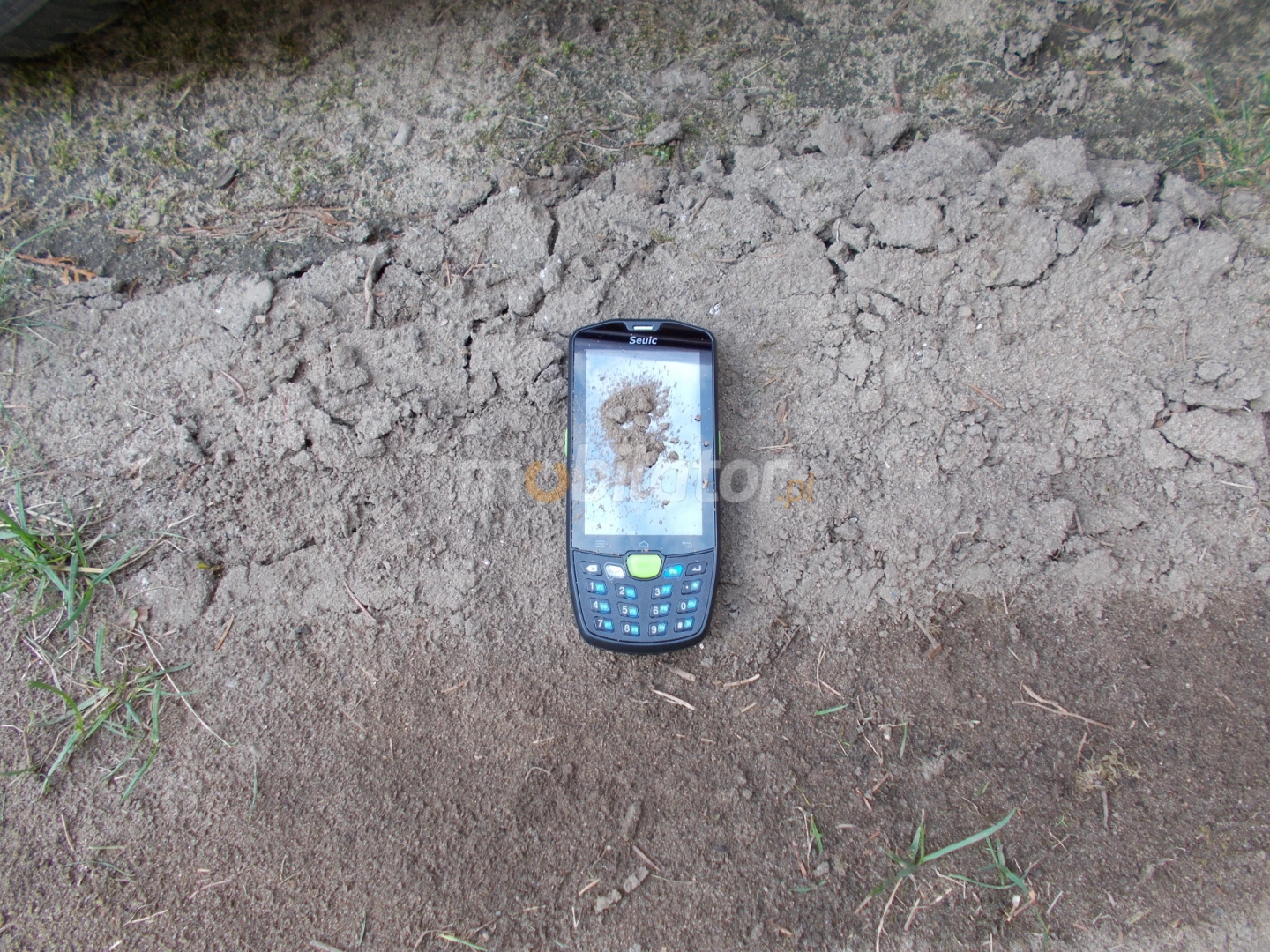

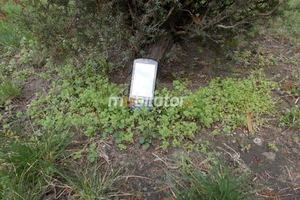

IP67 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

No special protection

No waterproofing

Protection from solid objects greater than 50mm in diameter

Protection from dripping water

Protection from solid objects greater than 50mm in diameter

Protection from vertically dripping water (tilted up to 15°)

Protection from object not greater than 2,5mm in diameter

Protection from sprayed water (tilted up to 60°)

Protection from object not greater than 1mm in diameter

Protection from splashed water

Complete protection against contact, Protection against dust deposit

Protection from splashed water

Complete protectionm against contact, Protection from infiltration of dust

Protection from water projected from a nozzle

Protection against immersion

Protection against complete, continuous submersion in water

go top... menu…

Modules and Wireless Networks

MobiPad MPS8W 2D CMOS wifi gps

When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 3G(or 4G) module used in MobiPad MPS8W adjusts automatically to transfer and network coverage. Built-in speaker and microphone allows you to make voice calls.

WiFi	802.11 a/b/g/n
GPS	Yes
Bluetooth	Bluetooth 4.0
WWAN	GSM: Quad Band(850/900/1800/1900Mhz) TD-SCDMA:Band34,Band39 WCDMA:Band1,Band2,Band5,Band8 CDMA 1x /EVDO :BC0 TDD-LTE:Band38,Band39,Band40,Band41 FDD-LTE:Band1,Band3,Band7
	The ability to make voice calls

go top... menu…

Minimalism

mobipad 2d cmos MobiPad MPS8W

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have MobiPad MPS8W. The device weighs just 270g and its dimensions (156 x 70 x 27mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that MPS8W is in a group of devices which enjoy great popularity in the European market in the industrial segment.

Dimensions	156 ×70 × 27mm
Weight	270g

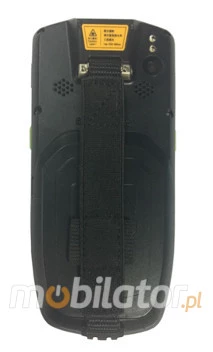

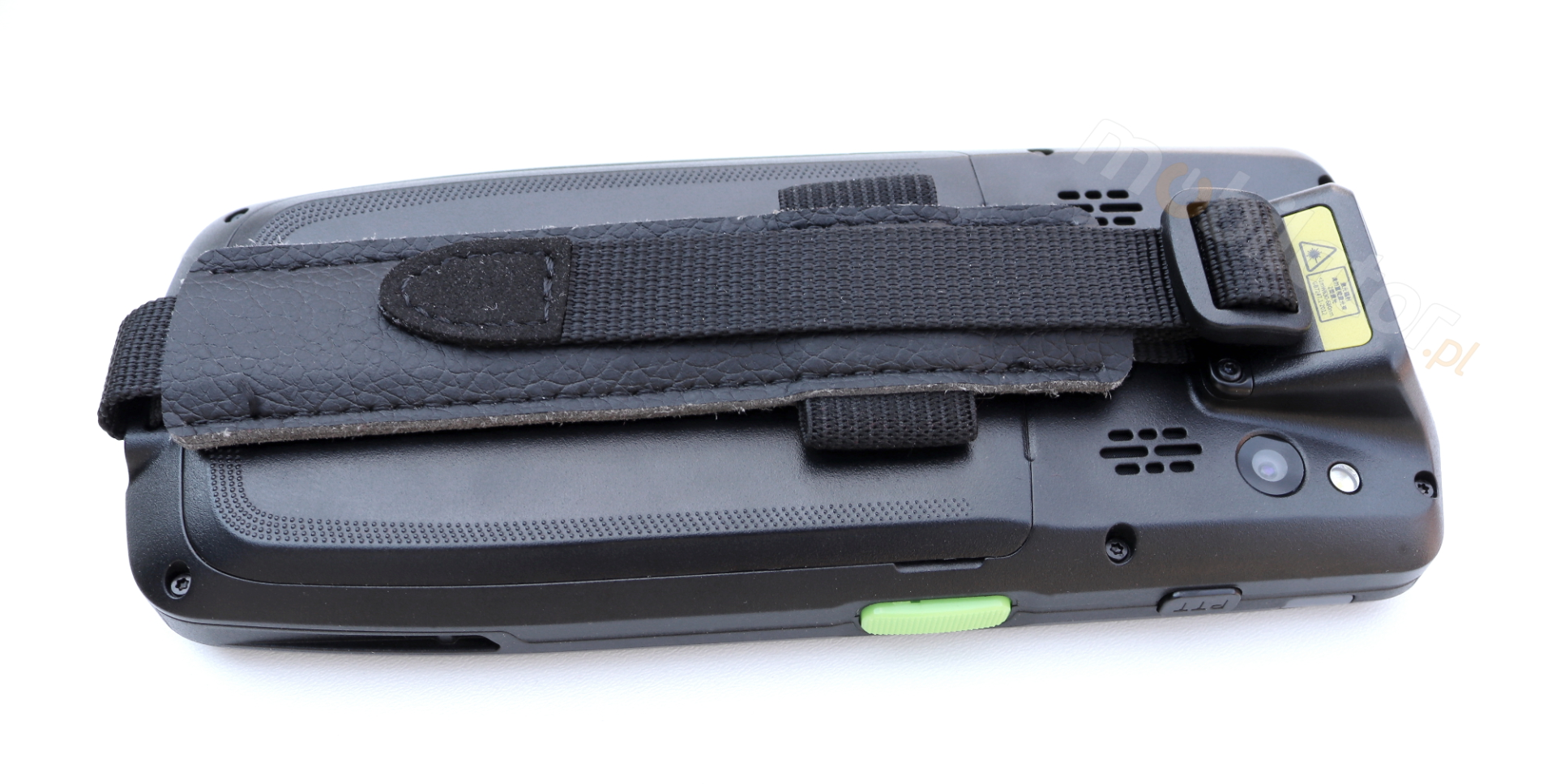

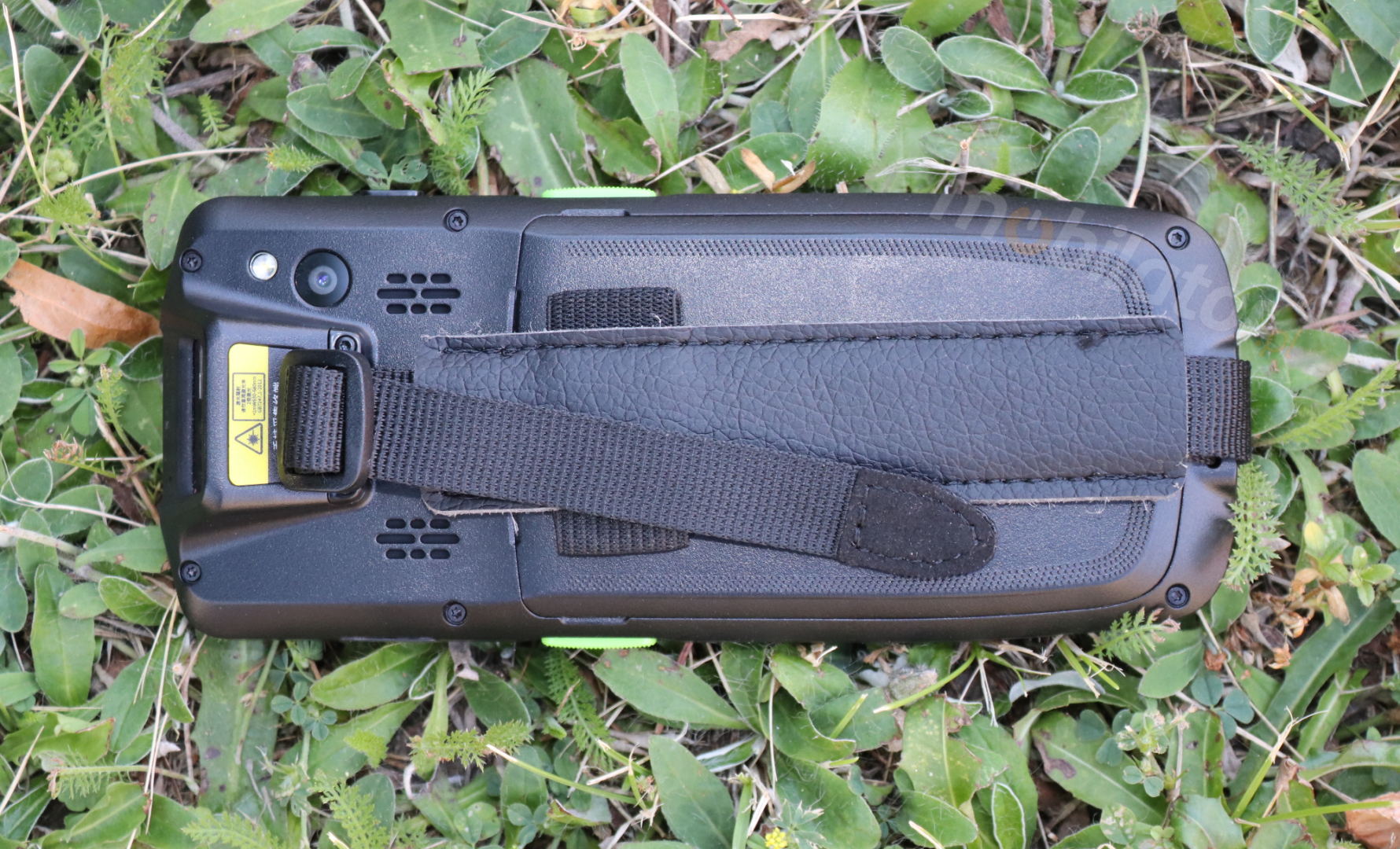

Quick change battery

Friendly design allows for fast replacement of the battery. This is useful when you working in the field with difficult conditions, where there is no additional power sources and the time is very important.

MobiPad MPS8W 2D wifi

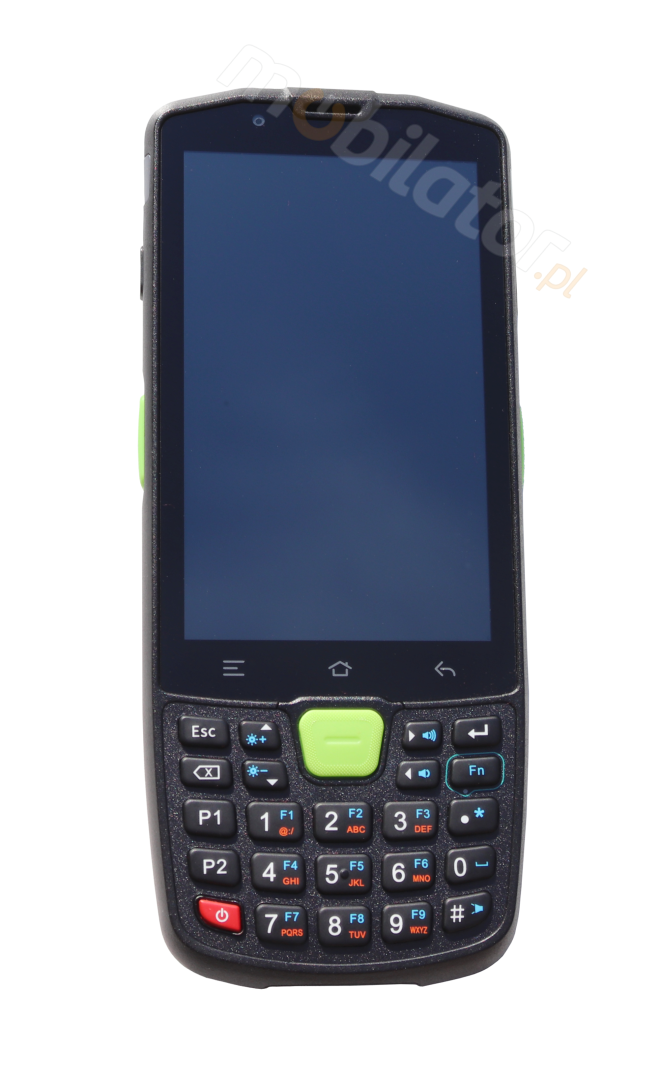

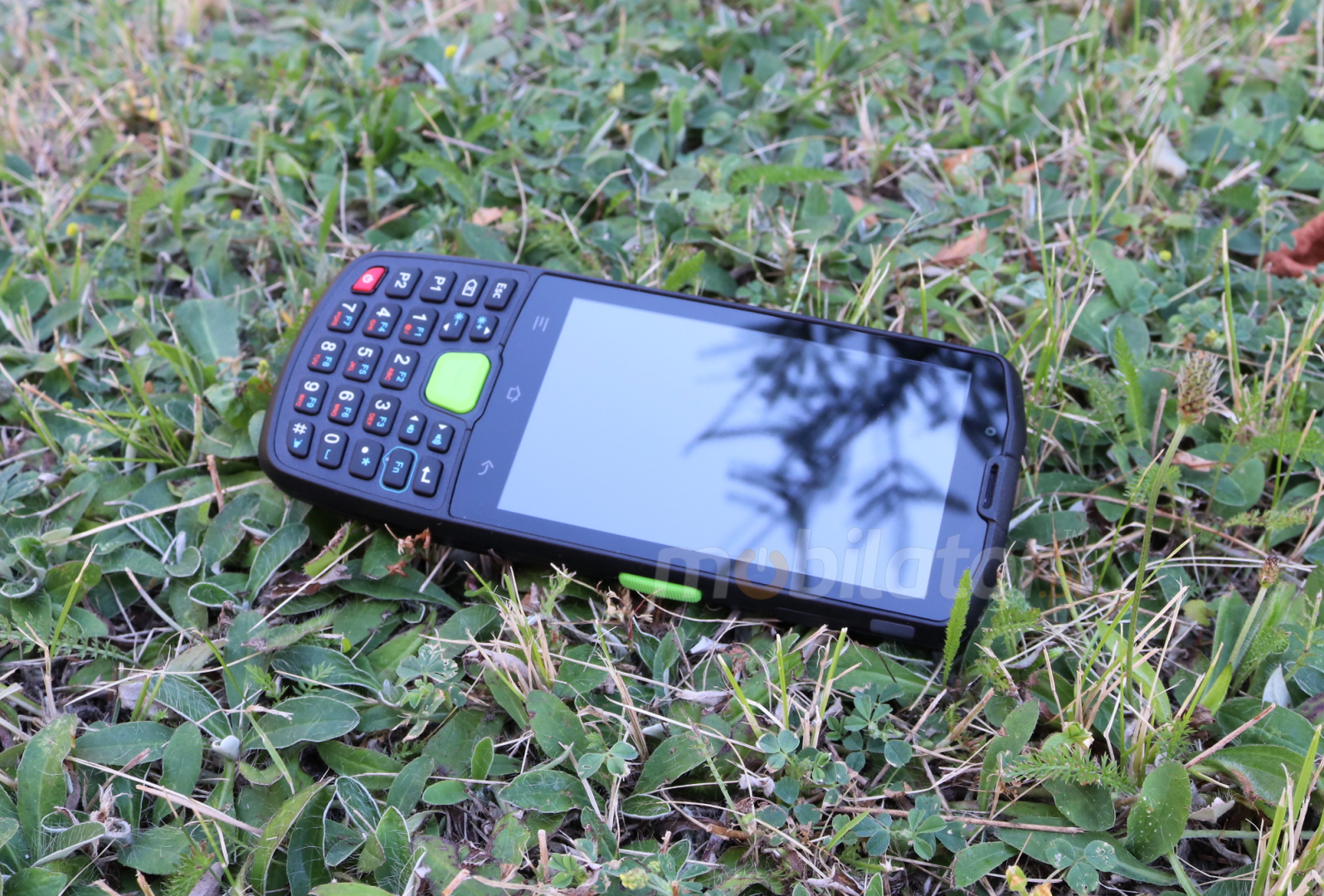

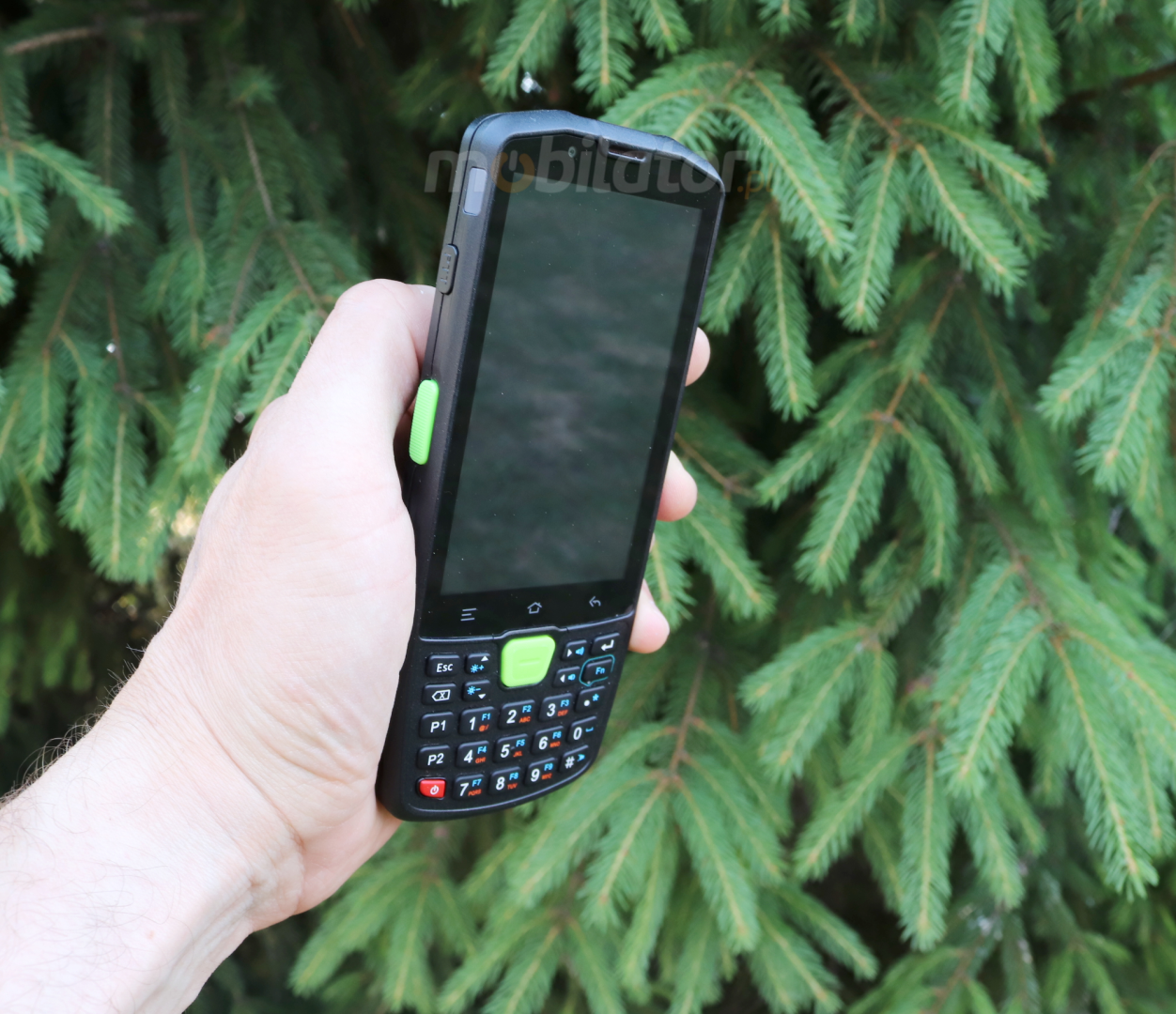

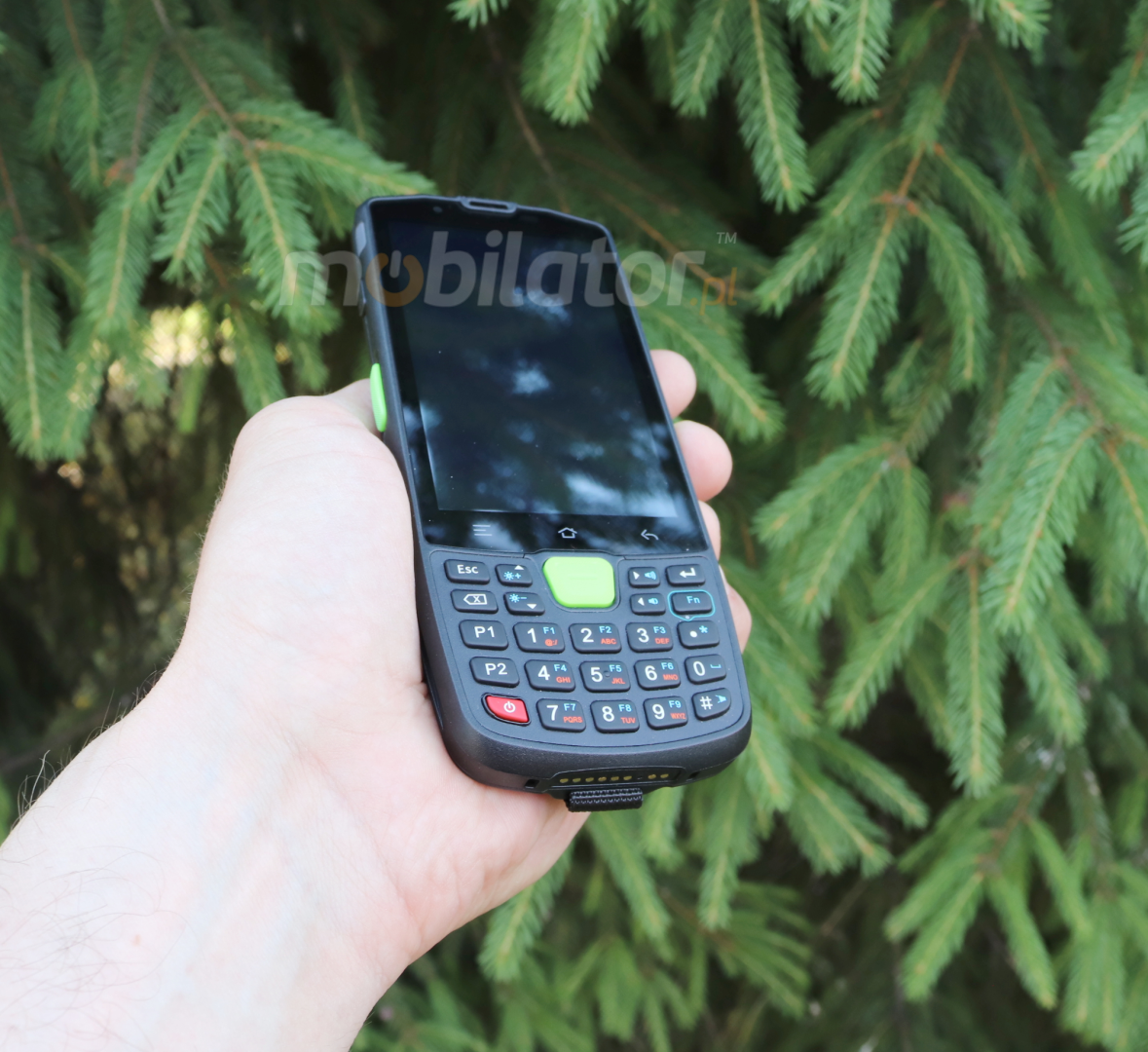

Customized for Your needs

From now We offer possibility to choose keyboard to MobiPad MPS8W. Thanks this solution You can customize your device much more to maximize efficiency. Below short description:

Standard - get additional functional buttons and bind them to open installed applications like flashlight, messages or facebook,

Alphanumeric - makes possible to write text by device's keyboard - same like in old generation cell phones,

22 buttons - standard keyboard with 4 navigation buttons and one to block touch screen(operating by navigation buttons).

*shipping can be longer, depends of the selected keyborad...

*
* when ordering please specify the type of keyboard you want, without any information the device will be delivered with a standard keyboard ...

keyborad Mps8W standard 22 buttons alphanumeric

go top... menu…

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

product does not have any accesories in set...

Operating System
Android 5.1
Display
4' (800x480) IPS | Capacitive
Brightness
-----
Processor
Cortex-A53 Quad-Core 1.2GHz
Memory
2GB
Hard Drive
-----
Flash Memory
16GB
Touch screen
Yes
Durability
IP67
Drop
1.5 meters
Shock
-----
Vibration
-----
Temperature
Operating temperature: -20°C -- +50°C
Storage temperature: -20°C -- +60°C
Humidity
5% - 95% (no condensation)
1D barcode scanner (reader)
-----
2D barcode scanner (reader)
2D (CMOS) Honeywell N6603
RFID scanner (reader)
NFC (13.56MHz)
 ISO 14443, ISO 15693, ISO 18092
Other
-----
Battery
3.8V 4000mAh Li-Ion (Removable)
Built in 3.7V 60mAh Li-Ion backup battery - HotSwap
Working time on battery
>12 hours
Fast battery replacement ability
Yes
HotSwap battery
Yes
LAN
No
WLAN
802.11 a/b/g/n
Bluetooth
Bluetooth 4.0
WAN
4G/3G/GPRS/WCDMA/CDMA
GSM 850/900/1800/1900 MHz
CDMA 1x /EVDO :BC00,
WCDMA: Band1,Band2,Band5,Band8,
TD-SCDMA: Band34,Band39
WAN
4G/3G/GPRS/WCDMA/CDMA
GSM 850/900/1800/1900 MHz
CDMA 1x /EVDO :BC00,
WCDMA: Band1,Band2,Band5,Band8,
TD-SCDMA: Band34,Band39
GPS
Built-in
Camera
Rear: 8Mpx (Auto Focus, Flash)
In/Out
1 x microUSB 2.0, 1 x AudioJack , 1 x Micro SD(max.32GB), 1 x SIM
Optional accessories
Pistol grip

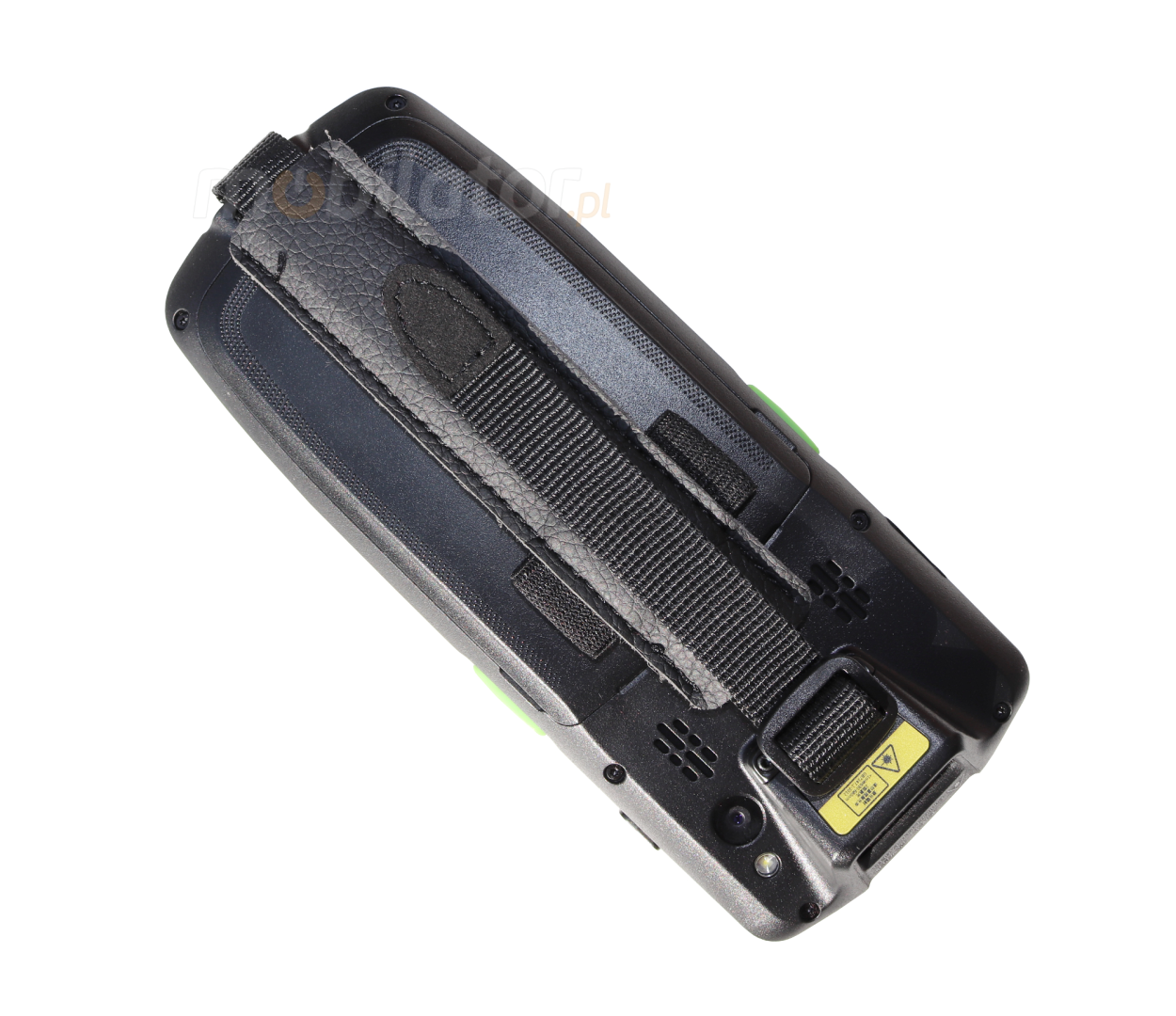

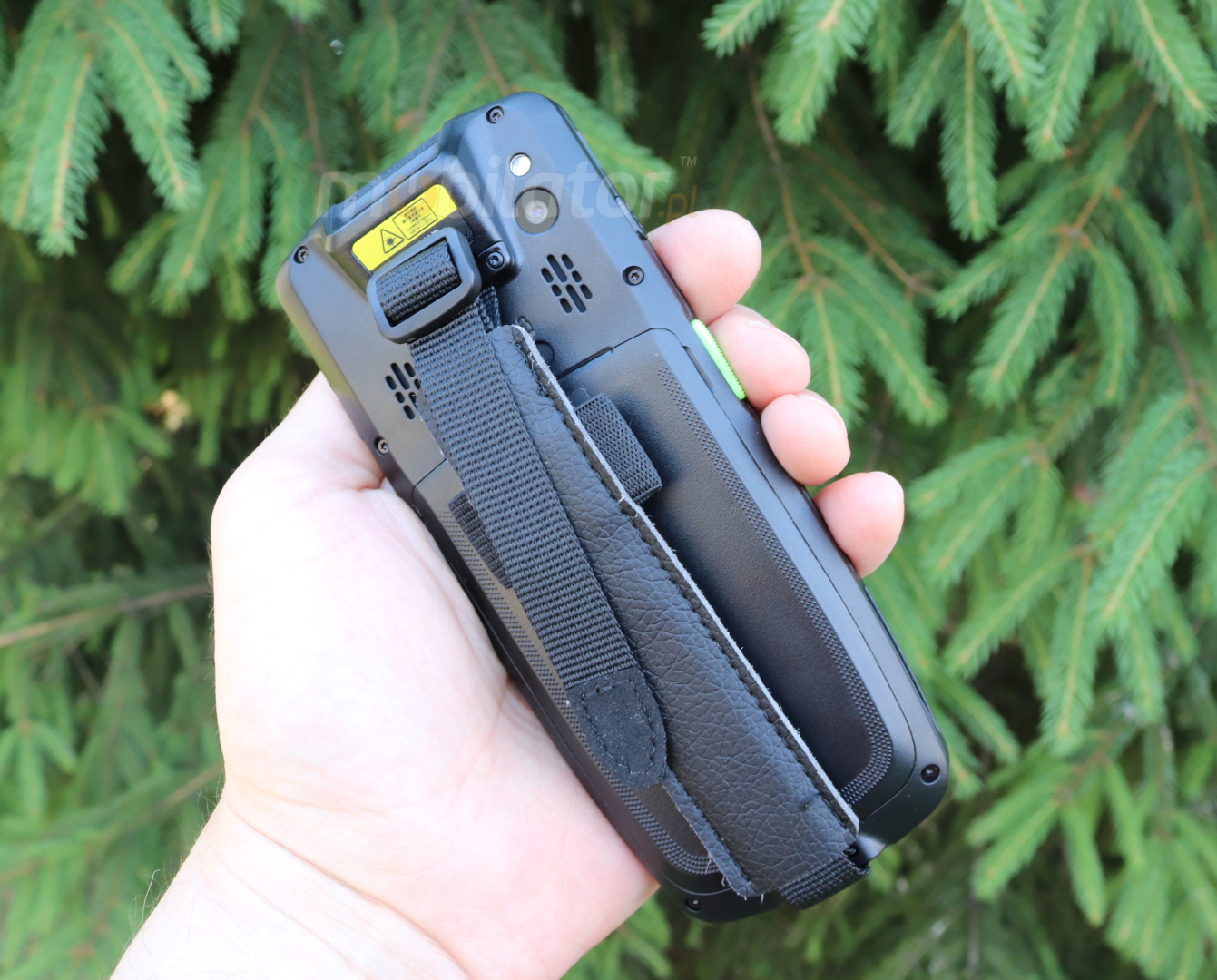

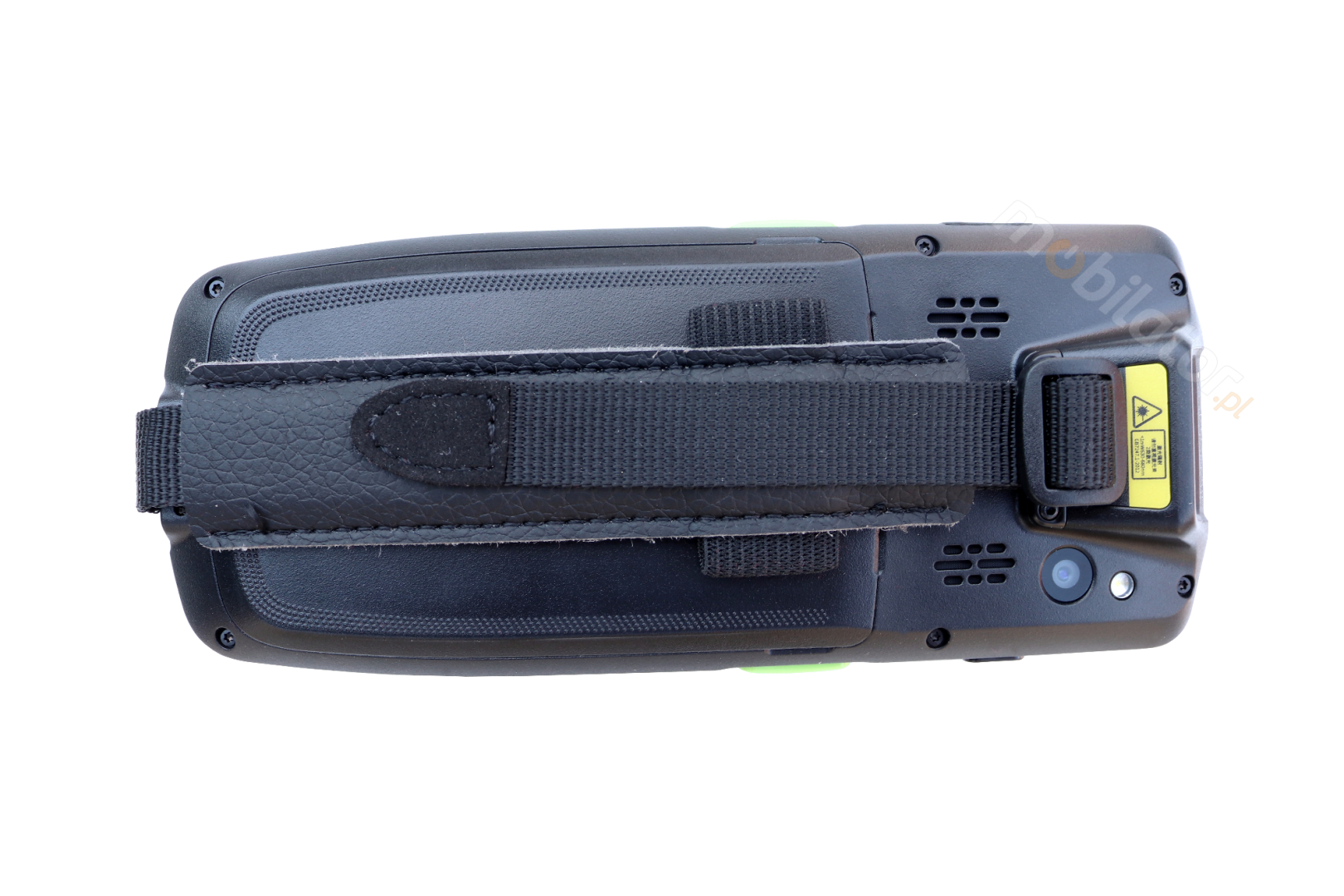

Hand Strap
Hand Belt
Capacitive Stylus
Holster
Docking Station
Five Slot Battery Charger
Four Slot Battery Charger
Single Slot Battery Charger

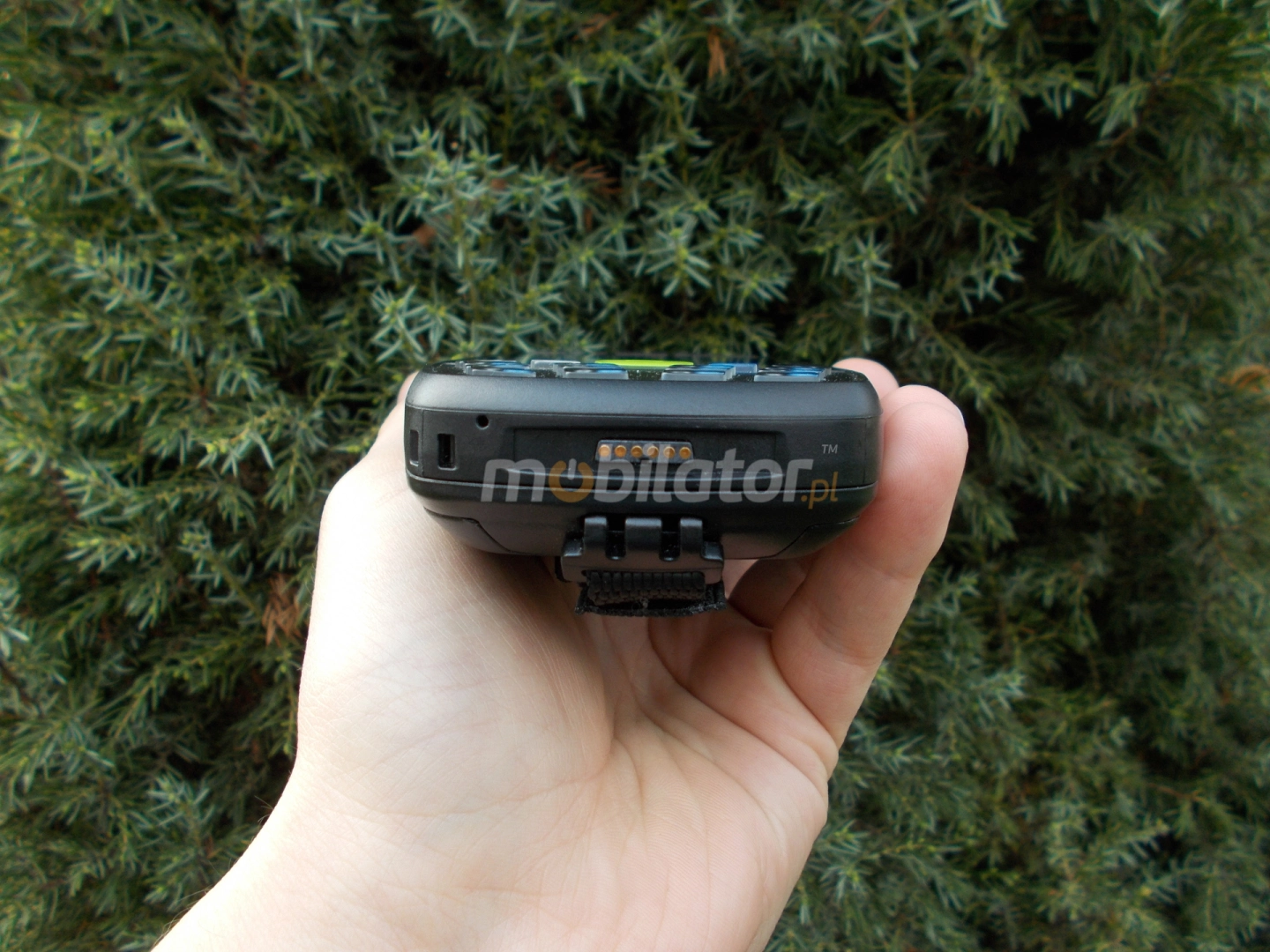

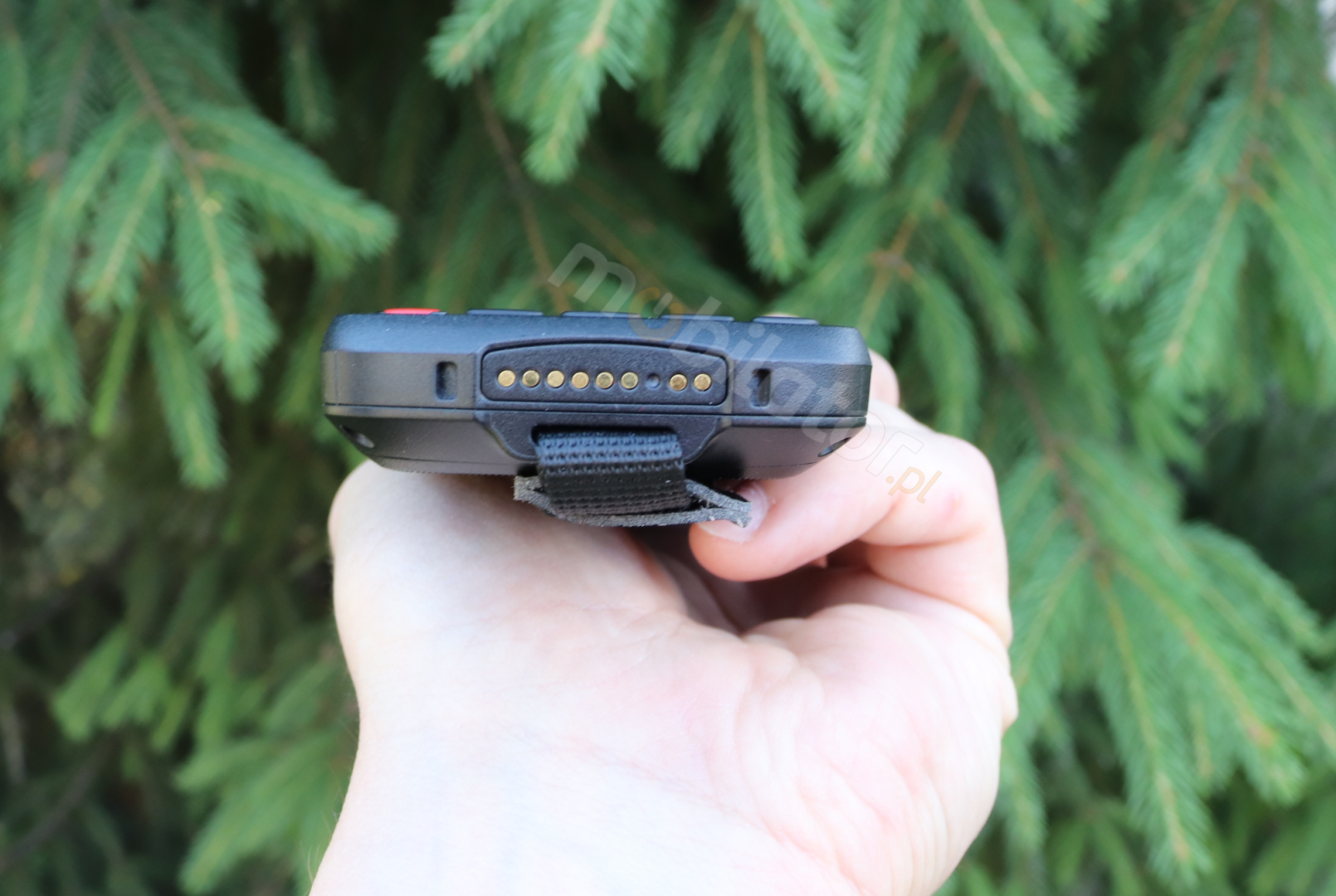

Docking station connector
Yes
VESA standard – holders and mounts support
-----
COM port
-----
Magnetic card reader (MSR)
-----
Microchip card reader
-----
Contrast
-----
Graphics card
-----
Chipset
-----
BIOS
-----
Casing material
high quality plastic and rubber
Flash Card Reader
microSD (max. 32GB)
CD/DVD
-----
Audio
AudioJack : Built-in Speaker : Microphone
Keyboard
Numeric (+ function keys) : On-screen
Additional Navigation Devices
-----
Color
-----
Swivel Hinge
-----
VGA out
No
TV Out
-----
TV Tuner
-----
Security
-----
Waterproof
IP67
Sand and dust
IP67
Size
156 × 70 × 27mm- 270g
Fanless casing
Yes
Responsible Entity / Distributor
New Portable Devices

Software
MobiPad MPS8W SDK
8.36 MB
09.12.2016
Android
Download
User manual
Instukcja/Manual MPS8W English
3.60 MB
15.09.2017
All
Download
User manual
Jak wymontować Uchwyt na rękę/How to remove Hand Belt MPS8W
1.72 MB
30.11.-0001
All
Download

Compare all versions


 Industrial Data Collector MobiPad MPS8W 2D v.2
					4"(800x480)IPS - Capacitive
Quad-Core 1.2GHz | 1GB RAM | 8GB ROM
3G | Drop up to 1.5m | WiFi | Bluetooth 4.0
NFC | 4000mAh | Android 4.4 | Camera 5Mpx
2D(CMOS) Motorola Symbol SE4500 | IP67

Product from the Archive - production finished

 Industrial Data Collector MobiPad MPS8W 2D v.1
					4"(800x480)IPS - Capacitive
Quad-Core 1.2GHz | 2GB RAM | 16GB ROM
4G | Drop up to 1.5m | WiFi | Bluetooth 4.0
NFC | 4000mAh | Android 5.1 | Camera 8Mpx
2D(CMOS) Honeywell N6603 | IP67

Product from the Archive - production finished

 Industrial Data Collector MobiPad MPS8W 1D Motorola v.4
					4"(800x480)IPS - Capacitive
Quad-Core 1.2GHz | 1GB RAM | 8GB ROM
3G | Drop up to 1.5m | WiFi | Bluetooth 4.0
NFC | 4000mAh | Android 4.4 | Camera 5Mpx
1D(Laser) Motorola Symbol SE965 | IP67

Product from the Archive - production finished

 Industrial Data Collector MobiPad MPS8W 1D Motorola v.3
					4"(800x480)IPS - Capacitive
Quad-Core 1.2GHz | 2GB RAM | 16GB ROM
4G | Drop up to 1.5m | WiFi | Bluetooth 4.0
NFC | 4000mAh | Android 5.1 | Camera 8Mpx
1D(Laser) Motorola Symbol SE965 | IP67

Product from the Archive - production finished

 Industrial Data Collector MobiPad MPS8W 2D 2Y v.1
					4"(800x480)IPS | 2 years warranty
Quad-Core 1.2GHz | 2GB RAM | 16GB ROM
4G | Drop up to 1.5m | WiFi | Bluetooth 4.0
NFC | 4000mAh | Android 5.1 | Camera 8Mpx
2D(CMOS) Honeywell N6603 | IP67

Product from the Archive - production finished

 Industrial Data Collector MobiPad MPS8W 2D 3Y v.1
					4"(800x480)IPS | 3 years warranty
Quad-Core 1.2GHz | 2GB RAM | 16GB ROM
4G | Drop up to 1.5m | WiFi | Bluetooth 4.0
NFC | 4000mAh | Android 5.1 | Camera 8Mpx
2D(CMOS) Honeywell N6603 | IP67

Product from the Archive - production finished
