Product Update Date: 2019-09-12

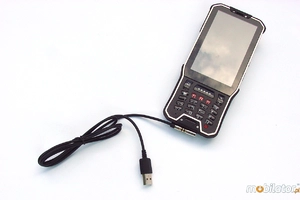

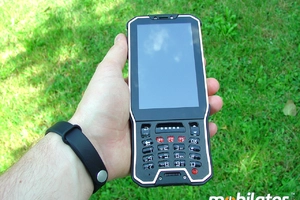

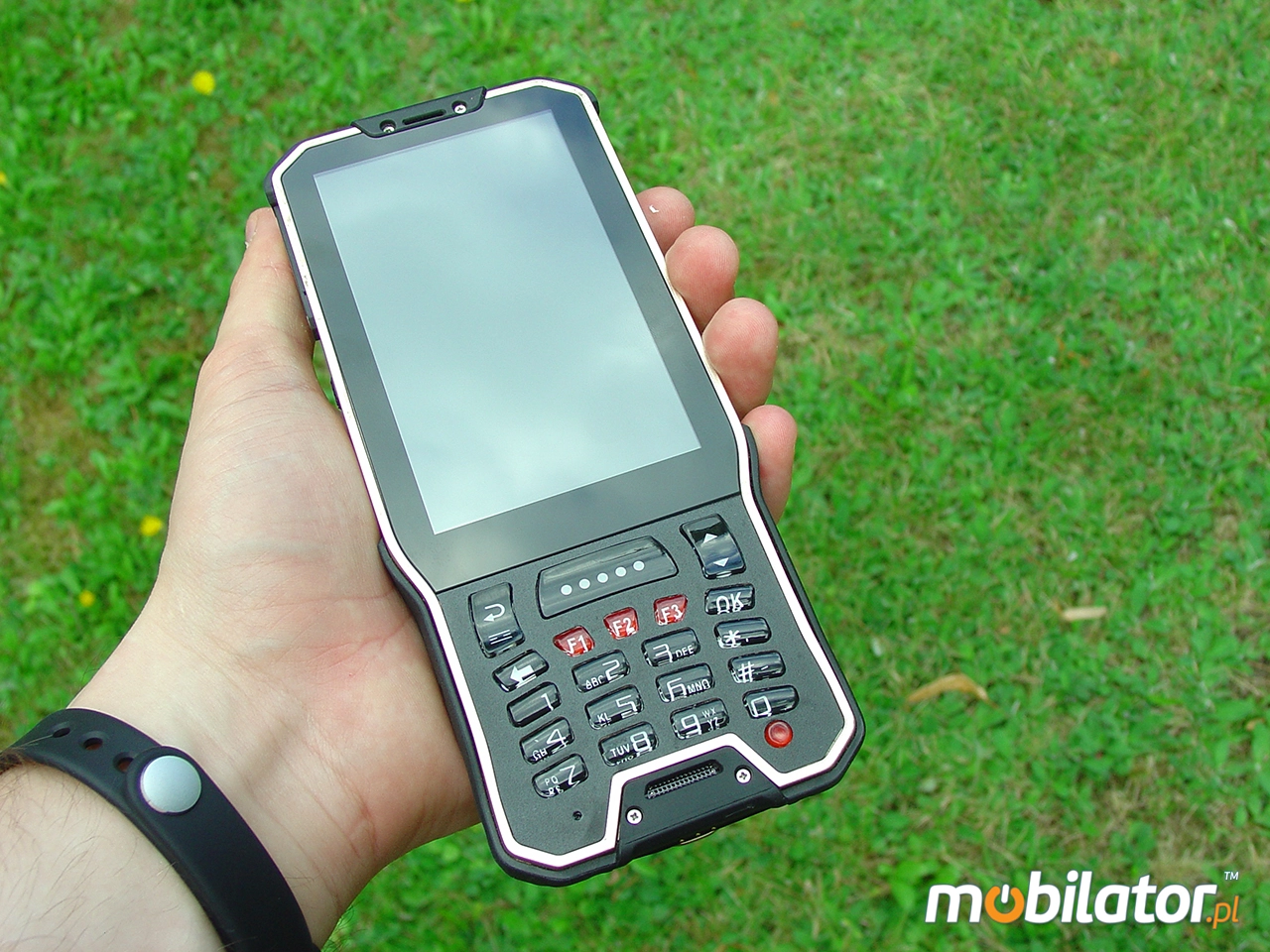

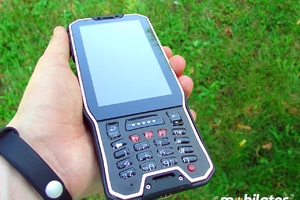

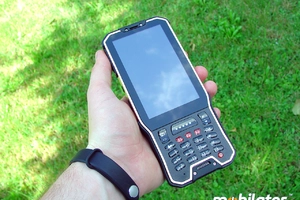

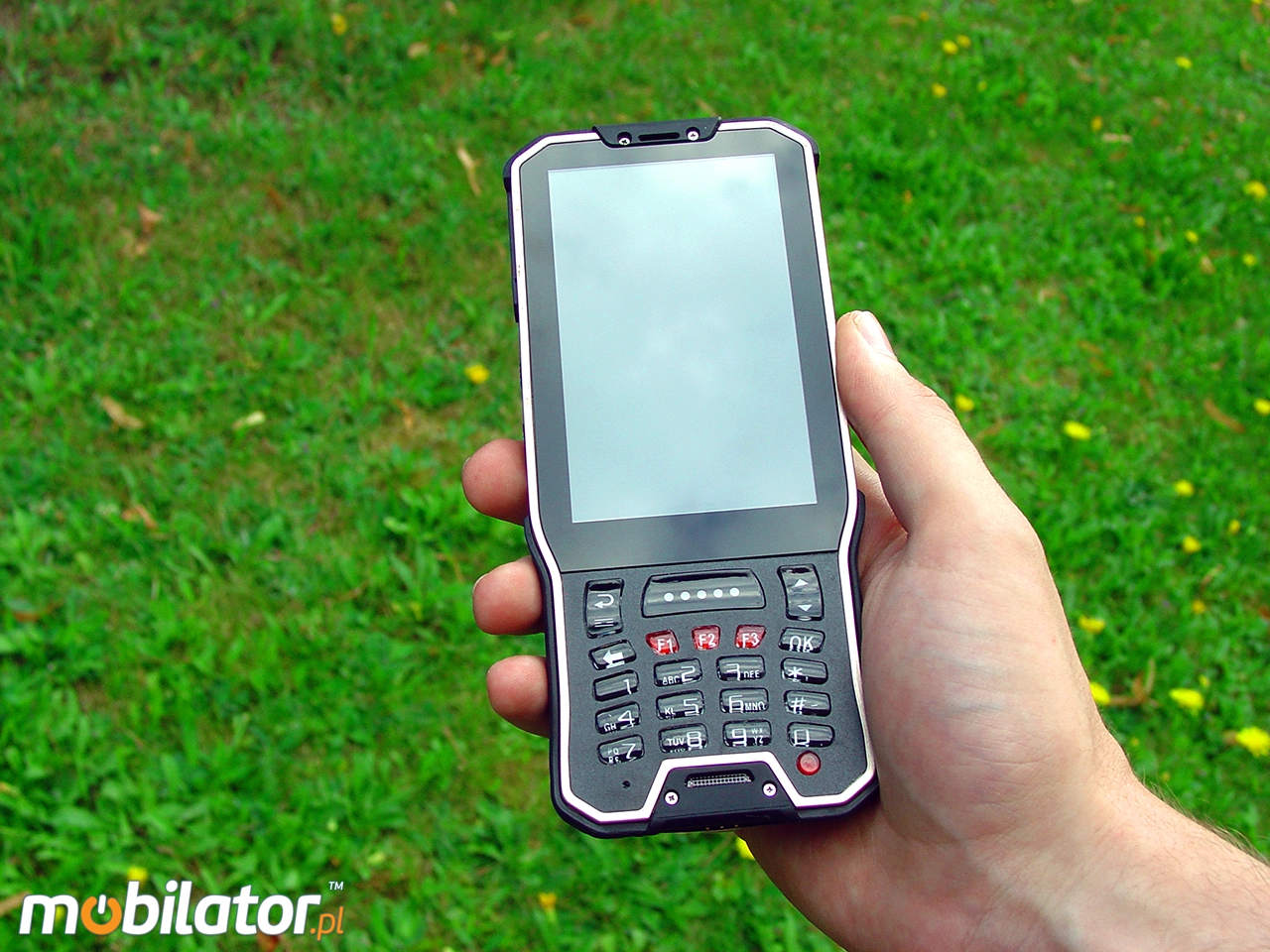

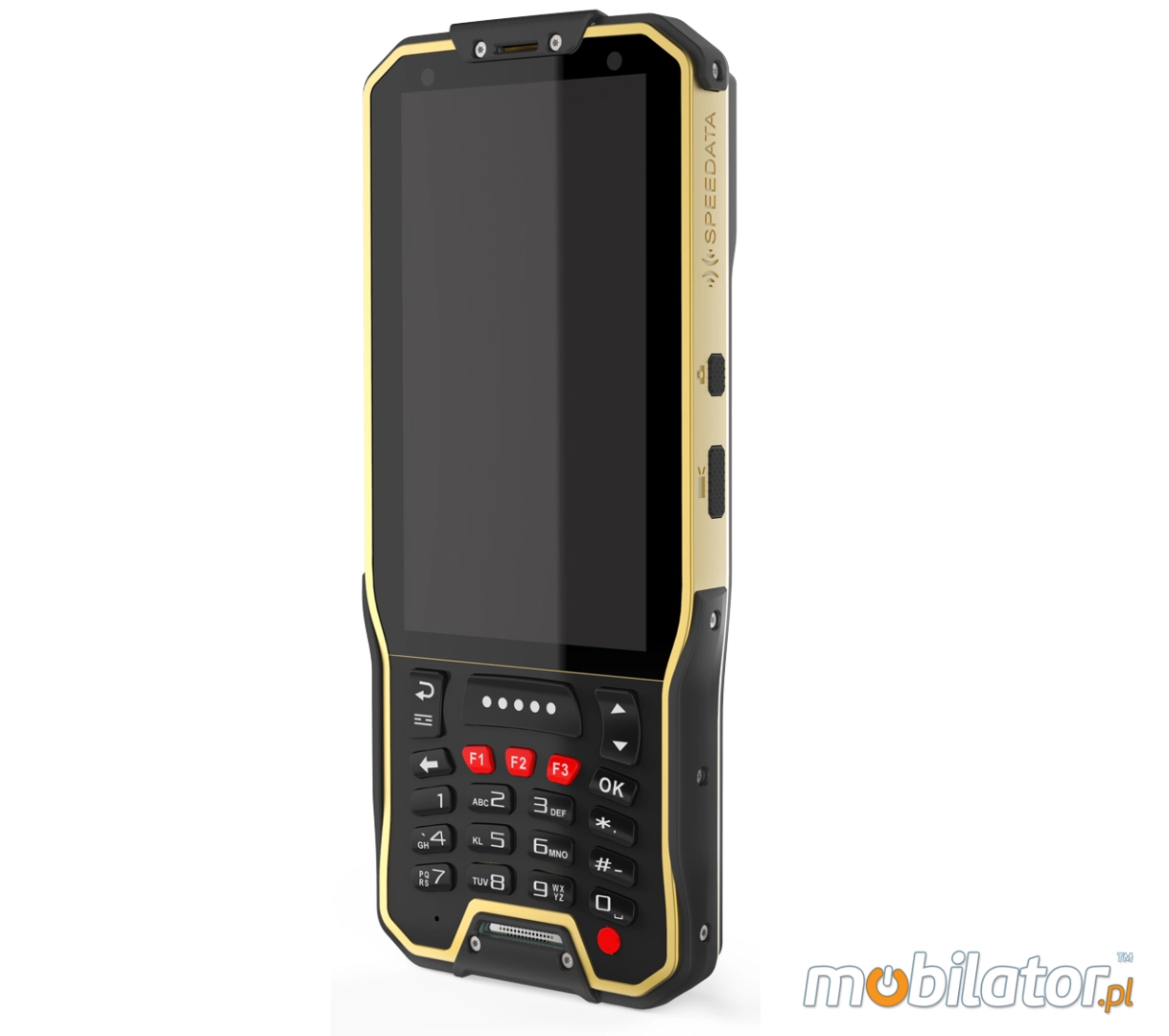

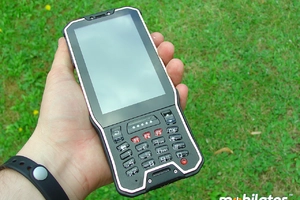

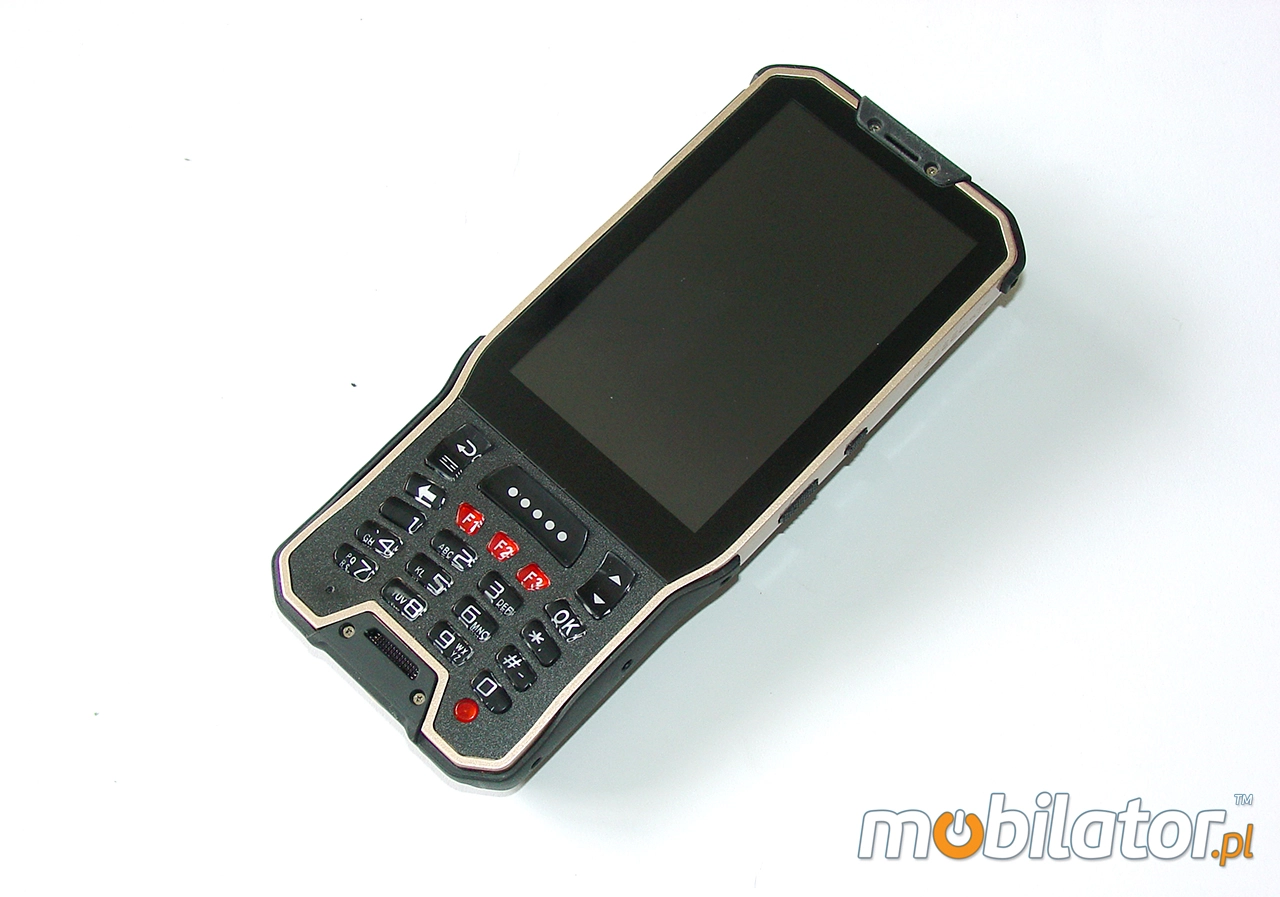

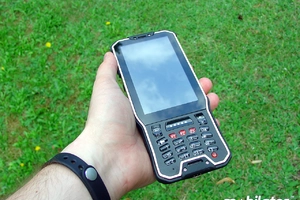

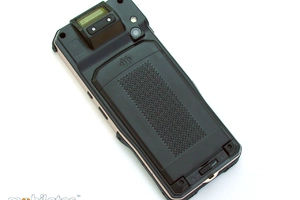

Industrial data collector MobiPad MT40 v.1

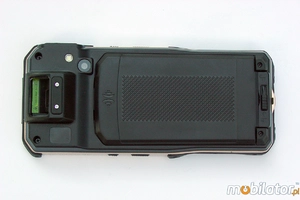

Name: Industrial data collector MobiPad MT40 v.1
Brand: Mobilator
Price: 2102.35 PLN
Availability: InStock

Update Date: 2019.09.12

Guarantee 1 year (opt. 2)

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

kolektor danych mobipad mt40

Description
Resistance
The collection and processing of data
Modules and Wireless Networks
Minimalism

MT40 adopts the combination of platformization and modular function design concept. It not only has intelligent operation platform, but also has modular functions with flexible configuration. So it can satisfy the customized requirements from different customer.

Description

kolektor danych mobipad mt40

Processor	Mediatek MT6582 ARM® Cortex®-A7 (Quad Core 4x - 1.3GHz)
Graphics	Mali-400 MP
Display	4" (480x800) LCD
Type of display	Capacitive
RAM	1GB DDR3
ROM	8GB

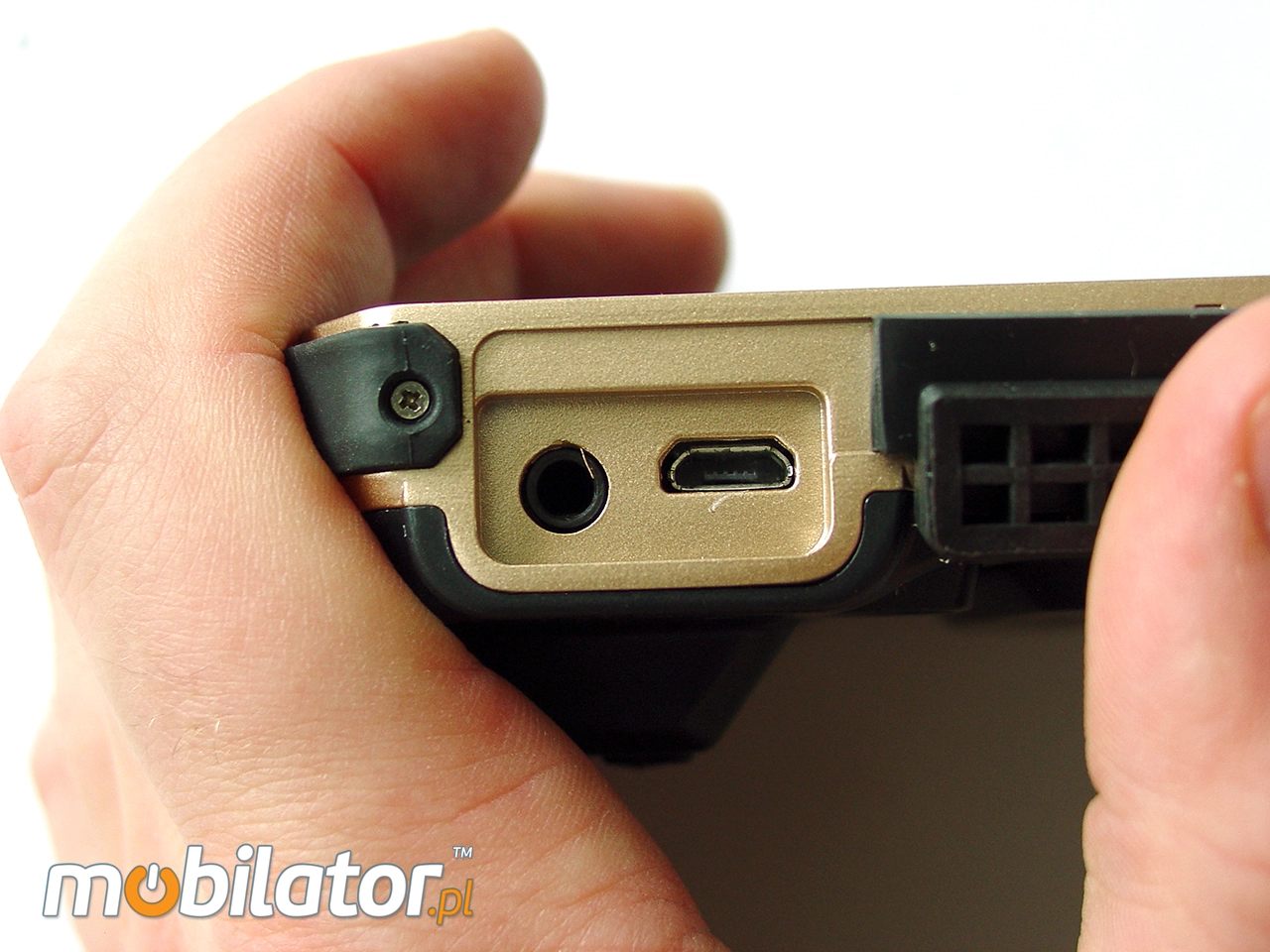

Connectors (factory)	MicroUSB (OTG) \| MicroSD \| Audio Jack \| Charging/Docking Port \| Dual SIM

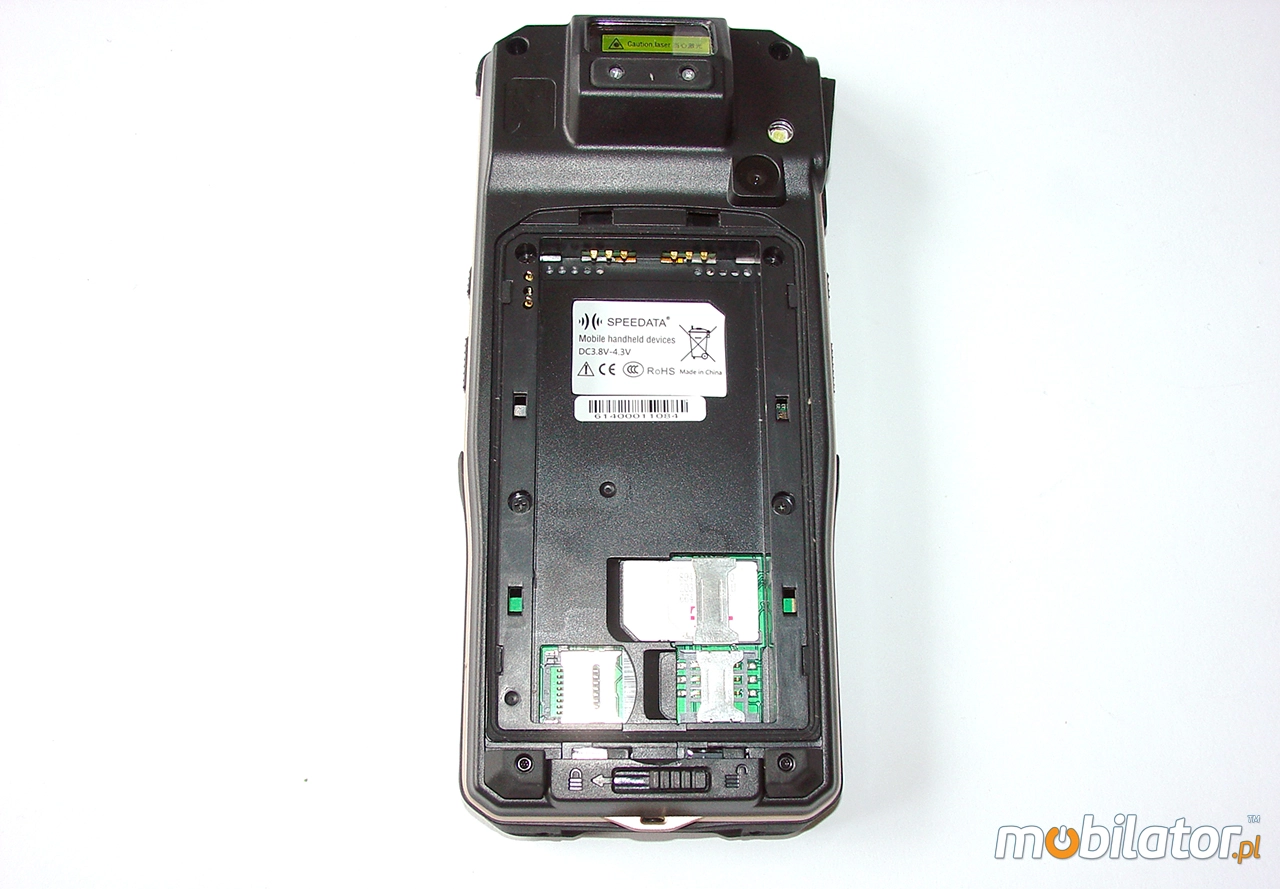

	1x - SIM (3G)
	1x - micro SIM (2G)
GPS (factory)	GPS + A-GPS
Audio	Built-in Microphone \| Speaker \| Receiver \| Audio Jack
Camera (REAR)	8Mpx (Autofocus + Flash)

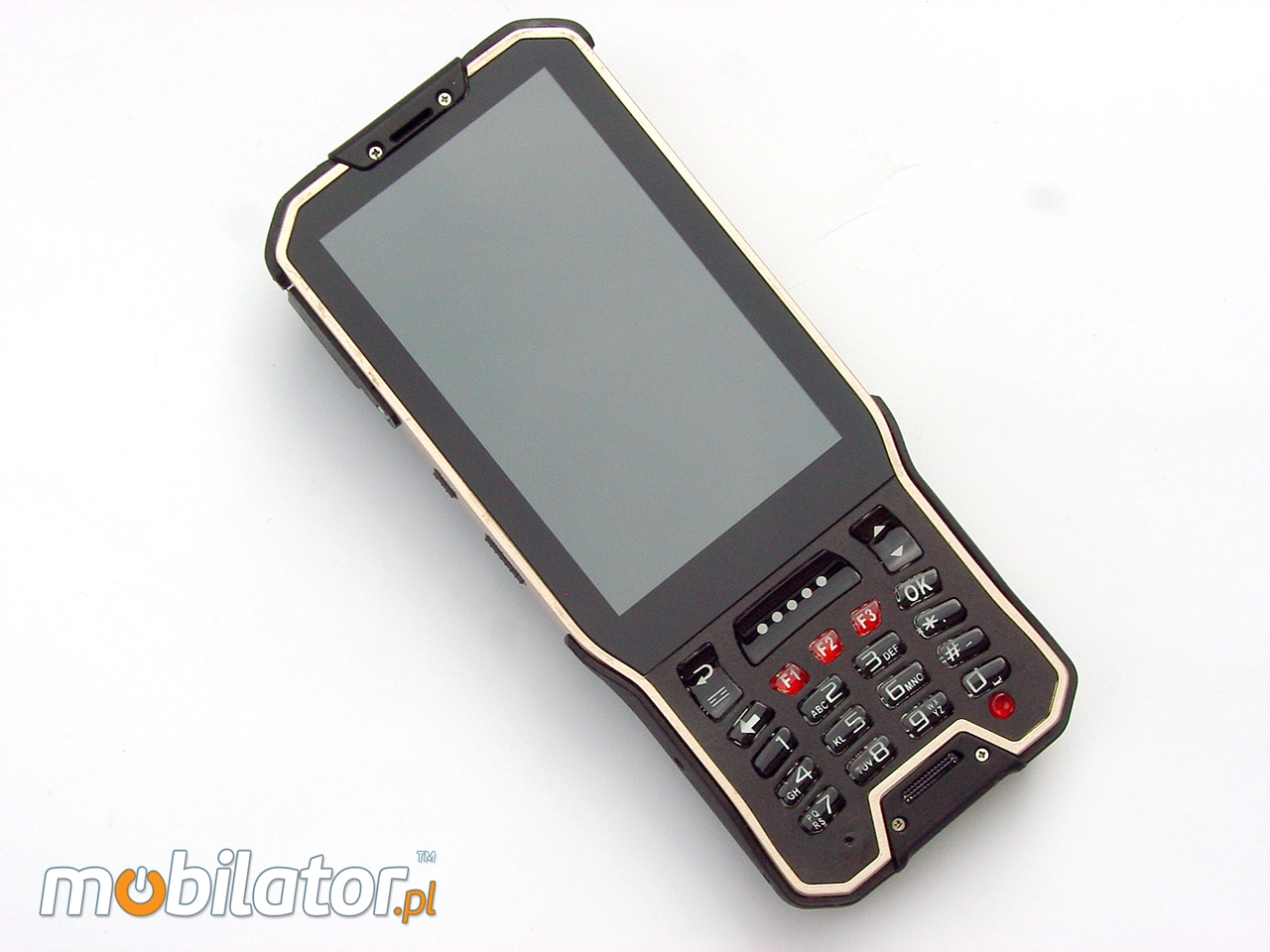

Klawiatura	on-Screen + Numeric
	Home \| Menu \| Return \| ON/OFF
	3x - Additional function keys (F1-F3)
	2x - Barcode Trigger

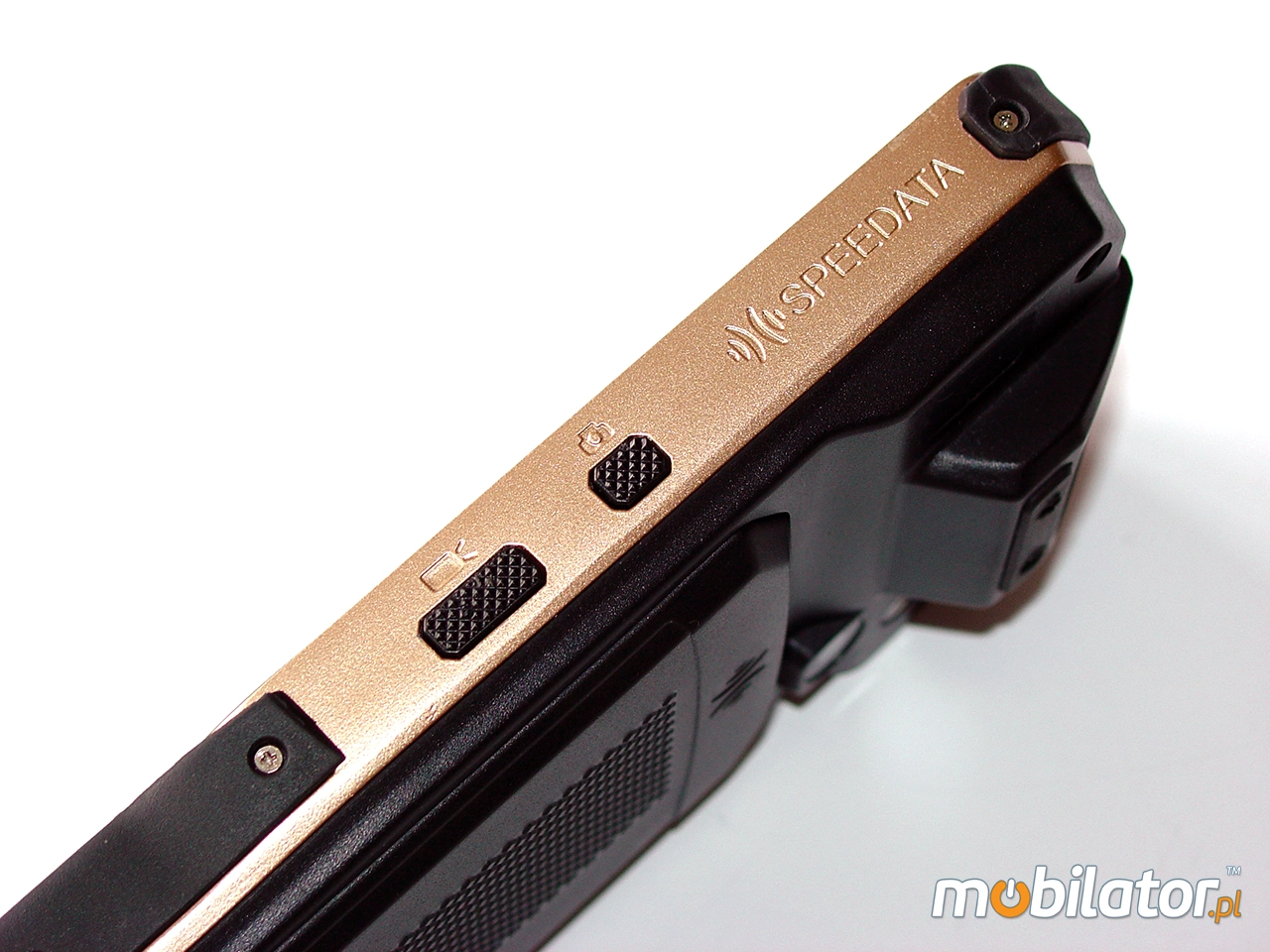

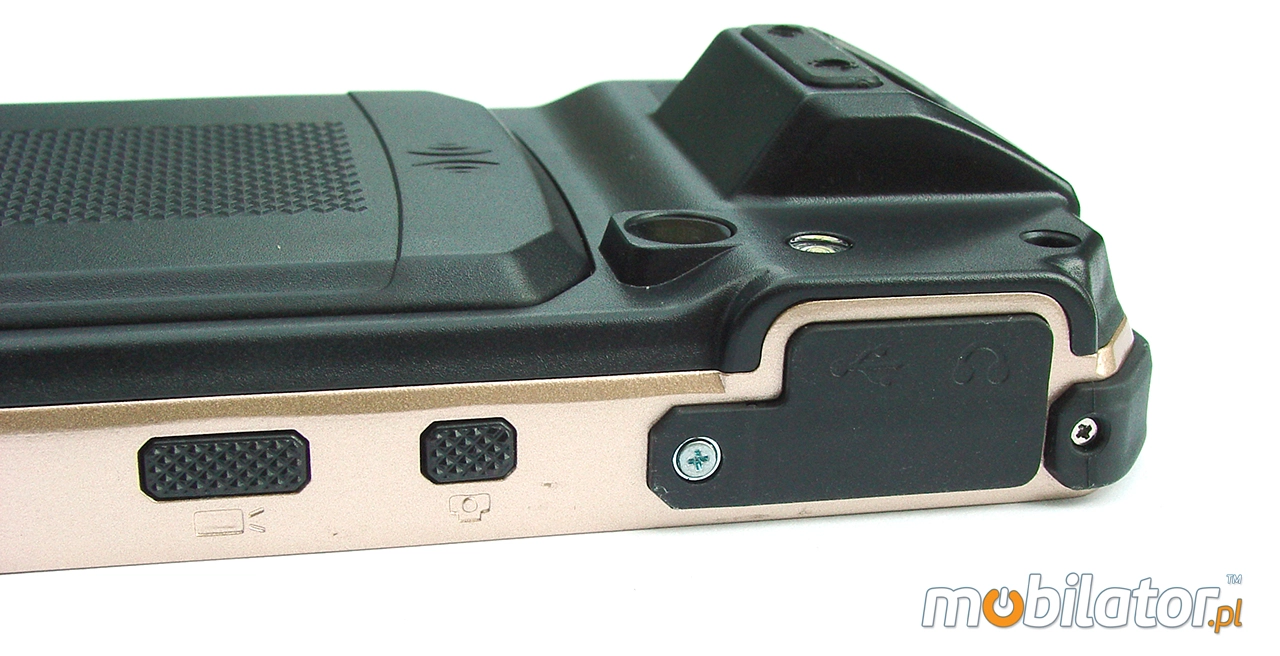

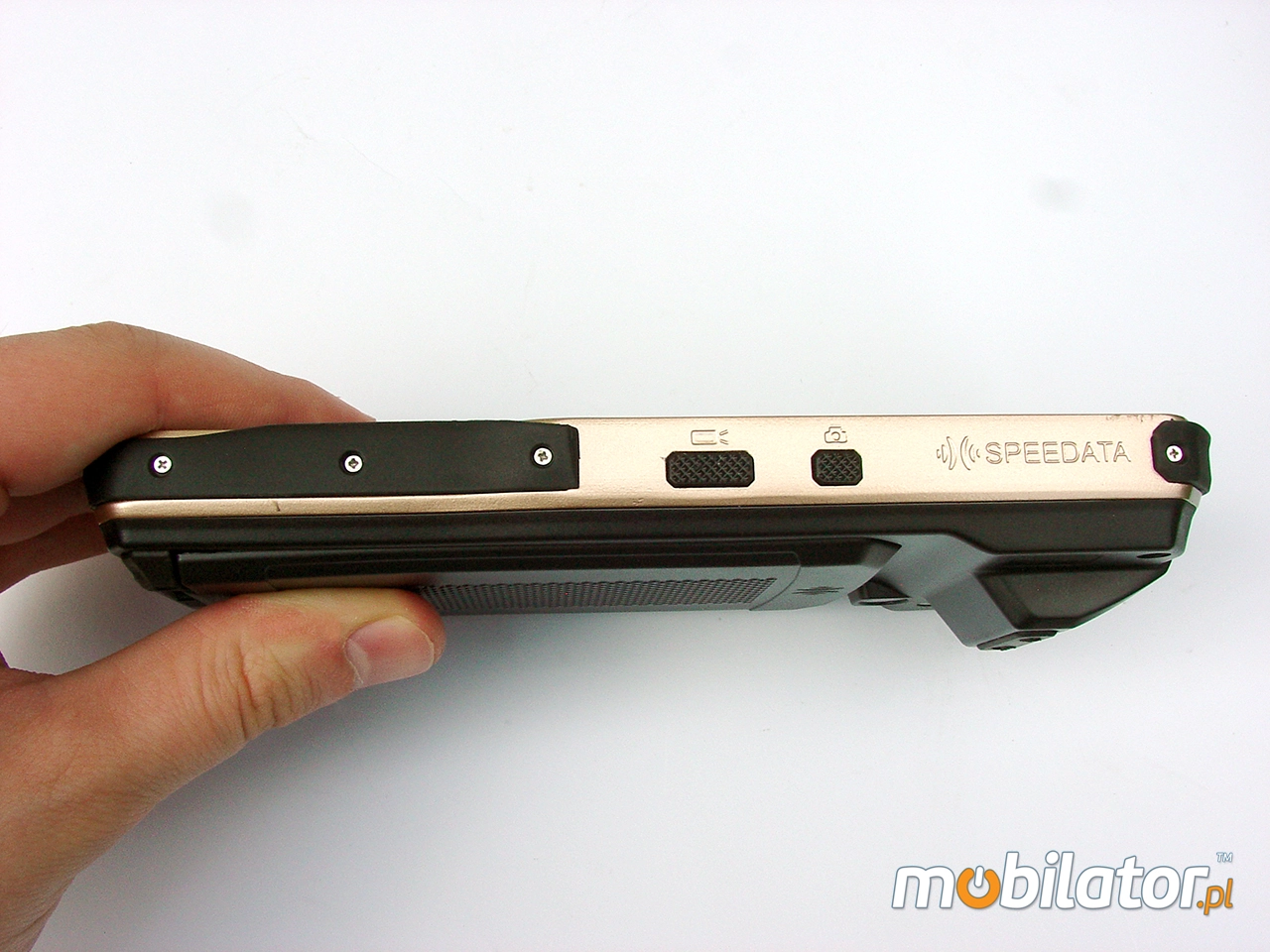

	2x- Camera Trigger (make photo/video)
Battery	Li-Ion 3.8V 4000mAh \| 15.2Wh
	Standby time - 500h
	Operating time (depending of usage) - 7h
Environment	Android 4.4.2
Modules (factory)	802.11 b/g/n \| Bluetooth v4.0 (LE) \| 2G/3G \| GPS
Modules (optional)	(1D) Motorola SE955 \| (1D/2D) Motorola SE4500 \| NFC
Dimensions&Weight	1667416mm \| 350g
Resistance	IP65
Sensors (factory)	Accelerometer \| Proximity Sensor \| Light Sensor \| Magnetic Field Sensor
	Orientation Sensor
Warranty	12 months

Refer to the "Technical Data" that possibility is a version of the device. To gain additional information about the product click on the "Request for information" or go to the contact form.

Version for you

Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

	v.1	v.2	v.3	v.4
1D (LASER)		-		-
1D/2D (BI-DIRECTIONAL)	-		-
NFC	-	-

go top… menu…

Resistance

Operating	-20°C -- +50°C
Storage	-40°C -- +60°C
Humidity	5% - 95% non-condensing
Dust	IP6x (dust)
Water	IPx5 (water)
Drop	1.5m

Waterproof and Dustproof

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

Complete protectionm against contact, Protection from infiltration of dust.

Protection from water projected from a nozzle.

go top… menu…

The collection and processing of data

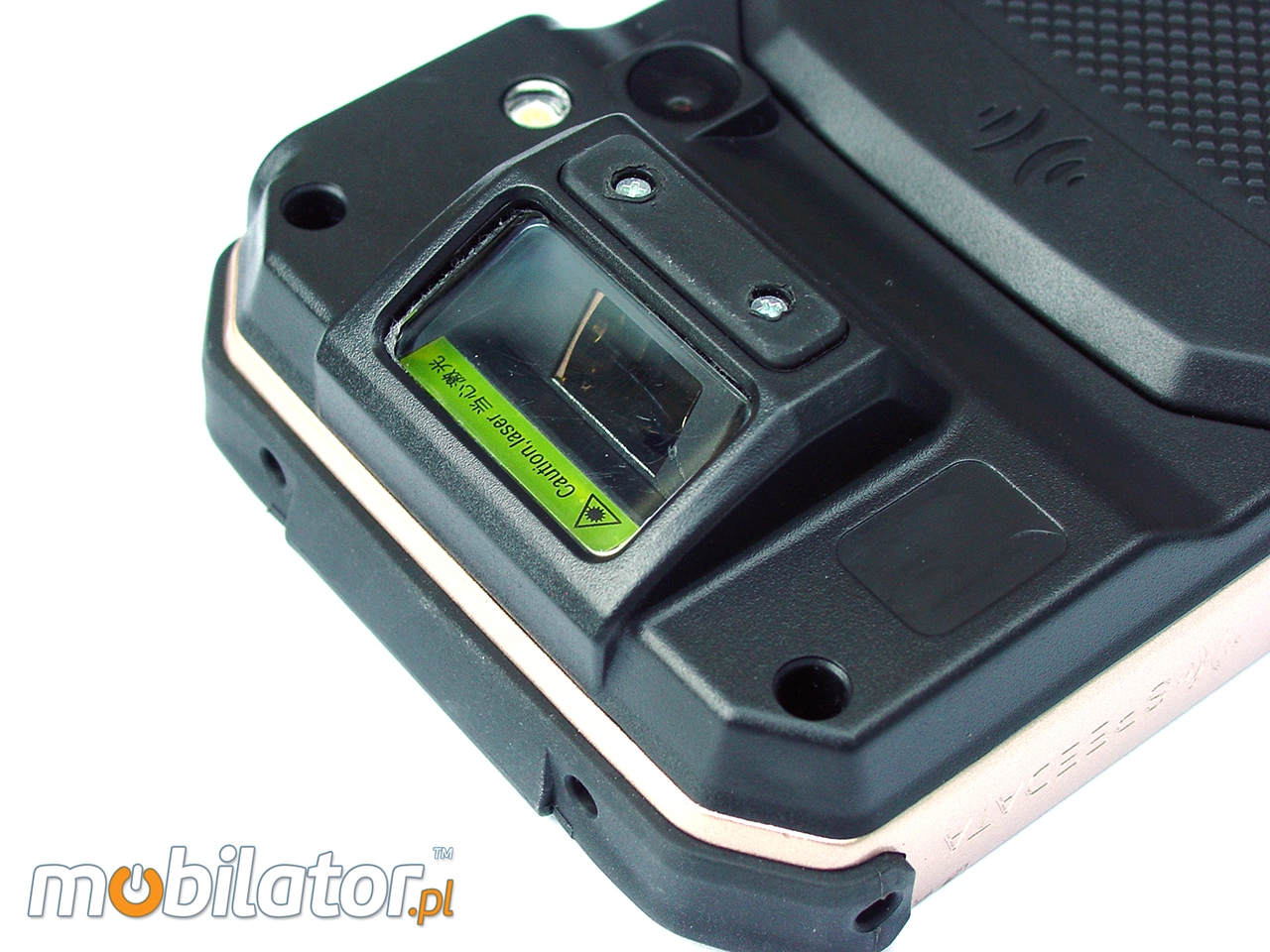

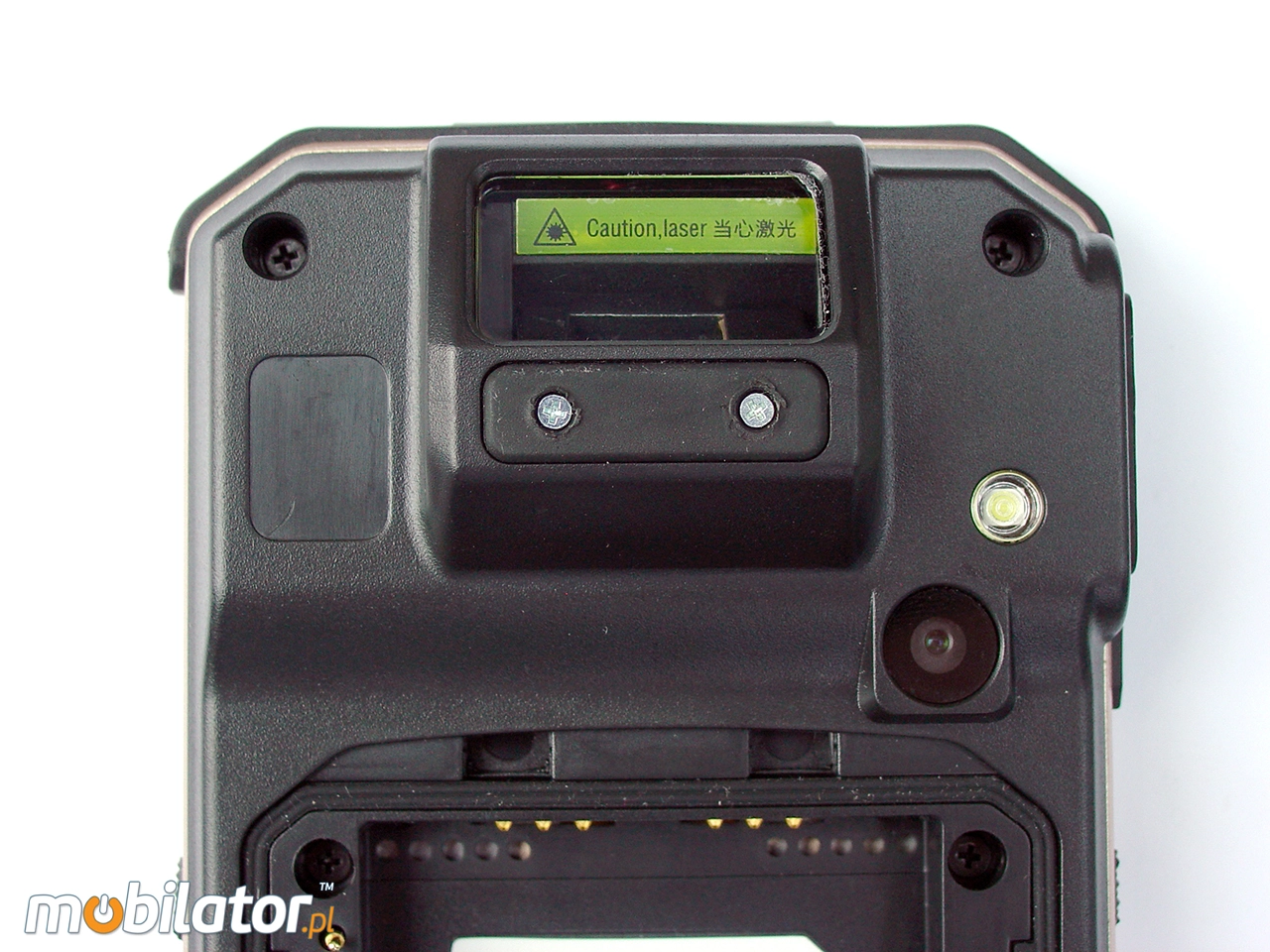

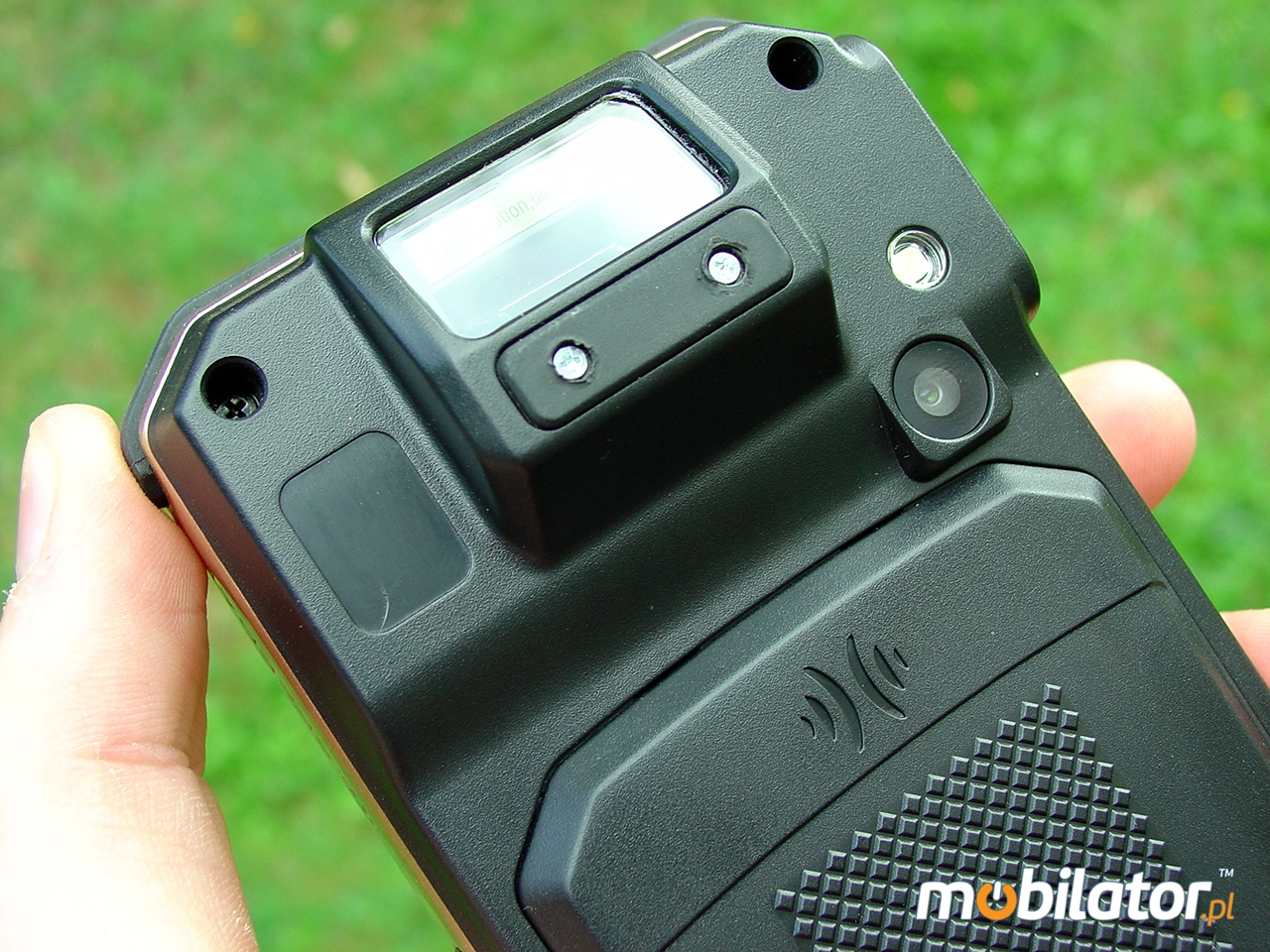

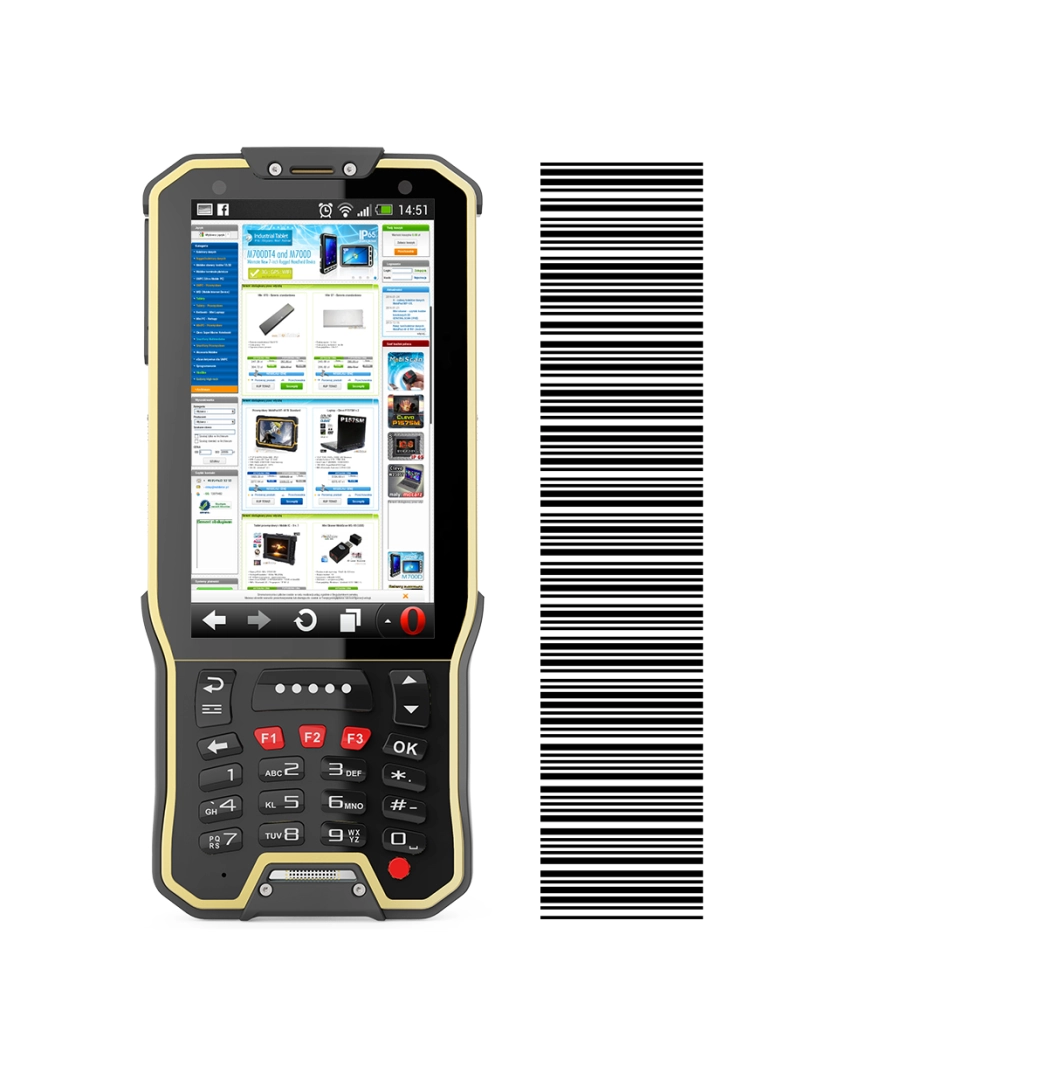

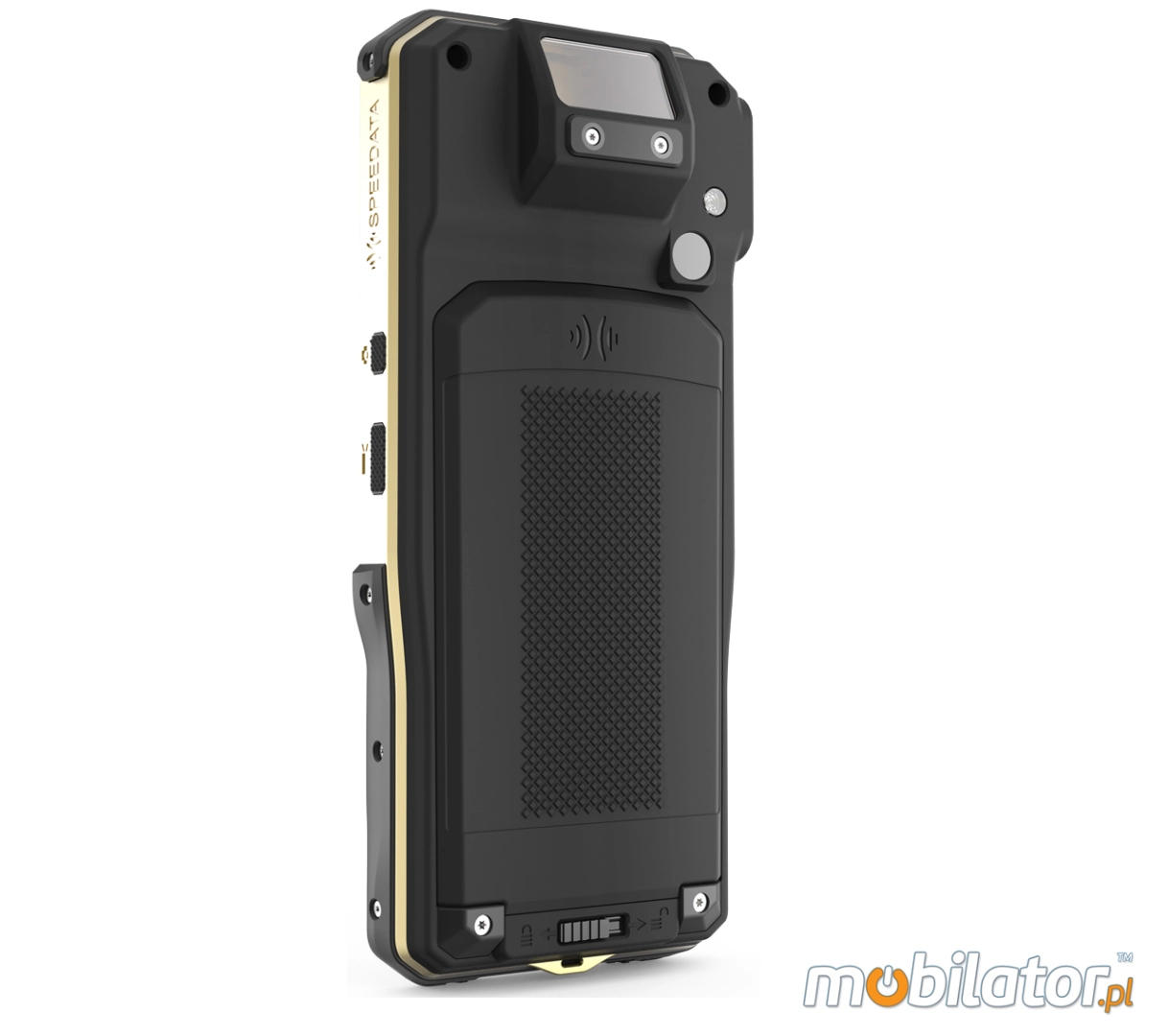

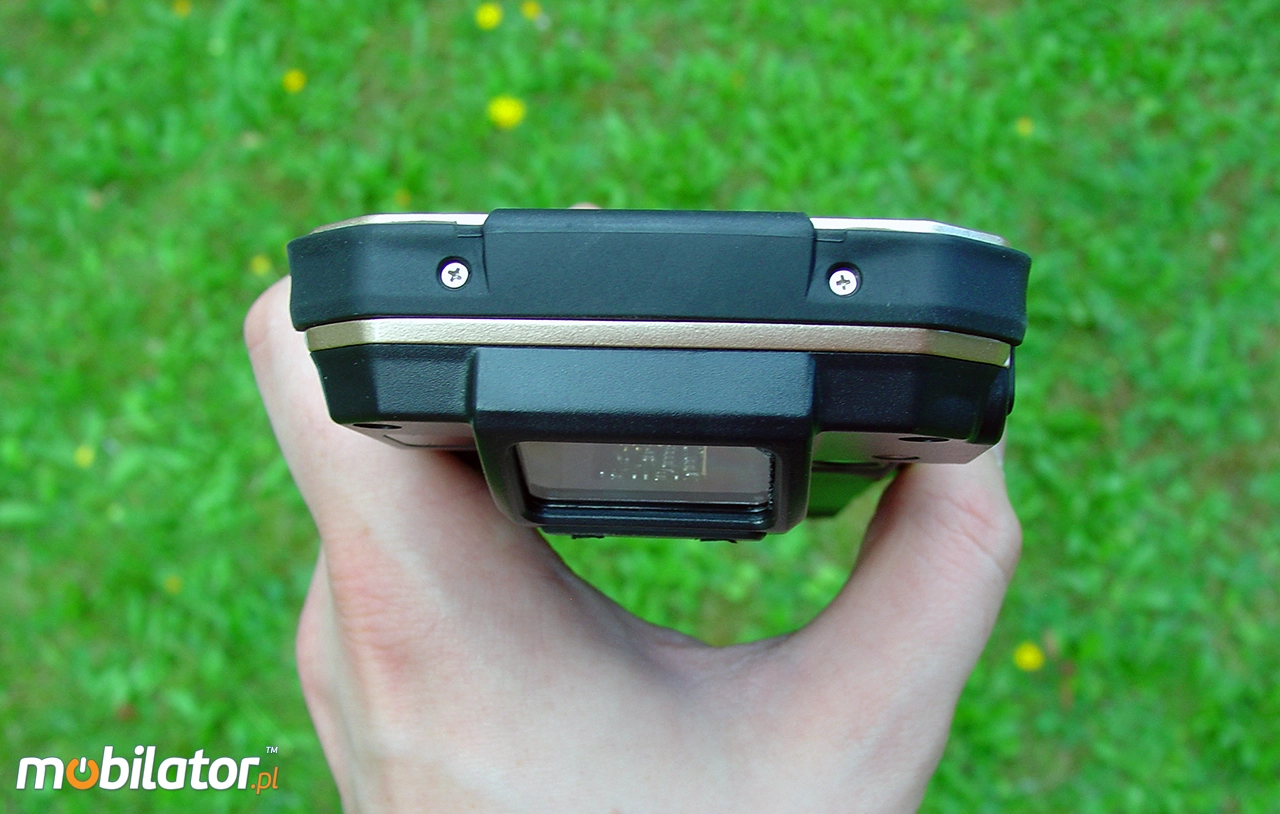

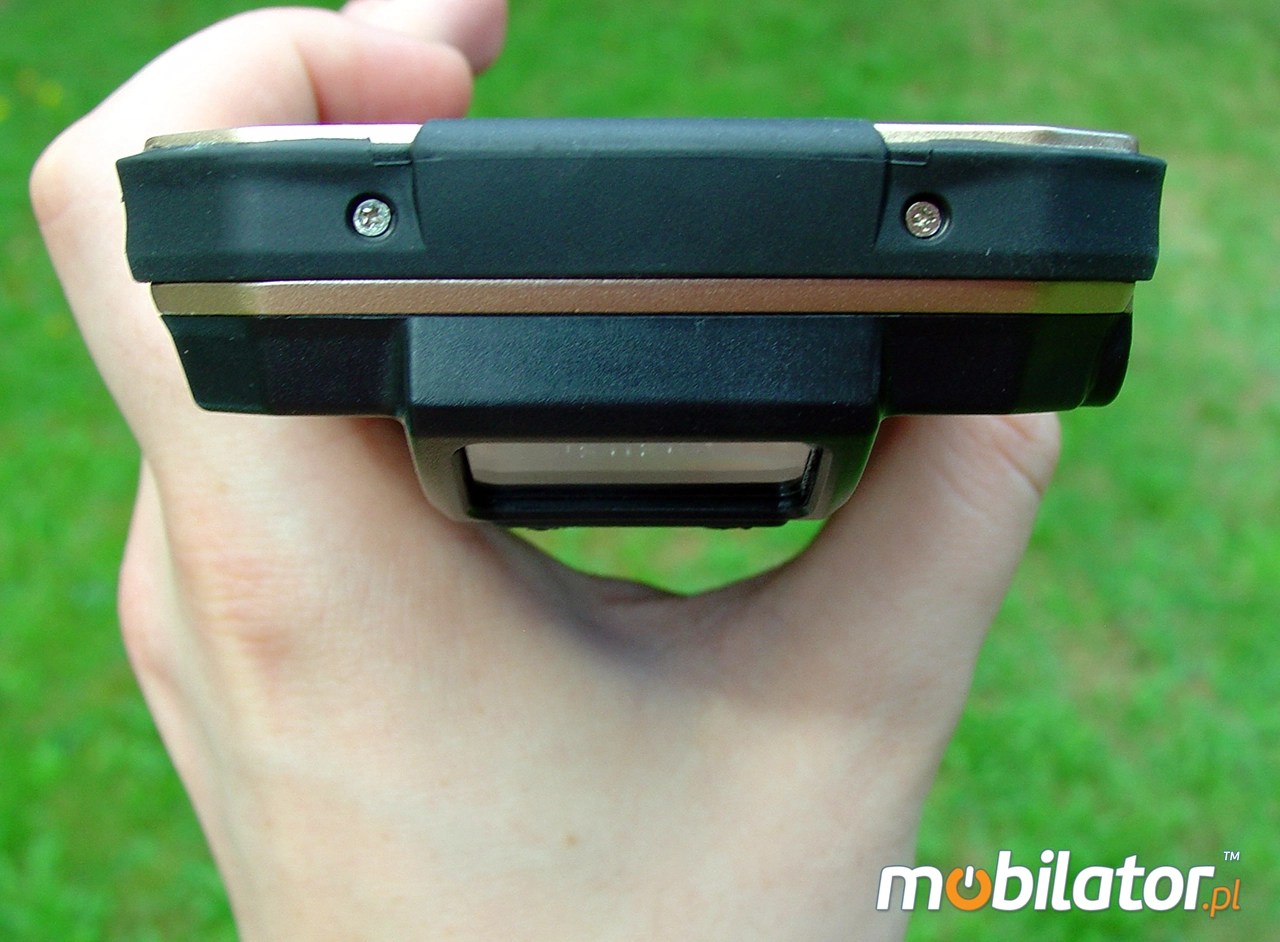

Barcode Scanner

mobipad mt40 se4500 motorola

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

motorola android skaner mobipad mt40

1D	1D / 2D
MOTOROLA™ SE955 (LASER)	MOTOROLA™ SE4500 (BI-DIRECTIONAL)

mobipad mt40 kolektor danych mobilator

NFC

Near field communication (NFC) is a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm (3.9 in) or less.

kolektor danych android system mobipad mt40 mtk

Type	NFC
Frequency	13.56 MHz
Standard	ISO/IEC 15693
	ISO/IEC 14443A/B

go top… menu…

Modules and Wireless Networks

data collector mobipad mt40 dualsim android 4.4.2

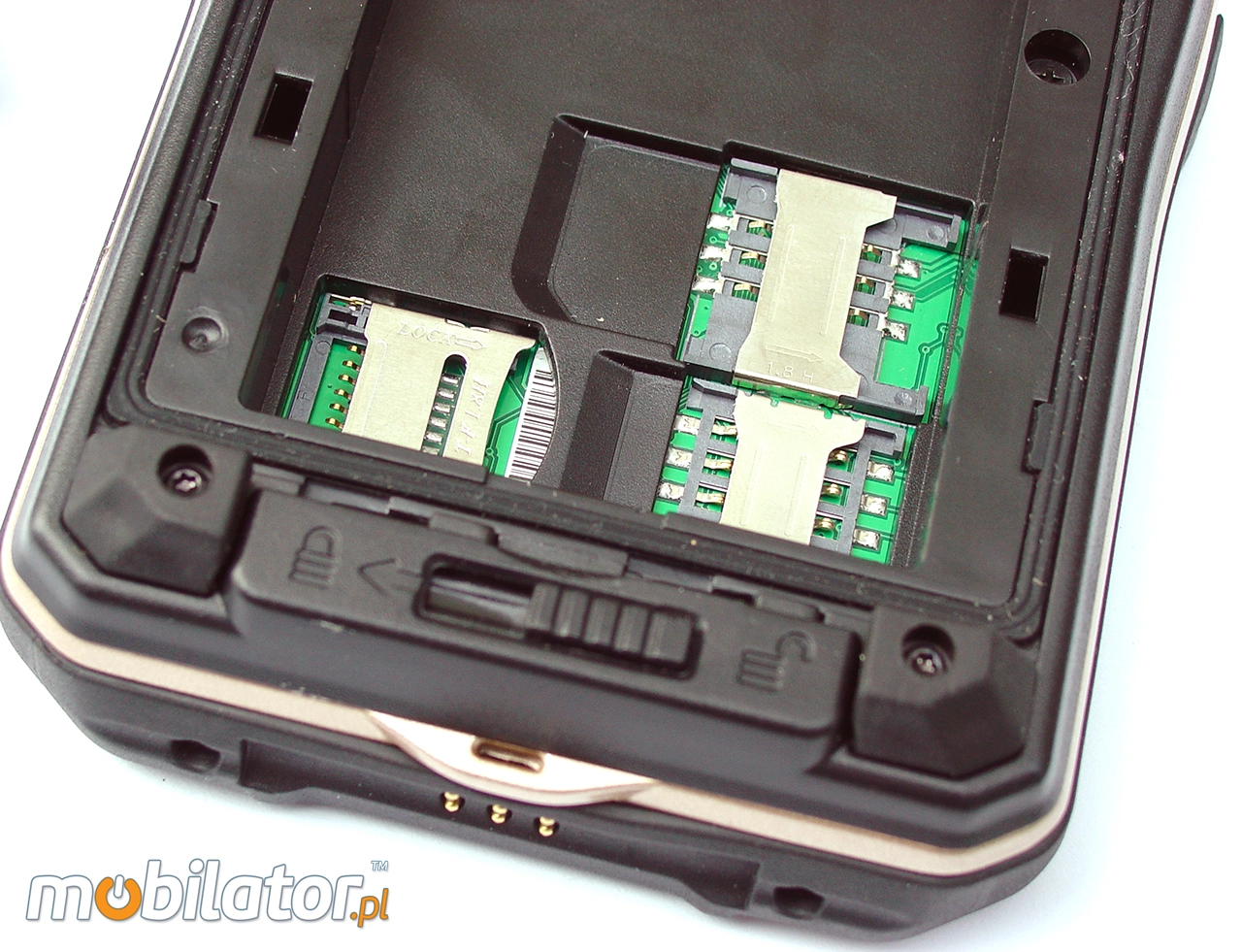

With HSDPA module, you need only insert a SIM card into a special slot and can immediately connect to the Internet. Integrated software allows you to automatically recognize and customize mobile networks. Also used in internal MT40 WCDMA module adapts automatically to transfer and network coverage.

WIFI	802.11 a/b/g/n
GPS (Standard)	GPS/Beidou + A-GPS
Bluetooth	Bluetooth v4.0 (LE)
2G/3G	GSM/GPRS/EDGE: 850/900/1800/1900 Mhz (EDGE Class 12)
	UMTS/HSPA: 850/900/1900/2100MHz (21Mbps / 5.76Mbps)
	The ability to make voice calls

The latest WiFi wireless module operating in 802.11n provides a very fast and secure communication with the AP tablet such as a router, providing a fast and convenient web browsing, smooth playback of HD video.

go top… menu…

Minimalism

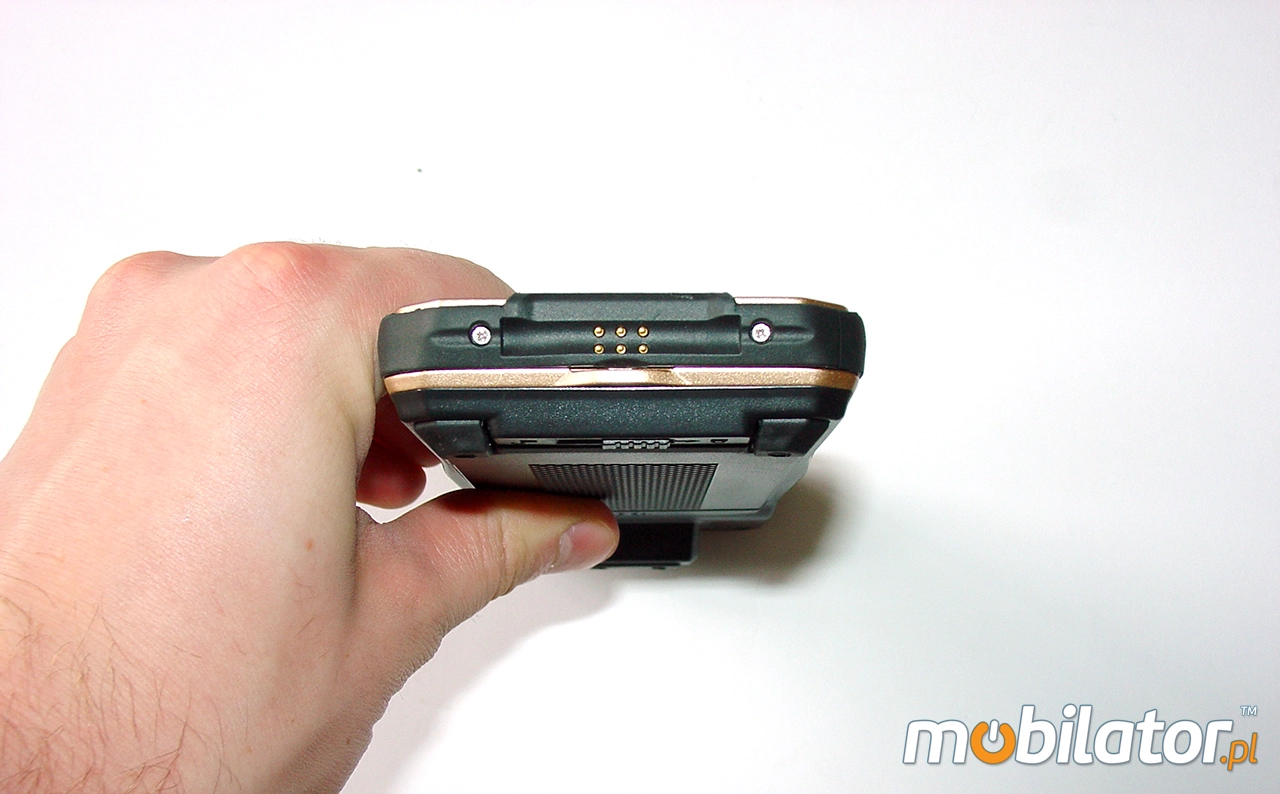

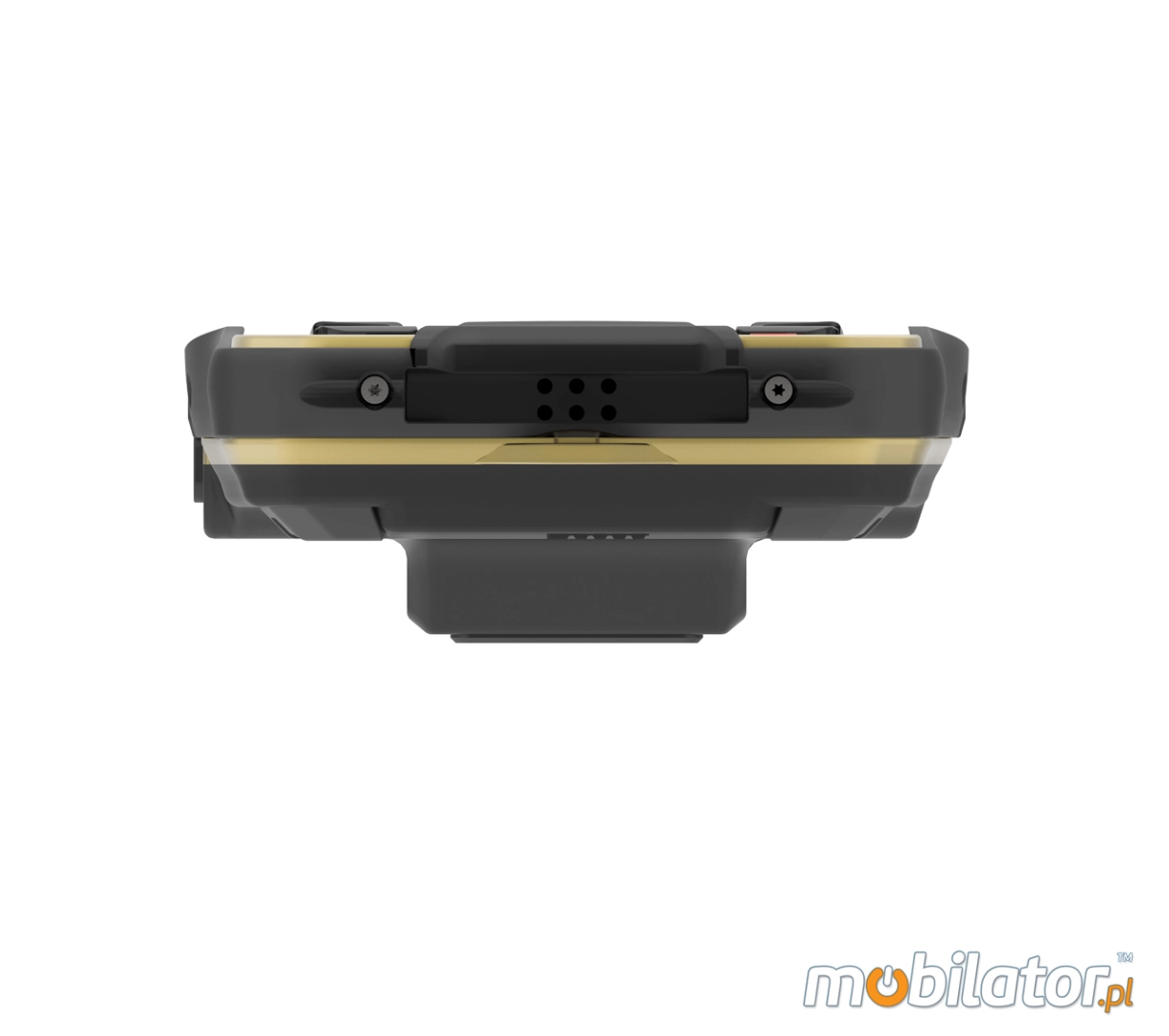

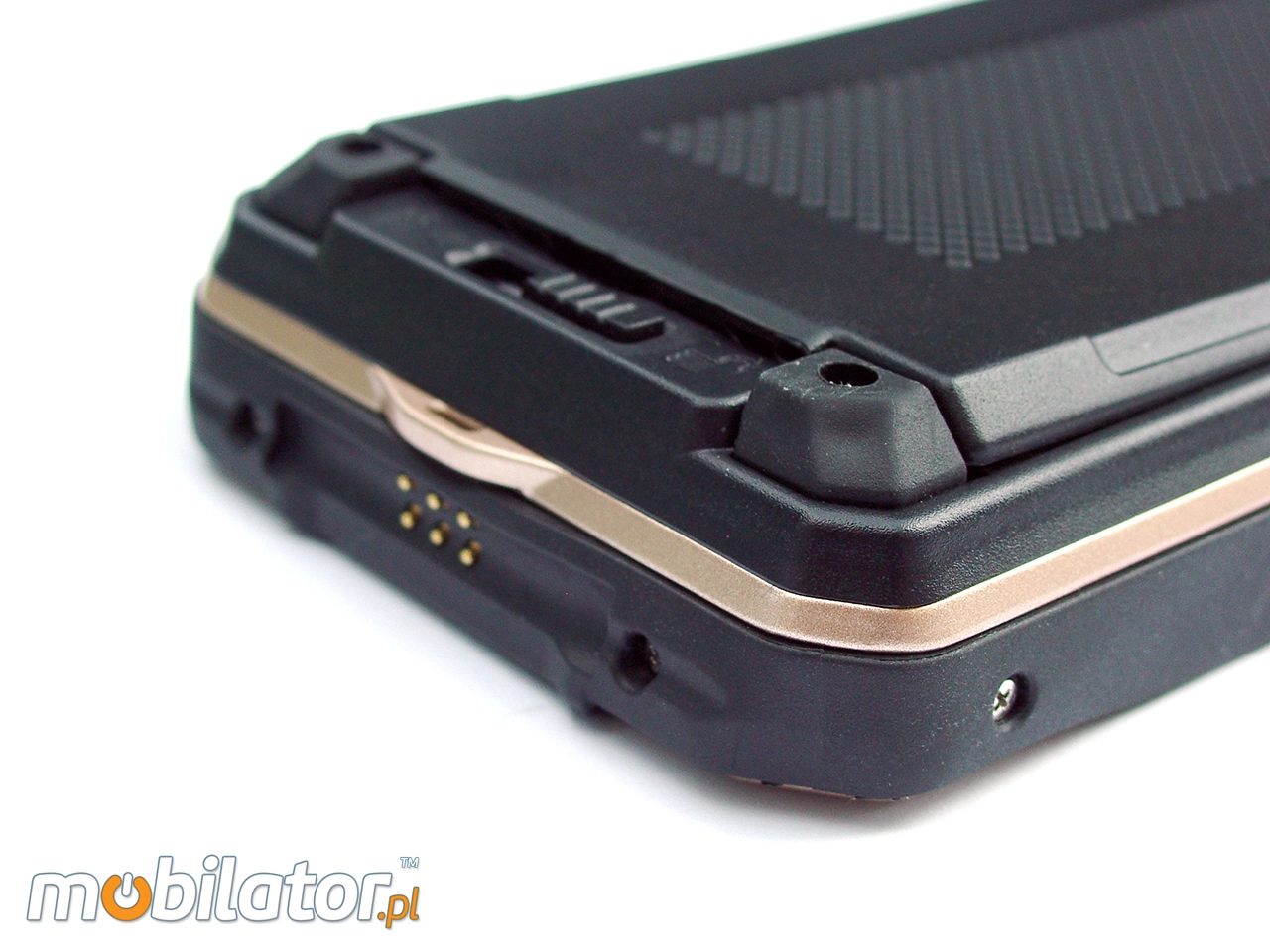

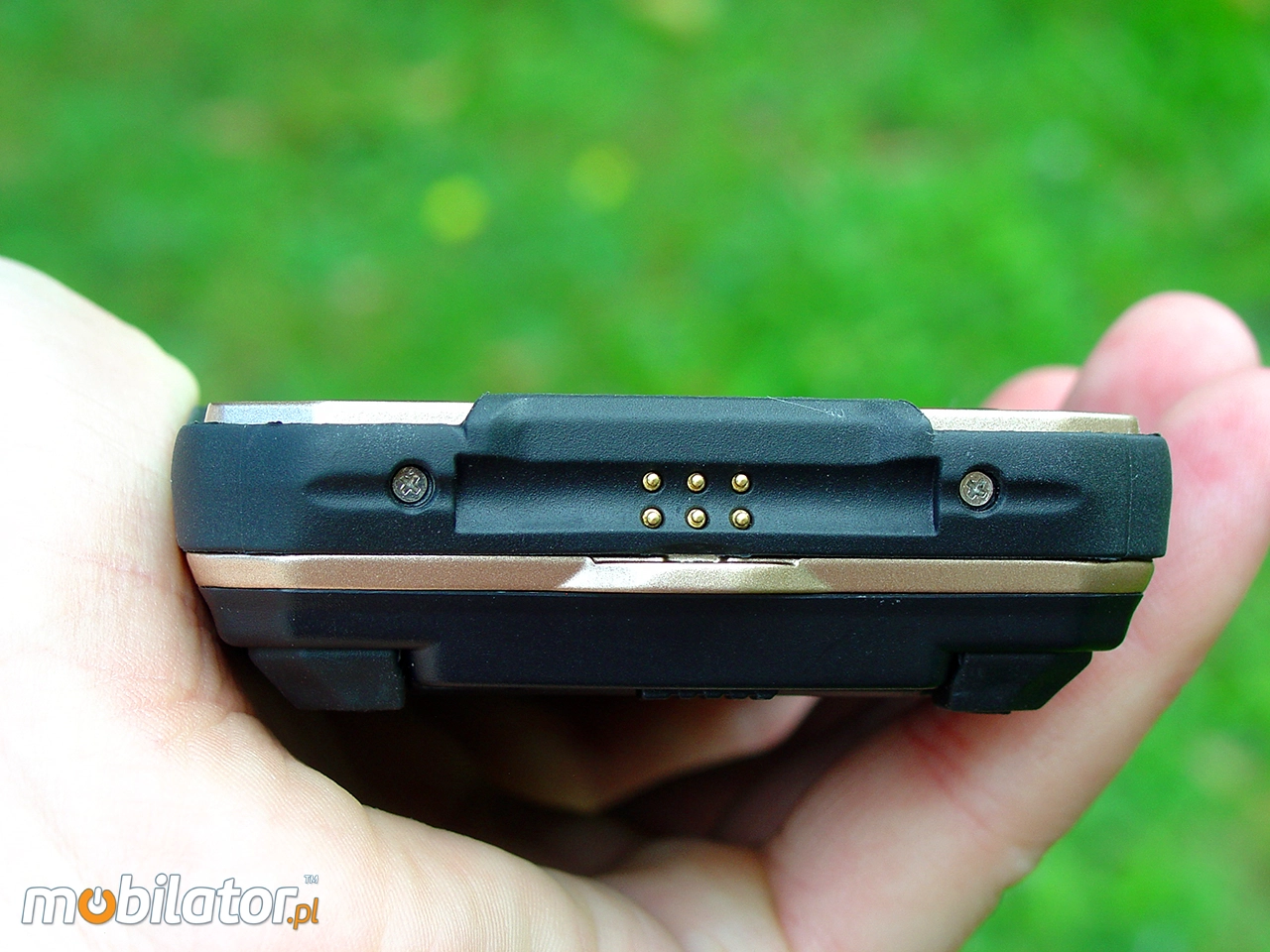

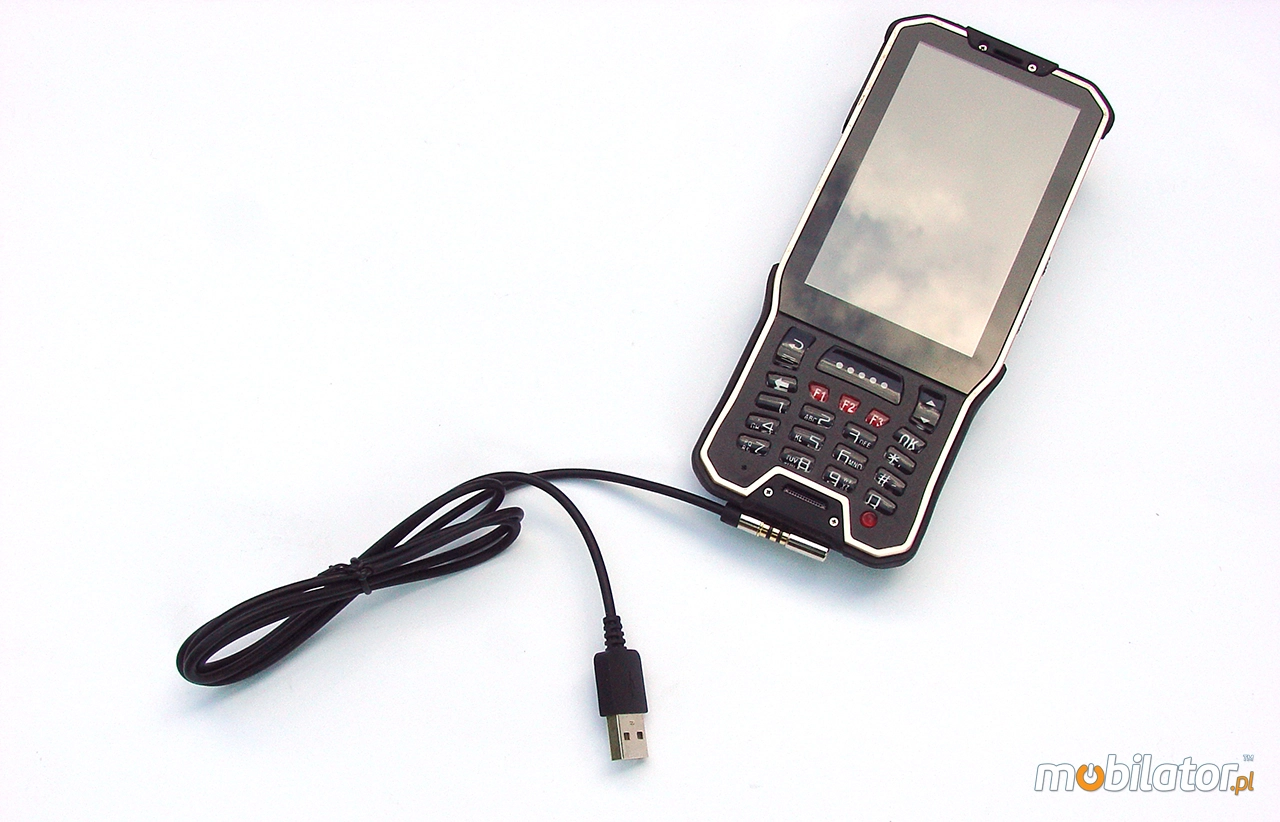

Charging

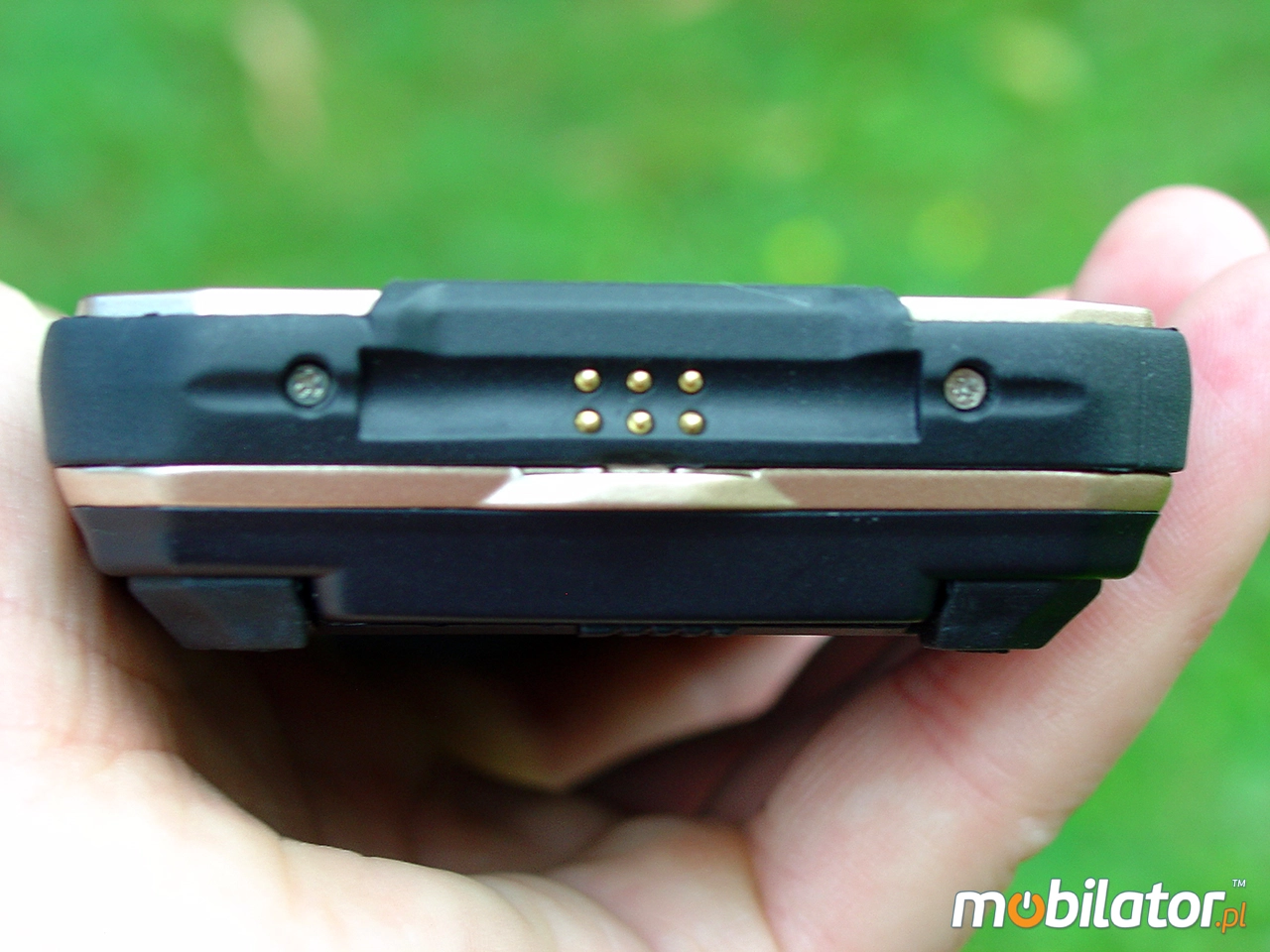

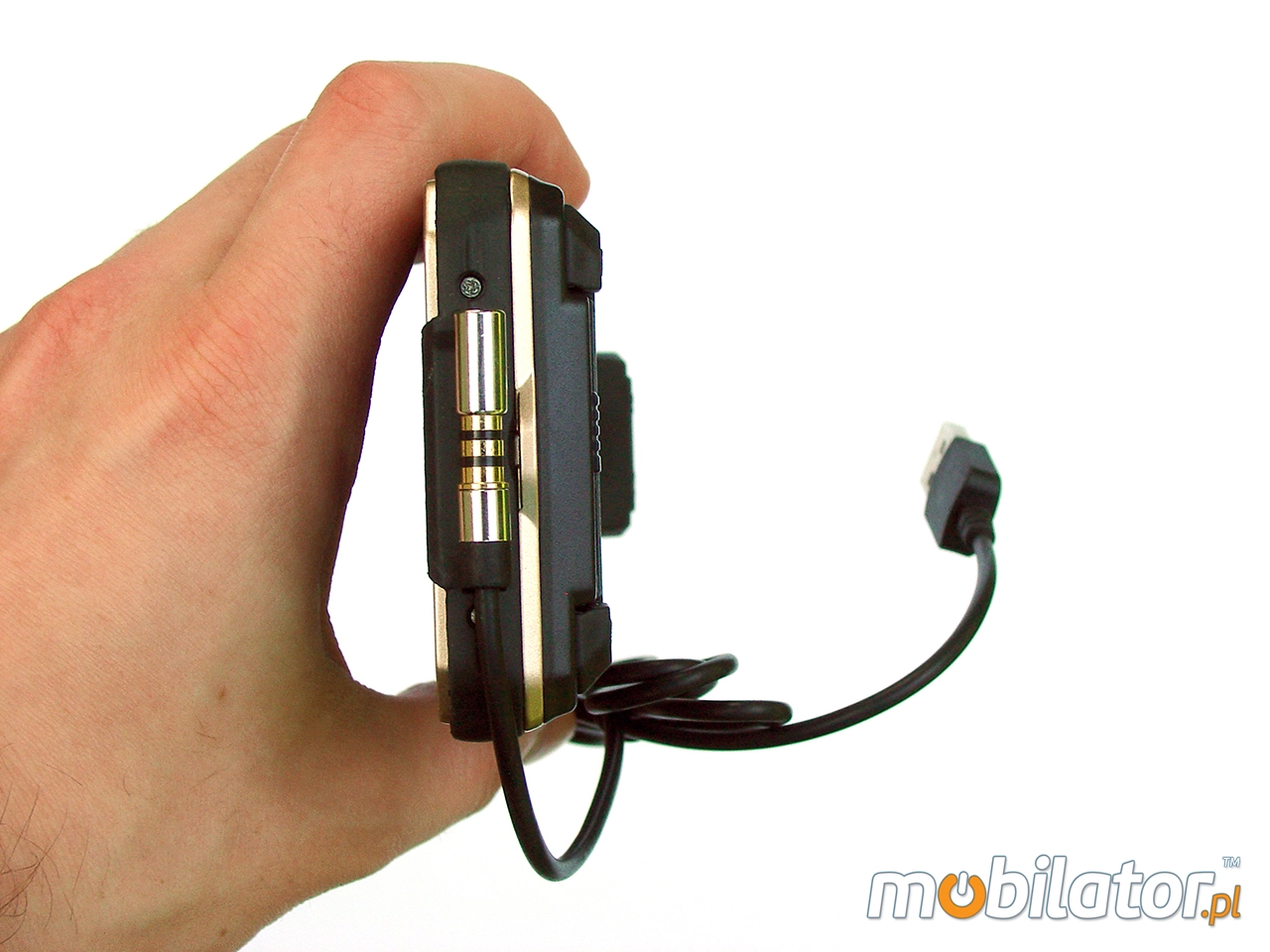

MobiPad MT40 has the latest solution that eliminates damage to the micro USB port. Damage to the charging port unieruchomiało work effectively in the enterprise. Manufacturer data collectors noticing this problem applied magnetic charge port, which itself clings on contact with dock connector.

docking charging mobipad mt40

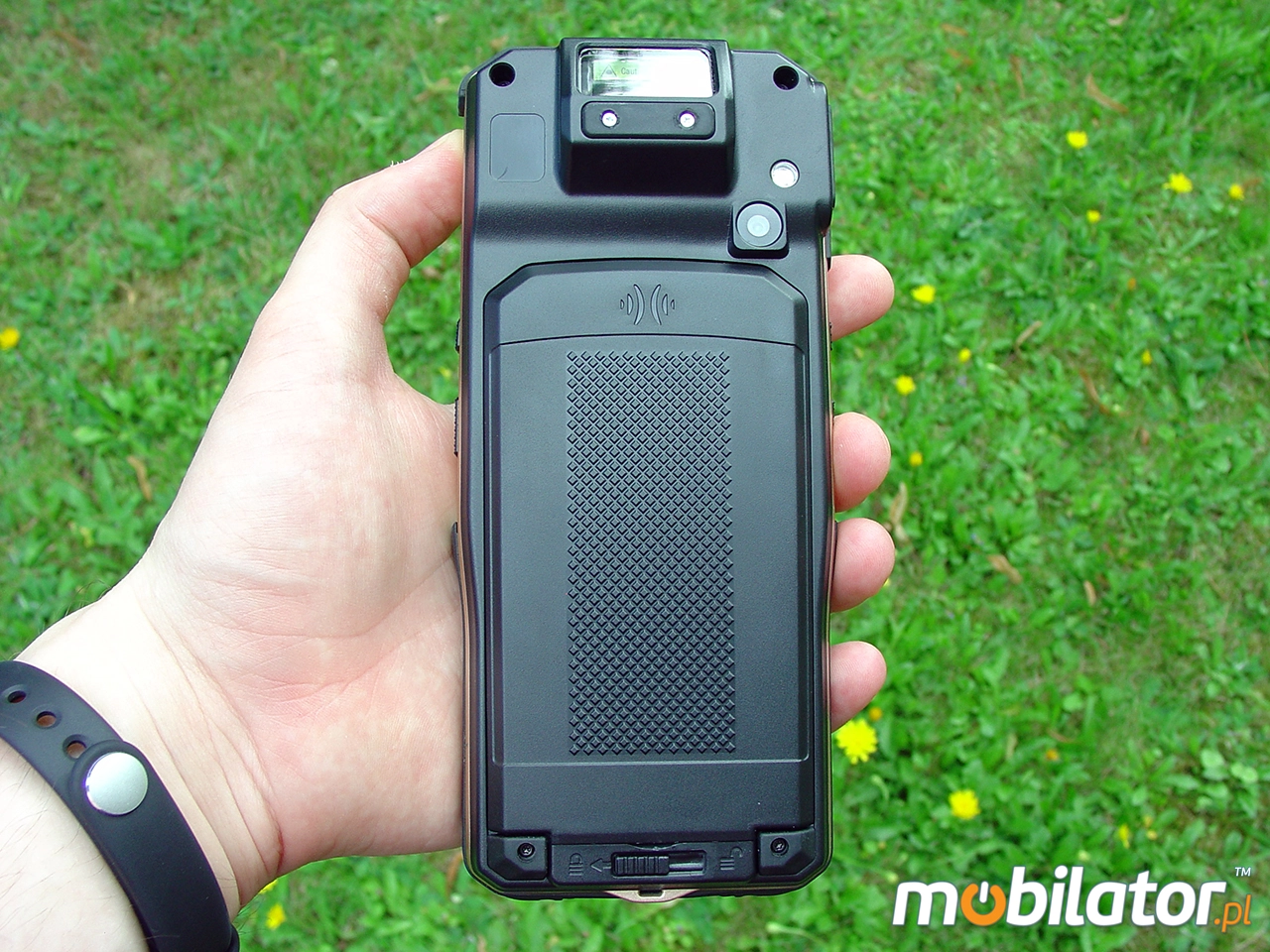

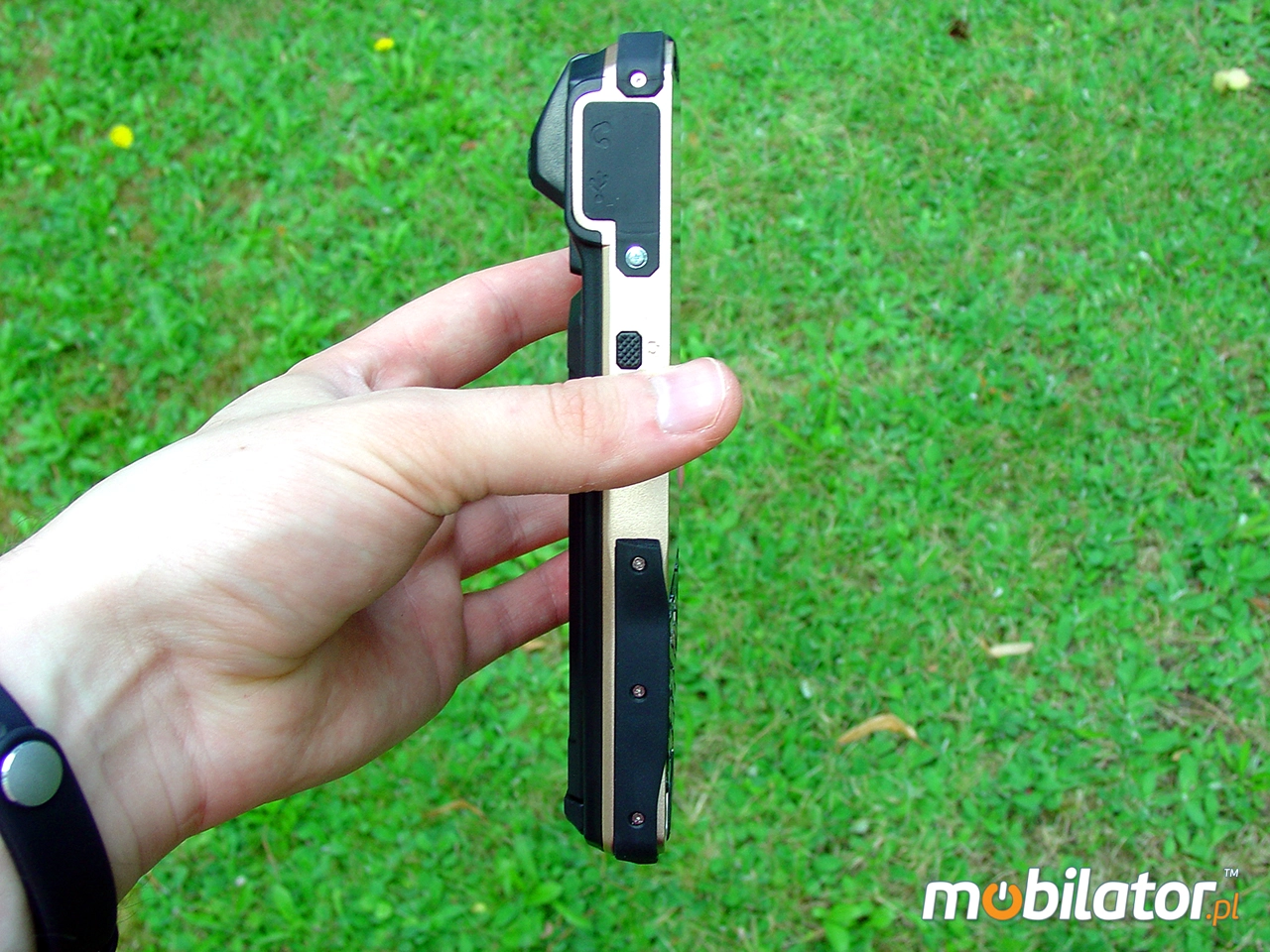

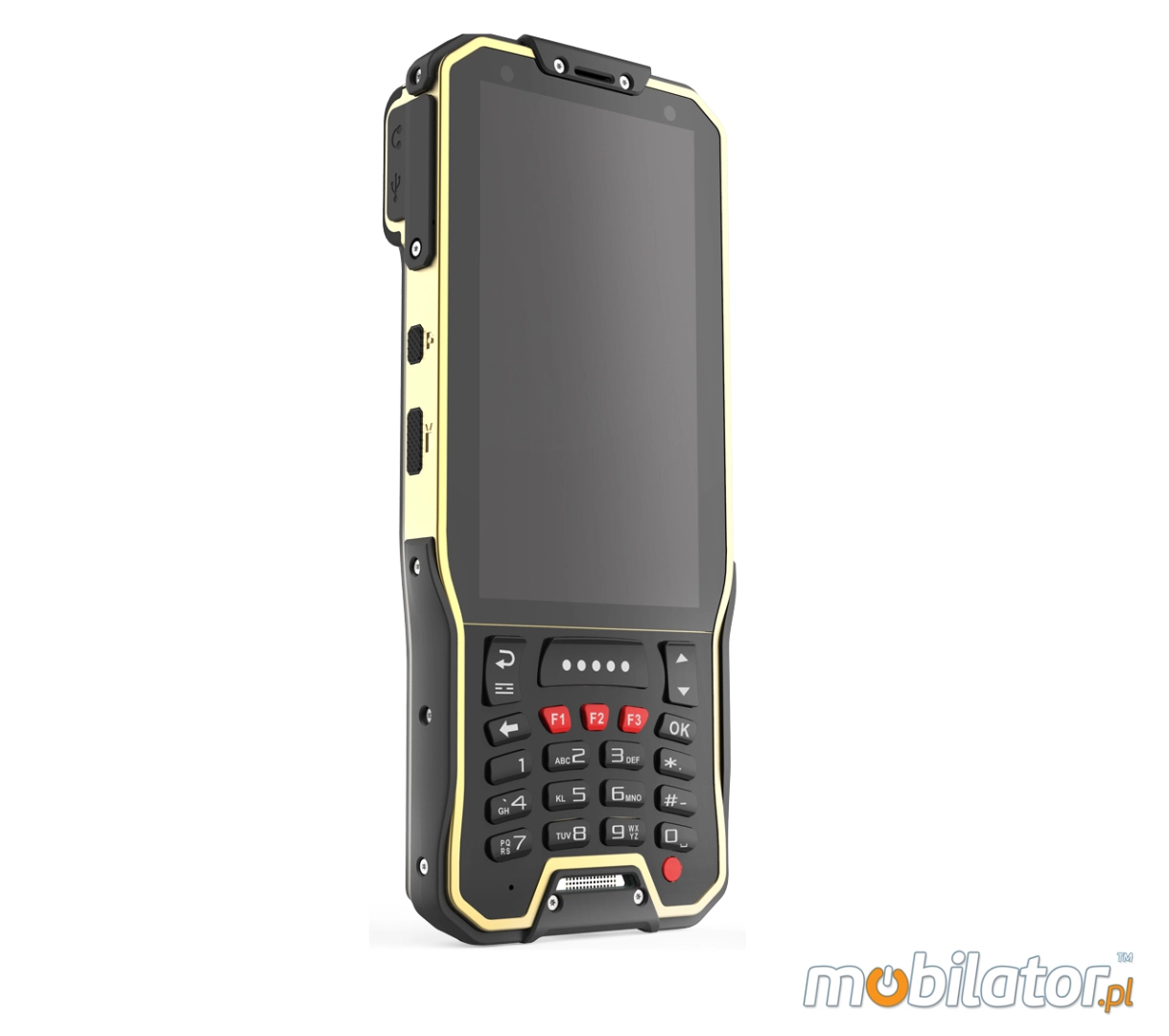

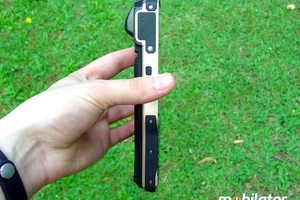

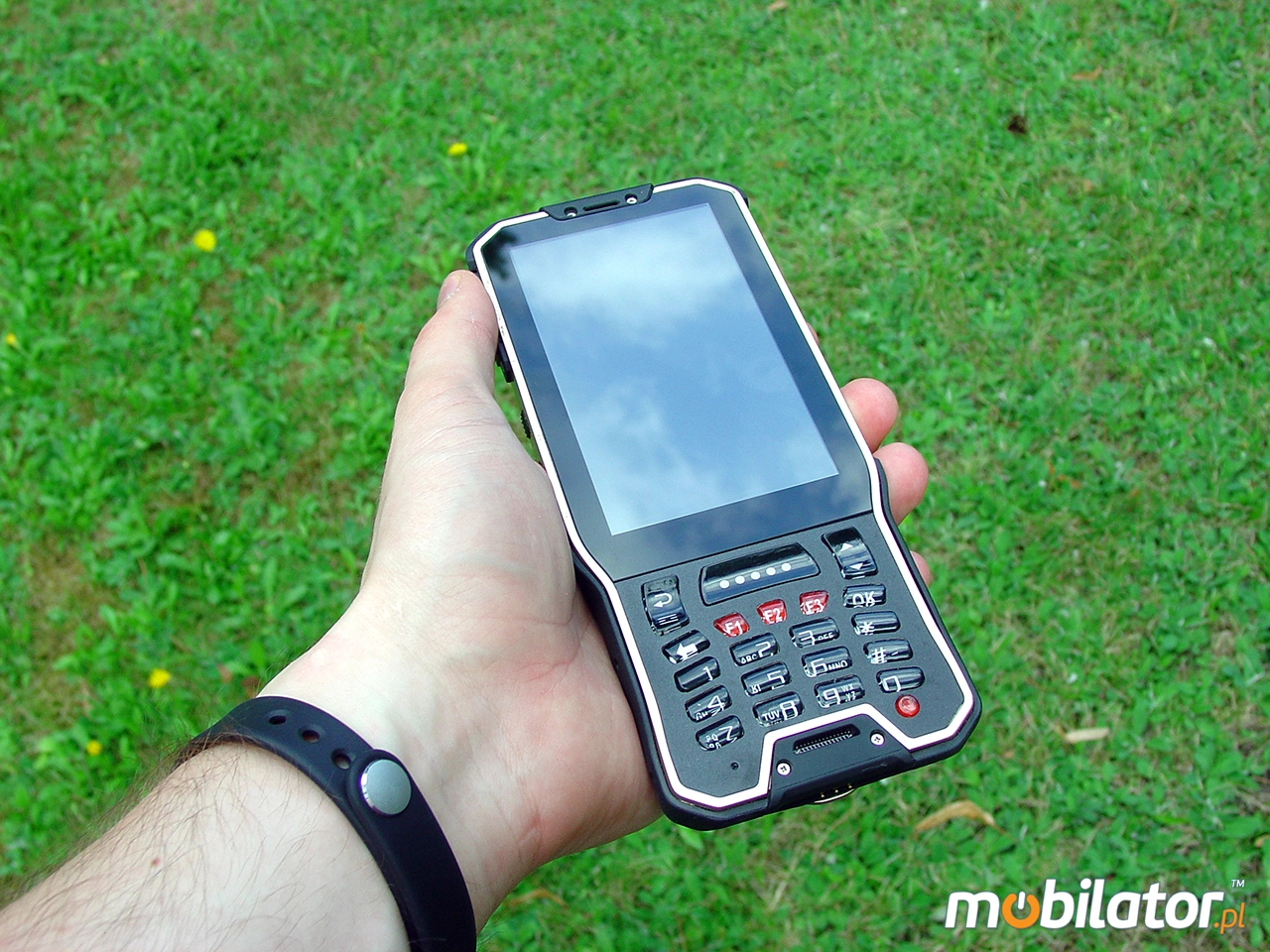

MT40 weighs only 350g and its dimensions (166 x 74 x 16mm) allow you to take it with them everywhere. With sleek performance and energy efficiency is on the forefront of devices in this segment and enjoys great popularity on the Polish market in the industrial segment.

Dimensions	166 x 74 x 16mm
Weight	350g

dualsim camera data collector mobipad mt40

go top… menu…

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

Operating System
Android 4.4.2
Display
4" (480x800) LCD
Brightness
-----
Processor
 Mediatek MT6582 ARM® Cortex®-A7 (Quad Core 4x - 1.3GHz)
Memory
1GB
Hard Drive
8GB
Touch screen
Yes - capacitive
Durability
IP65
Drop
1.5meters
Shock
-----
Vibration
-----
Temperature
Operating temperature: -20°C -- +50°C
Storage temperature: -40°C -- +60°C
Humidity
5% - 95% non-condensing
1D barcode scanner (reader)
1D (LASER) MOTOROLA SE955
2D barcode scanner (reader)
none (available in other configurations)
RFID scanner (reader)
none (available in other configurations)
Other

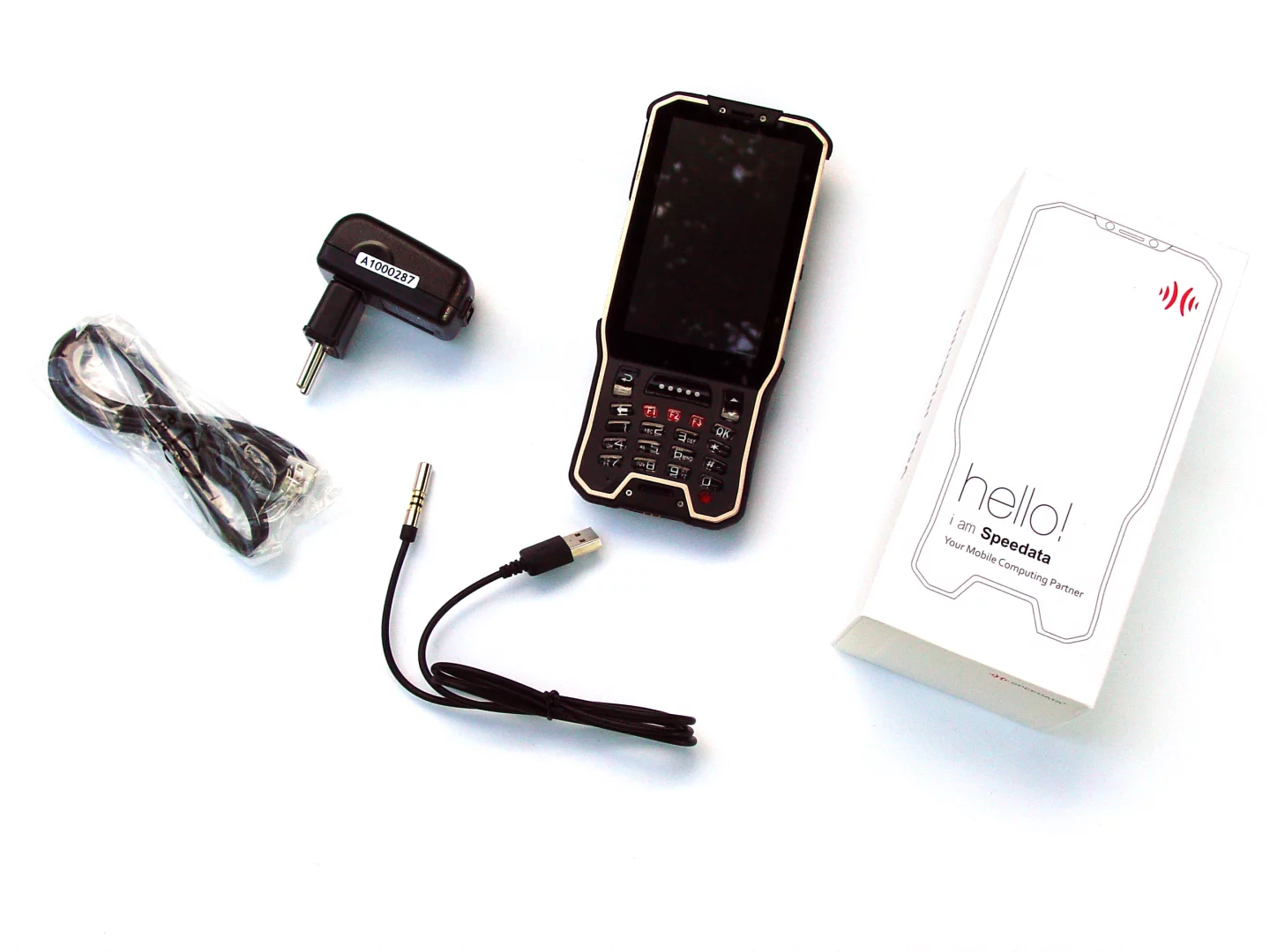

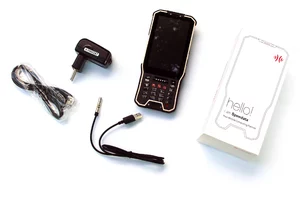

Accessories Factory
Charger (5V / 1.2A)
microUSB Cable
Power Cord  Sensors
Accelerometer
Proximity Sensor
Light Sensor
Magnetic Field S
Other
Accessories Factory
Charger (5V / 1.2A)
microUSB Cable
Power Cord  Sensors
Accelerometer
Proximity Sensor
Light Sensor
Magnetic Field S

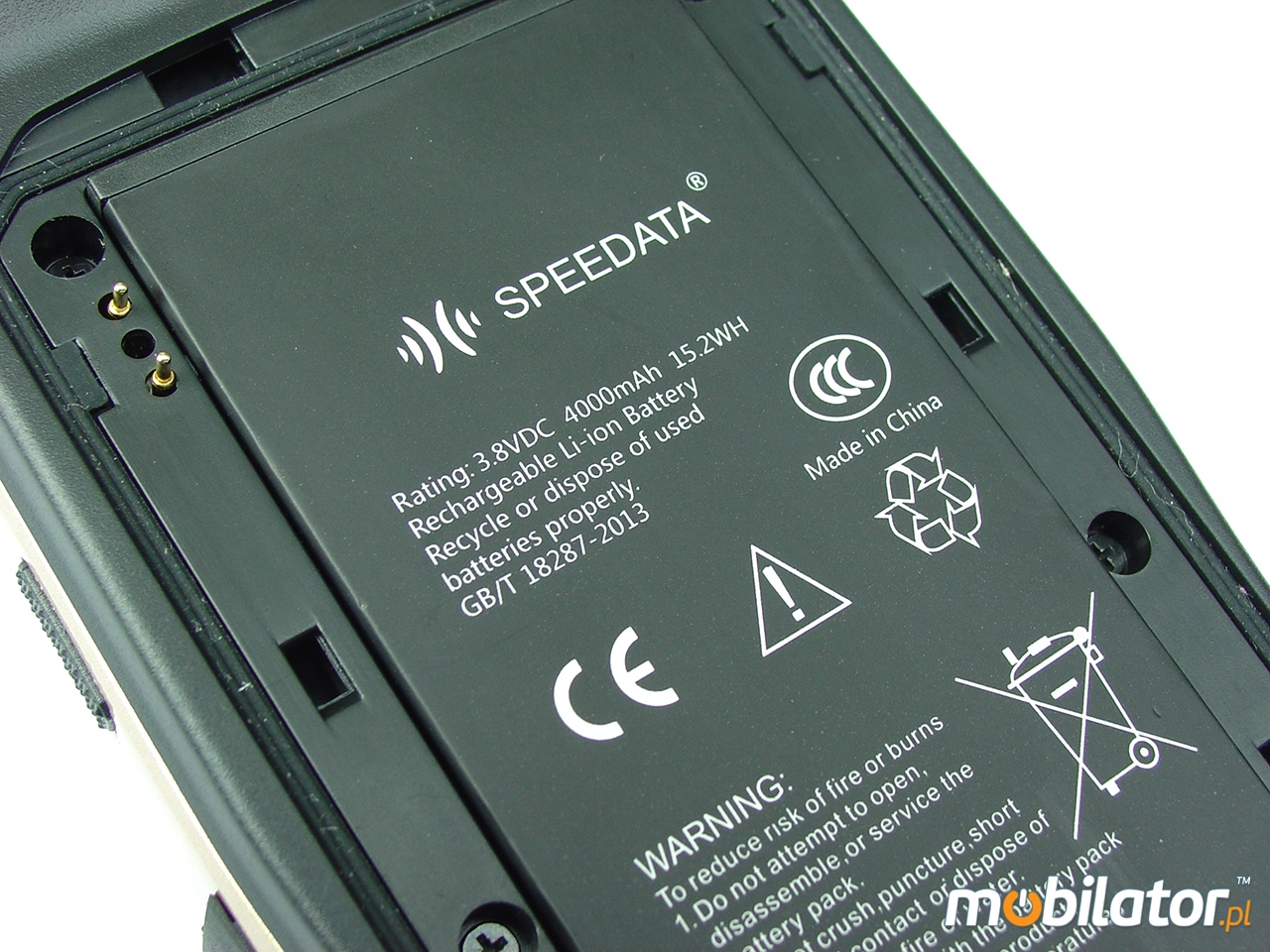

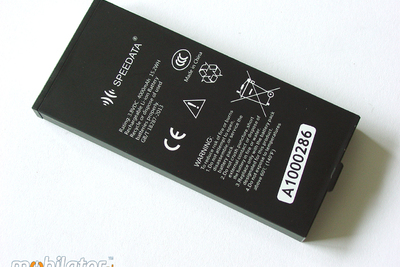

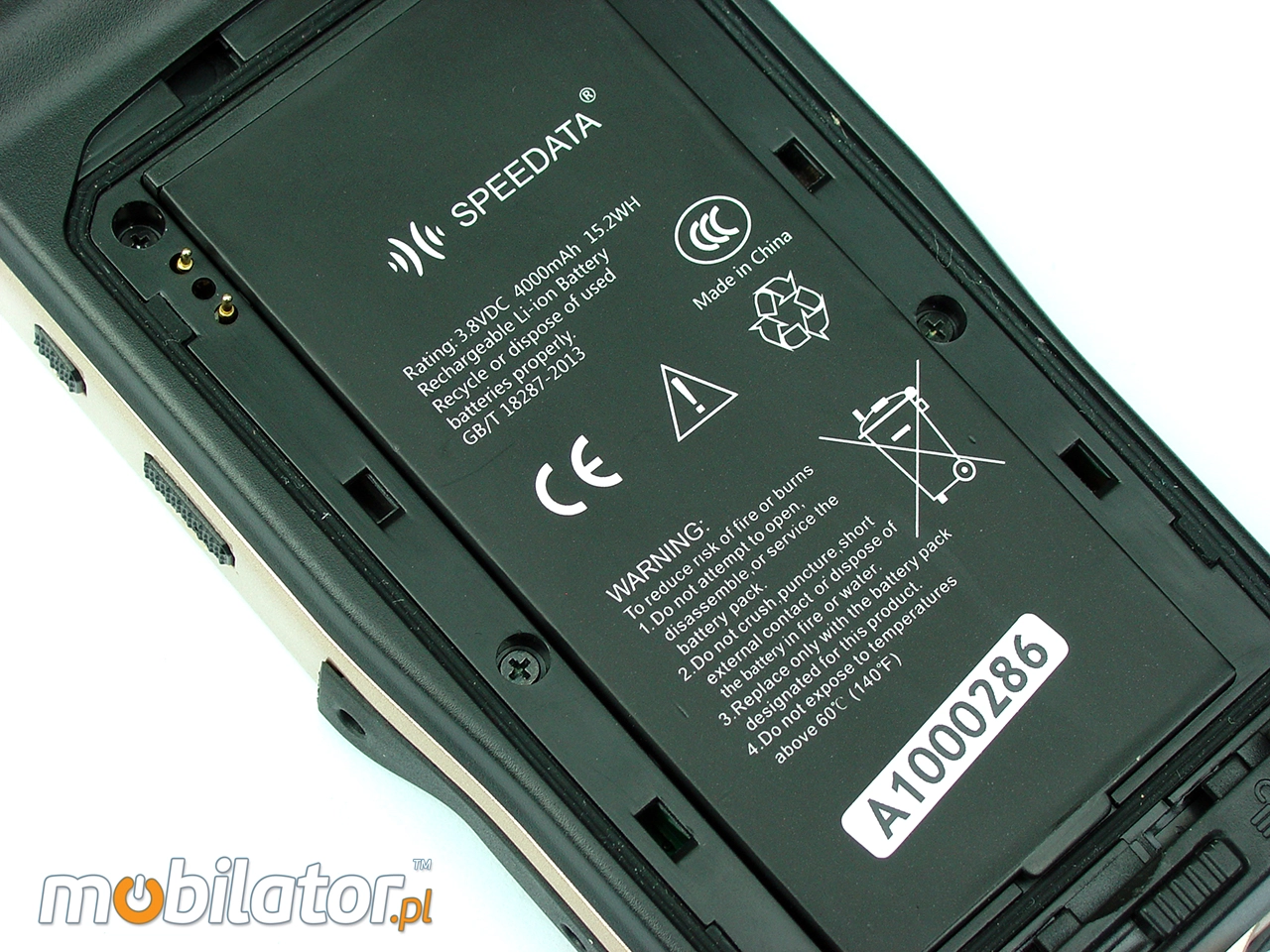

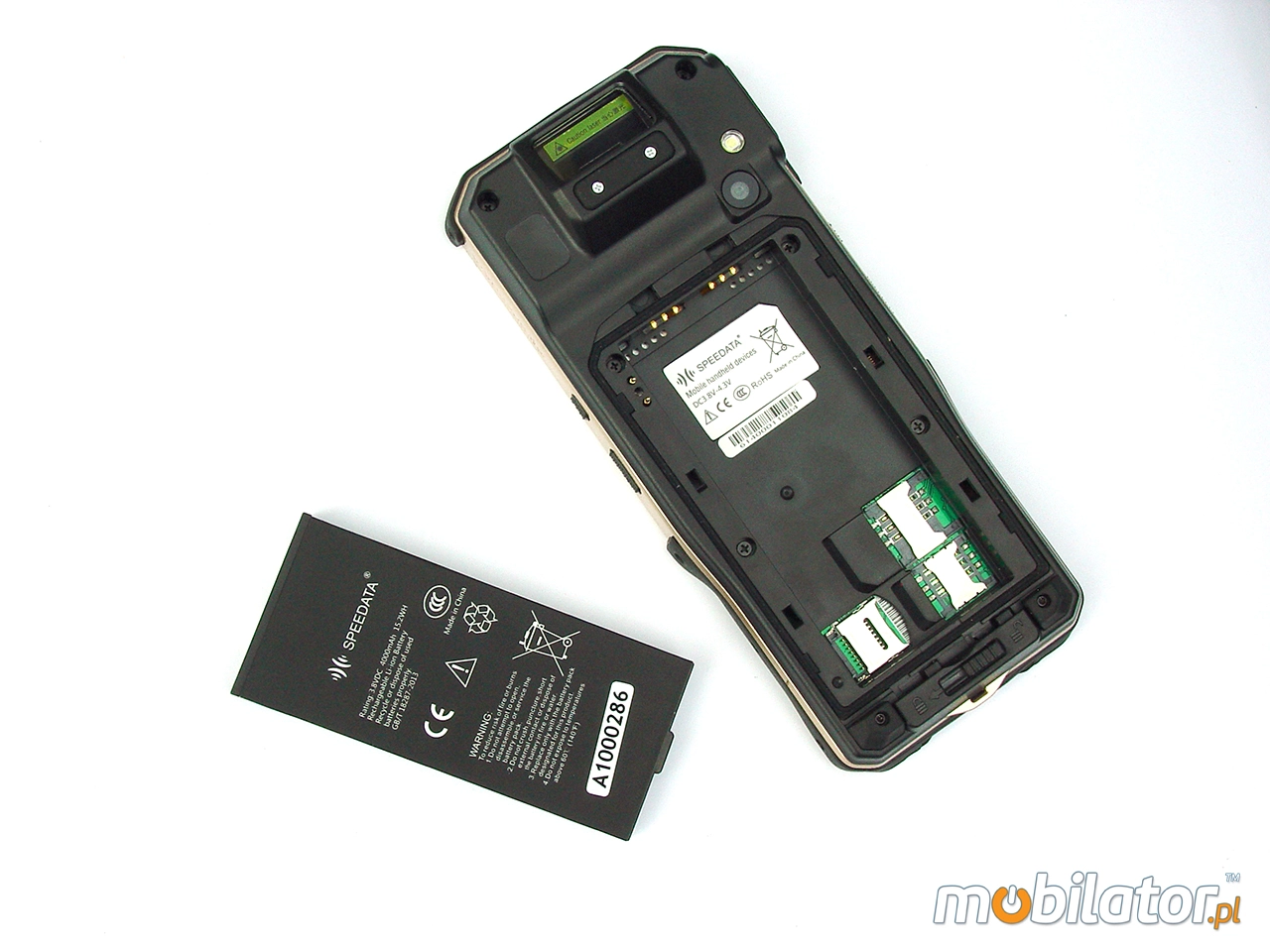

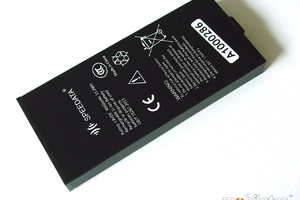

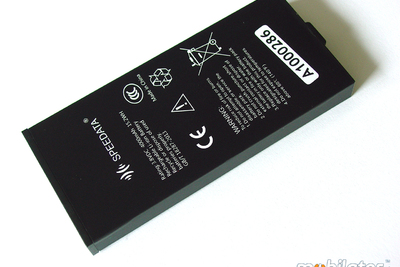

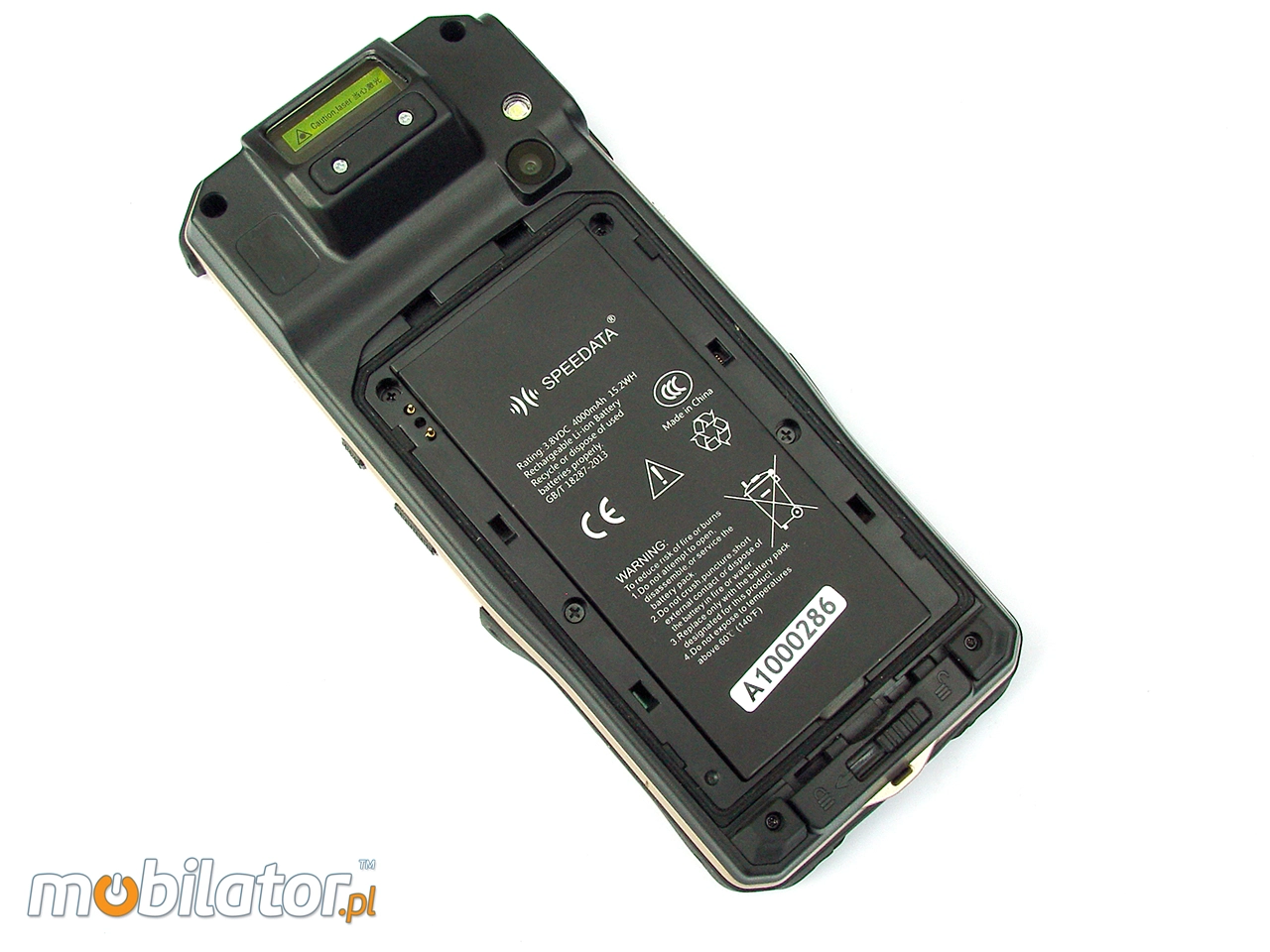

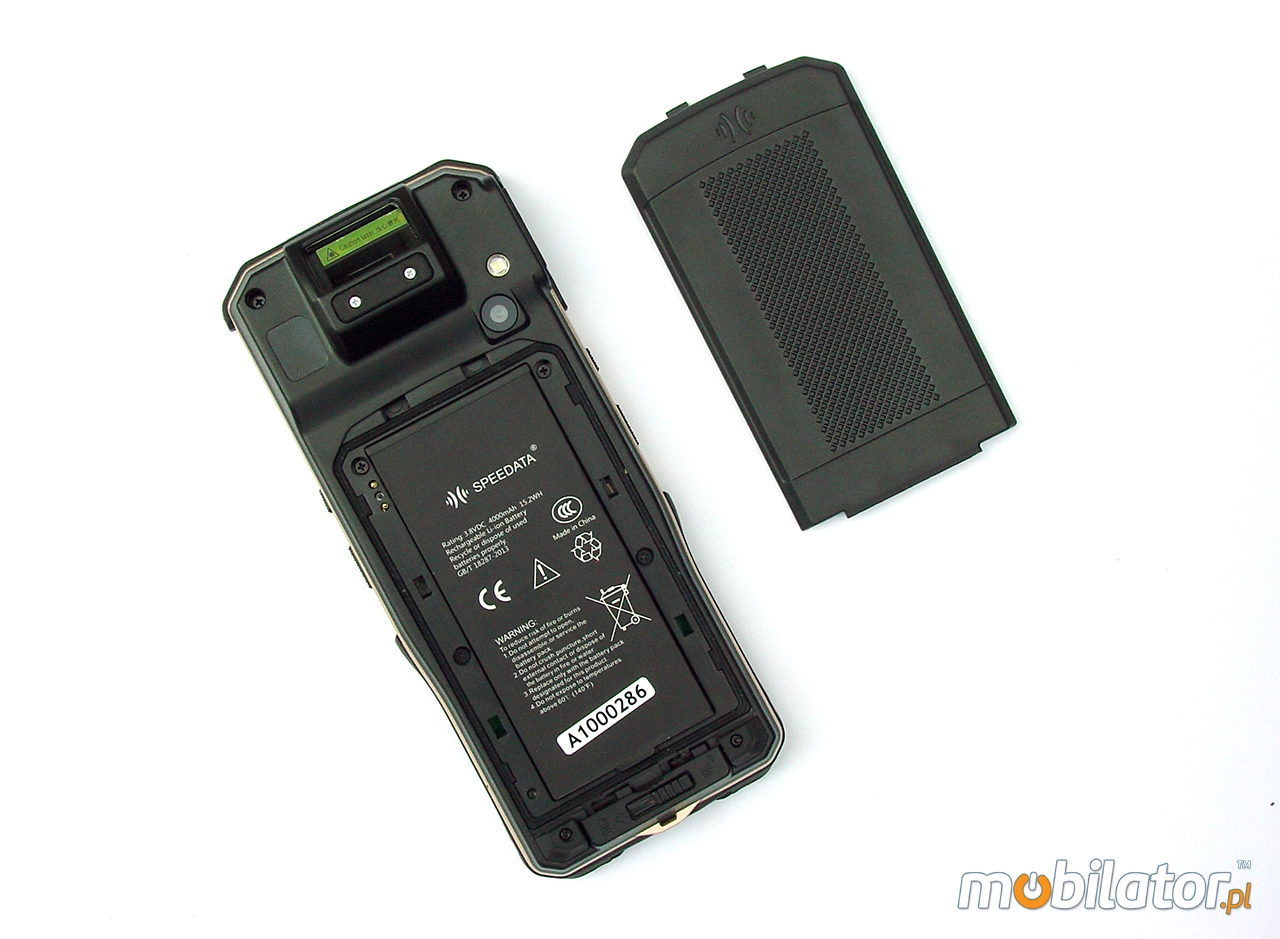

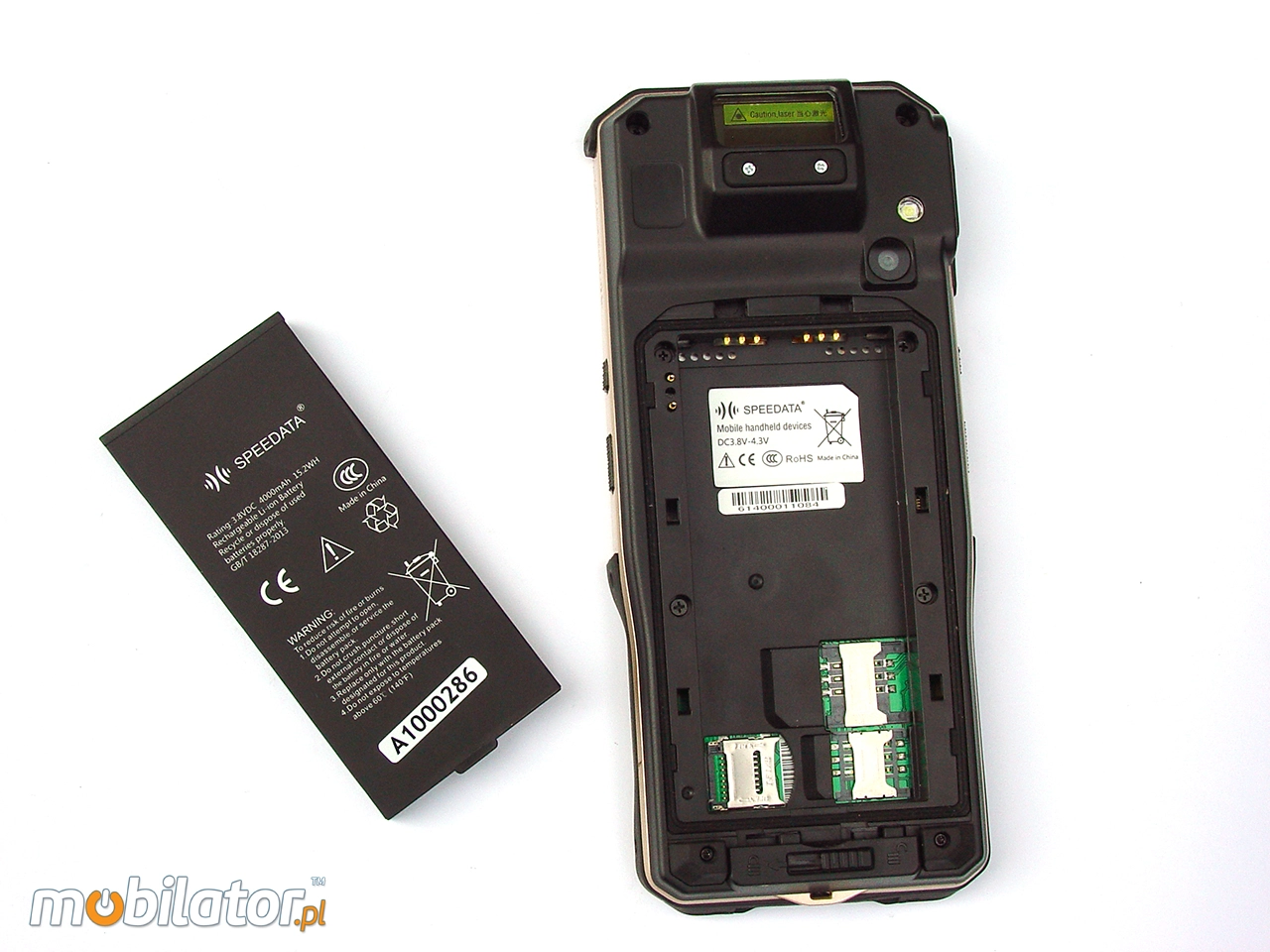

Battery
Li-Ion 3.8V 4000mAh | 15.2Wh
Working time on battery
Operating time (depending on usage) - 7h
Standby time - 500h

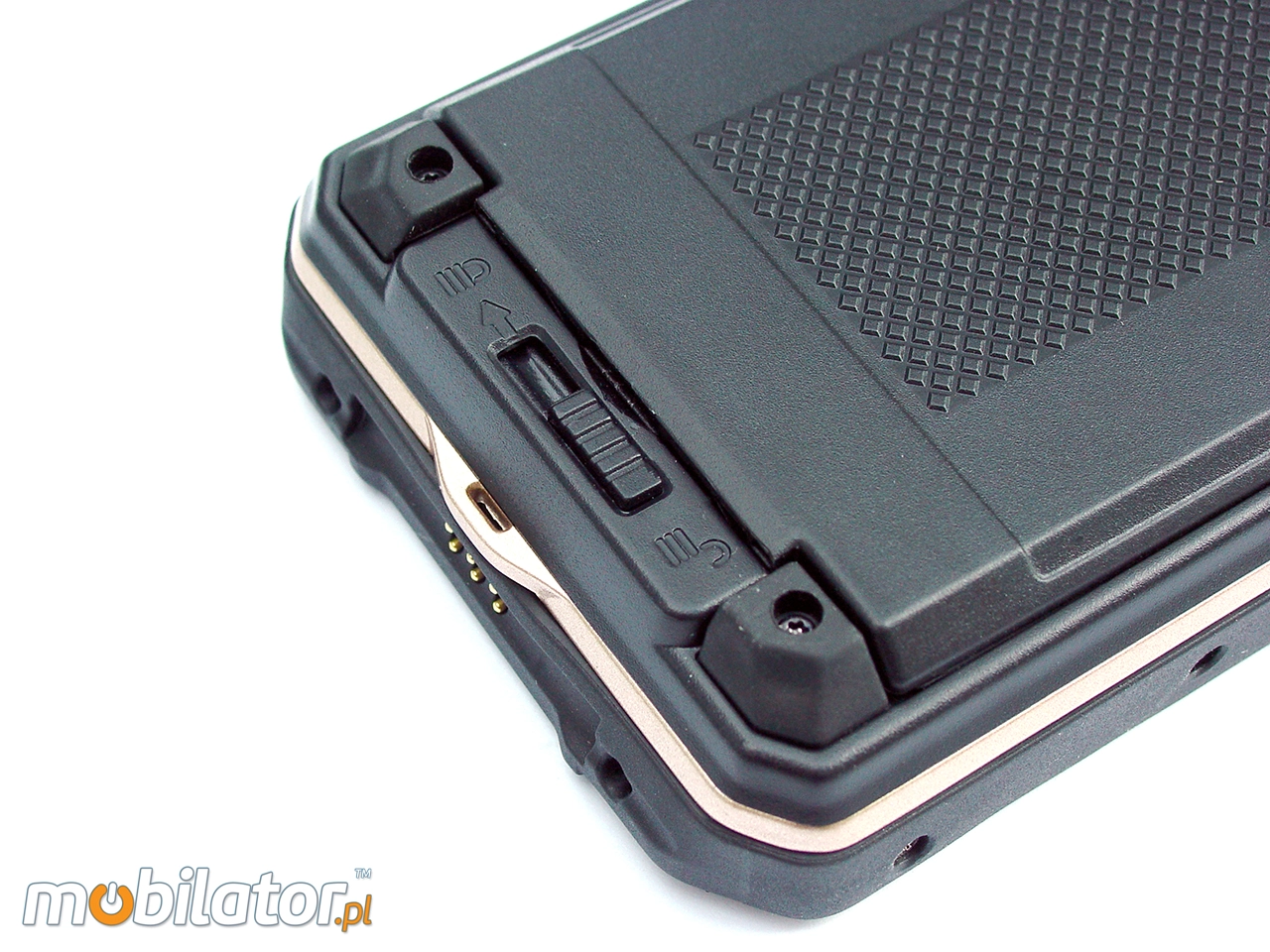

Fast battery replacement ability
Yes
HotSwap battery
No
LAN
-----
WLAN
IEEE 802.11b/g/n
Bluetooth
Bluetooth v4.0 (LE)
WAN
SIM: GSM/GPRS/EDGE: 850/900/1800/1900 Mhz (EDGE Class 12)
micro SIM: UMTS/HSPA: 850/900/1900/2100MHz (21Mbps/5.76Mbps)
GPS
GPS/Beidou + A-GPS
Camera
REAR: 8MPX (Auto Focus+ Flash)

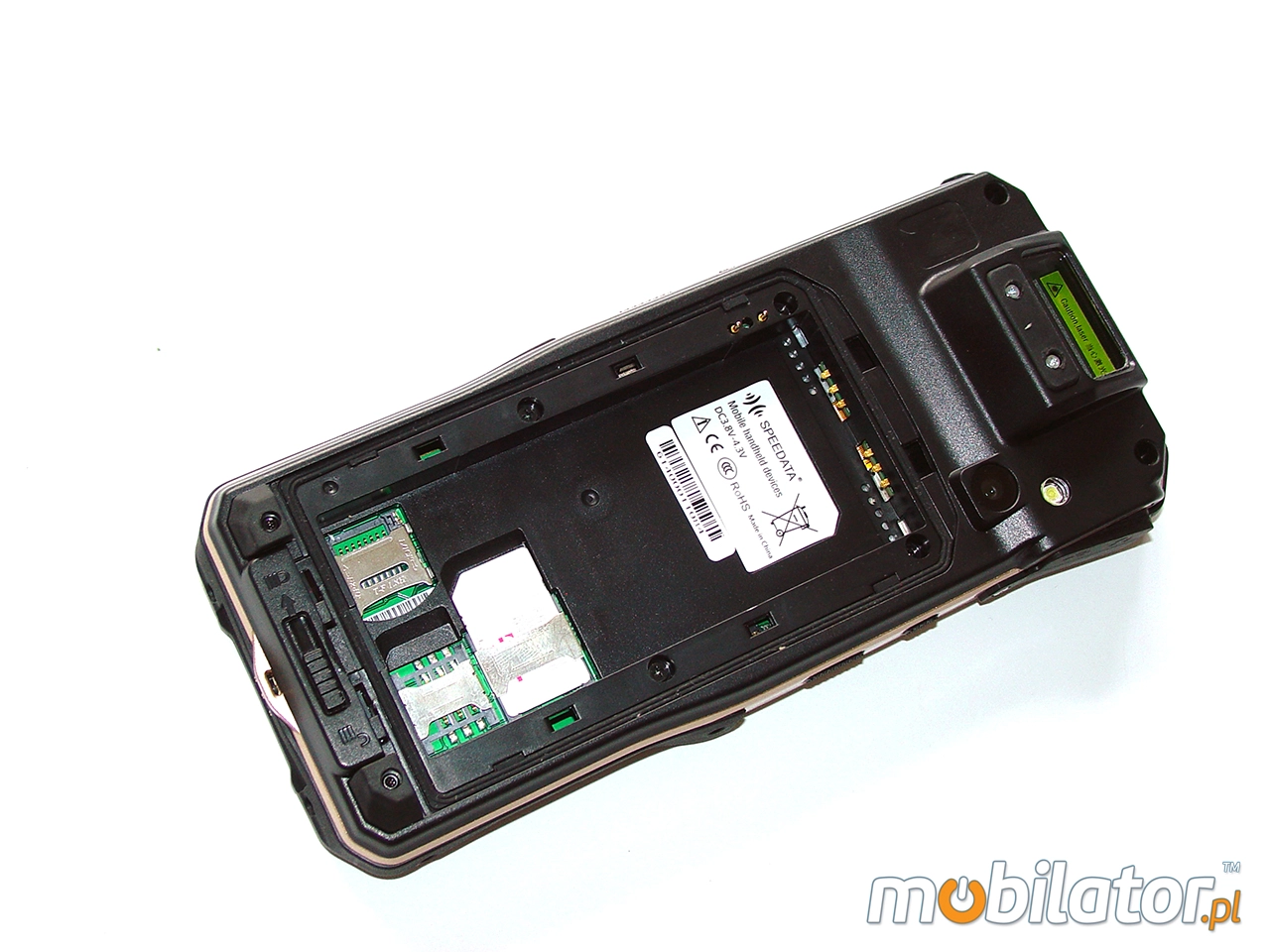

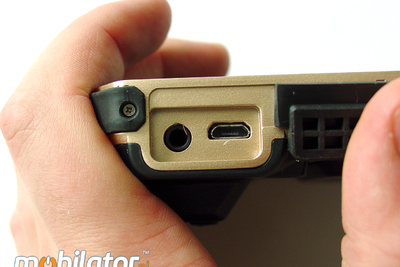

In/Out

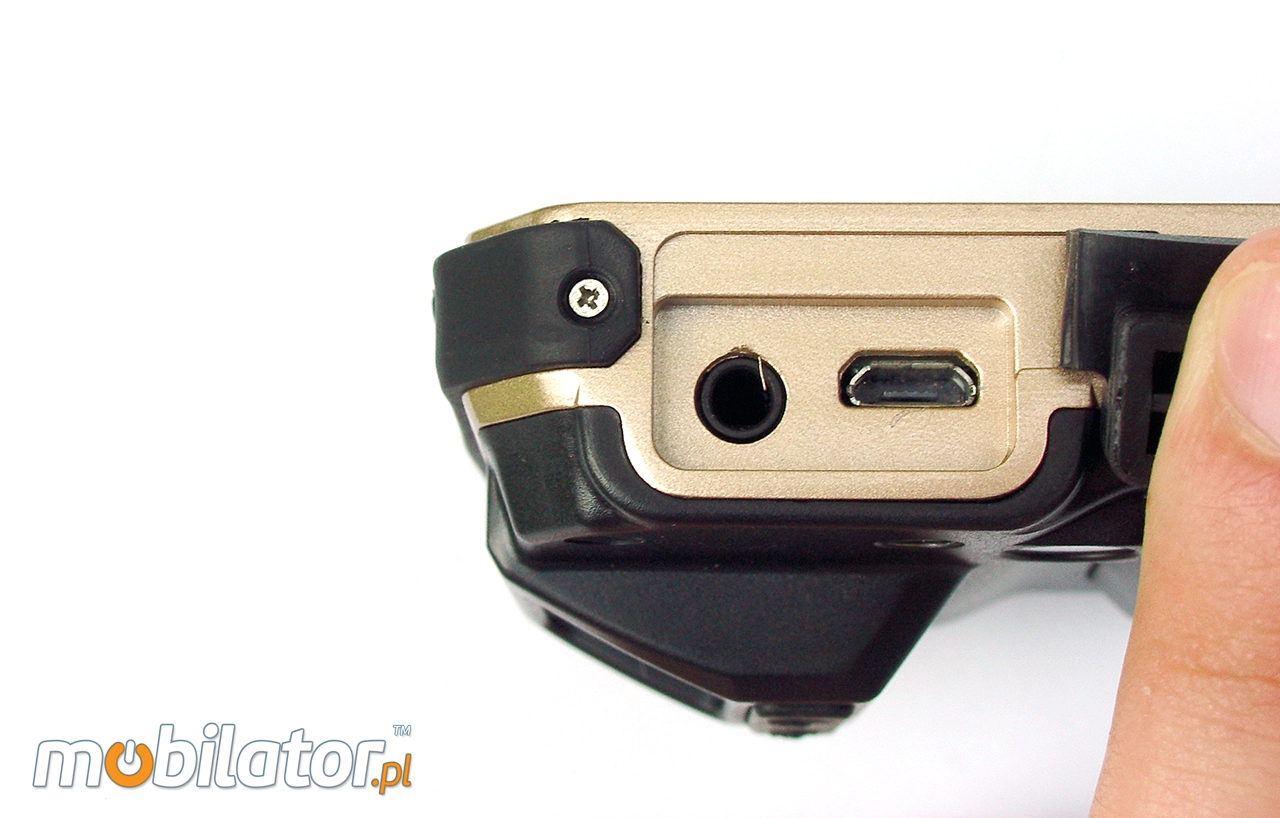

MicroUSB (OTG)
MicroSD Port

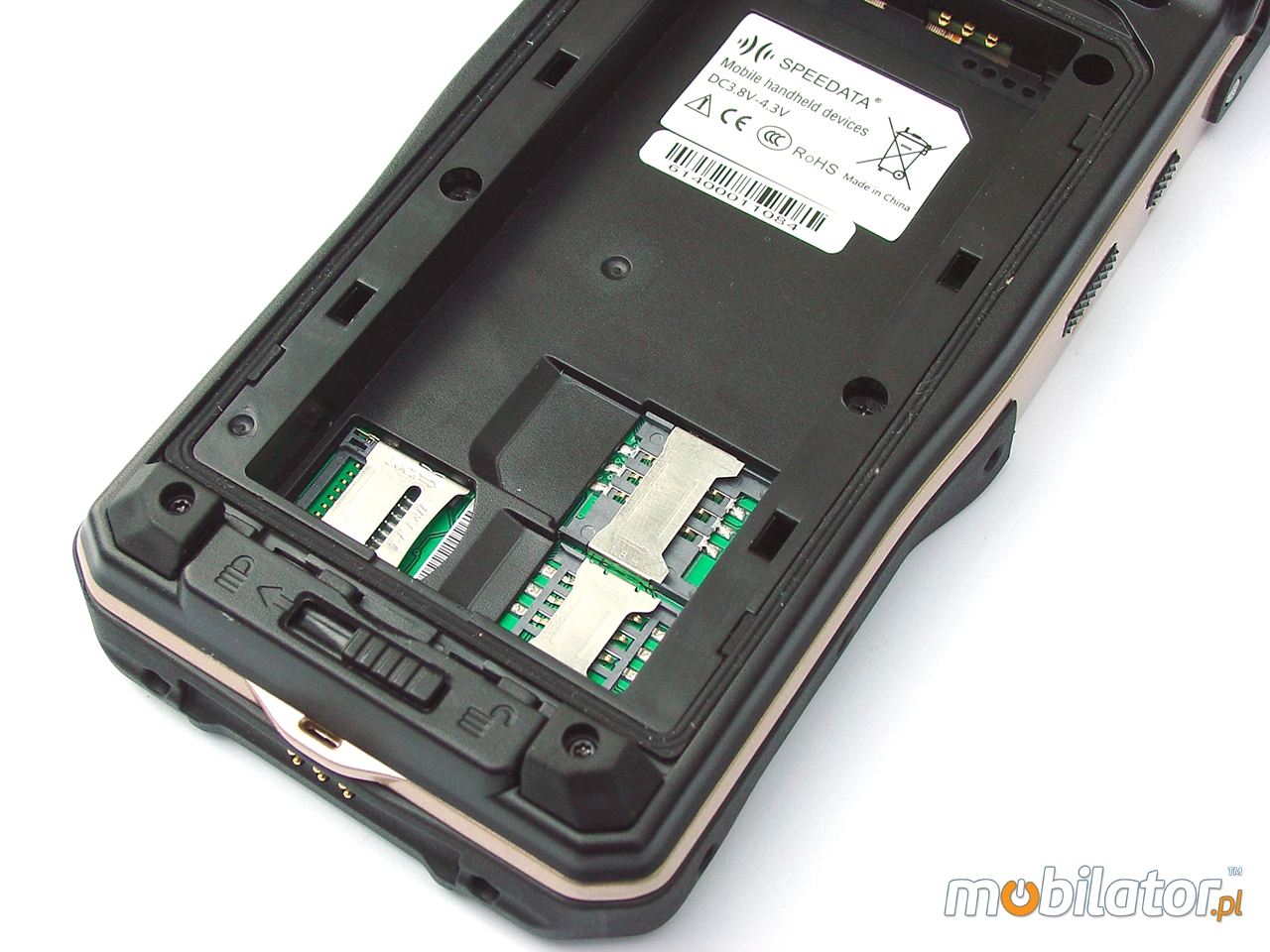

SIM Port
microSIM Port
Audio Jack
Charging PIN's
Optional accessories
-----
Docking station connector
-----
VESA standard – holders and mounts support
-----
COM port
No
Magnetic card reader (MSR)
-----
Microchip card reader
-----
Contrast
-----
Graphics card
Mali-400 MP
Chipset
-----
BIOS
-----
Casing material
high quality plastic and rubber
Flash Card Reader
Yes - max. 32GB
CD/DVD
-----
Audio
Built-in Microphone | Built-in Speaker | Receiver | Audio Jack

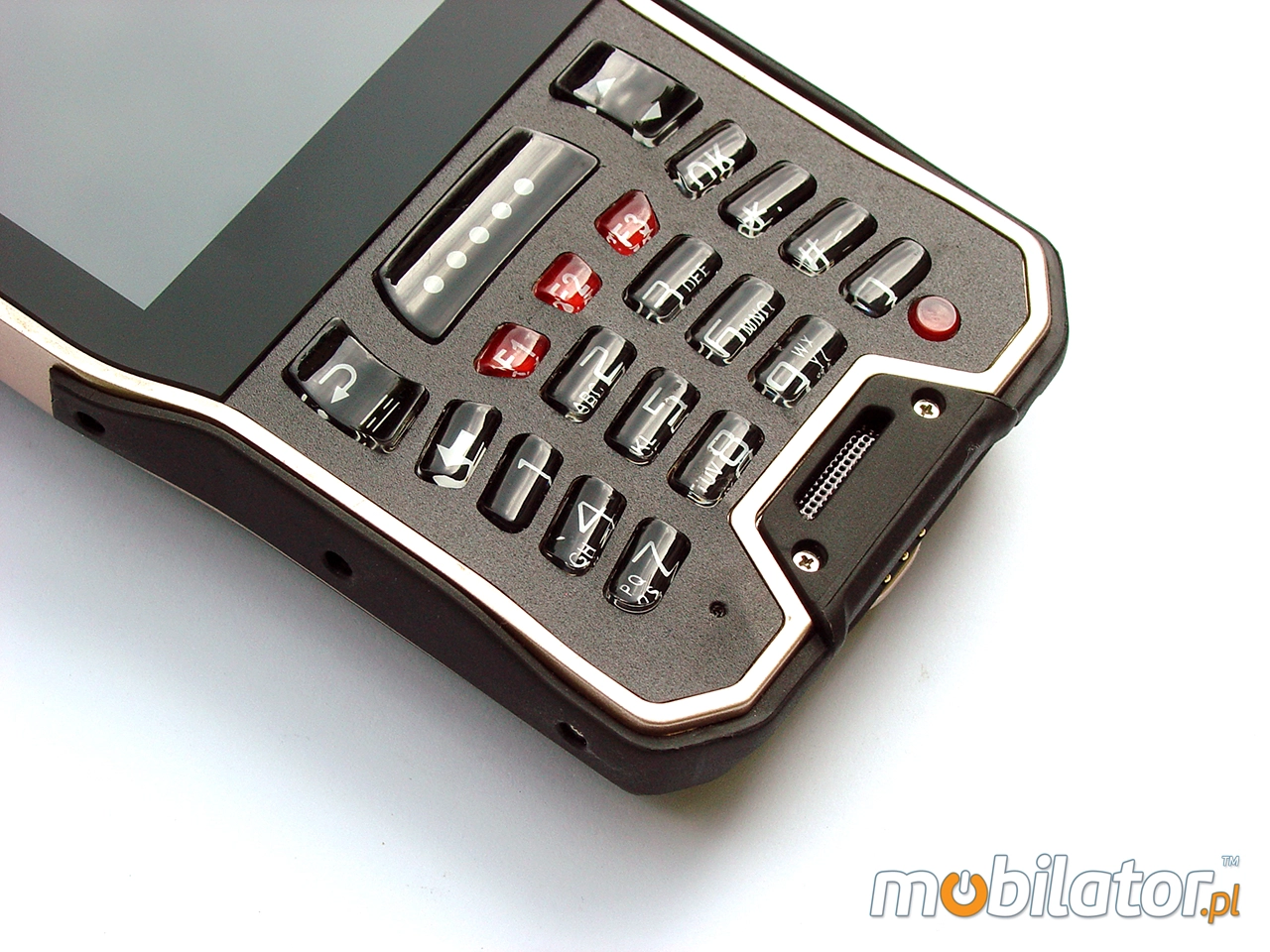

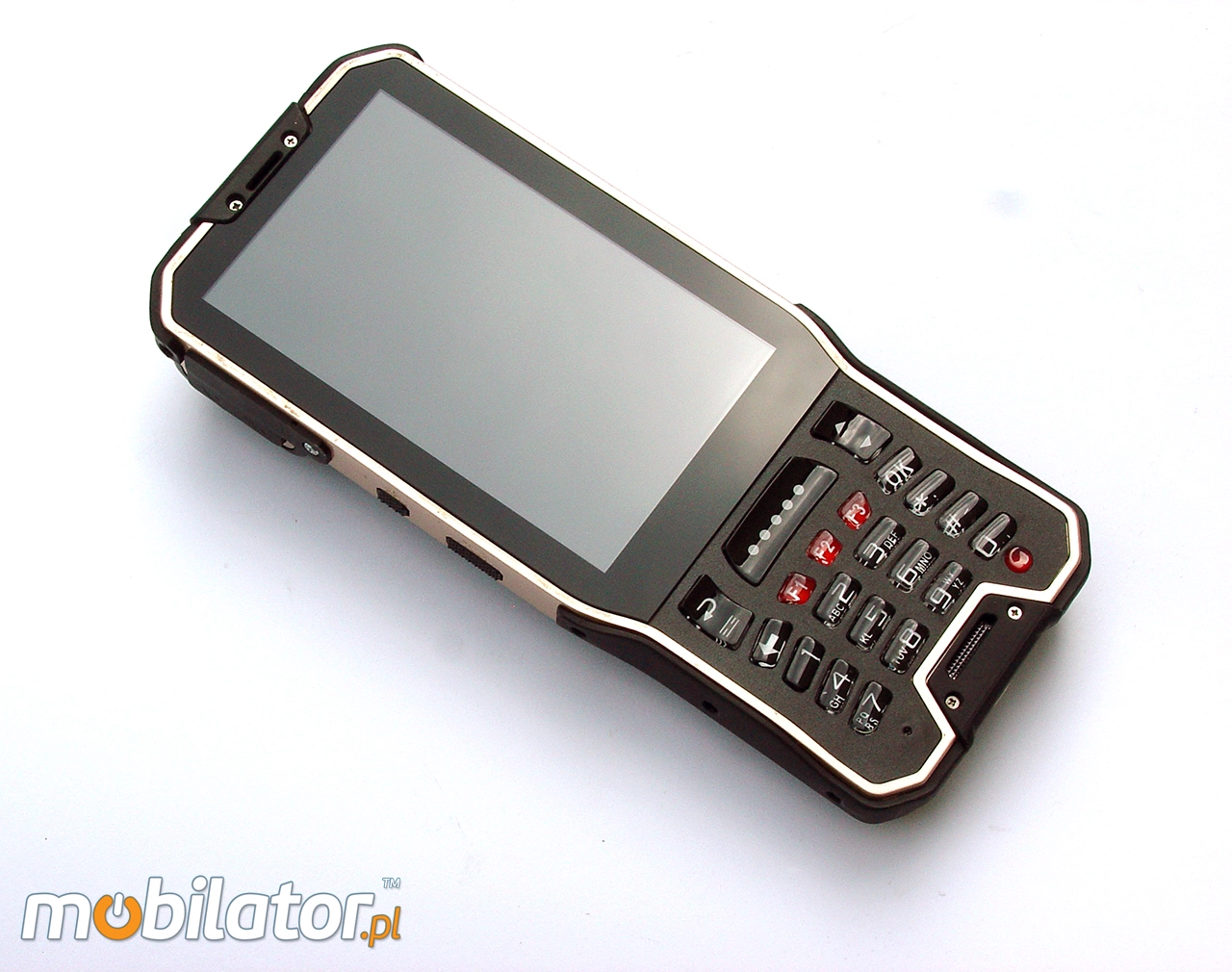

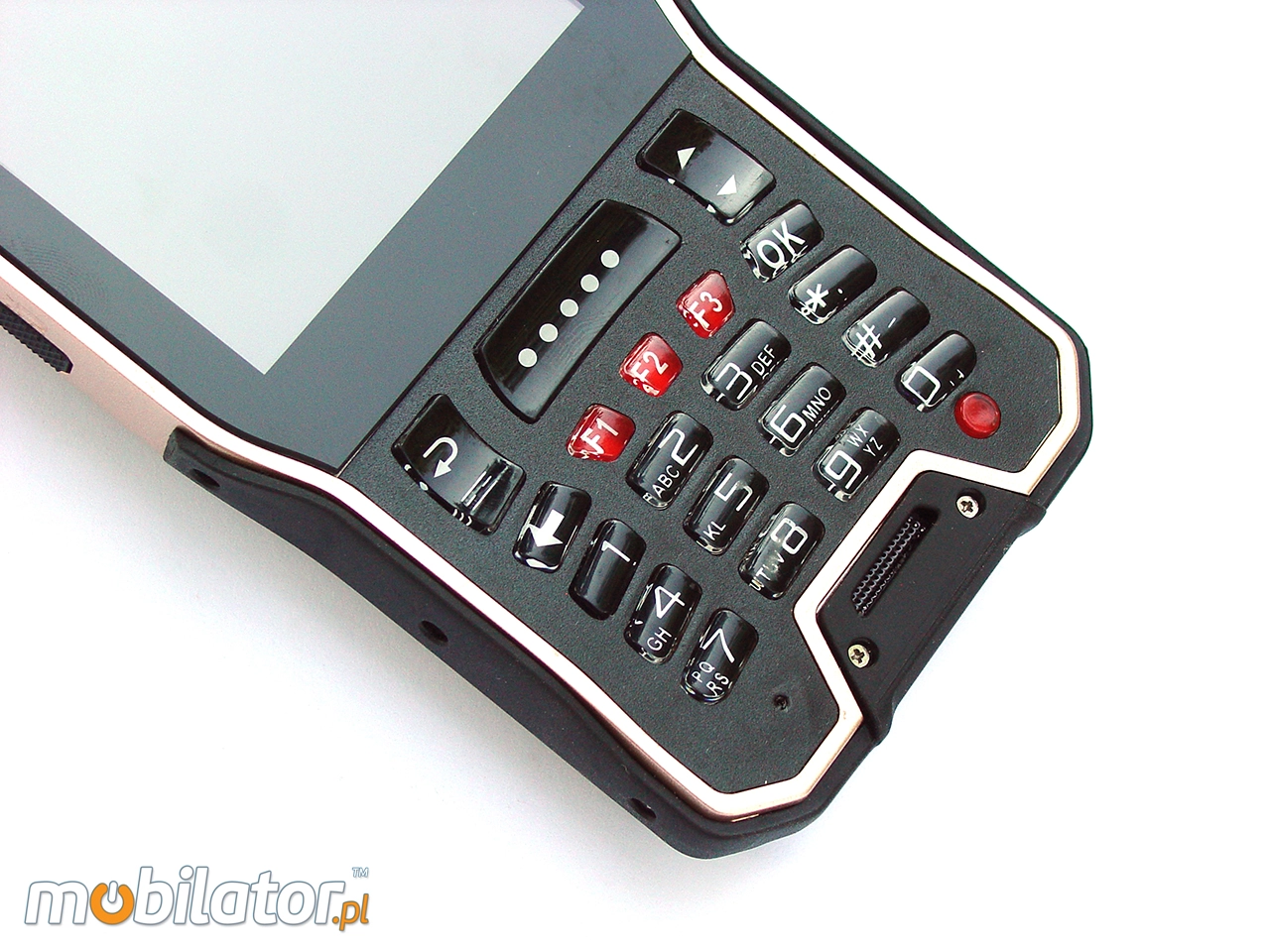

Keyboard
on-Screen + Numeric
Home | Menu | Return | ON / OFF
3x - Additional function keys
2x - Barcode Trigger
2x- Camera Trigger (make photo/video)
Additional Navigation Devices
-----
Color
czarno-złoty
Swivel Hinge
-----
VGA out
-----
TV Out
-----
TV Tuner
-----
Security
IP65
Waterproof
IPx5
Sand and dust
IP6x
Size
166*74*16mm
350g
Fanless casing
Yes
Responsible Entity / Distributor
New Portable Devices

Data sheet
MobiPad MT40 - Datasheet
774.09 KB
06.08.2015
Android/iOS/Windows
Download
Software
MobiPad MT40 - Barcode Scanner (SOURCES+API+DRIVERS+APK)
10.52 MB
06.08.2015
Android/iOS/Windows
Download
Driver
MobiPad MT40 - USB Drivers
9.77 MB
13.08.2015
Android/iOS/Windows
Download
