Product Update Date: 2018-02-21

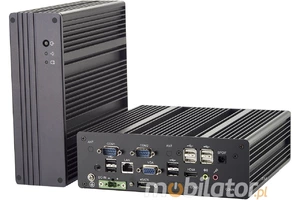

Industrial Fanless MiniPC bBOX-N2800-C4 v.2

Name: Industrial Fanless MiniPC bBOX-N2800-C4 v.2
Brand: Mobilator
Price: 523.14 PLN
Availability: InStock

Update Date: 2018.02.21

Guarantee 2 years (opt. 3)

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

Indrustrial Fanless MiniPC bBOX-N2800

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless MiniPC

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

bBOX-N2800 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

Housing dimension are 204 (W) x206 (L) x67 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.5 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB SSD or 500GB HDD.

Indrustrial Fanless MiniPC bBOX-N2800

go top…

menu…

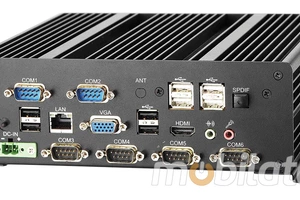

Communication & Connectors

Integrated card - Intel LAN 82574L allow connection to the network. The computer is equipped with: one LAN port, six COM ports (RS232), one HDMI port, one VGA outpu, eight USB 2.0 ports, one port eSATA and one SPDIF.

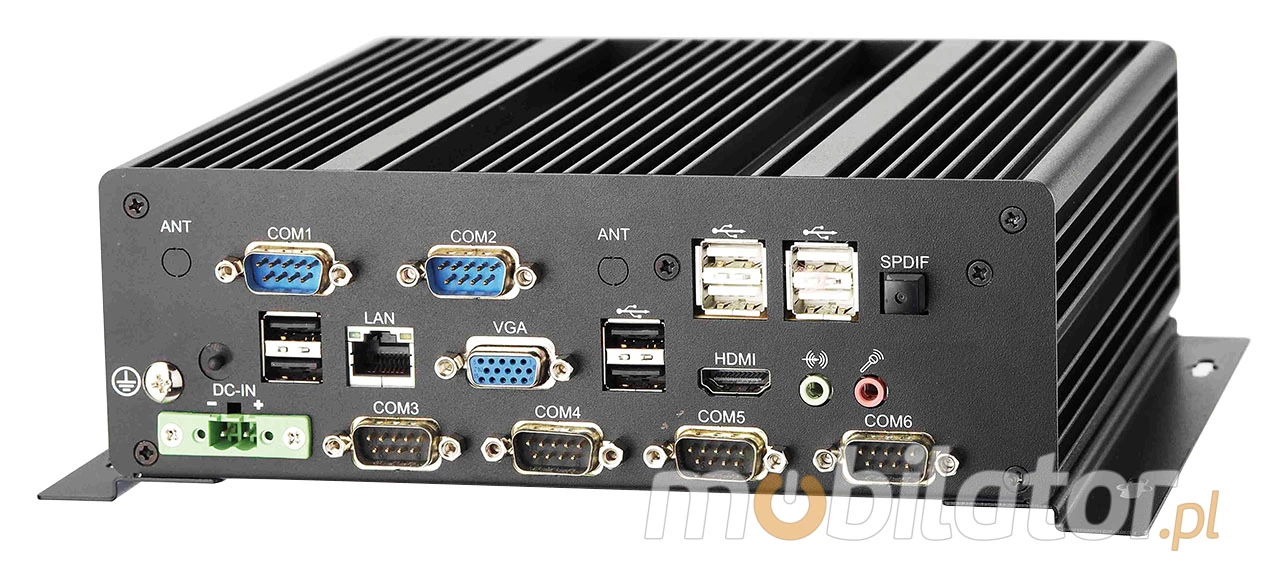

Indrustrial Fanless MiniPC bBOX-N2800

1. Power ON/OFF	7. 1x HDMI
2. 2x USB 2.0	8. Audio/Mic
3. DC-IN 12V	9. 1x SPDIF
4. 1x RJ-45	10. 6x USB 2.0
5. 1x eSATA	11. 2x COM(RS232)
6. 1x VGA

Indrustrial Fanless MiniPC bBOX-N2800

Cooling

The Indrustrial Fanless MiniPC bBOX-N2800 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… menu…

Application

Indrustrial Fanless MiniPC bBOX-N2800 are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of bBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Indrustrial Fanless MiniPC bBOX-N2800 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Indrustrial Fanless MiniPC bBOX-N2800

Areas of use of industrial MiniPC

Digital Engine

Indrustrial Fanless MiniPC bBOX-N2800

Trade

Small computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Indrustrial Fanless MiniPC bBOX-N2800 by six COM ports (RS232) can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC bBOX-N2800 can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 6V to 34V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Indrustrial Fanless MiniPC bBOX-N2800

go top…

menu…

Specifications

Dimension	H: 67 mm L: 206 mm W: 204 mm
Weight	2.5 kg
Processor	Intel Atom N2800 (2x 1.8GHz)
Chipset	Intel NM10
RAM Memory	4GB DDR3
Graphic Card	Intel HD Graphics
Sound Card	Realtek ALC662
WLAN	Intel LAN 82574
Connectors	6x COM(RS232) 1x wyjście 12V DC_JACK 8x USB 2.0 1x RJ-45 1x wyjście Audio 1x HDMI 1x Mic 1x VGA 1x eSATA 1x SPDIF

Supported OS
Microsoft Windows: XP/Vista/7 , Linux
Installed OS
-----
Chipset
Intel NM10
CPU Support
-----
Installed CPU
Intel Atom N2800 (2x1.8GHz)
Graphic Card
Intel HD Graphics
Memory Support
2GB DDR3 (can up to 4GB)
Installed Memory
4GB DDR3
Storage (HDD) Support
-----
Installed Storage (HDD)
32 GB SSD
IP Norm
-----
Temp
-20 - 60 ℃
Storage temperature
-20 - 80 ℃
Humidity
-----
Others
Colour Silver, Case
LAN
Intel LAN 82574L
Wireless LAN card
No
3G
No
Bluetooth
-----
Rear Panel (ports)
8x USB 2.0,
1x Audio,
1x RJ-45,
DC-in Jack,
 1x HDMI,
1x Mic,
6x COM(RS232),
1x VGA,
 1x eSATA,
 1x SPDIF
Front Panel (ports)
Power ON/OFF
Expansion
-----
Power
12V
Watch Dog Timer
-----
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
204 x 206 x 67  mm
Fanless
Yes
Weight
2.5 kg
