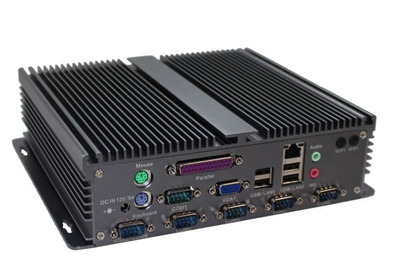

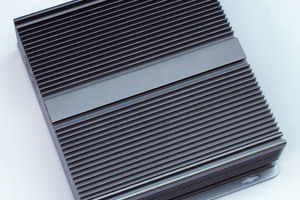

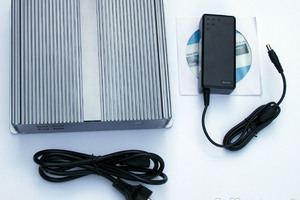

Industrial Fanless MiniPC IBOX-1037uA High

Name: Industrial Fanless MiniPC IBOX-1037uA High
Brand: Mobilator
Price: 497.19 PLN
Availability: InStock

+32

Update Date: 2018.02.21

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

Przemysłowy Fanless MiniPC IBOX-1037uA

Menu
Description
Communication & Connectors
Application
Specifications

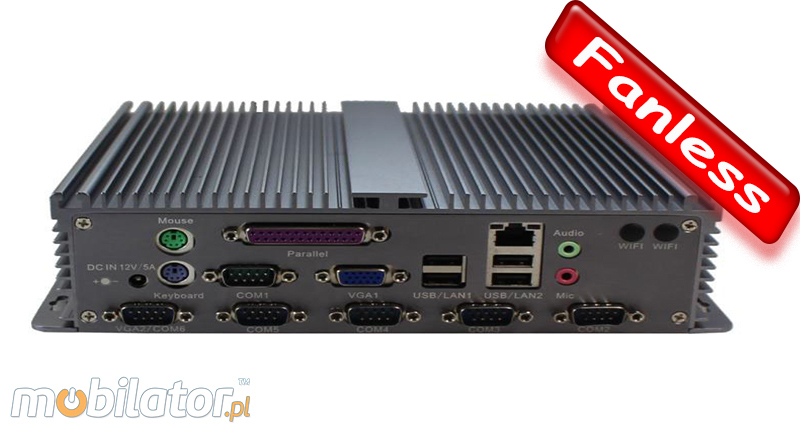

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

IBOX-1037uA is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

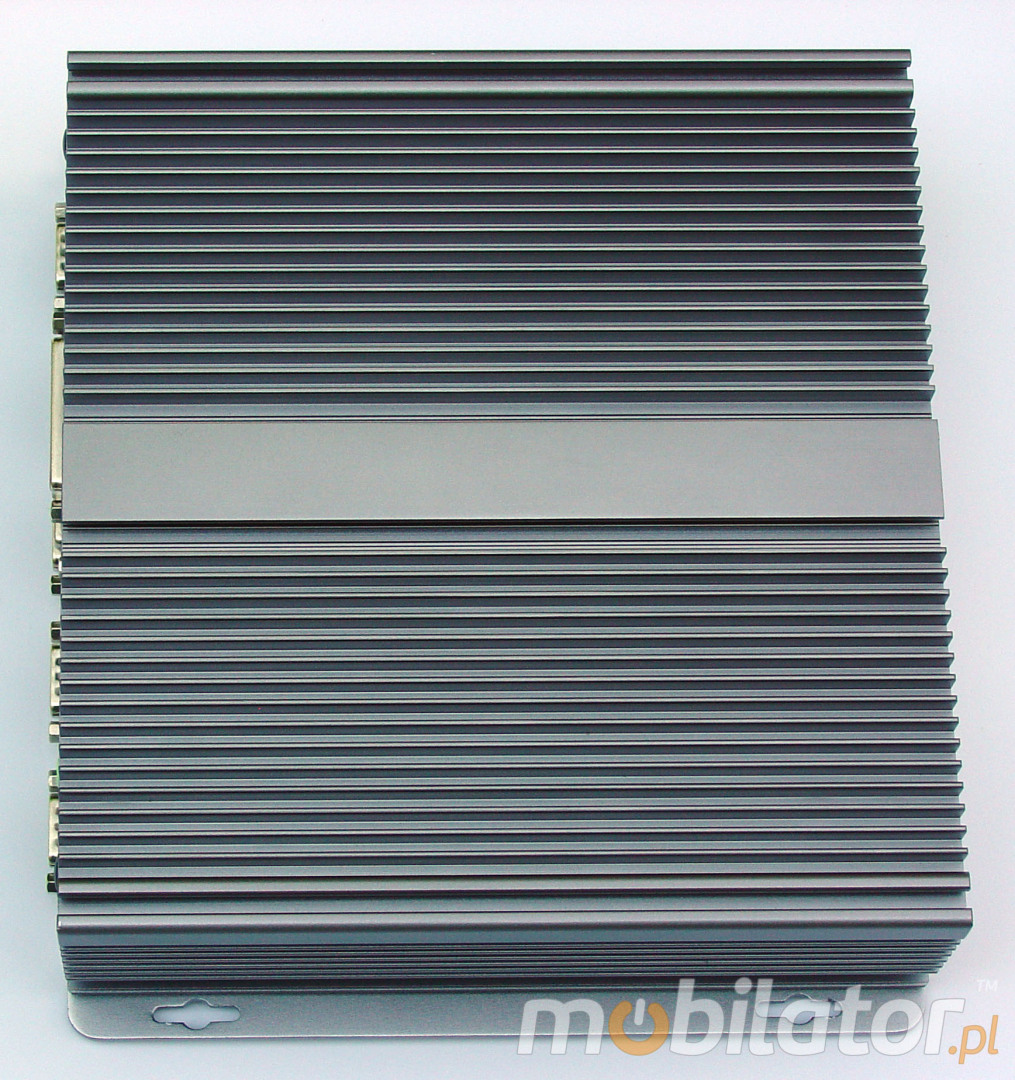

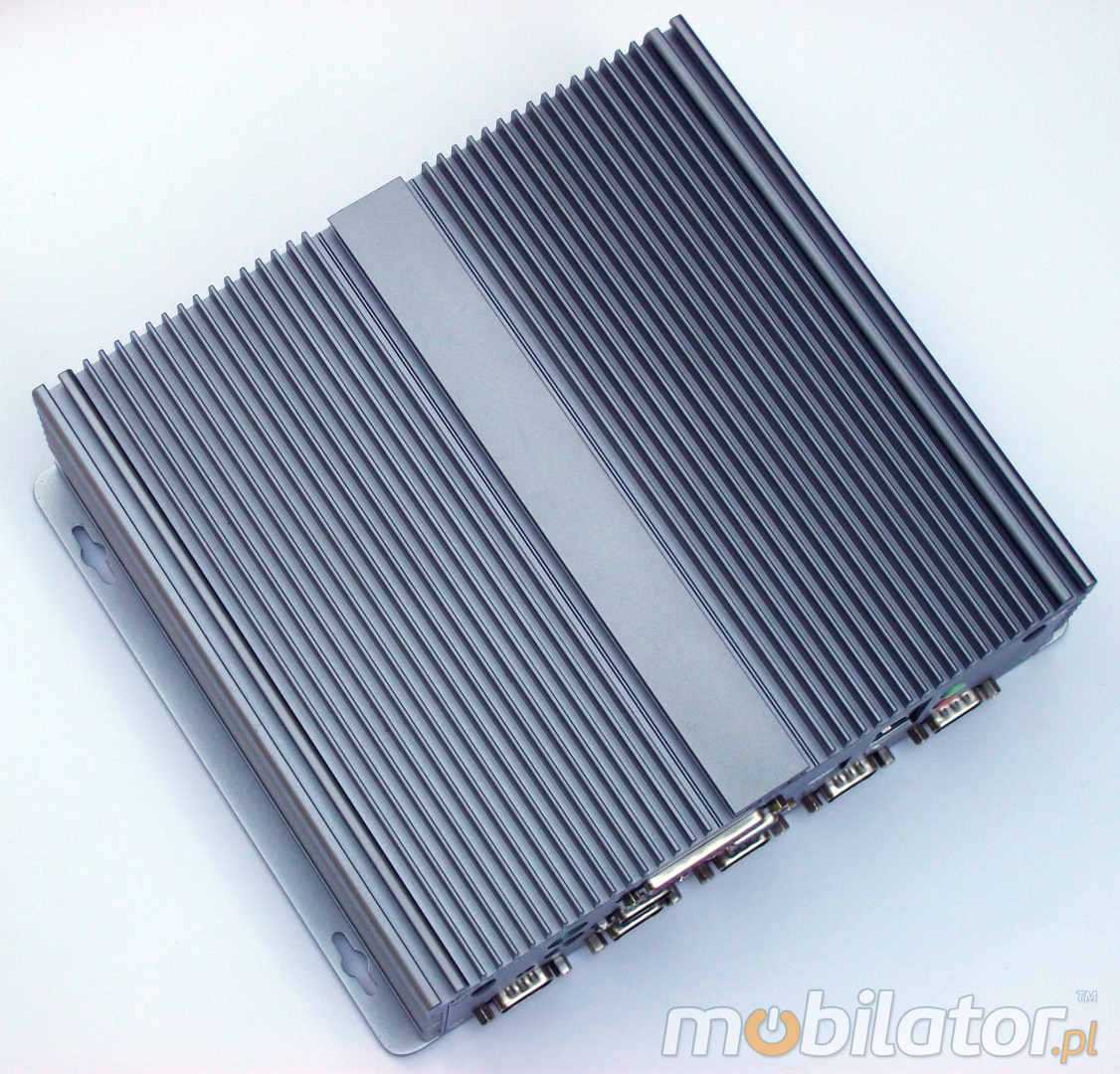

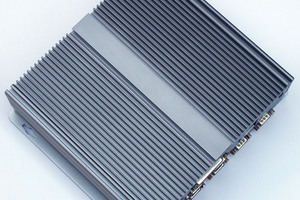

Housing dimension are 234 (W) x204 (L) x65 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.4 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel 2500 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 64GB SSD or 500GB HDD.

Przemysłowy Fanless MiniPC IBOX-1037uA

go top…

menu…

Communication & Connectors

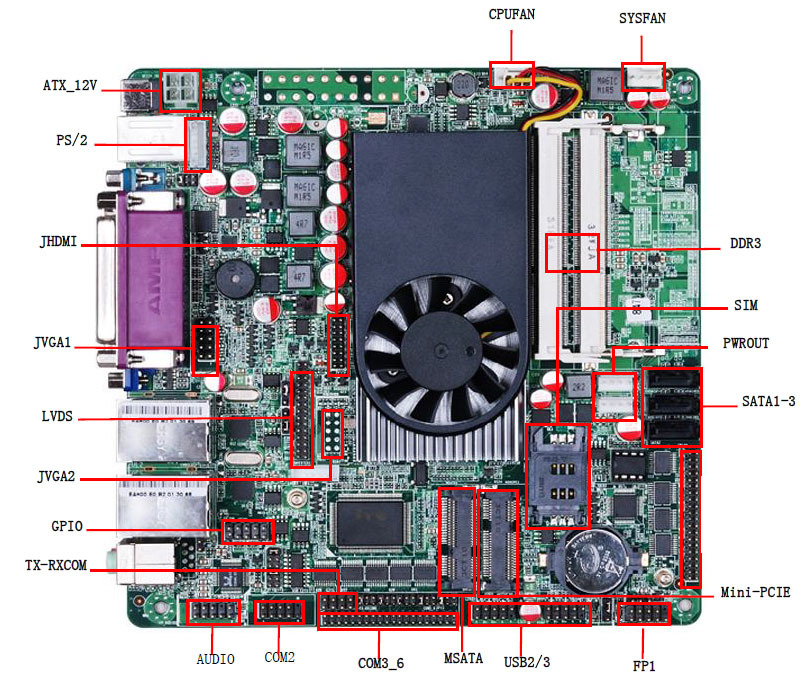

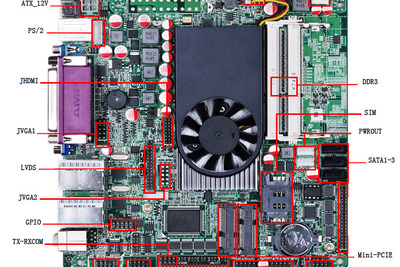

Integrated card - Intel RTL8105E 100M (optional WiFi module) allow connection to the network. The computer is equipped with: one LAN port, six COM ports (RS232) - in this can be 2x COM(RS422/485), one LPT port, one VGA output, eight USB 2.0 ports, one way audio, one microphone input and connectors built into the motherboard: four USB 2.0 ports, two PowerOUT outputs, one audio output, one CPUFAN, one HDMI connector, one SIM connector, one JVGA connector, one LVDS connector, one GPIO connector.

LVDS Interface
This is a fast digital interface that is used for many applications requiring: a high resistance to interference electromagnetic, low energy consumption at high data rates. LVDS is used in various applications and industries, including commercial and military applications.

General-purpose input/output (GPIO)
This is a generic pin on an integrated circuit whose behavior, including whether it is an input or output pin, can be controlled by the user at run time. GPIO pins have no special purpose defined, and go unused by default. The idea is that sometimes the system integrator building a full system that uses the chip might find it useful to have a handful of additional digital control lines, and having these available from the chip can save the hassle of having to arrange additional circuitry to provide them.

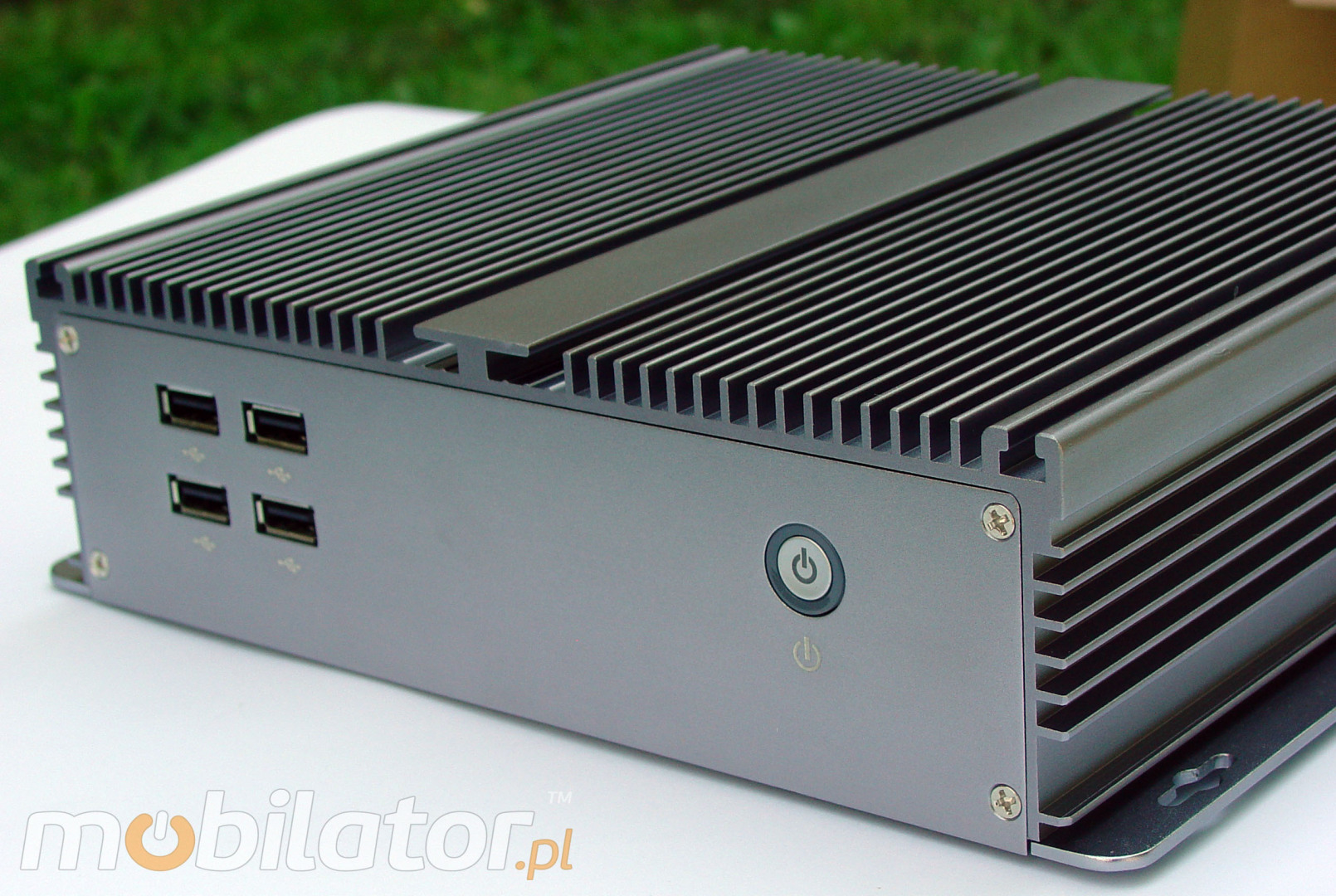

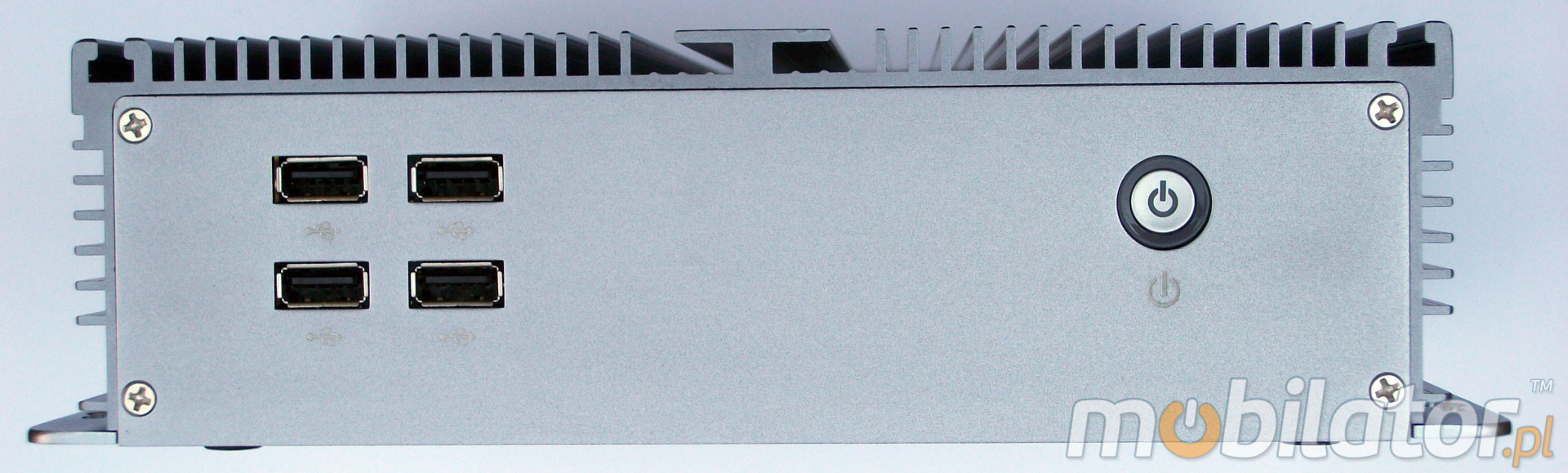

Przemysłowy Fanless MiniPC IBOX-1037uA

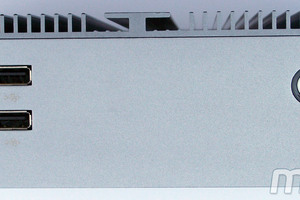

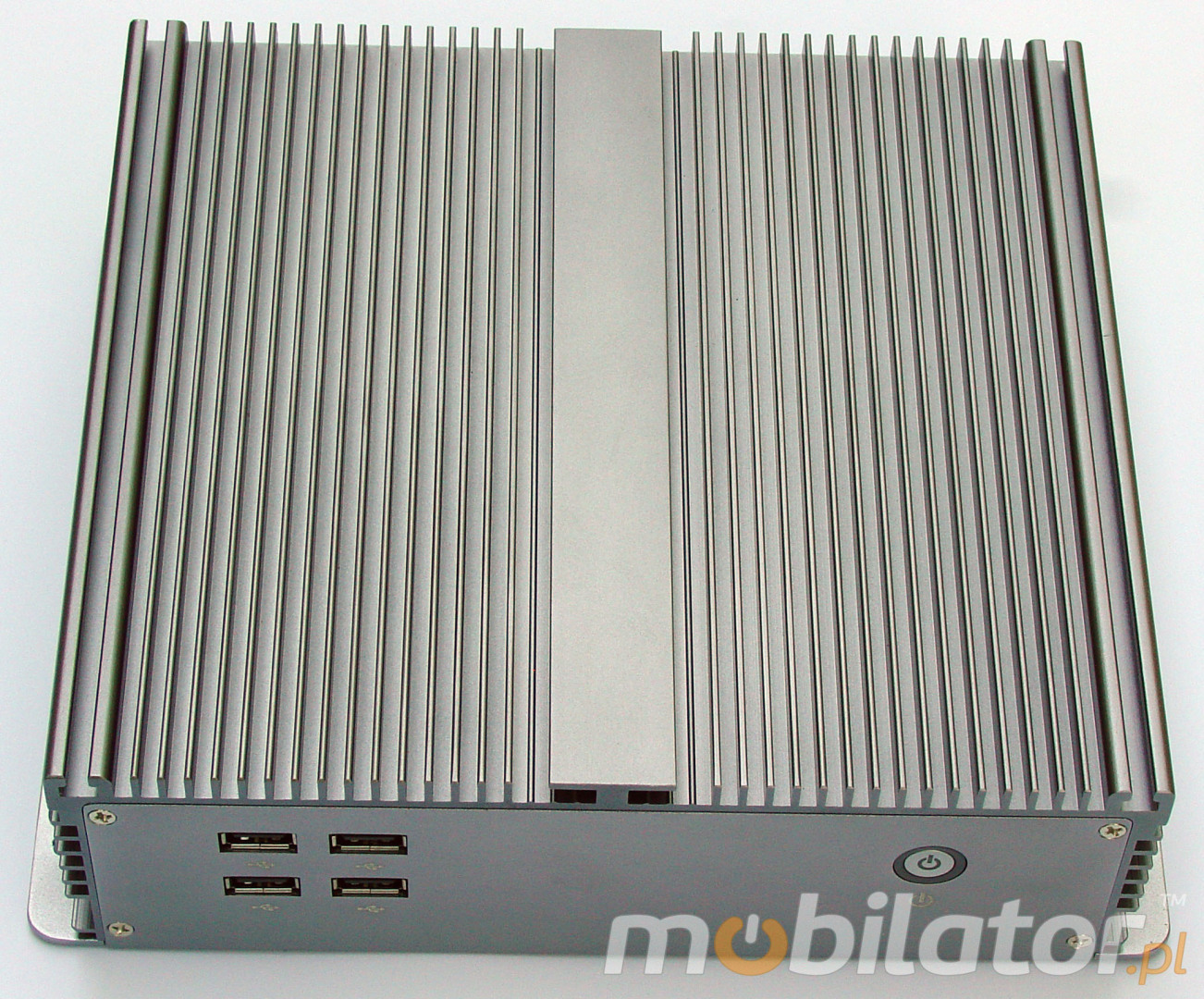

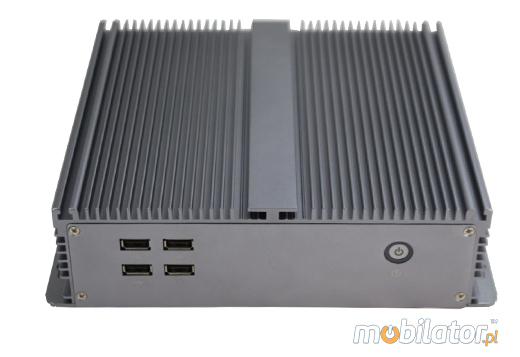

1. 4x USB 2.0
2. Power

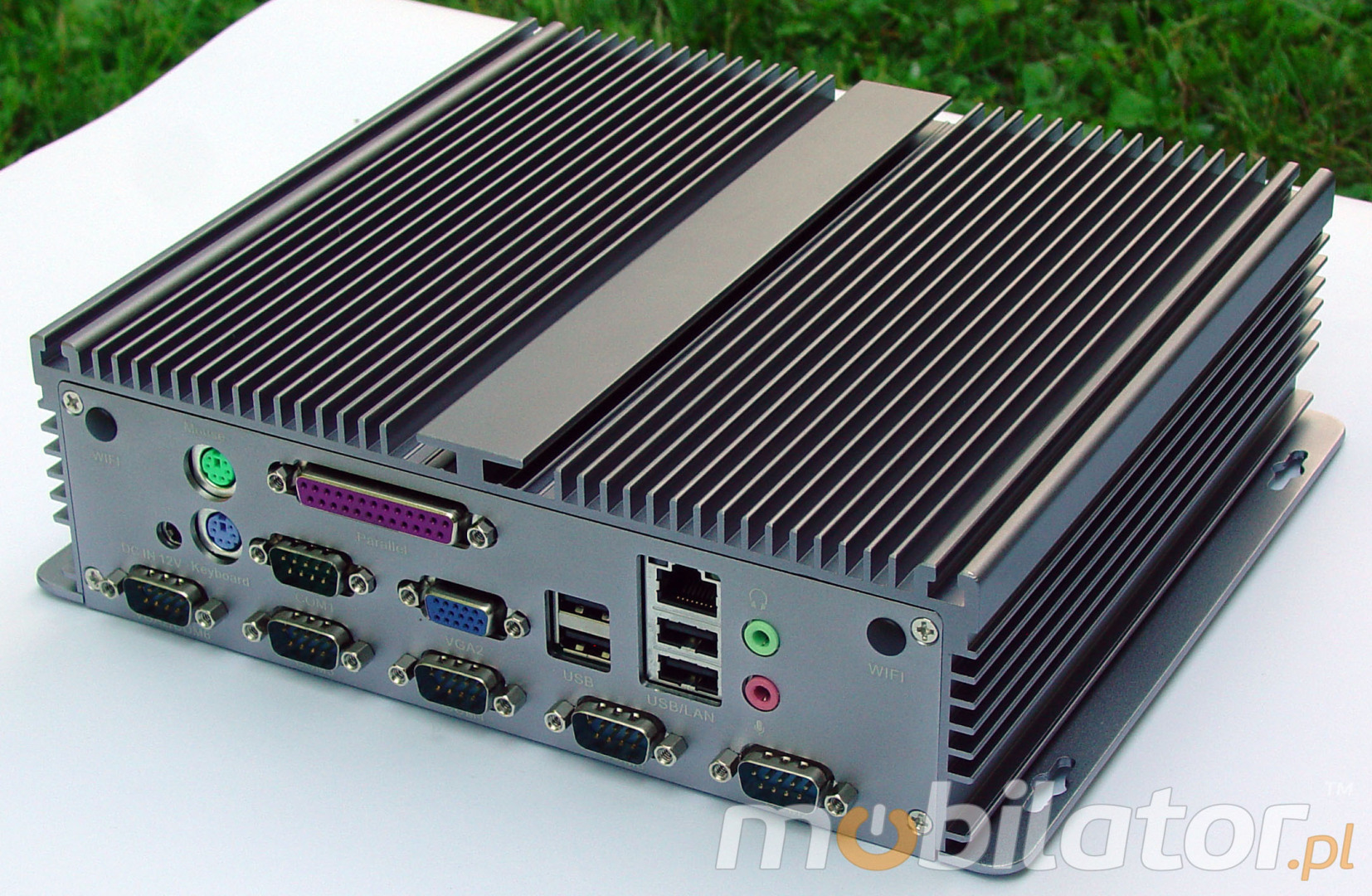

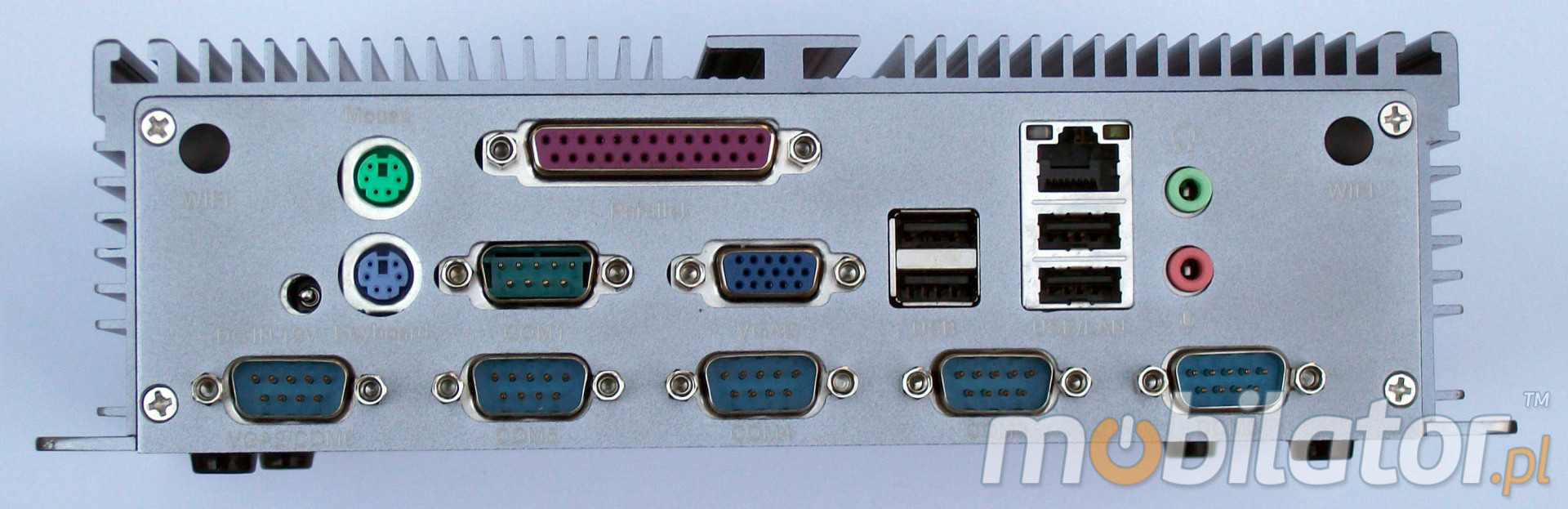

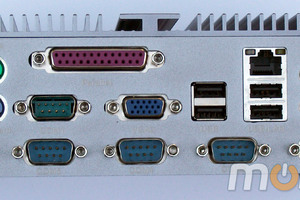

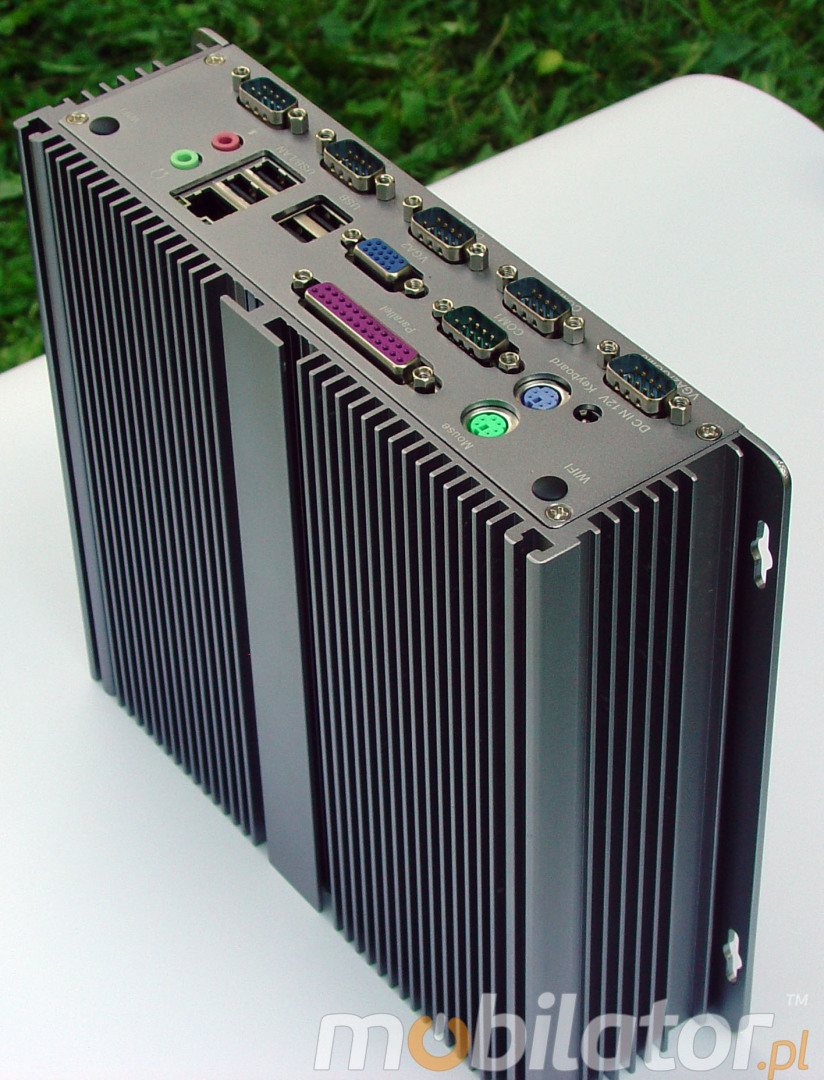

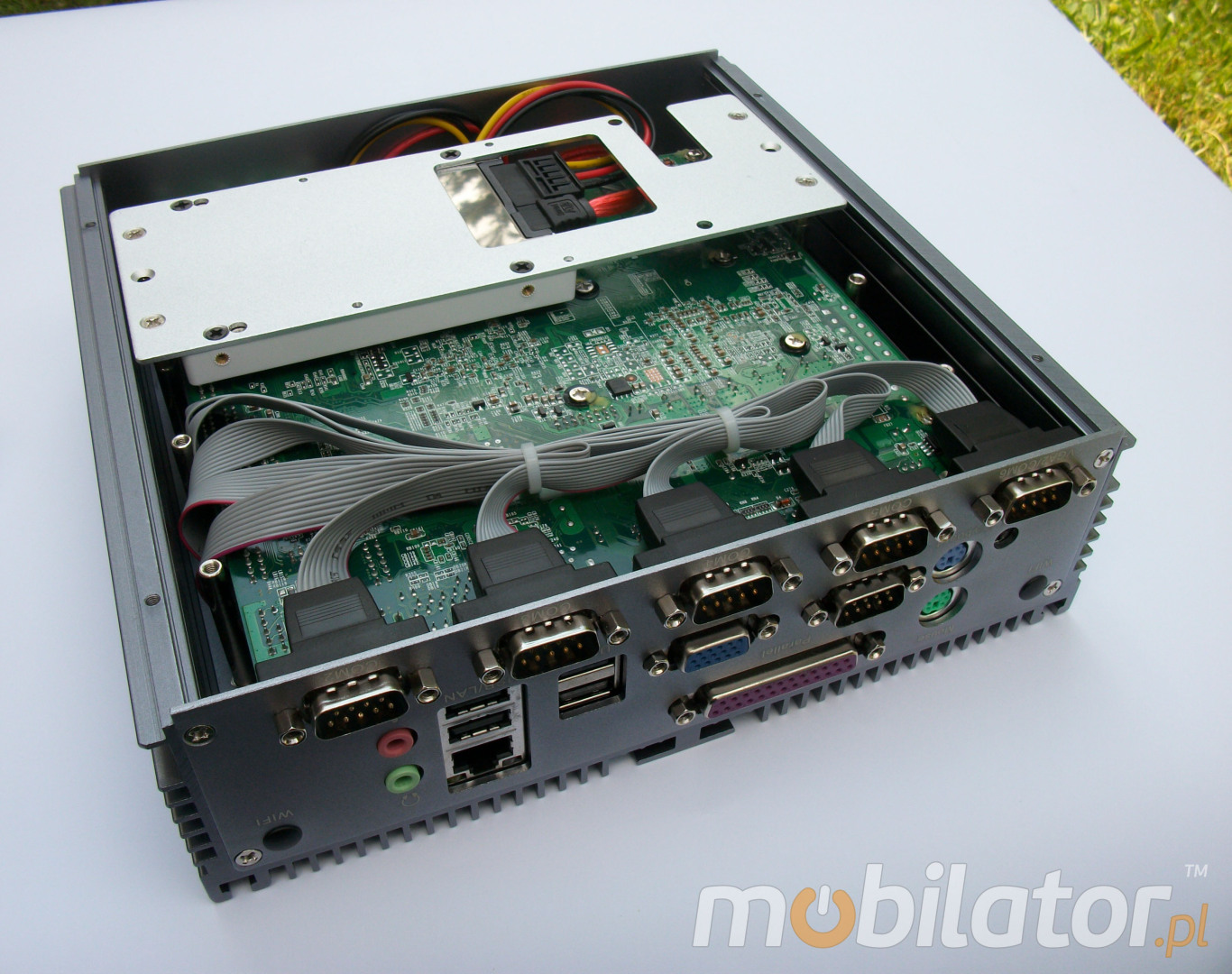

Przemysłowy Fanless MiniPC IBOX-1037uA

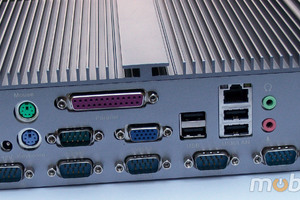

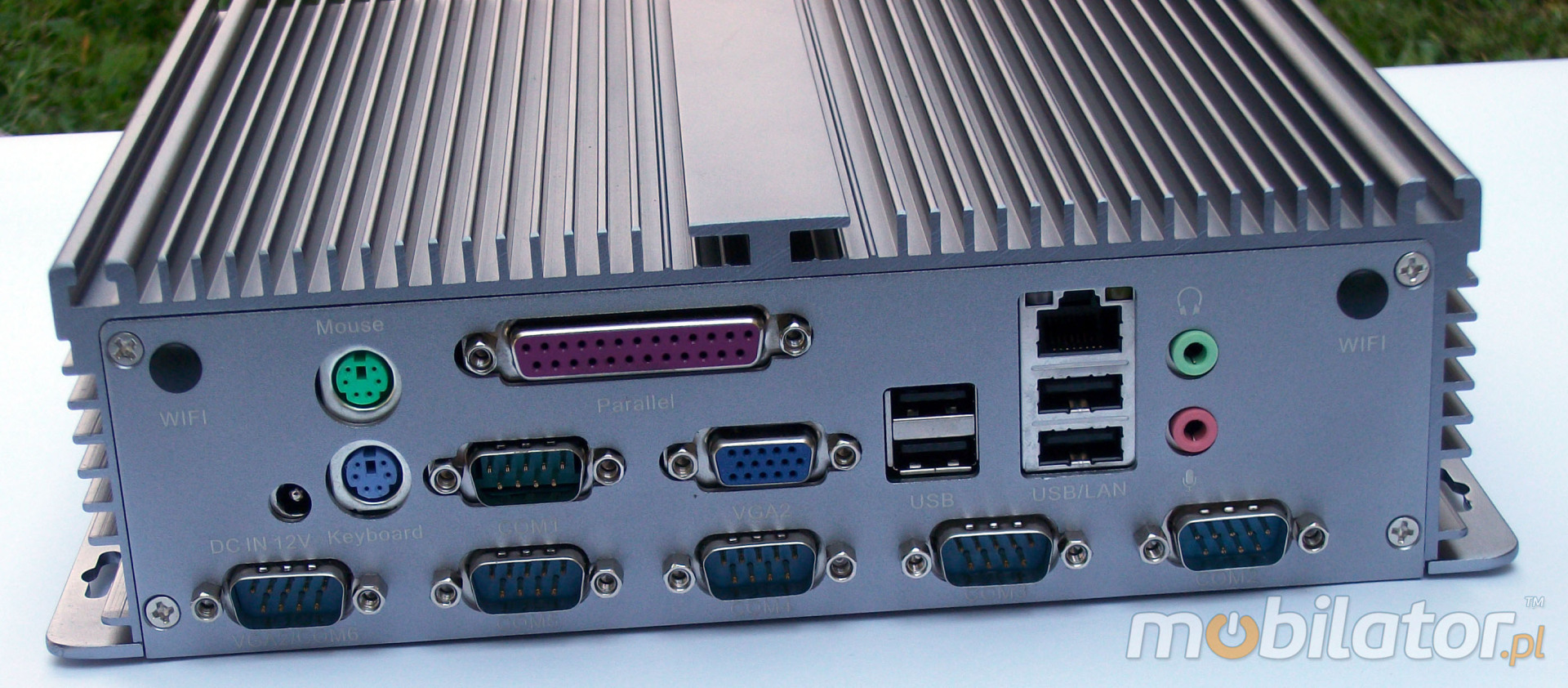

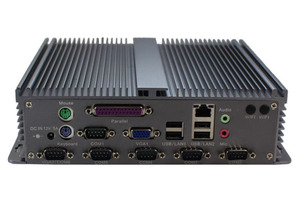

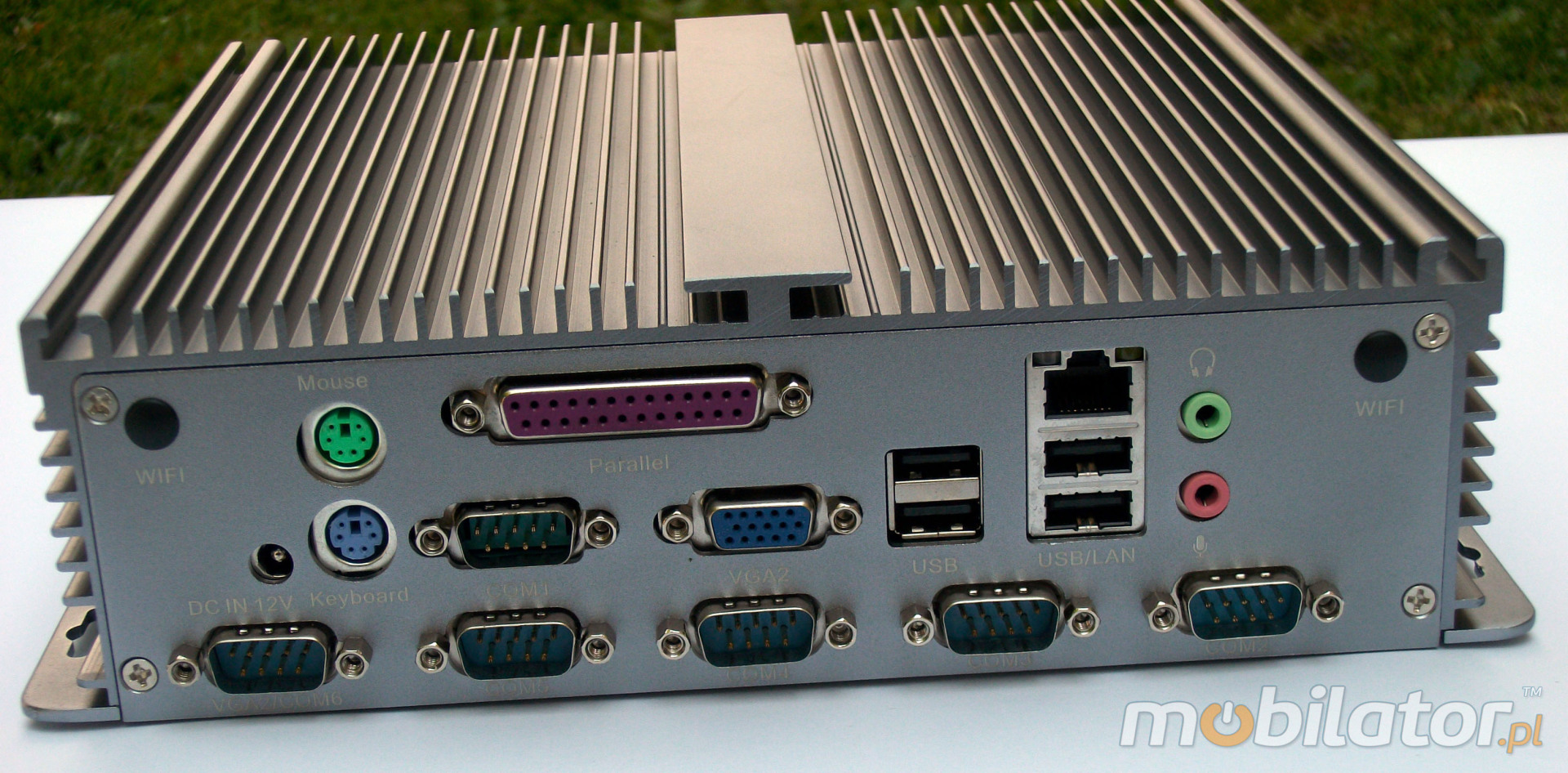

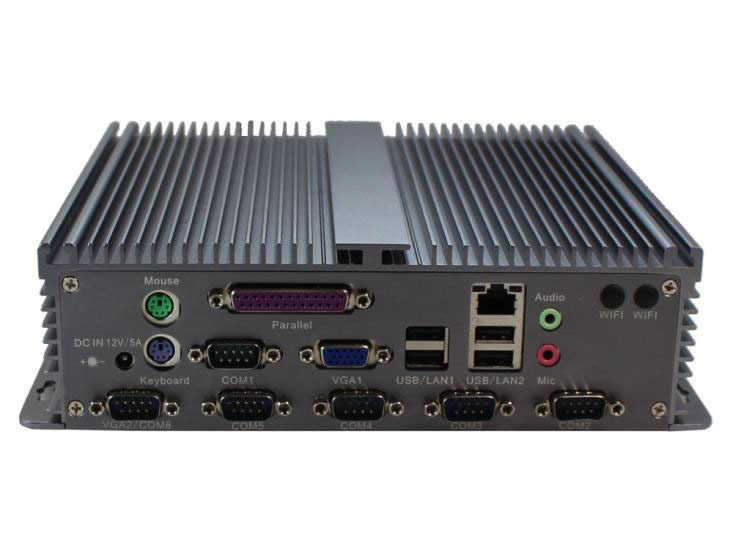

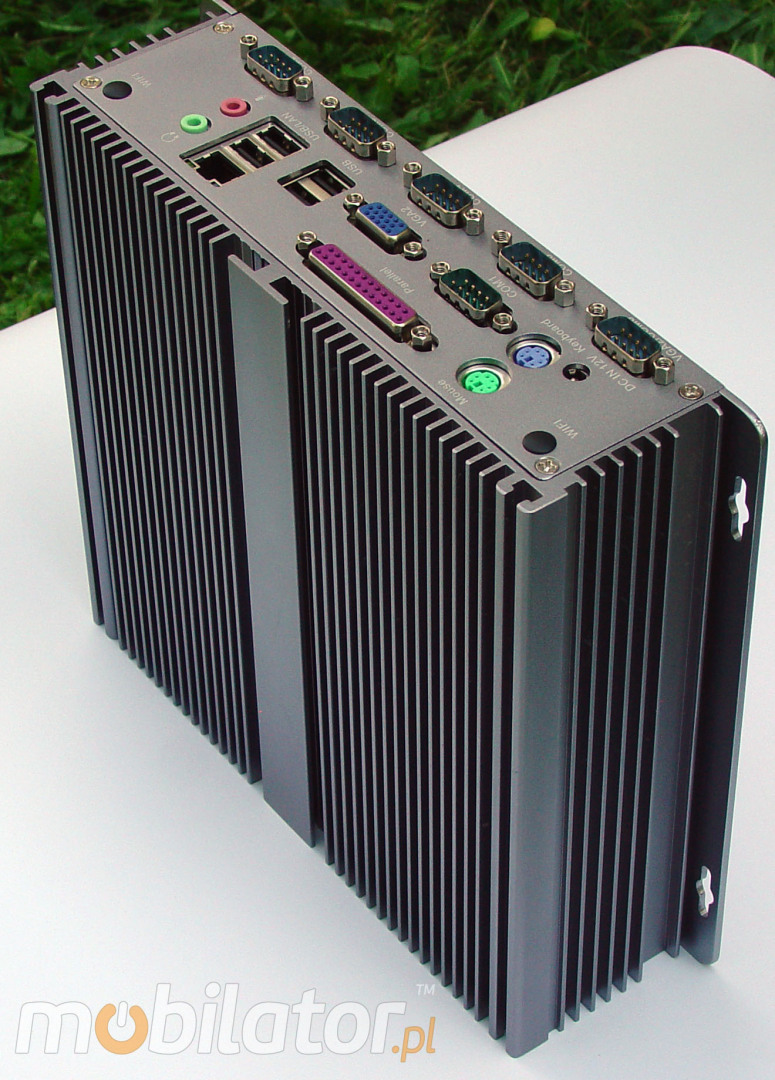

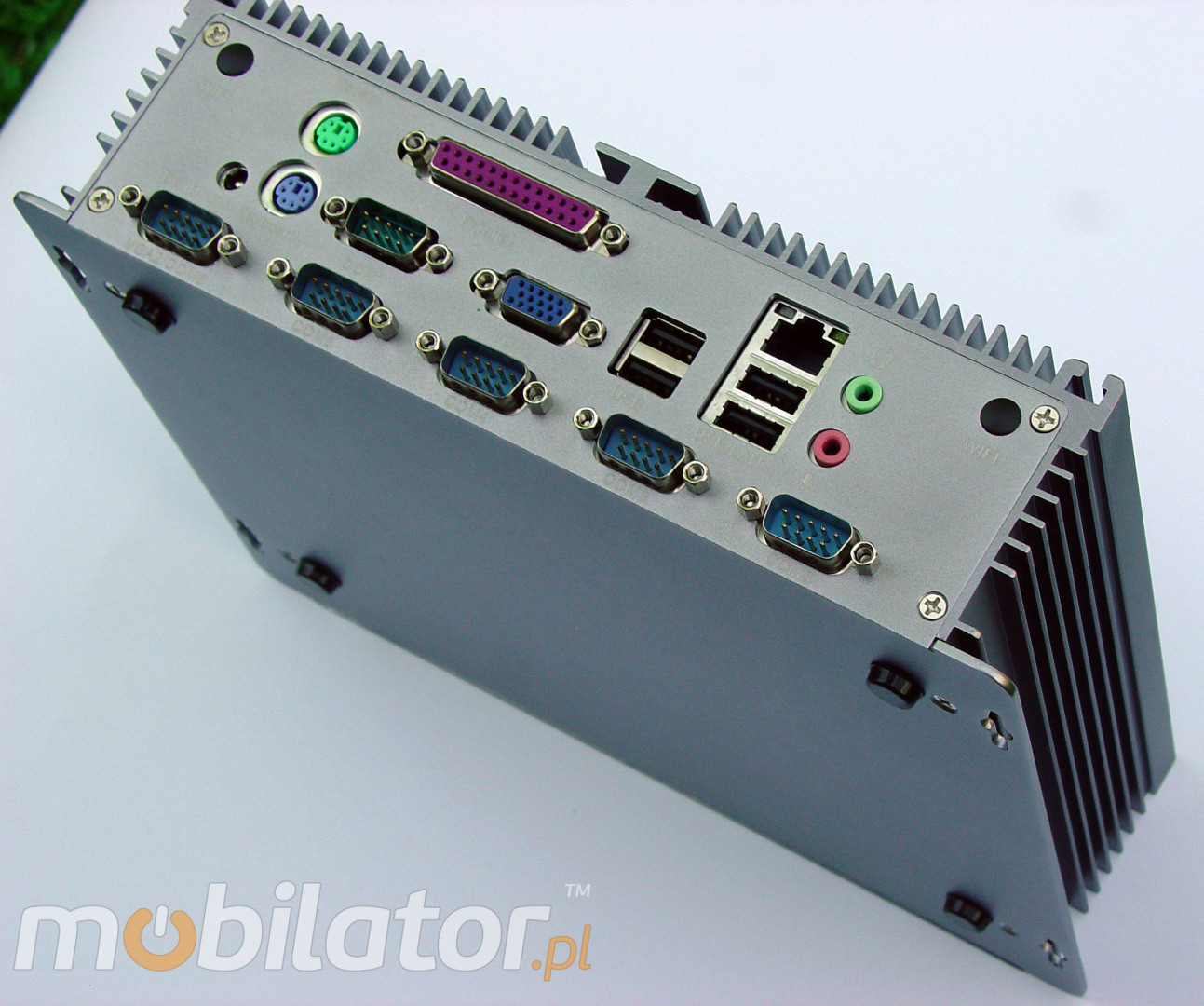

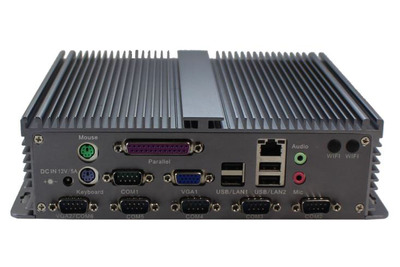

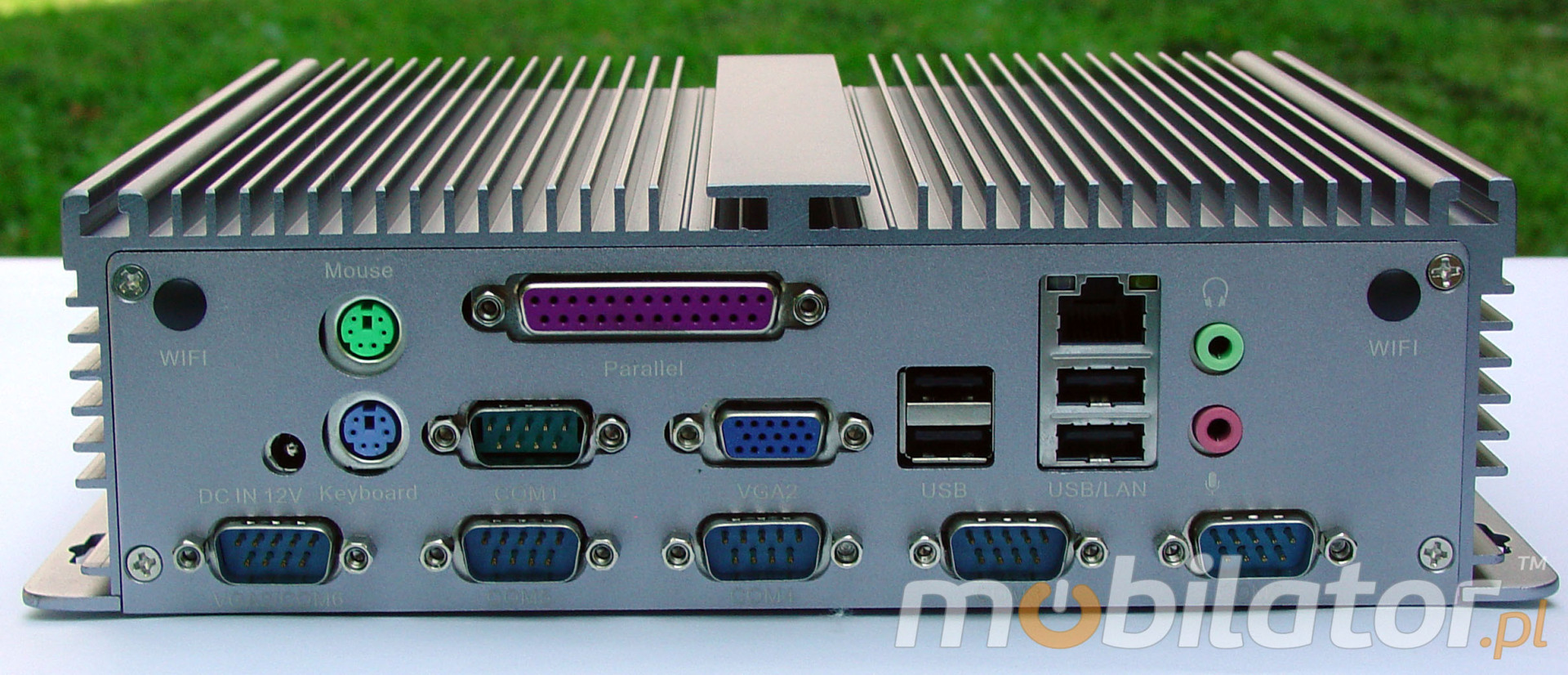

1. DC-IN 12V		5. 4x USB 2.0
2. 2x PS/2		6. 1x RJ-45
3. 1x LPT		7. Audio/Mic
4. 1x VGA		8. 6x COM(RS232)

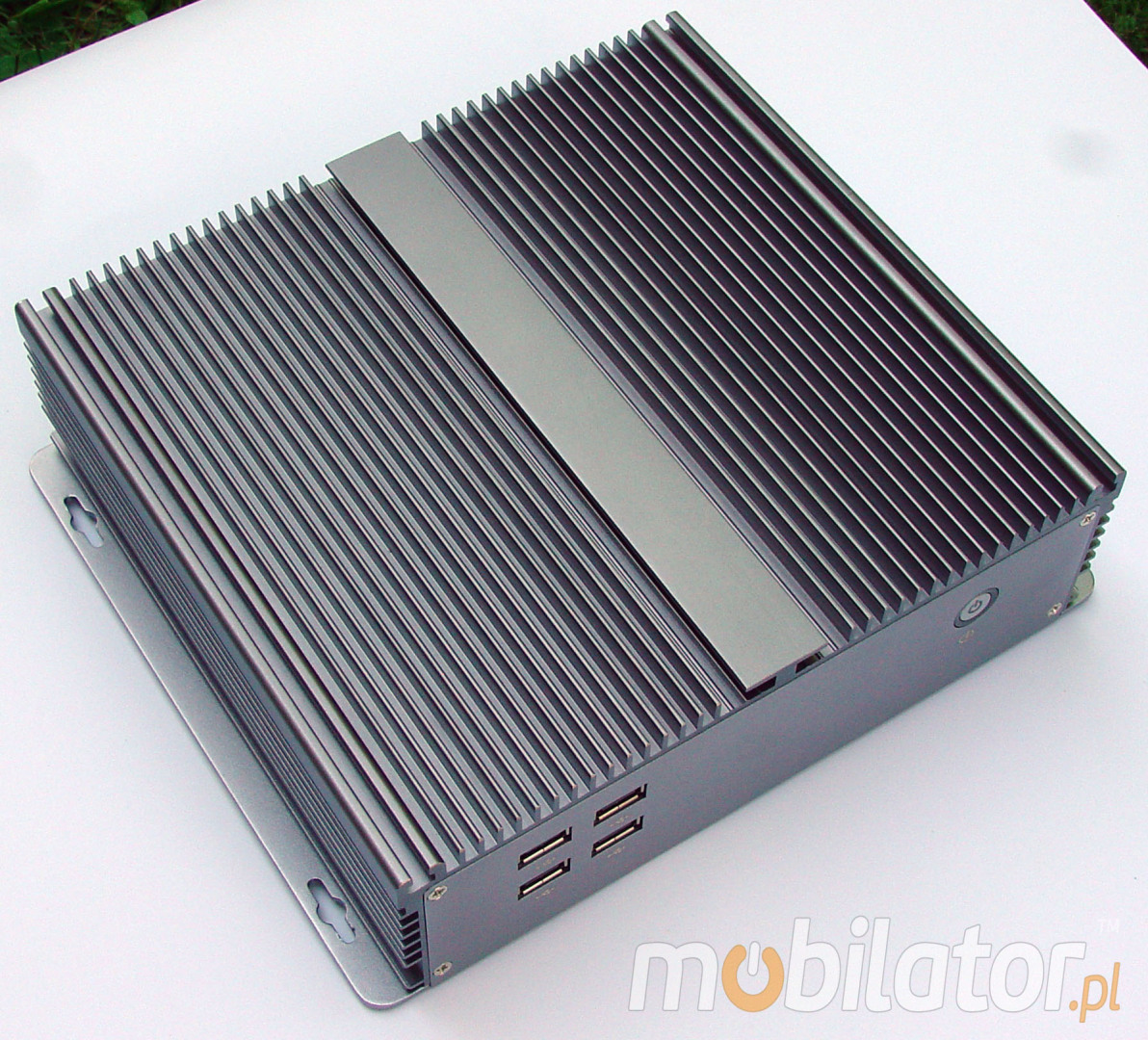

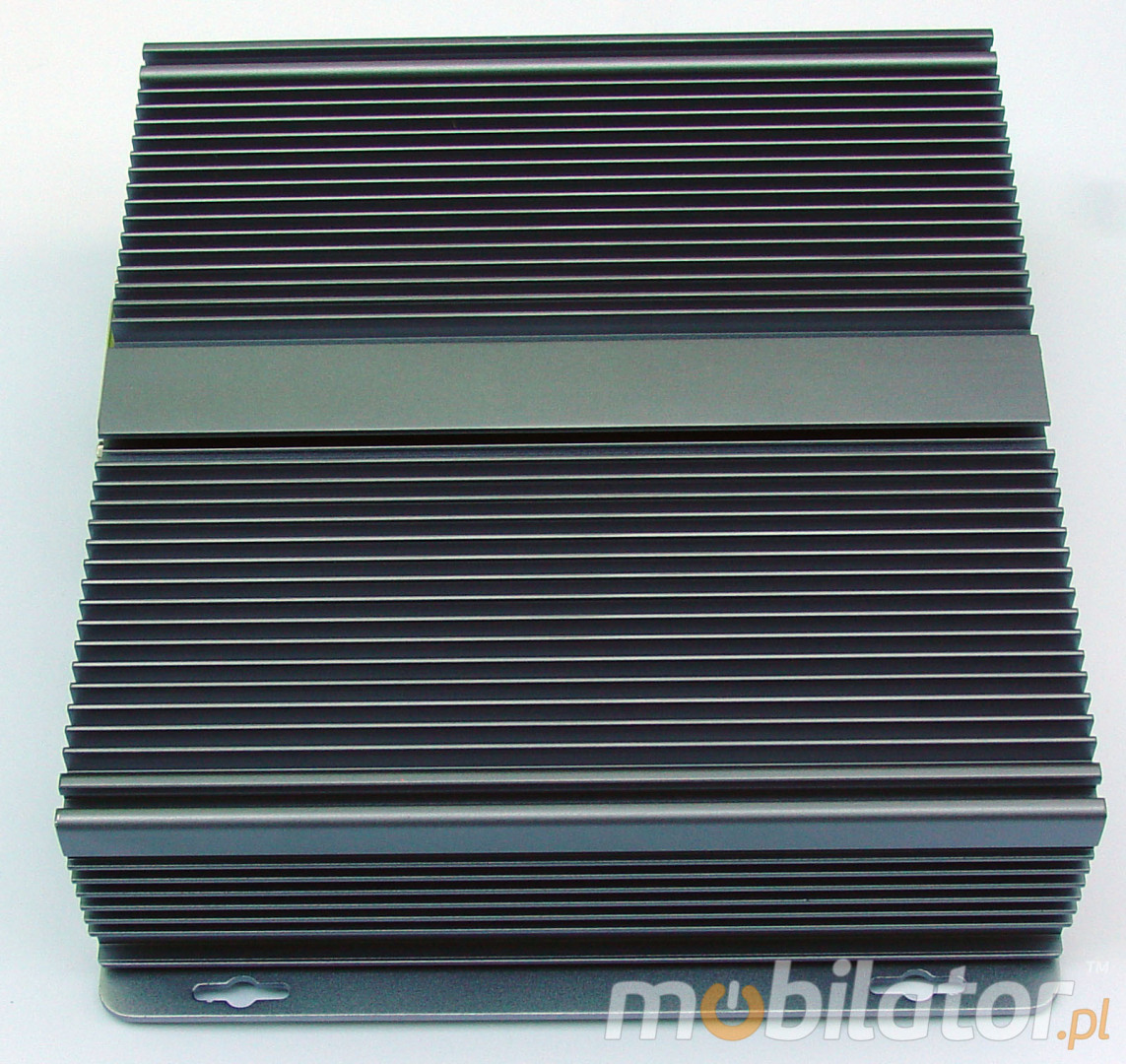

Cooling

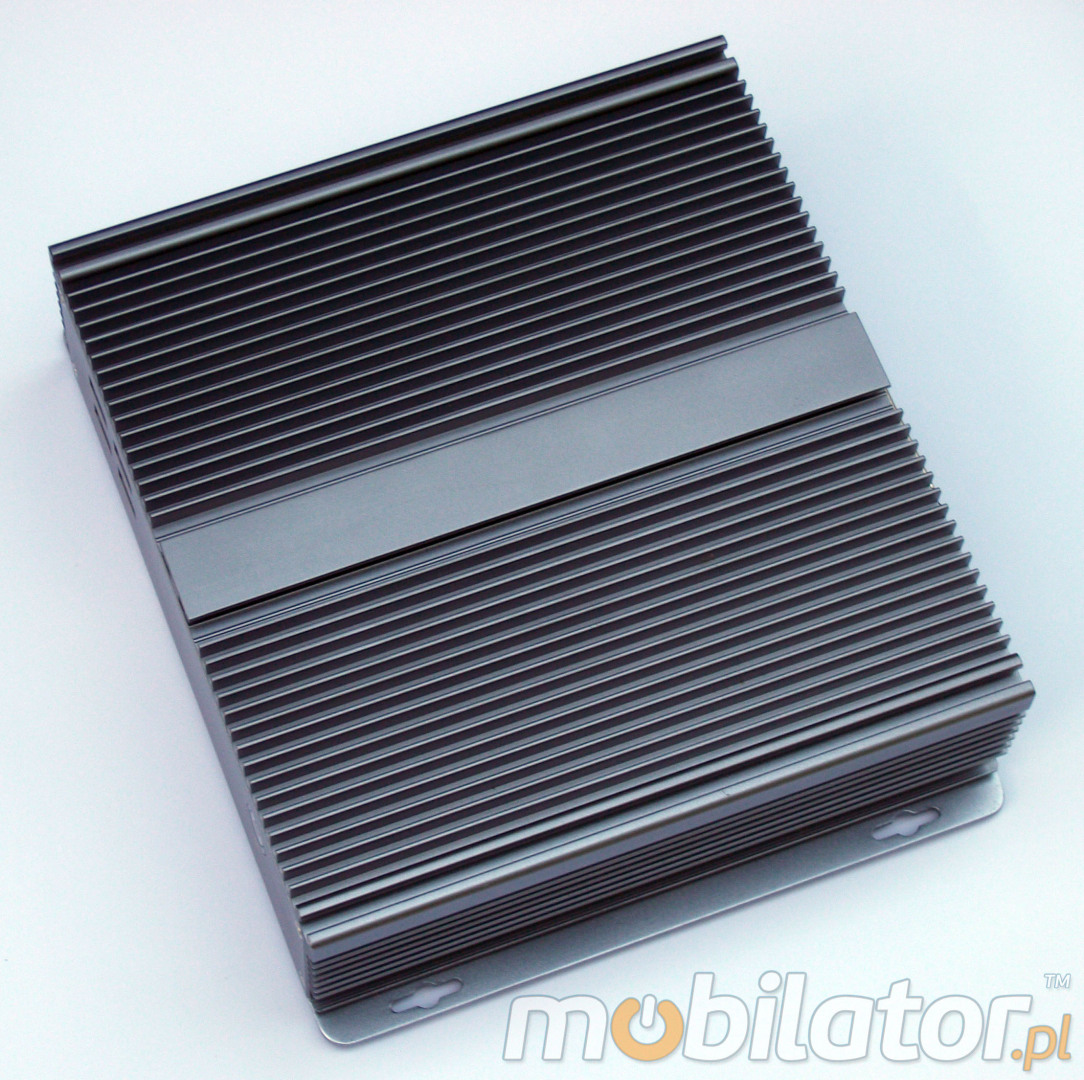

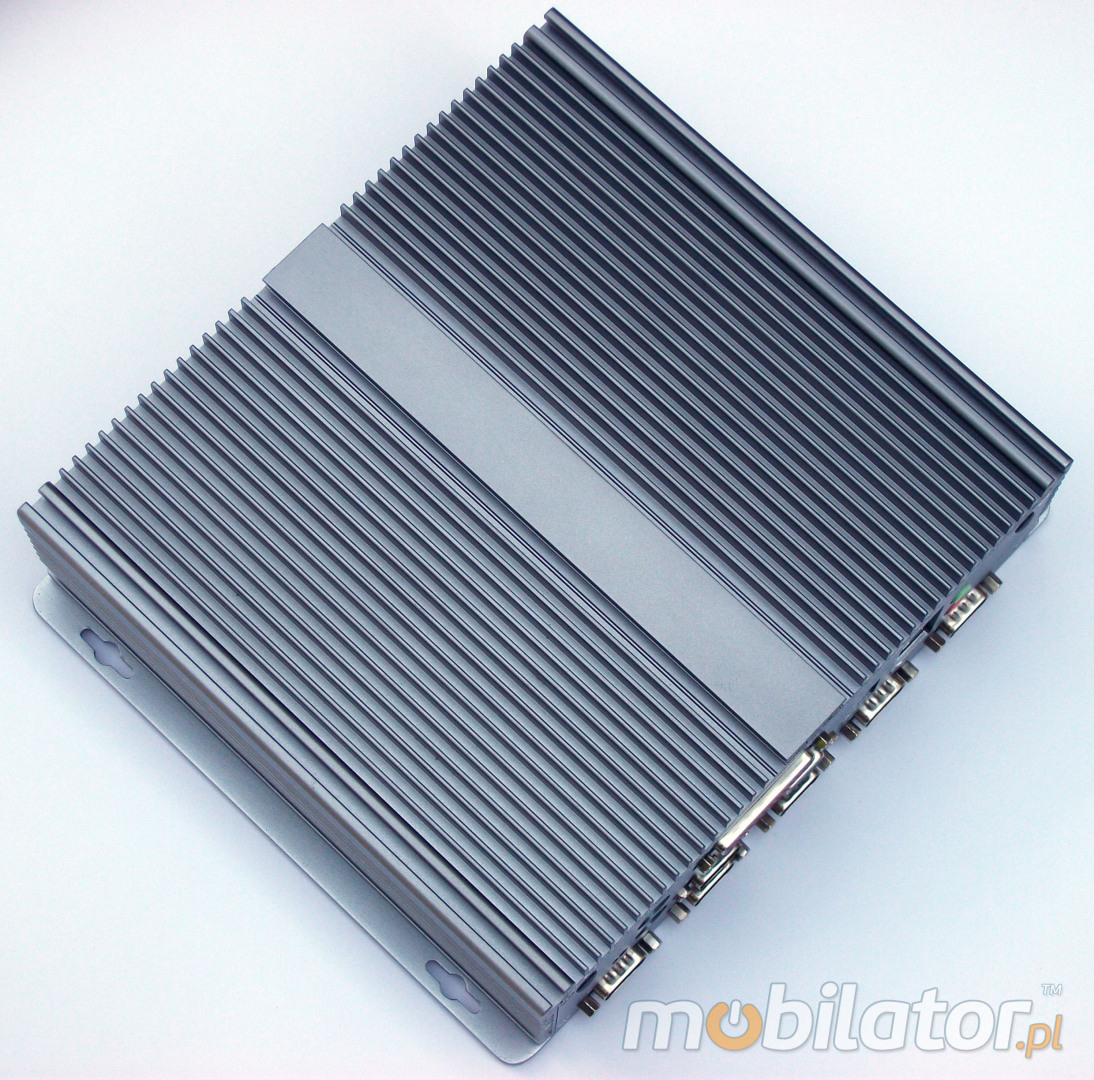

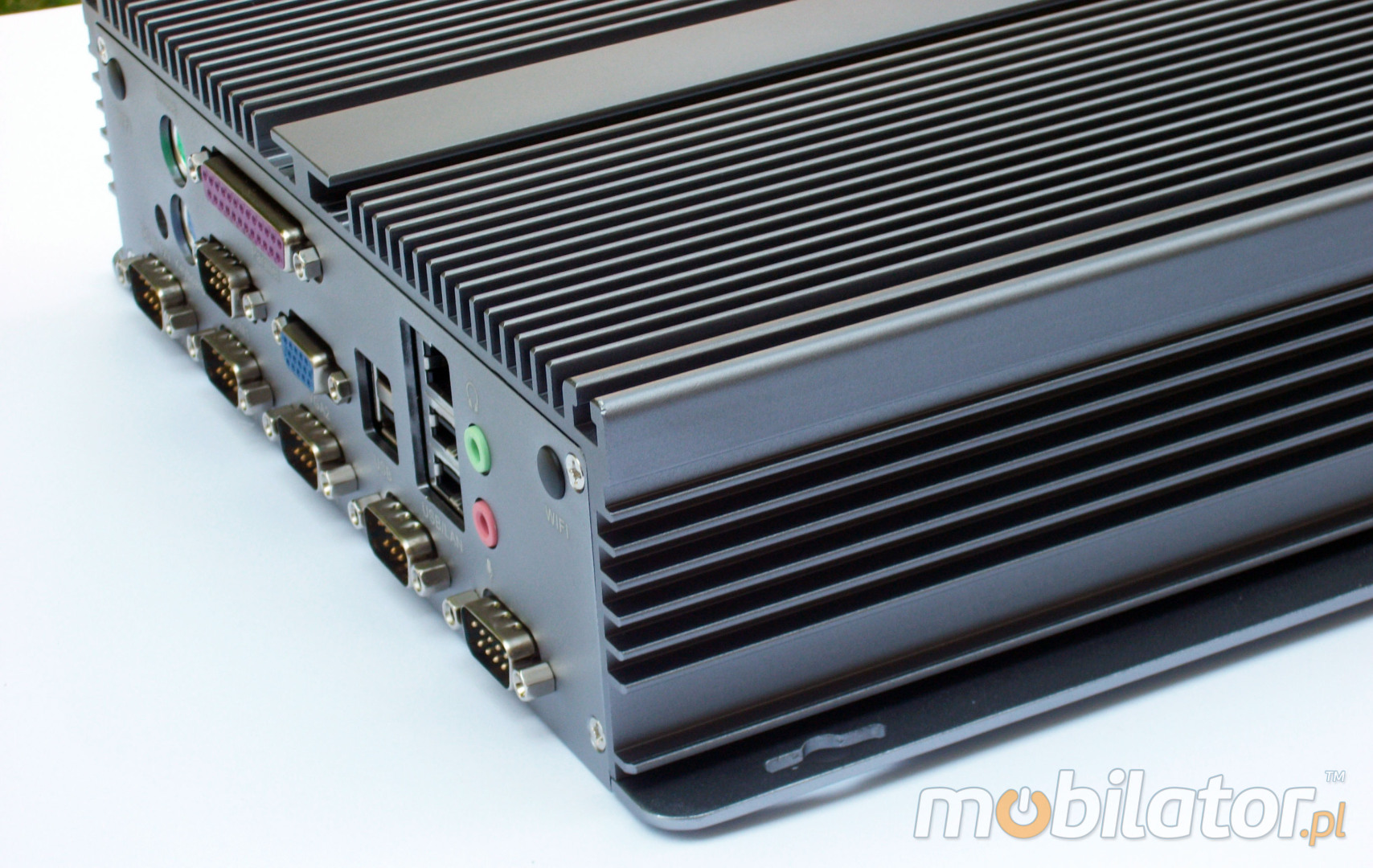

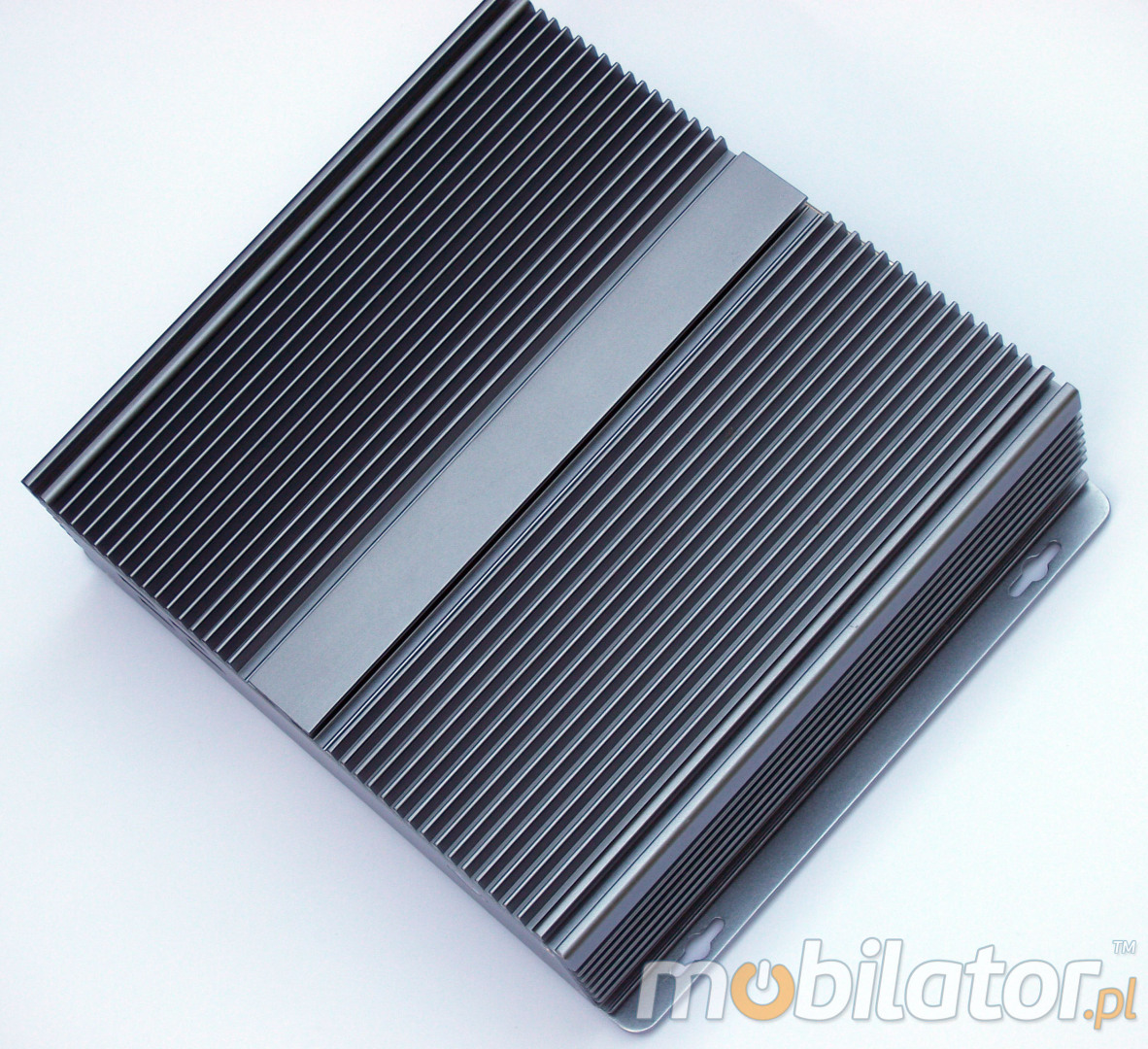

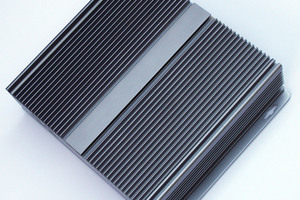

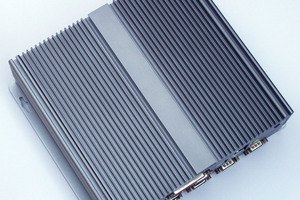

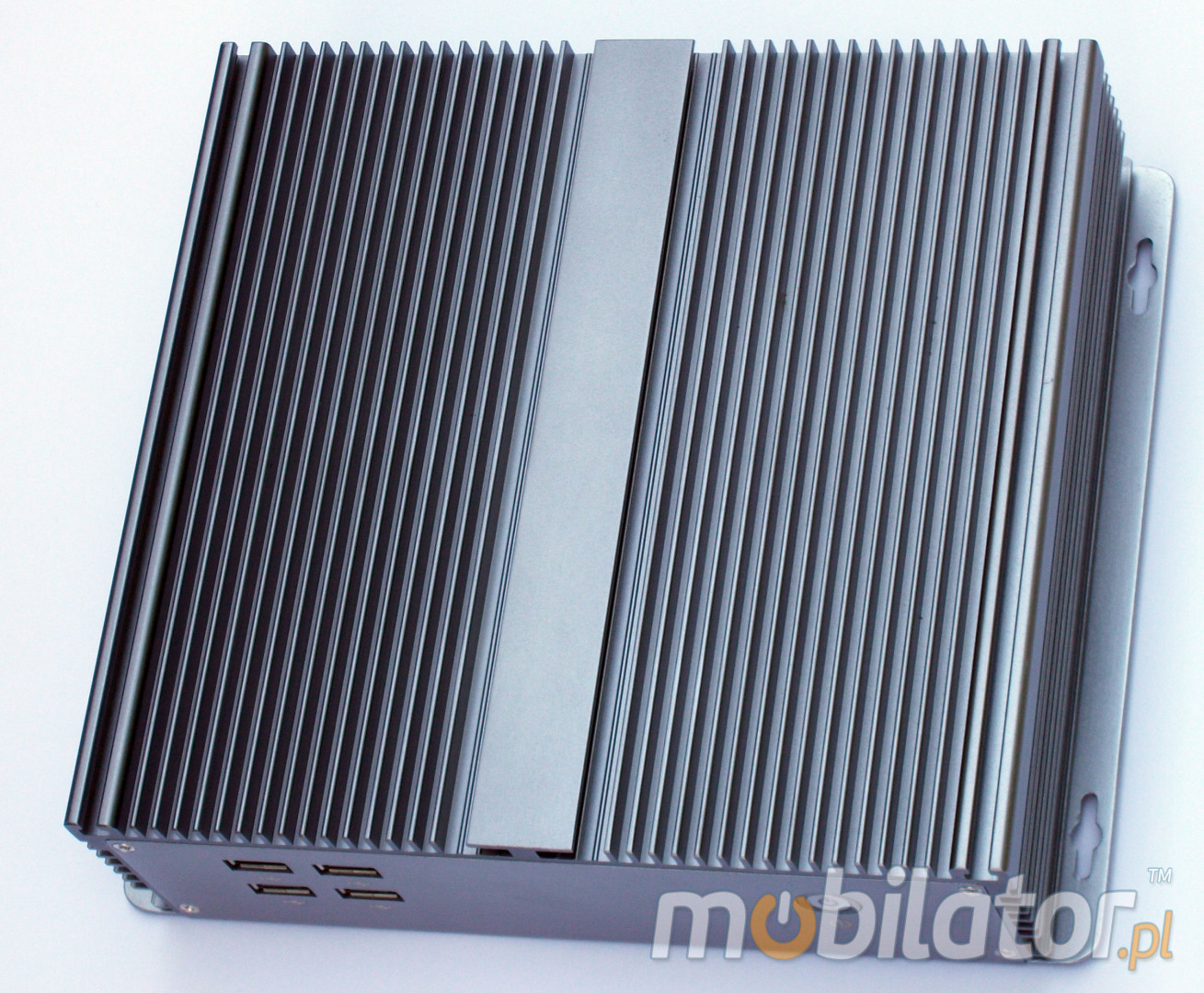

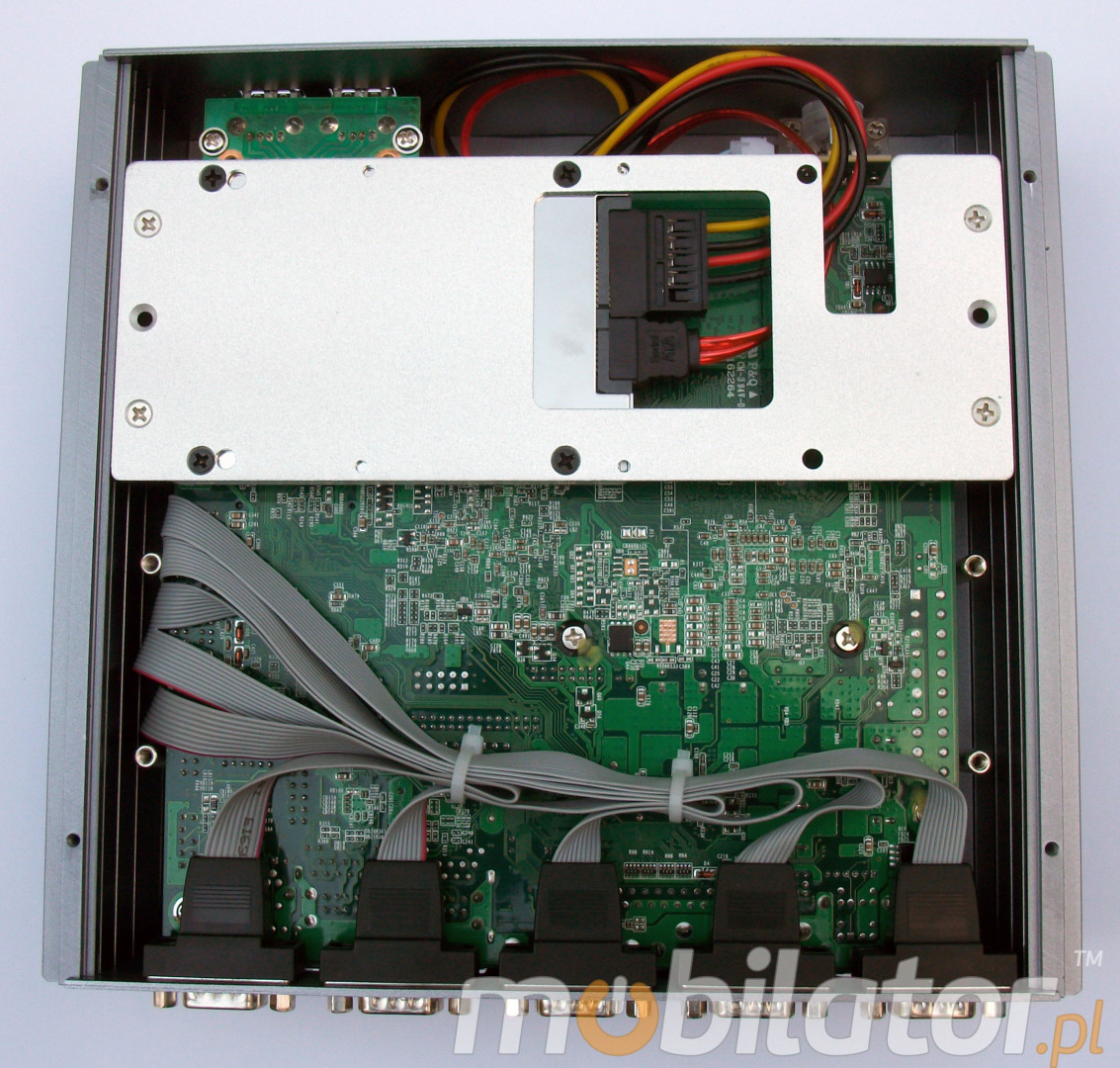

The industrial fanless MiniPC IBOX-1037uA uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go top… menu…

Application

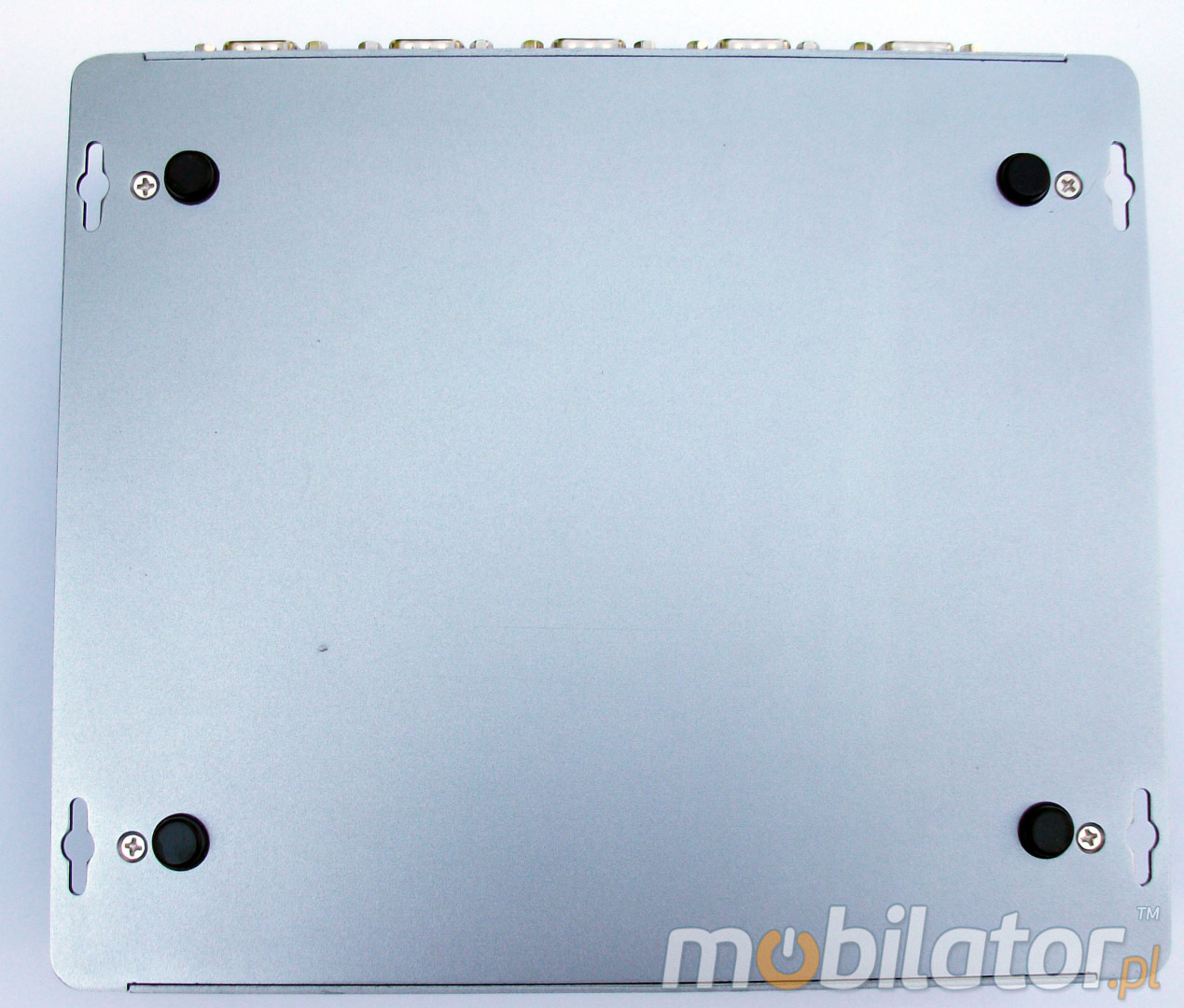

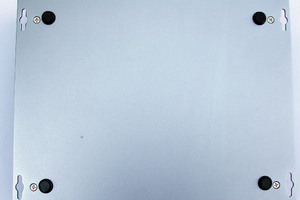

Industrial MiniPC Series IBOX-1037uA are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Przemysłowy Fanless MiniPC IBOX-1037uA of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Przemysłowy Fanless MiniPC IBOX-1037uA

Areas of use of industrial MiniPC

Digital Engine

Przemysłowy Fanless MiniPC IBOX-1037uA

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Industrial fanless MiniPC IBOX-1037uA by to six COM port (RS232) can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless IBOX-1037uA can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 6V to 34V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Przemysłowy Fanless MiniPC IBOX-1037uA

go top…

menu…

Specifications

Dimension	H: 65 mm L: 204 mm W: 234 mm
Weight	2,4kg
Processor	Intel Celeron 1037u (2x 1.8GHz)
Chipset	Intel NM70 express chipset
RAM Memory	4GB DDR3
Graphic Card	Intel 2500
Sound Card	Realtek ALC662
WLAN	Intel RTL8105E 100M Lan
Connectors	6x COM(RS232) 1x wyjście 12V DC_JACK 8x USB 2.0 1x RJ-45 1x wyjście Audio 1x LPT 1x Mic 1x VGA

Supported OS
Microsoft Windows: XP/Vista/7 , Linux
Installed OS
-----
Chipset
Intel NM70
CPU Support
-----
Installed CPU
Intel Celeron 1037u (2x1.8GHz)
Graphic Card
Intel 2500
Memory Support
2GB DDR3 (can up to 8GB)
Installed Memory
4GB DDR3
Storage (HDD) Support
-----
Installed Storage (HDD)
64 GB SSD or 500GB HDD
IP Norm
-----
Temp
-10℃ ~ 60℃
Storage temperature
-20 - 70 ℃
Humidity
0 ~ 95%
Others
Colour Black, Case
LAN
Intel RTL8105E 100M Lan
Wireless LAN card
-----
3G
No (opctional Yes)
Bluetooth
-----
Rear Panel (ports)
4x USB 2.0,
1x Audio,
1x RJ-45,
DC-in Jack,
 1x LPT,
1x Mic,
6x COM(RS232),
1x VGA
Front Panel (ports)
4x USB 2.0,
 Audio/Mic
Expansion
-----

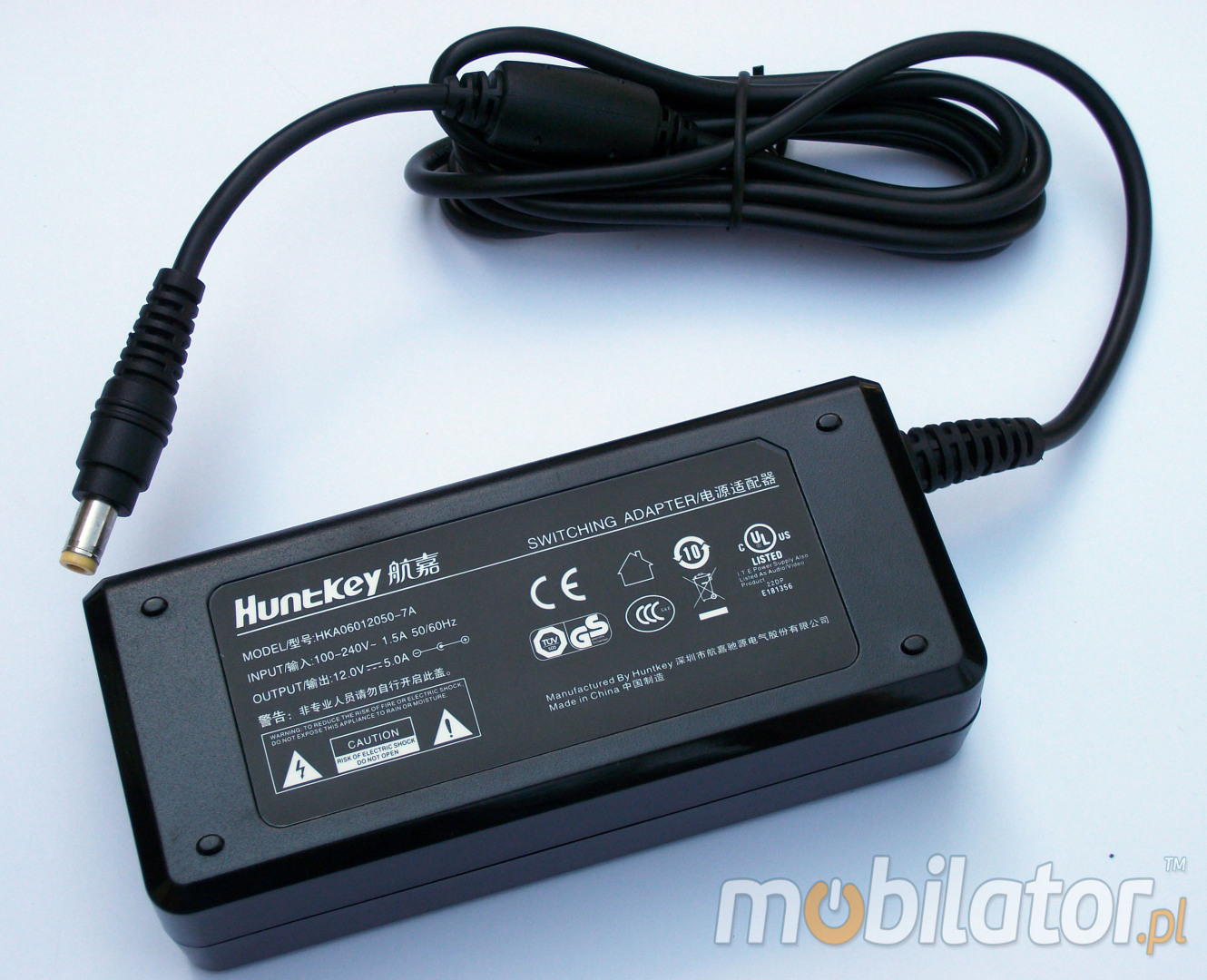

Power
12V
Watch Dog Timer
0 ~ 255 sec
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
234 x 204 x 65  mm
Fanless
Yes
Weight
2.4 kg
Responsible Entity / Distributor
New Portable Devices

User manual
IBOX-1037uA User Manual
1.07 MB
29.05.2014
Windows 7/8
Download
Driver
Microsoft .NET Framework 4 -1037uA_D2550A_i3D61-S120_i5M61-X8_M100-X4_M847-S100
35.25 MB
26.06.2014
Windows XP/Vista/7
Download
Driver
LAN - 1037uA_D2550A_i3D61-S120_i5M61-X8_M100-X4_M847-S100
37.40 MB
26.06.2014
Windows XP/Vista/7
Download
Driver
Intel N270 -1037uA_D2550A_i3D61-S120_i5M61-X8_M100-X4_M847-S100
41.95 MB
26.06.2014
Windows XP/Vista/7
Download
Driver
Intel G41 - 1037uA_D2550A_i3D61-S120_i5M61-X8_M100-X4_M847-S100
68.24 MB
26.06.2014
Windows XP/Vista/7
Download
Driver
Intel D525 - 1037uA_D2550A_i3D61-S120_i5M61-X8_M100-X4_M847-S100
39.12 MB
26.06.2014
Windows XP/Vista/7
Download
Driver
Intel D2550 -1037uA_D2550A_i3D61-S120_i5M61-X8_M100-X4_M847-S100
345.13 MB
26.06.2014
Windows XP/Vista/7
Download
Driver
Intel B75 - 1037uA_D2550A_i3D61-S120_i5M61-X8_M100-X4_M847-S100
325.86 MB
26.06.2014
Windows XP/Vista/7
Download
Driver
Intel 1037 - 1037uA_D2550A_i3D61-S120_i5M61-X8_M100-X4_M847-S100
320.02 MB
26.06.2014
Windows XP/Vista/7
Download
Driver
CIR - 1037uA_D2550A_i3D61-S120_i5M61-X8_M100-X4_M847-S100
11.39 MB
26.06.2014
Windows XP/Vista/7
Download
Driver
Audio - 1037uA_D2550A_i3D61-S120_i5M61-X8_M100-X4_M847-S100
91.57 MB
26.06.2014
Windows XP/Vista/7
Download
Driver
AMD - 1037uA_D2550A_i3D61-S120_i5M61-X8_M100-X4_M847-S100
498.44 MB
26.06.2014
Windows XP/Vista/7
Download
Driver
USB3.0 -1037uA_D2550A_i3D61-S120_i5M61-X8_M100-X4_M847-S100
17.59 MB
26.06.2014
Windows XP/Vista/7
Download
