Industrial Fanless |
Description

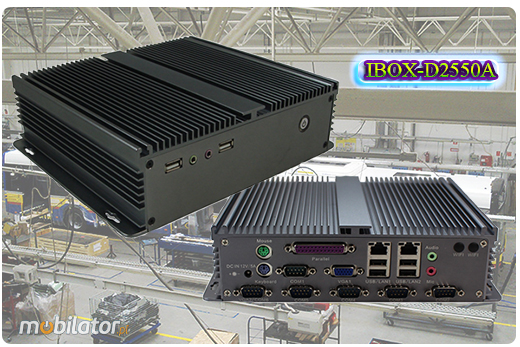

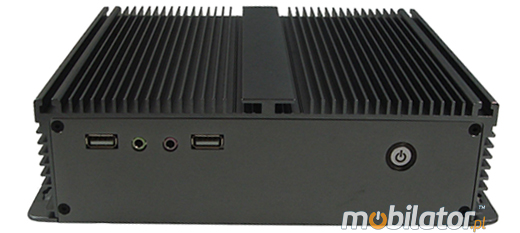

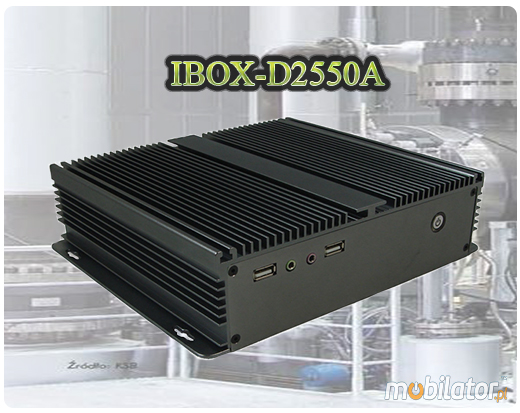

Housing dimensions are 234 (W) x204 (L) x65 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.4 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

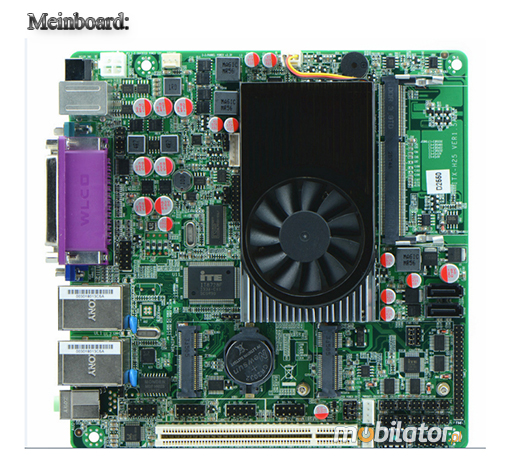

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel GMA3650 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB SSD.
|
|
|
Communication & Connectors |
|

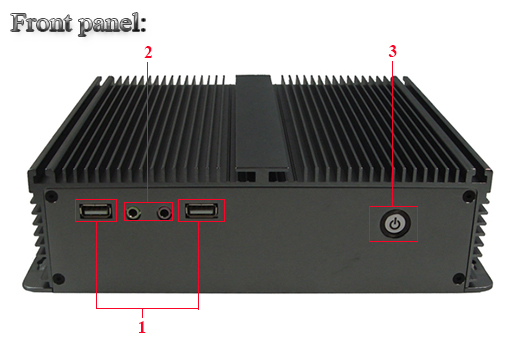

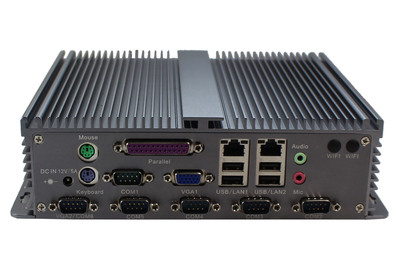

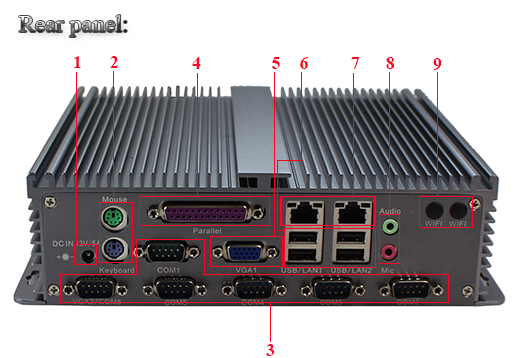

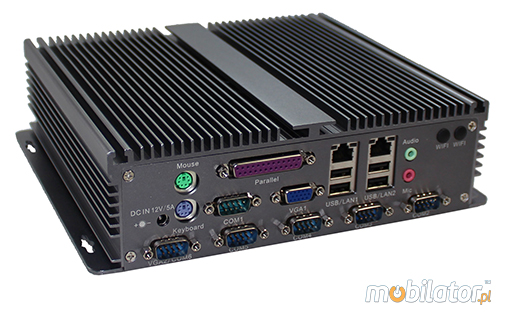

Integrated card - two Intel 1000M Lan RTL8111E (optional WiFi module) allows connection to the network. The computer is equipped with: two LAN ports, six COM ports (RS232), one VGA output, one LPT port, six USB 2.0 ports, one way audio, one microphone input and connectors built into the motherboard: four USB 2.0 ports, two PowerOUT outputs, one audio output, one CPUFAN, one LVDS connector.
Two independent network cards Intel RTL8111E
|
Cooling

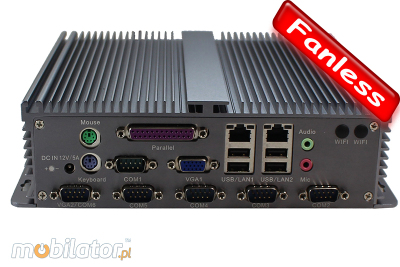

The industrial fanless MiniPC IBOX-D2550A uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.
|
|
;)
;)
;)
;)
;)
;)
