Industrial Fanless MiniPC mBOX Nuc Q180P v.5

Name: Industrial Fanless MiniPC mBOX Nuc Q180P v.5
Brand: Mobilator
Price: 375.51 PLN
Availability: InStock

+14

Update Date: 2018.02.21

Guarantee 1 year (opt. 2)

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

Przemysłowy Fanless MiniPC MBOX Nuc Q180P

Menu
Description
Communication & Connectors
Usability
Specifications

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

MBOX Nuc Q180P is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

Housing dimension are 135 (W) x128 (L) x45 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 0.82 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 16GB/32GB/64GB/128GB SSD. Support together: mSata SSD and 2.5 inch SSD/HDD - SATAIII.

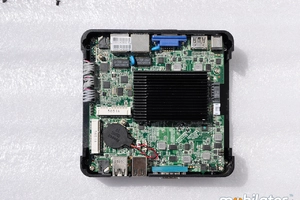

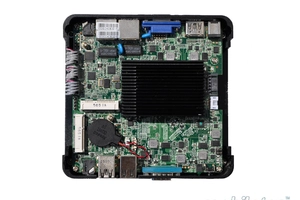

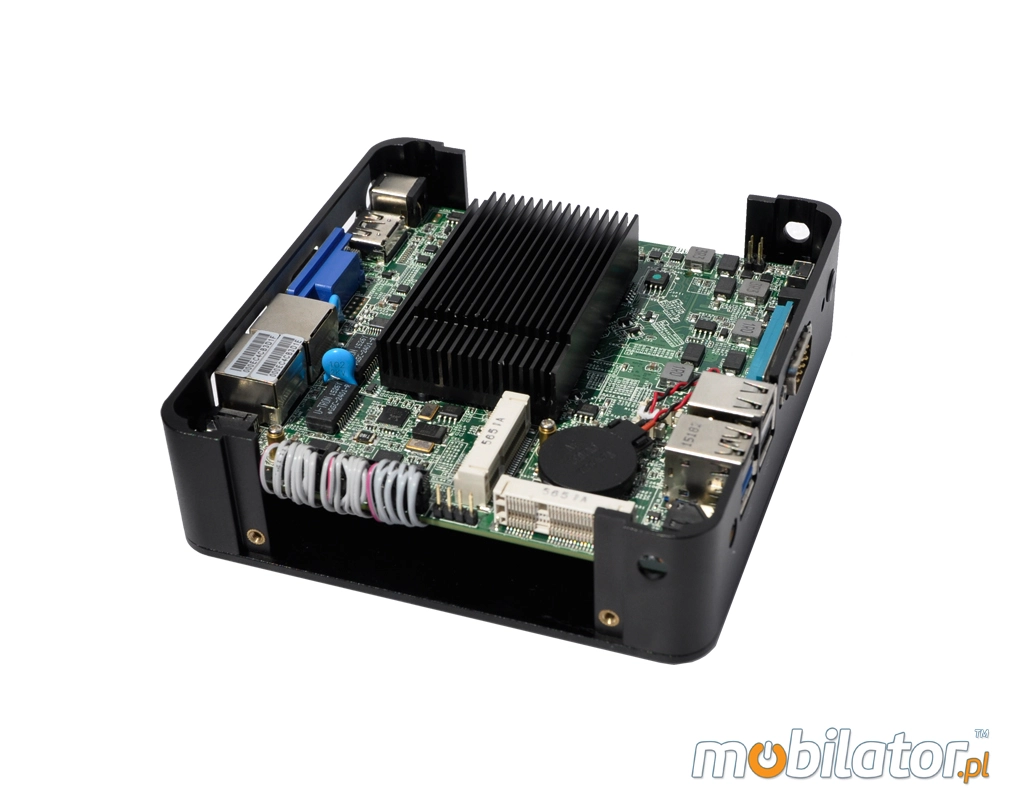

srodek minipc przemyslowy mbox nuc q180p

Version for you

Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

	v.1	v.2	v.3	v.4	v.5	v.6	v.7
WIFI b/g/n	-
2GB RAM			-	-	-	-	-
4GB RAM	-	-				-	-
8GB RAM	-	-	-	-	-
8GB mSATA		-	-	-	-	-	-
32GB mSATA	-		-	-	-	-	-
64GB mSATA	-	-		-	-	-	-
128GB mSATA	-	-	-		-	-	-
256GB mSATA	-	-	-	-	-	-
500GB HDD	-	-	-	-			-

go top…

menu…

Communiaction & Connectors

Integrated card - Intel RTL8111E LAN (optional WiFi module) allow connection to the network. The computer is equipped with: two LAN port, four COM (RS232) port, one VGA output, three USB 2.0 ports, one USB 3.0 port, one HDMI output one way audio, one microphone input.

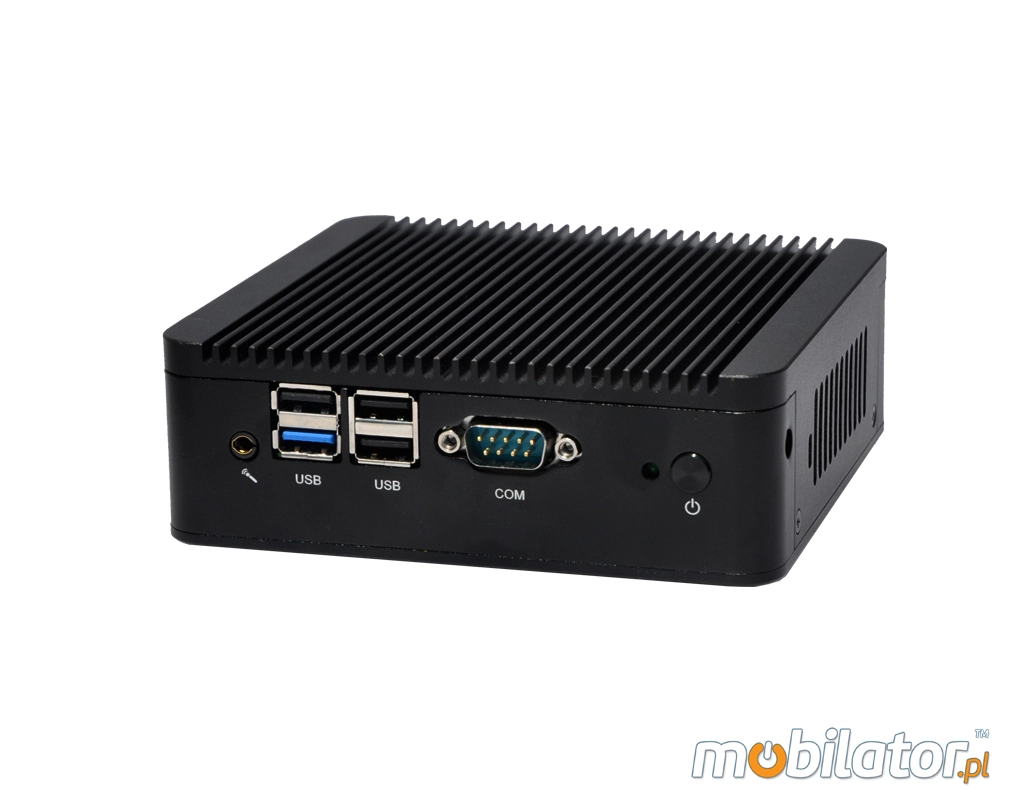

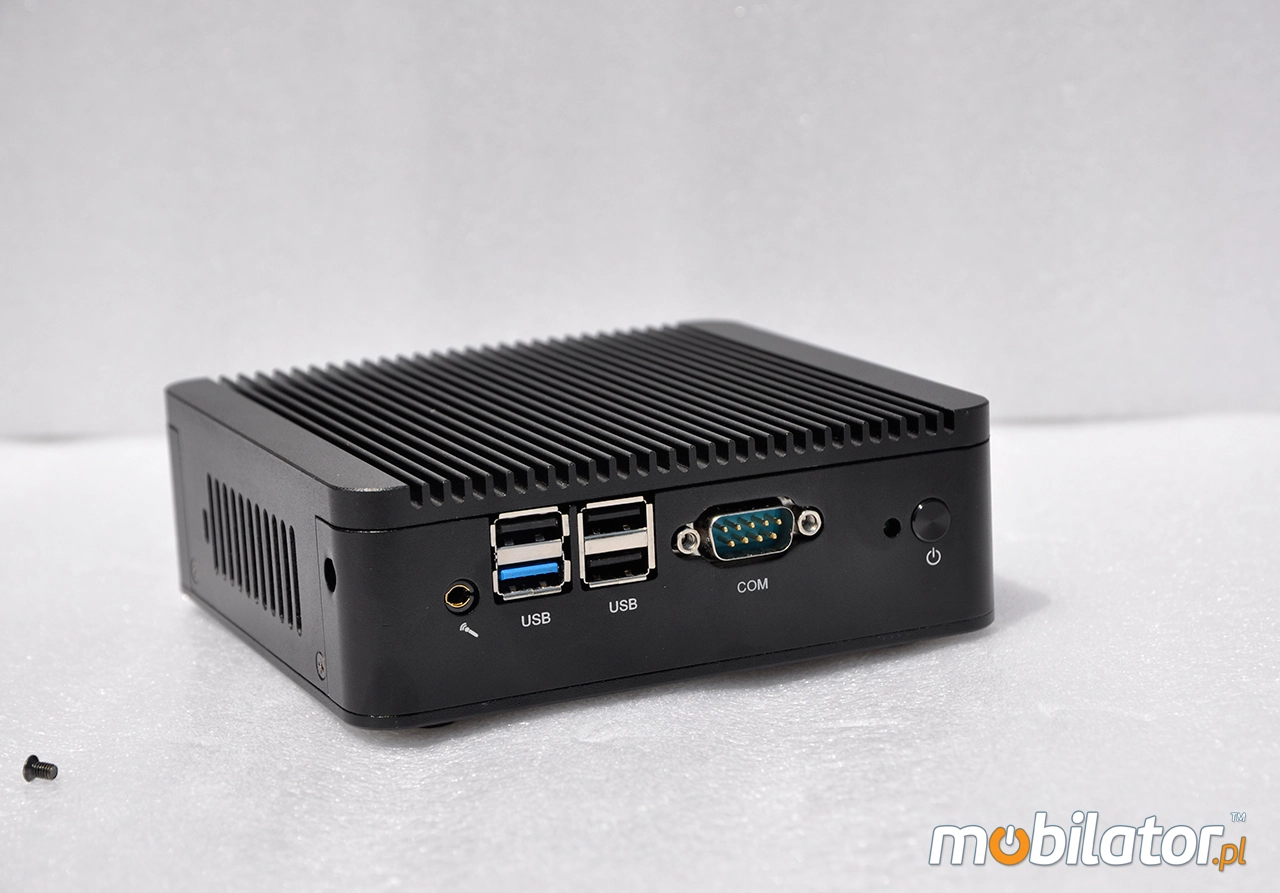

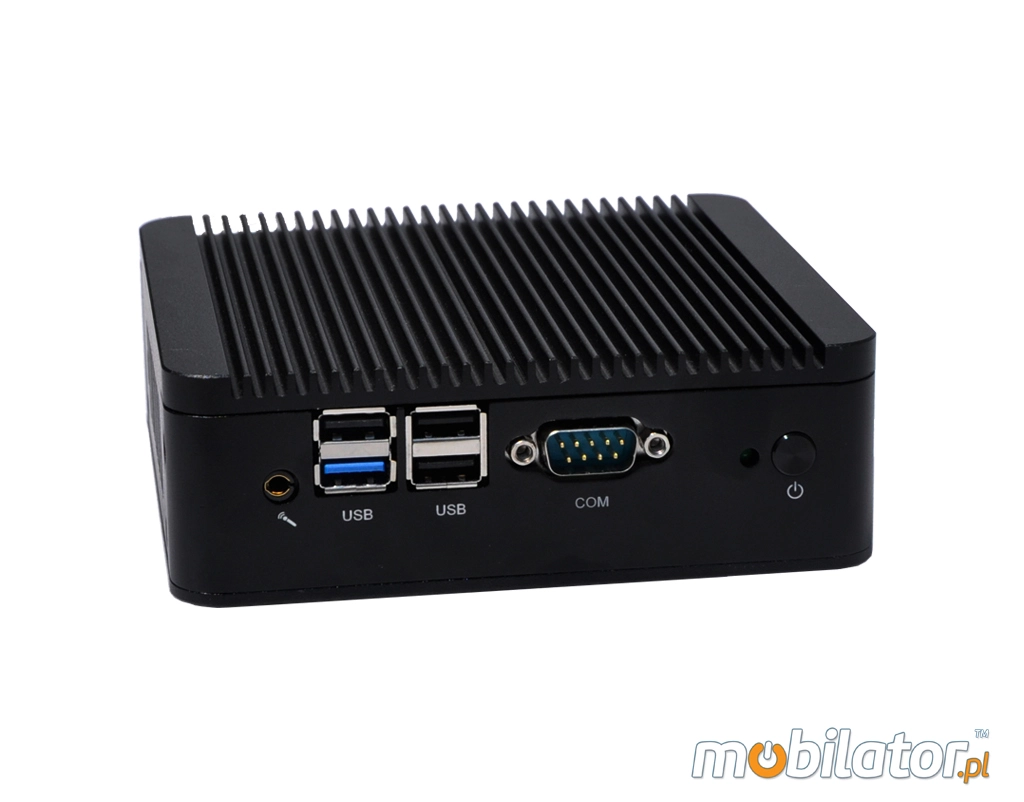

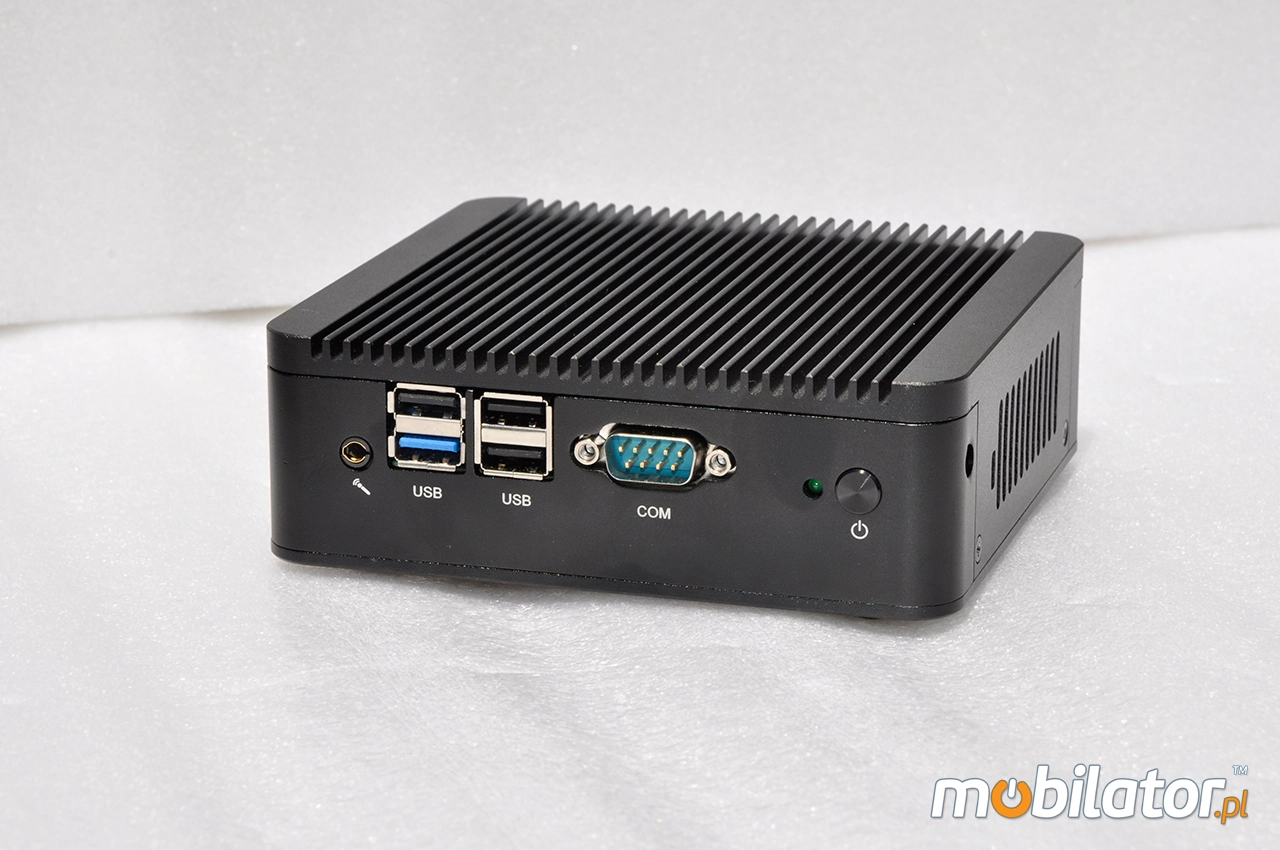

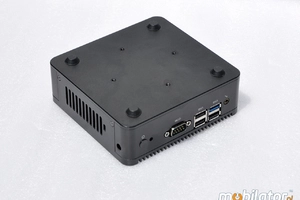

zlacza przod usb hdmi com mbox nuc 180p

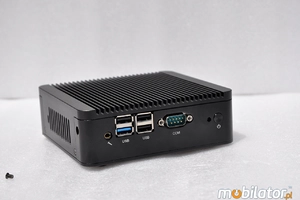

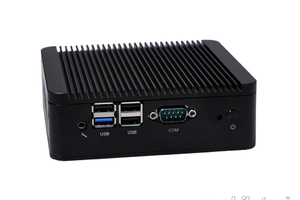

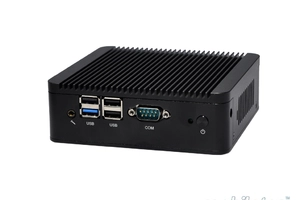

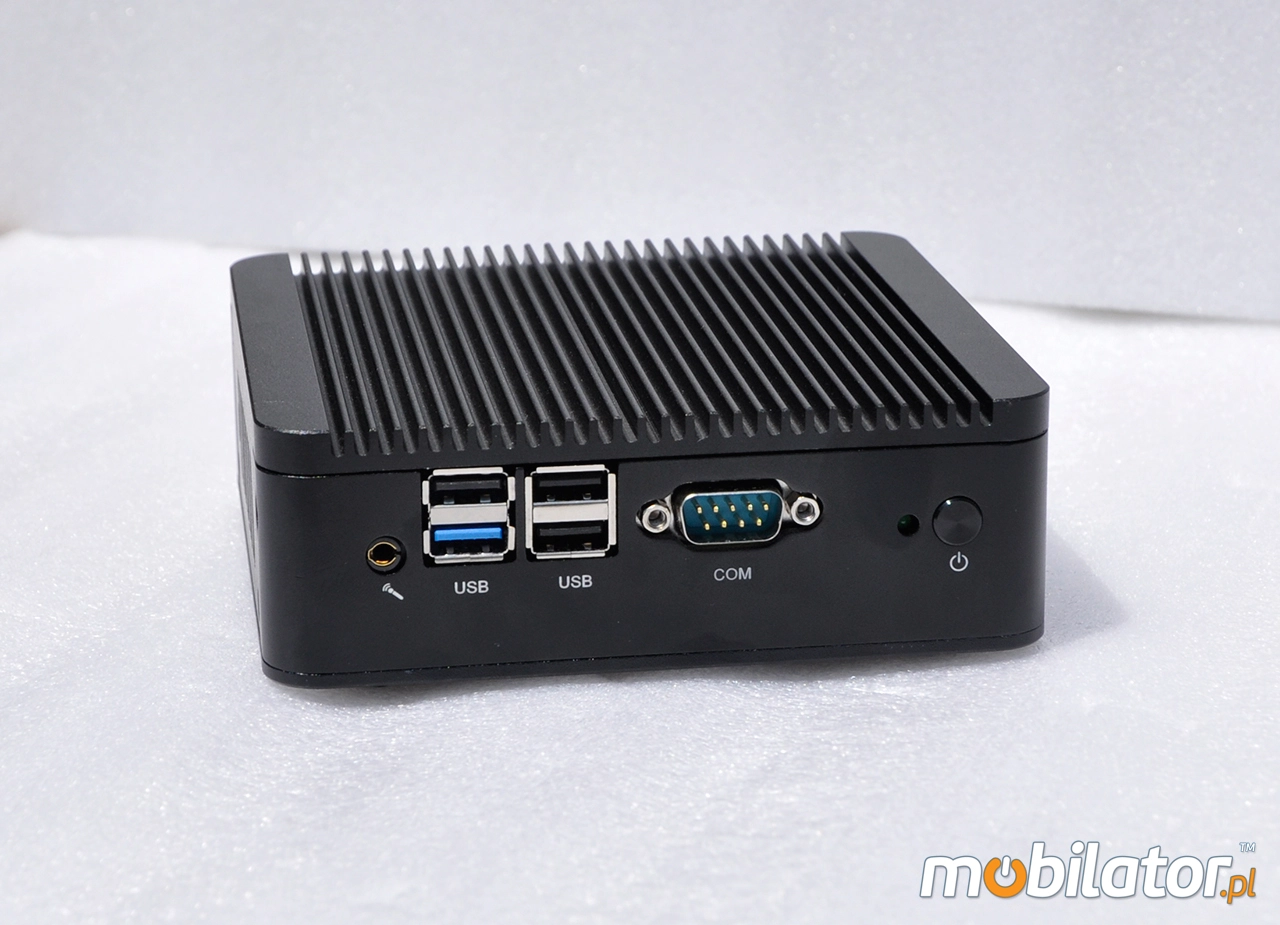

1. 1x Mic		4. 1x COM (RS232)
2. 1x USB 3.0		5. Power ON/OFF
3. 3x USB 2.0

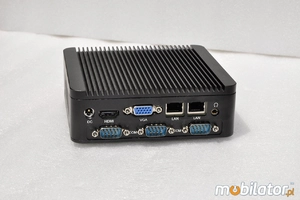

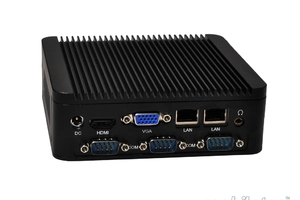

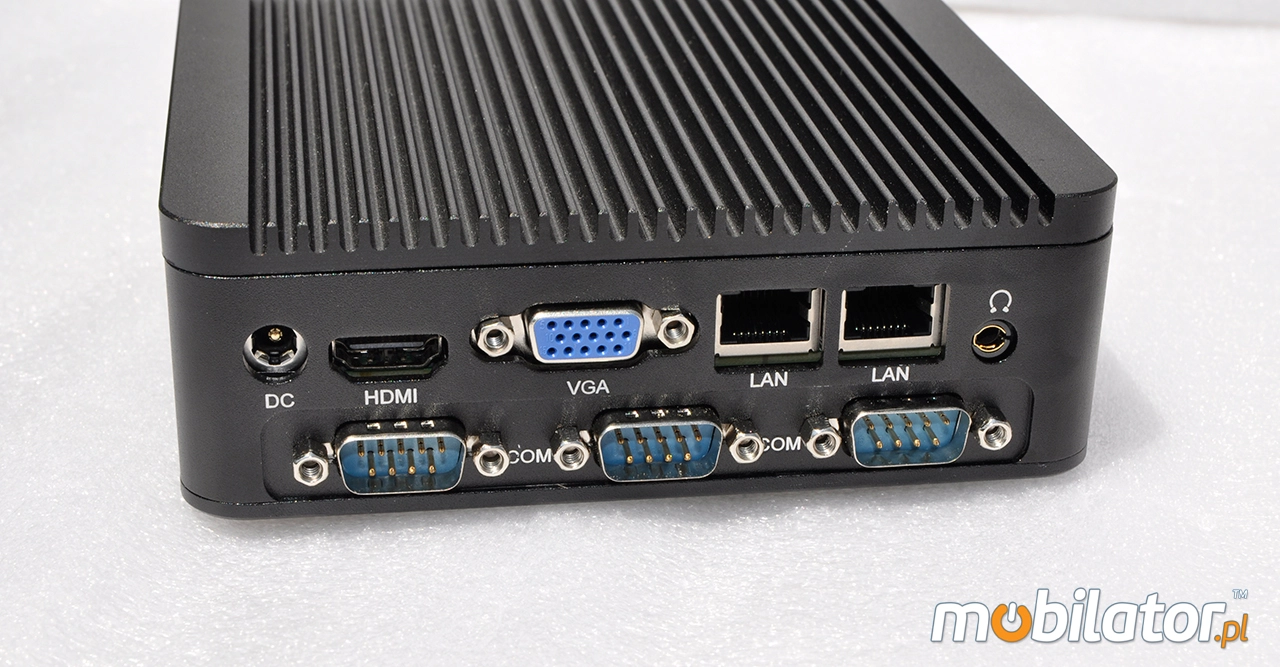

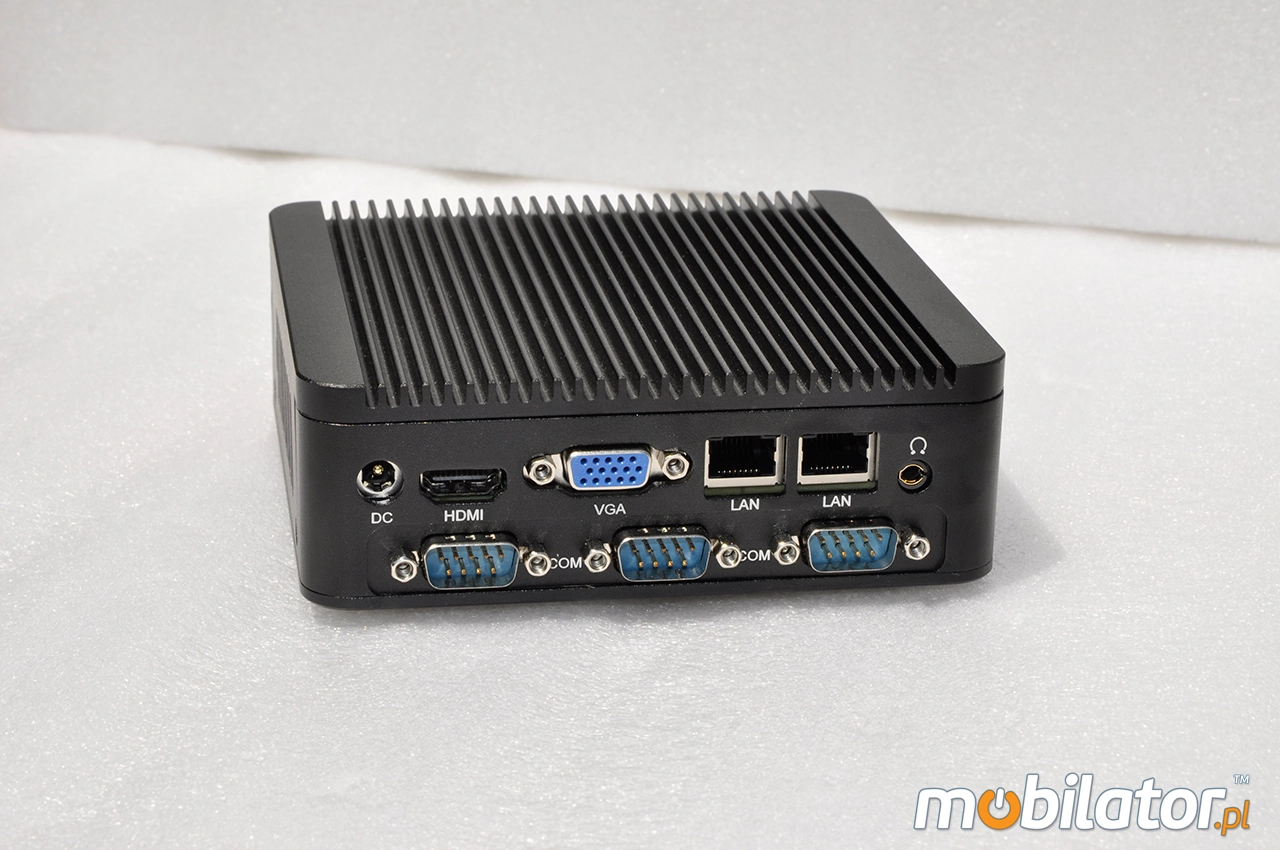

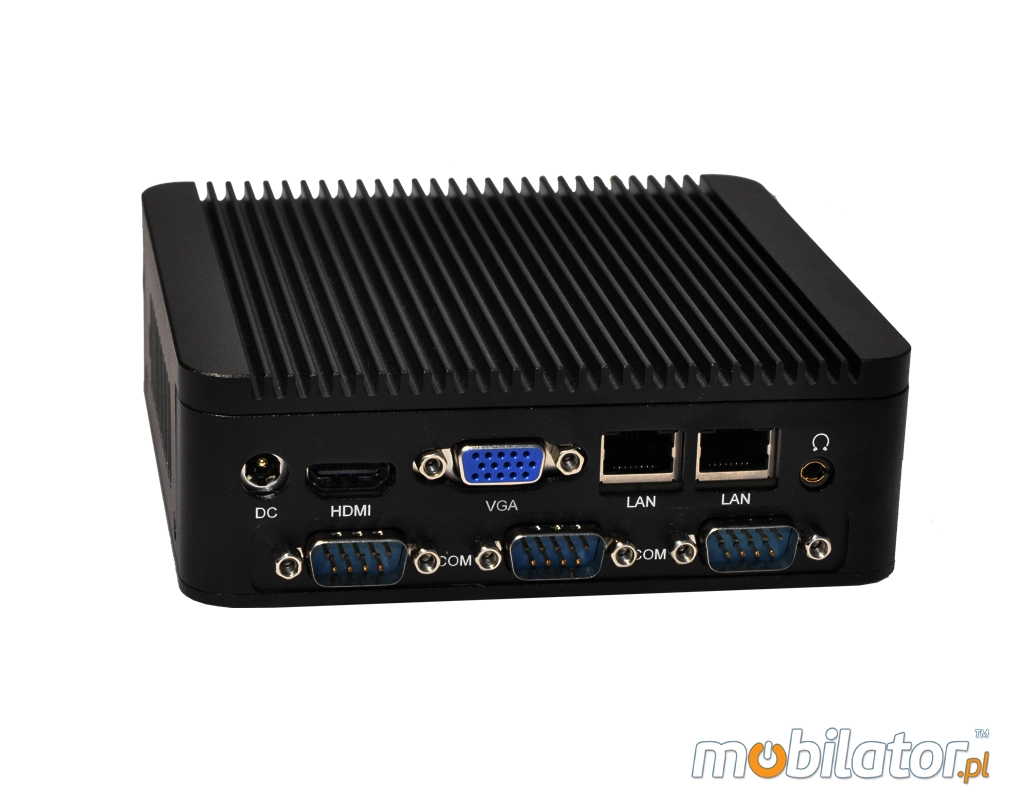

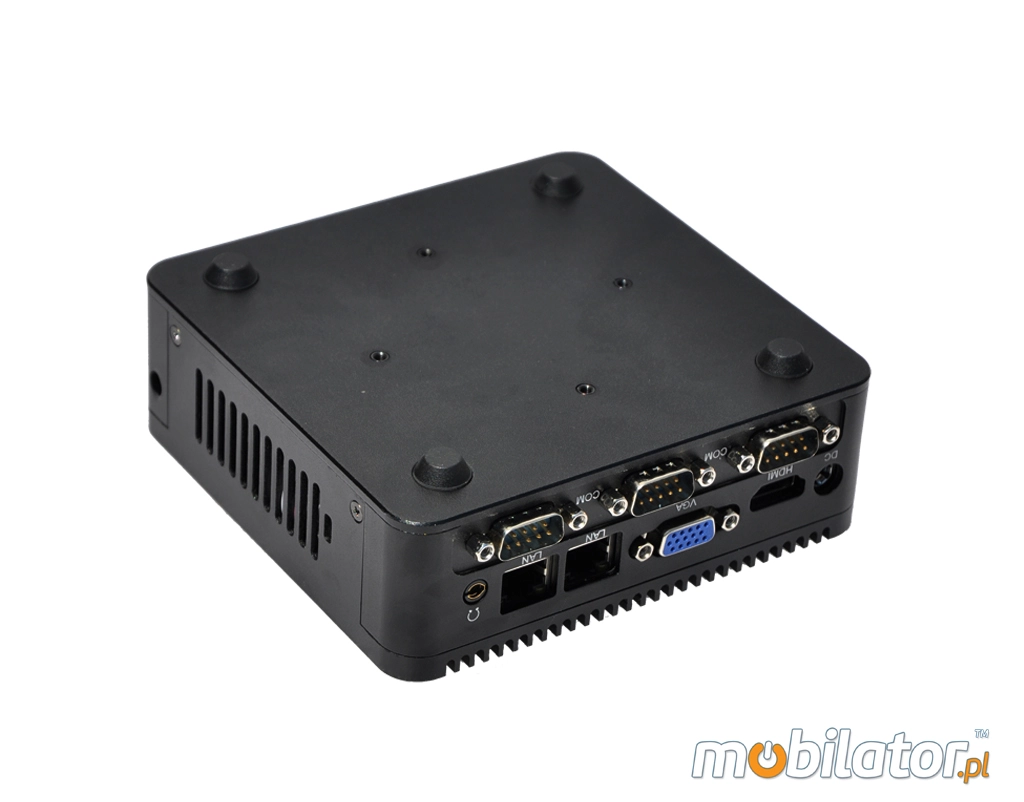

Przemysłowy Fanless MiniPC MBOX Nuc Q180P

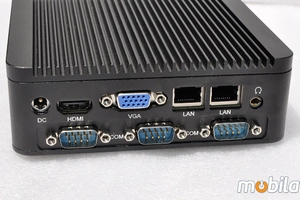

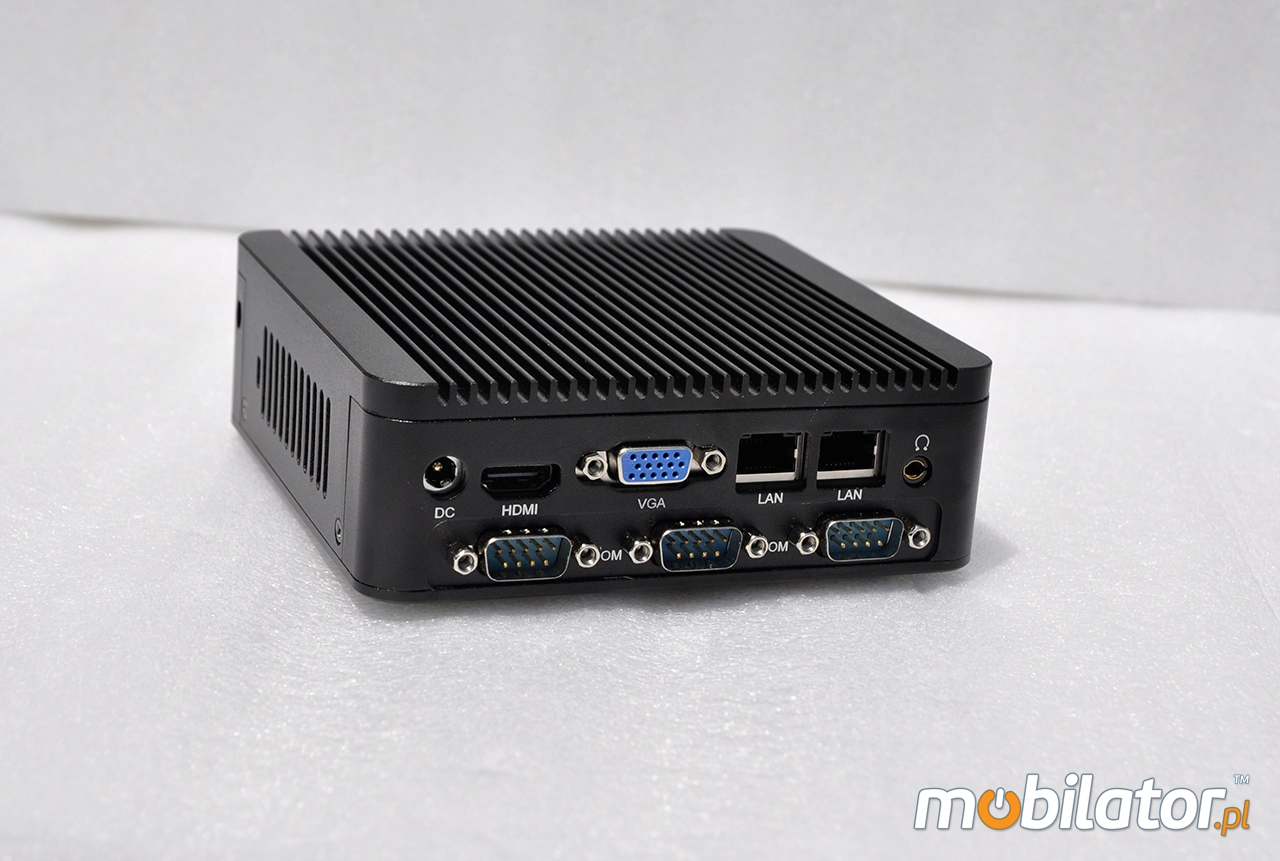

1. 1x DC-IN 12V		4. 3x COM (RS232)
2. 1x HDMI		5. 2x LAN (RJ45)
3. 1x VGA		6. 1x Audio Jack

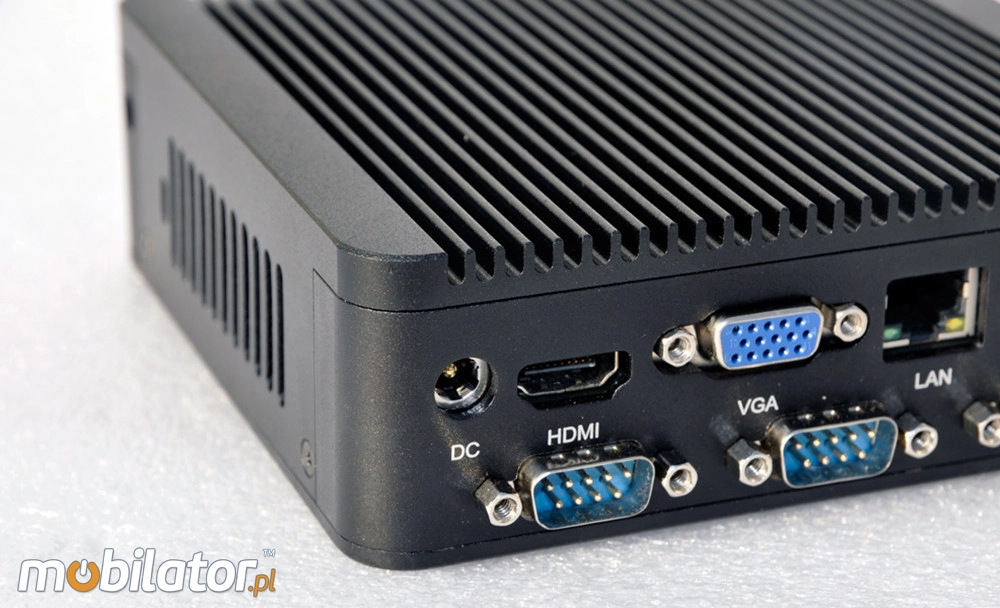

Cooling

The industrial fanless MiniPC MBOX Nuc Q180P uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top…

menu…

Usability

Industrial MiniPC Series MBOX Nuc Q180P are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. Przemysłowy Fanless MiniPC MBOX Nuc Q180P

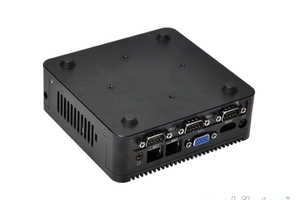

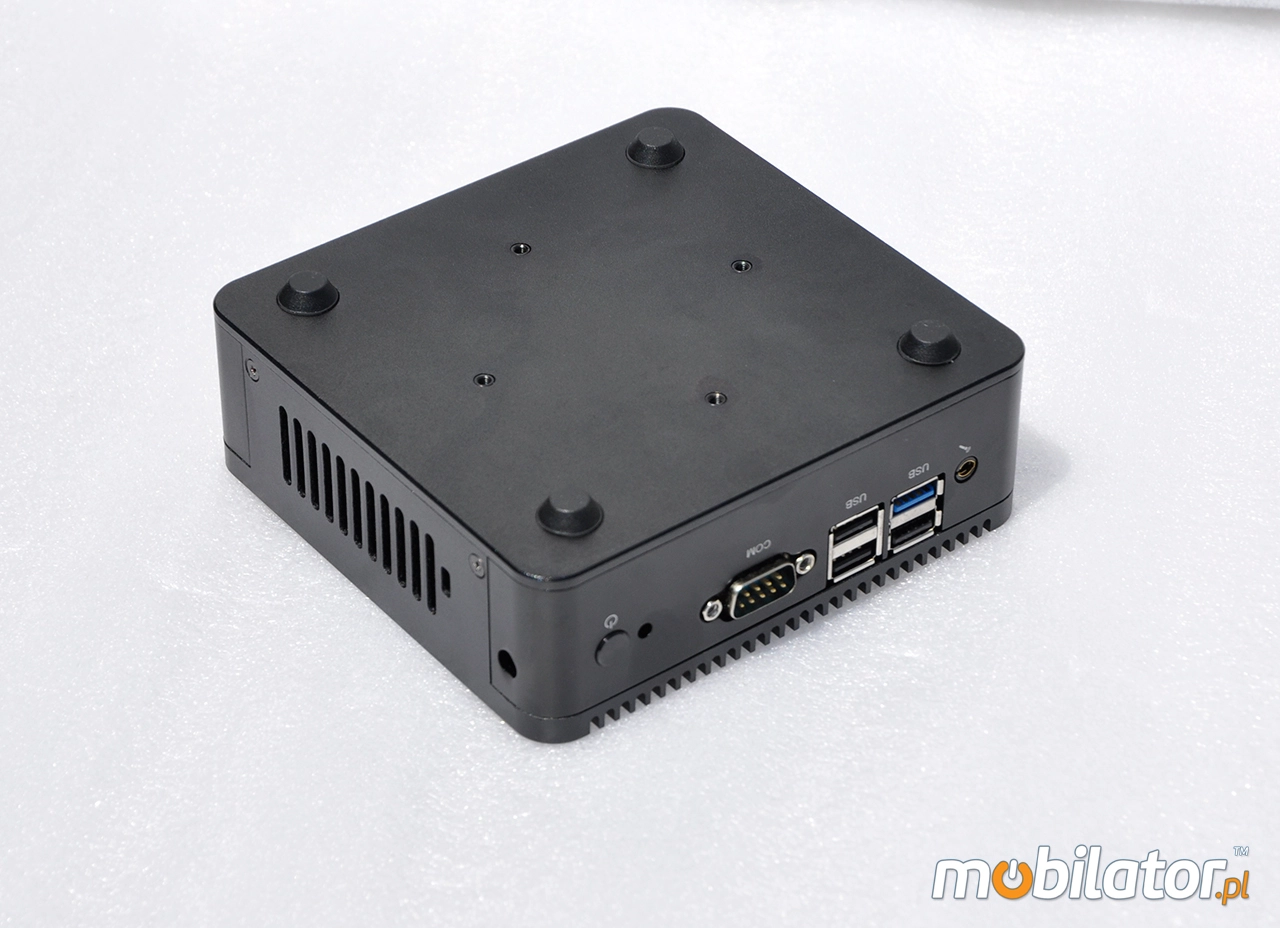

The biggest advantages Industrial Fanless MiniPC mBOX Nuc Q180P of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Areas of use of industrial MiniPC

Digital Engine

Przemysłowy Fanless MiniPC MBOX Nuc Q180P

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Warehouse

Industrial fanless MiniPC MBOX Nuc Q180P by to four USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless MBOX Nuc Q180P can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Przemysłowy Fanless MiniPC MBOX Nuc Q180P

go top…

menu…

Specifications

Dimensions	H: 45 mm L: 128 mm W: 135 mm
Weight	0,82kg
Processor	Intel Celeron J1800 (2x 2.41GHz)
Chipset	Intel NM70
RAM	2GB DDR3
Graphics	Intel HD Graphics
Sound Card	Realtek ALC662
WLAN	RTL8111E 10/100/1000 Controller
Connectors	1x Power ON/OFF 1x USB 3.0 3x USB 2.0 1x MIC 4x RS232 1x Power Input 1x HDMI 1x - VGA 2x - LAN (RJ45) 1x - Audio Jack

Supported OS
Microsoft Windows: 7/8/8.1, Linux
Installed OS
-----
Chipset
Intel NM70
CPU Support
-----
Installed CPU
Intel Celeron J1800 (2x2.41GHz)
Graphic Card
Intel HD Graphics
Memory Support
2GB DDR3
(max. 8GB)
Installed Memory
4GB DDR3
Storage (HDD) Support
-----
Installed Storage (HDD)
500GB HDD
(opcja - mSata SSD + 2,5" SSD/HDD)
IP Norm
-----
Temp
0 - 50 ℃
Storage temperature
-15 - 70 ℃
Humidity
0 ~ 95%
Others
Colour Black, Aluminum
LAN
Realtek RTL8111E 10/100/1000 Controller
Wireless LAN card
Yes - WIFI b/g/n
3G
No
Bluetooth
No
Rear Panel (ports)
1x Power Input
1x HDMI
1x VGA
2x LAN (RJ45)
3x COM (RS232)
1x Audio Jack
Front Panel (ports)
Power ON/OFF
1x USB 3.0
3x USB 2.0
1x MIC
1x COM (RS232)
Expansion
-----
Power
12V
Watch Dog Timer
0~255 sec
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
135 x 128 x 45mm
Fanless
Yes
Weight
0.82 kg
