Industrial Fanless MiniPC mBOX Nuc Q190G4-01 v.6

Name: Industrial Fanless MiniPC mBOX Nuc Q190G4-01 v.6
Brand: Mobilator
Price: 1992.60 PLN
Availability: InStock

Update Date: 2024.10.15

Guarantee 1 year (opt. 2)

Net

1620.00 zł

Gross

1992.60 zł

Buy now!

Negotiate the price

								Ask about the product

 Product card

								Recommend to a friend

								Store

								Compare

Product availability 14 - 20 workdays

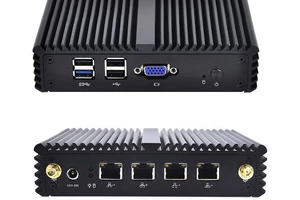

Industrial Computer Fanless MiniPC mBOX Nuc Q190G4-01

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

Industrial Fanless MiniPC mBOX Nuc Q190G4-01 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

Housing dimensions are 156 (W) x127 (L) x37 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 0GB/2GB/4GB/8GB DDR3 memory. Integrated Intel HD Graphics video allows you to play a wide range of applications and media files (video) - in Full HD quality. Disks offer free space 0GB/8GB/16GB/32GB/64GB/128GB/256GB mSATA SSD.

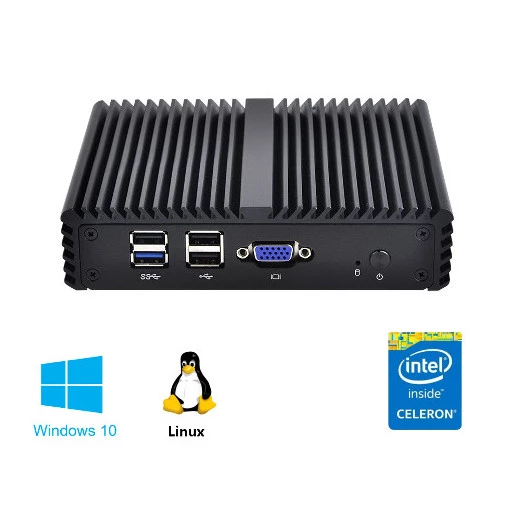

Industrial Computer Fanless MiniPC mBOX Nuc Q190G4-01

Choose version for You.

	RAM Memory	Hard Disk	WiFi
v.Barebone*	0 GB	0 GB	-
v.1	2 GB	8 GB	-
v.2	2 GB	16 GB
v.3	4 GB	32 GB
v.4	4 GB	64 GB
v.5	4 GB	128 GB
v.6	8 GB	256 GB

*Barebone - MiniPC don't have any RAM Memory and Hard Disk. In this case Customer buy these components on his individual effort.

go top…

menu…

Communication & Connectors

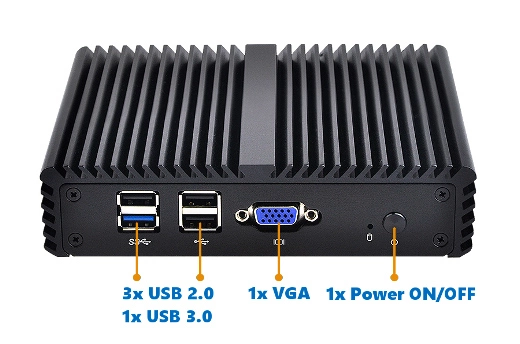

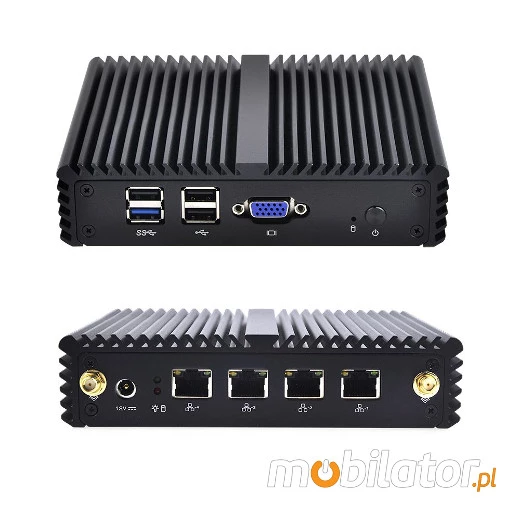

Integrated card - Intel I211-AT Gigabit LAN allow connection to the network. The computer is equipped with: four LAN port, one VGA port, three USB 2.0 ports, one USB 3.0 port and Power ON/OFF.

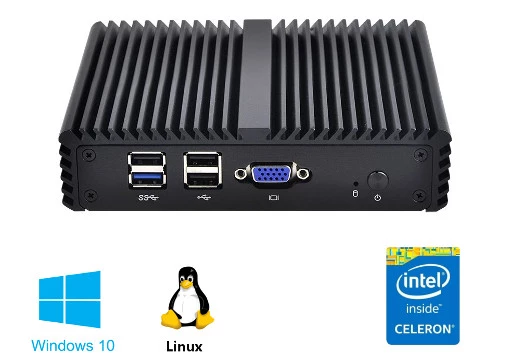

Industrial Computer Fanless MiniPC mBOX Nuc Q190G4-01

Cooling

The Industrial Computer Fanless MiniPC mBOX Nuc Q190G4-01 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

Industrial Computer Fanless MiniPC mBOX Nuc Q190G4-01

go top… menu…

Application

Industrial Computer Fanless MiniPC mBOX Nuc Q190G4-01 are based on high-performance quad-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of mBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Industrial Computer Fanless MiniPC mBOX Nuc Q190G4-01 umpc.pl of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Computer Fanless MiniPC mBOX Nuc Q190G4-01 umpc.pl

Areas of use of industrial MiniPC

Digital Engine

Industrial Computer Fanless MiniPC mBOX Nuc Q190G4-01 umpc.pl

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Industrial Computer Fanless MiniPC mBOX Nuc Q190G4-01 umpc.pl

Magazine

Industrial Computer Fanless MiniPC mBOX Nuc Q190G4-01 by USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

Industrial Computer Fanless MiniPC mBOX Nuc Q190G4-01 can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Computer Fanless MiniPC mBOX Nuc Q190G4-01

go top… menu…

Specifications

Dimension	Height: 37mm Width: 127 mm Length 156 mm
Processor	Intel Celeron J1900 Quad Core (4 x 2.42GHz)
Chipset	Intel Chipset
RAM Memory	Depends of version: 0GB/2GB/4GB/8GB
Graphic Card	Intel HD Graphics
Sound Card	Lack
WLAN	Intel I211-AT Gigabit LAN
Connectors	1x DC Jack 1x VGA 3x USB 2.0 1x USB 3.0 4x RJ-45 LAN 1x Mini PCIe for mSATA SSD 1x Mini PCIe for Wifi/Bluetooth - only USB signal 1x SATA(Data) + SATA(Power)

Industrial Computer Fanless MiniPC mBOX Nuc Q190G4-01 umpc.pl ssd mobilator.pl

*more detalis in "Specification"...

Supported OS
Microsoft Windows: 7/8/8.1/10, Linux
Installed OS
-----
Chipset
Intel express chipset
CPU Support
-----
Installed CPU
Intel Celeron J1900 Quad Core (2.42 GHz)
Graphic Card
Intel HD Graphics
Memory Support
1 x DDR3L SO-DIMM Socket (1333/1600MHz) up to 8GB
Installed Memory
8GB 1600Mhz DDR3 SO-DIMM
Storage (HDD) Support
1 x Mini-PCIe dla mSATA SSD
Installed Storage (HDD)
256GB mSATA SSD
IP Norm
-----
Temp
0 ～50℃
Storage temperature
-20 ~ 80℃
Humidity
10 ~ 90%
Others
Colour Black
LAN
4 x Intel I211-AT Gigabit LAN
Wireless LAN card
Yes
3G
-----
Bluetooth
-----

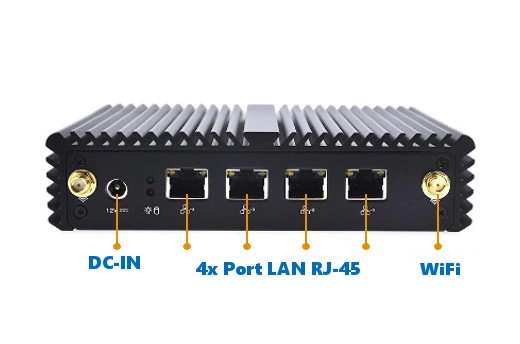

Rear Panel (ports)
DC-IN 12V,
 4x RJ-45 LAN,
Front Panel (ports)
3x USB2.0
 1x USB 3.0
1x VGA,
Power ON/OFF
Expansion
-----
Power
12V
Watch Dog Timer
-----
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
156 x 127 x 37 mm
Fanless
Yes
Weight
850g
