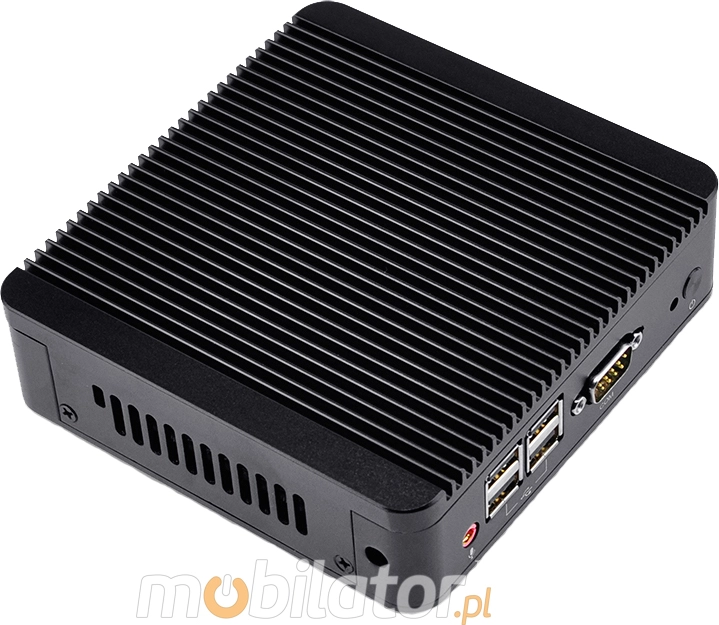

Industrial Fanless MiniPC mBOX Nuc Q190N-01 v.2

Name: Industrial Fanless MiniPC mBOX Nuc Q190N-01 v.2
Brand: Mobilator
Price: 1256.08 PLN
Availability: InStock

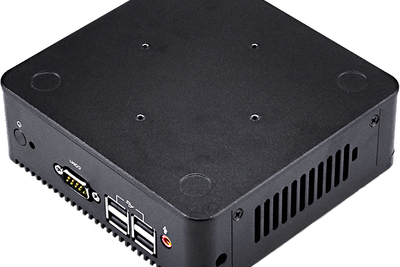

Kompaktowy komputer do linii produkcyjnej

Update Date: 2024.10.14

Guarantee 1 year (opt. 2)

Net

1021.20 zł

Gross

1256.08 zł

Buy now!

Negotiate the price

								Ask about the product

 Product card

								Recommend to a friend

								Store

								Compare

Product availability 14 - 20 workdays

Industrial Computer Fanless MiniPC mBOX Nuc Q190N

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

Industrial Fanless MiniPC mBOX Nuc Q190N is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

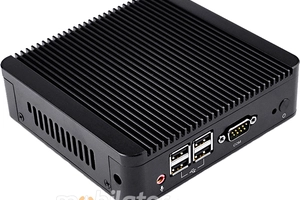

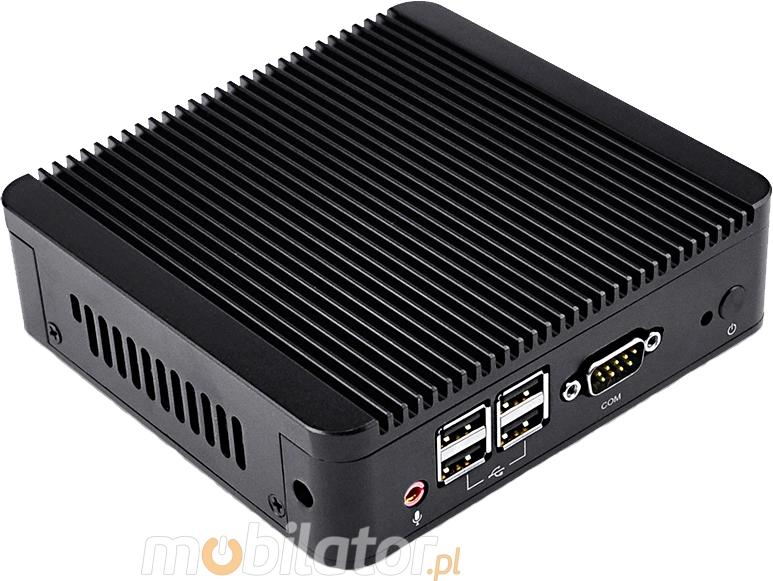

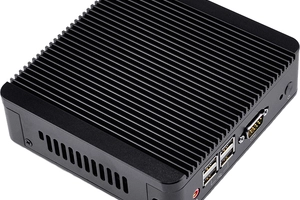

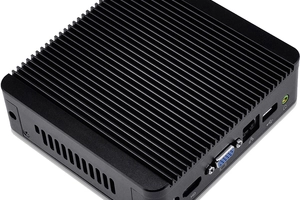

Housing dimensions are 135 (W) x128 (L) x38 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 2/4GB DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 16GB/32GB/64GB/128GB SSD.

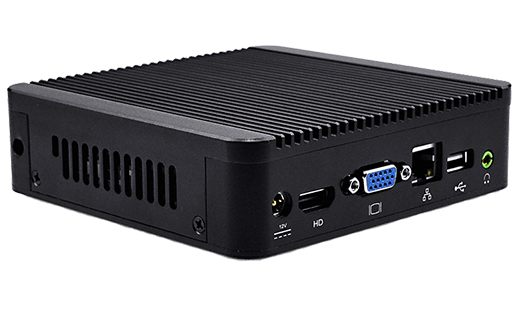

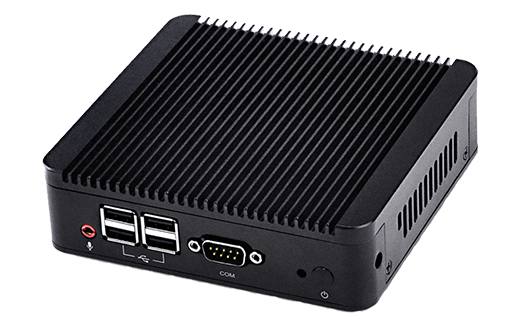

Industrial Computer Fanless MiniPC mBOX Nuc Q190N

go top…

menu…

Communication & Connectors

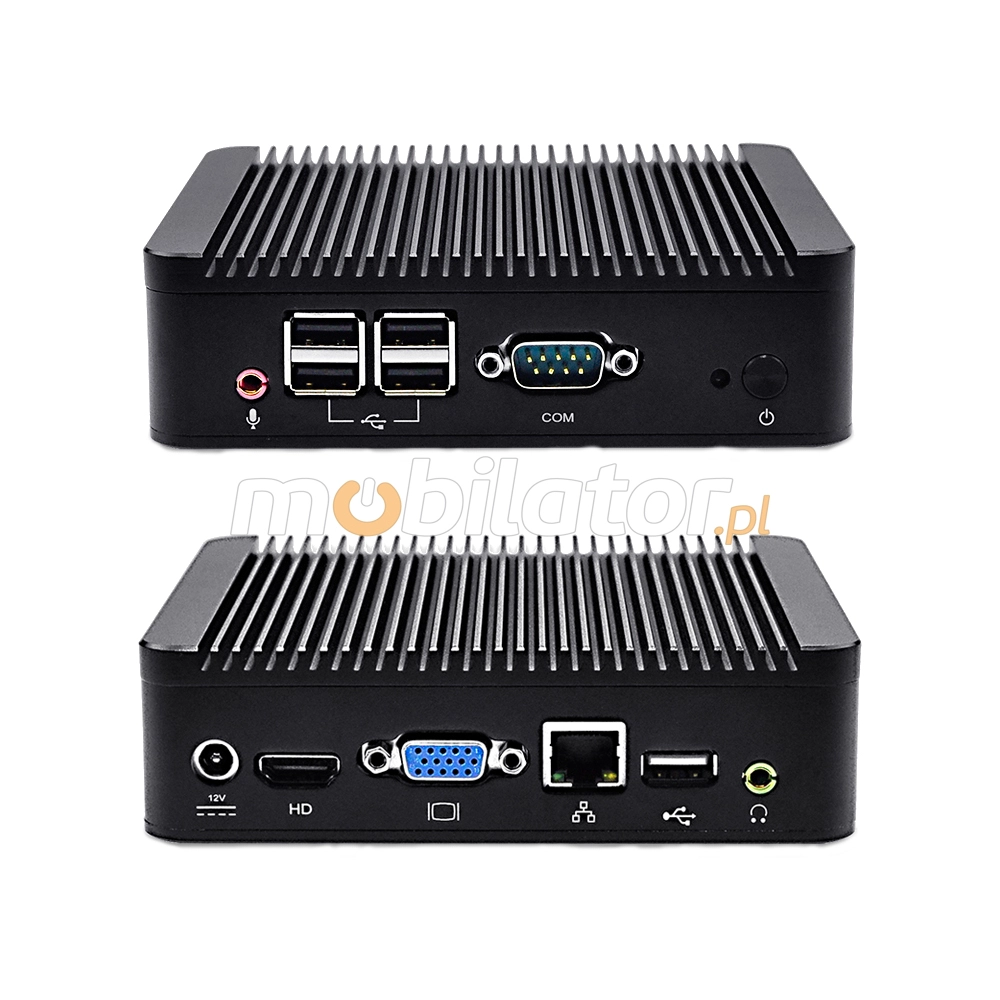

Integrated card - Realtek RTL8111E 10/100/1000 Controller allow connection to the network. The computer is equipped with: one LAN port, one HDMI port, one VGA port, four USB 2.0 ports, one USB 3.0 port, one COM(RS232) port one Audio input and one Mic output.

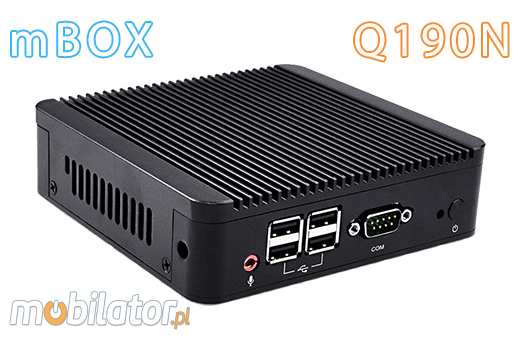

Industrial Computer Fanless MiniPC mBOX Nuc Q190N

Industrial Computer Fanless MiniPC mBOX Nuc Q190N intel celeron J1900

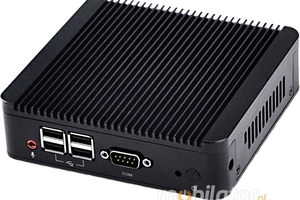

Cooling

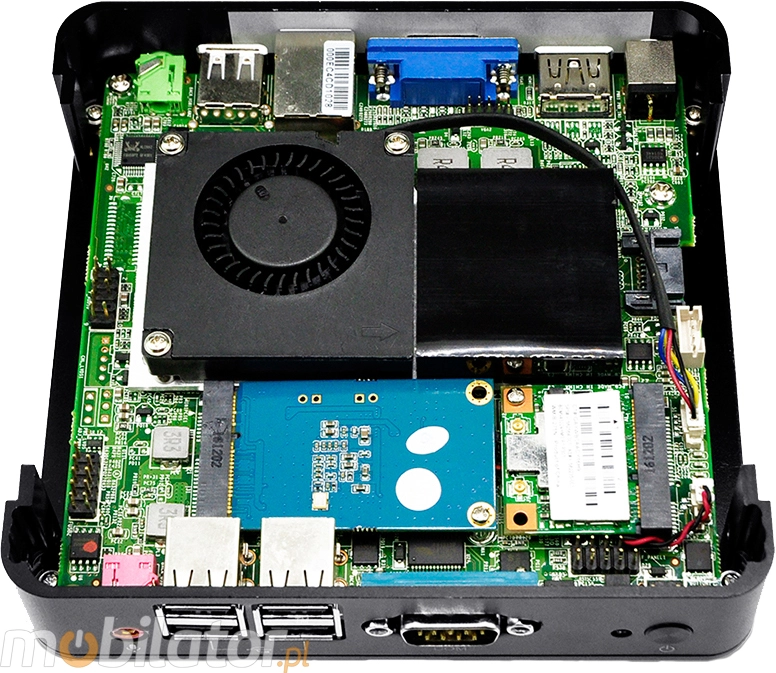

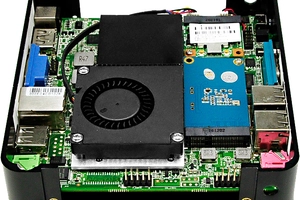

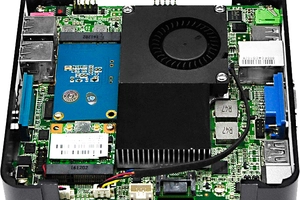

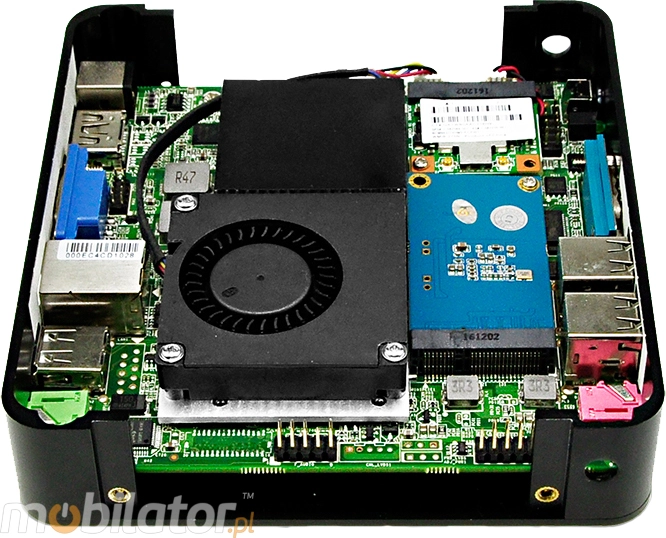

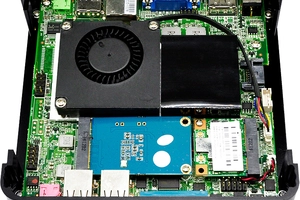

The Industrial Computer Fanless MiniPC mBOX Nuc Q190N uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go top… menu…

Application

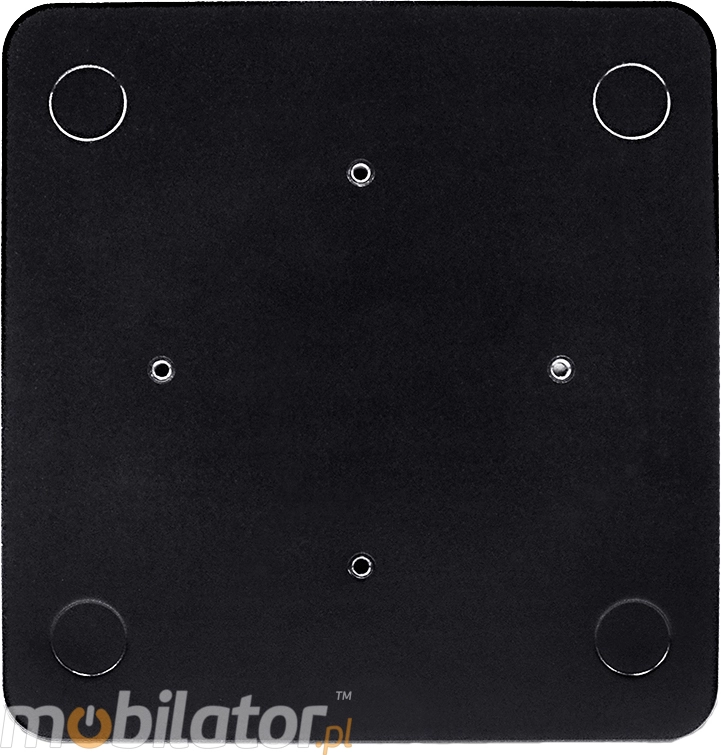

Industrial Computer Fanless MiniPC mBOX Nuc Q190N are based on high-performance quad-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of mBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Industrial Computer Fanless MiniPC mBOX Nuc Q190N of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Computer Fanless MiniPC mBOX Nuc Q190N

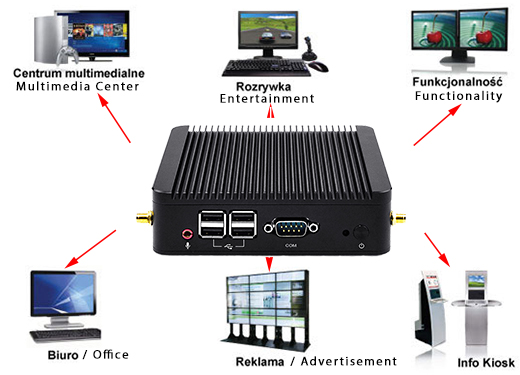

Areas of use of industrial MiniPC

mBOX-Q190N

Digital Engine

Industrial Computer Fanless MiniPC mBOX Nuc Q190N

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Industrial Computer Fanless MiniPC mBOX Nuc Q190N by USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

Industrial Computer Fanless MiniPC mBOX Nuc Q190N can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Computer Fanless MiniPC mBOX Nuc Q190N

go top…

menu…

go top… menu…

Specifications

Dimension	H: 38 mm L: 128 mm W: 135 mm
Processor	Intel Celeron J1900 Quad Core (4x2GHz)
Chipset	Intel Chipset
RAM Memory	2GB DDR3L
Graphic Card	Intel HD Graphics
Sound Card	Realtek ALC662
WLAN	Realtek RTL8111E 10/100/1000 Controller
Connectors	1x 12V DC Jack 1x VGA 4x USB 2.0 1x USB 3.0 1x RJ-45 LAN 1x Mic 1x HDMI 1x Audio 1x COM(RS232)

Others
Colour Black
Chipset
Intel express chipset
CPU Support
-----
Installed CPU
Intel Celeron J1900 Quad Core (4x2GHz)
Memory Support
DDR3L (max. 8GB) 1333MHz/1600MHz SO-DIMM
Installed Memory
2GB DDR3L
Graphic Card
Intel HD Graphics 4400
Storage (HDD) Support
SSD
mSATA
Installed Storage (HDD)
32GB SSD
CD/DVD Drive
-----
LAN
Realtek RTL8111E 10/100/1000 Controller
Wireless LAN card
No (opc.)
Bluetooth
-----
3G
-----
TV Tuner
-----
Watch Dog Timer
0 ~ 255 sec

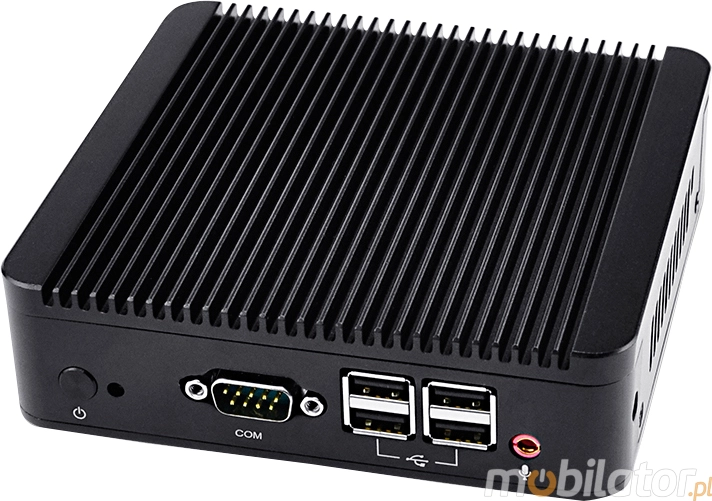

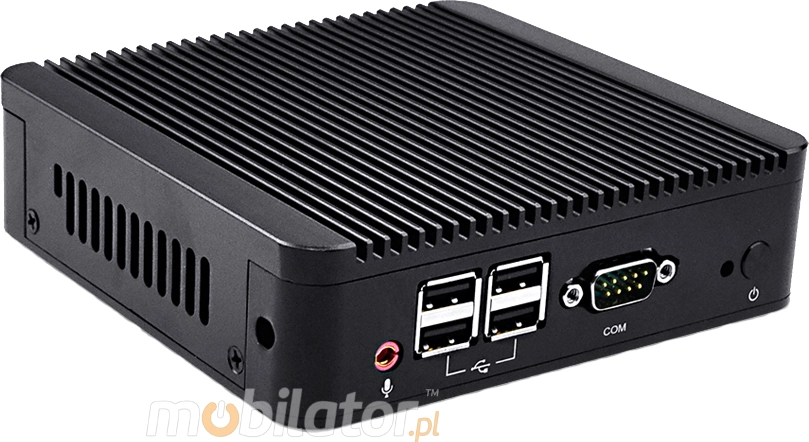

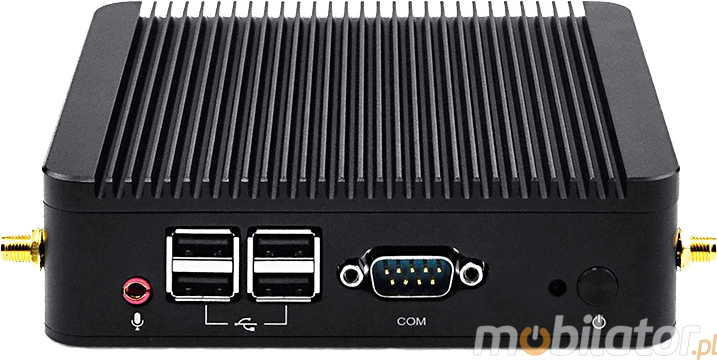

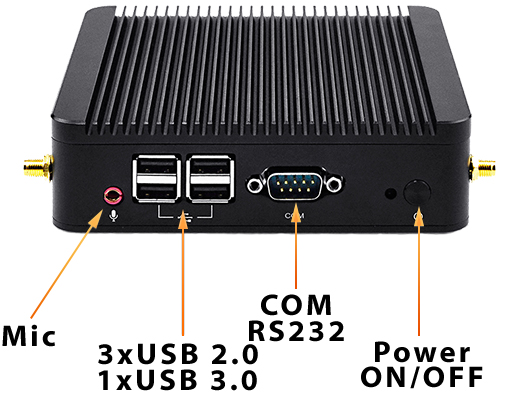

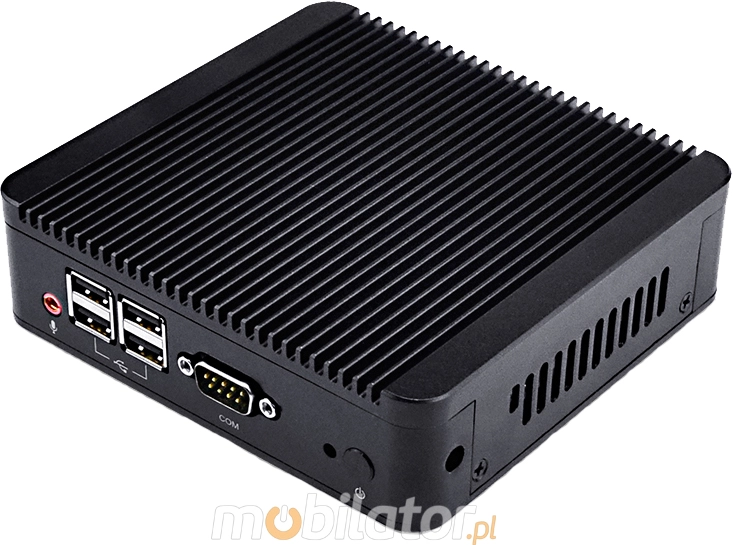

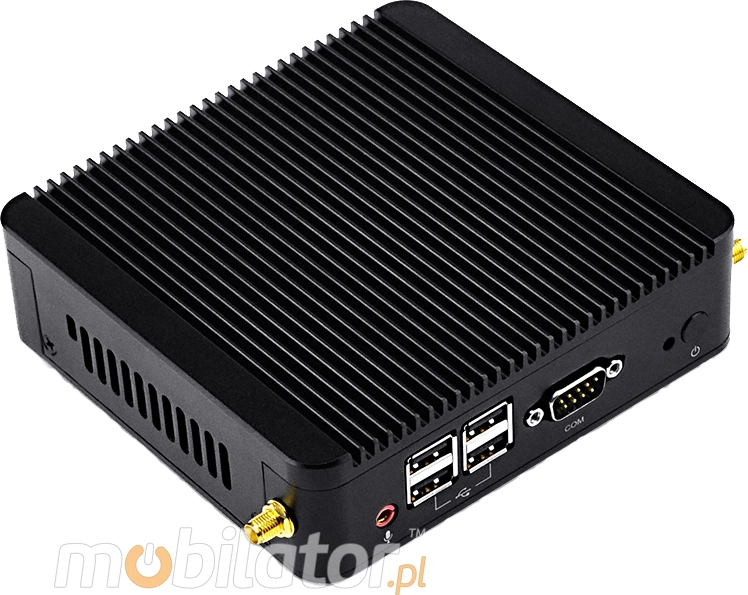

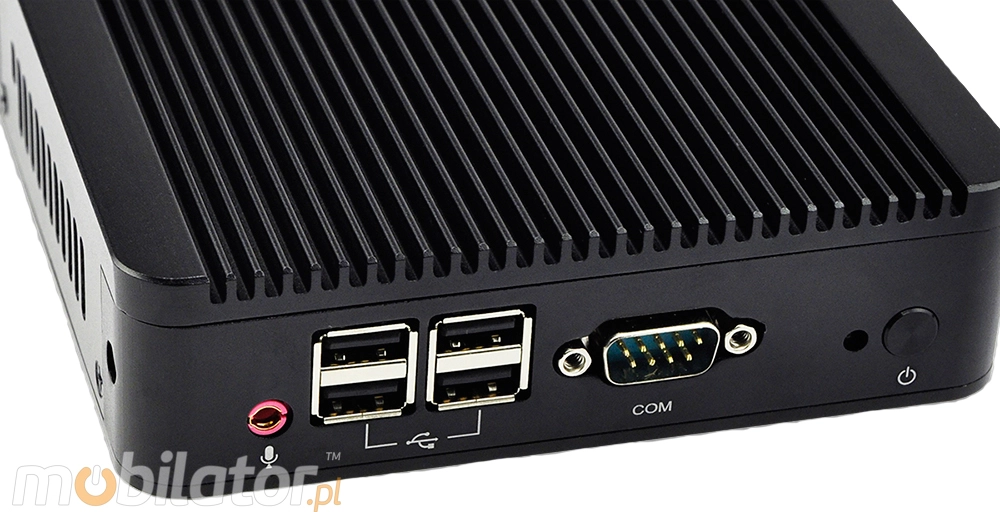

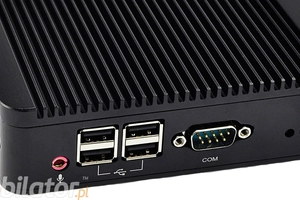

Front Panel (ports)
3x USB2.0
 1x USB 3.0
1x COM(RS232),
 1x Mic,

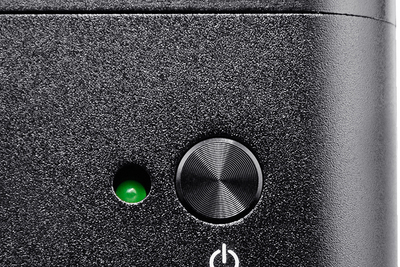

Power ON/OFF

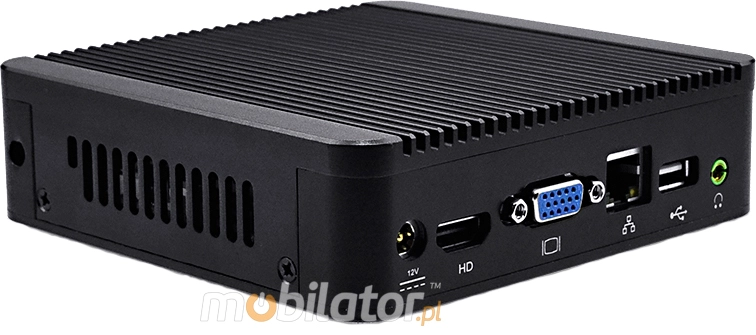

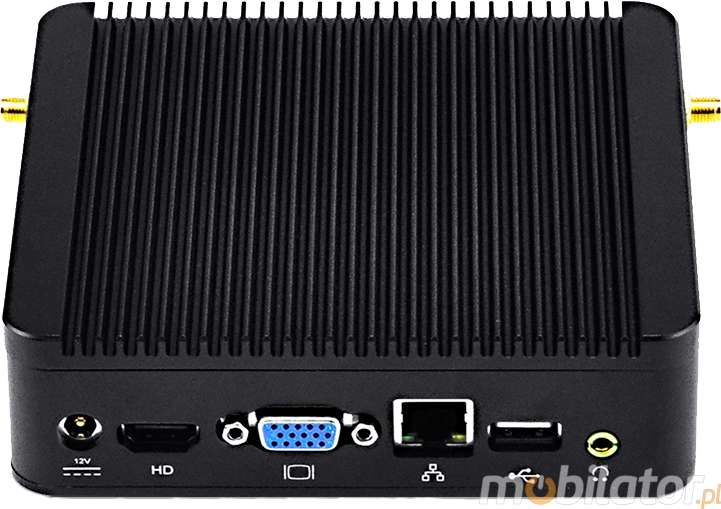

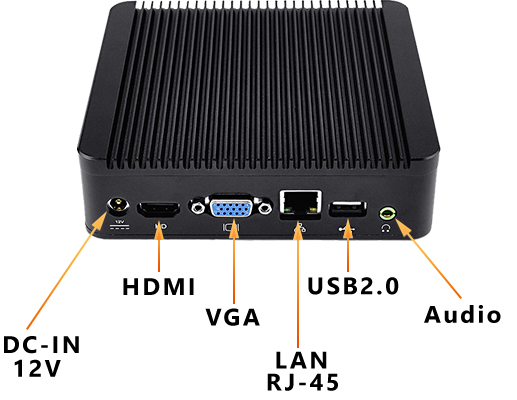

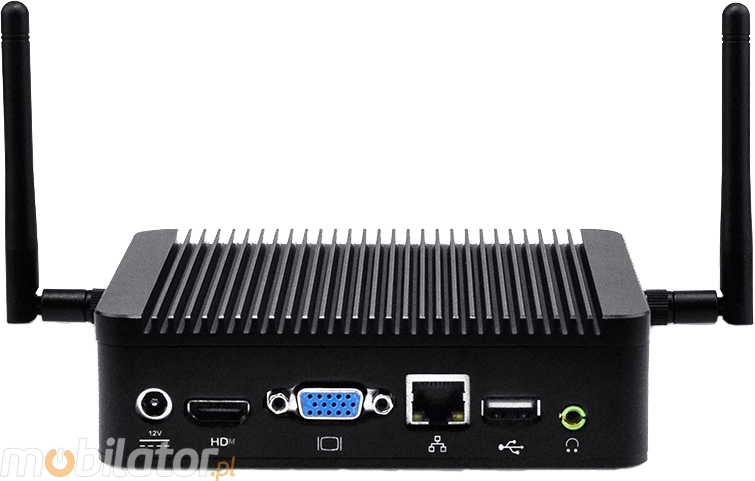

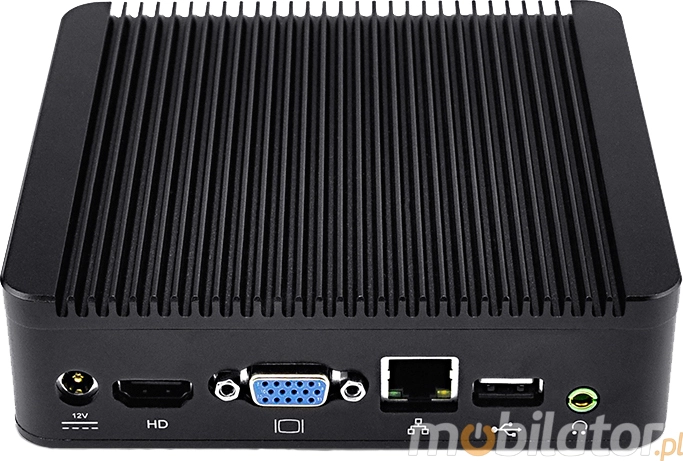

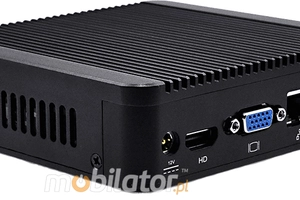

Rear Panel (ports)
DC-IN 12V,
 1x RJ-45 LAN,
 1x Audio,
 1x HDMI,
 1x VGA,
 1x USB 2.0
Power
12V
Supported OS
Microsoft Windows: 7/8/8.1/10, Linux
Installed OS
-----
Dimensions
135 x 128 x 38 mm
Weight
700g
Expansion
-----
Fanless
Yes
Humidity
10 ~ 90%
Temp
0 ～50℃
IP Norm
-----
Storage temperature
-20 ~ 80℃
Responsible Entity / Distributor
New Portable Devices

Wytrzymały komputer do automatyki przemysłowej

Compare all versions


Industrial Fanless MiniPC mBOX Nuc Q190N-01 v.Barebone
					Intel Celeron J1900 (4x2GHz)
Graphics: Intel® HD Graphics
1x LAN / 4x USB2.0 / 1x USB 3.0 / 1x COM
1x VGA / 1x HDMI  / 1x Audio / 1x Mic
RAM - no / Disc - no

Gross1042.18 zł

Industrial Fanless MiniPC mBOX Nuc Q190N-01 v.1
					Intel Celeron J1900 (4x2GHz)
Graphics: Intel® HD Graphics
1x LAN / 4x USB2.0 / 1x USB 3.0 / 1x COM
1x VGA / 1x HDMI  / 1x Audio / 1x Mic
RAM 2GB DDR3L / Disc 16GB SSD

Gross1228.77 zł

Industrial Fanless MiniPC mBOX Nuc Q190N-01 v.2
					Intel Celeron J1900 (4x2GHz)
Graphics: Intel® HD Graphics
1x LAN / 4x USB2.0 / 1x USB 3.0 / 1x COM
1x VGA / 1x HDMI  / 1x Audio / 1x Mic
RAM 2GB DDR3L / Disc 32GB SSD

Gross1256.08 zł

Industrial Fanless MiniPC mBOX Nuc Q190N-01 v.3
					Intel Celeron J1900 (4x2GHz)
Graphics: Intel® HD Graphics
1x LAN / 4x USB2.0 / 1x USB 3.0 / 1x COM
1x VGA / 1x HDMI  / 1x Audio / 1x Mic
WiFi / RAM 4GB DDR3L / Disc 64GB SSD

Gross1469.97 zł

Industrial Fanless MiniPC mBOX Nuc Q190N-01 v.4
					Intel Celeron J1900 (4x2GHz)
Graphics: Intel® HD Graphics
1x LAN / 4x USB2.0 / 1x USB 3.0 / 1x COM
1x VGA / 1x HDMI  / 1x Audio / 1x Mic
RAM 4GB DDR3L / Disc 128GB SSD

Gross1542.79 zł
