Product Update Date: 2024-10-14

Industrial Fanless MiniPC mBOX Nuc Q190S-02 v.3

Name: Industrial Fanless MiniPC mBOX Nuc Q190S-02 v.3
Brand: Mobilator
Price: 1526.74 PLN
Availability: InStock

Update Date: 2024.10.14

Guarantee 1 year (opt. 2)

Net

1241.25 zł

Gross

1526.74 zł

Buy now!

Negotiate the price

								Ask about the product

 Product card

								Recommend to a friend

								Store

								Compare

Product availability Soon in sell

Industrial Fanless MiniPC mBOX Nuc Q190S

Menu
Description
Communication & Connectors
Application
Specifications

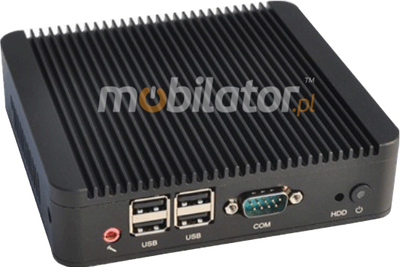

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

MBOX Nuc Q190S is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

Housing dimension are 135 (W) x128 (L) x45 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 0.82 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 16GB/32GB/64GB/128GB SSD. Support together: mSata SSD and 2.5 inch SSD/HDD - SATAIII.

Industrial Fanless MiniPC mBOX Nuc Q190S

go top…

menu…

Communication & Connectors

Integrated card - Intel RTL8111E LAN and WiFi module allow connection to the network. The computer is equipped with: two LAN port, one COM(RS232) port, one VGA output, three USB 2.0 ports, one USB 3.0 port, one HDMI output one way audio, one microphone input.

Industrial Fanless MiniPC mBOX Nuc Q190S

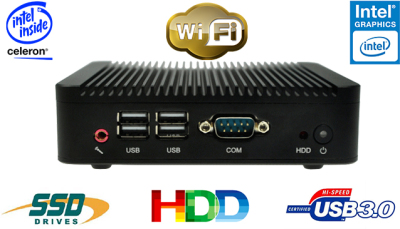

1. 1x Mic		4. 1x COM (RS232)
2. 3x USB 2.0		5. Power ON/OFF
3. 1x USB 3.0

Industrial Fanless MiniPC mBOX Nuc Q190S

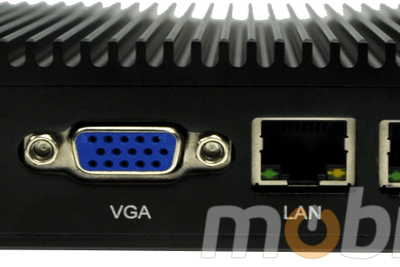

1. DC-IN 12V		4. 2x RJ-45
2. 1x HDMI		5. 1x Audio
3. 1x VGA

Cooling

The industrial fanless MiniPC MBOX Nuc Q190S uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… menu…

Application

Industrial MiniPC Series MBOX Nuc Q190S are based on high-performance processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Industrial Fanless MiniPC mBOX Nuc Q190S of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Fanless MiniPC mBOX Nuc Q190S

Areas of use of industrial MiniPC

Digital Engine

Industrial Fanless MiniPC mBOX Nuc Q190S

Trade

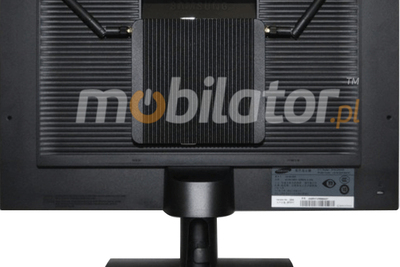

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Industrial fanless MiniPC MBOX Nuc Q190S by to four USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless MBOX Nuc Q190S can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Fanless MiniPC mBOX Nuc Q190S

go top…

menu…

Specifications

Dimension	H: 45 mm L: 128 mm W: 135 mm
Weight	0,82kg
Processor	Intel Celeron J1900 (4x2GHz)
Chipset	Intel NM70
RAM Memory	4GB DDR3
Graphic Card	Intel HD Graphics
Sound Card	Realtek ALC662
WLAN	Intel RTL8111E Lan
Connectors	1x COM(RS232) 1x wyjście 12V DC_JACK 3x USB 2.0 1x USB 3.0 2x RJ-45 1x wyjście Audio 1x HDMI 1x Mic 1x VGA

Supported OS
Microsoft Windows: 7/8/8.1, Linux
Installed OS
-----
Chipset
Intel NM70
CPU Support
-----
Installed CPU
Intel Celeron J1900 (4x2GHz)
Graphic Card
Intel HD Graphics
Memory Support
2GB DDR3 (can up to 4GB)
Installed Memory
4GB DDR3
Storage (HDD) Support
-----
Installed Storage (HDD)
64GB SSD (opc. SSD + 2,5" SSD/HDD)
IP Norm
-----
Temp
0 - 50 ℃
Storage temperature
-15 - 70 ℃
Humidity
0 ~ 95%
Others
Colour Black, Aluminum
LAN
Intel RTL8111E Lan
Wireless LAN card
Yes
3G
No
Bluetooth
No
Rear Panel (ports)
1x Audio,
2x RJ-45,
 1x HDMI,
1x VGA
Front Panel (ports)
Power ON/OFF,
 4x USB 2.0,
 1x COM(RS232),
 1x Mic
Expansion
-----
Power
12V
Watch Dog Timer
0~255 sec
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
135 x 128 x45  mm
Fanless
Yes
Weight
0.82 kg
Responsible Entity / Distributor
New Portable Devices

Bezwentylatorowy komputer do warunków przemysłowych

MiniPC z pasywnym chłodzeniem do przemysłu

MiniPC przemysłowy z niskim zużyciem energii
