Industrial MiniPC |
Description

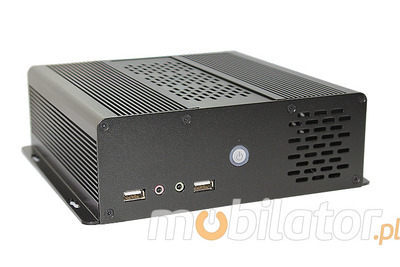

Housing dimension are 196 (W) x204 (L) x70 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.4 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel GMA3150 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space from 64GB SSD or 500GB HDD.
|
|
|
Communication & Connectors |
|

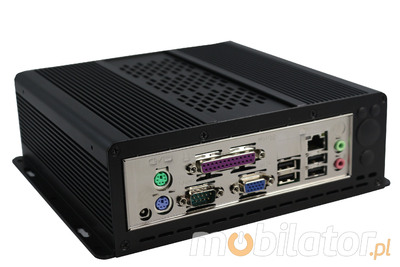

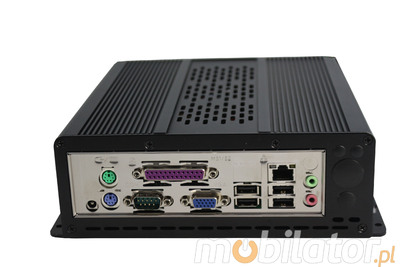

Integrated card - Intel RTL8105E 100M (optional WiFi module) allow connection to the network. The computer is equipped with: one LAN port, two COM ports (RS232), six USB 2.0 ports, one VGA input, one way audio, one microphone input and connectors built into the motherboard: four USB 2.0 ports, two PowerOUT outputs, one audio output, one SIM, one JVGA connector, one GPIO connector, one LVDS connector.
General-purpose input/output (GPIO)
LVDS Interface
|
Cooling
The industrial MiniPC IBOX-N455-S100 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.
|
|
;)
;)
;)
