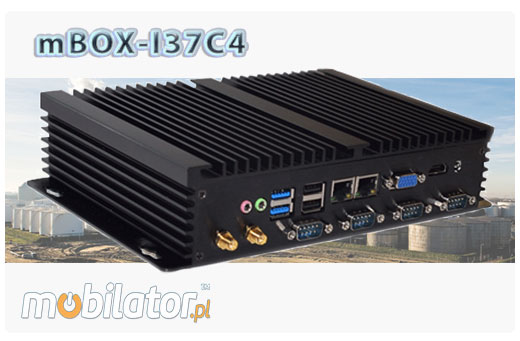

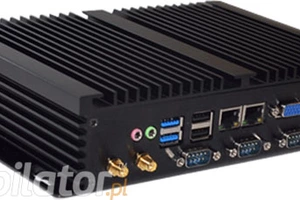

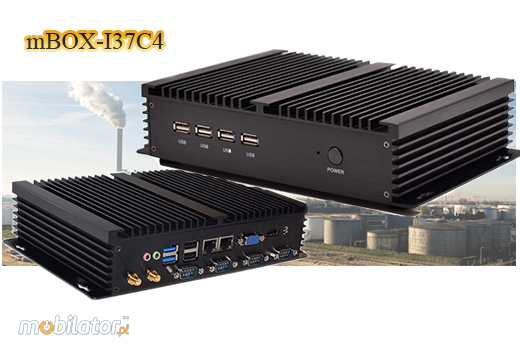

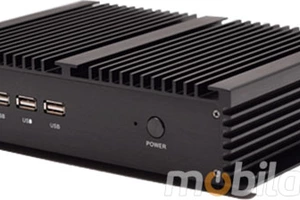

Industrial MiniPC |
Description

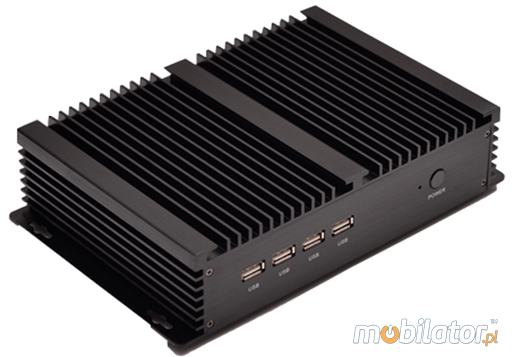

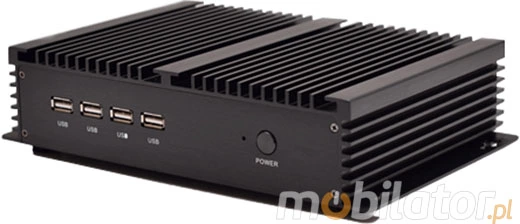

Housing dimension are 197 (W) x197 (L) x29 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.0 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Using the latest technology Digital Engine (industrial MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB SSD.
|
|
|
Communication & Connectors |
|

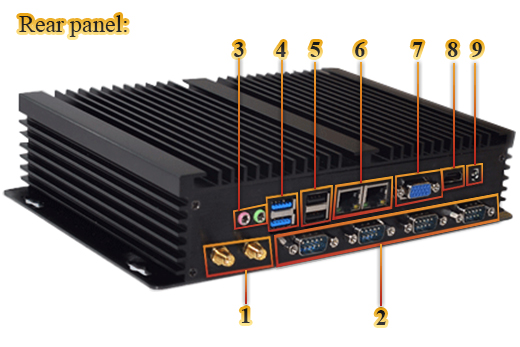

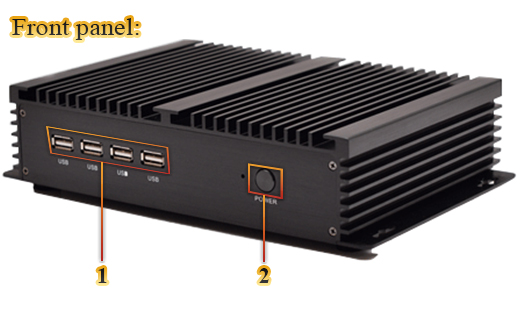

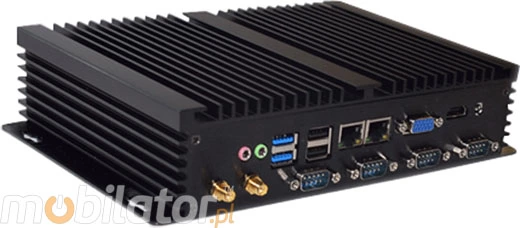

Integrated card - Intel RTL8111F and WiFi module allow connection to the network. The computer is equipped with: two LAN port, four COM ports (RS232), one HDMI port, one VGA output, six USB 2.0 ports, two USB 3.0 ports, one way audio, one microphone input. Two independent network cards Intel RTL8111EThe computer can use two network cards for different purposes - it can be very practical - for example - when one card is responsible for the Internet connection, and the other keeps the connection of devices in the factory, warehouse, shop, supermarket and even in bank that should not have its own connection to the Internet.
|
Cooling

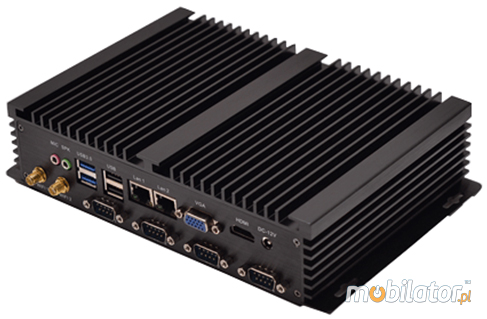

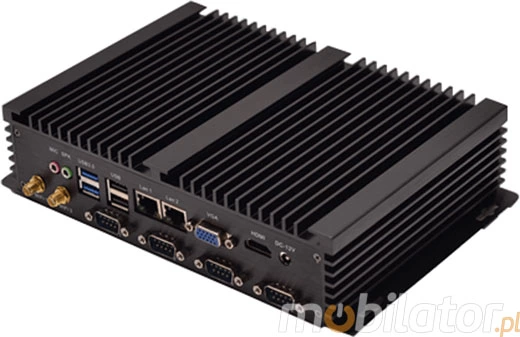

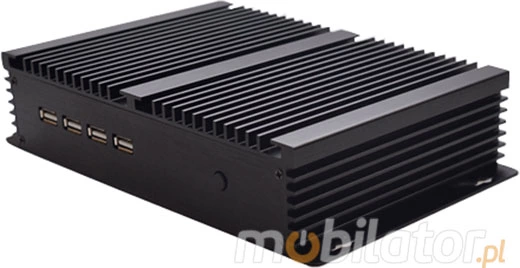

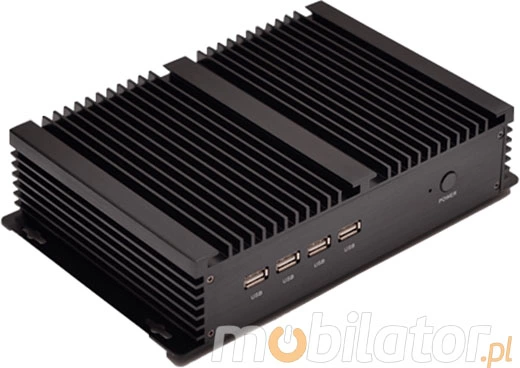

The industrial MiniPC mBOX-I37C4 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.
|
|
;)
;)
;)
;)
;)
