Industrial MiniPC |
Description

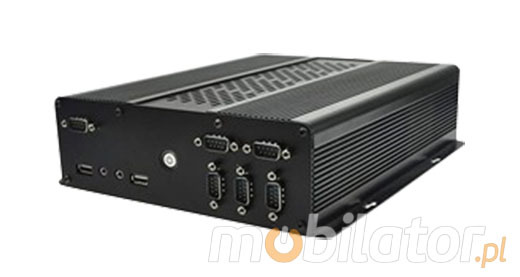

Housing dimension are 235 (W) x210 (L) x72 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 3.0 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

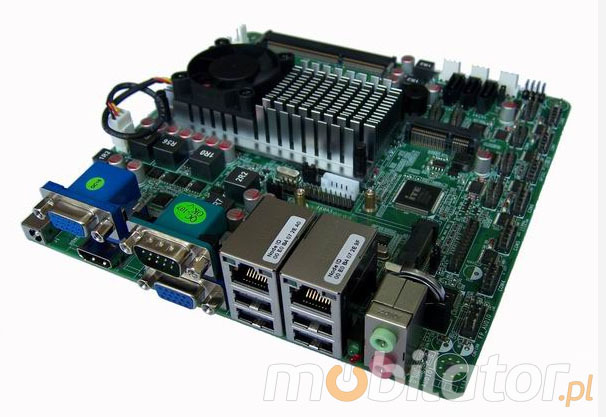

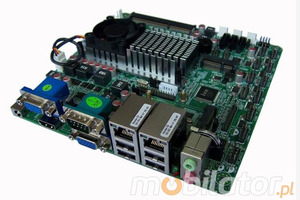

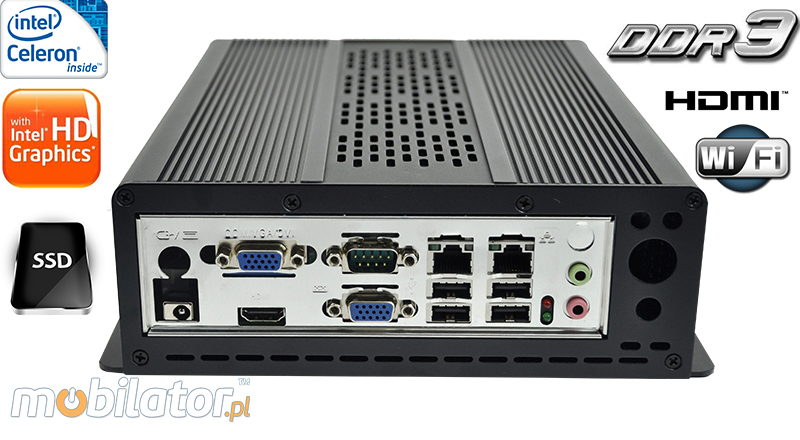

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB SSD.
|
|
|
Communication & Connectors |
|

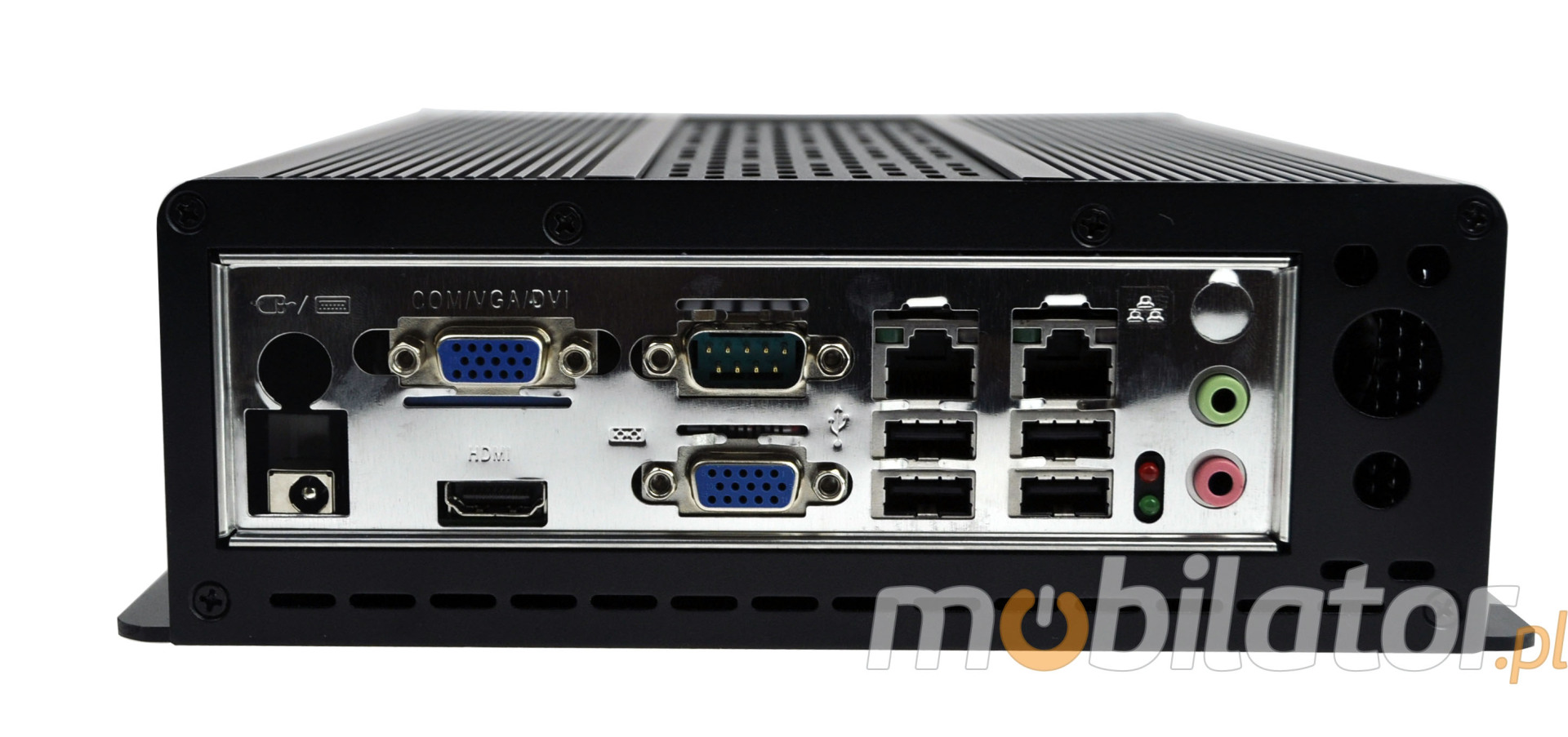

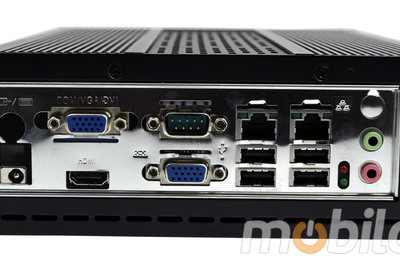

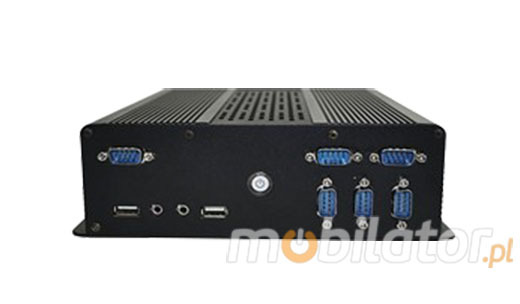

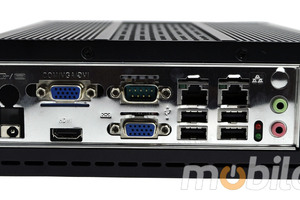

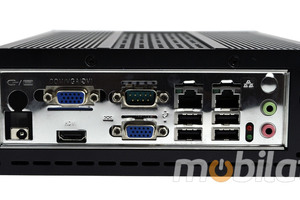

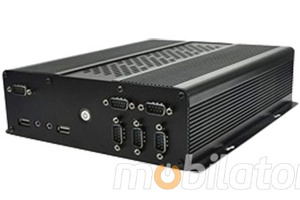

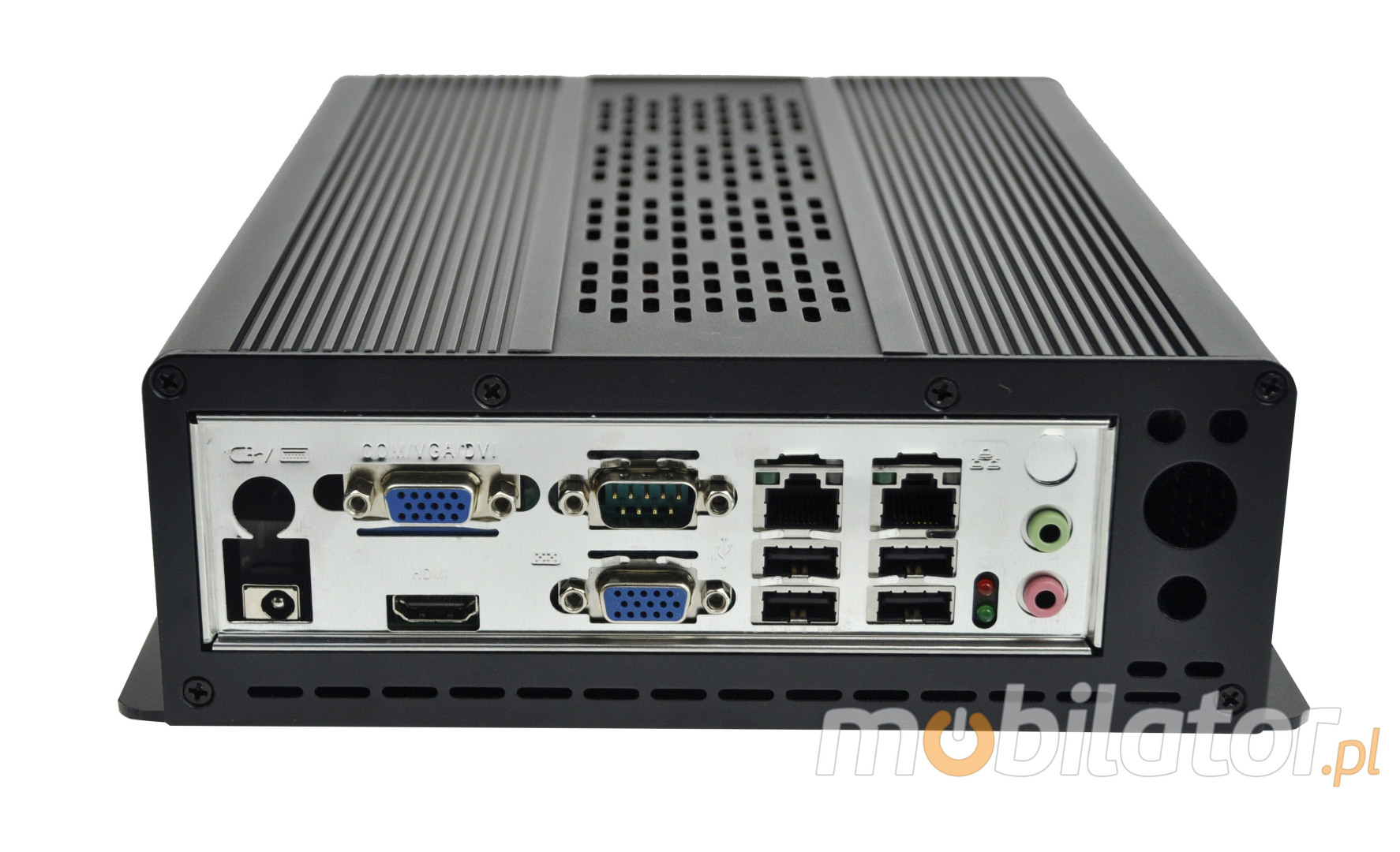

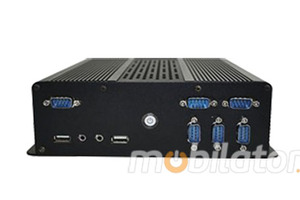

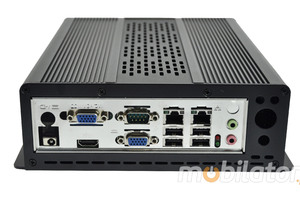

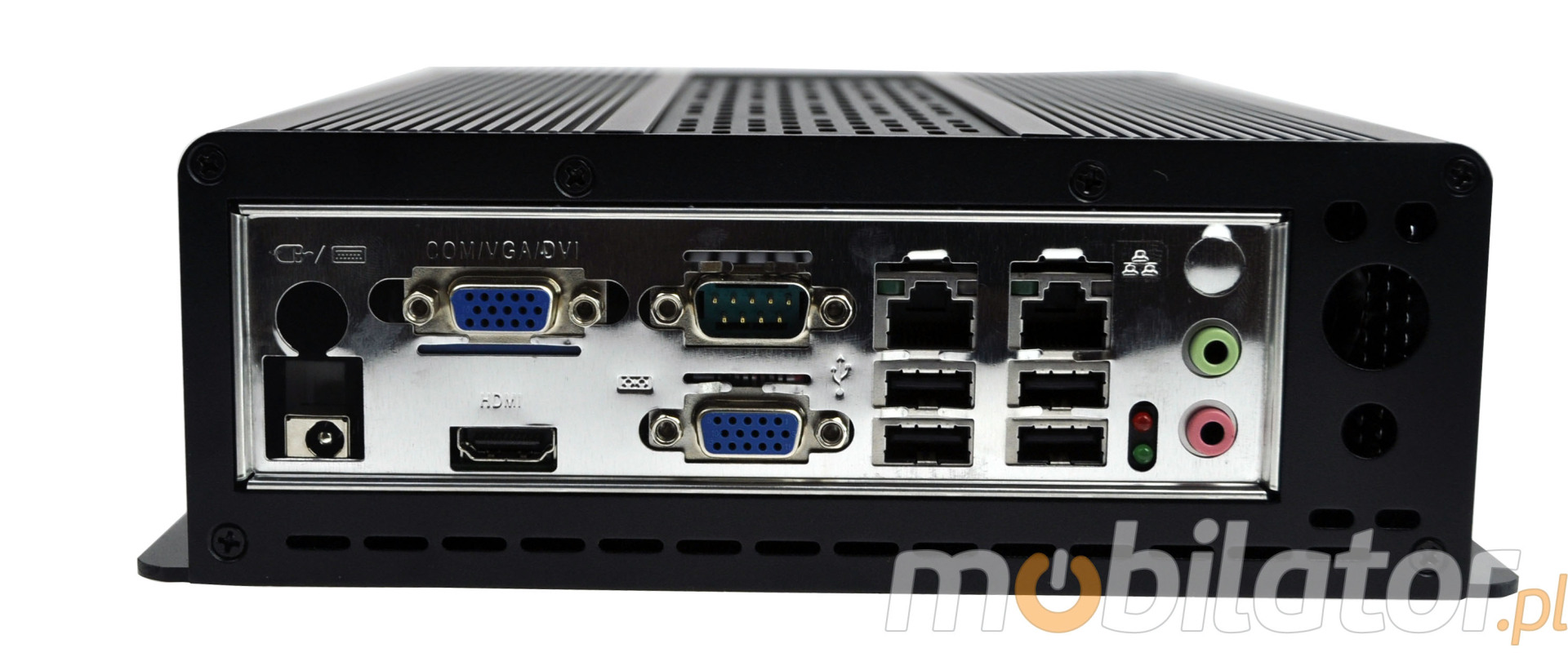

Integrated card - Intel RTL8111EL and WiFi module allow connection to the network. The computer is equipped with: two LAN ports, seven COM ports (RS232), six USB 2.0 ports, one HDMI input, two VGA inputs, one way audio, one microphone input.
Two independent network cards Intel RTL8111E
|
Cooling

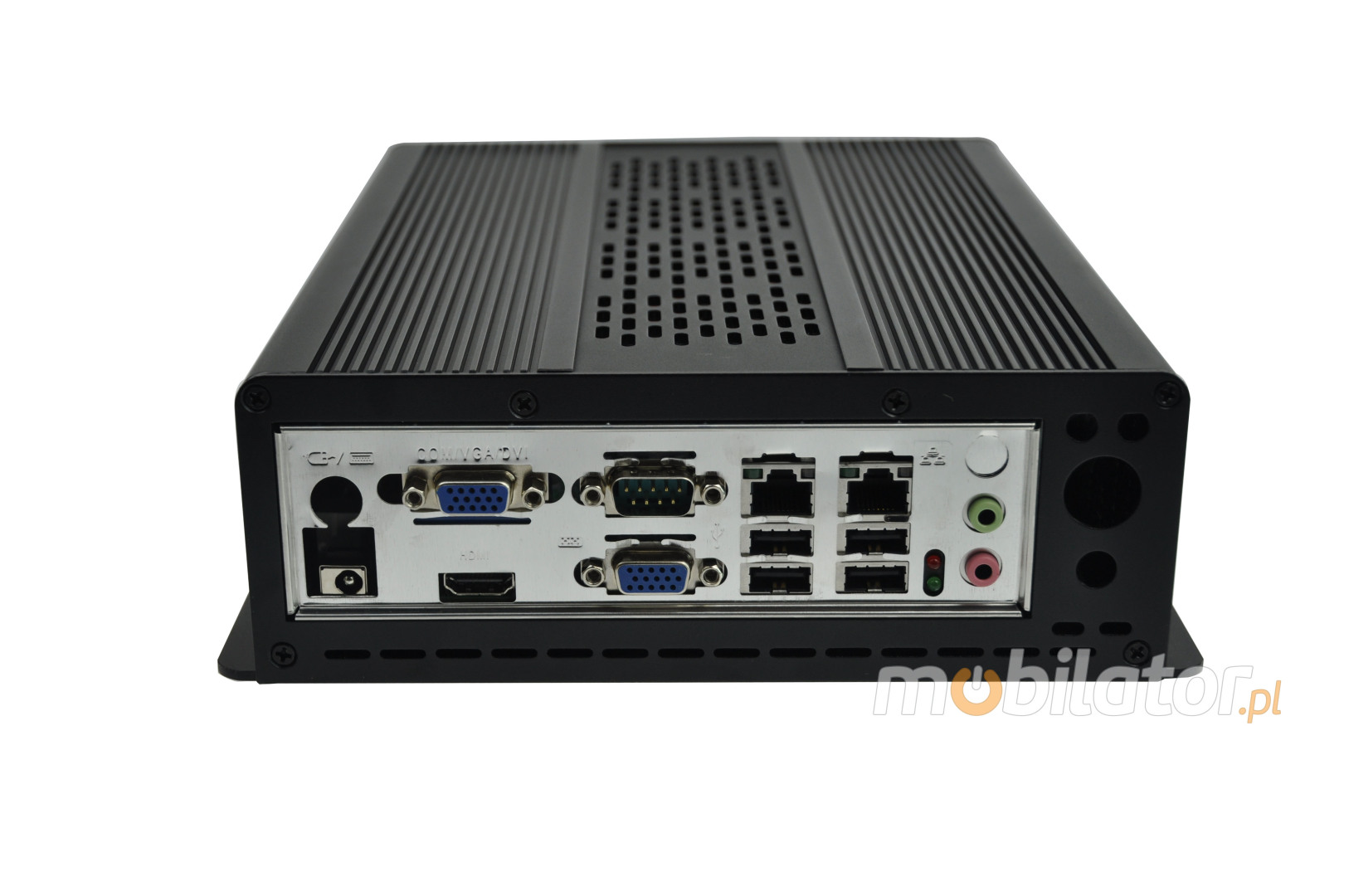

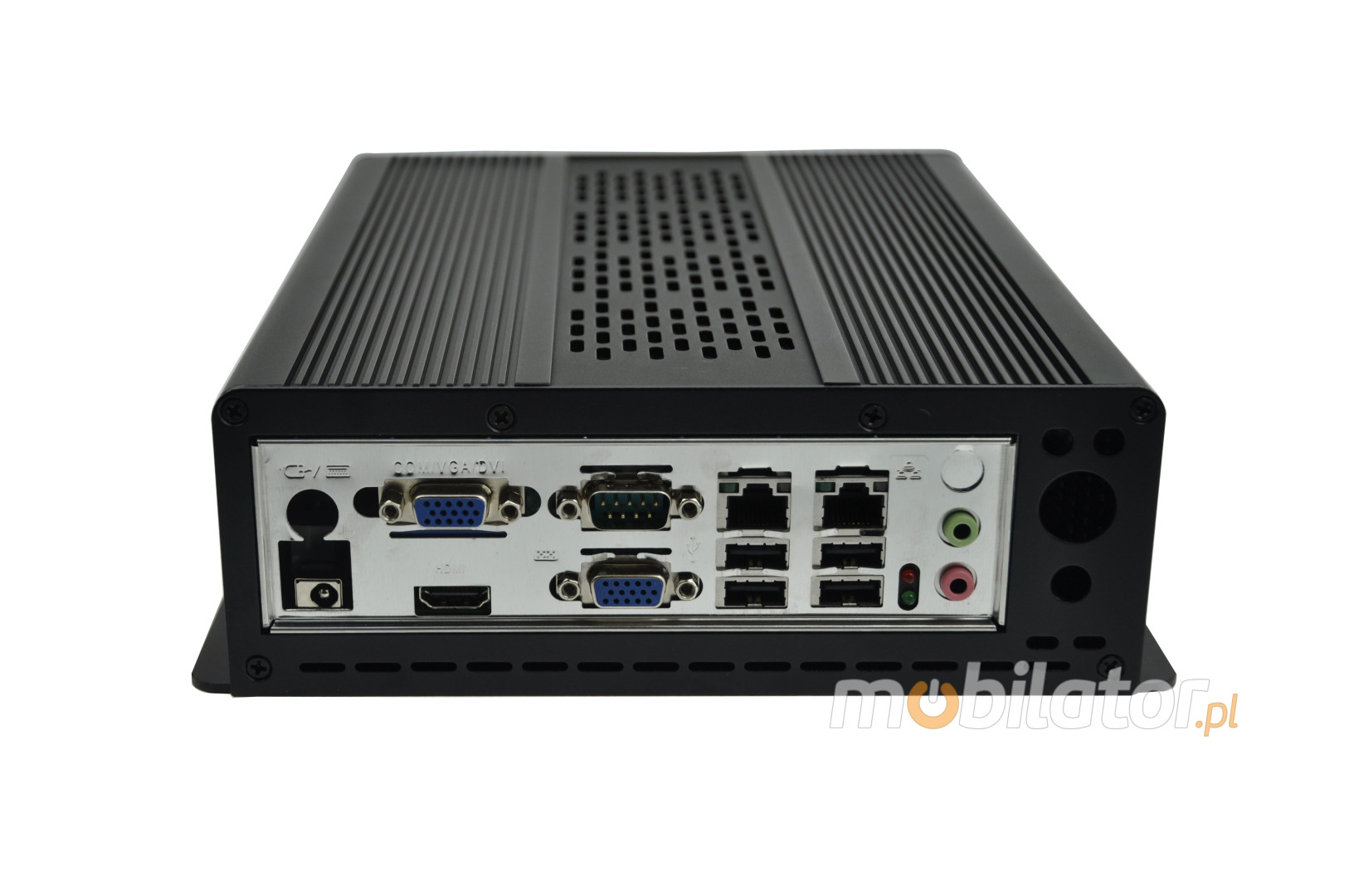

The industrial MiniPC mBOX-I37C7 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.
|
|
;)
;)
;)
;)
;)
;)
;)
;)
