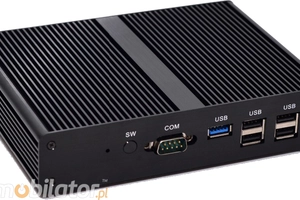

Industrial MiniPC mBOX-M185D v.3

Name: Industrial MiniPC mBOX-M185D v.3
Brand: Mobilator
Price: 1421.74 PLN
Availability: InStock

Update Date: 2016.02.18

Guarantee 1 year (opt. 2)

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

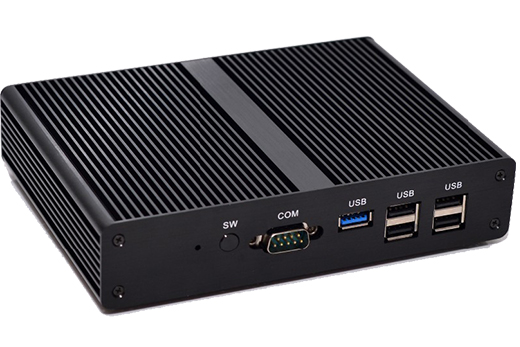

Industrial MiniPC mBOX-M185D

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

Industrial MiniPC mBOX-M185D is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

Housing dimension are 175 (W) x120 (L) x35 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 1.8 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 8GB/32GB/64GB SSD.

Industrial MiniPC mBOX-M185D

go top…

menu…

Communication & Connectors

Integrated card - Intel RTL8111DL 100M and WiFi module allow connection to the network. The computer is equipped with: one LAN port, one USB 3.0 port, one VGA output, four USB 2.0 ports, one HDMI output, two COM(RS232) ports, one way audio and one microphone input.

Industrial MiniPC mBOX-M185D

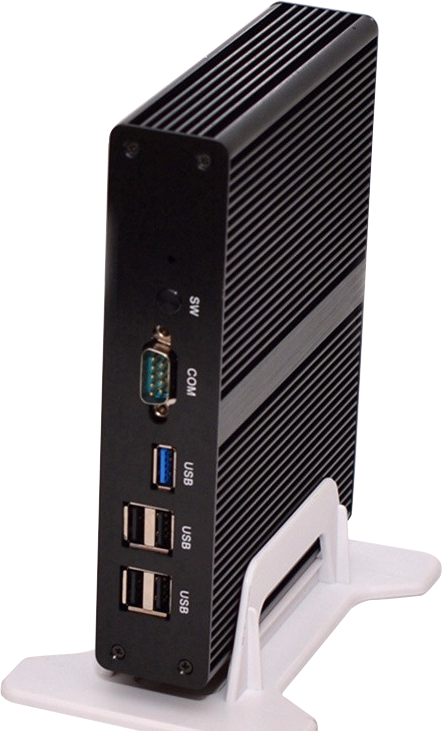

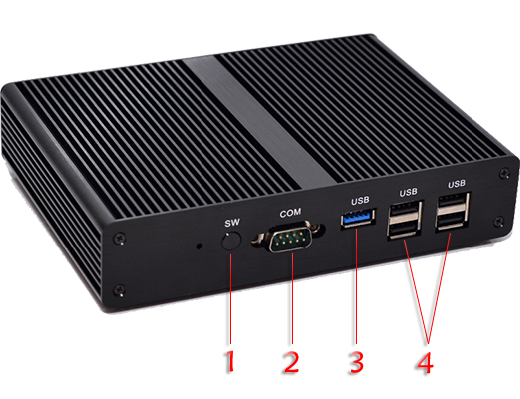

1. Power ON/OFF		3. 1x USB 3.0
2. 1x COM(RS232)		4. 4x USB 2.0

Industrial MiniPC mBOX-M185D

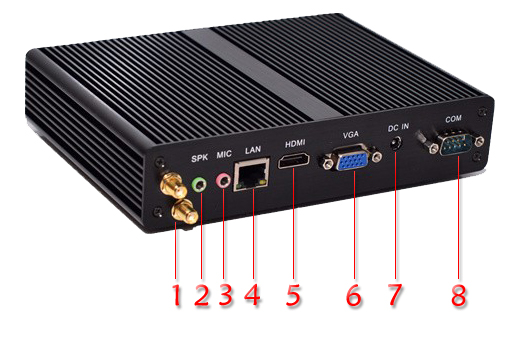

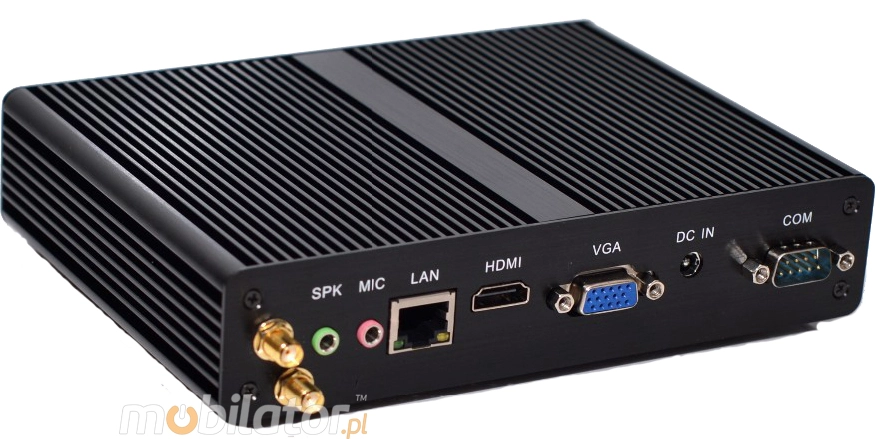

1. 2x WiFi	5. 1x HDMI
2. 1x Audio	6. 1x VGA
3. 1x Mic	7. 1x DC-IN 12V
4. 1x RJ-45	8. 1x COM(RS232)

Cooling

The industrial fanless Industrial MiniPC mBOX-M185D uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… menu…

Application

Industrial MiniPC Series mBOX-M185D are based on high-performance processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of mBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages of these devices are: small size, performance and energy efficiency. An extra pair of brackets at Industrial MiniPC mBOX-M185D the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial MiniPC mBOX-M185D

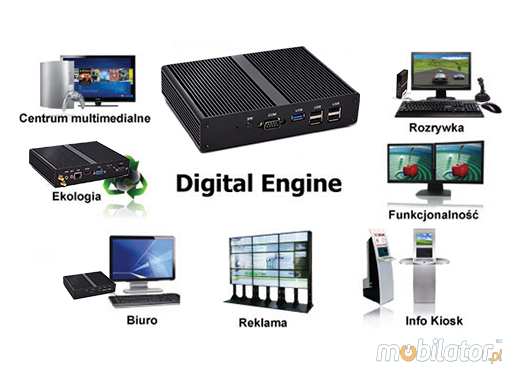

Areas of use of industrial MiniPC

Digital Engine

Industrial MiniPC mBOX-M185D

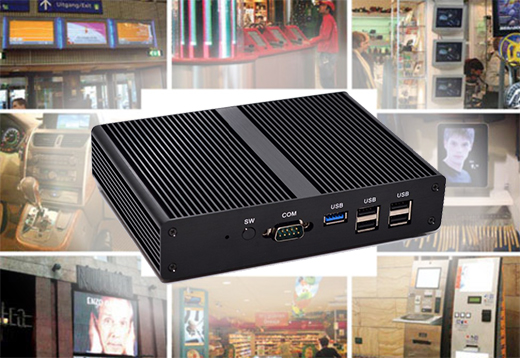

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Industrial MiniPC mBOX-M185D by to five USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

Industrial MiniPC mBOX-M185D can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial MiniPC mBOX-M185D

go top…

menu…

Specifications

Dimension	H: 35 mm L: 120 mm W: 175 mm
Weight	1,8kg
Processor	Intel® Pentium® 2117U (2x 1,8GHz) (opc. Intel Celeron N2920 4x1.86GHz)
Chipset	Intel Soc Chipset
RAM Memory	4GB DDR3 (1x SODIMM 1333/1600 MHz 1.35V)
Graphic Card	Intel HD Graphics
Sound Card	Realtek ALC662
WLAN	Intel RTL8111DL 100M Lan
Connectors	1x USB 3.0 1x wyjście 12V DC_JACK 4x USB 2.0 1x RJ-45 1x wyjście Audio 1x HDMI 1x Mic 1x VGA 2x COM(RS232)

Supported OS
Microsoft Windows: 7/8/8.1, Linux
Installed OS
-----
Chipset
Intel Soc Chipset
CPU Support
-----
Installed CPU
Intel® Pentium® 2117U (2x 1,8GHz)
opc. Intel Celeron N2920 (4x1.86GHz)
Graphic Card
Intel HD Graphics
Memory Support
2GB DDR3 (can up to 4GB)
Installed Memory
4GB DDR3 SODIMM 1333/1600 MHz 1.35V
Storage (HDD) Support
-----
Installed Storage (HDD)
64GB SSD
IP Norm
-----
Temp
0 - 50 ℃
Storage temperature
-15 - 70 ℃
Humidity
0 ~ 95%
Others
Colour Black, Aluminum
LAN
Intel RTL8111DL 100M Lan
Wireless LAN card
Yes
3G
No
Bluetooth
No
Rear Panel (ports)
1x Audio,
1x RJ-45,
 1x HDMI,
1x Mic,
2x WiFi,
1x VGA,
 1x COM(RS232)
Front Panel (ports)
Power ON/OFF,
 1x COM(RS232),
 1x USB 3.0,
 4x USB 2.0
Expansion
-----
Power
12V
Watch Dog Timer
0~255 sec
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
175 x 120 x35  mm
Fanless
Yes
Weight
1.8 kg
Responsible Entity / Distributor
New Portable Devices

Compare all versions


Industrial MiniPC mBOX-M185D v.1
					Small size / Intel® Pentium® 2117U 2x1.8GHz
Graphics: Intel® HD Graphics
RAM 2G DDR3 / Disk 8GB SSD
1x LAN / 1x USB 3.0 / 4x USB 2.0
1x HDMI / 1x VGA / 2x COM / 2x Audio

Product from the Archive - production finished

Industrial MiniPC mBOX-M185D v.2
					Small size / Intel® Pentium® 2117U 2x 1,8GHz
Graphics: Intel® HD Graphics
RAM 4G DDR3 / Disk 32GB SSD
1x LAN / 1x USB 3.0 / 4x USB 2.0 / WiFi
1x HDMI / 1x VGA / 2x COM / 2x Audio

Product from the Archive - production finished

Industrial MiniPC mBOX-M185D v.3
					Small size / Intel® Pentium® 2117U 2x 1,8GHz
Graphics: Intel® HD Graphics
RAM 4G DDR3 / Disk 64GB SSD
1x LAN / 1x USB 3.0 / 4x USB 2.0 / WiFi
1x HDMI / 1x VGA / 2x COM / 2x Audio

Product from the Archive - production finished
