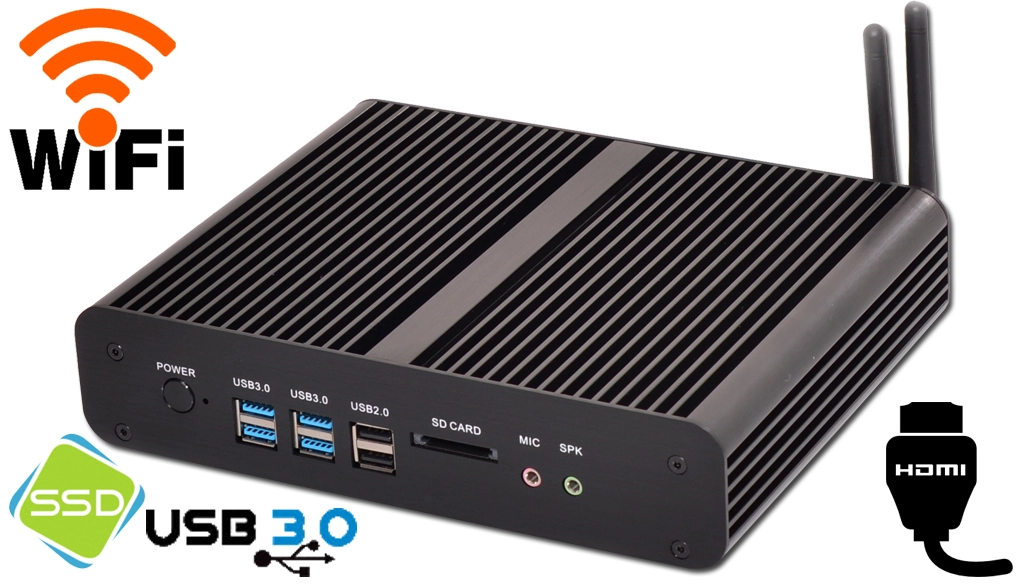

Industrial MiniPC mBOX-T5010U v.2

Name: Industrial MiniPC mBOX-T5010U v.2
Brand: Mobilator
Price: 1836.02 PLN
Availability: InStock

Update Date: 2015.10.13

Guarantee 1 year (opt. 2)

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

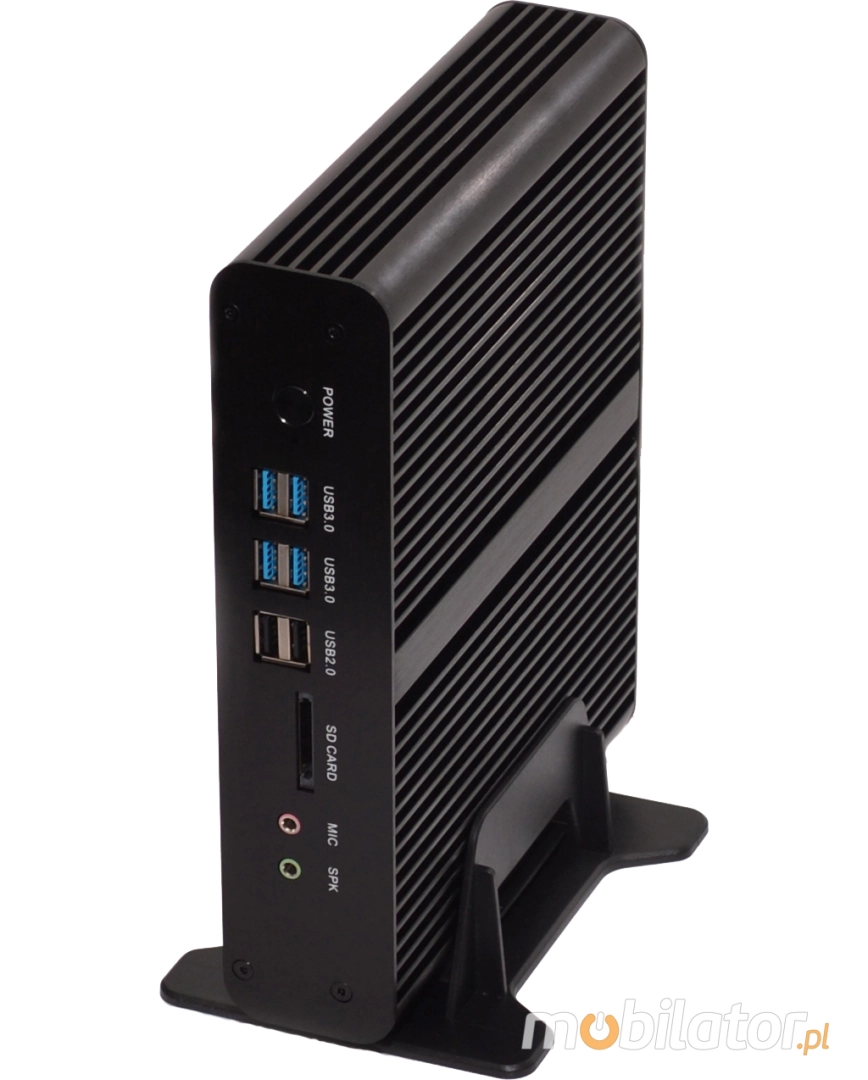

Industrial MiniPC mBOX-T5010U

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

Industrial MiniPC mBOX-T5010U is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

Housing dimension are 230 (W) x180 (L) x46 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2,5 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC892 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB SSD/500GB HDD.

Industrial MiniPC mBOX-T5010U

go top…

menu…

Communication & Connectors

Integrated card - Intel 1000M Lan RTL8111E allow you to connect the device to the network. The computer is equipped with: two LAN connector, four USB 3.0 ports, two USB 2.0 ports, one SD card reader, two HDMI, two connectors COM (RS232), audio output, one microphone input.

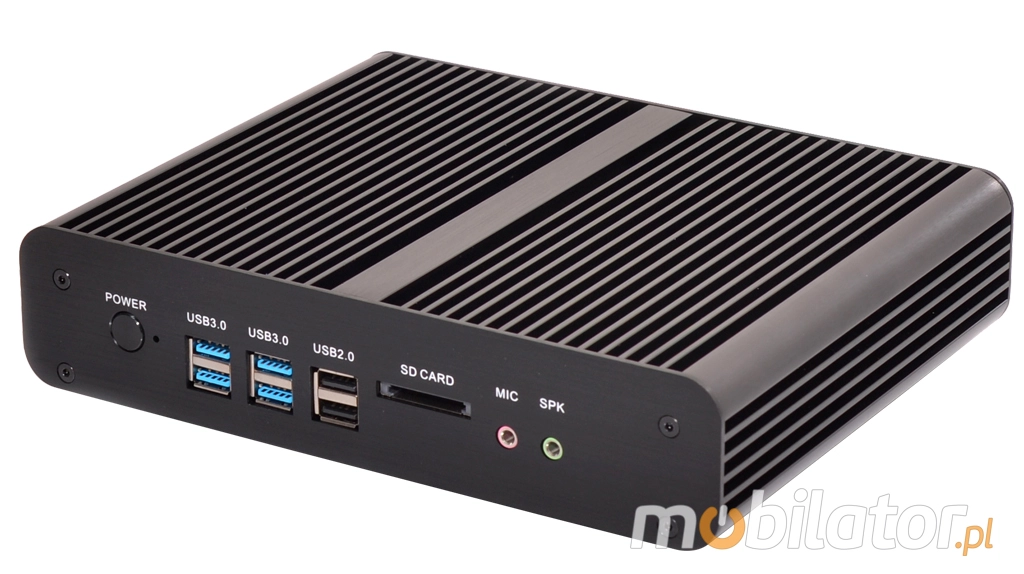

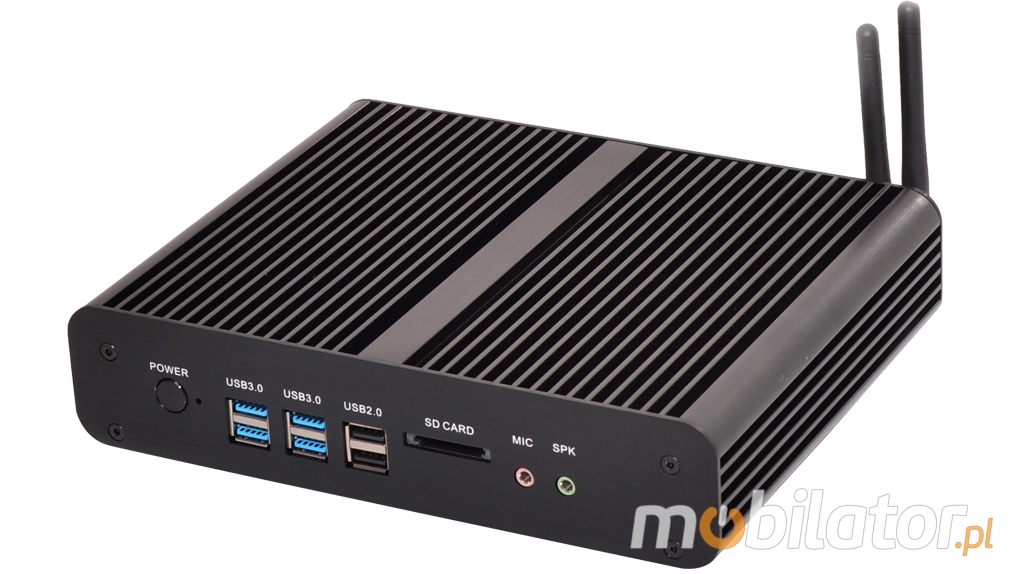

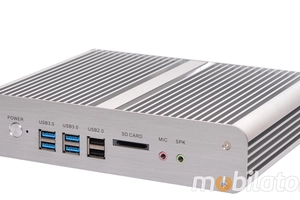

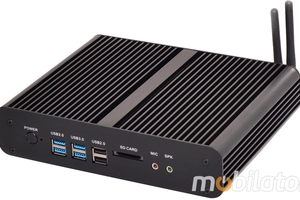

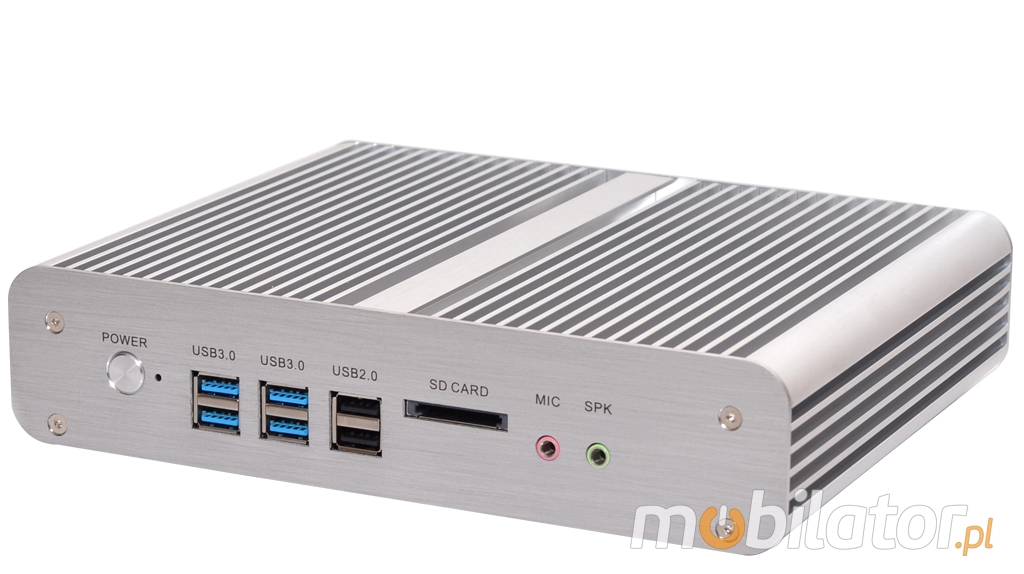

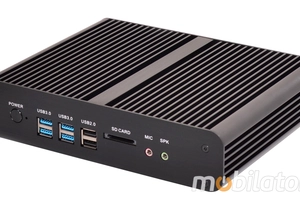

Industrial MiniPC mBOX-T5010U

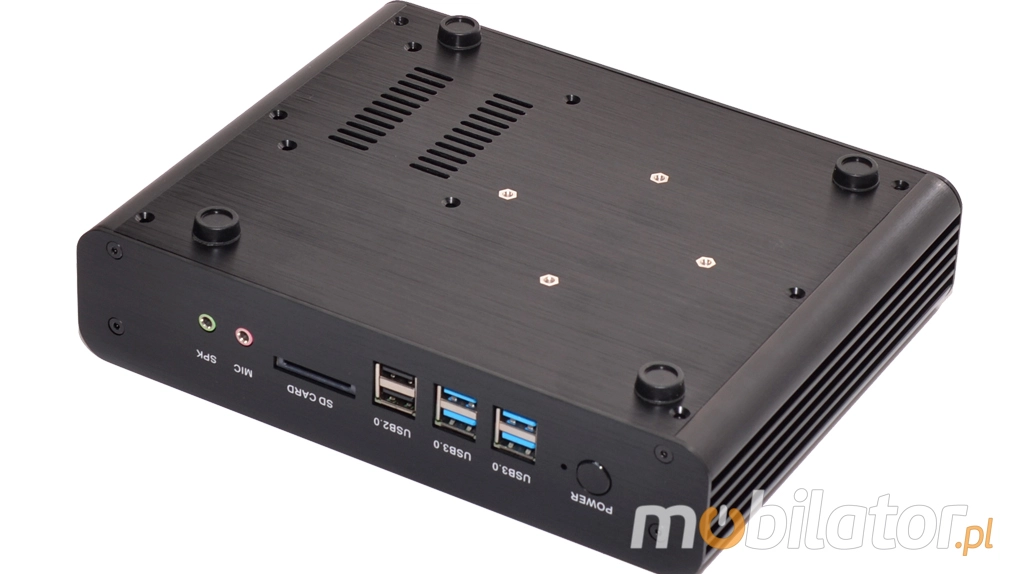

1. Power on/off	4. 1x czytnik kart SD
2. 4x USB 3.0	5. 1x Mic
3. 2x USB 2.0	6. 1x Audio

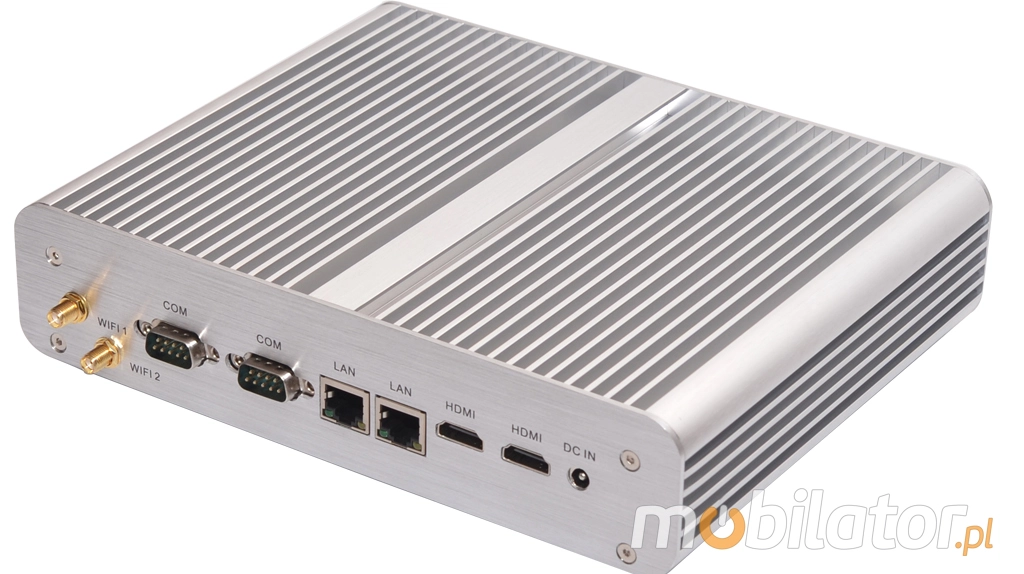

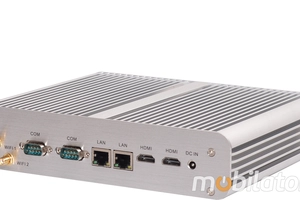

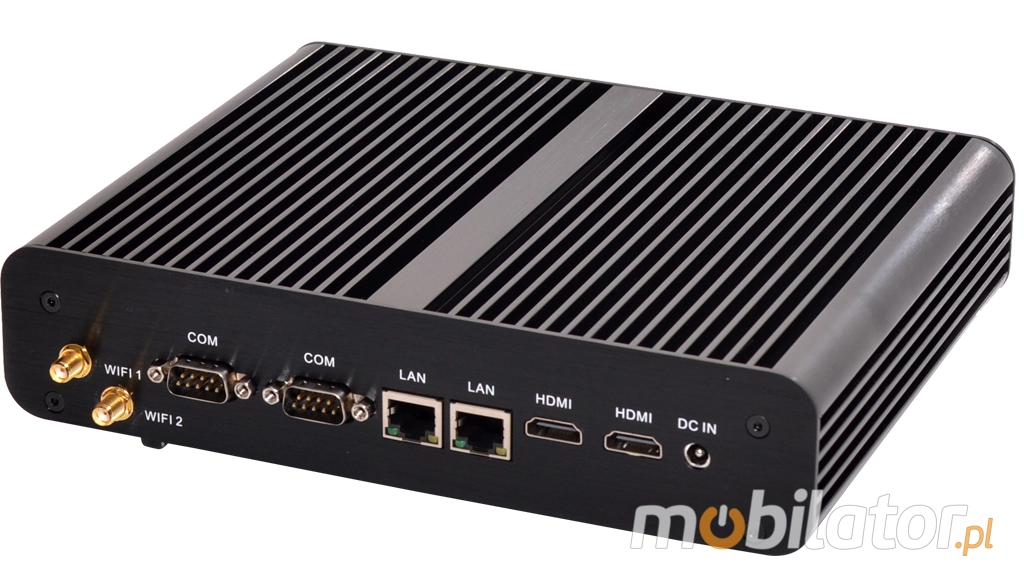

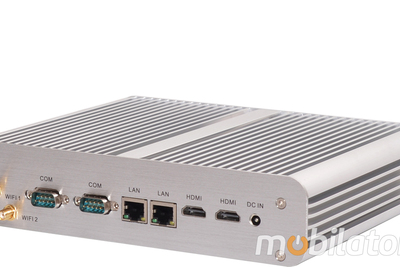

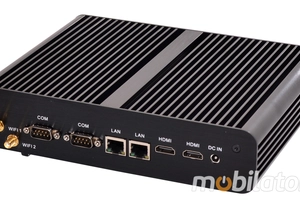

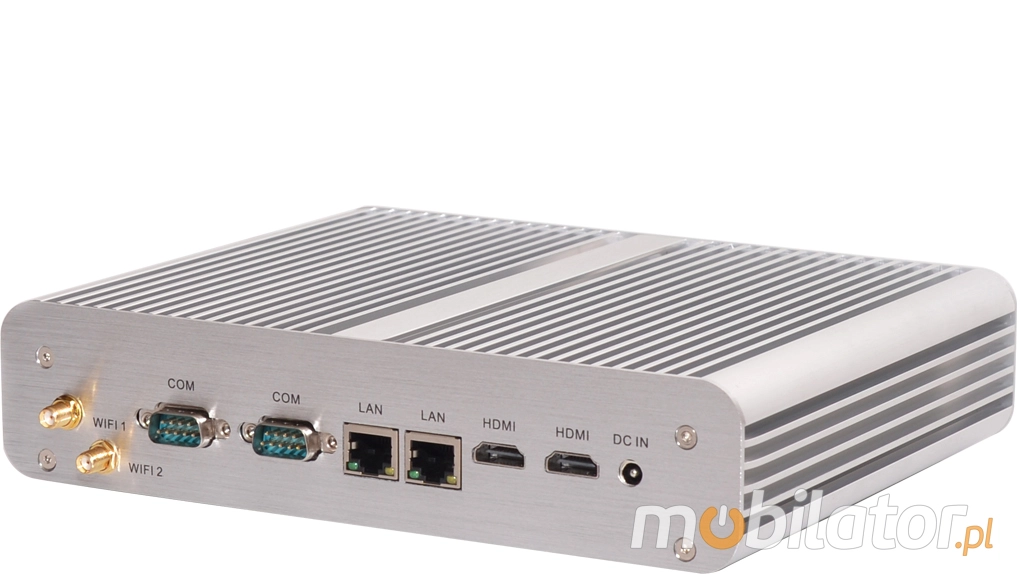

Industrial MiniPC mBOX-T5010U

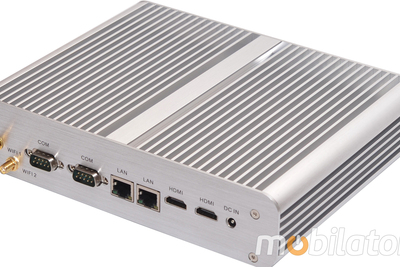

1. 1x Antena Wifi (opcja)	4. 2x HDMI
2. 2x COM(RS232)	5. 1x DC-in
3. 2x LAN RJ-45

Cooling

The industrial fanless Industrial MiniPC mBOX-T5010U uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… menu…

Application

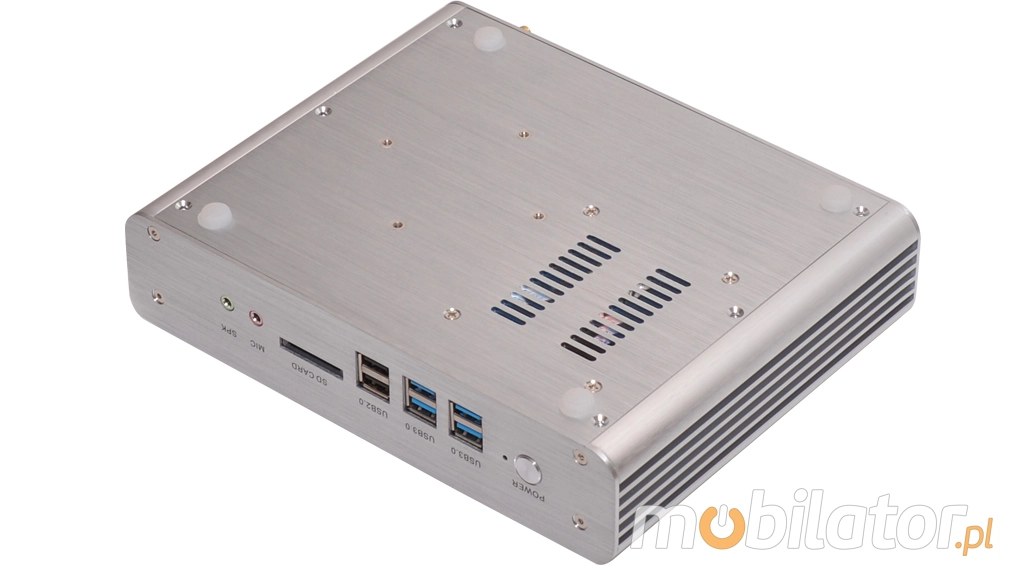

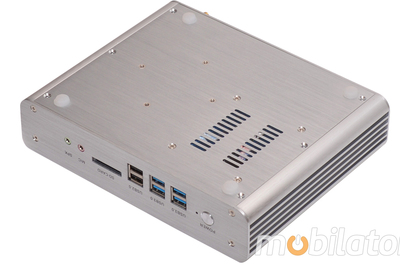

Industrial MiniPC Series mBOX-T5010U are based on high-performance processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of mBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages of these devices are: small size, performance and energy efficiency. An extra pair of brackets at Industrial MiniPC mBOX-T5010U the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial MiniPC mBOX-T5010U

Areas of use of industrial MiniPC

Digital Engine

Industrial MiniPC mBOX-T5010U

Trade

Small, less computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Industrial MiniPC mBOX-T5010U by to USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

Industrial MiniPC mBOX-T5010U can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial MiniPC mBOX-T5010U

go top…

menu…

Specifications

Dimension	H: 46 mm L: 180 mm W: 230 mm
Weight	2,5 kg
Processor	Intel i3-5010U (2x2.10GHz)
Chipset	Intel Soc Chipset
RAM Memory	4GB DDR3
Graphic Card	Intel HD Graphics
Sound Card	Realtek ALC892
WLAN	Intel RTL8111E 1000M Lan
Connectors	2x USB 2.0 4x USB 3.0 1x Audio 1x Mic 2x HDMI 2x RJ-45 2x COM(RS232) 1x DC-in 1x card reader SD 1x Wi-Fi Antena

Others
Colour Black/Gray, Aluminum
Chipset
Intel Soc Chipset
CPU Support
-----
Installed CPU
Intel i3-5010U (2x2.10GHz)
Memory Support
2GB DDR3 (can up to 16GB)
Installed Memory
4GB DDR3 SODIMM
Graphic Card
Intel HD Graphics
Storage (HDD) Support
SSD/HDD
Installed Storage (HDD)
32GB SSD
CD/DVD Drive
-----
LAN
2x Realtek RTL 8111E - 10/100/1000 LAN
Wireless LAN card
Yes
Bluetooth
No
3G
No
TV Tuner
-----
Watch Dog Timer
-----
Front Panel (ports)
Power on/off,
2x USB 2.0
 4x USB 3.0
1 x cztytnik kart SD
1 x Audio
 1 x Mic
Rear Panel (ports)
2x HDMI
2x RJ-45
 2x COM (RS-232)
 1x DC-in
Power
12V
Supported OS
Microsoft Windows: XP/7/8/8.1, Linux
Installed OS
-----
Dimensions
230 x 180  x 46mm
Weight
2,5kg
Expansion
-----
Fanless
No
Humidity
0 ~ 95%
Temp
0 - 50 ℃
IP Norm
-----
Storage temperature
-15 - 70 ℃
Responsible Entity / Distributor
New Portable Devices

Compare all versions


Industrial MiniPC mBOX-T5010U v.1
					Small size / Intel i3-5010U (2x2.10GHz)
Graphics: Intel® HD Graphics
RAM 4GB DDR3 / Dysk 32GB SSD
2x LAN / 4x USB 3.0 / 2x USB 2.0 / 2x HDMI
2x COM / 1x reader SD / 1x Audio / 1x Mic

Product from the Archive - production finished

Industrial MiniPC mBOX-T5010U v.2
					Small size / Intel i3-5010U (2x2.10GHz)
Graphics: Intel® HD Graphics
RAM 4GB DDR3 / Dysk 32GB SSD / Wi-Fi
2x LAN / 4x USB 3.0 / 2x USB 2.0 / 2x HDMI
2x COM / 1x reader SD / 1x Audio / 1x Mic

Product from the Archive - production finished

Industrial MiniPC mBOX-T5010U v.3
					Small size / Intel i3-5010U (2x2.10GHz)
Graphics: Intel® HD Graphics
RAM 8GB DDR3 / Dysk 500GB HDD / Wi-Fi
2x LAN / 4x USB 3.0 / 2x USB 2.0 / 2x HDMI
2x COM / 1x reader SD / 1x Audio / 1x Mic

Product from the Archive - production finished
