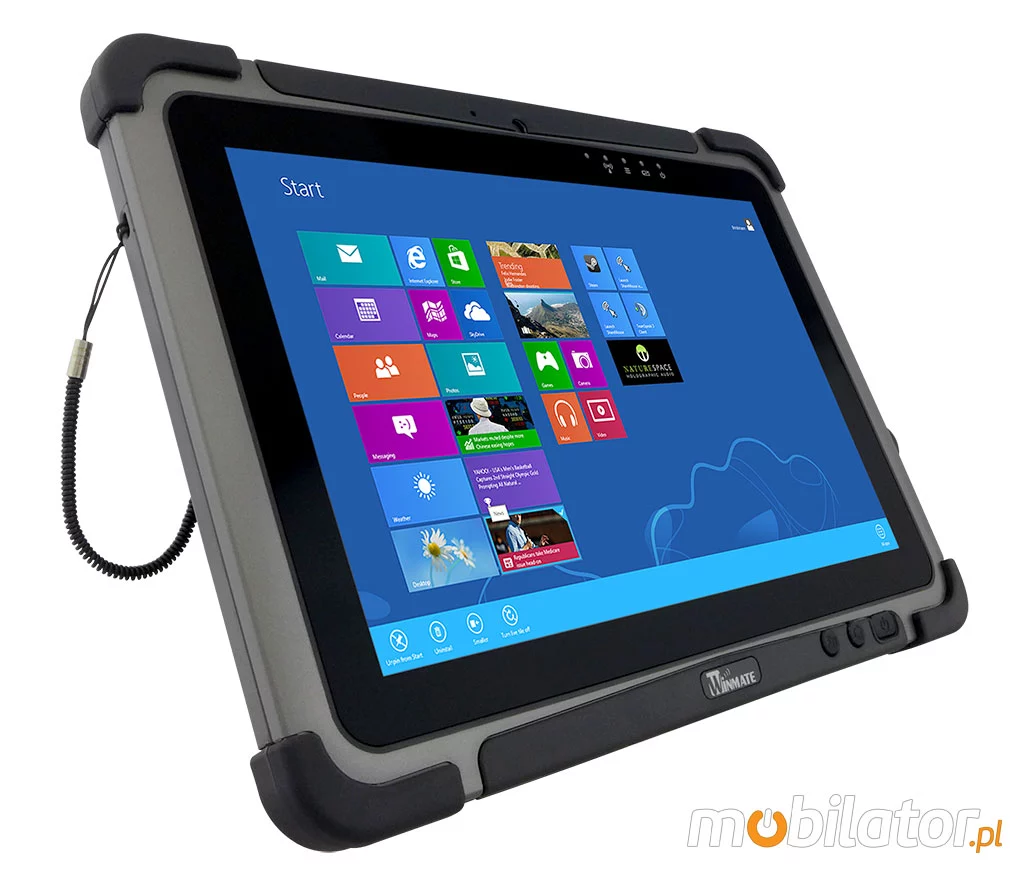

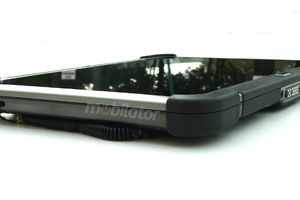

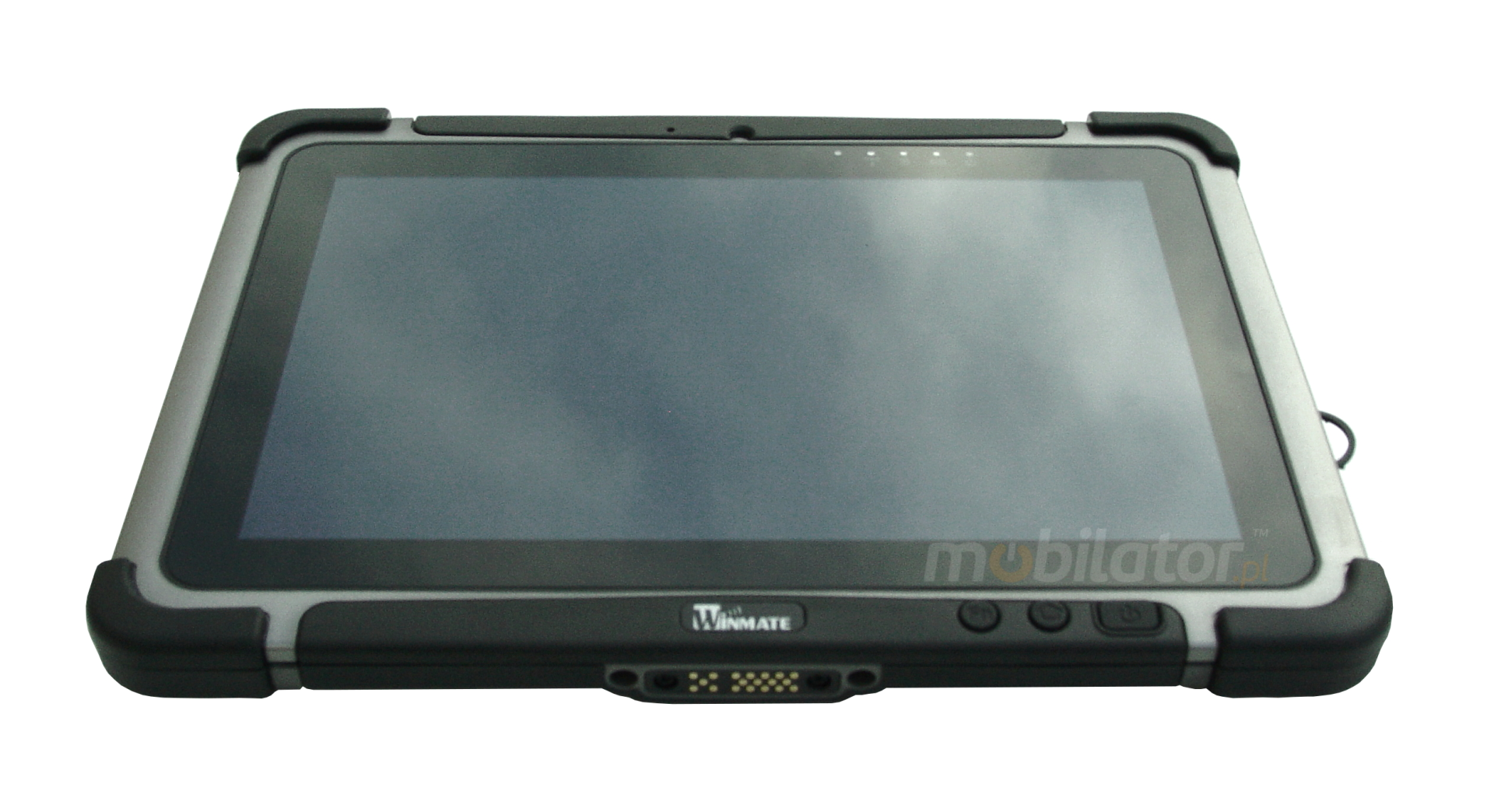

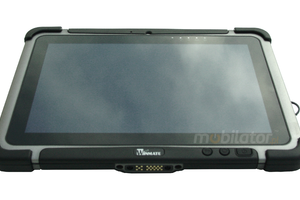

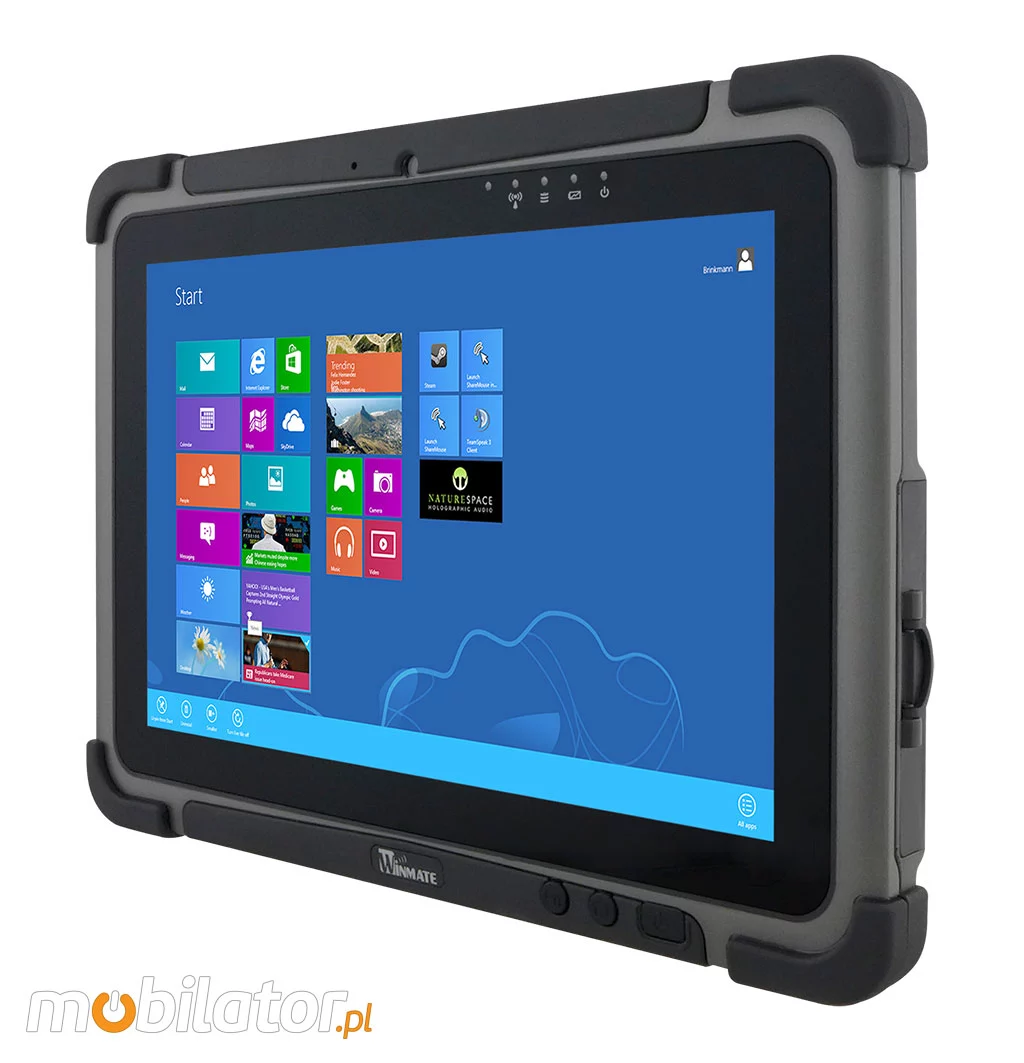

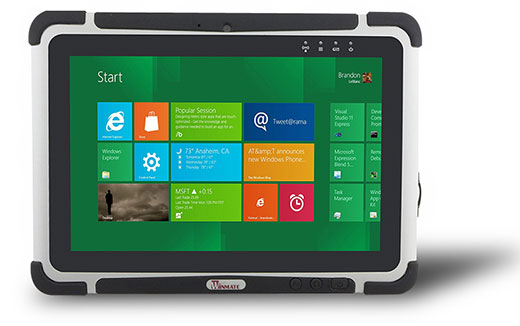

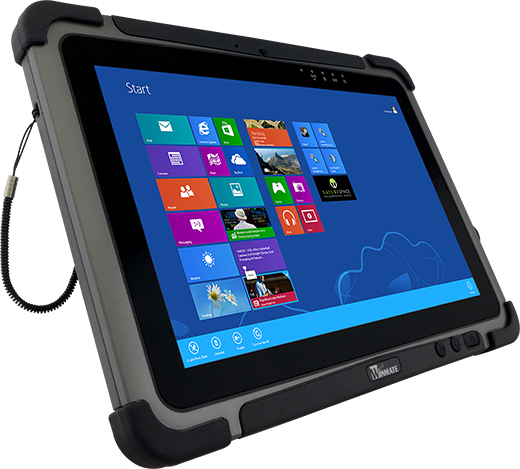

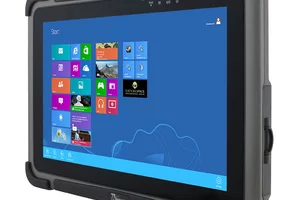

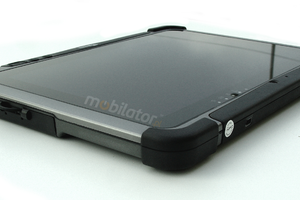

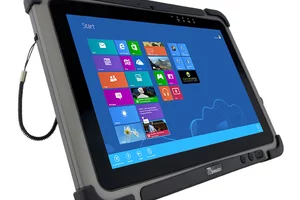

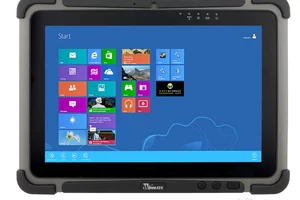

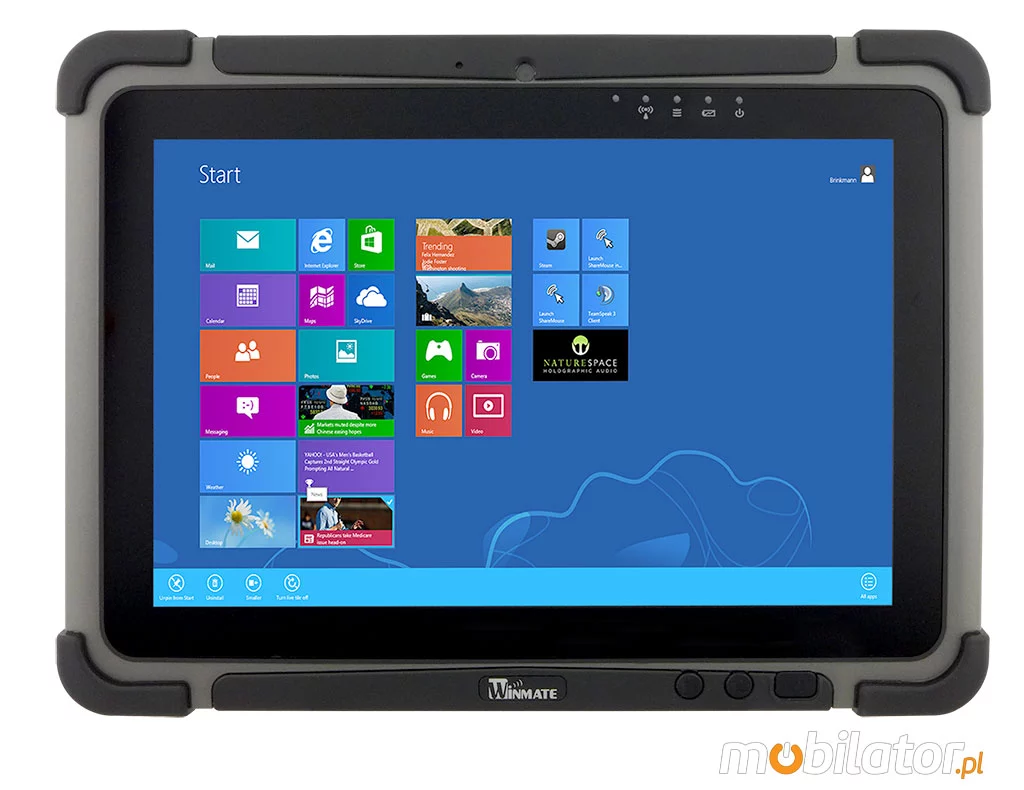

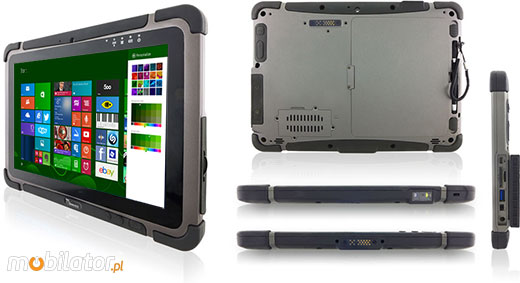

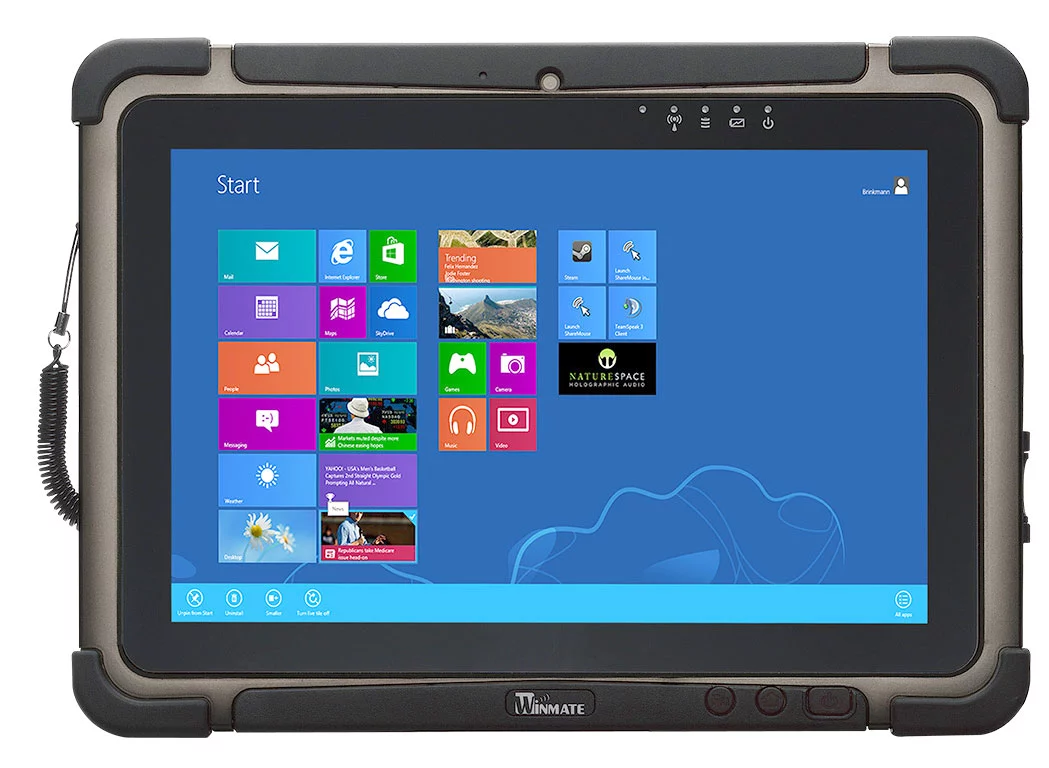

M101BL - ST is offered with IIntel BayTrail-M Quad-Core 1.8GHz processor to provide high performance and low power consumption, providing extended battery life. It supports with Windows 10/8.1/7 operating system to fulfill increasing requirement in industrial applications and provides an alternative solution for those between general consumer and extremely rugged application.

go top... menu…

The collection and processing of data

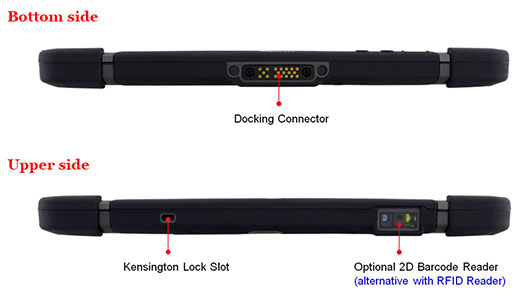

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

RFID

RFID (Radio-Frequency Identification) is a technology used to identify objects and control flow of  products. The Read information from special tags that are attached to the objects followed by radio. Depending on the type of tag the amount of stored information is changing as well as the maximum distance at which data can be read.

FC standards cover communications protocols and data exchange formats, and are based on existing radio-frequency identification (RFID) standards including ISO/IEC 14443 and FeliCa.

go top... menu…

Resistance

Applicable standards

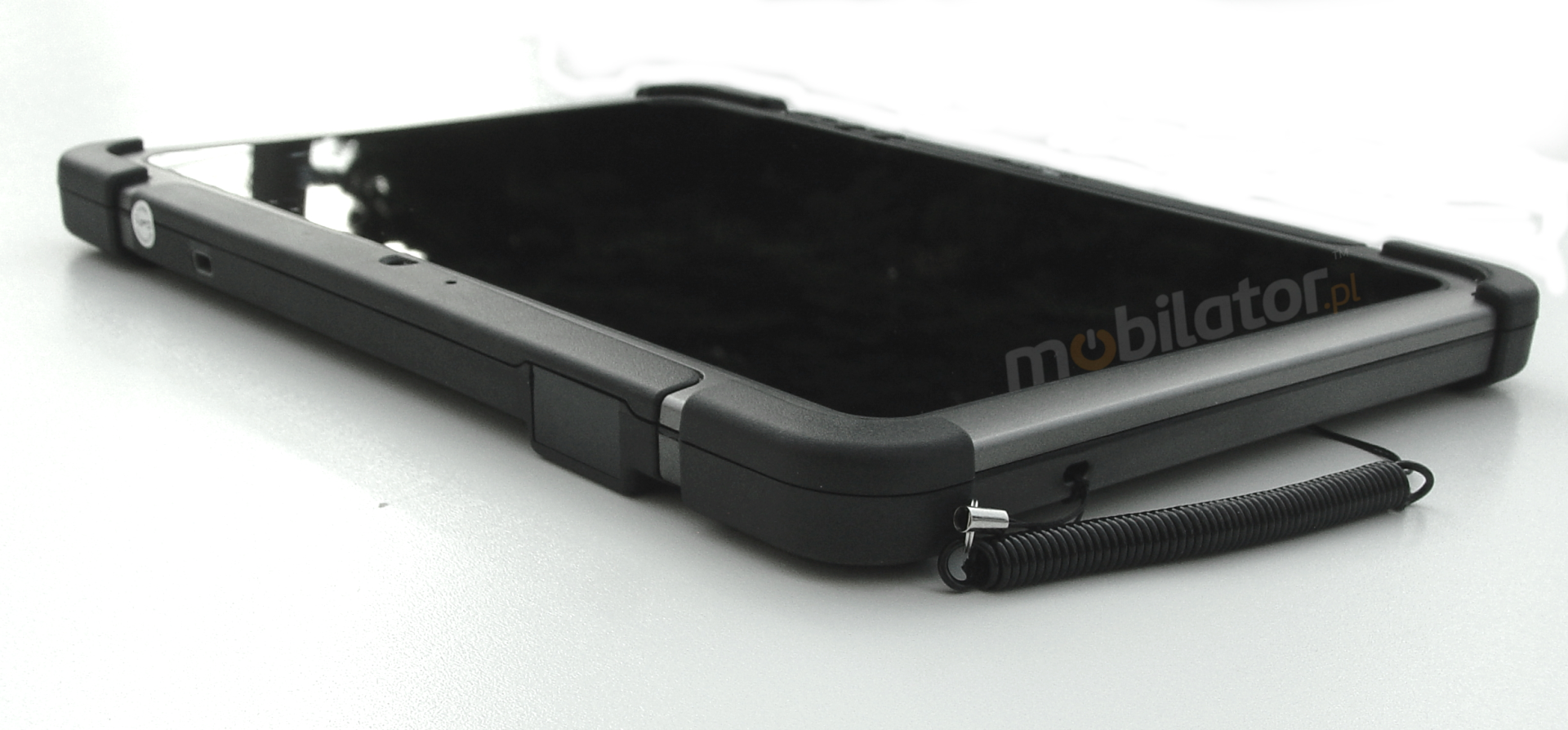

In terms of device ruggedness, the M101BL - ST can withstand a 4-foot drop, and with IP65 sealing, where the first digit "6" means the device is dustproof and the second digit "5" means that the device has the ability to handle low pressure water jets from all directions. The tablet can operate in temperature range of -10° to 50°C, optimized for most industrial deployments. M101BL - STis a sharp looking, sturdy and powerful device that can hold up well against use in harsh environment with its industrial grade rugged design.

Computer made in accordance with the requirements of the U.S. military standard MIL-STD-810G. He keeps working after falling onto concrete from a height of 1.2 meters, is not afraid of vibration, shock, water, mud and temperature changes. Certification C1D2 means that during operation of the tablet will not occur and the spark generating heat sufficient to ignite the vapors contained in the atmosphere of acetylene, hydrogen and other gases (important when operating in the petroleum industry). Operating temperature range from minus 20 to plus 60 degrees Celsius.

go top... menu…

IP65 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

Complete protection against contact, Protection against dust deposit	5 5	Protection from splashed water
Complete protectionm against contact, Protection from infiltration of dust	6 6	Protection from water projected from a nozzle

go top... menu…

Modułes and Wireless Networks

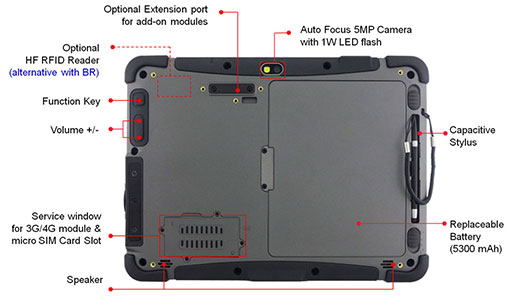

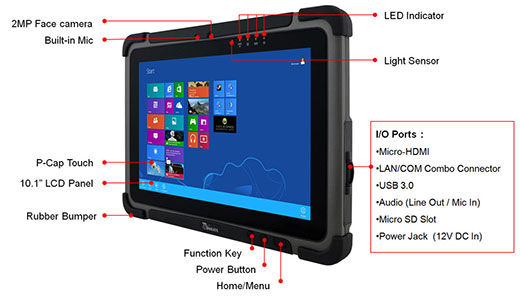

Real-time data access to the right information is very important to mobile users. M101BL - ST offers optional 3G/4G(optional), GPS, WiFi 802.11 a/b/g/n, Bluetooth 4.0 which enable users to get connect in the way that best suits their needs. With built-in 5.0 Mega Pixels camera on rear side, users can capture photos, videos, documents instantly, or utilize the front 2.0 Mega Pixel camera for application such as user self video recording, or video communication.

go top... menu…

Functionality

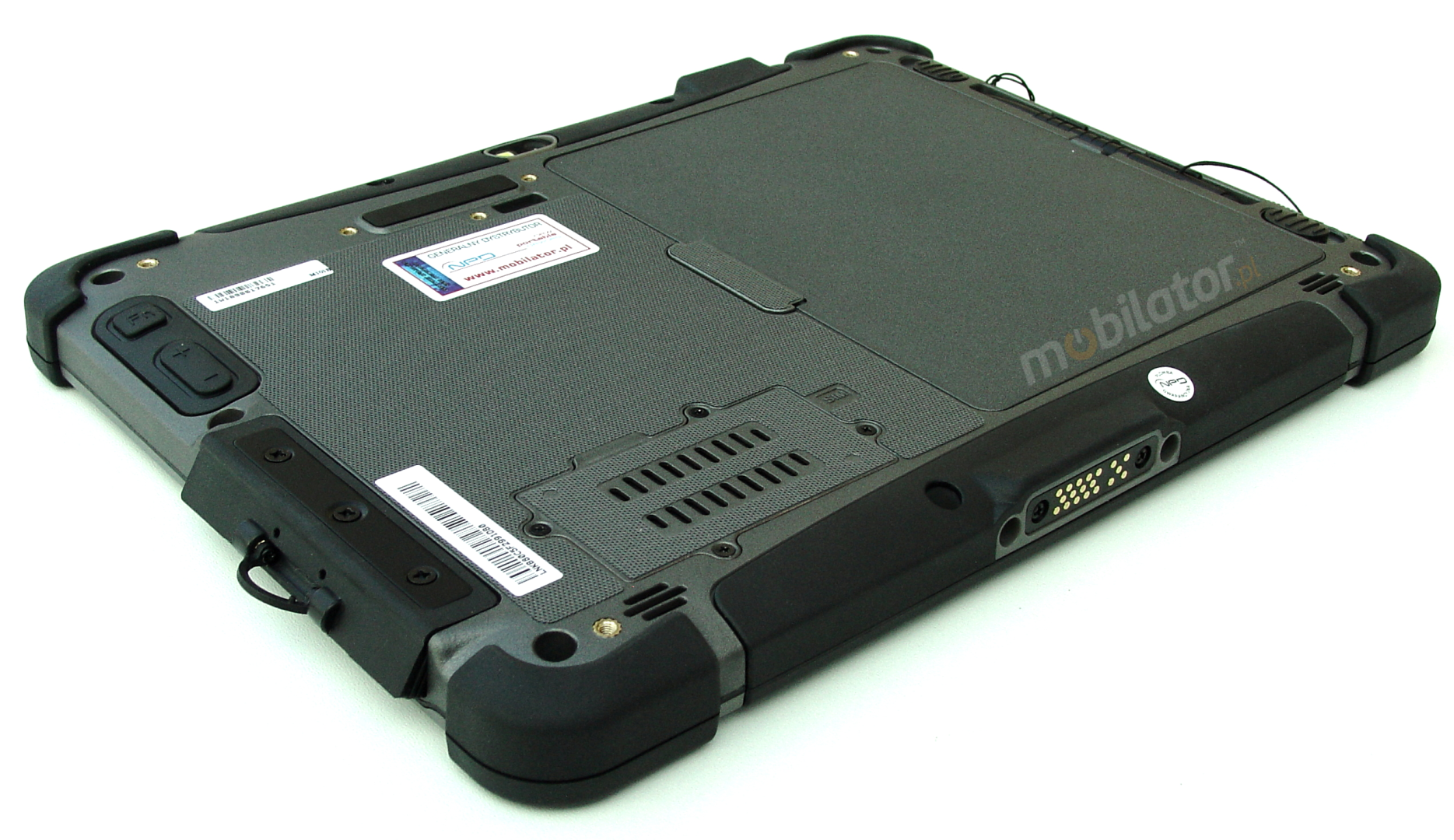

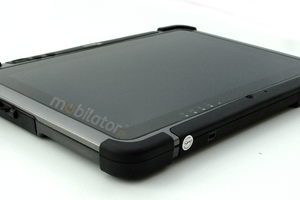

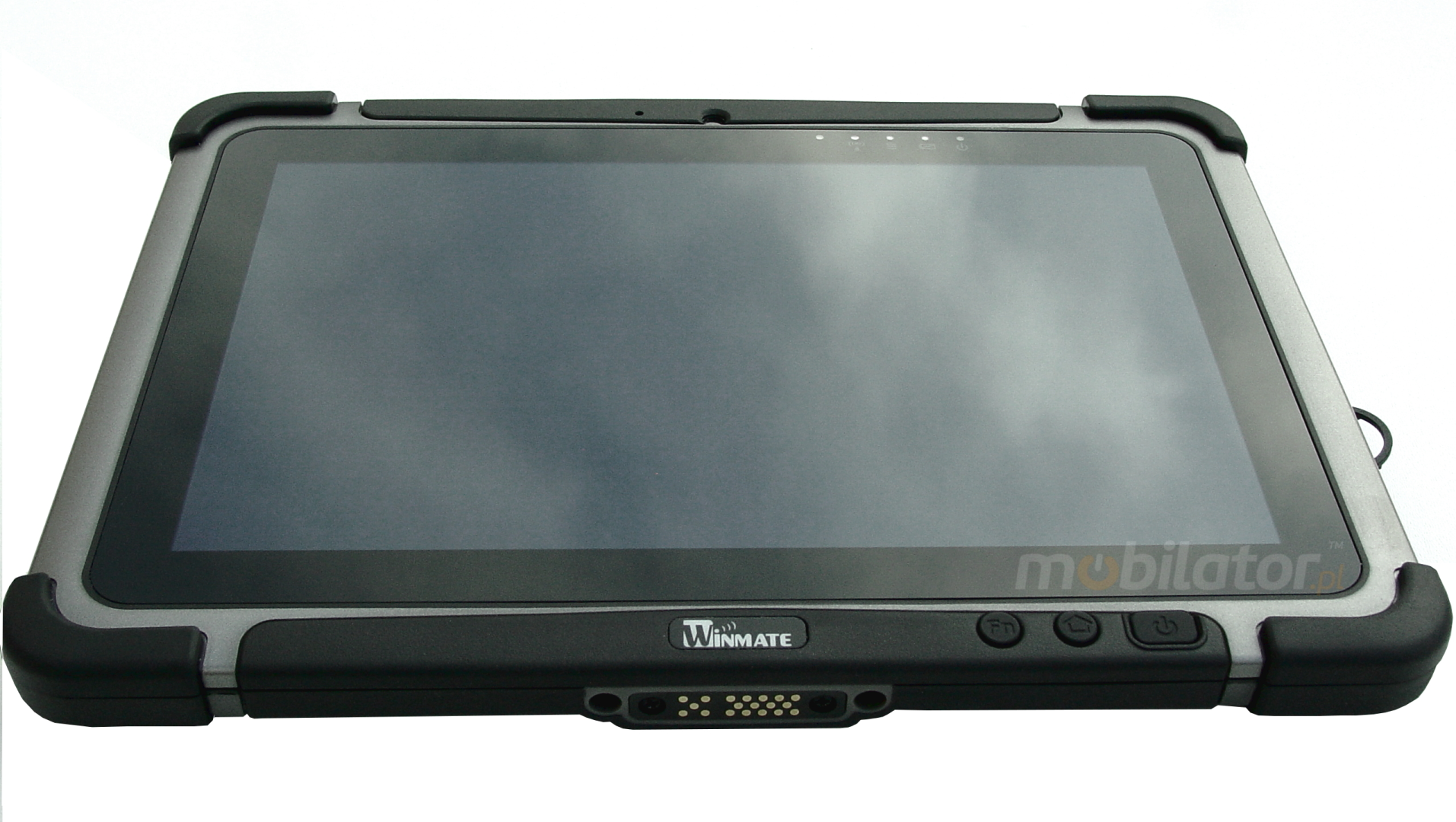

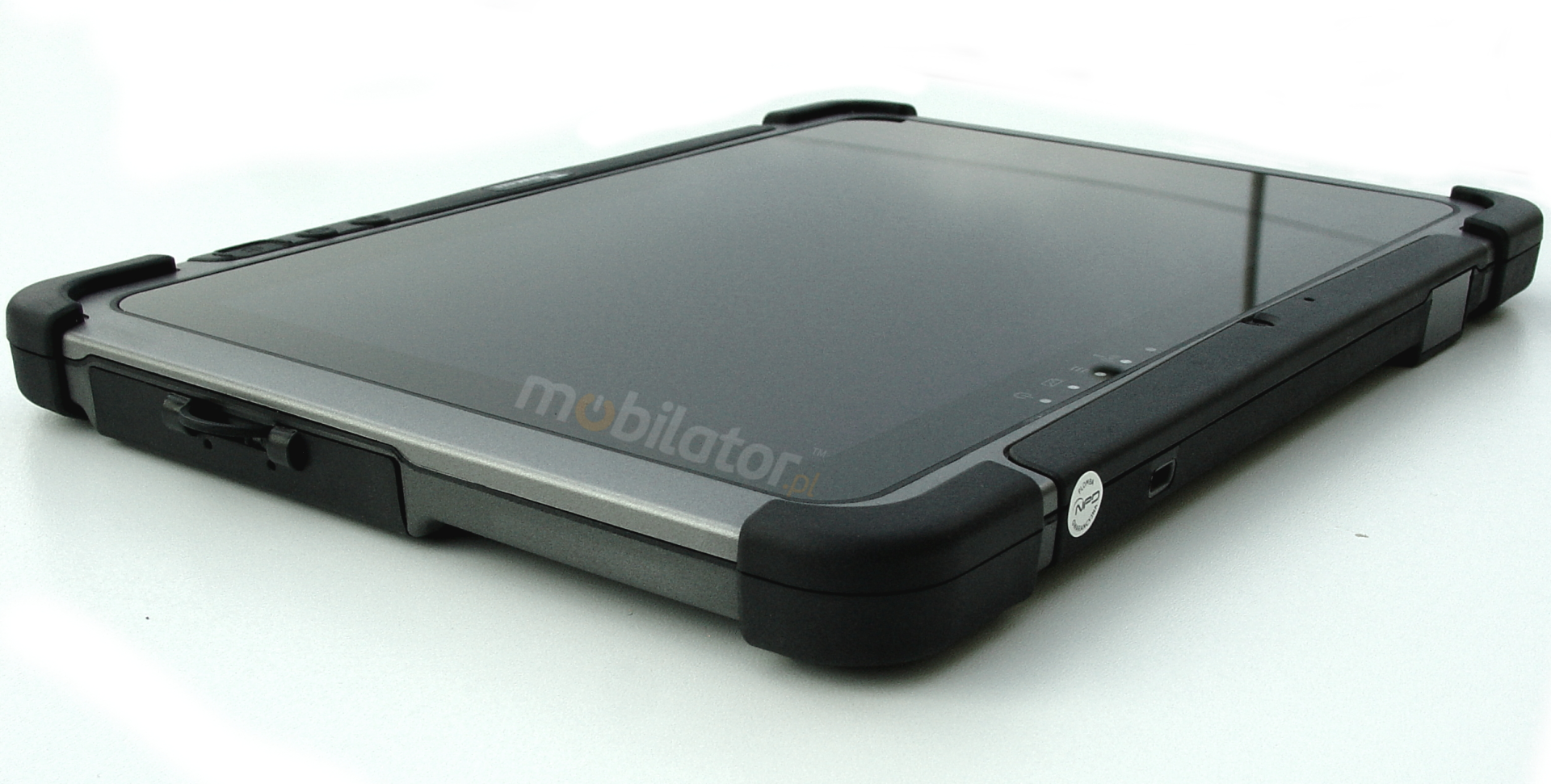

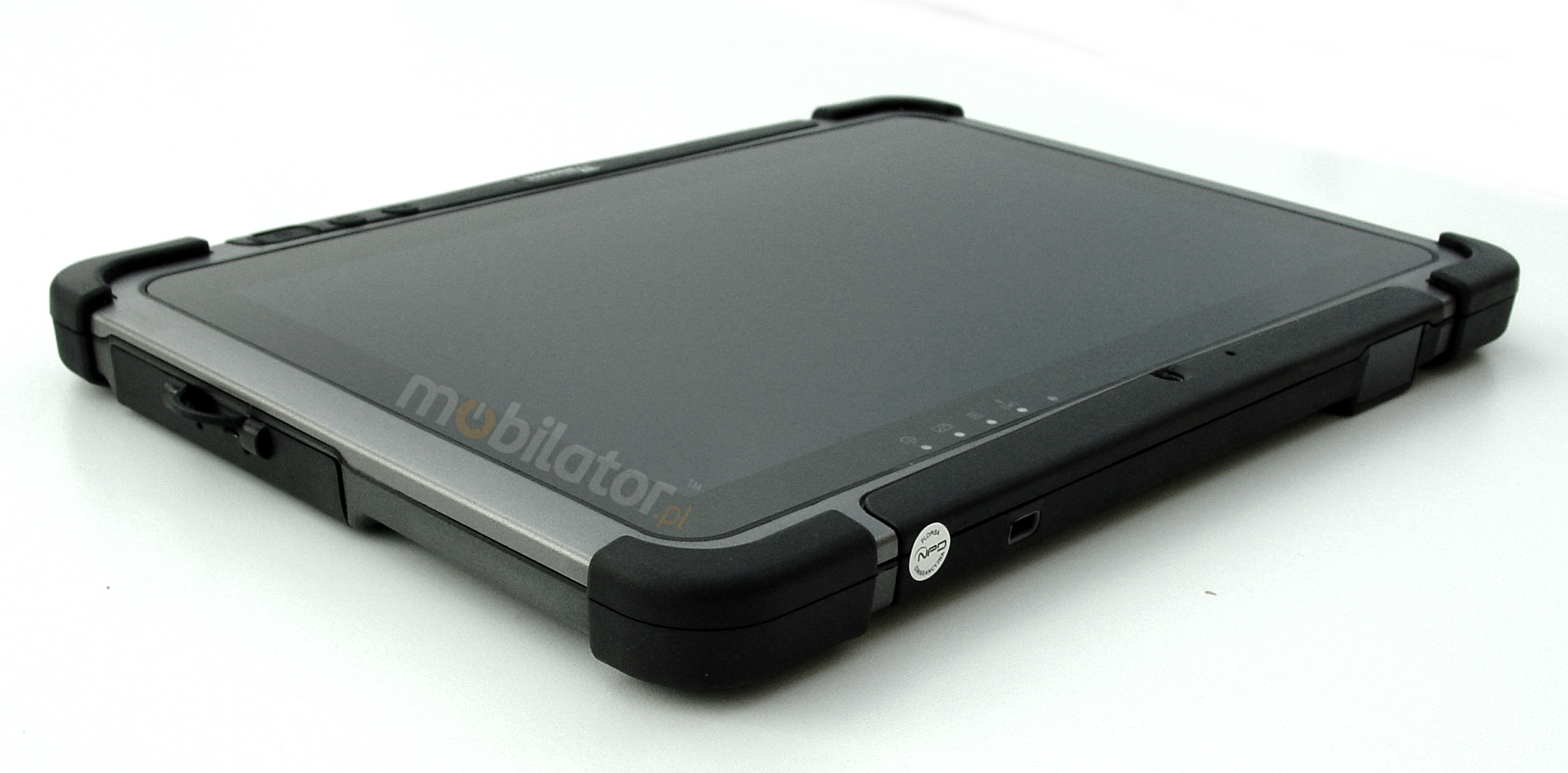

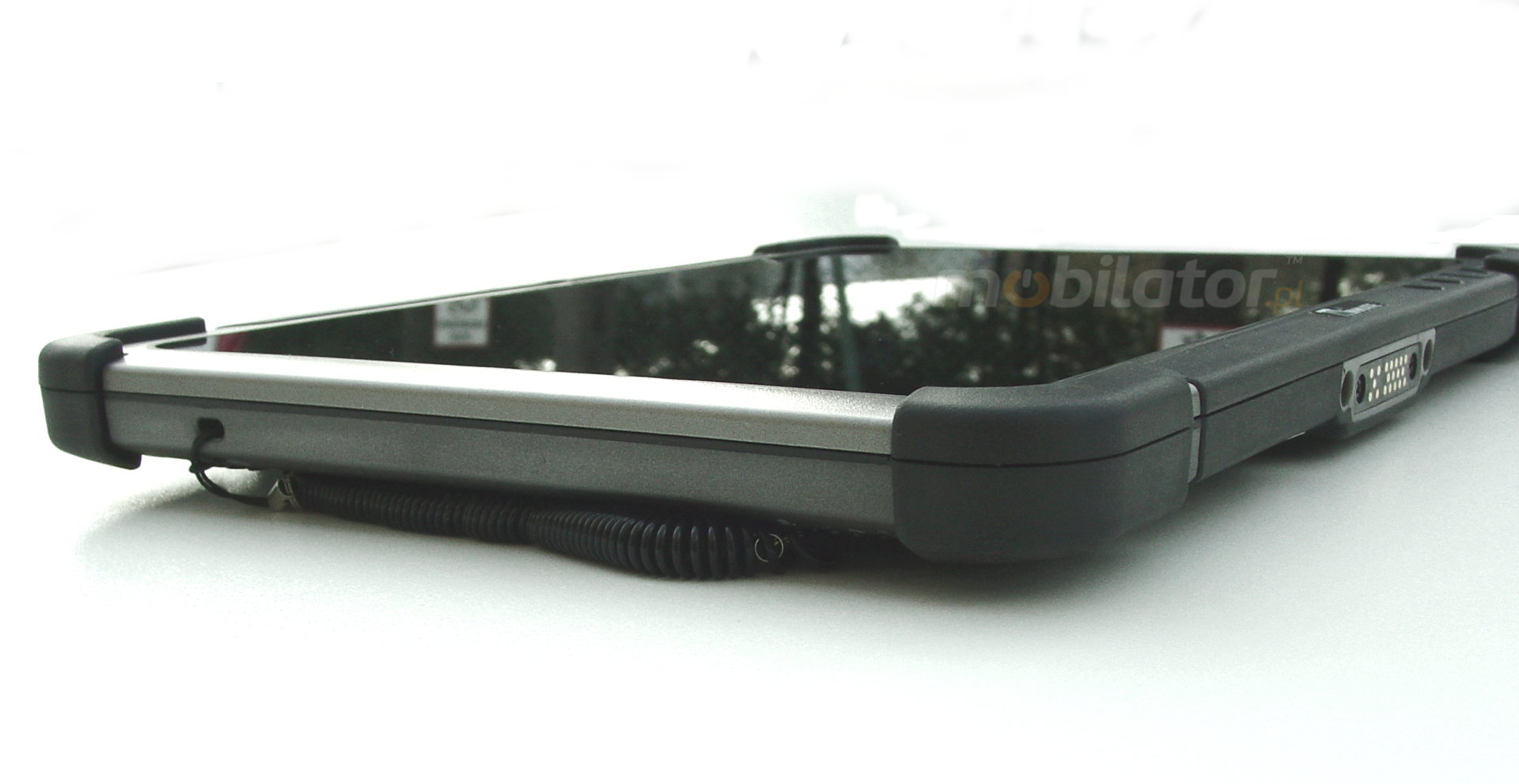

Winmate describes the M101BL - ST tablet as "rugged" and with its corner protection it certainly looks much tougher than all those Barbie-thin and fragile consumer tablets. Given Winmate's experience in rugged mobile computing, we assume those are just partial specs.



go top... menu…

specification of this version is available in the "Technical data" ...
